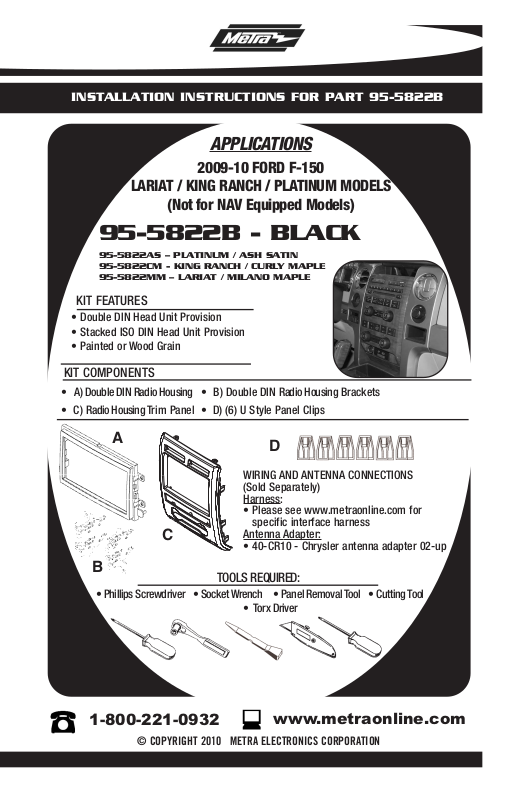

Metra Electronics 955822 User Manual
INSTALLATION INSTRUCTIONS FOR PART 95-5822B
APPLICATIONS
2009-10 FORD F-150
LARIAT / KING RANCH / PLATINUM MODELS
(Not for NAV Equipped Models)
95-5822B - BLACK
95-5822AS – PLATINUM / ASH SATIN
95-5822CM - KING RANCH / CURLY MAPLE
95-5822MM – LARIAT / MILANO MAPLE
KIT FEATURES
• Double DIN Head Unit Provision
• Stacked ISO DIN Head Unit Provision
• Painted or Wood Grain
KIT COMPONENTS
• A) Double DIN Radio Housing • B) Double DIN Radio Housing Brackets
• C) Radio Housing Trim Panel • D) (6) U Style Panel Clips
A
C
B
• Phillips Screwdriver • Socket Wrench • Panel Removal Tool • Cutting Tool
TOOLS REQUIRED:
1-800-221-0932
© COPYRIGHT 2010 METRA ELECTRONICS CORPORATION
D
WIRING AND ANTENNA CONNECTIONS
(Sold Separately)
Harness:
• Please see www.metraonline.com for
specific interface harness
Antenna Adapter:
• 40-CR10 - Chrysler antenna adapter 02-up
• Torx Driver
www.metraonline.com
95-5822B
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
TABLE OF CONTENTS
Dash Disassembly
-
FORD F-150 2009- 10 ..............................
. 1,2
Kit Preparation
-
FORD F-150 2009-10................................
.3
Kit Assembly
- Double DIN Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Final
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
*Note:
Refer also to the instructions included with the aftermarket radio.
95-5822B DASH DISASSEMBLY
2009-10 FORD F-150
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
2
Unclip and remove the switch panel
to the right of the cigarette lighter
then remove the (1) 9/32” screw
exposed. (
Remove the rubber pad at the top of
3
the radio trim panel then remove the
(2) 9/32” screws exposed. (
4
Unclip and pull the side panels containing the a/c vents away from the
radio trim panel. Note:
essary to remove the panels completely. (
5
Unclip and remove the radio trim
panel. (
Figure A)
Figure B)
It is not nec-
Figure C)
Figure D)
A
B
Continued on page 2.
D
C
1
