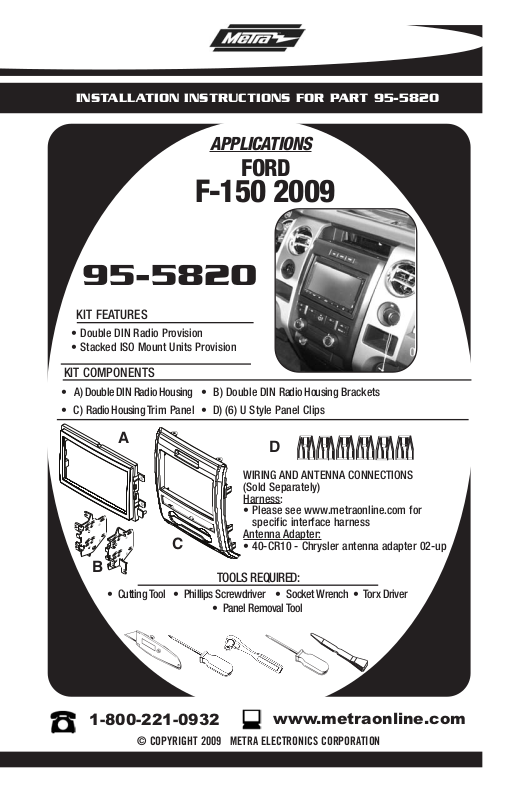

INSTALLATION INSTRUCTIONS FOR PART 95-5820
APPLICATIONS
FORD
F-150 2009
95-5820
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
KIT COMPONENTS
• A) Double DIN Radio Housing • B) Double DIN Radio Housing Brackets
• C) Radio Housing Trim Panel • D) (6) U Style Panel Clips
A
C
B
• Cutting Tool • Phillips Screwdriver • Socket Wrench • Torx Driver
TOOLS REQUIRED:
• Panel Removal Tool
1-800-221-0932
© COPYRIGHT 2009 METRA ELECTRONICS CORPORATION
D
WIRING AND ANTENNA CONNECTIONS
(Sold Separately)
Harness:
• Please see www.metraonline.com for
specific interface harness
Antenna Adapter:
• 40-CR10 - Chrysler antenna adapter 02-up
www.metraonline.com
95-5820
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
TABLE OF CONTENTS
Dash Disassembly
-
FORD F-150 2009 .................................
. 1,2
Kit Preparation
-
FORD F-150 2009 ...................................
.3
Kit Assembly
- Double DIN Radio Provision / Stacked ISO Mount Units Provision . . . . 4
Final
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
*Note:
Refer also to the instructions included with the aftermarket radio.
95-5820 DASH DISASSEMBLY
FORD F-150 2009
Disconnect the negative battery
1
terminal to prevent an accidental
short circuit.
Unclip and remove the switch panel
2
to the right of the cigarette lighter
then remove the (1) 9/32” screw
exposed. (
Remove the rubber pad at the top of
3
the radio trim panel then remove the
(2) 9/32” screws exposed. (
Unclip and pull the side panels con-
4
taining the a/c vents away from the
radio trim panel.
essary to remove the panels completely. (
Unclip and remove the radio trim
5
panel. (
Continued on page 2.
Figure A)
Figure B)
Note: It is not nec-
Figure C)
Figure D)
A
B
D
C
1
95-5820 DASH DISASSEMBLY
FACTORY RADIO TRIM PAN EL-REAR VIEW
FORD F-150 2009
Unclip and remove the hazard/airbag
6
switch assembly from the factory
radio trim panel. (
Unclip and remove the cigarette
7
lighter socket from the radio trim
Figure F)
panel. (
Remove (4) Torx screws securing the
8
factory climate control to the radio
trim panel. (
Figure E)
Figure G)
E
Remove (4) 9/32” screws to remove
9
the factory radio.
Continue to final preparation.
F
G
2

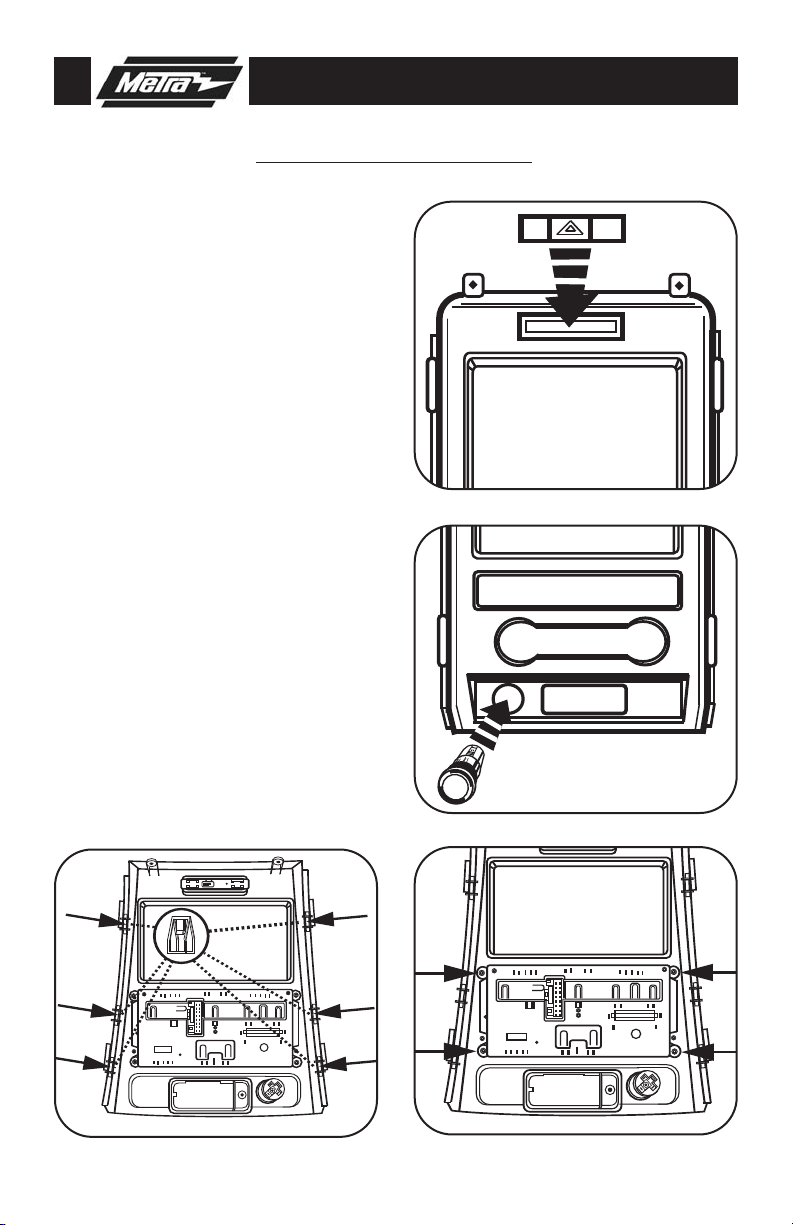

95-5820 KIT PREPARATION
KIT REPLACEMENT RADIO TRIM PANEL-REAR VIEW
KIT REPLACEMENT RADIO TRIM PANEL-REAR VIEW
FORD F-150 2009
Clip the hazard/airbag switch
1
assembly into the radio housing in
the same location as the factory
radio trim panel. (
Clip the cigarette lighter socket into
2
the radio housing in the same location as the factory radio trim panel.
Figure B)
(
Secure the climate control into the
3
radio housing using the factory
hardware in the same location as
the factory radio trim panel. (
Attach the (6) U style panel clips to
4
the radio housing in the same
location as the factory radio trim
Figure D)
panel. (
Figure A)
A
B
Figure C)
Continue to kit assembly.
D
C
3

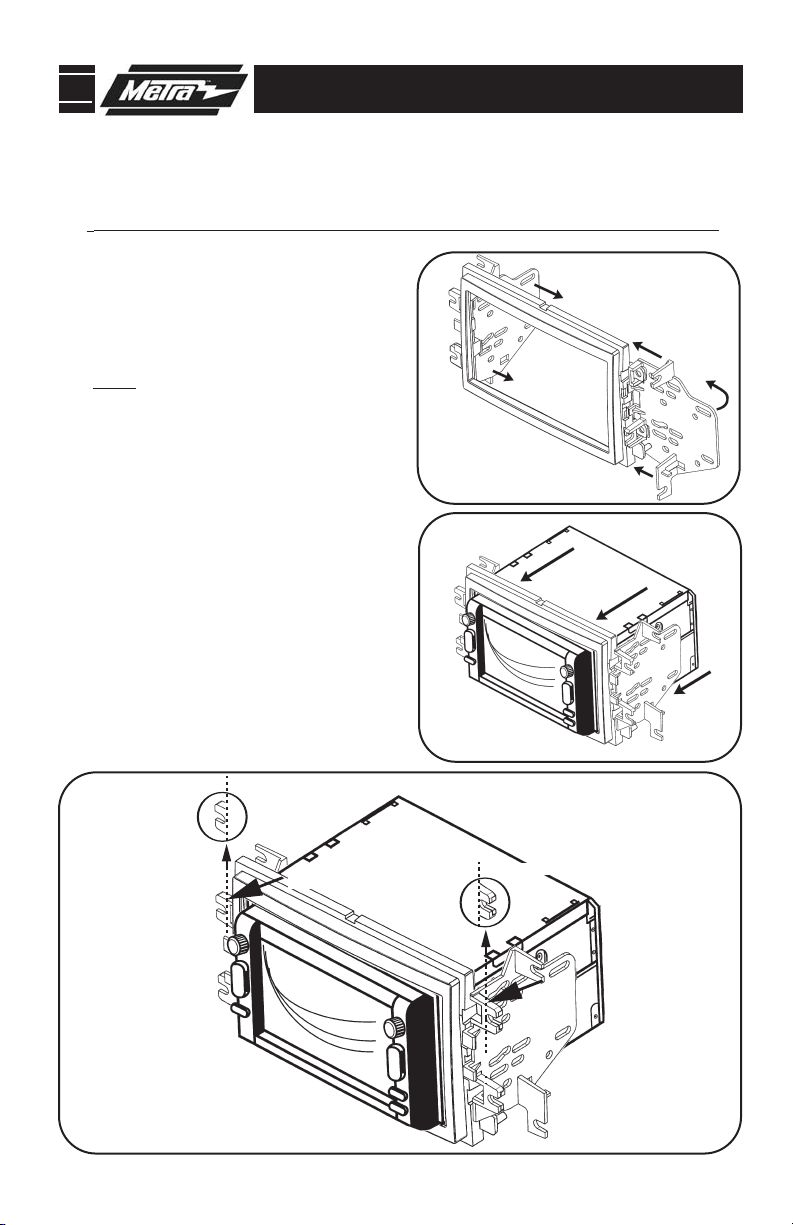

95-5820 KIT ASSEMBLY
CUT HERE -
CUT HERE
TOP LEG ONLY
TOP LEG ONLY
CUT
CUT
DOUBLE DIN RADIO PROVISION OR
STACKED ISO MOUNT UNIT(S) PROVISION
*
Note: Refer also to the instructions included with the aftermarket radio.
Slide the appropriate side bracket
1
over the mounting legs of the Double
DIN trim plate aligning the holes in
the trim plate and the bracket and
rotate inward.
Note: The notch in the housing
should be on top.
Slide the Double DIN or stacked ISO
2
(Figure A)
mount units into the bracket/radio
housing assembly and secure the
Double DIN or stacked ISO mount
units to the assembly using the
screws supplied with the Double DIN
or stacked ISO mount units.
Cut and remove half of the top (2)
3
mounting legs with the brackets
attached.
(Figure C)
(Figure B)
A
B
Continue to final assembly.
C
4
95-5820 FINAL ASSEMBLY
FINAL ASSEMBLY
A
B
(A) Strip wire ends back 1/2"
B) Twist ends together
C
C) Solder
D) Tape
D
Locate the factory wiring harness in the dash. Metra recommends using the proper mating
1
adapter and making the connections as shown. (Isolate and individually tape off the ends of
any unused wires to prevent electrical short circuit).
Re-connect the negative battery terminal and test the unit for proper operation.
2
Reassemble radio and dash assemblies in reverse order of disassembly using the
3
95-5820 radio housing in place of the factory radio trim panel.
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions
included with the head unit. Metra recommends making connections shown below; Strip, Splice,
Solder, Tape. Isolate and individually tape off ends of any unused wires to prevent electrical short
circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
*NOTE:
When a Black wire is not present, ground radio to vehicle chassis. All colors may not be
present on all leads due to manufacturer’s specifications.
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
5
95-5820 INSTRUCTIONS
1-800-221-0932
REV. 05/07/09 © COPYRIGHT 2009 METRA ELECTRONICS CORPORATION INST95-5820
www.metraonline.com
