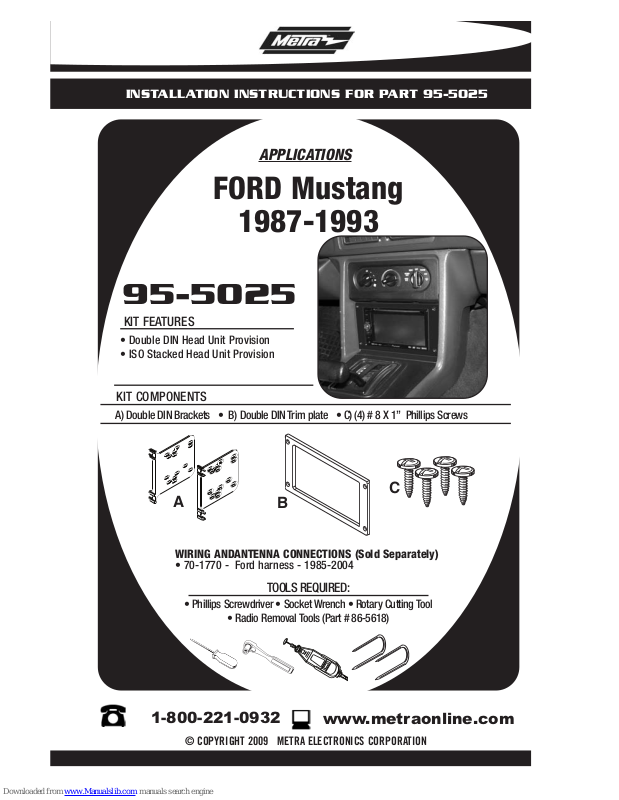

INSTALLATION INSTRUCTIONS FOR PART 95-5025
95-5025
KIT FEATURES
• Double DIN Head Unit Provision
• ISO Stacked Head Unit Provision
A) Double DIN Brackets • B) Double DIN Trim plate • C) (4) # 8 X 1” Phillips Screws
KIT COMPONENTS
A
• Phillips Screwdriver • Socket Wrench • Rotary Cutting Tool
• Radio Removal Tools (Part # 86-5618)
1-800-221-0932
© COPYRIGHT 2009 METRA ELECTRONICS CORPORATION
www.metraonline.com
TOOLS REQUIRED:
APPLICATIONS
FORD Mustang
1987-1993
B
C
WIRING ANDANTENNA CONNECTIONS (Sold Separately)
• 70-1770 - Ford harness - 1985-2004
Page 2
Dash Disassembly
- Ford Mustang 1987-1993 .........................................1
Kit Assembly
- Double DIN Head Unit Provision................ ....................2
- ISO Stacked Head Unit Provision ...................................2
TABLE OF CONTENTS
95-5025
*Note:
Refer also to the instructions included with the aftermarket radio.
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills
by enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com
or call 800-354-6782 for more information
and take steps toward a better tomorrow.
Page 3
95-5025 DASH DISASSEMBLY
FORD MUSTANG 1987-1993
A
1
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
1
Using Metra's 86-5618, pull the
factory head unit from the dash and
disconnect the wiring.
(Figure A)
2
3
Continue to kit assembly.
B
ALSO REMOVE (2) THREADED STUDS FROM UNDER BRACKET
7/16” (2)
HEX BOLTS
RADIO SUB-DASH BRACKET
Remove two 7/16” hex bolts from inside the dash cavity and remove the radio
sub-dash bracket. (See recommended tool list on front cover)
Note:
The threaded studs from under this bracket will also need to be removed for
the aftermarket Double DIN radio to clear.
(Figure B)
Page 4
95-5025 KIT ASSEMBLY
A
Locate the factory wiring harness in
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
1
Attach the Double DIN brackets to the
Double DIN radio or stacked ISO head
units using the screws supplied with
the radio.
(Figure A)
2
3
B
Mount the head unit/ kit assembly to
the dash using the four supplied # 8 x
1” Phillips screws.
(Figure B)
DOUBLE DIN HEAD UNIT PROVISION/
ISO STACKED HEAD UNIT PROVISION
1-800-221-0932
REV. 08-19-09 © COPYRIGHT 2009 METRA ELECTRONICS CORPORATION INST95-5025
www.metraonline.com
