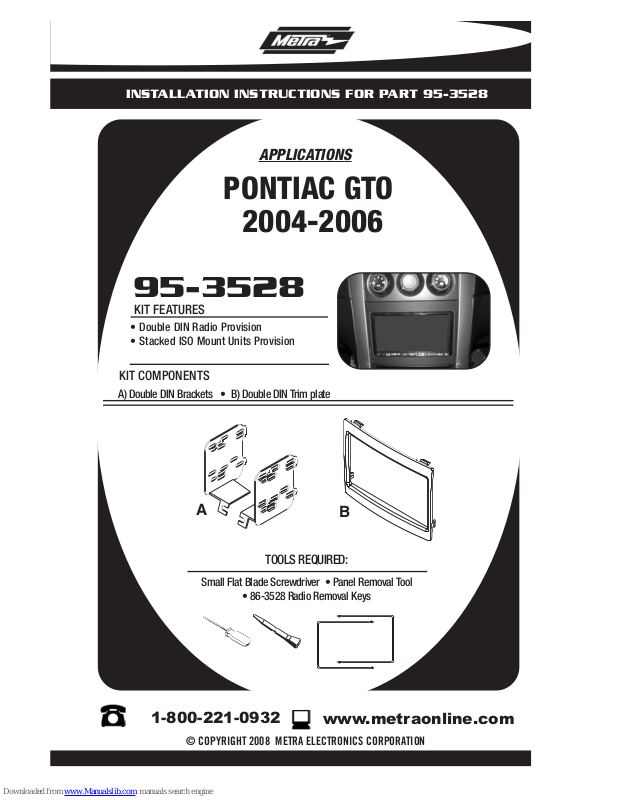

INSTALLATION INSTRUCTIONS FOR PART 95-3528
95-3528
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
A) Double DIN Brackets • B) Double DIN Trim plate
KIT COMPONENTS
A
Small Flat Blade Screwdriver • Panel Removal Tool
• 86-3528 Radio Removal Keys
1-800-221-0932
© COPYRIGHT 2008 METRA ELECTRONICS CORPORA
TION
www.metr
aonline.com
TOOLS REQUIRED:
APPLICATIONS
PONTIAC GTO
2004-2006
B
Page 2
Dash Disassembly
- Pontiac GTO 2004-2006 .........................................1,2
Kit Assembly
- Double DIN Radio Provision ................... ....................3
- Stacked ISO Mount Units Provision . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . 4
Final
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
TABLE OF CONTENTS
95-3528
*Note:
Refer also to the instructions included with the aftermarket radio.
Page 3

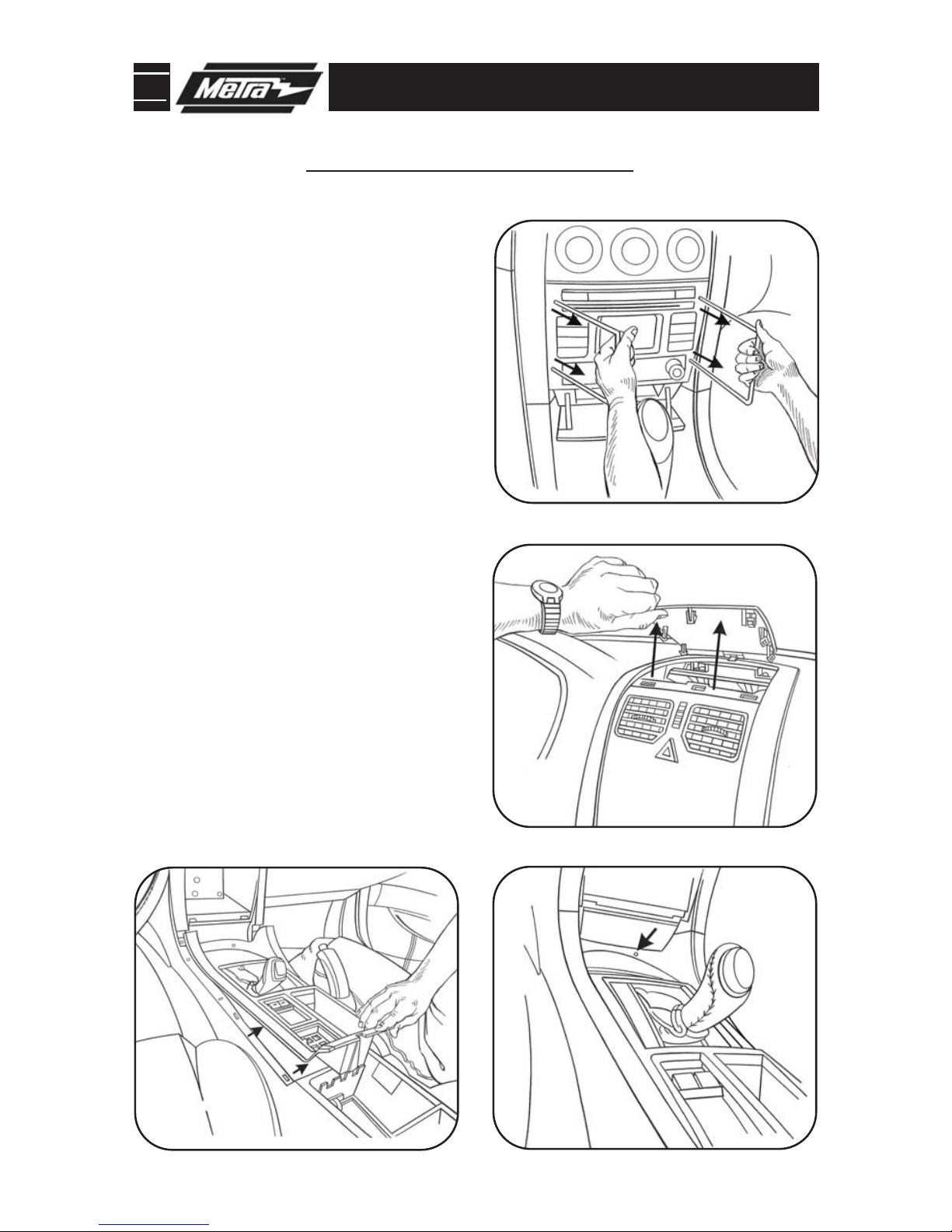

95-3528 DASH DISASSEMBLY
PONTIAC GTO 2004-2006
A
1
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1
Using the radio removal keys, pull the
factory radio from the dash and disconnect the wiring.
(Figure A)
2
Remove (1) Phillips screw from inside
lower open storage area where
center console and dash meet.
(Figure C)
4
5
Unsnap and remove center console
(open center armrest/ storage compartment and work forward).
(Figure D)
3
Continue on page 2.
C
D
B
Unsnap and remove the trim panel at
the top center of the dash above the
A/C vents and remove (4) Phillips
screws.
(Figure B)
Page 4
95-3528 DASH DISASSEMBLY
PONTIAC GTO 2004-2006
E
2
Remove (2) Phillips screws exposed
at the bottom of the center panel surrounding radio and remove panel.
(Figure E)
6
Unclip and remove trim panel surrounding radio and A/C controls.
7
Pull down on the "cage" from the
opening inside on the top and
remove.
(Figure G)
9
8
Continue to final assembly.
G
F

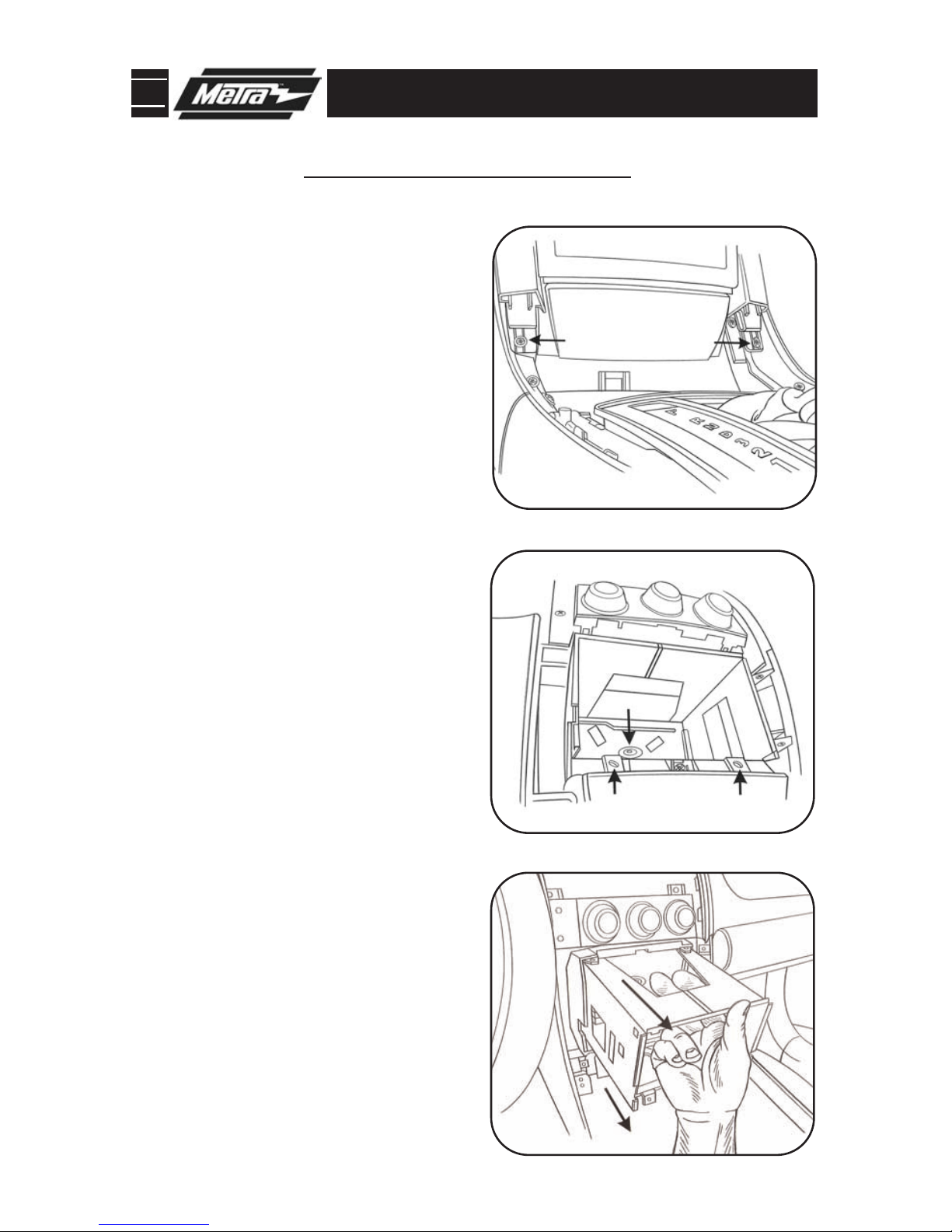

Remove (3) Phillips screws holding
"cage" in radio opening.
(Figure F)
Page 5
3
95-3528 KIT ASSEMBLY
A

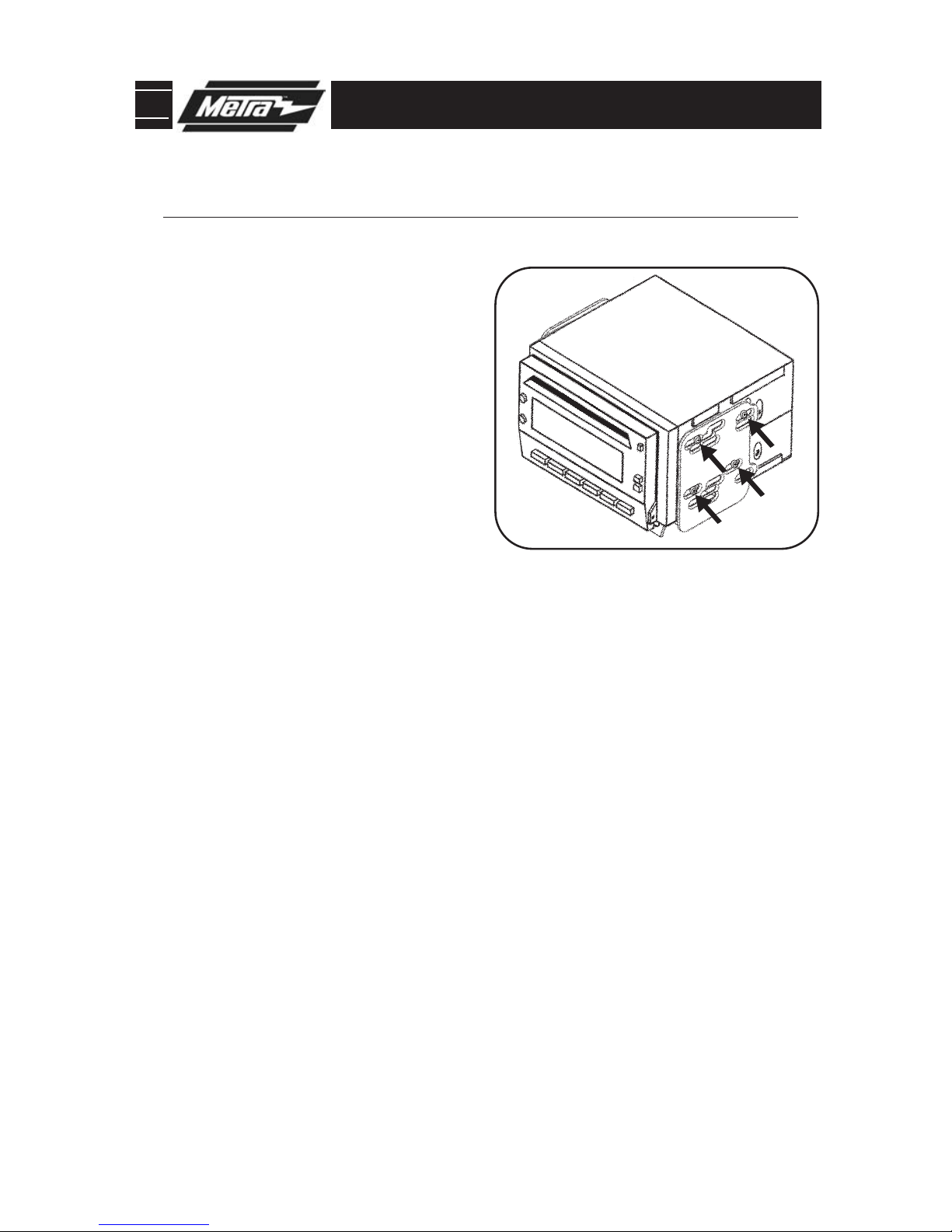

DOUBLE DIN RADIO PROVISION
Attach the Double DIN brackets to the
Double DIN radio unit using the screws
supplied with the radio.
(Figure A)
1
*Note: Refer also to the instructions included with the aftermarket radio.
Continue to final assembly.
Page 6
4
95-3528 KIT ASSEMBLY
A

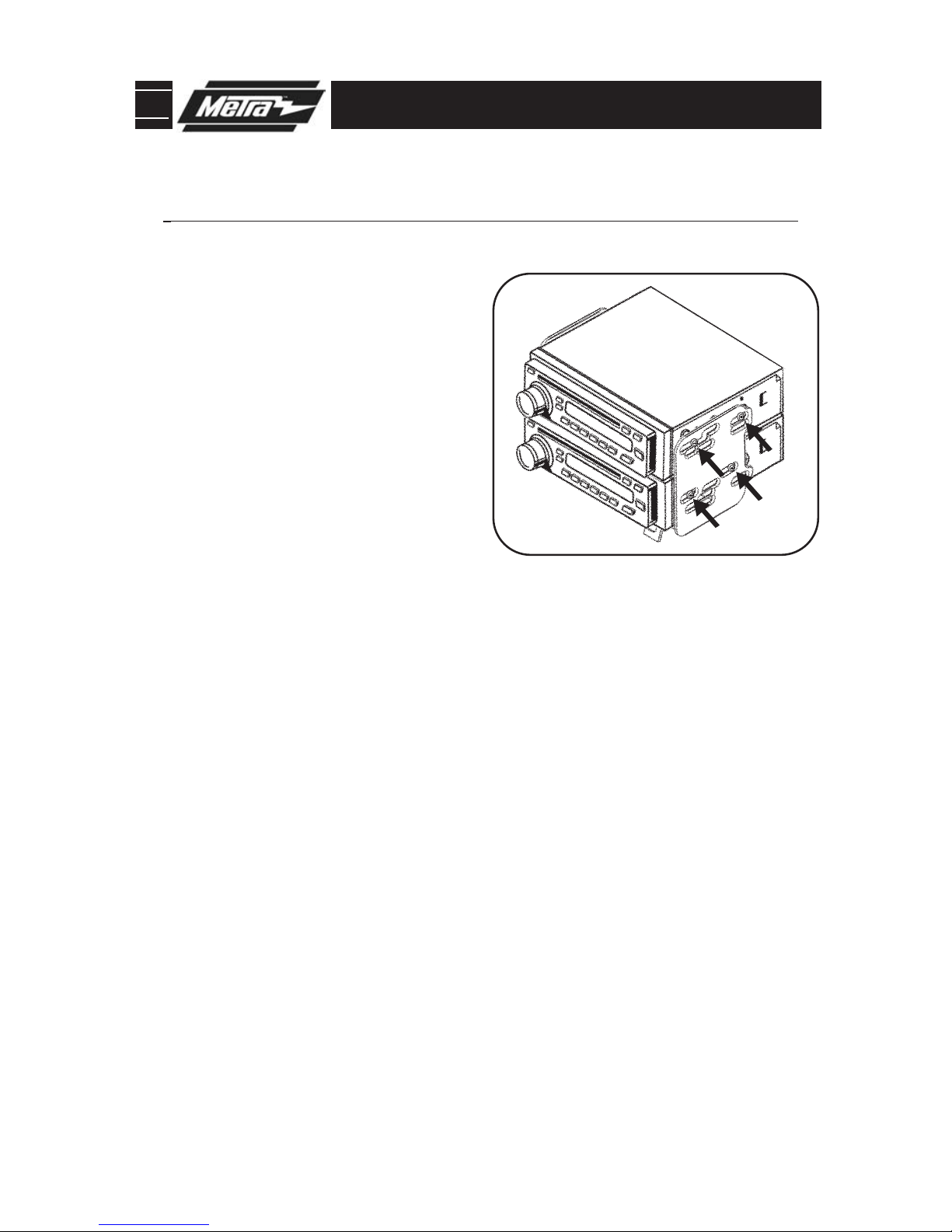

STACKED ISO MOUNT UNITS PROVISION
Attach the Double DIN brackets to the
stacked ISO mount units using the
screws supplied with the units.
(Figure A)
1
*Note: Refer also to the instructions included with the aftermarket radio.
Continue to final assembly.
Page 7

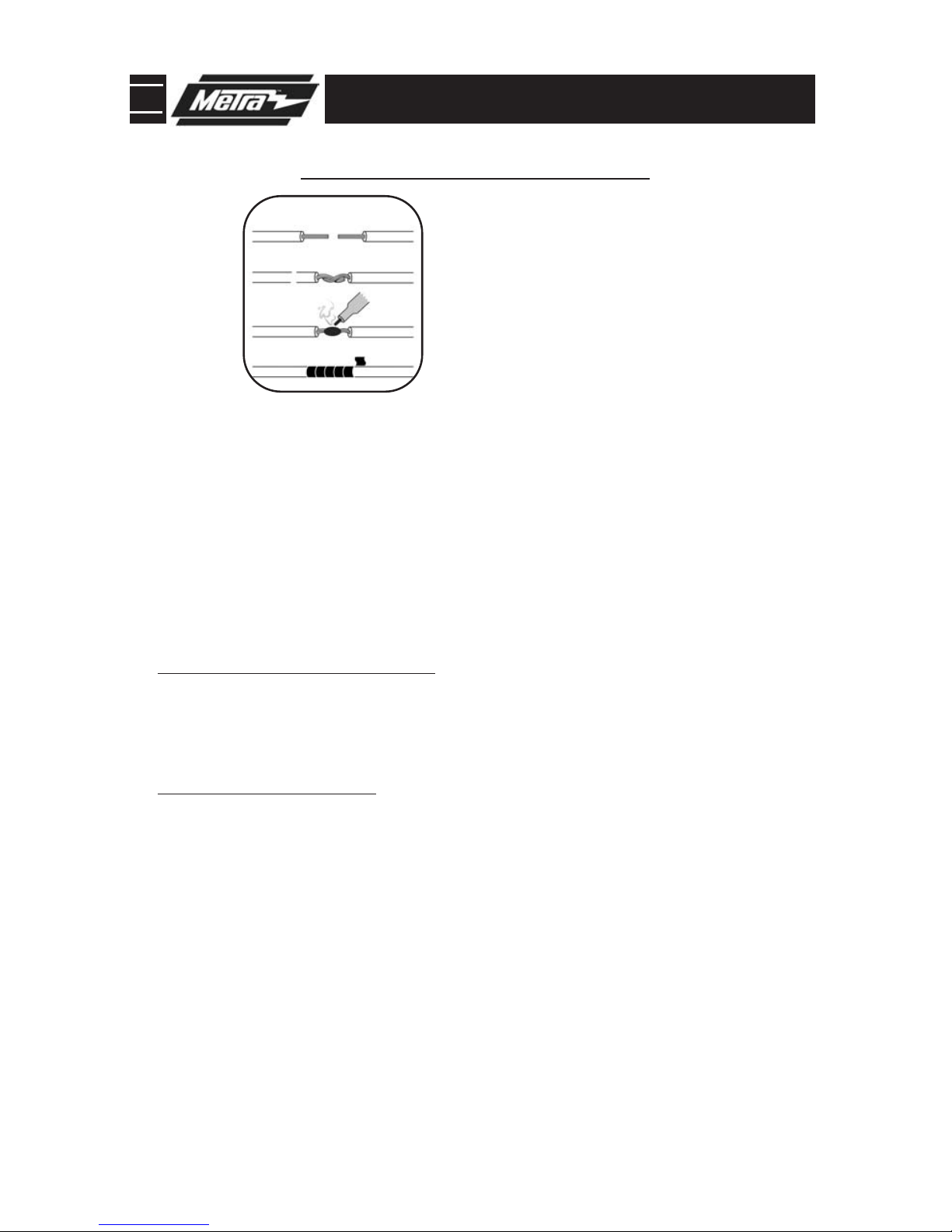

95-3528 FINAL ASSEMBLY
FINAL ASSEMBLY
(A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
A
B
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
Snap the Double DIN trim plate onto the bracket/radio assembly.
1
2
4
Reassemble in reverse order of disassembly.
5
Insert and secure the radio/bracket assembly into the radio opening using the
screws removed in step 8 of disassembly.
3
5
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc . . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . .
Orange /
White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-)
. . . . . . . . . . . . . .
Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
