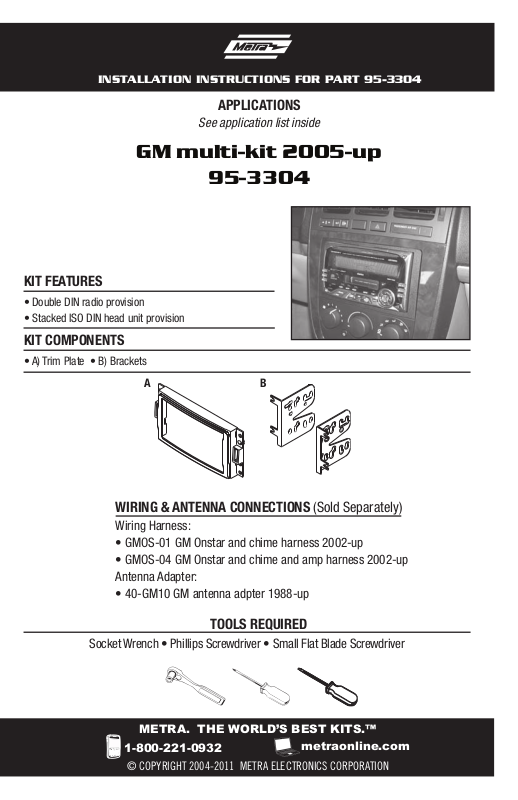

INSTALLATION INSTRUCTIONS FOR PART 95-3304
GM multi-kit 2005-up
KIT FEATURES
• Double DIN radio provision
• Stacked ISO DIN head unit provision
KIT COMPONENTS
• A) Trim Plate • B) Brackets
APPLICATIONS
See application list inside
95-3304
BA
WIRING & ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness:
• GMOS-01 GM Onstar and chime harness 2002-up
• GMOS-04 GM Onstar and chime and amp harness 2002-up
Antenna Adapter:
• 40-GM10 GM antenna adpter 1988-up
TOOLS REQUIRED
Socket Wrench • Phillips Screwdriver • Small Flat Blade Screwdriver
METRA. THE WORLD’S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
metraonline.com
95-3304
Applications
Buick
Terraza 2005-2008
Chevrolet
Corvette 2005-up
Uplander 2005-2008
Hummer
H3 2006-2010
Pontiac
Montana (SV6 only) 2005-2007
Saturn
Relay 2005-2007
Table of Contents
Dash Disassembly
– Buick Terraza 2005-2008 3
– Chevrolet Uplander 2005-2008 3
– Pontiac Montana SV6 2005-2007 3
– Saturn Relay 2005-2007 3

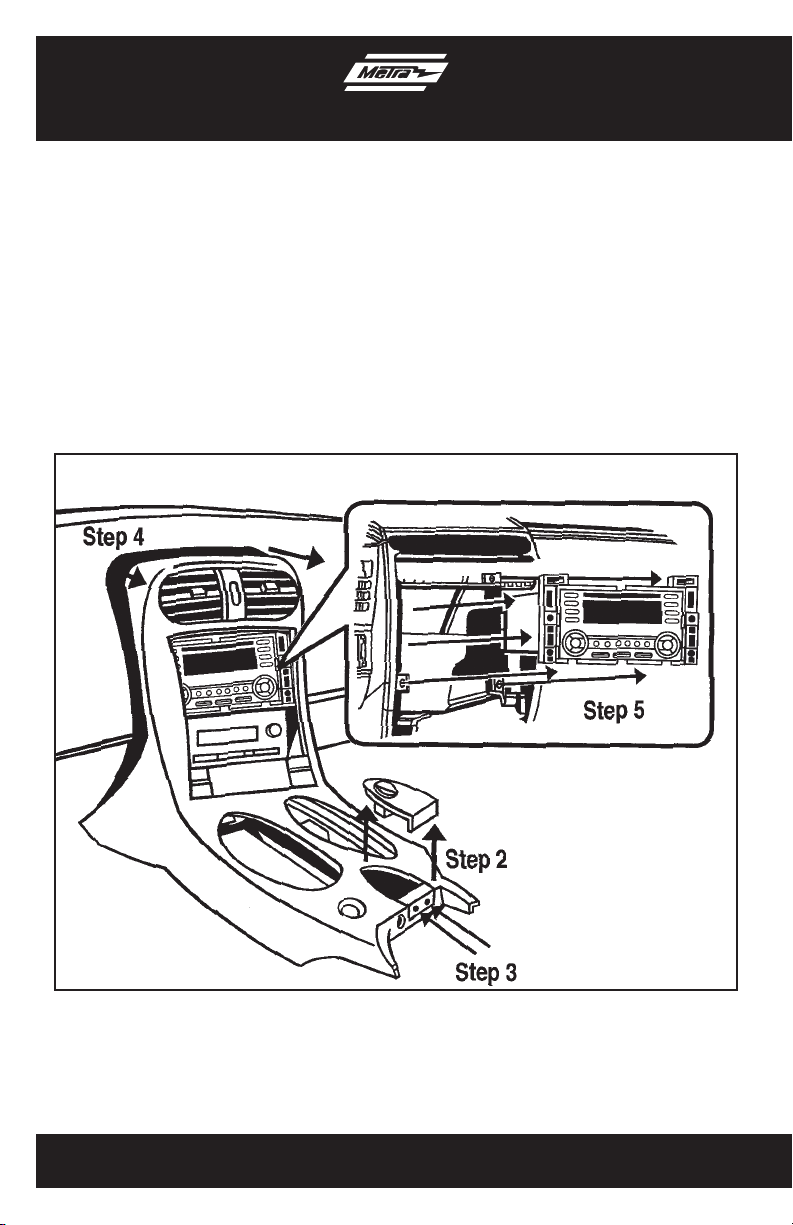

– Chevrolet Corvette 2005-up 4
– Hummer H3 2006-2010 5
Kit Assembly

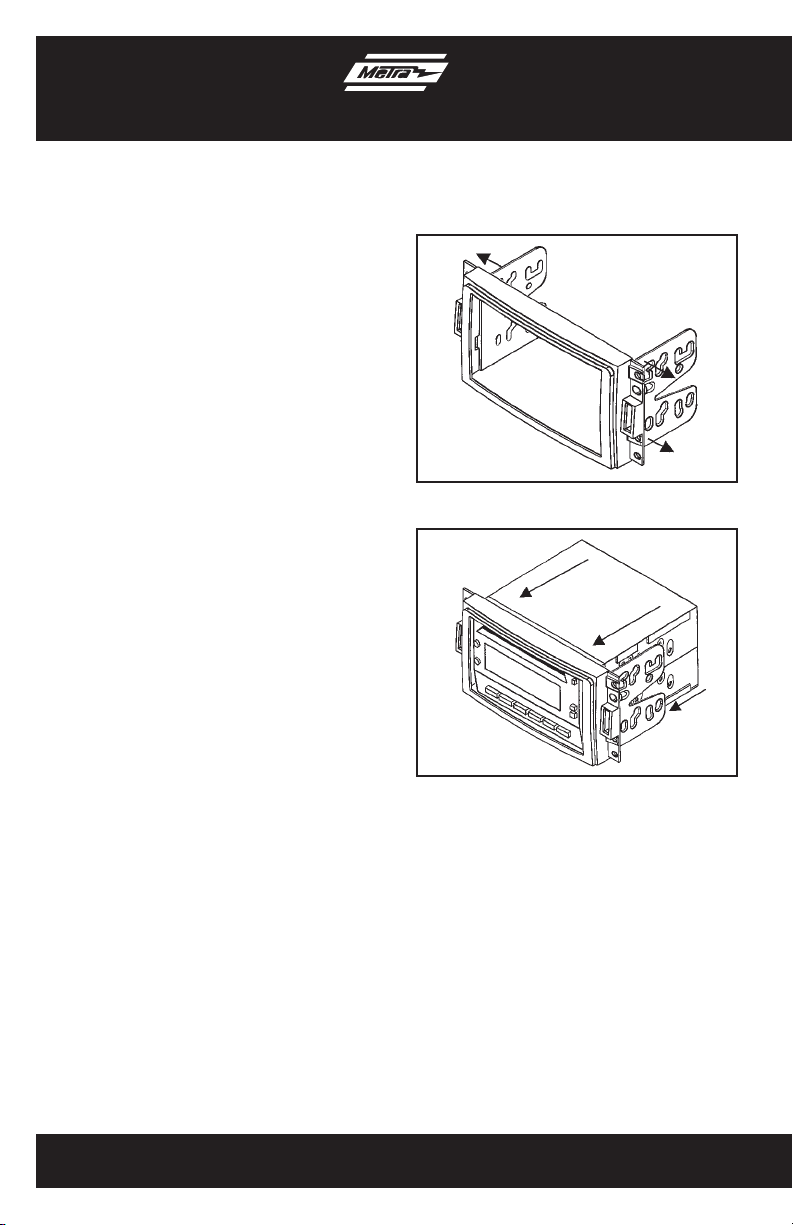

– DDIN head unit provision 6

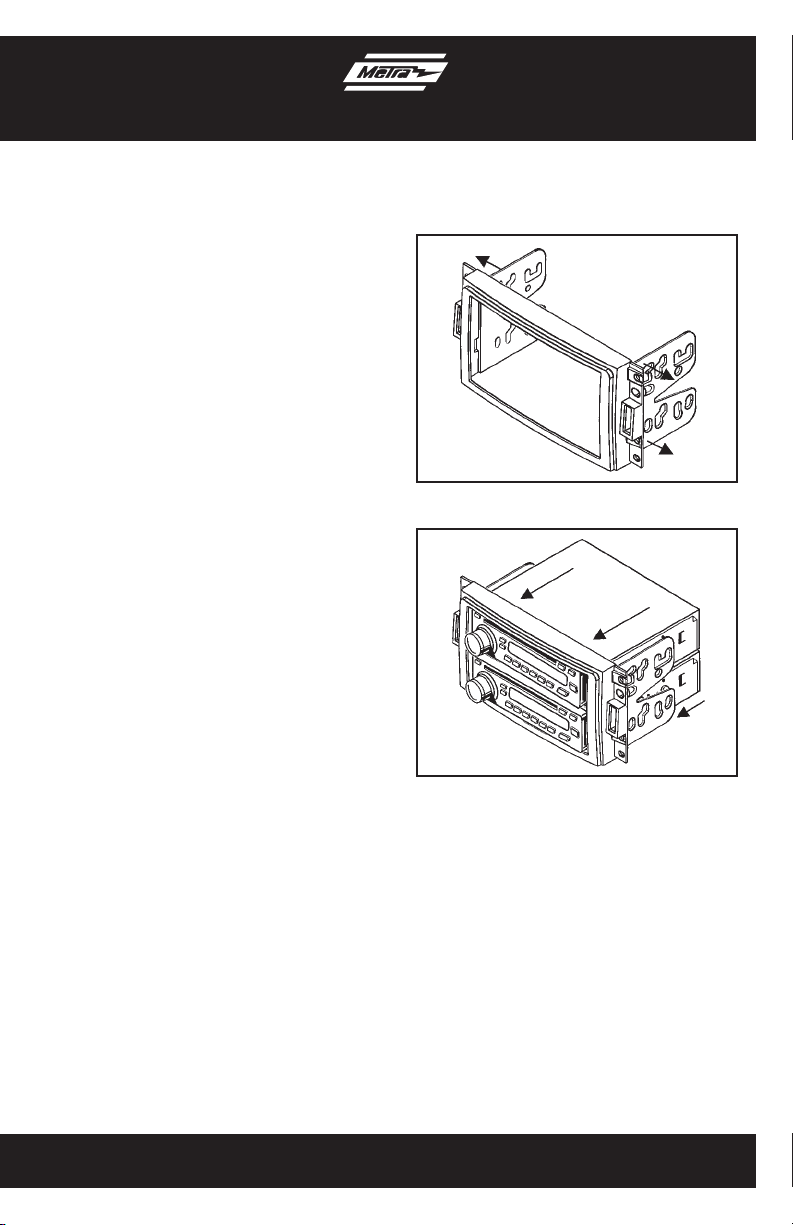

– Stacked ISO DIN head unit provision 7
Caution
Metra recommends disconnecting the negative battery terminal before beginning any
installation. All accessories, switches, and especially air bag indicator lights must be
plugged in before reconnecting the battery or cycling the ignition.
*NOTE: Refer also to the instructions included with the aftermarket radio.
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Metra recommends MECP
certified technicians
Dash Disassembly 95-3304
Buick Terraza 2005-2008
Chevrolet Uplander 2005-2008
Pontiac Montana SV6 2005-2007
Saturn Relay 2005-2007

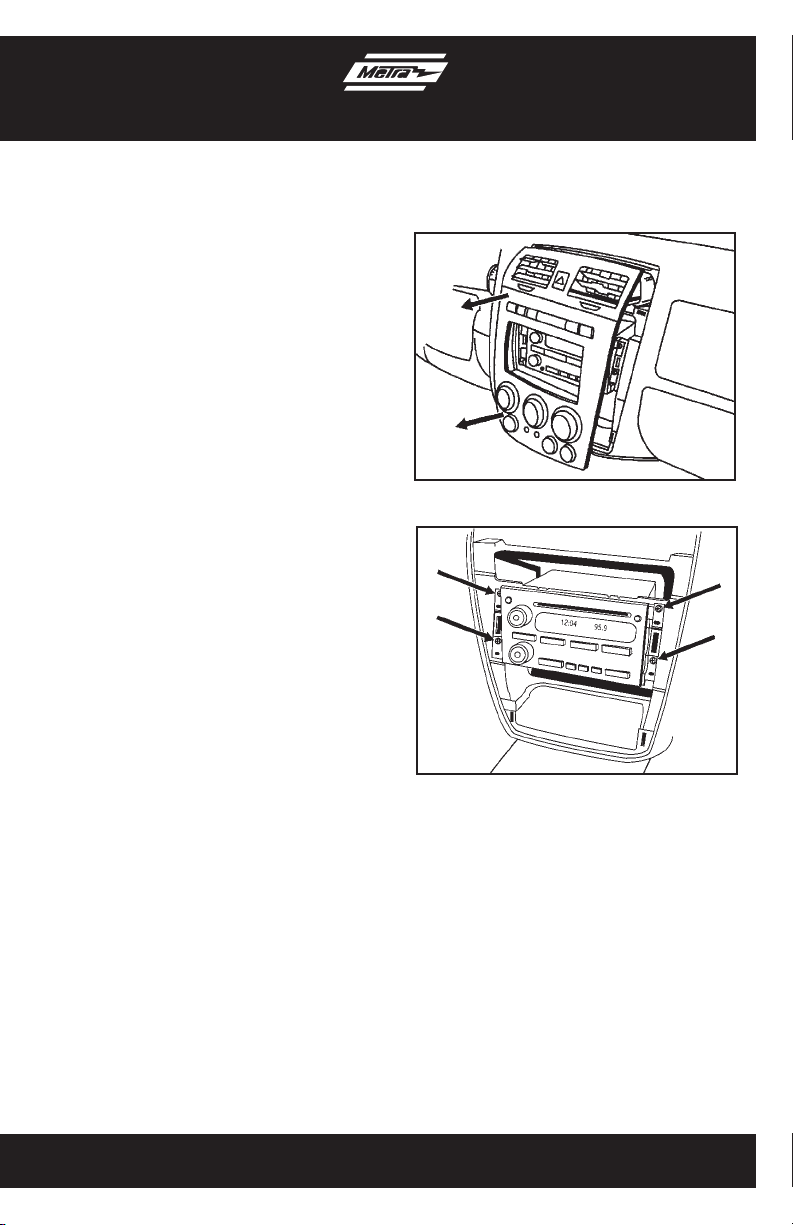

1. Unclip and remove trim panel around
radio and a/c control. (Figure A)
2. Remove (8) 9/32” screws to extract
radio and a/c control from sub dash.
(Figure A)
Continue to kit assembly
(Figure A)
3
