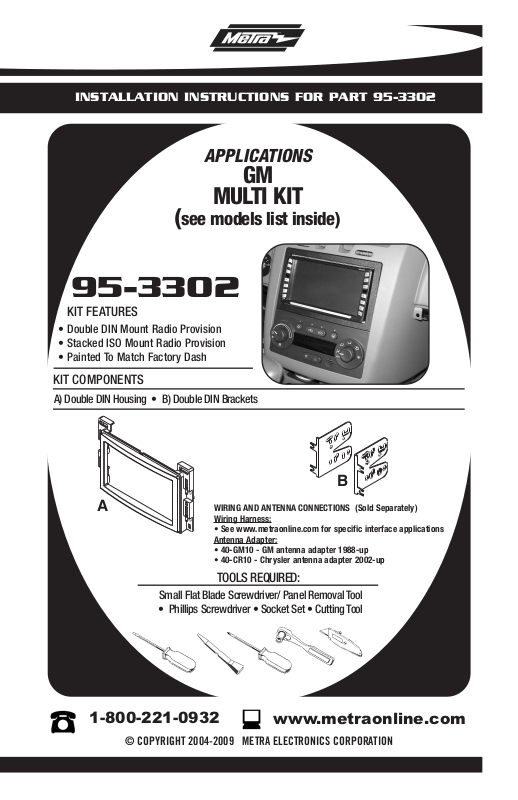

Metra Electronics 95-3302 User Manual

INSTALLATION INSTRUCTIONS FOR PART 95-3302

APPLICATIONS

GM

MULTI KIT

see models list inside)

(

95-3302

KIT FEATURES

• Double DIN Mount Radio Provision

• Stacked ISO Mount Radio Provision

• Painted To Match Factory Dash

KIT COMPONENTS

A) Double DIN Housing • B) Double DIN Brackets

A

Small Flat Blade Screwdriver/ Panel Removal Tool

• Phillips Screwdriver • Socket Set • Cutting Tool

1-800-221-0932

© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION

WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness:

• See www.metraonline.com for specific interface applications
Antenna Adapter:

• 40-GM10 - GM antenna adapter 1988-up

• 40-CR10 - Chrysler antenna adapter 2002-up

TOOLS REQUIRED:

www.metraonline.com

B

95-3302

K

NOWLEDGE IS POWER

Enhance your installation and fabrication skills
by enrolling in the most recognized and
respected mobile electronics school in our
industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take

TABLE OF CONTENTS

Dash Disassembly

Chevrolet

-

Cobalt 2005-2010 . . . . . . . .

-

Equinox 2005-2006 . . . . . .

- HHR

2006-2010. . . . . . .. . . . .

-

Malibu 2004-2007 . . . . . . . . . .

-

Malibu 2008-2010 . . . . . . . . . . .

. . . . . . . .1

. . . . . . . 2

. . . . . . . 3

. . . . .4,5

. . . . .6

Pontiac

-

G5 2007-2009 ...................

-

G6 2005-2009 ..................

-

Solstice 2006-2009 . . . . . . . . . . .

-

Torrent 2006....................

.. 7

. .. .8

.. 2

Kit Assembly

Double DIN Mount Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Stacked ISO Mount Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

.1

Saturn

-

Aura 2007-2009 . . . . . . . . . . . . . . .

-

Ion 2006-2007 . . . . . . . . . . . . . . .

-

Sky 2006-2009 . . . . . . . . . . . . . . . . .

- Vue

2006-2007 ................

. . .9

. . . .10

..11

. ..12

Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Note: (Cobalt and G5 2005-2006)
To retain Onstar use 99-3303 instead.

(Malibu and G6 only)

Note:

•The Driver Information Center and radio are one unit. Removal of the radio
will prohibit the vehic
Driver Information Center. However once the features are programmed the

le will retain all the settings. An alternative kit 99-3303 inludes a

vehic
replacement driver information center with programming capabilities.

The 99-3303 does not allow for Double DIN installations.

• Refer also to the instructions inc

le owner from programming any of the features of the

luded with the aftermarket radio.

95-3302 DASH DISASSEMBLY

Chevrolet Cobalt 2005-2010/Pontiac G5 2007-09

A

Disconnect the negative battery ter-

1

minal to prevent an accidental short
circuit.

Unclip and remove trim panel from

2

above glove box. (Figure A)

Unclip upper edge of panel below

3

steering column and let hang. Not
necessary to remove completely.

(Figure B)

Unclip and remove small trim panel to

4

right of ignition switch. (Figure C)

5

Unclip and remove trim panel sur­rounding radio and climate controls.

(Figure D)

B

C

Remove (4) 9/32 screws securing

6

radio. Unplug and remove the radio.

(Figure E)

Continue to kit assembly.

DE

1

95-3302 DASH DISASSEMBLY

Chevrolet Equinox 2005-2006

Pontiac Torrent 2006

Disconnect the negative battery ter-

1

minal to prevent an accidental short
circuit.

Unsnap panel below power window

2

switch and remove. Note: This
allows you to unplug the window
switch easier. (Figure A)

Unsnap and remove entire panel sur-

3

rounding radio and shifter. (Figure B)

Remove (4) 9/32 screws securing

4

radio. Unplug and remove the radio.

(Figure C)

A

B

Continue to kit assembly.

C

2

95-3302 DASH DISASSEMBLY

Chevrolet HHR 2006-2010

Disconnect the negative battery ter-

1

minal to prevent an accidental short
circuit.

Unclip and remove entire panel sur-

2

rounding radio and a/c controls
including the a/c vents. (Figure A)

Remove (8) 9/32” screws securing

3

radio and a/c control to remove
radio. (Figure B)

Continue to kit assembly.

B

A

3

95-3302 DASH DISASSEMBLY

Chevrolet Malibu 2004-2007

Disconnect the negative battery ter-

1

minal to prevent an accidental short
circuit.

Unclip and remove wood grain/paint-

2

ed trim pieces from both sides of
steering wheel. (Figure A)

Unclip and remove side panel from

3

driver’s side of dash with door open
and remove (2) 7 MM screws.

(Figure B)

Remove (2) 7 MM screws from bot-

4

tom edge of panel below steering
wheel, unclip panel and let hang. It
is not necessary to completely
remove panel. (Figure C)

Unclip and remove wood

5

grain/painted trim piece from above
glove box. (Figure D)

A

B

C

4

D

95-3302 DASH DISASSEMBLY

Chevrolet Malibu 2004-2007

Unclip and remove side panel from

6

passenger side of dash with door
open and remove (2) 7 MM screws
from behind panel. (Figure E)

Remove (2) 7 MM screws from bot-

7

tom of glove box then open box and
squeeze sides together to open fur­ther and remove the remaining (4)
7MM screws. Unclip the black vent
cover under the glove box then unclip
and remove entire glove box assem­bly. (Figure F)

Unclip and remove trim panel sur-

8

rounding radio and climate controls.
(Figure G)

Remove (4) 7 MM screws securing

9

the radio and (2) 7 MM screws secur­ing the climate control. Unplug and
remove the radio. (Figure H)

E

F

G

Continue to kit assembly.

H

5

95-3302 DASH DISASSEMBLY

Chevrolet Malibu 2008-2010

Disconnect the negative battery

1

terminal to prevent an accidental
short circuit.

Unsnap and remove shifter trim.

2

Note – start around shifter and be
sure to pull down before back
because this panel slides up
under the radio/climate panels.

(Figure A)

Remove (2) 8 mm screws from

3

bottom of radio/climate panel.

Unsnap and remove the climate/radio

4

panel and upper vent trim panel
together. (They can be separated after
removel) (Figure B,C)

Remove (6) 8 mm screws from

5

radio and climate controls.

Continue to kit assembly.

A

B

6

C

95-3302 DASH DISASSEMBLY

Pontiac G6 2005-2009

Disconnect the negative battery ter-

1

minal to prevent an accidental short
circuit.

Open glove box and remove (6)

2

screws from outer edge then unclip
and remove box. (Figure A)

Remove (4) screws from panel

3

below steering column. Unclip and
remove panel. (Figure B)

Unclip and remove center panel sur-

4

rounding radio and A/C controls.

(Figure C)

Remove (4) screws securing the radio.

5

Unplug and remove the radio.
(Figure D)

A

B

C

Continue to kit assembly.

D

7

95-3302 DASH DISASSEMBLY

Pontiac Solstice 2006-2009

Disconnect the negative battery ter-

1

minal to prevent an accidental short
circuit.

Manual transmission:

2

A. Lift up the lower edge of the
instrument panel cluster trim plate

enough to reach underneath and
release the shift boot trim ring
retaining tabs. (Figure A)
B. Lift up on the shift boot and
loosen the setscr
shift lever. (Figure B)

2

Automatic transmission:

A. Unclip and remove shifter trim ring.

(Figure C)

3

Unclip and remove passenger assist
handle trim panel. (Figure D)

Remove (2) bolts securing the pas-

4

senger assist handle and remove

handle. (Figure D)

5

Unclip and remove dash trim panel.

ew to release the

A

B

C

6

Remove (4) screws securing the radio.

Unplug and remove the radio.

Continue to kit assembly.

D

8

95-3302 DASH DISASSEMBLY

Saturn Aura 2007-2009

Disconnect the negative battery ter-

1

minal to prevent an accidental short
circuit.

2

Unclip and remove shifter trim ring.

(Figure A)

Unclip and remo

3

sole trim panel, then remove (2)
screws from bottom edge of dash
trim panel. (Figure B)

Unclip and remove the key switch

4

trim ring, then unclip and remove
dash trim panel. (Figure C)

5

Remove (2) screws securing the cli­mate controls.

6

Remove (4) screws securing the radio.
Unplug and remove the radio.

Continue to kit assembly.

ve the center con-

A

B

C

9

95-3302 DASH DISASSEMBLY

Saturn Ion 2006-2007

1

Disconnect the negative battery ter-

minal to prevent an accidental short
circuit.

Unclip radio trim panel. (Figure A)

2

Unplug connectors from trim panel and
remove panel. (Figure B)

Remove (4) screws securing the

3

radio. Unplug and remove the radio.

A

Continue to kit assembly.

B

10

95-3302 DASH DISASSEMBLY

Saturn Sky 2006-2009

Disconnect the negative battery ter-

1

minal to prevent an accidental short
circuit.

Unclip and remove side panel from

2

driver’s side of dash with door open
and remove (2) 7 MM screws.

(Figure A)

Remove (2) 7 MM screws from bottom

3

edge of panel below steering wheel,
unclip panel and remove panel.

Unclip and remove side panel from

4

passenger side of dash with door
open and remove (2) 7 MM screws
from behind panel. (Figure B)

Open the glove box and disconnect

5

the glove box dampener from the
glove box assembly. Squeeze sides
together to open further. (Figure C)

Remove (2) bolt covers from top

6

edge of glove box frame. (Figure C)

A

B

C

Remove (5) bolts from glove box

7

frame and remove frame. (Figure C)

Unsnap and remove climate control

8

trim panel. (Figure D)

9

Remove (1) screw from lower left
corner of radio trim panel and
unplug connectors to remove panel.

(Figure D)

Remove (4) screws securing the

10

radio. Unplug and remove the radio.

Continue to kit assembly.

D

11

95-3302 DASH DISASSEMBLY

BOTTOM VIEW

Saturn Vue 2006-2007

Disconnect the negative battery ter-

1

minal to prevent an accidental short
circuit.

Grasp the front edge of the shifter

2

trim panel and pull outward and
upward.

3

Squeeze the locking tabs located at
the front edge of the shifter trim
panel together to release the front
edge of the panel from the center
console.

Pull upward on the panel to release

4

the remaining clips, and remove trim
panel.

Remove (4) screws securing storage

5

pocket and remove pocket.

(Figure A)

(Figure B)

(Figure C)

A

B

6

Unclip and remove center dash trim

(Figure D)

panel.

Remove (4) screws securing the

7

radio. Unplug and remove the radio.

Continue to kit assembly.

D

C

12

95-3302 KIT ASSEMBLY

DOUBLE DIN MOUNT RADIO PROVISION

*Note: Refer also to the instructions included with the aftermarket radio.

A

Slide the appropriate bracket into the trim

1

plate aligning the holes in the trim plate to

the clips on the bracket. (Figure A)

2

Slide the DDIN radio unit into the trim plate

acket assembly and secure the unit to the

br

kit using the screws supplied with the head

unit. (Figure B)

3

Aura, Cobalt, G5, HHR,

Sky and Vue only:

Cut and remove top mounting tabs on

h side of the Radio Housing.

eac

(Figure C)

Continue to final assembly.

B

13

C

95-3302 KIT ASSEMBLY

STACKED ISO MOUNT RADIO PROVISION

*Note: Refer also to the instructions included with the aftermarket radio.

Slide the appropriate bracket into the trim

1

plate aligning the holes in the trim plate to

the clips on the bracket. (Figure A)

Slide the stacked ISO DIN units into the trim

2

plate br

acket assembly and secure the units
to the kit using the screws supplied with
the head units. (Figure B)

Aura, Cobalt, G5, HHR,

3

Sky and Vue only:

Cut and remove top mounting tabs on

h side of the Radio Housing.

eac

Continue to final assembly.

A

B

14

C

95-3302 FINAL ASSEMBLY

FINAL ASSEMBLY

A

(A) Strip wire ends back 1/2"

B

B) Twist ends together

C) Solder

C

D

Locate the factory wiring harness in the dash. Metra recommends using the

1

proper mating adapter and making connections as shown. (Isolate and individ­ually tape off the ends of any unused wires to prevent electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

2

Reassemble radio and dash assemblies in reverse order of disassembly.

3

D) Tape

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and

individually tape off ends of any unused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc . . . . . . . . . . Red

12V Batt / Memory. . . . . . . . . Yellow

Ground. . . . . . . . . . . . . . . . . . Black*

Power Antenna. . . . . . . . . . . . Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination . . . . . . . . . . . . . . Orange

Dimmer . . . . . . . . . . . . . . . . . Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) . . . . . . . . . . . . . Green

Left Rear (-) . . . . . . . . . . . . . . Green / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’

s specifications.

15

95-3302

NOTES

16

95-3302

NOTES

17

95-3302 INSTRUCTIONS

1-800-221-0932

REV. 05/03/10 © COPYRIGHT 2001-2010 METRA ELECTRONICS CORPORATION INST95-3302

www.metraonline.com
