Page 1
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 1/4/18 INST95-3009

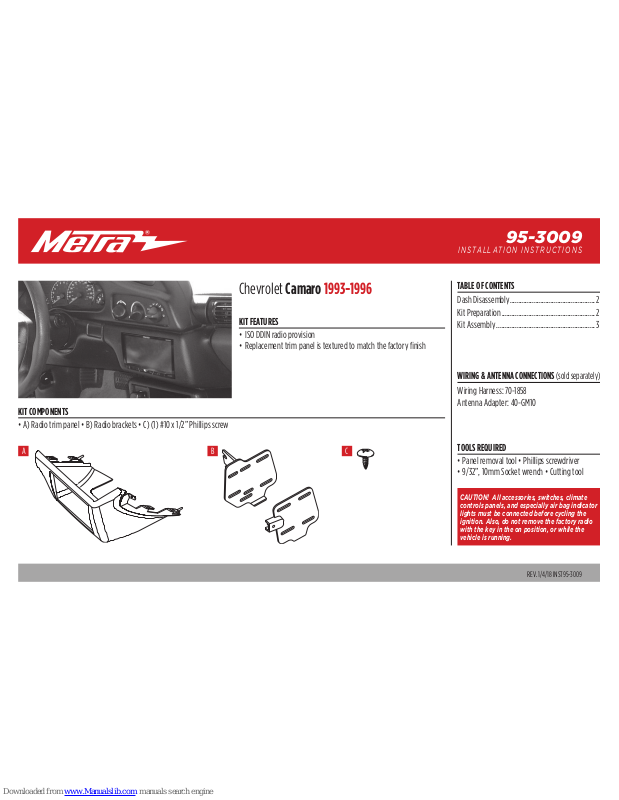

INSTALLATION INSTRUCTIONS
95-3009
KIT FEATURES
• ISO DDIN radio provision
• Replacement trim panel is textured to match the factory finish
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) (1) #10 x 1/2” Phillips screw
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32”, 10mm Socket wrench • Cutting tool
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................2
Kit Assembly ..........................................................3
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: 70-1858
Antenna Adapter: 40-GM10
A B
Chevrolet Camaro 1993-1996
C
Page 2
2
1. Remove (2) Phillips screws from the top
of the driver’s side knee bolster.
2. Remove (2) 9/32” screws from the
bottom of the knee bolster.
3. Open the glove box, remove (3) 9/32”
screws exposed on the right edge of the
radio trim bezel and remove the bezel.
(Figure A)
4. Remove (2) 9/32” screws securing the
left side of the factory radio and (1)
10mm nut securing the right.
5. Slide the radio from the dash and
disconnect the wiring.
Continue to Kit Preparation
DASH DISASSEMBLY KIT PREPARATION
(Figure A)
(Figure A)
1. Using a cutting tool, remove the section
of subdash indicated. (Figure A)
Continue to Kit Assembly
Page 3
REV. 1/4/2018 INST95-3009
3
KIT ASSEMBLY
ISO DDIN radio provision
1. Attach the
radio brackets
to the radio
using the screws supplied with the
radio. (Figure A)
2. Locate the factory wiring harness and
connector in the dash and complete
all necessary connections to the radio.
Metra recommends using the proper
mating adapter from Metra. Test the
radio for proper operation.
3. Secure the completed assembly into
the dash. Use the factory screws for the
drivers side radio bracket and (1) #10
x 1/2” Phillips screw provided into the
passenger side of the radio bracket.
4. Reassemble the dash in reverse order of
disassembly, using the
radio trim panel
instead of the factory panel.
(Figure A)
