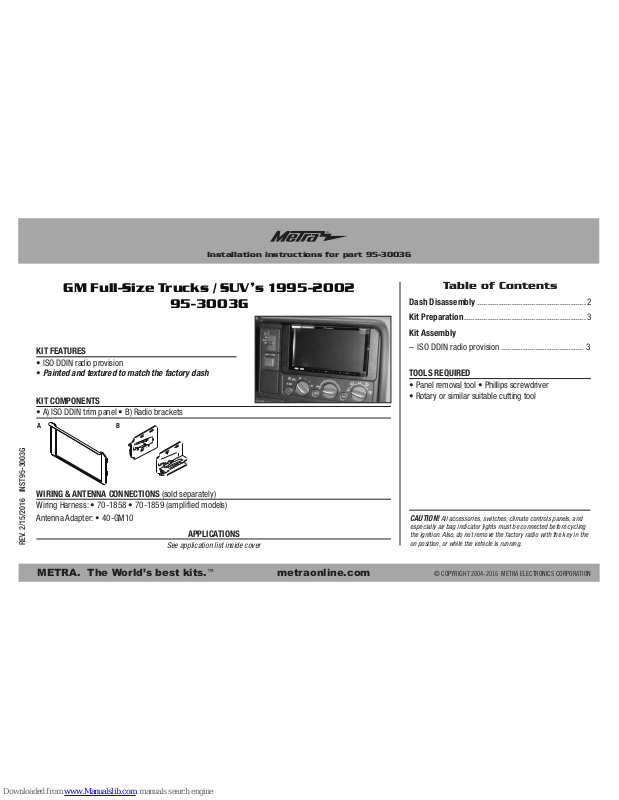

Metra Electronics 95-3003G Installation Manual

Page 1
METRA. The World’s best kits.
metraonline.com
© COPYRIGHT 2004-2016 METRA ELECTRONICS CORPORATION
REV. 2/15/2016 INST95-3003G
Installation instructions for part 95-3003G
CAUTION!
All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the on position, or while the vehicle is running.
• ISO DDIN radio provision
Painted and textured to match the factory dash
• A) ISO DDIN trim panel • B) Radio brackets
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-1858 • 70-1859 (amplified models) Antenna Adapter: • 40-GM10
• Panel removal tool • Phillips screwdriver
• Rotary or similar suitable cutting tool
TOOLS REQUIRED
GM Full-Size Trucks / SUV’s 1995-2002
95-3003G
A B
Dash Disassembly ..................................................2
Kit Preparation ........................................................ 3
Kit Assembly
ISO DDIN radio provision ...................................... 3
Table of Contents
APPLICATIONS
See application list inside cover
Page 2
95-3003G
2
1. With the key in the on position, apply the parking brake, place the shifter into low gear, and then tilt the steering wheel down as far as it will go.
2. Unclip the factory dash panel, unplug all switches, and then remove the panel. (Figure A)
Note: Take precaution pulling
the panel over the factory hazard button.
Continue to kit preparation
Dash Disassembly
(Figure A)
Applications
CADILLAC
Escalade 1999-2000
CHEVROLET
C/K Pickup 1995-2000 Silverado 3500 1999-2000 Silverado 3500 (commercial) 2001 Suburban 1995-1999 Tahoe 1995-1999
GMC
C/K Pickup 1995-1998 Sierra 2500 1999-1999 Sierra 3500 1999-2000 Sierra Classic 1999-2000 Sierra HD 2001-2002 Suburban 1995-1999 Yukon 1995-1999 Yukon Denali 1999-2000
Page 3
95-3003G
(Figure A)
Kit AssemblyKit Preparation
ISO DDIN radio provision
1. Attach the radio brackets to the
radio using the screws supplied with the radio.
2. Locate the factory wiring harness and antenna connector in the dash, and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS.
3. After all connections are made, slide the radio into the dash until the brackets click in.
4. Snap the ISO DDIN trim plate onto the factory dash panel.
5. Reassemble the dash in reverse order of disassembly.
1. Snap the ISO DDIN trim plate onto the dash panel and mark the inside area to be cut with a pencil. (Figure A)
2. Remove the ISO DDIN trim plate, then cut the areas marked out in the previous step.
3. Cut and remove the radio rear support from the dash cavity.
Continue to kit assembly
3
Page 4
METRA. The World’s best kits.
metraonline.com
© COPYRIGHT 2004-2016 METRA ELECTRONICS CORPORATION
REV. 2/15/2016 INST95-3003G
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.
Metra recommends MECP certified technicians
Installation instructions for part 95-3003G
IMPORTANT
If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.
Page 5
METRA. The World’s best kits.
metraonline.com
© COPYRIGHT 2004-2016 METRA ELECTRONICS CORPORATION
REV. 2/15/2016 INST95-3003G
Instrucciones de instalación para la pieza 95-3003G
¡PRECAUCIÓN!
Todos los accesorios, interruptores, paneles de con­troles de clima y especialmente las luces del indicador de las bolsas de aire deben estar conectados antes ciclar la ignición. Además, no quite el radio de fábrica con la llave en la posición o de encendido ni con el vehículo funcionando.
• Provisión de radio ISO DDIN
Pintura y texturizado para igualar el tablero de fábrica
• A) Placa de moldura ISO DDIN • B) Soportes del radio
CARACTERÍSTICAS DEL KIT
COMPONENTES DEL KIT
CABLEADO Y CONEXIONES DE ANTENA (se venden por separado)
Arnés de cableado: • 70-1858 • 70-1859 (Únicamente modelos amplificados) Adaptador de antena: • 40-GM10
• Herramienta para quitar paneles • Destornillador Phillips
• Herramienta de corte adecuada rotatorio o similar
HERRAMIENTAS REQUERIDAS
GM Camiones de tamaño completo / SUV’s
1995-2002
95-3003G
A B
Desmontaje del tablero ..............................................2
Preparación del kit .....................................................3
Ensamble del kit
Provisión de radio ISO DDIN ......................................3
Indice
APLICACIONES
Ver interior de la portada
Page 6
95-3003G
2
1. Con la llave en la posición de encendido, aplique el freno de mano, coloque la palanca de cambios en marcha baja, y luego inclinar el volante hacia abajo tanto como sea posible.
2. Soltar el panel del tablero de fábrica, desconecte todos los interruptores y retire el panel. (Figura A)
Nota: Tomar precauciones tirando
del panel sobre el botón del peligro de fábrica.
Continúe con la preparación del kit
Desmontaje del tablero
(Figura A)
Aplicaciones
CADILLAC
Escalade 1999-2000
CHEVROLET
C/K Pickup 1995-2000 Silverado 3500 1999-2000 Silverado 3500 (comercial) 2001 Suburban 1995-1999 Tahoe 1995-1999
GMC
C/K Pickup 1995-1998 Sierra 2500 1999-1999 Sierra 3500 1999-2000 Sierra Classic 1999-2000 Sierra HD 2001-2002 Suburban 1995-1999 Yukon 1995-1999 Yukon Denali 1999-2000
Page 7
95-3003G
(Figura A)
Ensamble del kitPreparación del kit
Provisión de radio ISO DDIN
1. Una los soportes del radio
en la radio, con los tornillos suministrados con el radio.
2. Localice el arnés de cableado de fábrica y el conector de la antena en el tablero y haga todas las conexiones necesarias al radio. Metra recomienda que use adaptadores adecuados de acoplamiento de Metra y/o de AXXESS.
3. Después de realizar todas las conexiones, deslice el radio en el salpicadero hasta que los soportes, haga clic en.
4. Coloque a presión la placa de la moldura ISO DDIN en el panel del
tablero de fábrica.
5. Vuelva a armar el tablero al revés de como lo desarmó.
1. Coloque a presión la placa de la moldura ISO DDIN al panel de
instrumentos y marcar la zona interior para cortar con un lápiz. (Figura A)
2. Retire la placa de moldura ISO DDIN, luego cortar las áreas
marcadas en el paso anterior.
3. Corte y retire el soporte trasero de radio.
Continúe con el ensamble del kit
3
Page 8
METRA. The World’s best kits.
metraonline.com
© COPYRIGHT 2004-2016 METRA ELECTRONICS CORPORATION
REV. 2/15/2016 INST95-3003G
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.
Metra recomienda técnicos con certificación del Programa de Certificación en Electrónica Móvil (Mobile Electronics Certification Program, MECP).
EL CONOCIMIENTO ES PODER
Mejore sus habilidades de instalación y fabricación inscribiéndose en la escuela de dispositivos electrónicos móviles más reconocida y respetada de nuestra industria. Regístrese en www.installerinstitute.com o llame al 800-354-6782 para obtener más información y avance hacia un futuro mejor.
Instrucciones de instalación para la pieza 95-3003G
IMPORTANTE
Si tiene dificultades con la instalación de este producto, llame a nuestra línea de soporte técnico al 1-800-253-TECH. Antes de hacerlo, revise las instrucciones por segunda vez y asegúrese de que la instalación se haya realizado exactamente como se indica en las instrucciones. Por favor tenga el vehículo desarmado y listo para ejecutar los pasos de resolución de problemas antes de llamar.
