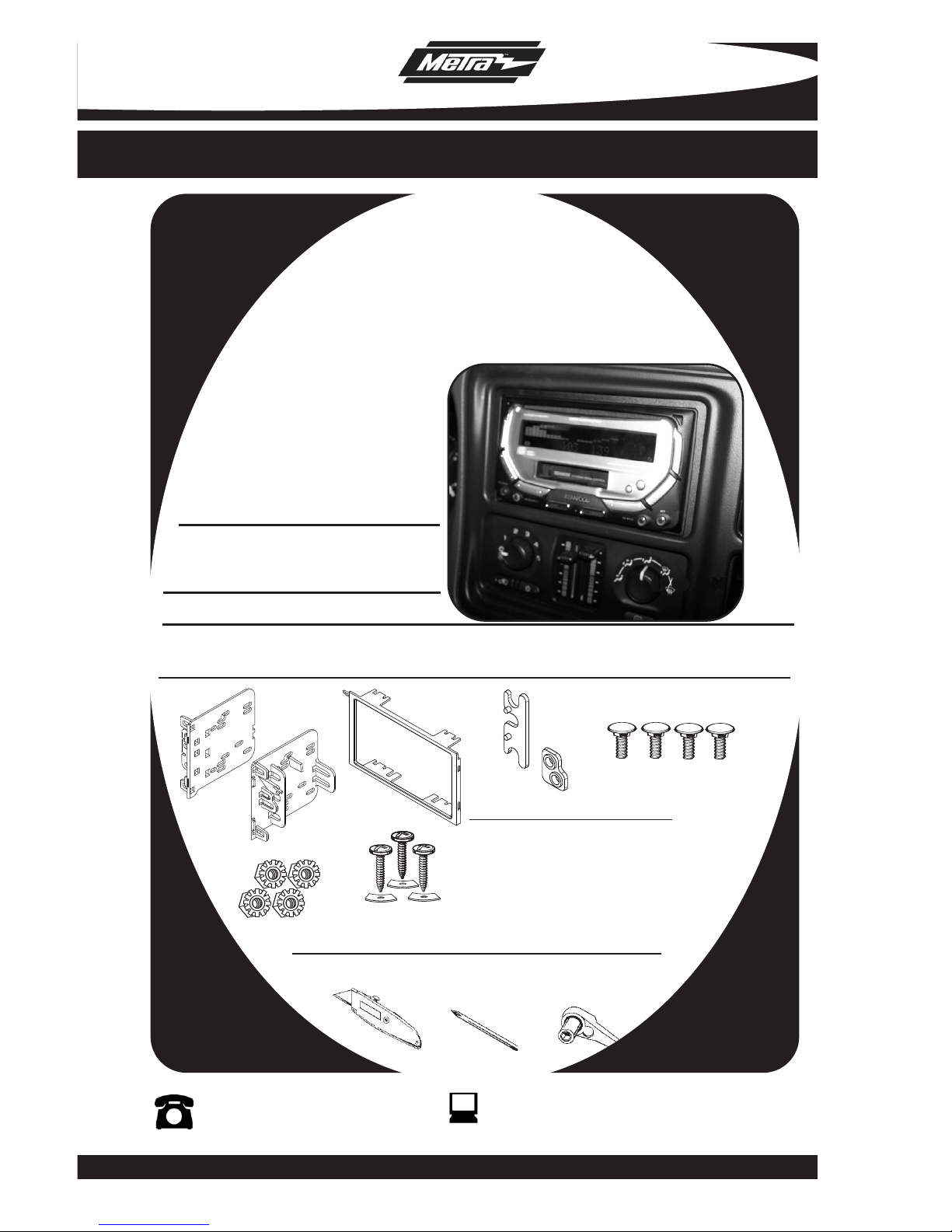

INSTALLATION INSTRUCTIONS FOR PART 95-2009
95-2009
APPLICATIONS
GM/SUZUKI
MULTI KIT
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
• A) Double DIN Brackets • B) Double DIN Trim Plate • C) Spacers • D) (4) Carriage Bolts
• E) (4) Kep Nuts • F) (3) Screws-(3) Speed Clips
KIT COMPONENTS
A
TOOLS REQUIRED:
Utility knife • Phillips Screwdriver • Socket Set
1-800-221-0932
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
www.metraonline.com
B
C
D
E
F
WIRING AND ANTENNA CONNECTIONS
(Sold Separately)
• Wiring Harness - Please see www.metraonline.com
for specific interface applications
• Antenna Adapter -
• 40-GM10 - GM Antenna Adapter 1988-up
• 40-CR10 - Chrysler Antenna Adapter 2002-up
BUICK
Century 1997-2005 3
Le Sabre 1995-2005 4
Park Avenue 1995-2005 5
Rainier 2004-2007 28
Regal 1995-2004 3
Rendezvous 2002-2007 6
Riviera 1996-1999 7
Roadmaster 1995-1996 8
Skylark 1996-1998 9
CADILLAC
Escalade/EXT 2003-2006 10
Fleetwood/Broughham 1990-1996 11-12
Eldorado 1992-1995 13
Seville 1992-1995 13
CHEVROLET
Avalanche 2003-2006 10
Blazer 2002-2005 14
Cavalier 2000-2005 15
Colorado 2004-2010 16
Express Van (full size) 2001-2007 17,18
Impala 2000-2005 19
Malibu 2001-2003 20
Malibu Classic 2004 20
Metro (Geo included) 1995-2001 21
Monte Carlo 2000-2005 22
SSR 2003-2006 23
S-10 Pickup
with DDIN Radio 2002-2004 14
Silverado (all) 2003-2007 10
Suburban 2003-2006 10
Tahoe 2003-2006 10
Tracker 1992-2004 24
Trailblazer 2002-2009 25
Venture 2000-2005 26,27
GMC
Canyon 2004-2010 16
Envoy 2002-2009 28
Savanna 2001-2007 17,18
Sierra 2003-2007 10
Sonoma 2002-2004 14
Yukon/Denali/XL 2003-2006 10
HONDA
Passport 1998-2002 29
HUMMER
H2 2003-2007 30,31
ISUZU
Ascender 2003-2009 28
Amigo 1998-2000 29
I-290/I370 2007-2008 16
I-280/I350 2006 16
Rodeo 1998-2004 29
Rodeo Sport 2001-2003 29
OLDSMOBILE
Achieva 1996-1998 32
Alero 1999-2004 33
Aurora 1995-2003 34
Bravada 1998-2001 14
Bravada 2002-2004 28
Cutlass 1997-1999 35
Cutlass Supreme 1995-1997 35
Eighty-Eight 1994-1999 36
Intrigue 1998-2003 37
LSS 1996-1999 38
Ninety-Eight 1994-1996 36
Regency 1997-1998 38
Silhouette 2000-2004 26,27
PONTIA
C
Aztec 2001-2005 39
Bonneville 2000-2005 40
Grand Am 2001-2005 41
Montana 2000-2005 26,27
Sunfire 2000-2005 42
SS
UZUKI
Aerio 2002 44
Esteem 1995-2003 45
Sidekick 1992-1998 24
Swift 1995-2001 21
Vitara 1999-2005 24
Grand Vitara 1999-2002 24
XL-7 2001-2002 24
TTOOYYOOTTAA
Matrix 2003-2004 43
TTaabb IInnssttrruuccttiioonnss
CHEVY/GM/METRO/SUZUKI/
CADILLAC - FLEETWOOD/BROUGHHAM . . . . . . . . 46
ISUZU/PONTIAC/TOYOTA/
CADILLAC - ELDORADO/SEVILLE . . . . . . . . . . . . . 47
Kit Assembly
CADILLAC - FLEETWOOD/BROUGHHAM . . . . . . . . 48
CADILLAC - ELDORADO/SEVILLE . . . . . . . . . . . . . 49

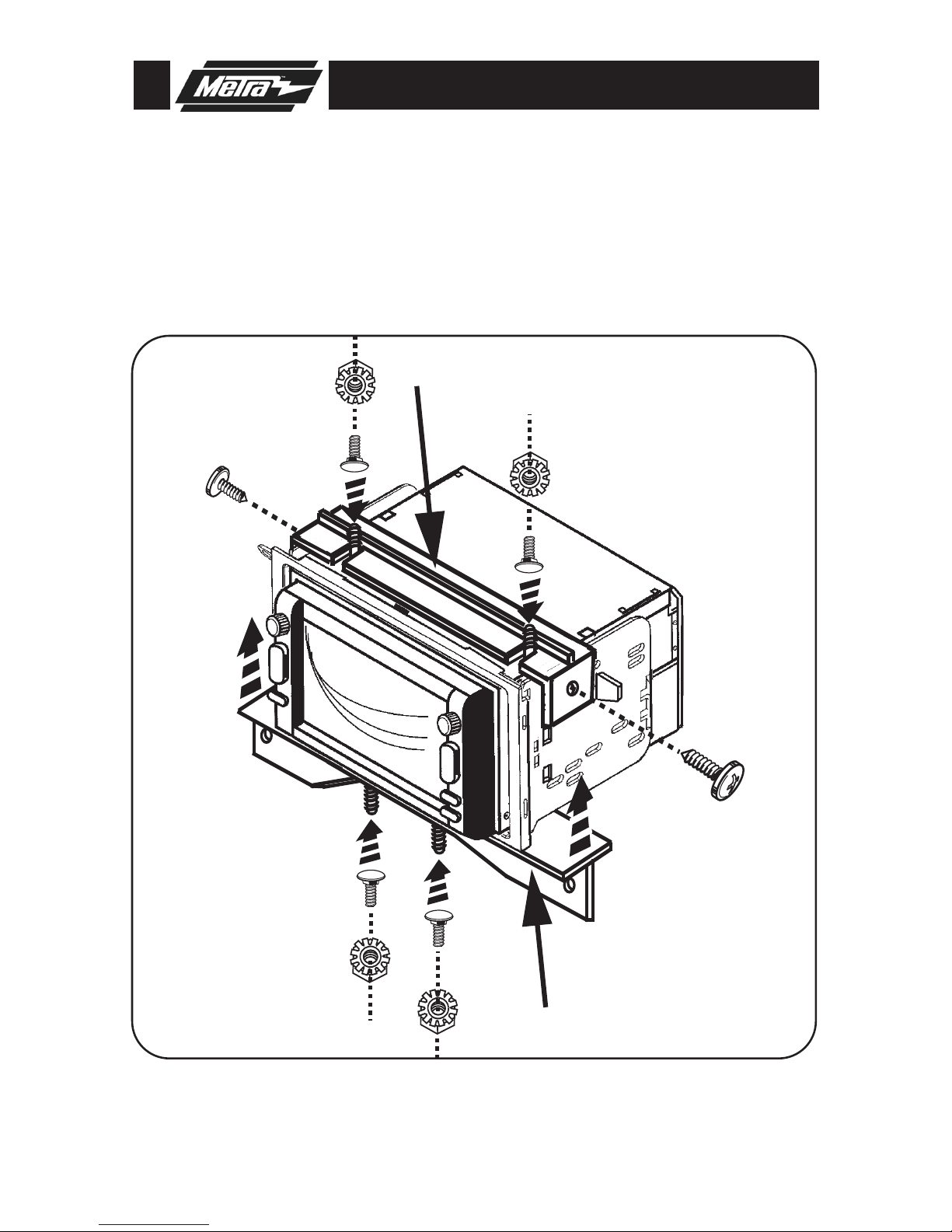

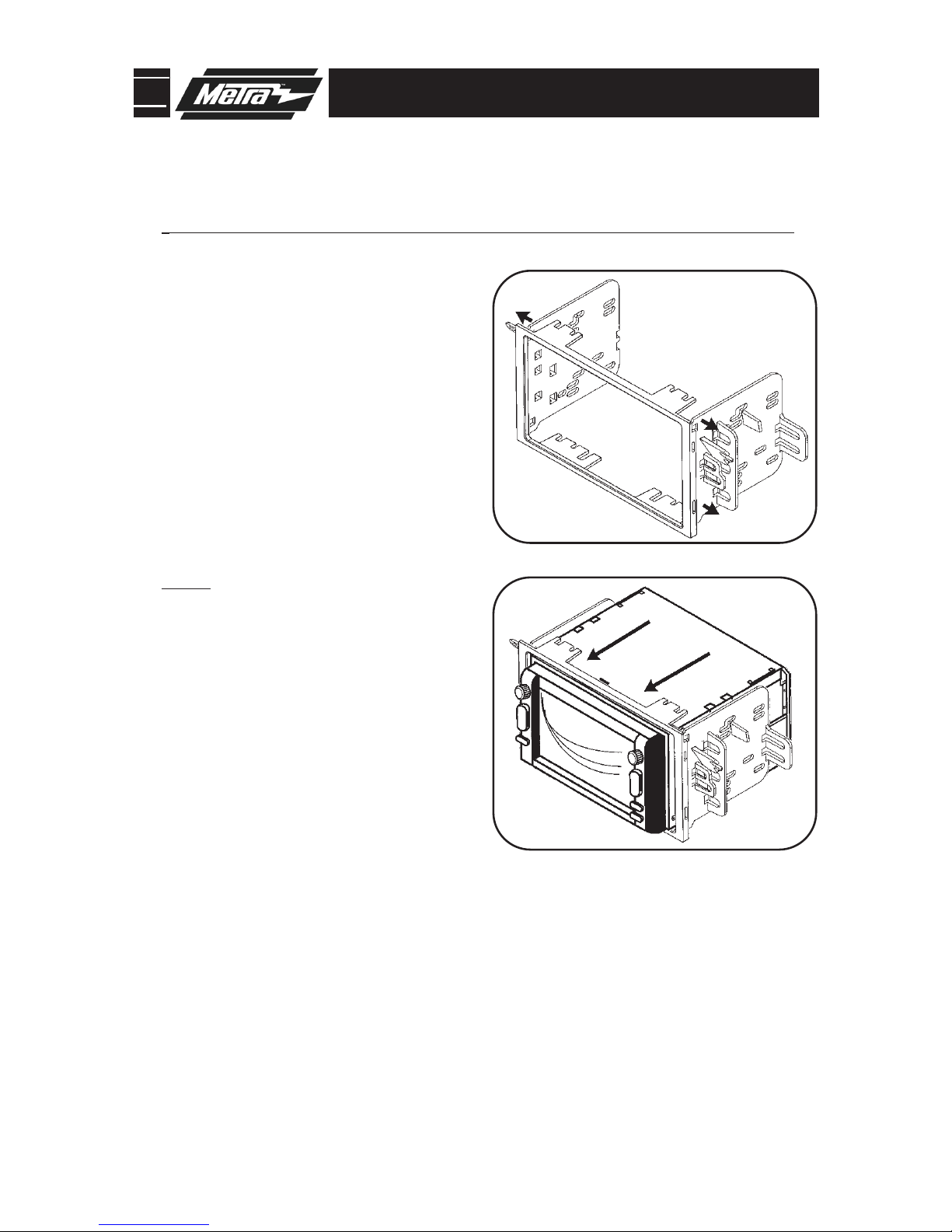

DOUBLE DIN RADIO/STACKED ISO MOUNT UNITS
PROVISION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Final
Assembly
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
95-2009
*Note: Refer also to the instructions included with the aftermarket radio.
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Vibe 2003-2008 43
VEHICLE APPLICATION CONTENTS
Dash Disassembly

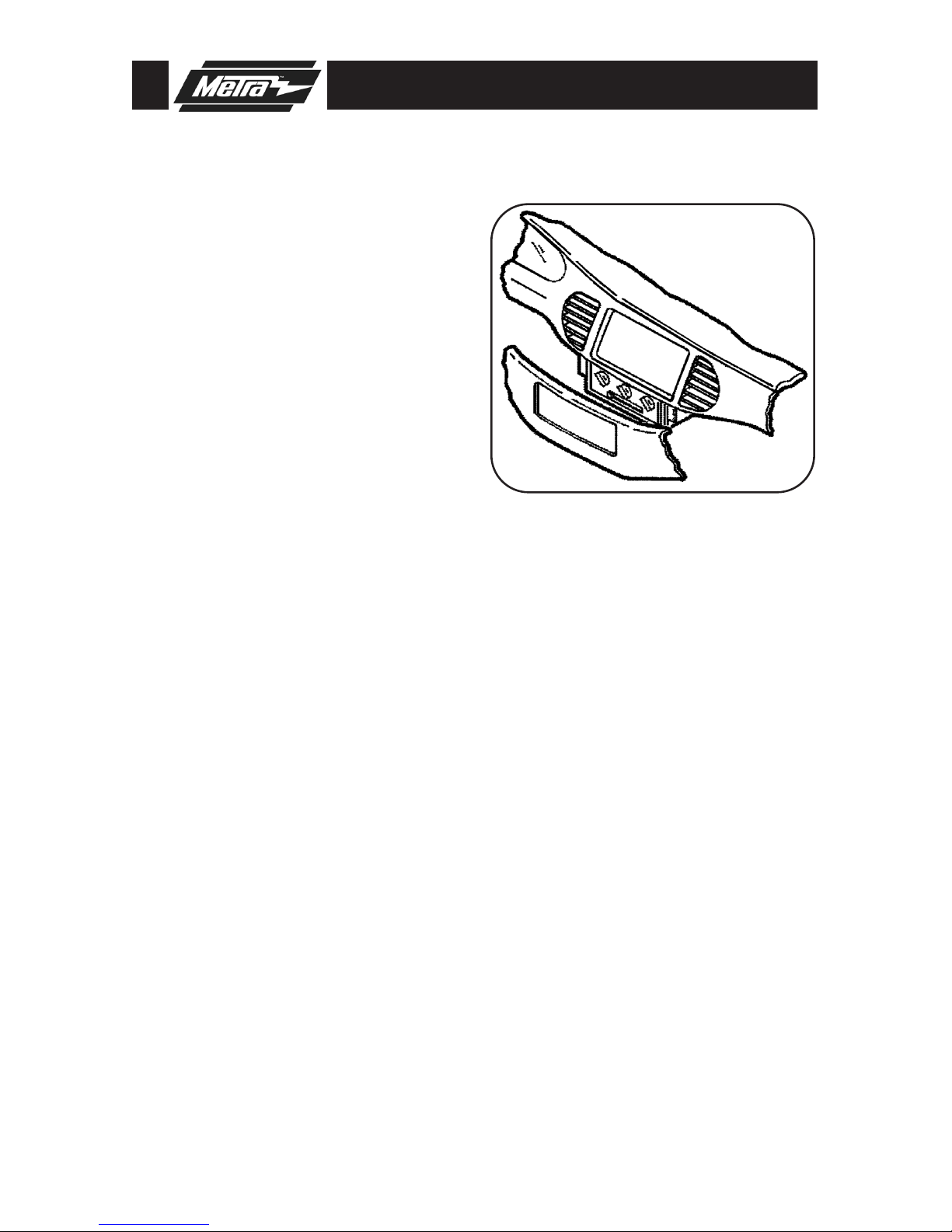

95-2009 DASH DISASSEMBLY
BUICK • CENTURY 1997-2005 / REGAL 1995-2004
3
1
Unsnap the top edge of the knee
bolster panel.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Remove the plastic trim piece to the
left of the glove box and (1) Phillips
screw exposed.
2
Remove (1) Phillips screw from the
panel.
4
Remove the ashtray cluster and (2)
Phillips screws from each side.
5
Unclip the entire dash trim bezel and
remove.
6
Open doors and unsnap end caps
from each side of dash.
7
Unsnap and remove radio/instrument
cluster panel.
8
Remove (3) screws in order to remove
radio.
9
Continue to kit assembly.
4

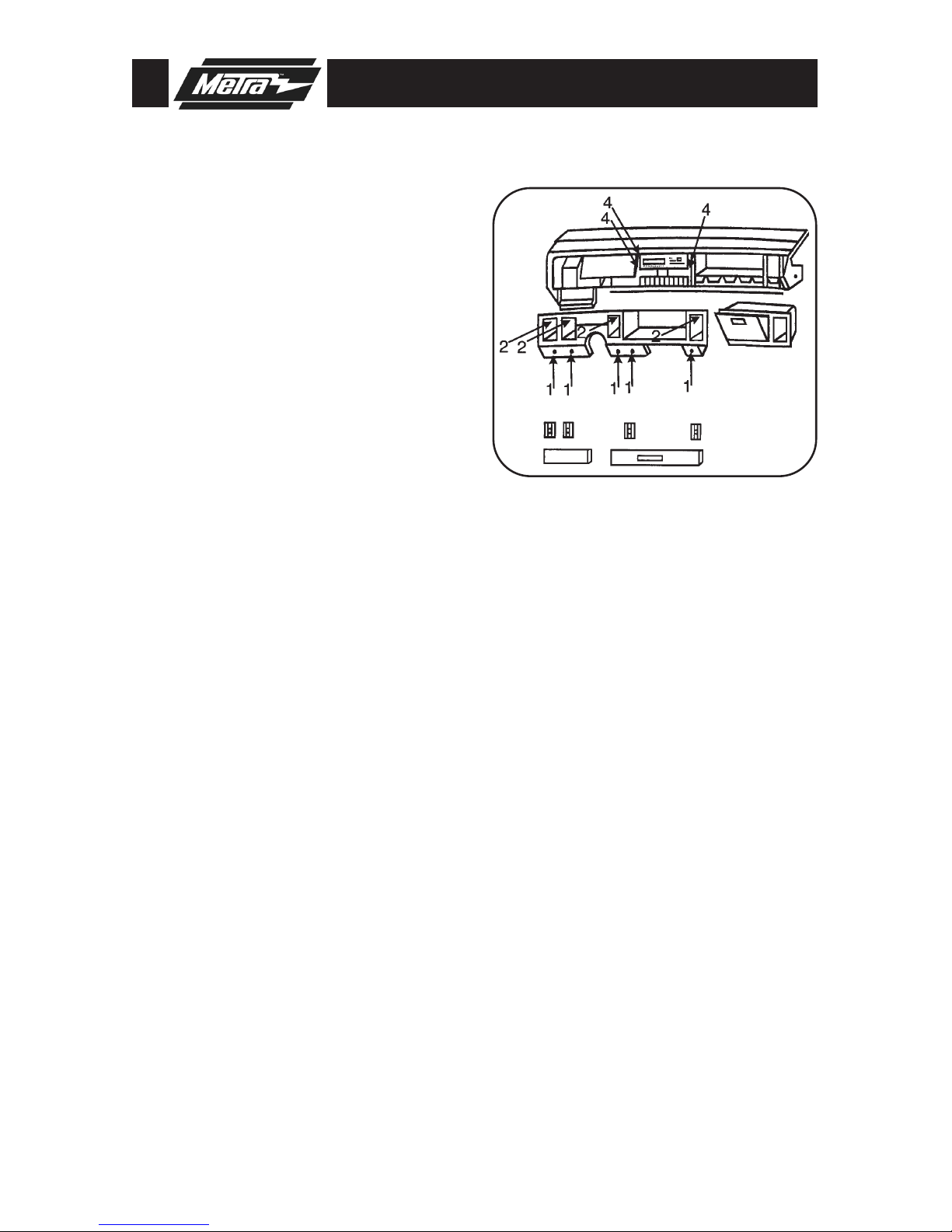

95-2009 DASH DISASSEMBLY
BUICK • LESABRE / PARK AVENUE 1995-1999
1
Pop out the a/c vents and remove (1)
Phillips screw exposed in each vent
cavity.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Unsnap the climate control trim panel
(from door to door) and remove
(4) Phillips screws exposed.
2
Unclip the radio trim bezel and remove.
4
Remove the screws securing the factory head unit and disconnect the
wiring.
5
Continue to kit assembly.
5

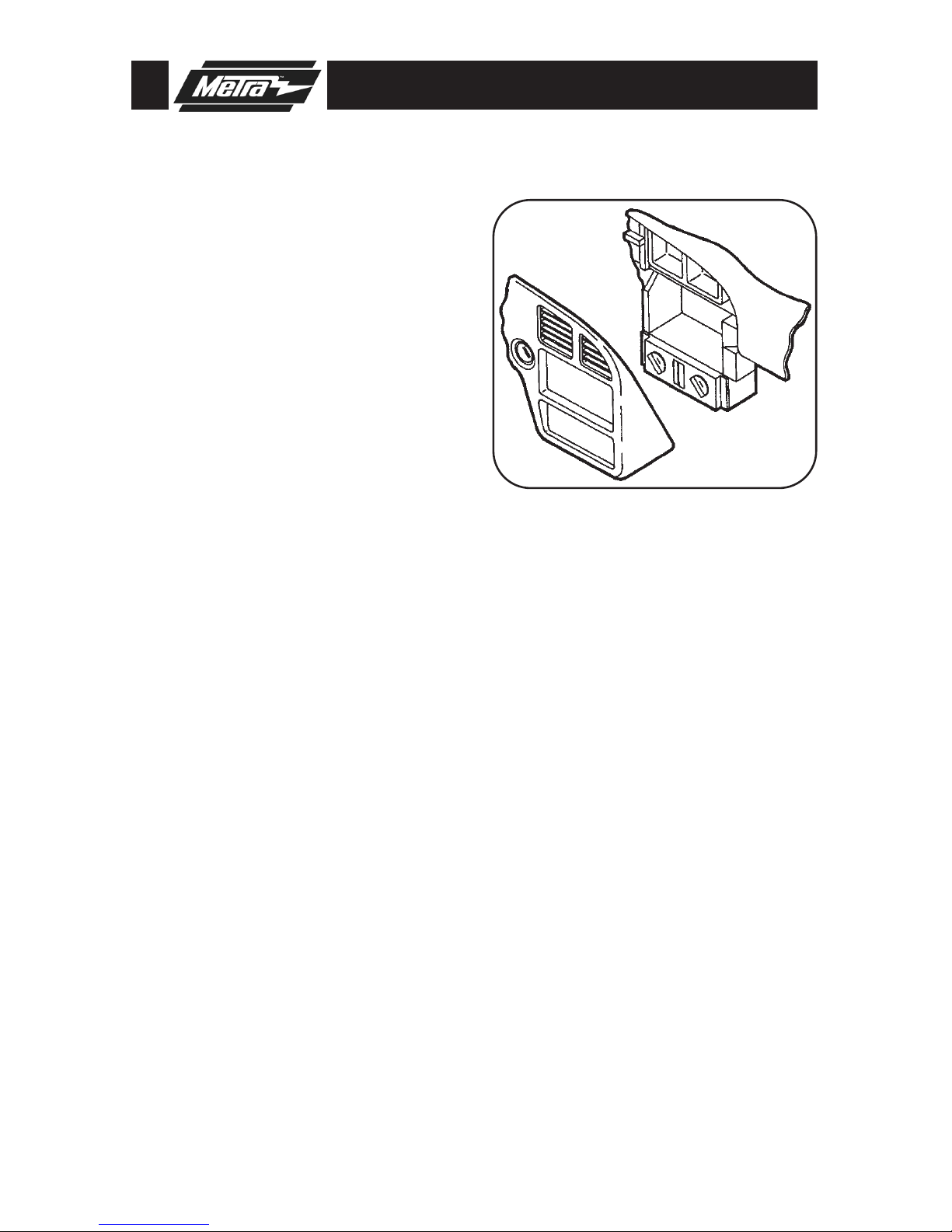

95-2009 DASH DISASSEMBLY
BUICK • LESABRE / PARK AVENUE 2000-2005
1
Unsnap and remove trim along center
of dash. (One piece on right and one
on left of wheel)
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Open drivers door and unsnap and
remove dash end cap.
2
Unsnap and remove radio/instrument
bezel.
4
Remove (2) screws in order to remove
radio.
5
Continue to kit assembly.
6
95-2009 DASH DISASSEMBLY

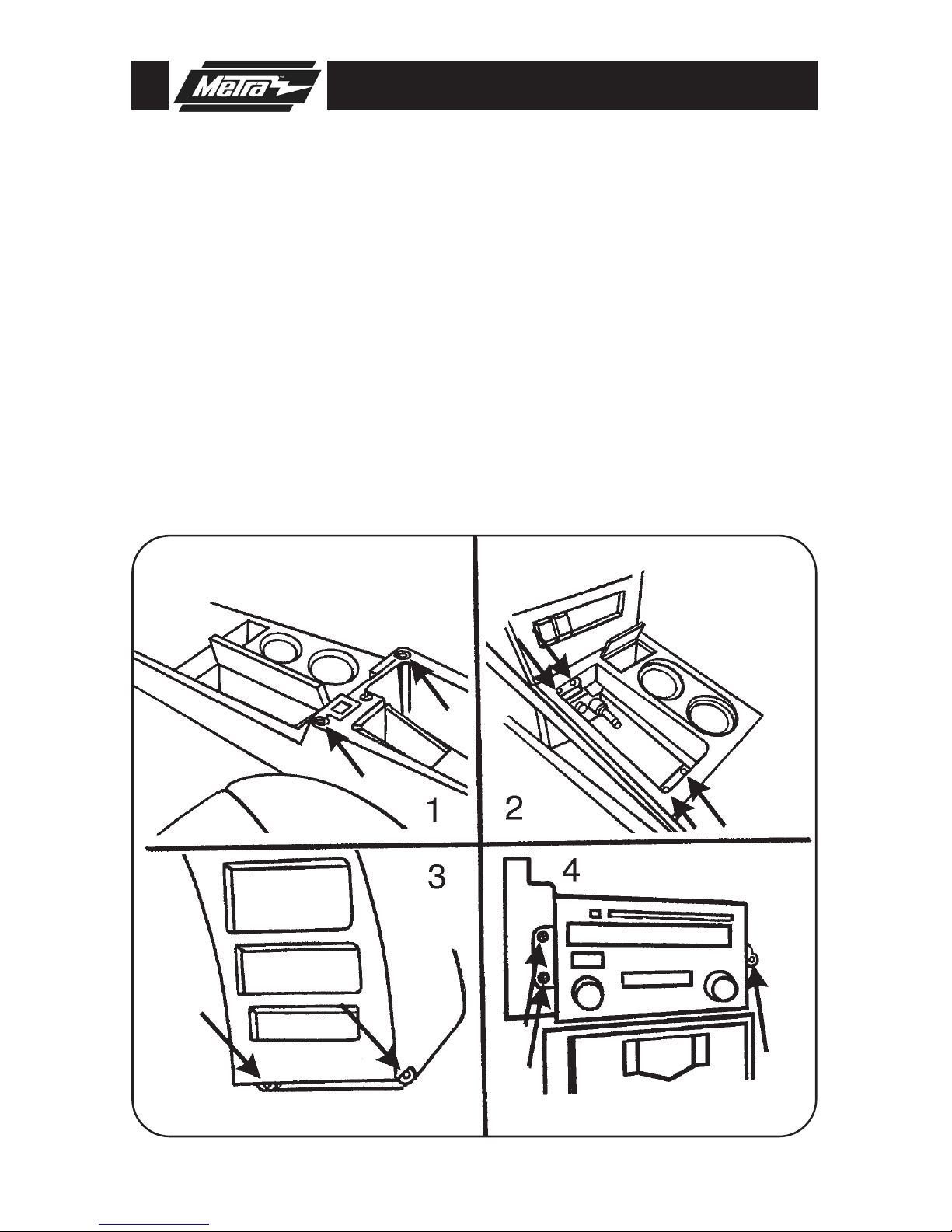

BUICK • RENDEZVOUS 2002-2007

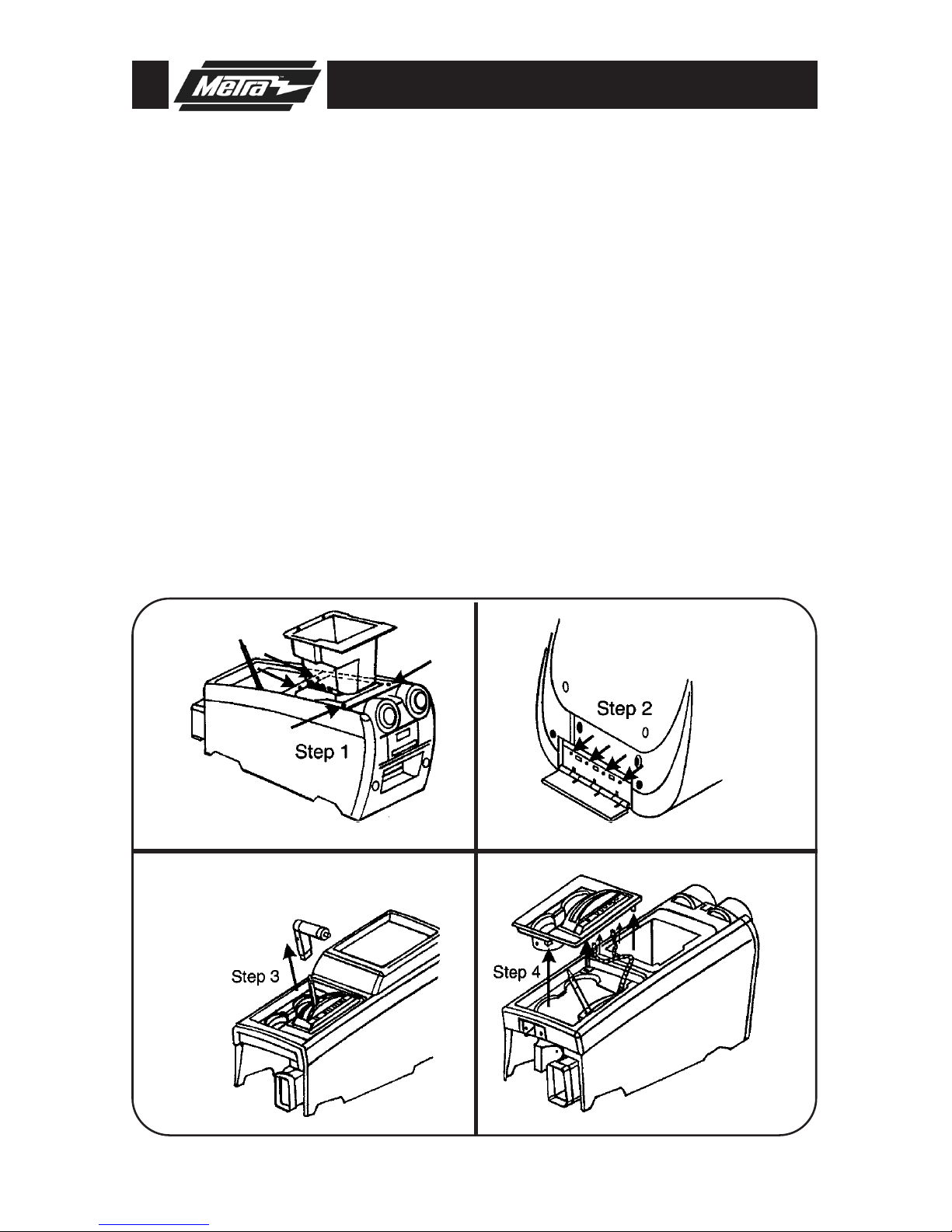

1
Remove liners from cup holders and storage pocket next to cup holders,
then remove screws. Unsnap and remove panel.
Disconnect the negative battery
terminal to prevent an accidental short circuit.
3
Open center console and remove 2 screws at front of console opening.
2
Remove (2) screws from bottom of radio/climate control bezel, unclip and remove.
4
Remove (3) 9/32" hex head screws to remove radio.
5
Continue to kit assembly.
7

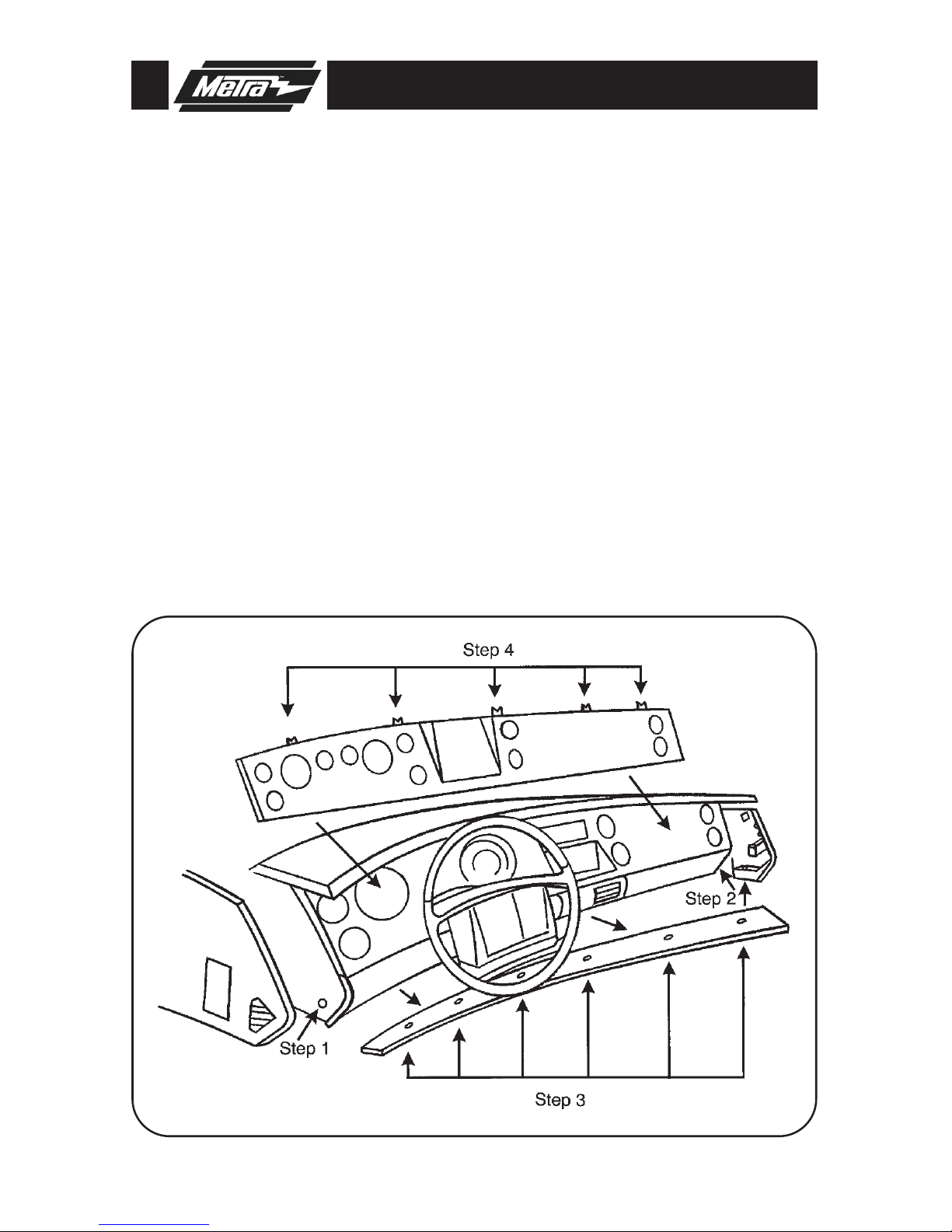

95-2009 DASH DISASSEMBLY
1
Remove (1) Phillips screw and unsnap right side panel to expose (1) Phillips screw
beneath panel and remove.
Disconnect the negative battery terminal to prevent an accidental short circuit.
3
Unsnap left side panel exposing (1) Phillips screw to remove.
2
Unsnap underside of overhanging dash to unsnap (6) plastic rivets and remove
panel.
4
Remove (5) hex head screws now exposed under overhang.
5
Unsnap bottom edge of trim bezel, then while holding overhang up, unsnap and
remove trim bezel by removing any necessary harnesses.
6
Remove (3) Phillips screw to remove climate control.
7
Remove (2) Phillips screws to remove rear support and (3) 9/32" hex head screws
to remove radio.
8
Continue to kit assembly.
BUICK • RIVIERA 1996-
8
95-2009 DASH DISASSEMBLY
1
Unclip panel below steering column and remove.
Disconnect the negative battery terminal to prevent an accidental short circuit.
3
Unclip dash panel sides and remove.
2
Remove (2) 7mm screws above instrument cluster.
4
Set parking brake, turn car on, and move shifter to the lowest gear. Tilt steering
wheel down then unsnap entire instrument cluster/radio panel and remove.
5
Remove (3) 7mm screws to remove radio.
6
Continue to kit assembly.
BUICK • ROADMASTER 1995-1996
9

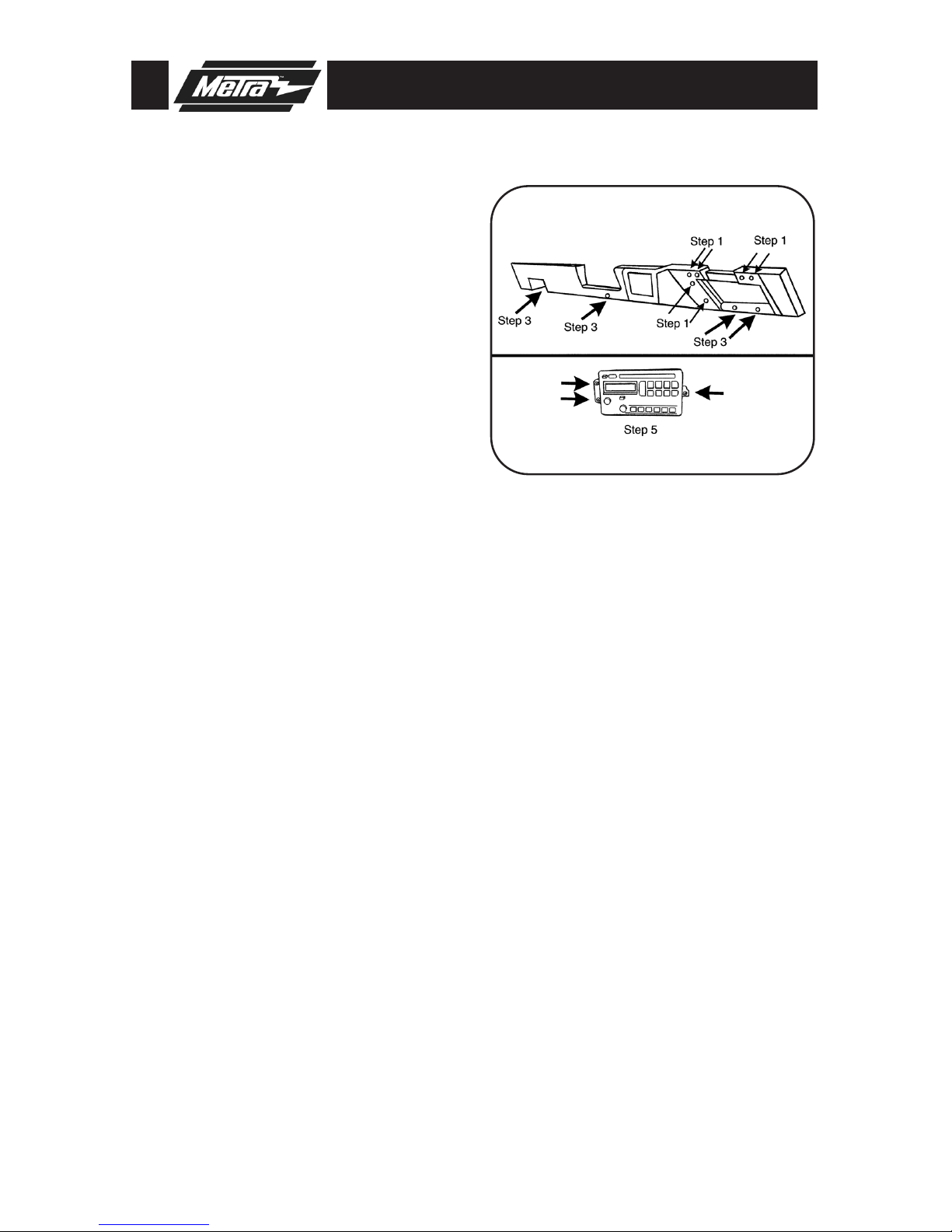

95-2009 DASH DISASSEMBLY
1
Under glove box and drivers knee bolster, remove (2) plastic panels by
turning (2) 1/4 turn fasteners per side.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Remove (6) 9/32" screws inside glove
box.
2
Remove (4) 9/32" screws revealed.
(2 per side).
4
Unsnap panel from driver's side to
passenger's side.
5
Remove (3) 9/32" screws to remove
radio.
6
C
ontinue to kit assembly.
BUICK • SKYLARK 1996-1998
10

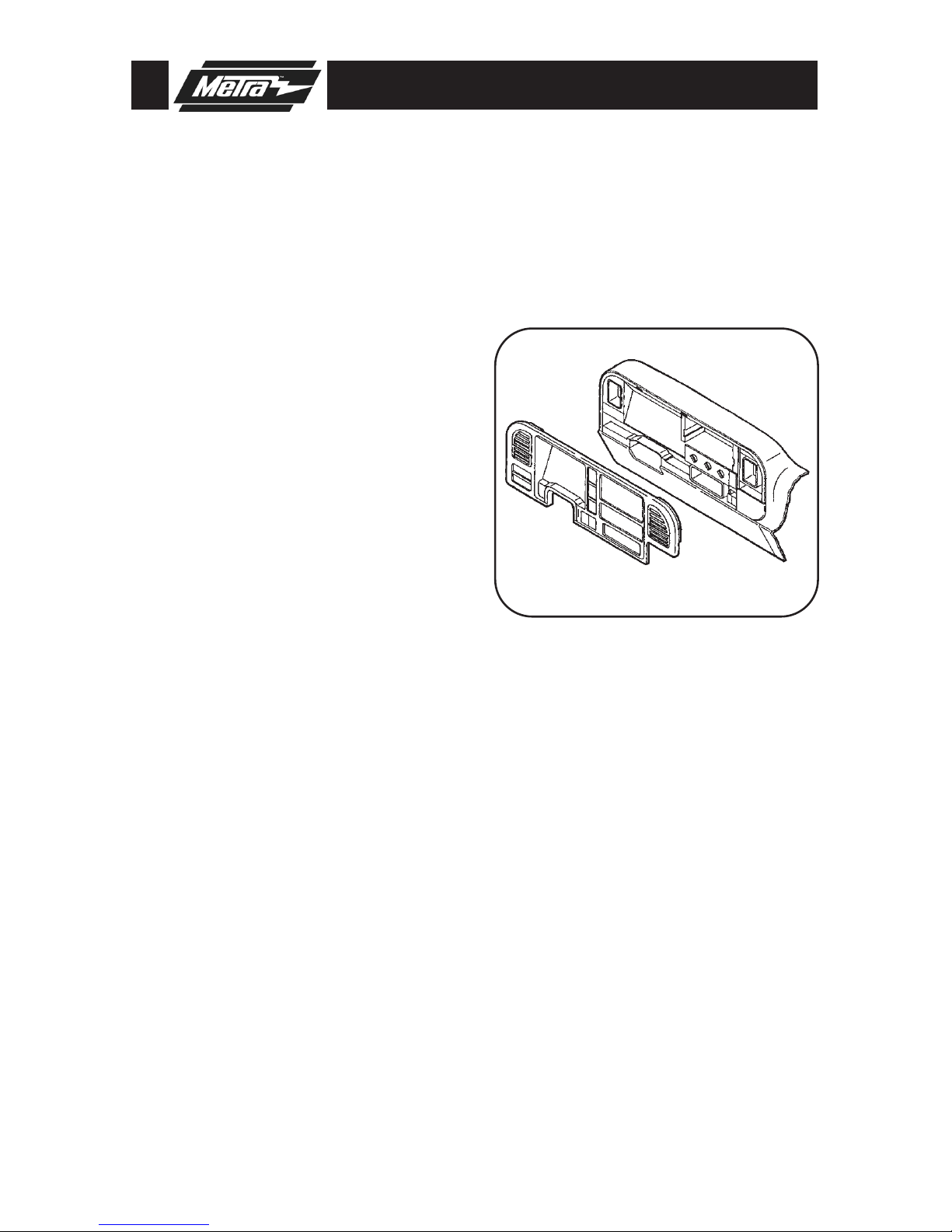

95-2009 DASH DISASSEMBLY
1
Remove (3) 9/32" screws and remove
radio.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Unsnap and remove dash bezel.
2
Continue to kit assembly.
CADILLAC • ESCALADE 2003-2006
CHEVROLET • AVALANCHE 2003-2006
SILVERADO 2003-2007 / SUBURBAN 2003-2006
TAHOE 2003-2006
GMC • SIERRA 2003-2007
YUKON / DENALI / XL 2003-2006
11

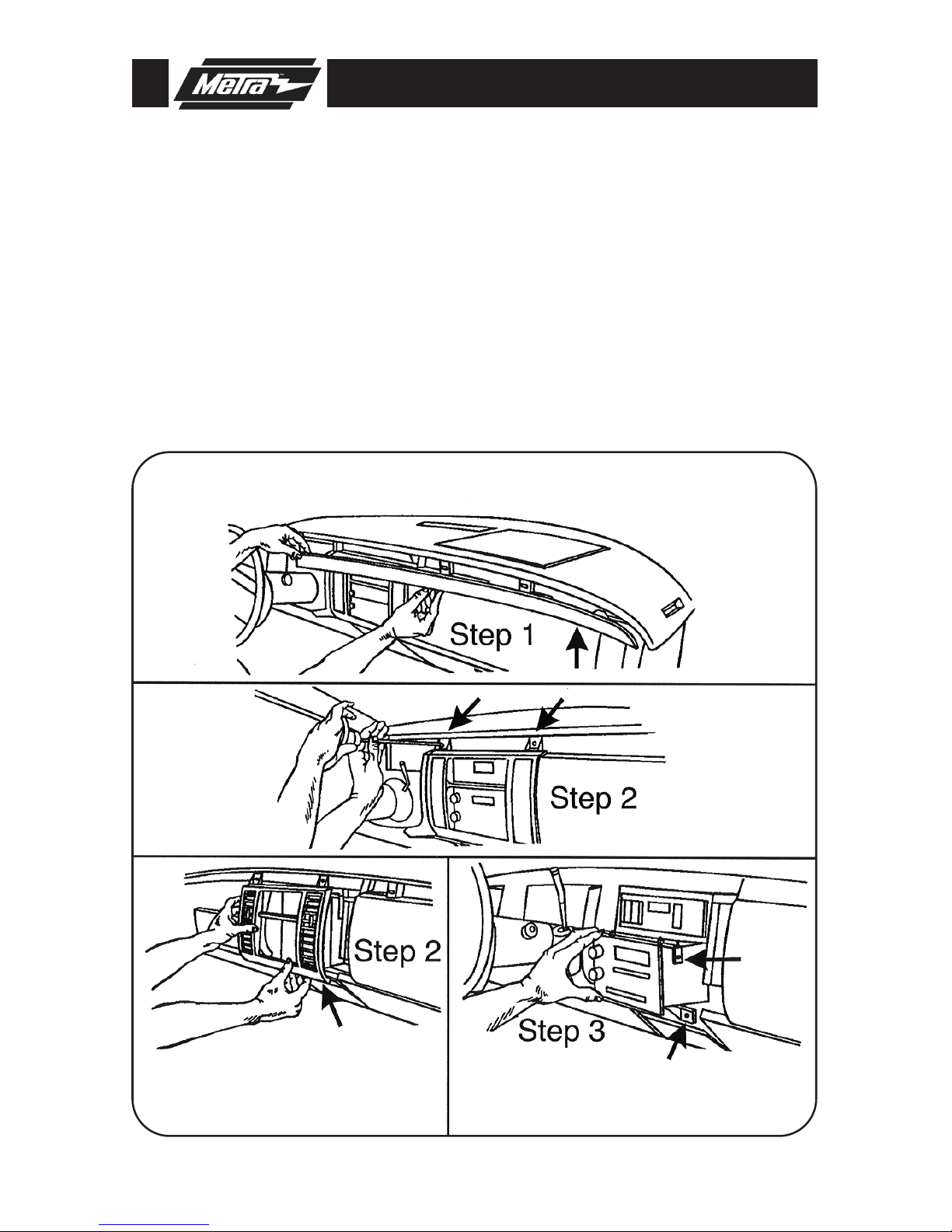

95-2009 DASH DISASSEMBLY
1
Remove (2) 7mm screws at the top of the radio/air conditioning bezel, then unclip
panel and remove.
Disconnect the negative battery terminal to prevent an accidental short circuit.
3
Carefully unsnap trim panel above a/c controls.
2
Remove (4) 7mm screws that hold the radio in, slide radio out, unplug the
radio harnesses and remove radio.
4
Continue to kit assembly.
CADILLAC •
FLEETWOOD
FLEETWOOD BROUGHAM
1990-1996
12
95-2009 DASH DISASSEMBLY
1

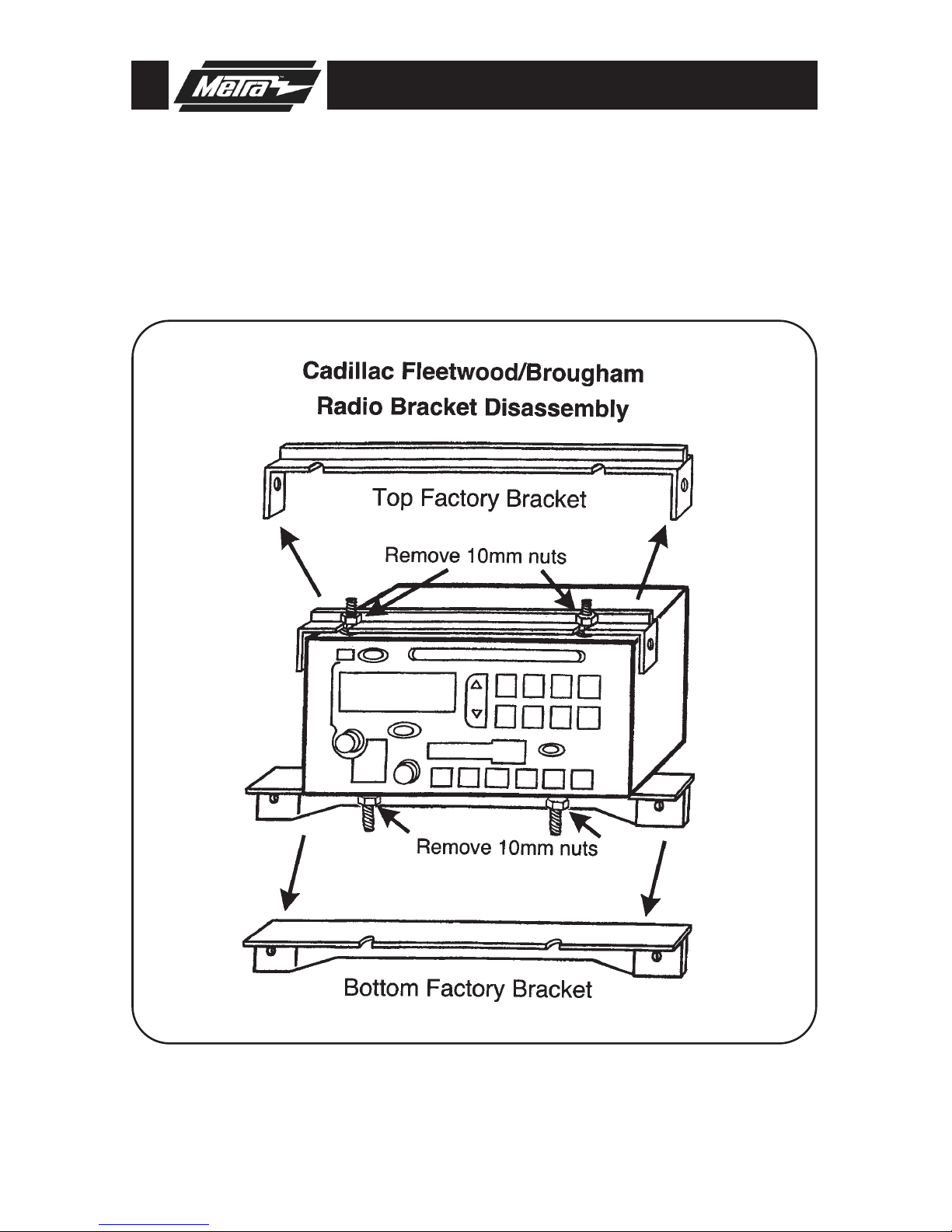

Remove (4) 10mm nuts, (2) on top of the radio and (2) on the bottom of the radio,
that hold the factory mounting brackets on. save brackets and nuts for kit
assembly.
CADILLAC • FLEETWOOD
FLEETWOOD BROUGHAM 1990-1996
RADIO BRACKET DISASSEMBLY
13

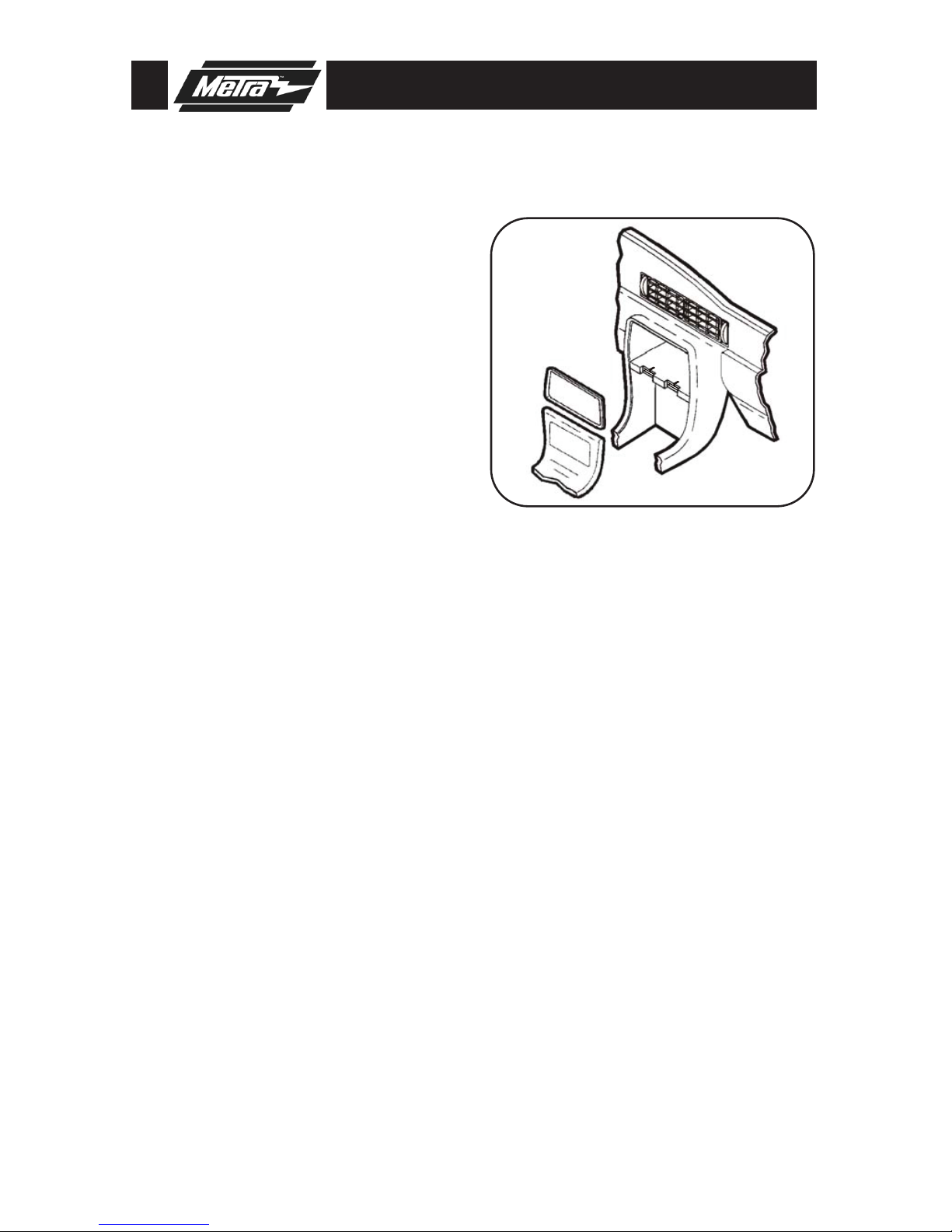

95-2009 DASH DISASSEMBLY
1
1
Gently pry up on the ashtray/gear
shifter trim bezel and remove.
(CAUTION: Some models ar
e
equipped with bezels made of real
wood.
Disconnect the negative battery
ter
minal to prevent an accidental
short circuit.
3
Using a panel removal tool, pry out on
the radio trim ring and remove. Use
extr
eme care when removing).
2
Remove (2) nuts securing the bottom
of the factory head unit and disconnect the wiring.
4
CADILLAC • ELDORADO 1992-1995
SEVILLE 1992-1995
Continue to kit assembly.
14

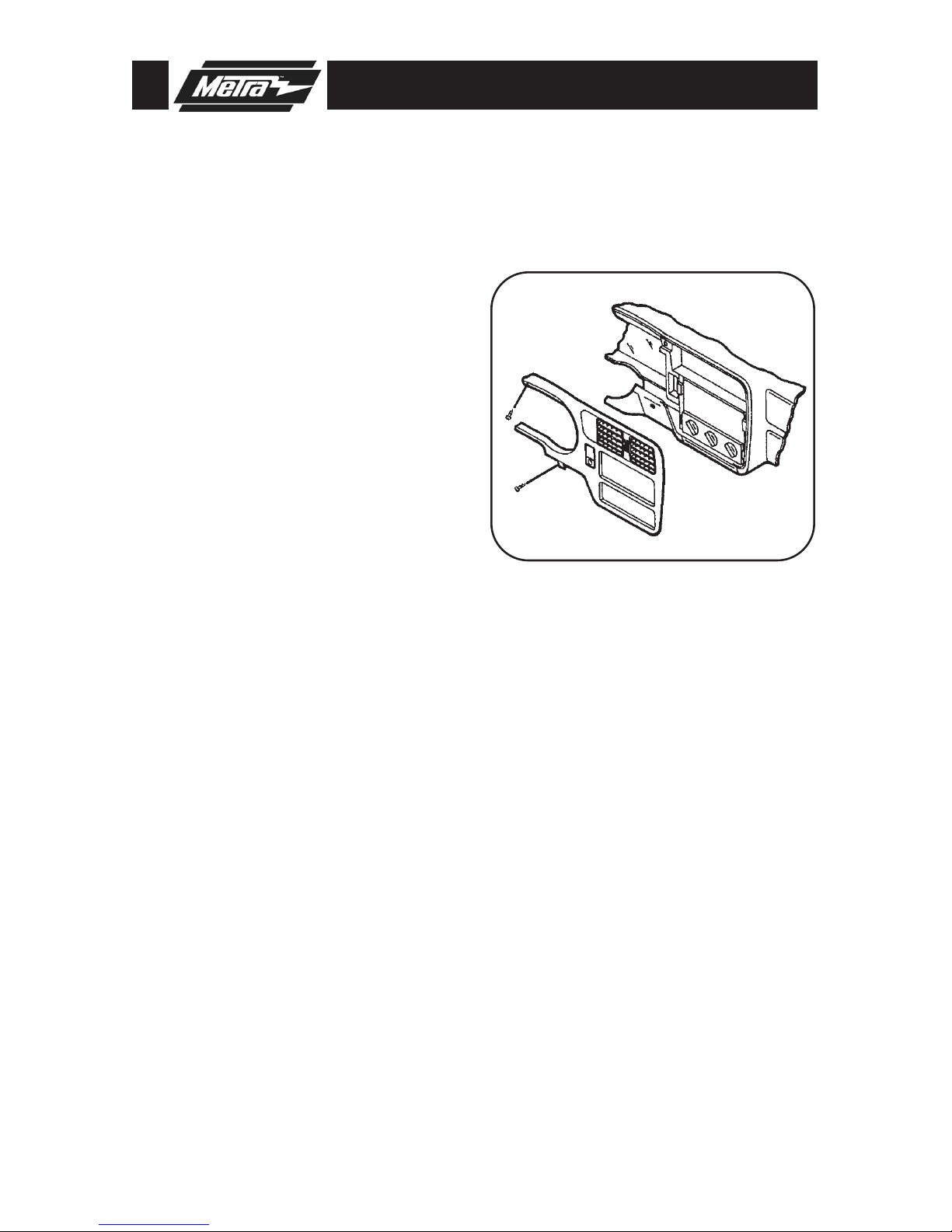

95-2009 DASH DISASSEMBLY

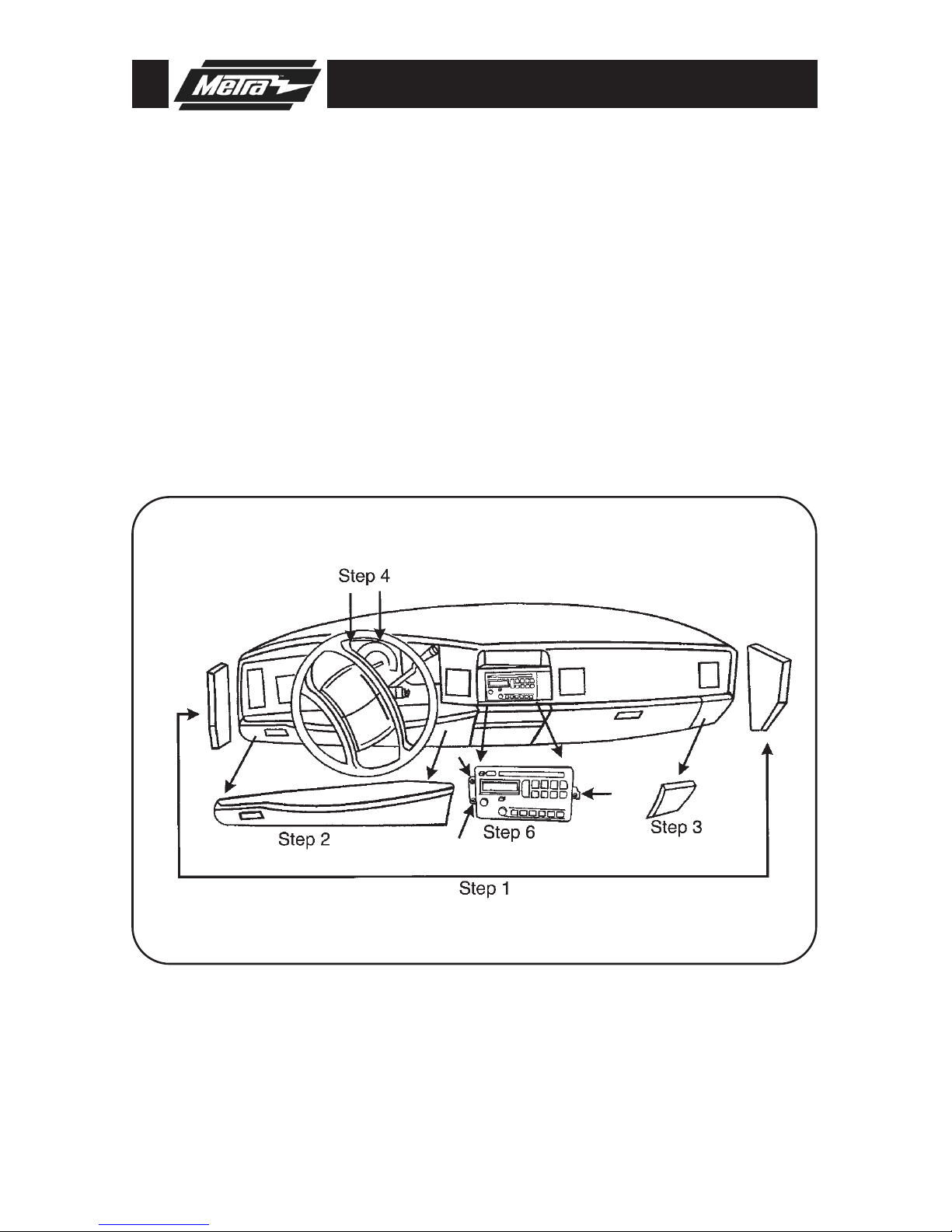

1
Pull down on the panel and remove
the 9/32" hex-head screws exposed
on the bottom of the dash trim bezel.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Remove (2) 9/32" hex-head screws
from the knee bolster panel.
2
Remove (1) Phillips screw above the
instrument cluster.
4
Unclip the dash trim bezel and
remove.
5
Remove (2) 9/32" hex-head screws
securing the factory head unit and
disconnect the wiring.
6
CHEVROLET • BLAZER 2002-2005
S-10 2002-2004 (WITH DOUBLE DIN RADIO)
GMC • SONOMA 2002-2004
OLDSMOBILE • BRAVADA 1998-2001
Continue to kit assembly.
15
95-2009 DASH DISASSEMBLY

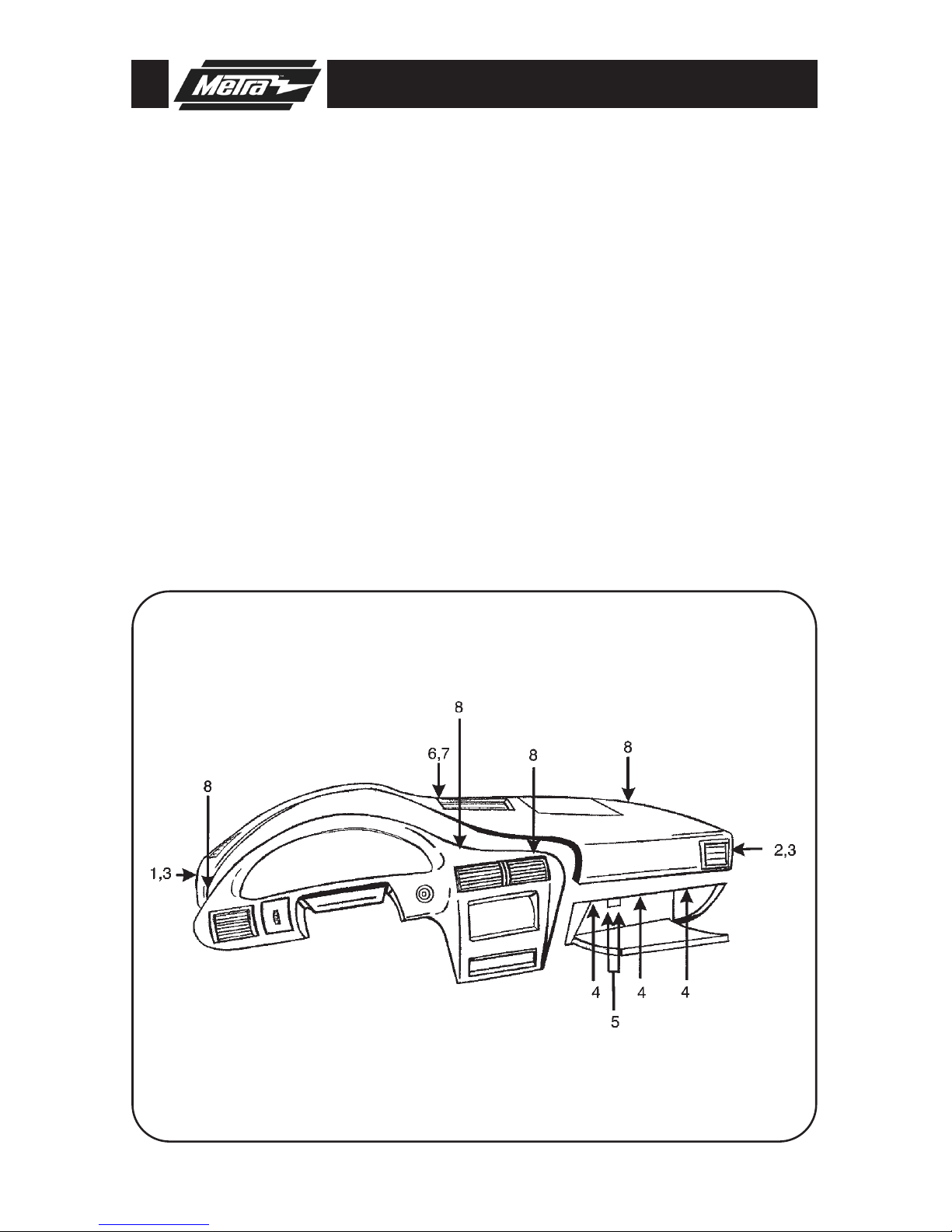

1
Open passenger door and remove panel on end of dash.
Disconnect the negative battery terminal to prevent an accidental short circuit.
3
Open drivers door and remove fuse panel on end of dash.
2
Remove (1) Phillips screw from each side exposed.
4
Remove (3) screws from top of glove box liner.
5
Remove (2) screws from the top-left corner of the glove box cavity.
6
Remove (1) Phillips screw from the defroster duct.
7
Remove the ductwork and (1) Phillips screw exposed.
8
Remove the dash pad and (3) Phillips screws exposed at the top of the radio trim
bezel.
9
CHEVROLET • CAVALIER 2000-2005
Continue to kit assembly.
95-2009 DASH DISASSEMBLY
16
1

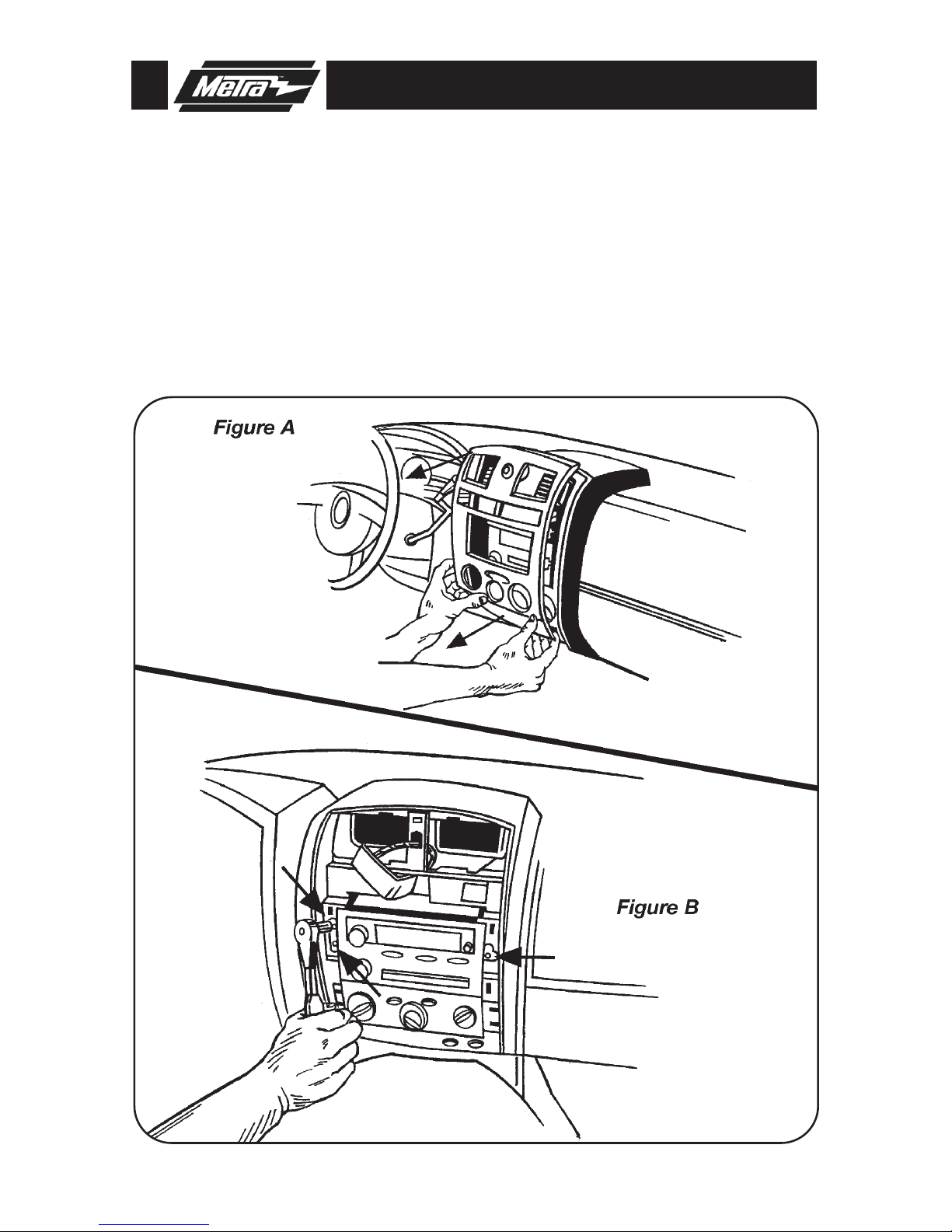

Remove (3) 9/32”screws securing the radio to remove. (Figure B)
Disconnect the negative battery terminal to prevent an accidental short circuit.
3
Unsnap and remove the entire panel surrounding the radio and A/C controls.
(Figure A)
2
CHEVROLET • COLORADO 2004-2010
GMC • CANYON 2004-2010
ISUZU • I-290/I-370 2007-2008
I-280/I-350 2006
Continue to kit assembly.
17
95-2009 DASH DISASSEMBLY

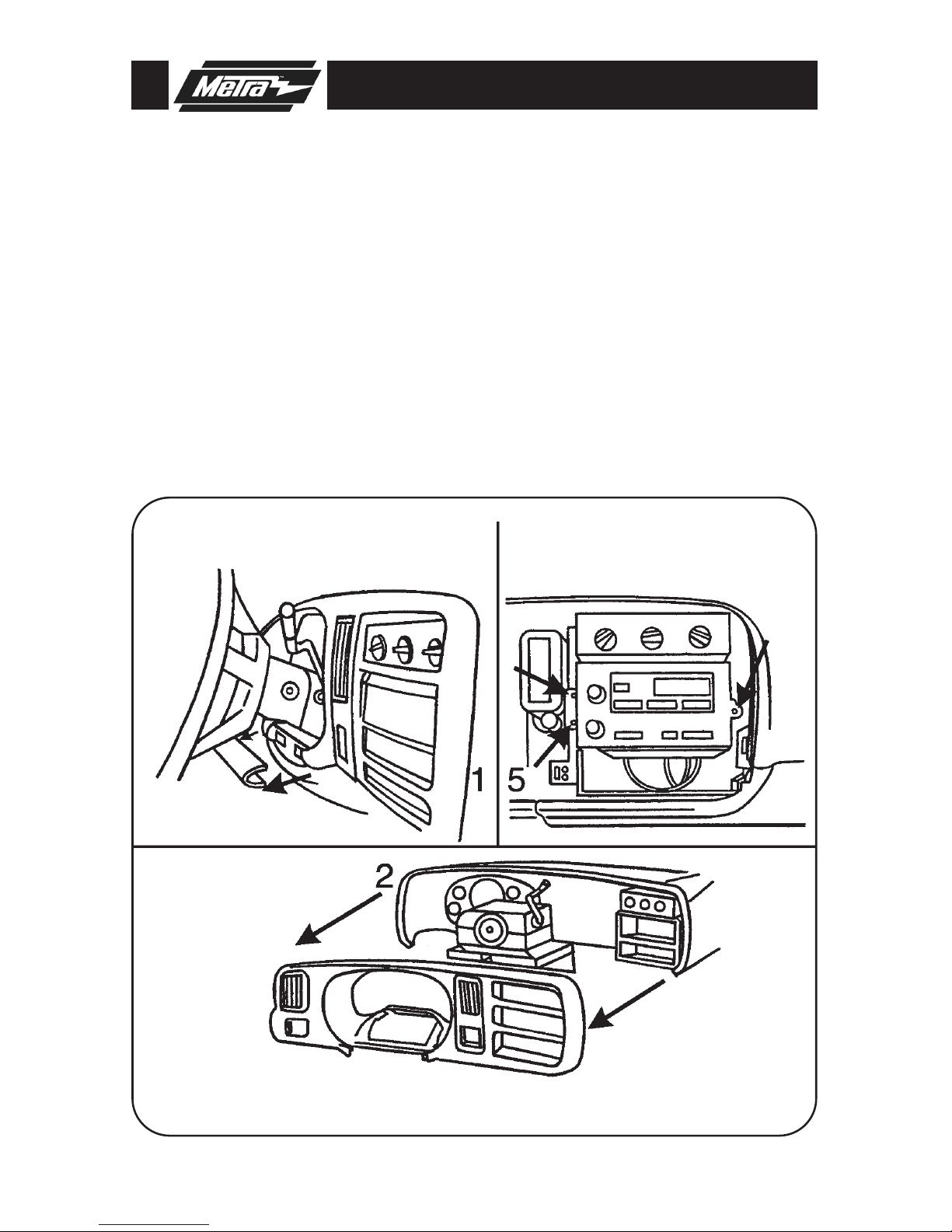

1
Unsnap radio/climate/instrument panel.
Disconnect the negative battery terminal to prevent an accidental short circuit.
3
Unsnap and remove small trim panel below steering column.
2
Move shift lever to first gear position.
4
Rotate panel counterclockwise to lift over steering column and remove.
5
Remove (3) 9/32" hex head screws to remove radio.
6
Continue to kit assembly.
CHEVROLET • EXPRESS VAN 2001-2002
GMC • SAVANNA 2001-2002
18

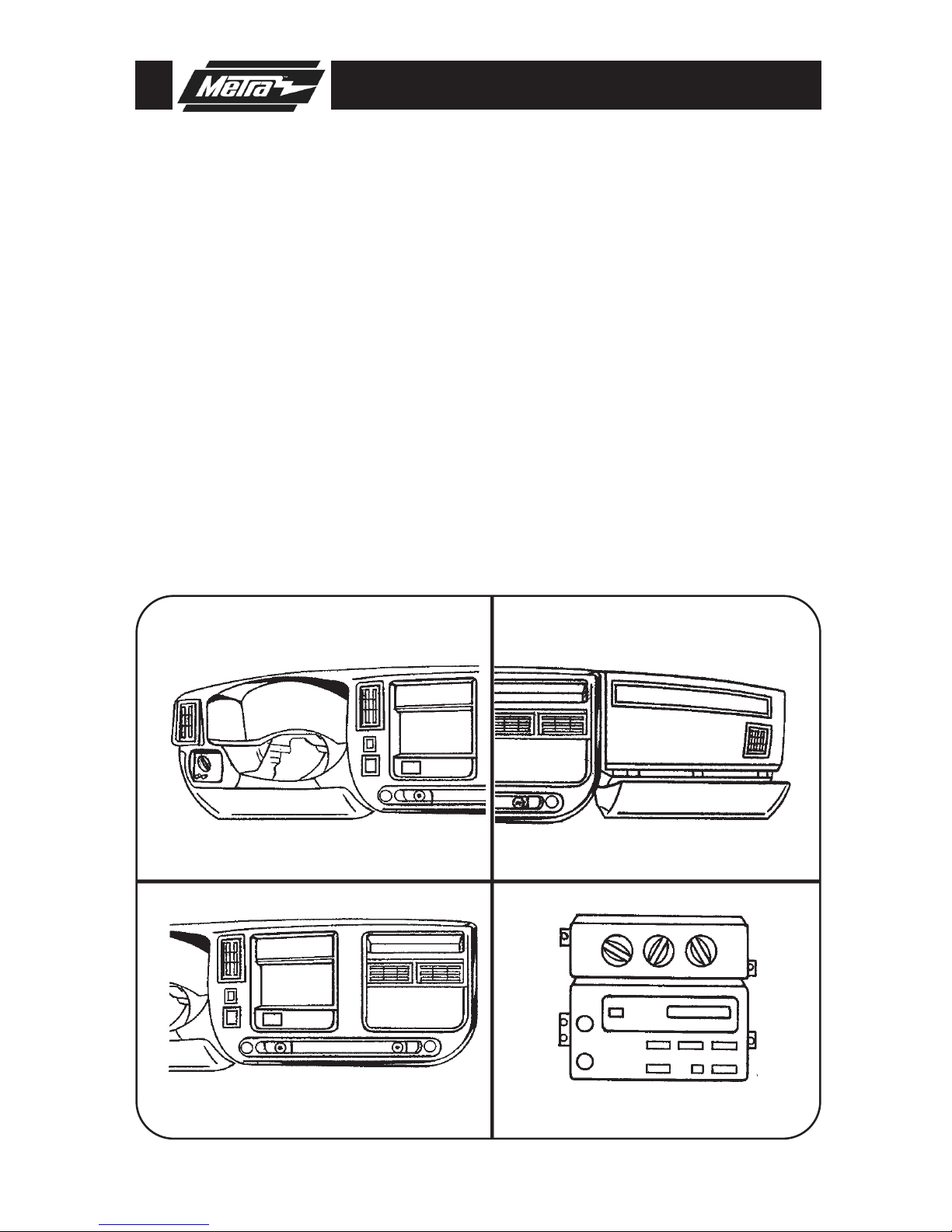

95-2009 DASH DISASSEMBLY
1
Remove (2) 10mm bolts from panel below passenger dash airbag and remove
panel.
Disconnect the negative battery terminal to prevent an accidental short circuit.
3
Remove (2) 10mm bolts from below knee bolster under steering column
and remove panel.
2
Remove (2) 10mm nuts from inside center pocket between power outlets.
4
Unsnap and remove radio and instrument cluster panel. (May not be necessary
to completely remove radio and instrument cluster panel to access
radio.)
5
Remove (3) 9/32" bolts to remove radio.
6
Continue to kit assembly.
CHEVROLET • EXPRESS VAN 2003-2007
GMC • SAVANNA 2003-2007
19

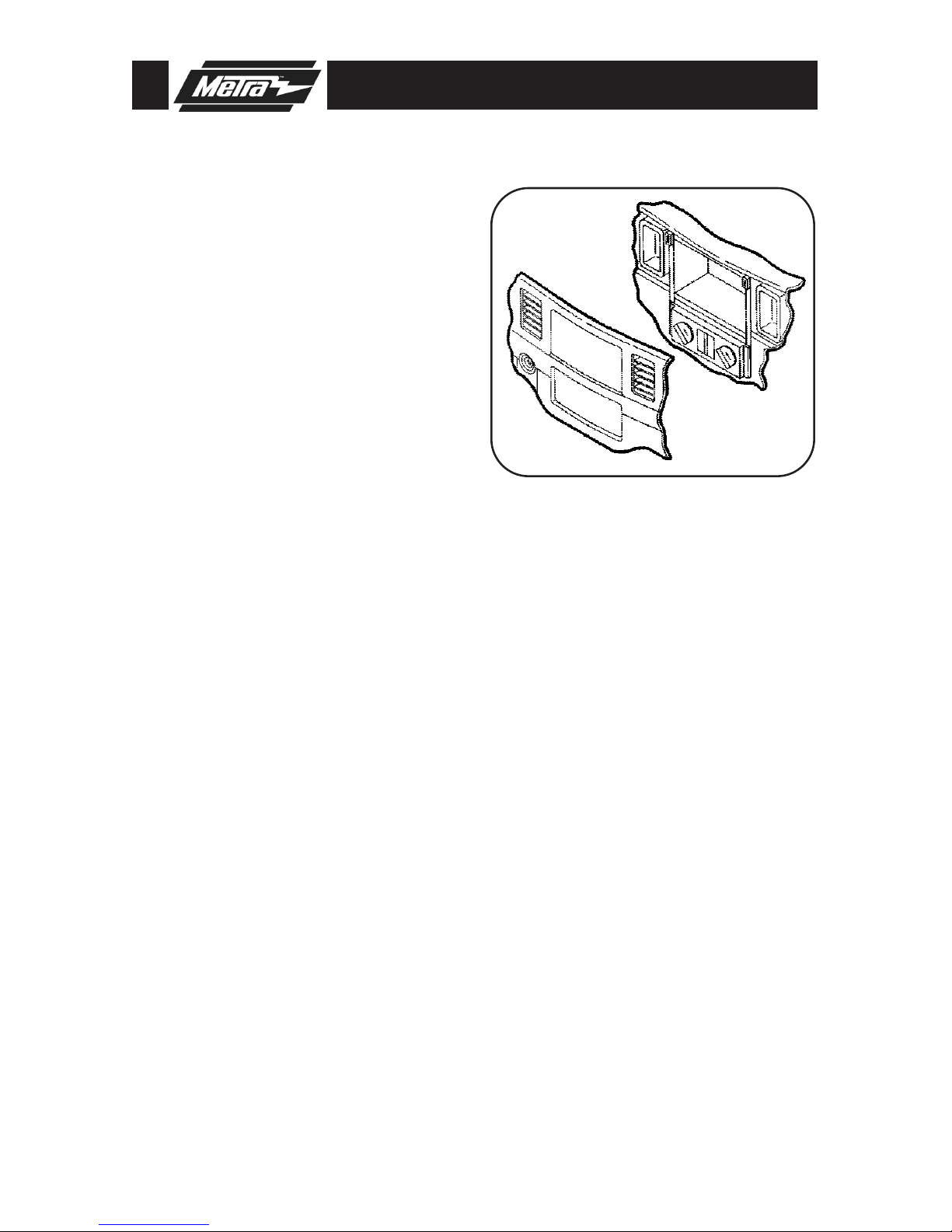

95-2009 DASH DISASSEMBLY
1
Remove (2) Phillips screws under the
instrument cluster.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Unclip each side of the dash trim
bezel (fuse access) and remove (1)
Phillips screw exposed on each side.
2
Unclip the trim panel above the
pedals. (It is not necessary to remove
the panel it can be left hanging).
4
Remove (2) Phillips screws from the
knee panel.
5
Unclip the knee panel and remove (1)
phillips screw exposed on the right
side of the steering column.
6
Unclip and remove the entire dash
trim bezel.
7
CHEVROLET • IMPALA 2000-2005
Continue to kit assembly.
20

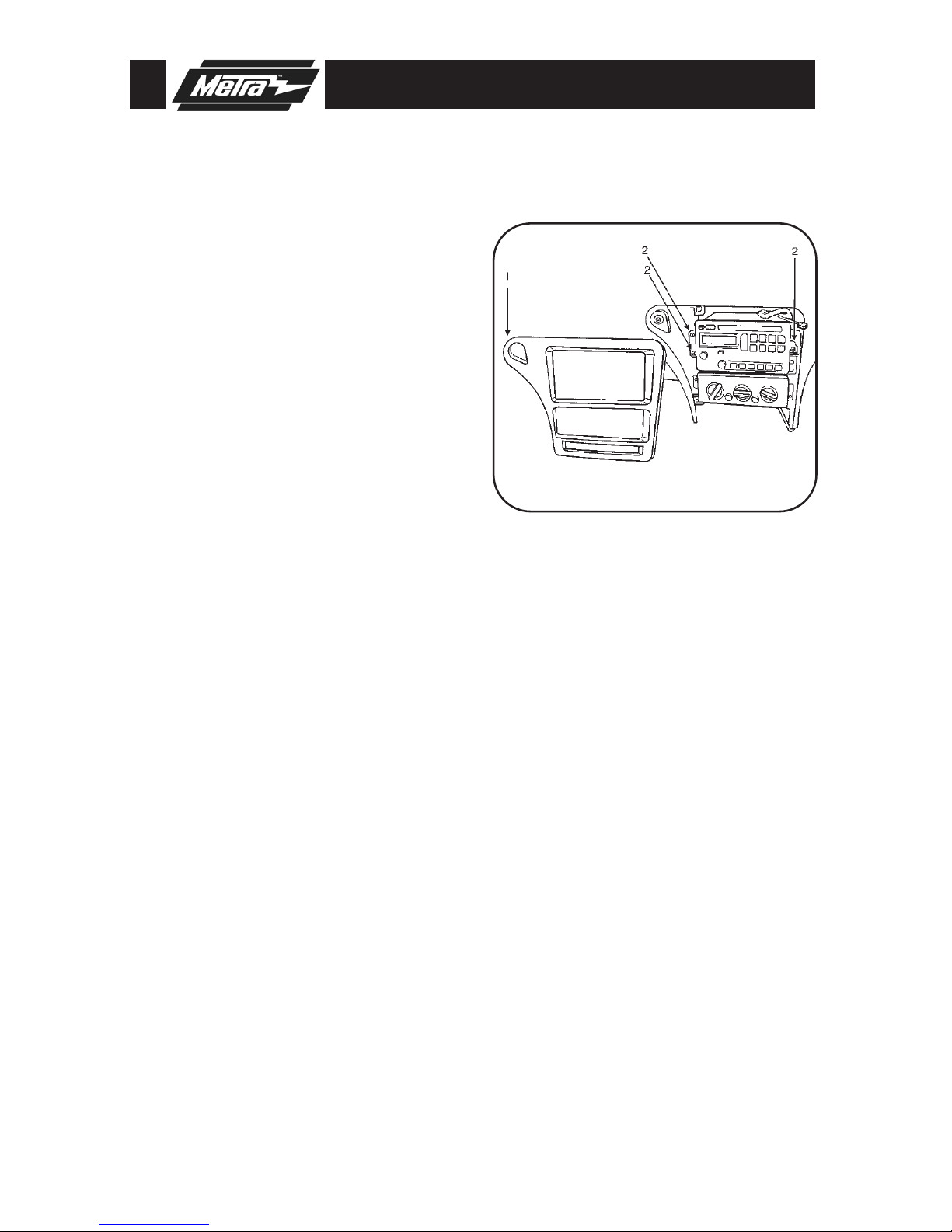

95-2009 DASH DISASSEMBLY
1
Remove (3) bolts and remove radio.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Unsnap and remove radio bezel.
2
CHEVROLET • MALIBU 2001-2003
MALIBU CLASSIC 2004
Continue to kit assembly.
21

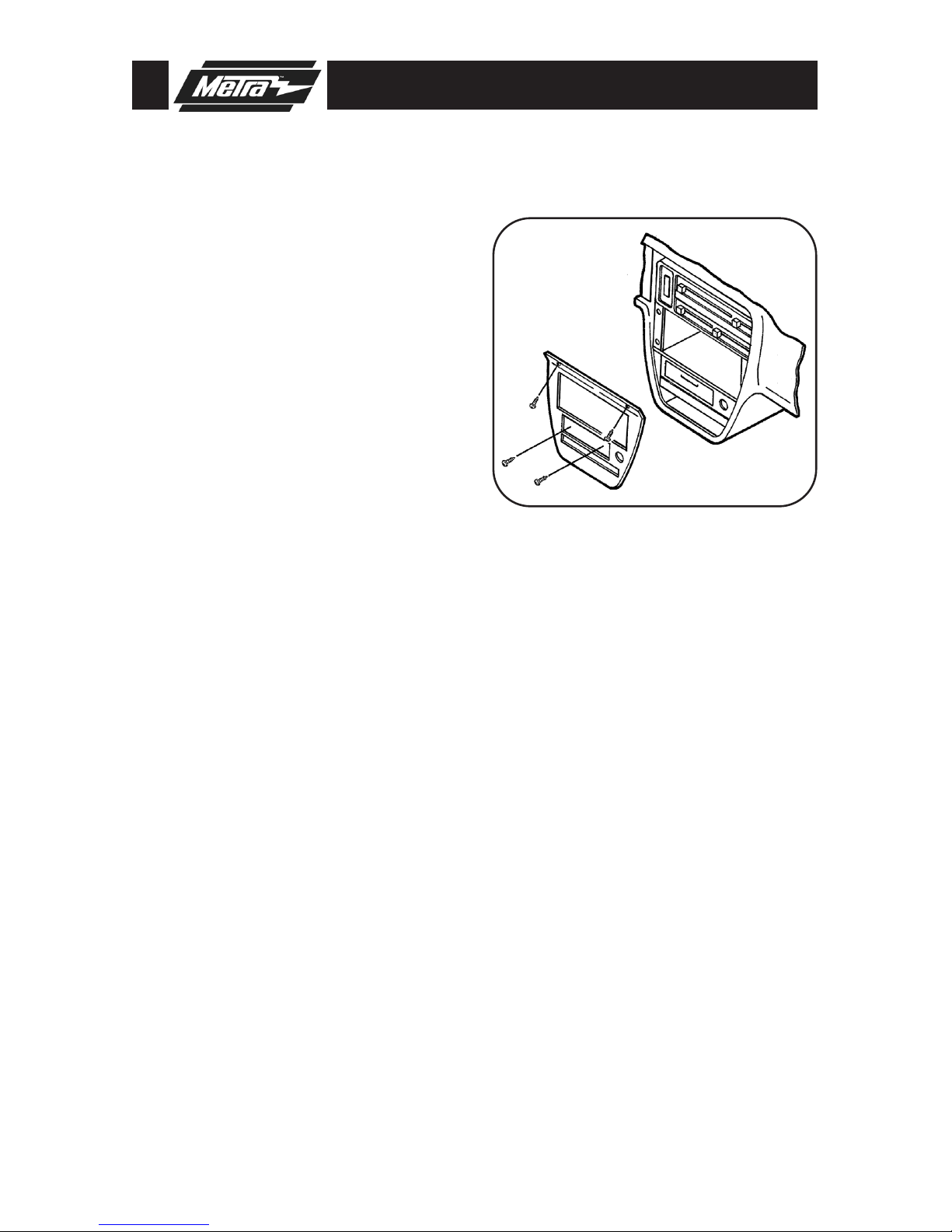

95-2009 DASH DISASSEMBLY
1
Remove (2) Phillips screws above the
radio opening.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Remove the ashtray and (2) Phillips
screws exposed.
2
Unclip the radio trim bezel and
disconnect the cigarette lighter
wiring.
4
Remove (2) screws securing each
side of the factory head unit and (1)
screw from the rear support.
5
Slide the unit out and disconnect the
wiring.
6
CHEVROLET • METRO 1995-2001
SUZUKI • SWIFT 1995-2001
Continue to kit assembly.
22
95-2009 DASH DISASSEMBLY
1
Remove (2) 9/32" screws from the
knee panel and unclip the panel.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Unclip the trim panel above the pedals. (It is NOT necessary to remove
the panel it may be left hanging).
2
Unsnap the driver's side fuse panel
cover and remove (1) 9/32" screw.
4
Open the glove box and remove (1)
9/32" screw from the upper left
corner.
5
Remove (3) 9/32" screws securing
the factory radio and disconnect the
wiring.
6
CHEVROLET • MONTE CARLO 2000-2005
Continue to kit assembly.
23
95-2009 DASH DISASSEMBLY
1
2
3
1
2
3
1

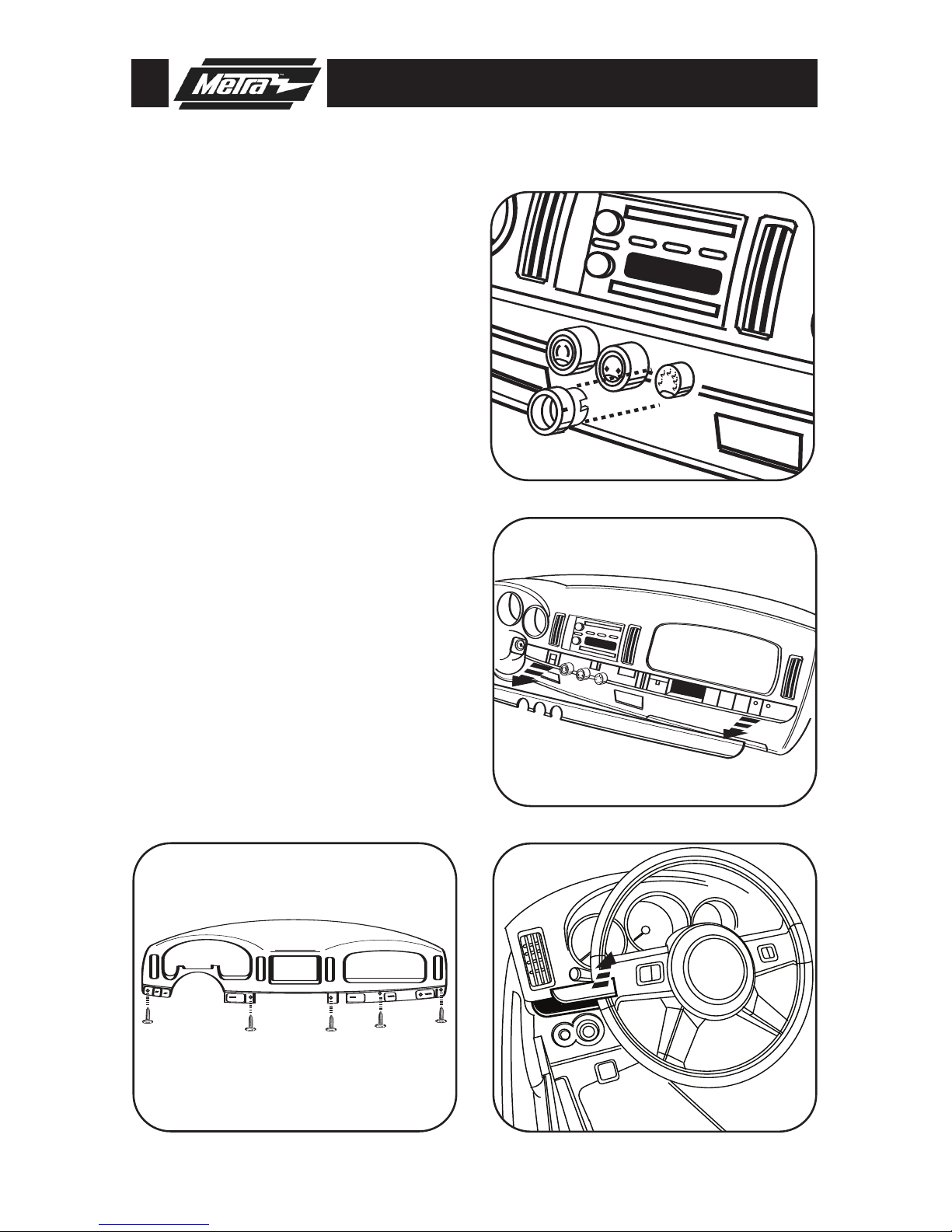

Unclip and remove the long trim panel
below the radio and passenger air
bag. (Figure B)
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Unclip and remove the (3) climate
control knobs. (Figure A)
2
Unclip and remove the small trim
panel to the left of the steering
wheel. (Figure C)
4
Remove the (5) 9/32” screws securing
the radio/instrument panel then unclip
and remove the panel. (Figure D)
5
Remove the screws securing the
factory head unit and disconnect the
wiring.
6
CHEVROLET • SSR 2003-2006
Continue to kit assembly.
A
B
C
D
24

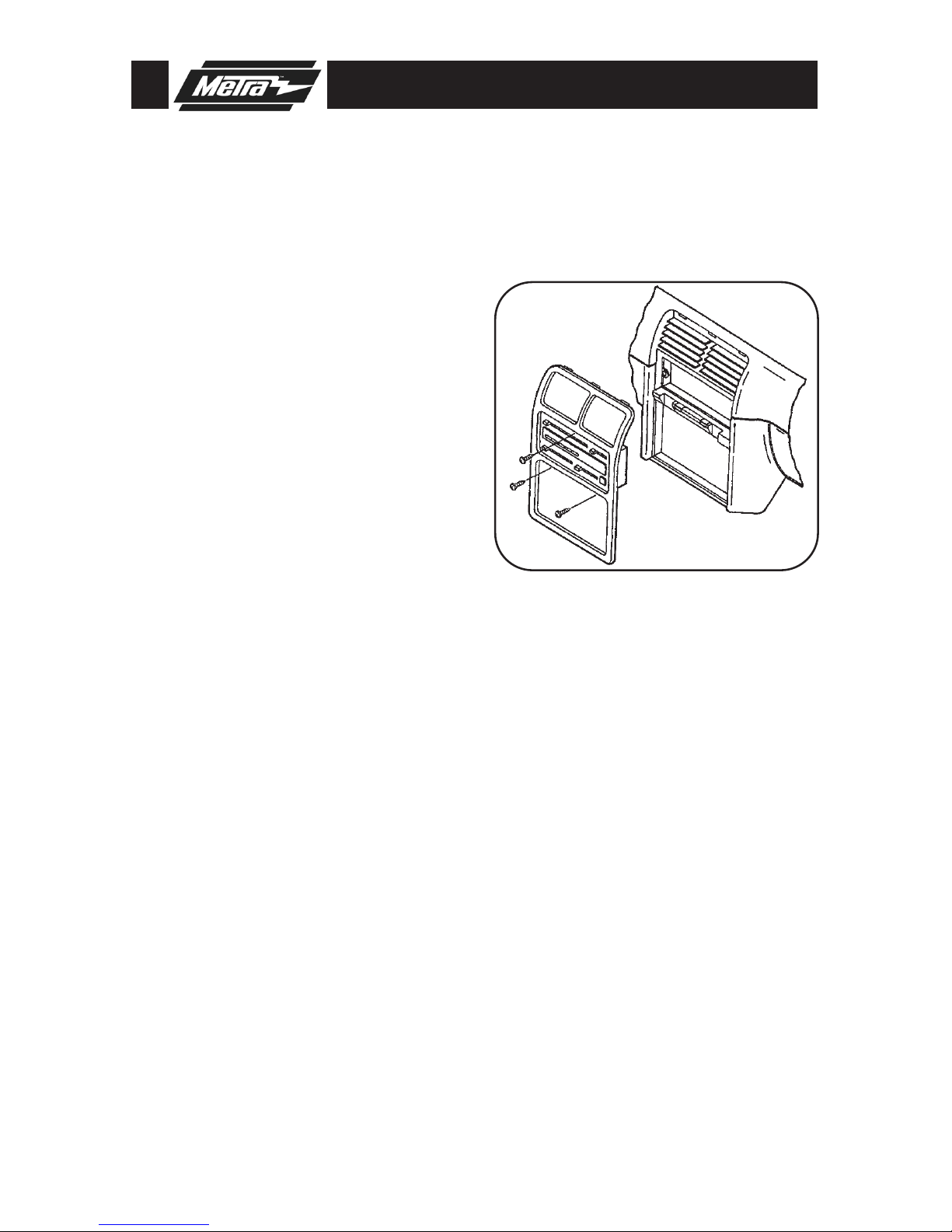

95-2009 DASH DISASSEMBLY
1
Remove the ashtray and (1) screw
exposed.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Remove the cigarette lighter and
climate control knobs.
2
Pull out on the climate control cluster
and remove (2) screws exposed.
4
Unclip the radio trim bezel.
5
Remove (4) screws from the factory
head unit, slide the unit out and disconnect the wiring.
6
CHEVROLET • TRACKER 1992-2004
SUZUKI • SIDEKICK 1992-1998 / VITARA 1999-2005
GRAND VITARA 1999-2002
XL-7 2001-2002
Continue to kit assembly.
25
95-2009 DASH DISASSEMBLY
1

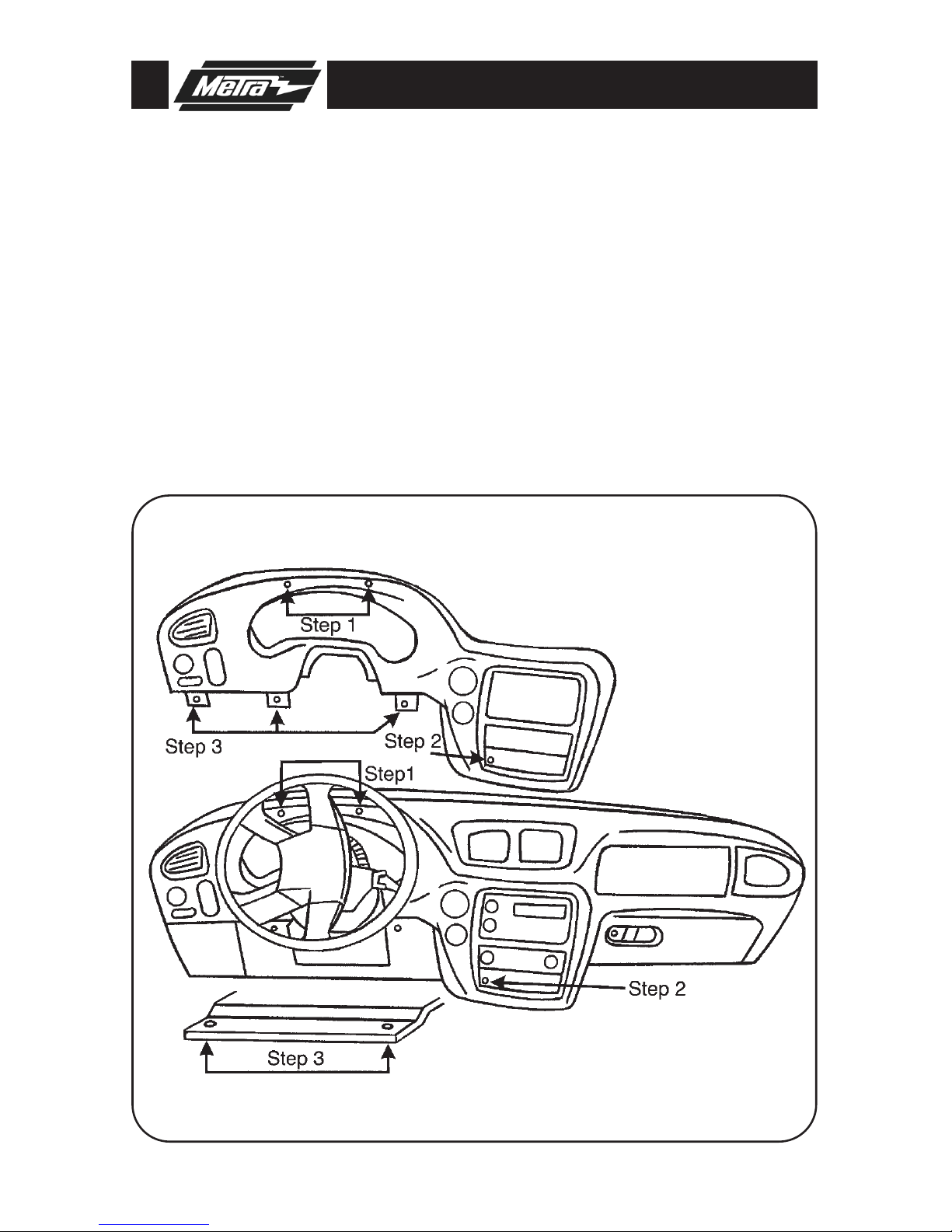

Remove (1) Phillips screw under climate controls to the left of the power outlet.
Disconnect the negative battery terminal to prevent an accidental short circuit.
3
Remove (2) Phillips screws inside instrument cluster.
2
Remove (2) 7mm hex heads from under steering column and lower the panel.
Remove (3) Phillips screws around steering wheel.
4
Unsnap and remove bezel. (Use caution pulling over hazard switch.) Remove (3)
7mm hex head screws to remove radio.
5
Continue to kit assembly.
CHEVROLET • TRAILBLAZER 2002-2009
26

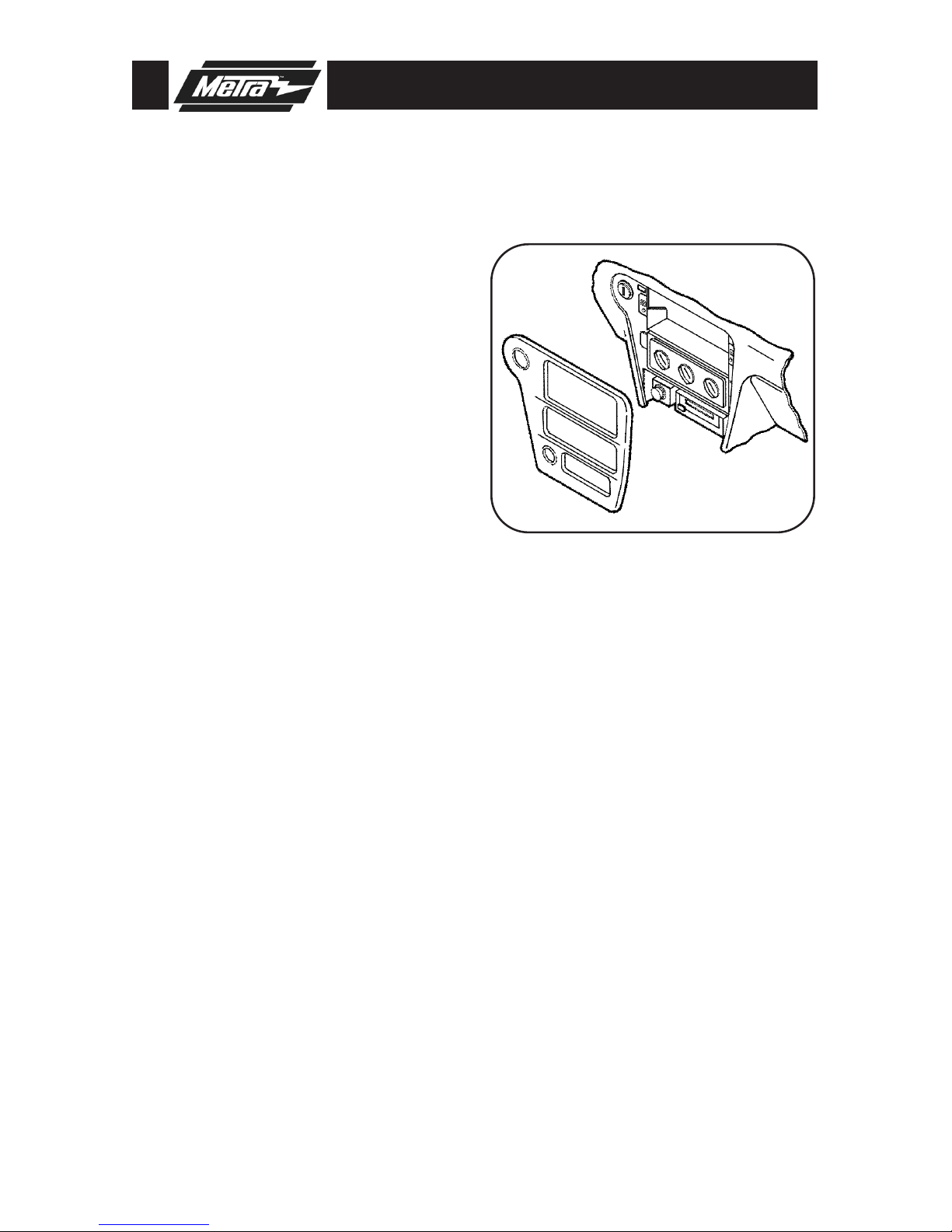

95-2009 DASH DISASSEMBLY
1
Remove (1) Phillips screw from the
cigarette lighter compartment.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Remove the ashtray and (1) phillips
screw exposed in the ashtray cavity.
2
Remove (2) Phillips screws securing
the factory head unit and disconnect
the wiring.
4
CHEVROLET • VENTURE 2000
OLDSMOBILE • SILHOUETTE 2000
PONTIAC • MONTANA (EXCEPT SV6) 2000
Continue to kit assembly.
27

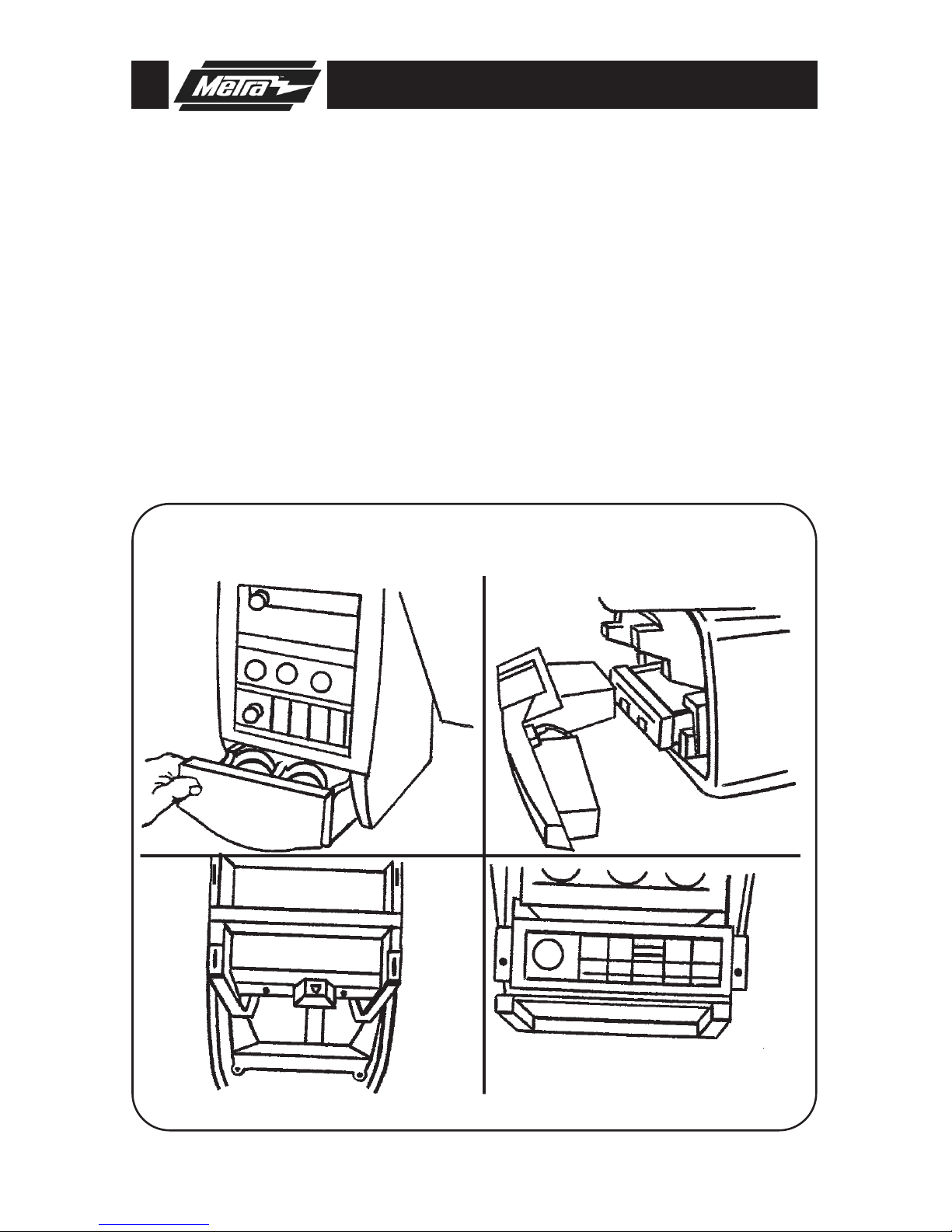

95-2009 DASH DISASSEMBLY
1
Disconnect the negative battery terminal to prevent an accidental short circuit.
CHEVROLET • VENTURE 2001-2005
OLDSMOBILE • SILHOUETTE 2001-2004
PONTIAC • MONTANA (EXCEPT SV6) 2001-2005
Remove (1) Phillips screw from the cigarette lighter compartment.
3
Remove the ashtray and (1) phillips screw exposed in the ashtray cavity.
2
Remove (2) Phillips screws securing the factory head unit and disconnect the
wiring.
4
Continue to kit assembly.
28

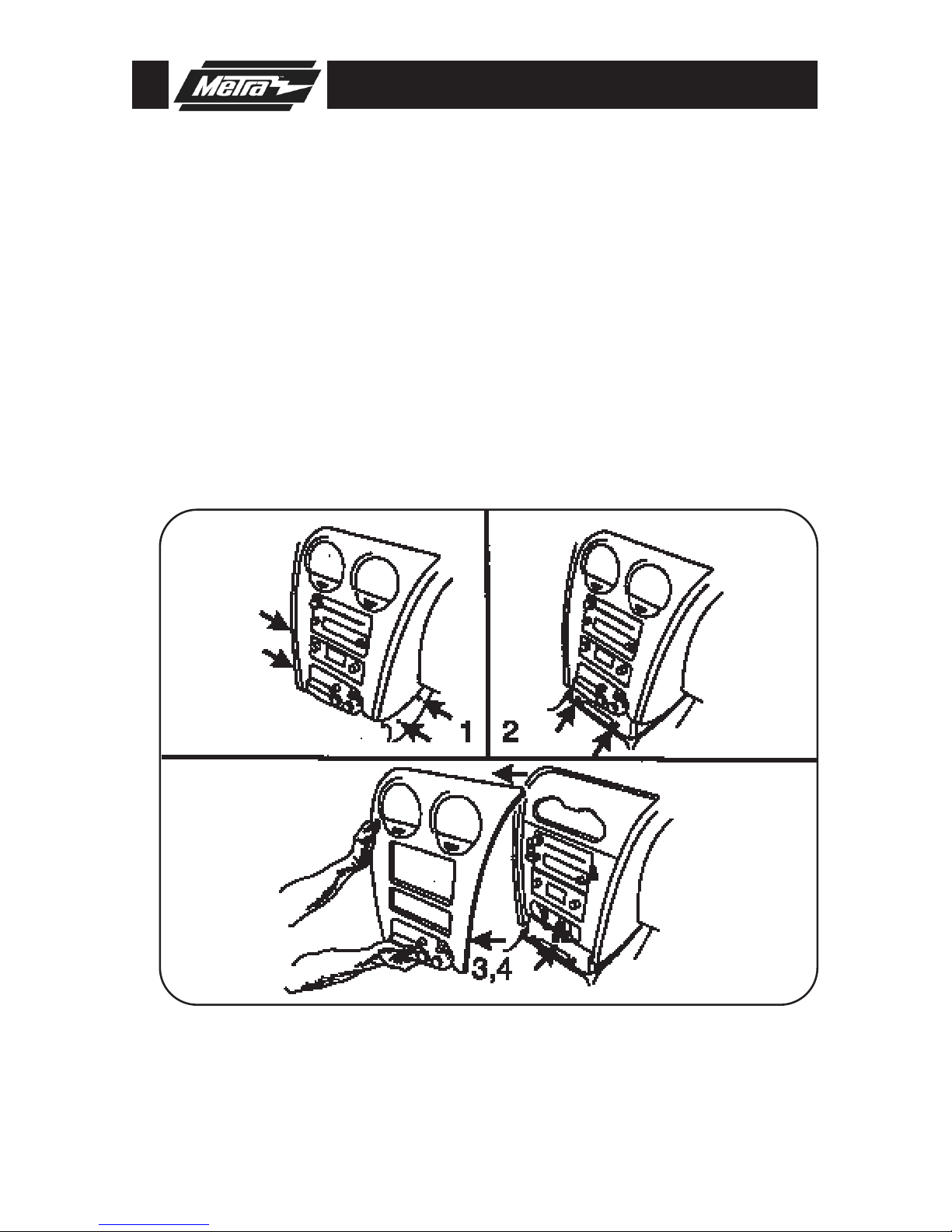

95-2009 DASH DISASSEMBLY
GMC • ENVOY 2002-2009 / ISUZU ASCENDER 2003-2009
OLDSMOBILE • BRAVADA 1998-2004
BUICK • RAINIER 2004-2007
2. Remove (4) Phillips screws, (2) from left and (2) from right of carpeted panel.
3. Slide carpeted panel down and backwards to reveal (2) Phillips screws and remove.
4. Unsnap radio bezel and unplug cigarette lighter and accessories.
5. Remove (3) screws and remove radio.
Continue to kit assembly.
1
Disconnect the negative battery terminal to prevent an accidental short circuit.
29

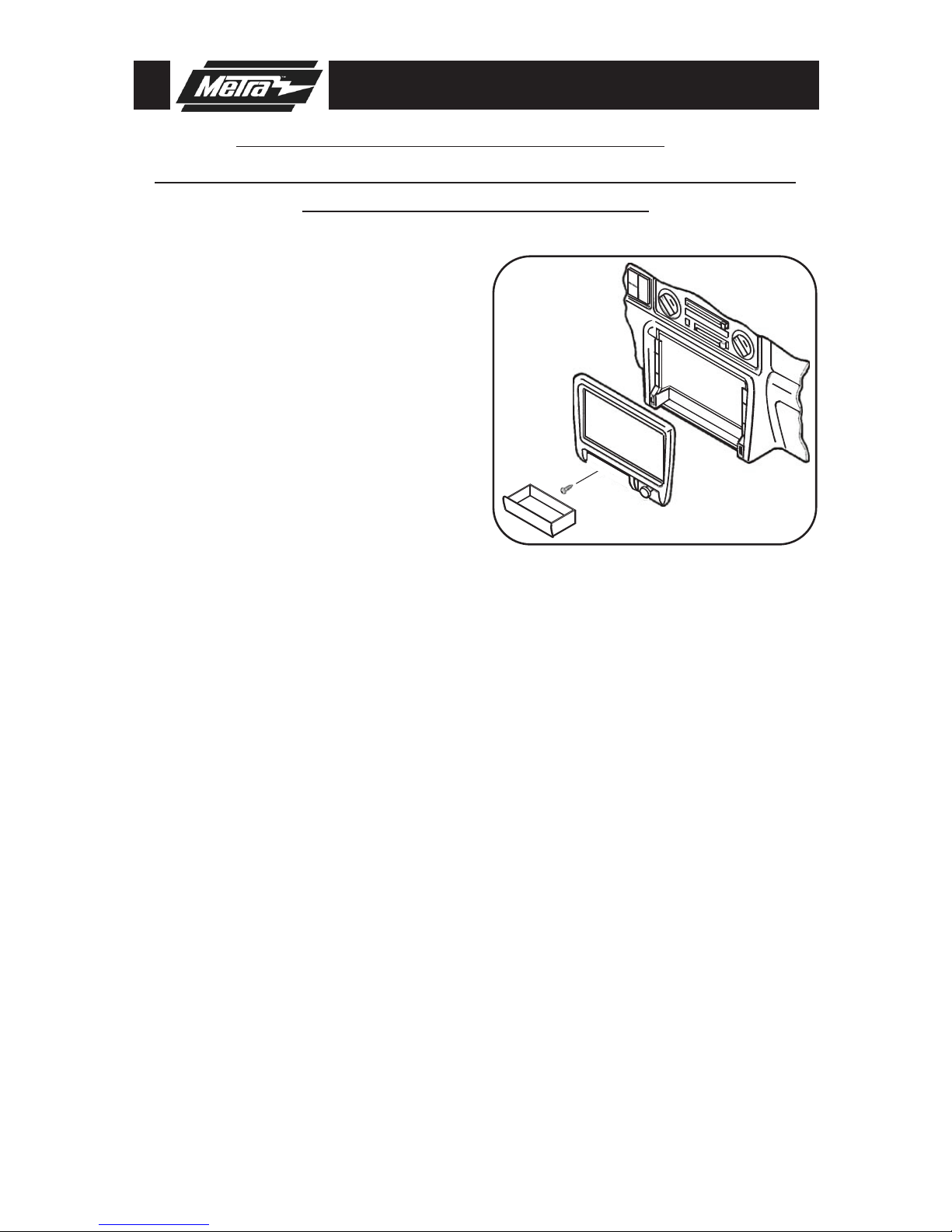

95-2009 DASH DISASSEMBLY
HONDA • PASSPORT 1998-2002
ISUZU • AMIGO 1998-2000 / RODEO 1998-2004
RODEO SPORT 2001-2003
1
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
Remove the ashtray and (1) Phillips
screw exposed in the ashtray cavity.
Unclip and remove the trim panel
surrounding the factory radio.
Remove (4) Phillips screws securing
the factory radio and disconnect the
wiring.
2
C
ontinue to kit assembly.
30
95-2009 DASH DISASSEMBLY
HUMMER • H2 2003-2007
1
Remove (4) phillips screws from hinge on console door inside console and remove
door.
Disconnect the negative battery terminal to prevent an accidental short circuit.
3
Open center console and remove (4) 9/32” screws from console box and
remove box.
2
Loosen (1) T-15 torx on forward facing side of shift lever and pull up to
remove.
4
Unclip cup holder/shifter trim assembly and remove.
5
Remove (6) Phillips screws from top of center console.
6
Remove (2) Phillips screws from inside pocket on back of center console, then
unclip and remove.
7
Continued on page 30.
31
95-2009 DASH DISASSEMBLY
Continue to kit assembly.
HUMMER • H2 2003-2007
8
Slide control assembly rearwards.
Remove (1) 10mm bolt to right of shift lever.
10-
Remove (2) Phillips screws from under console box on drivers side and (2)
Phillips screws from under console trimtop on passenger side.
9
Remove (2) T-30 torx bolts from top of rado/climate control trim and
unclip and remove.
11
Remove (3) 9/32” screws that hold the radio in.
12
Continued from page 30.
32

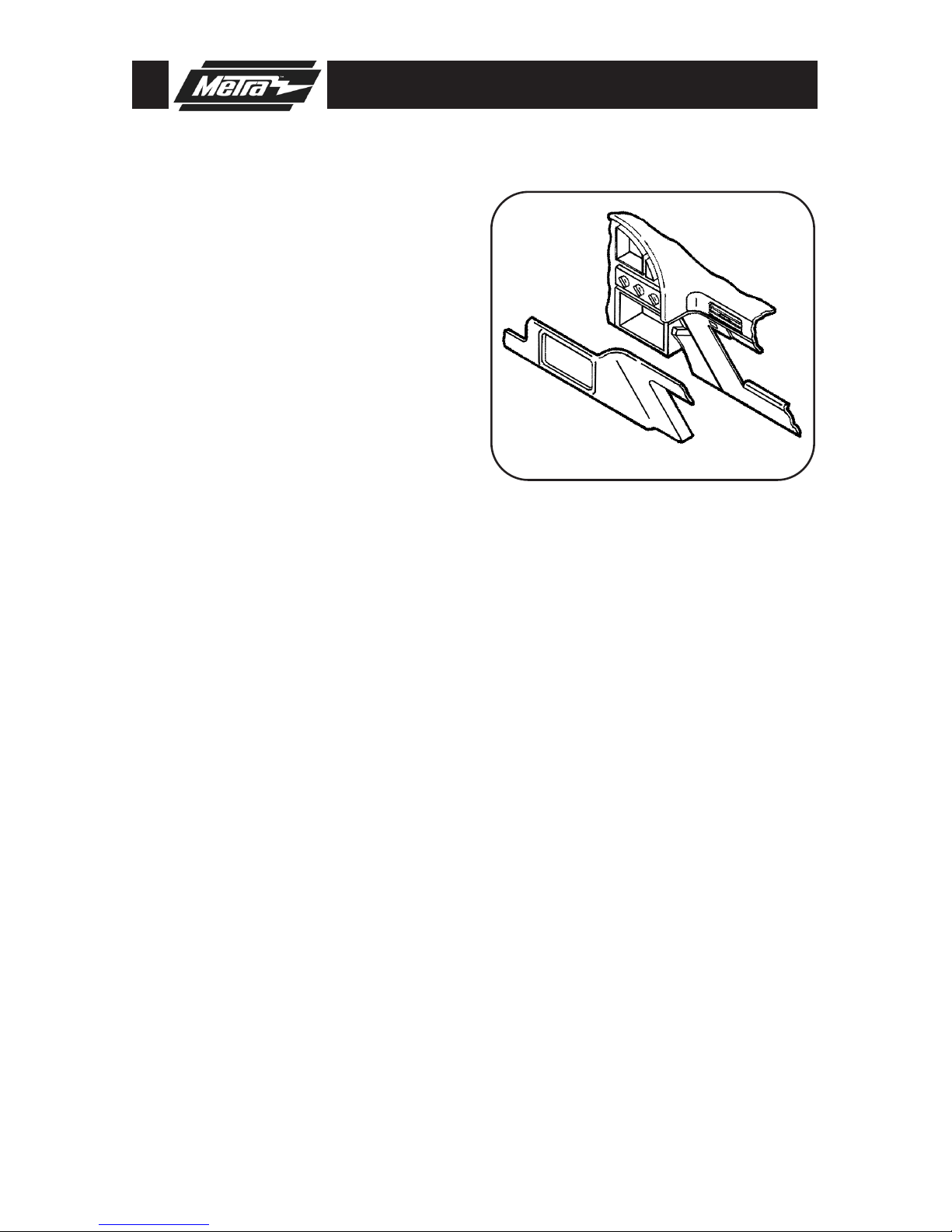

95-2009 DASH DISASSEMBLY
OLDSMOBILE • ACHIEVA 1996-
1
Remove (10) torx-head screws from
the glove box location.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Open the glove box, press inward on
the walls of the glove box liner and
remove the liner.
2
Remove (2) 9/32" hex-head screws
under the steering column.
4
Unclip the dash trim bezel.
5
Remove the screws securing the
factory head unit and disconnect the
wiring.
6
Continue to kit assembly.
33

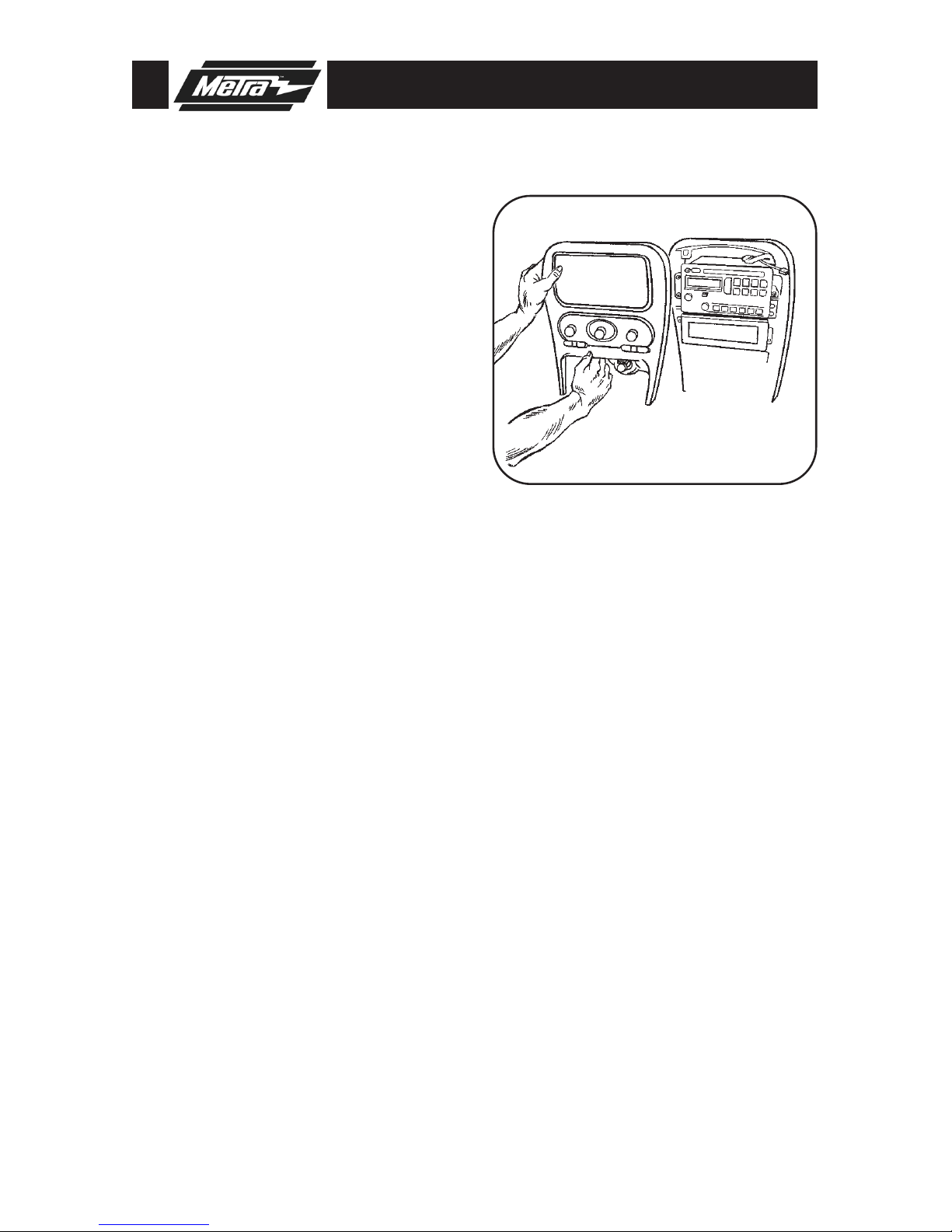

95-2009 DASH DISASSEMBLY
OLDSMOBILE • ALERO 1999-2004
1
Unclip and remove shifter trim panel.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Remove shift knob by using a small
screwdriver to remove U-clip from
front of shifter and pull upward.
2
Unclip and remove radio and climate
control panel by pulling from bottom.
4
Remove (3) 9/32" screws from radio
and remove.
5
Continue to kit assembly.
34

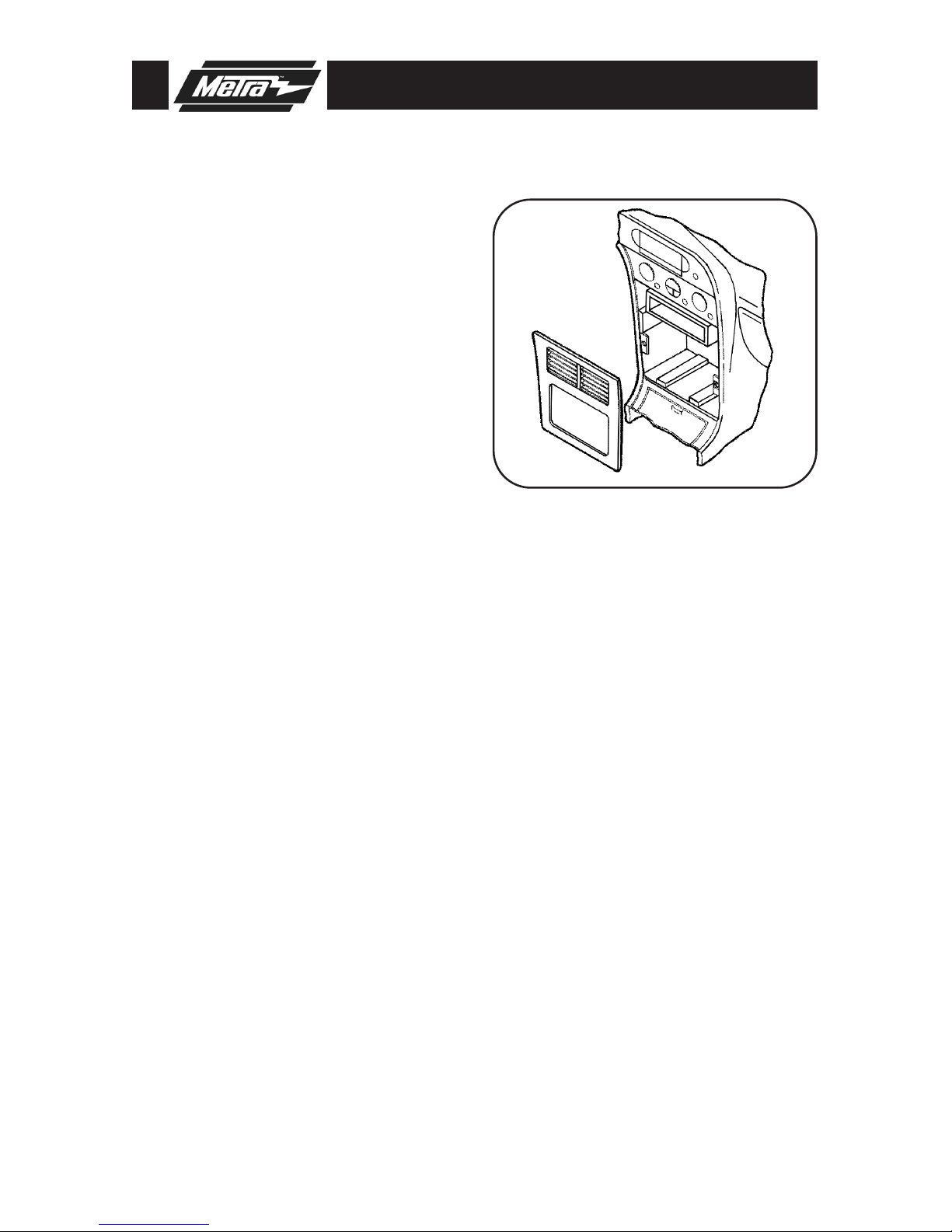

95-2009 DASH DISASSEMBLY
OLDSMOBILE • AURORA 1995-2003
1
Remove (2) 7mm screws securing the
factory head unit and disconnect the
wiring.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Unclip the radio trim bezel and
remove the bezel.
2
Continue to kit assembly.
35

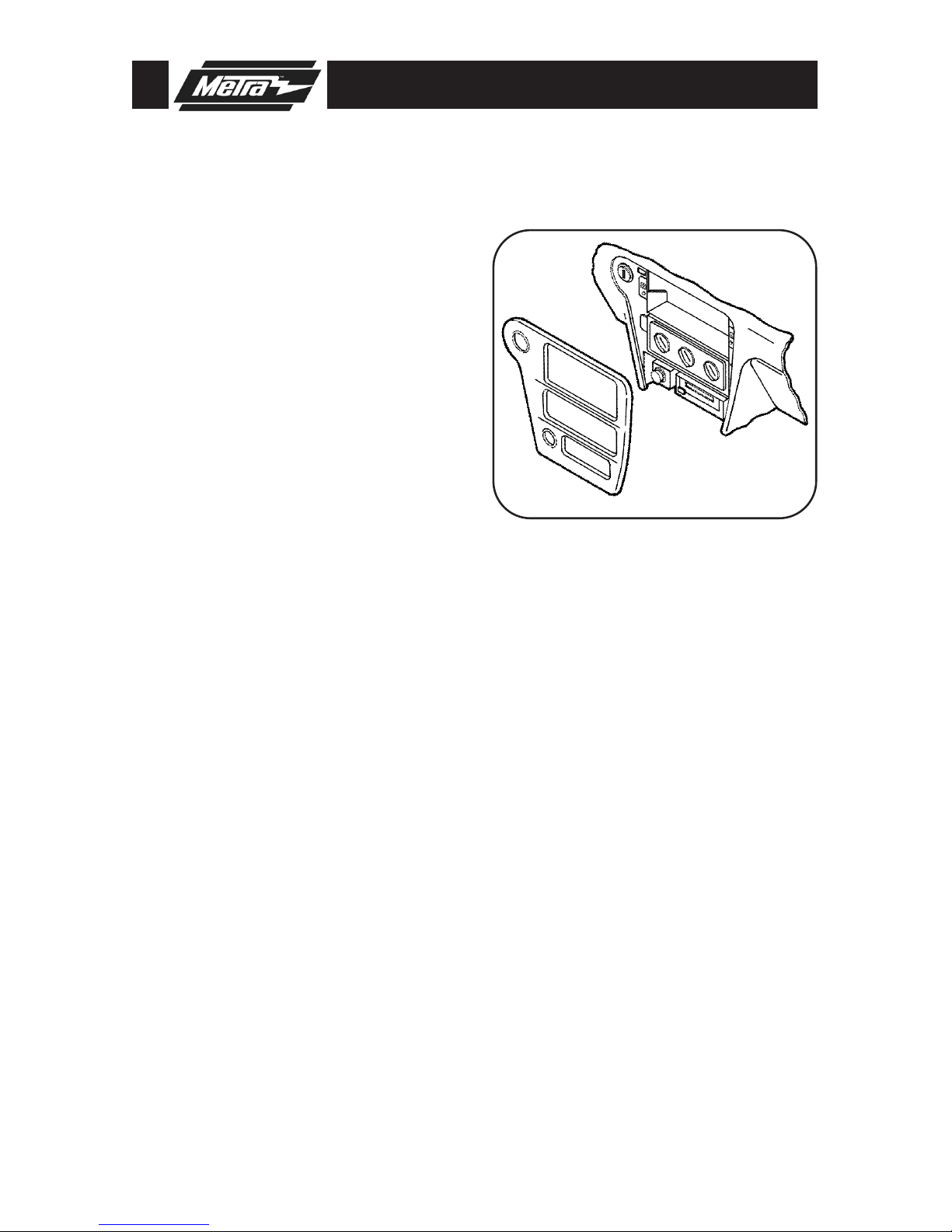

95-2009 DASH DISASSEMBLY
OLDSMOBILE • CUTLASS 1997-1999
CUTLASS SUPREME 1995-1997
1
Remove (2) ) 9/32" hex-head screws
securing the factory head unit and
disconnect the wiring.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Unclip the radio trim bezel and
remove.
2
Continue to kit assembly.
36

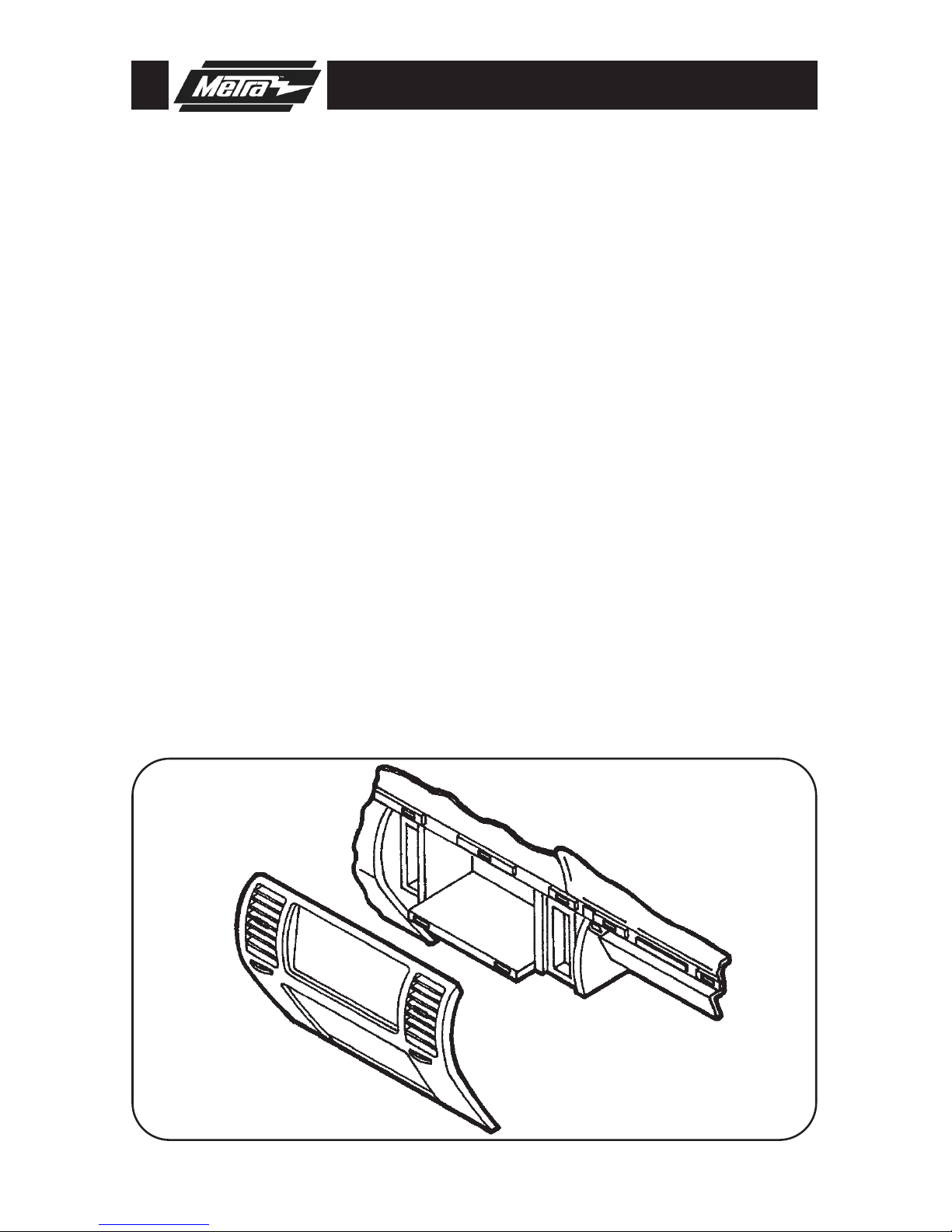

95-2009 DASH DISASSEMBLY
OLDSMOBILE •
EIGHTY EIGHT 1994-1999
1
Remove (2) ) 9/32" hex-head screws securing the factory head unit and disconnect
the wiring.
Disconnect the negative battery terminal to prevent an accidental short circuit.
3
Unclip the radio trim bezel and remove.
2
Continue to kit assembly.
1
Unsnap the wood trim and remove.
Disconnect the negative battery terminal to prevent an accidental short circuit.
3
Open the glove box and remove (2) hex-head screws securing the wood trim.
2
4
Remove (3) Phillips hex-head screws securing the factory head unit and disconnect
the wiring.
Remove (2) hex-head screws below the radio trim bezel.
6
Lift up on the bezel and remove.
5
Continue to kit assembly.
OLDSMOBILE •
NINETY EIGHT 1994-1996
37

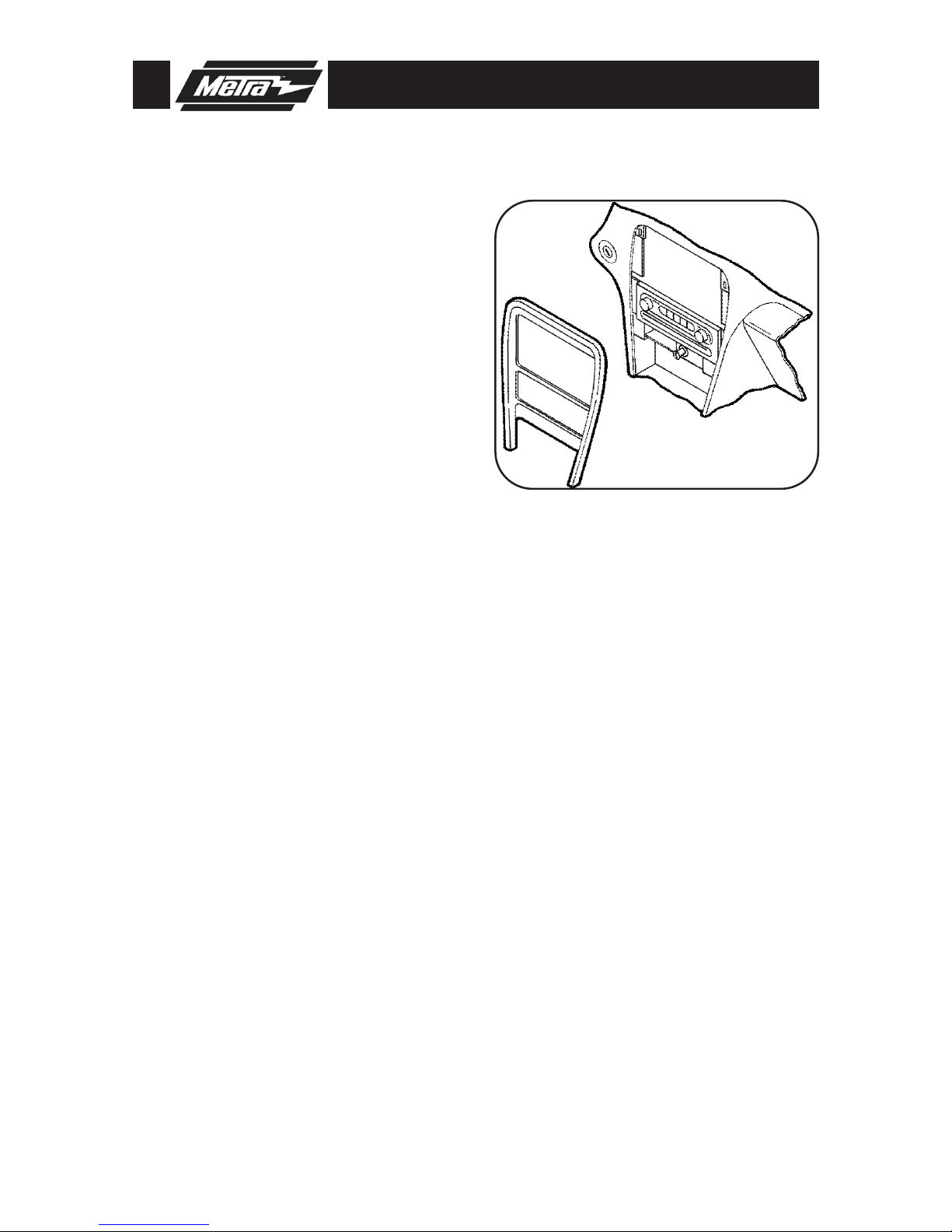

95-2009 DASH DISASSEMBLY
OLDSMOBILE • INTRIGUE 1998-2003
1
Remove the center console.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Open the center console storage
compartment and remove (2) 9/32"
hex-head screws exposed.
2
Unclip the radio trim bezel and
remove.
4
Remove (2) 9/32" hex-head screws
securing the factory head unit and
disconnect the wiring.
5
Continue to kit assembly.
38

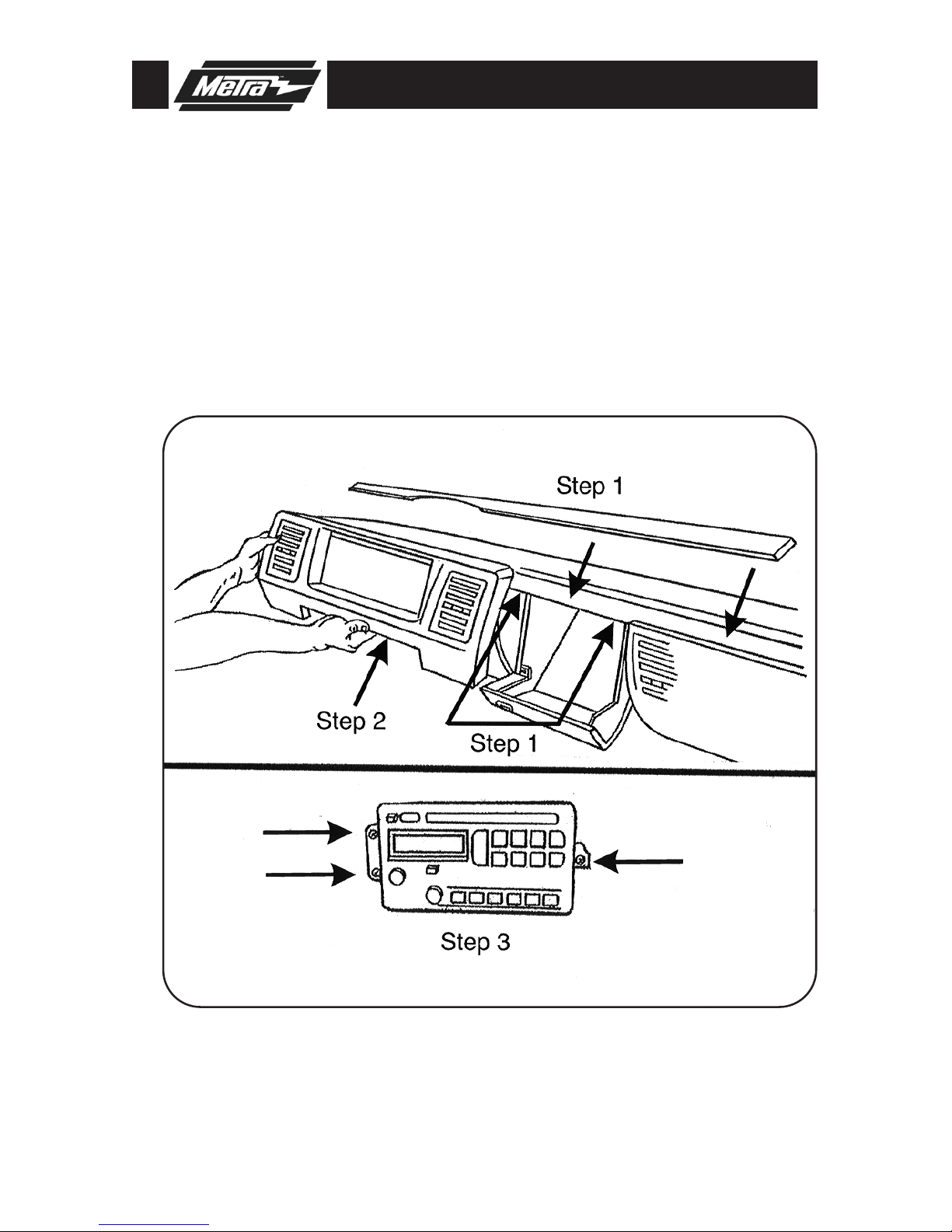

95-2009 DASH DISASSEMBLY
OLDSMOBILE • LSS 1996-1999 / REGENCY 1997-1998
1
Unsnap and remove radio trim bezel.
Disconnect the negative battery terminal to prevent an accidental short circuit.
3
Open glove box and remove two-center trim bezels attached by screws.
2
Remove (3) 9/32" hex-head screws and remove radio.
4
Continue to kit assembly.
39
95-2009 DASH DISASSEMBLY
PONTIAC • AZTEC 2001-2005
1
Remove (1) Phillips screw exposed
inside bottom cup holder.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Pull out cup holder inserts.
2
Unsnap and remove shifter trim with
cup holders.
4
Remove (2) #15 torx at bottom of
radio/climate bezel.
5
Continue to kit assembly.
40

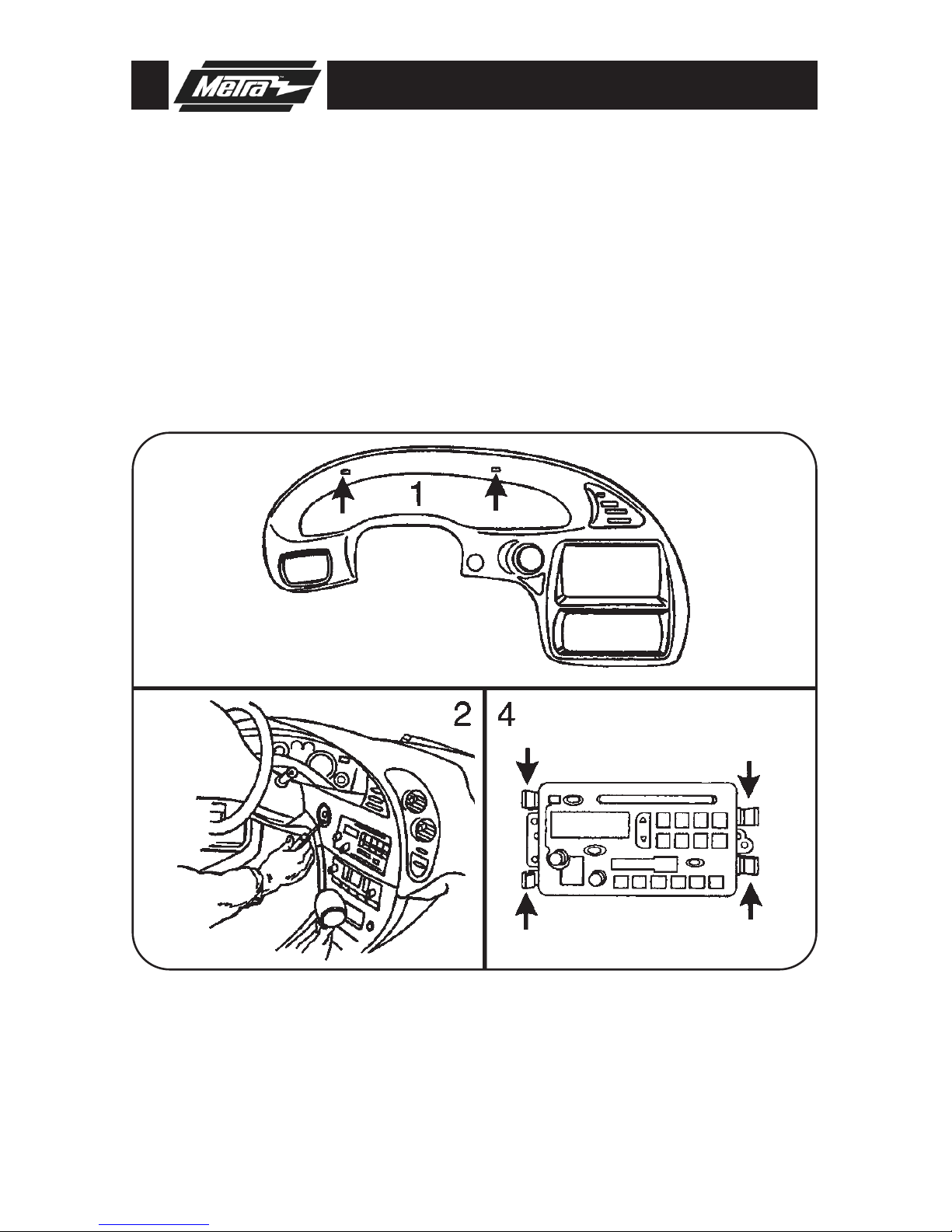

95-2009 DASH DISASSEMBLY
PONTIAC • BONNEVILLE 2000-2005
1
Unclip the ignition trim and remove.
Disconnect the negative battery terminal to prevent an accidental short circuit.
3
Remove (2) Phillips screws from the instrument cluster.
2
Unclip the climate control/radio trim bezel and remove.
4
Depress the spring clips on each side of the factory head unit and remove.
5
Continue to kit assembly.
41

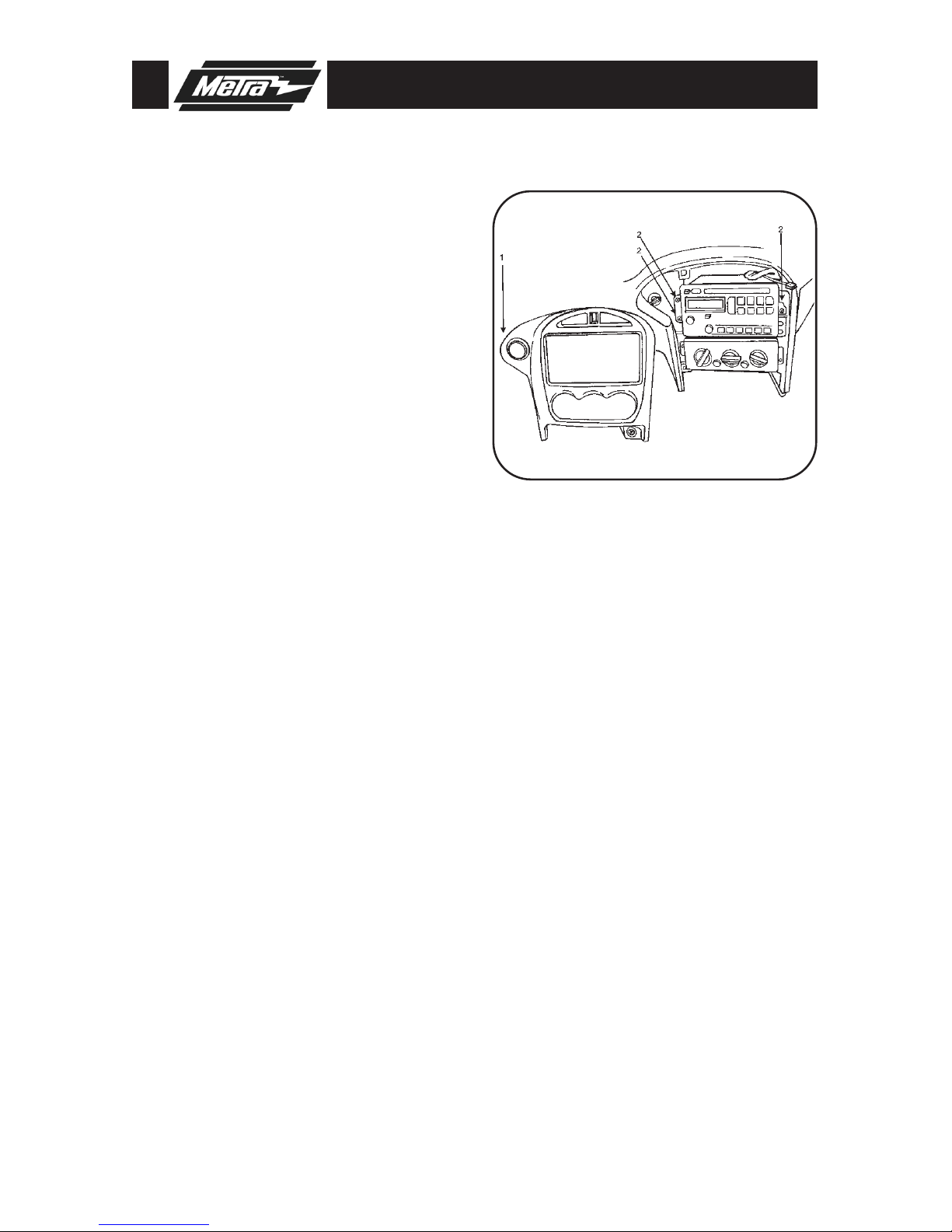

95-2009 DASH DISASSEMBLY
PONTIAC • GRAND AM 2001-2005
1
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
Unsnap and remove radio trim bezel.
2
Remove (3) 9/32” screws from radio
brackets and remove radio.
3
Continue to kit assembly.
42

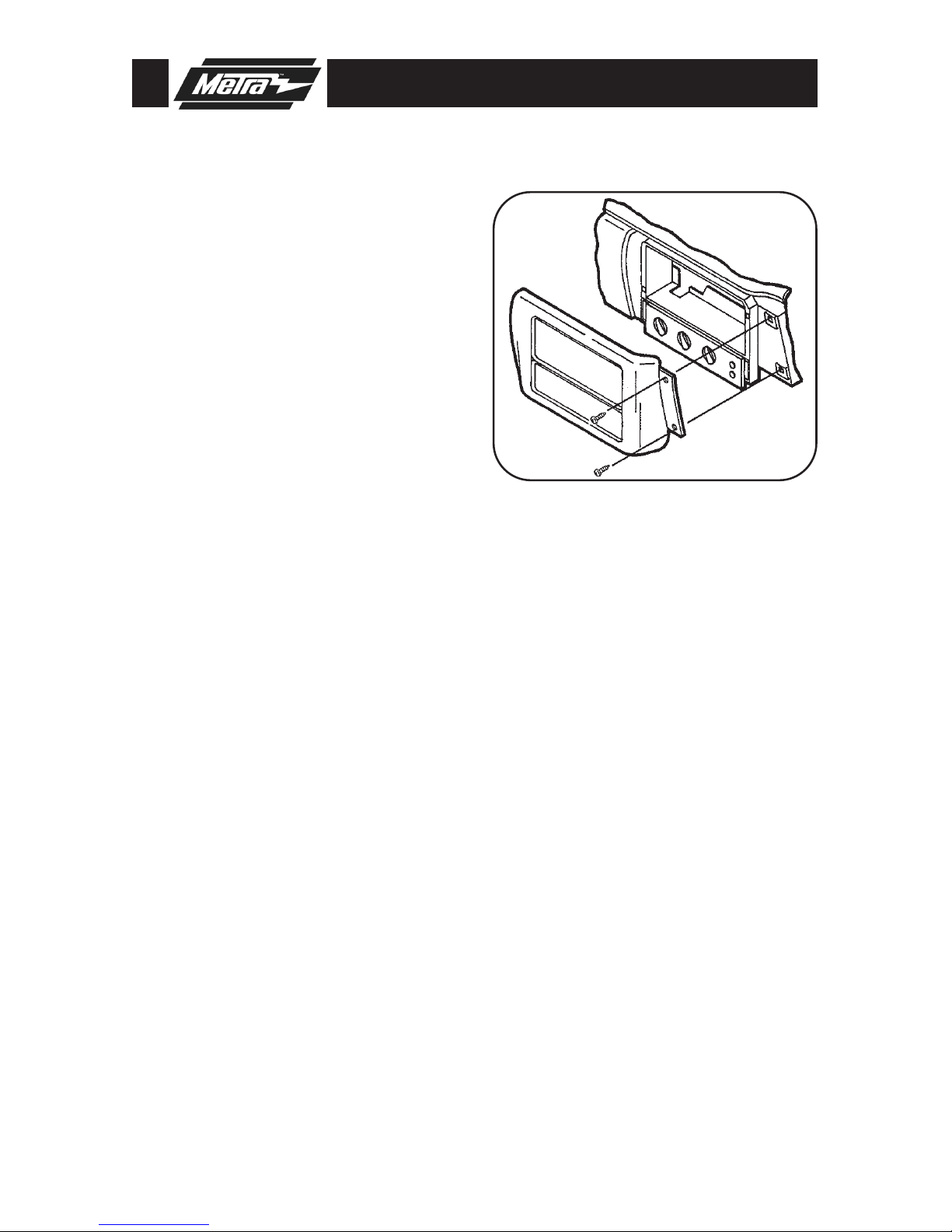

95-2009 DASH DISASSEMBLY
PONTIAC • SUNFIRE 2000-2005
1
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
Open the glove box and remove (2)
Phillips screws exposed on the right
edge of the radio trim bezel.
2
Unclip the bezel and remove.
3
Remove (2) 7mm hex-head screws
securing the factory head unit and
disconnect the wiring.
4
Continue to kit assembly.
43
95-2009 DASH DISASSEMBLY
TOYOTA • MATRIX 2003-2004
PONTIAC • VIBE 2003-2008
SCAN
SEEK
TR
A
C
K
TUN
E
AM
FM1
FM2
DISK
1
Disconnect the negative battery
terminal to prevent an accidental
short circuit.

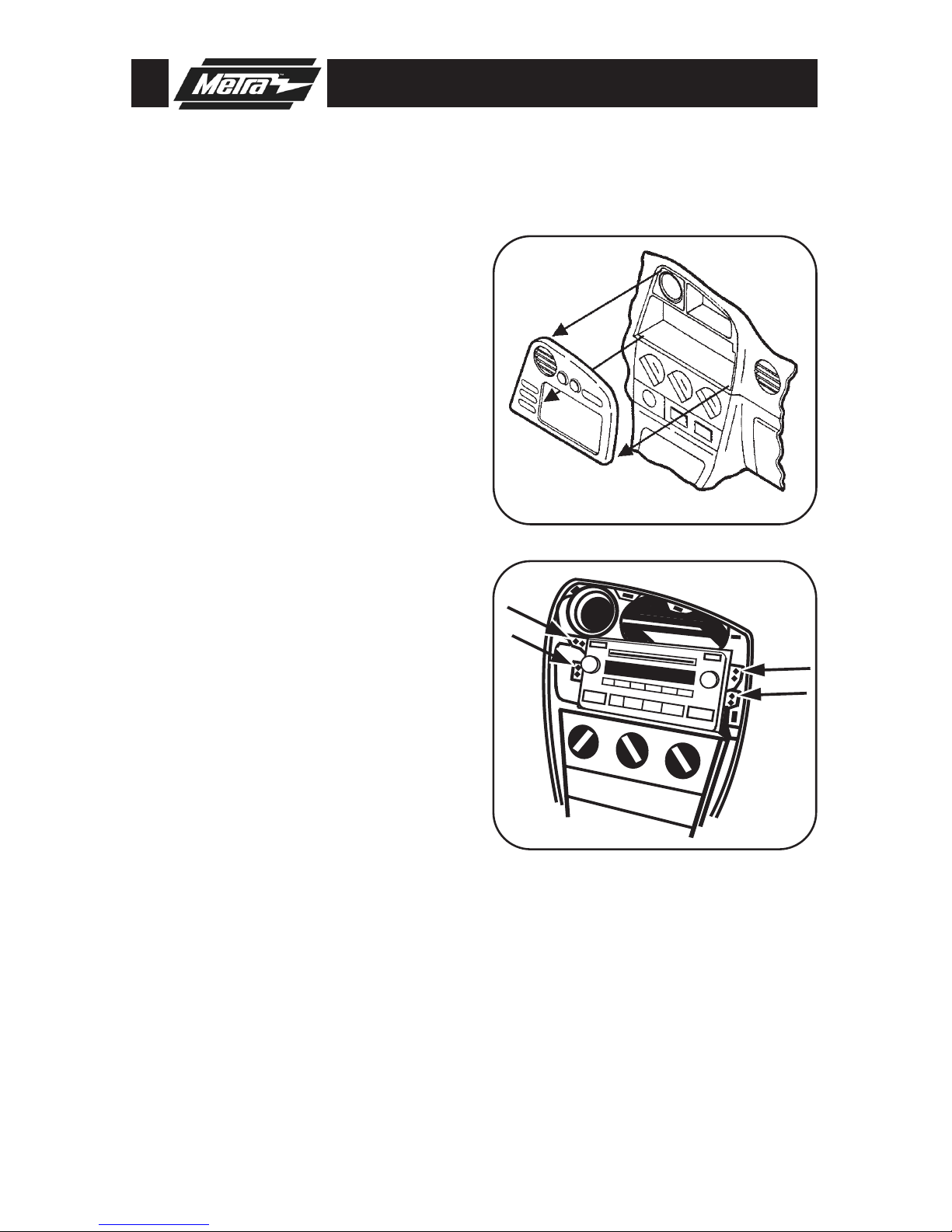

Unclip the bottom edge of the radio
trim panel then lift up and out to
remove. (Figure A)
2
Remove (4) 10MM bolts securing the
factory radio. (Figure B)
3
Continue to kit assembly.
A
B
44

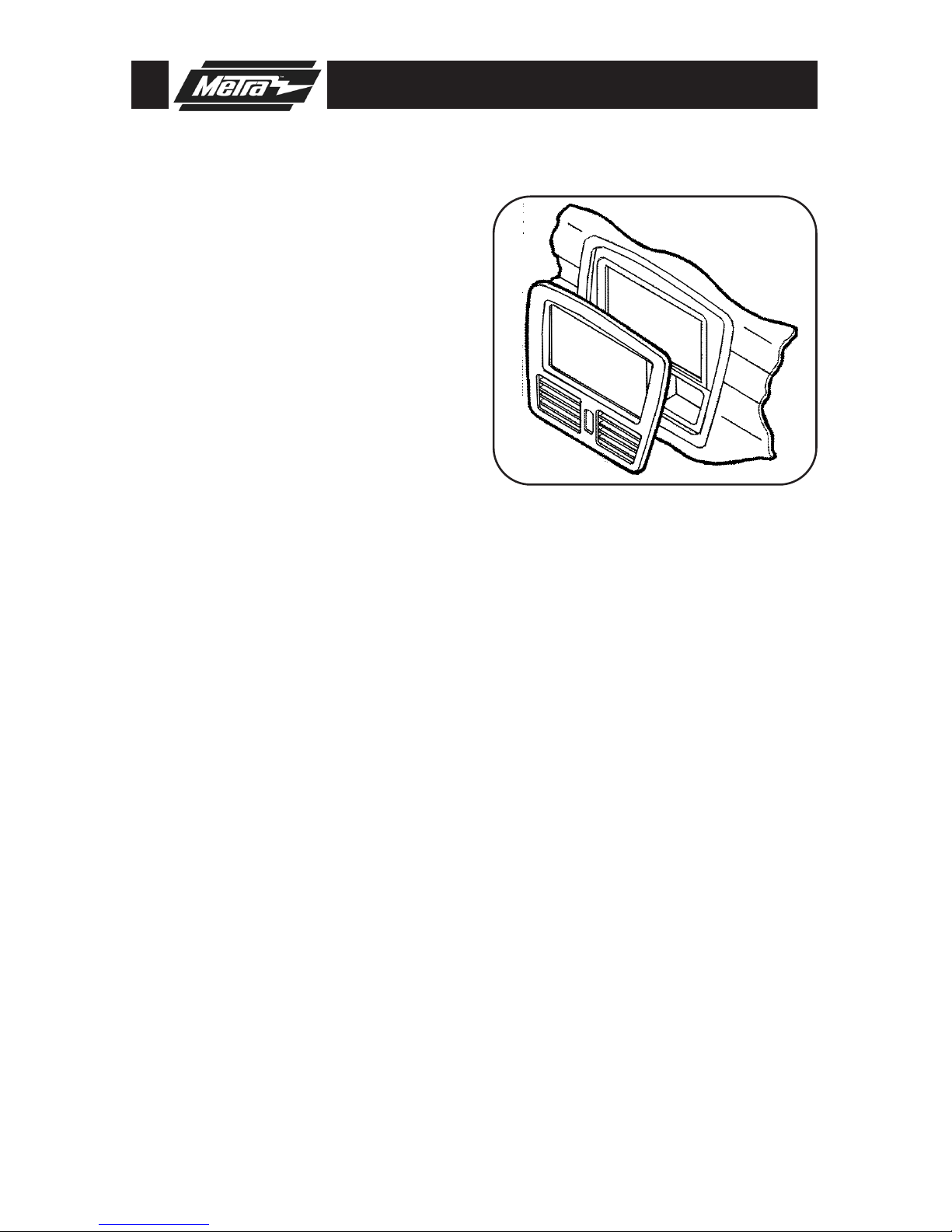

95-2009 DASH DISASSEMBLY
SUZUKI • AERIO 2002
1
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
Unclip the dash trim bezel and remove.
2
Remove (4) Phillips screws securing
the factory head unit and disconnect
the wiring.
3
Continue to kit assembly.
45

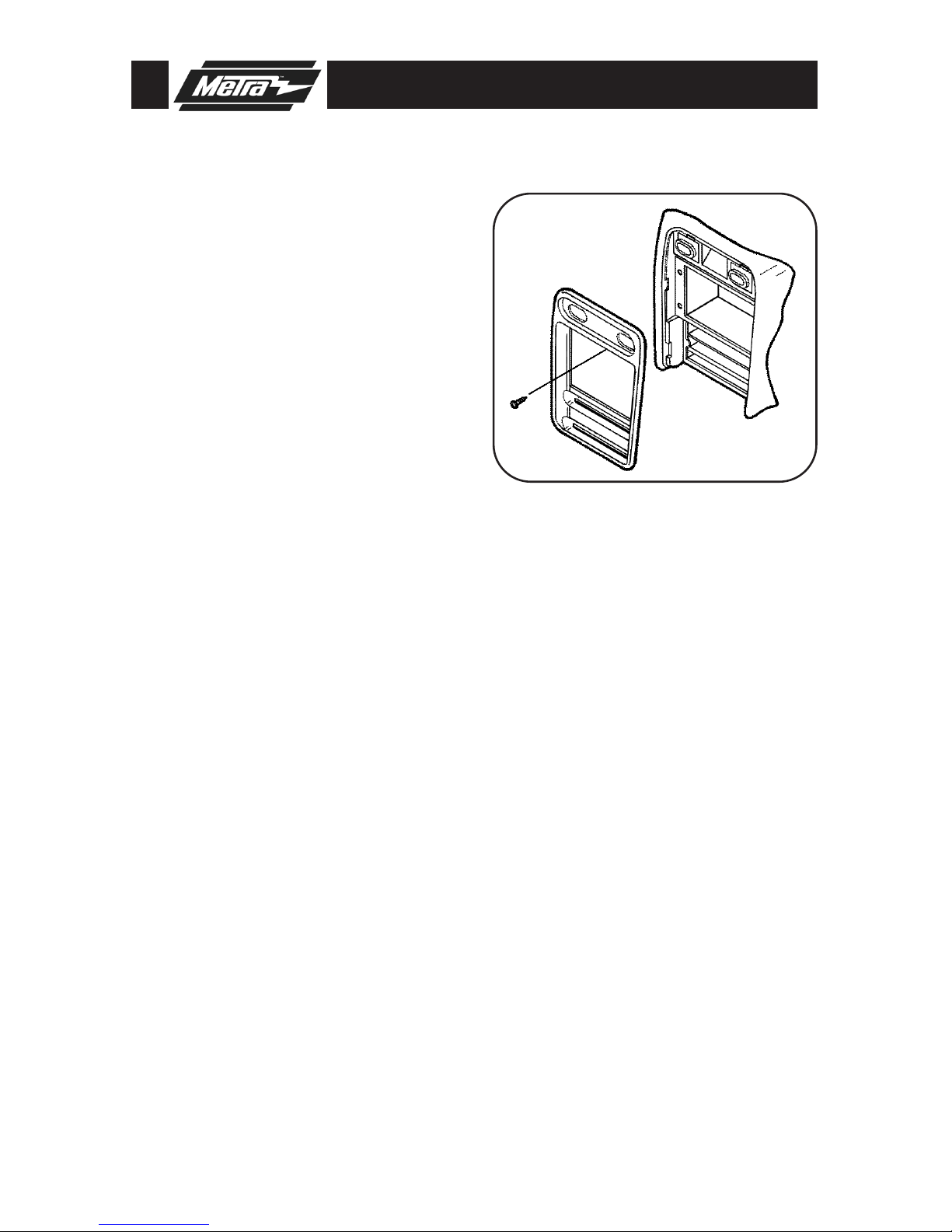

95-2009 DASH DISASSEMBLY
SUZUKI • ESTEEM 1995-
1
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
Remove the climate control knobs.
2
Remove (1) Phillips screw located
above the radio opening.
3
Unclip the radio trim bezel.
4
Remove (4) screws from the factory
head unit, slide the unit out and disconnect the wiring.
5
Continue to kit assembly.
46

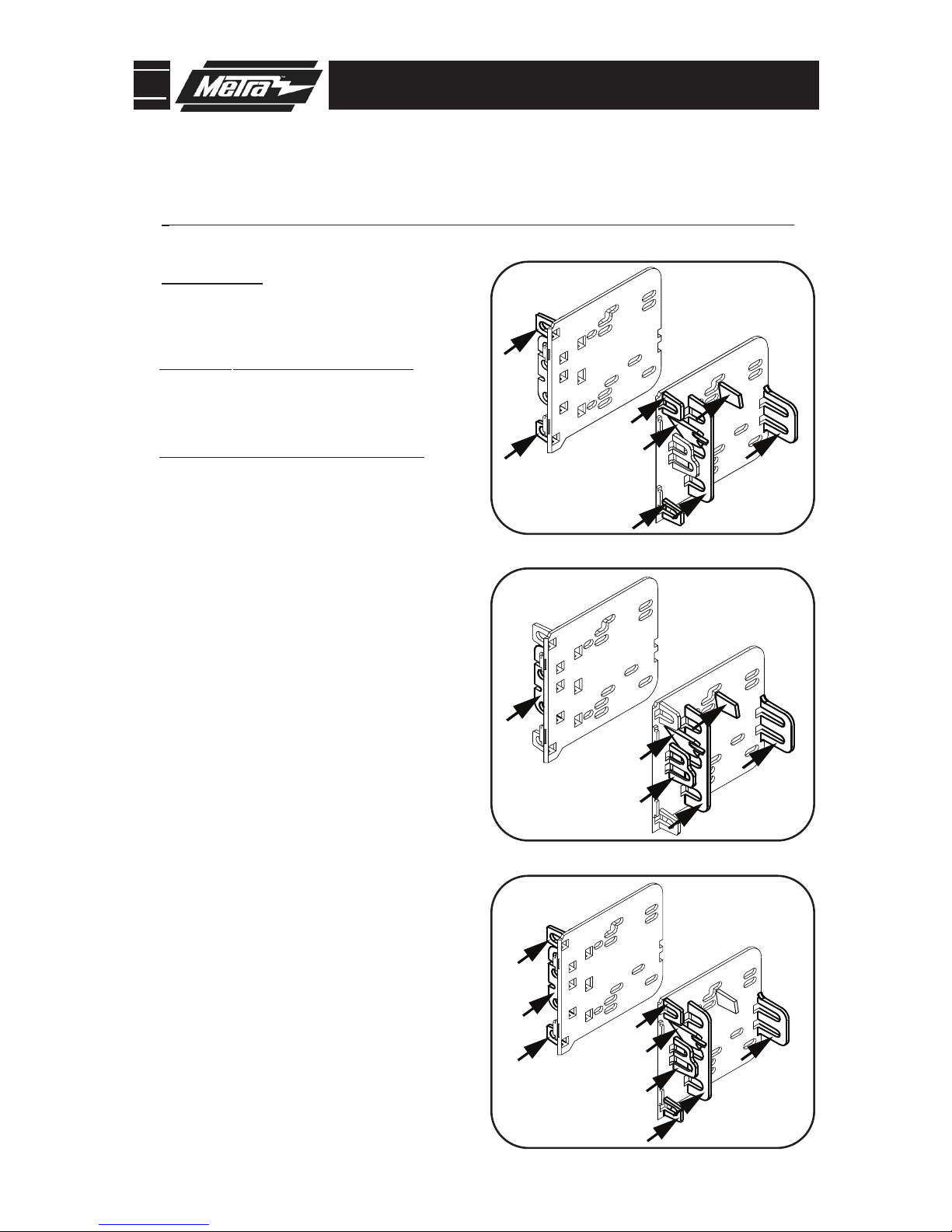

95-2009 TAB INSTRUCTIONS
CHEVY/GM/METRO/SUZUKI
CADILLAC-FLEETWOOD/BROUGHAM
*Note: Refer also to the instructions included with the aftermarket radio.
GM vehicles.
Cut tabs highlighted on both sides of
both brackets.
(Figure A)
1
CHEVY Tracker/METRO/SUZUKI.
Cut tabs highlighted on both sides of
both brackets.
(Figure B)
2
CADILLAC Fleetwood/Broughham.
Cut all tabs highlighted on both sides
of both brackets.
(Figure C)
3
Continued on page 46.
A
B
C
47

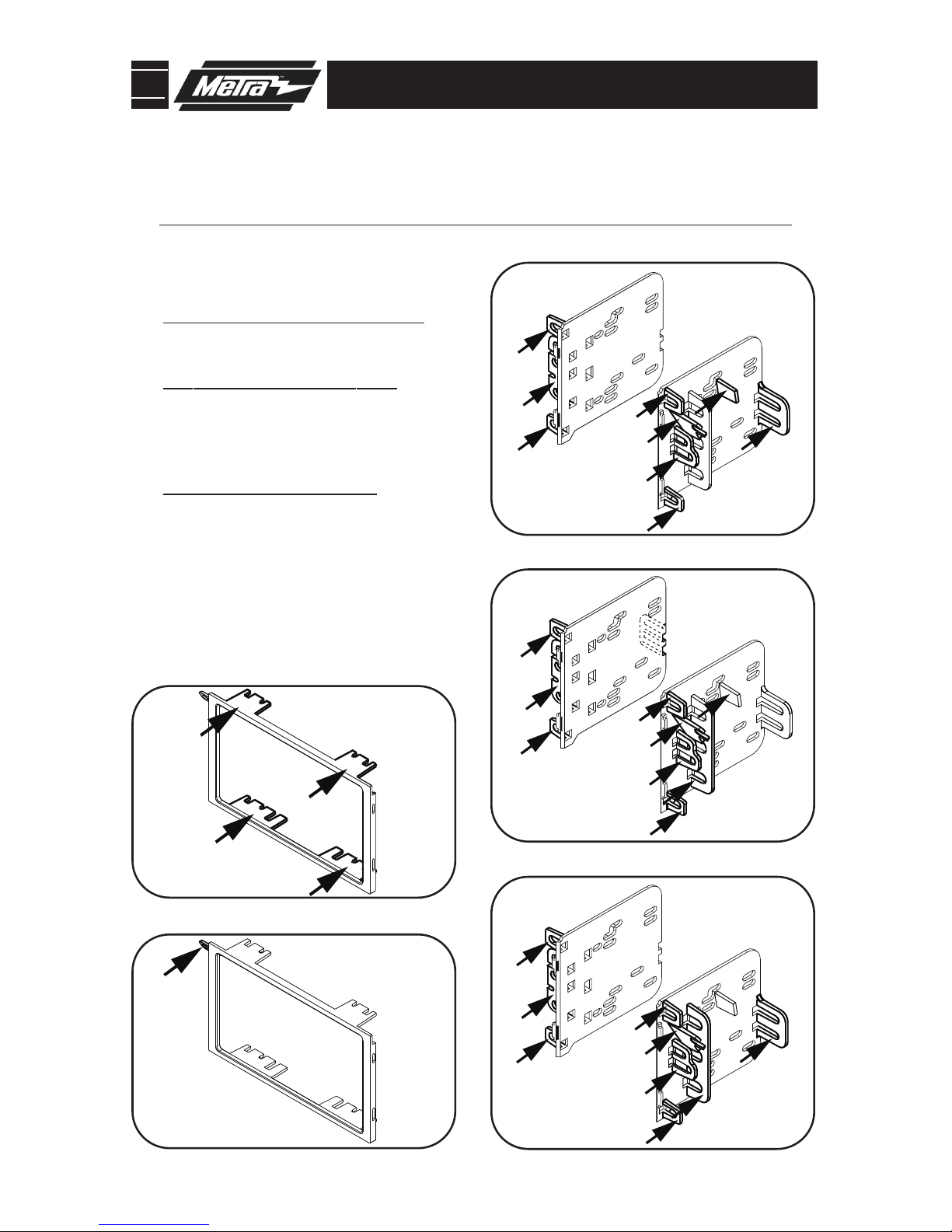

95-2009 TAB INSTRUCTIONS
ISUZU-PONTIAC/TOYOTA/
CADILLAC-ELDORADO/SEVILLE
ISUZU Amigo/Rodeo/Rodeo Sport.
Cut tabs highlighted.
(Figure D)
4
TOYOTA Matrix/PONTIAC Vibe.
Cut tabs highlighted.
(Figure E)
Cut (4) tabs
highlighted
on double DIN
trim plate. (Figure H)
5
CADILLAC Eldorado/Seville.
Cut tabs highlighted on double DIN
brackets.
(Figure F)
Cut (1) tab
highlighted on top left corner
of double DIN trim plate.
(Figure G)
6
Continue to final assembly.
Continued from page 46.
*Note: Refer also to the instructions included with the aftermarket radio.
D
E
F
G
H
48
95-2009 KIT ASSEMBLY
TOP FACTORY BRACKET
BOTTOM FACTORY BRACKET
1
Using carriage bolts and Keps nuts supplied, mount the factory brackets to the
double DIN trim plate/double DIN bracket assembly, keeping in mind which
bracket is top and which one is bottom.
CADILLAC •
FLEETWOOD
FLEETWOOD BROUGHAM
1990-1996
KIT ASSEMBLY WITH FACTORY BRACKETS
49
95-2009 KIT ASSEMBLY
1
1

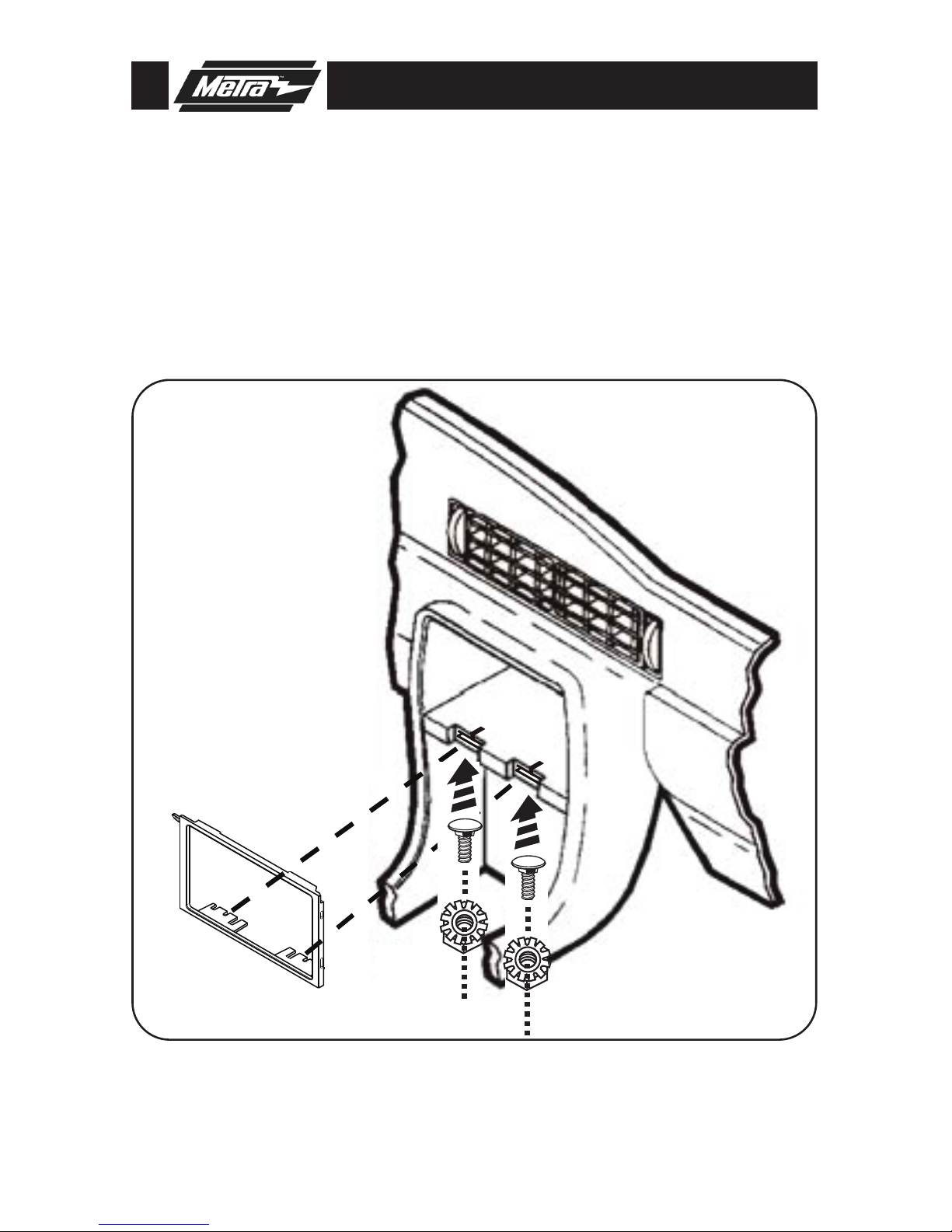

Disconnect the negative battery terminal to prevent an accidental short circuit.
Align the tabs on the bottom of the double DIN trim plate with notches in sub dash.
2
Secure with the (2) Carriage bolts and (2) Kep nuts provided.
3
CADILLAC • ELDORADO 1992-1995
SEVILLE 1992-1995
Continue to kit assembly.
50
95-2009 KIT ASSEMBLY
DOUBLE DIN RADIO PROVISION
STACKED ISO MOUNT UNIT(S) PROVISION
Snap the Double DIN brackets to the
edge of the Double DIN trim plate.
(Figure A)
1
Slide the Double DIN head unit or
stacked ISO head units into the bracket/radio housing assembly and secure
the Double DIN head unit or stacked
ISO head units to the assembly using
the screws supplied with the radio.
(Figure B)
2
Note: For the Buick Le Sabre,
Oldsmobile Aurora and the Pontiac
Bonneville the (3) speed clips and
screws provided with the kit will need
to be installed into the sub dash where
the screw holes line up on the kit.
Continue to final assembly.
*Note: Refer also to the instructions included with the aftermarket radio.
A
B

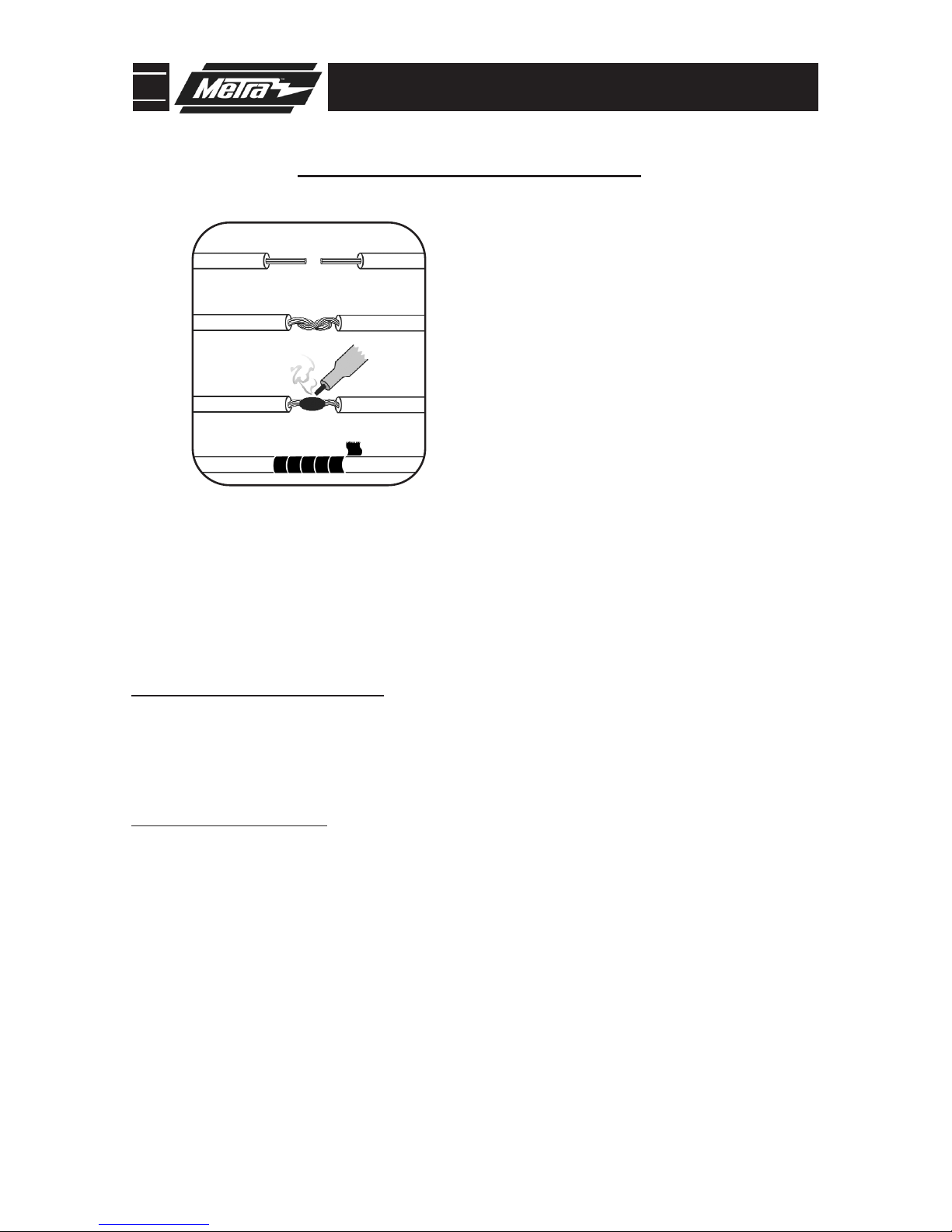

95-2009 FINAL ASSEMBLY
FINAL ASSEMBLY
(A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
A
B
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
Reassemble radio and dash assemblies in reverse order of disassembly.
1
2
3
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc. . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
51
95-2009 INSTRUCTIONS
1-800-221-0932
REV. 04/15/09 © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION INST95-2009
www.metraonline.com
Loading...
