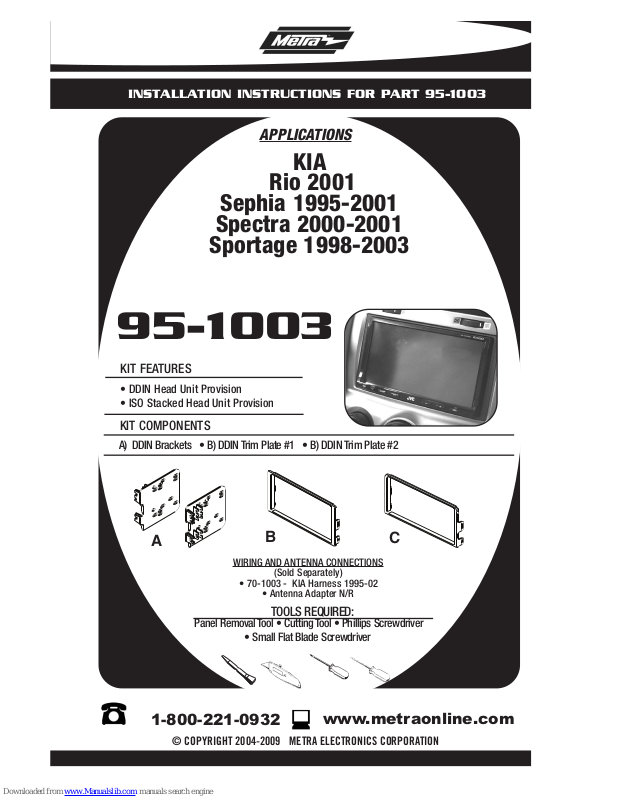

INSTALLATION INSTRUCTIONS FOR PART 95-1003
1-800-221-0932
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
www.metraonline.com
95-1003
KIT FEATURES
• DDIN Head Unit Provision
A) DDIN Brackets • B) DDIN Trim Plate #1 • B) DDIN Trim Plate #2
KIT COMPONENTS
APPLICATIONS
KIA
Rio 2001
Sephia 1995-2001
Spectra 2000-2001
Sportage 1998-2003
A
C
B
Panel Removal Tool • Cutting Tool • Phillips Screwdriver
• Small Flat Blade Screwdriver
TOOLS REQUIRED:
WIRING
AND ANTENNA CONNECTIONS
(Sold Separately)
• 70-1003 - KIA Harness 1995-02
• Antenna Adapter N/R
Page 2
Dash Disassembly
- Kia Rio 2001 .................................................. .1
- Sephia 1995-1997 ...............................................2
- Sephia 1998-2001 ...............................................3
- Spectra 2000-2001...............................................3
- Sportage 1998-2000 .............................................4
- Sportage 2001-2003 .............................................5
Kit
Assembly
- Kit Assembly Preparation .........................................6
- DDIN / Stacked ISO DIN Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
TABLE OF CONTENTS
95-1003
*Note: Refer also to the instructions included with the aftermarket radio.
Metra recommends MECP certified technicians
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.
Page 3
95-1003 DASH DISASSEMBLY
RIO 2001
A
B
1
Disconnect the negative battery­terminal to prevent an accidental short circuit.
1
Remove ashtray and (1) Phillips head screw inside ashtray cavity.
(Figure A)
2
Remove knob from climate control slide lever.
(Figure B)
3
Unsnap and remove radio/climate control trim panel.
(Figure C)
4
5
Remove (4) Phillips head screws securing the radio. Unplug and remove the radio.
Continue to kit preparation.
A/C
OFF
C
A/
OFF
A/
C
O
FF
*Note: Refer also to the instructions included with the aftermarket radio.
Page 4
2
95-1003 DASH DISASSEMBLY
SEPHIA 1995-1997
Remove plastic screw cover to the left of the coin tray and remove the Phillips head screw from behind cover.
2
Remove switch blank to the far right of the switch panel and remove the Phillips head screw from behind switch blank.
3
Remove (4) Phillips head screws securing the radio. Unplug and remove the radio.
5
Unclip and remove dash trim panel.
4
Continue to kit preparation.
*Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery terminal to prevent an accidental short circuit.
1
Page 5
3
95-1003 DASH DISASSEMBLY
SEPHIA 1998-2001
SPECTRA 2000-2001
Remove (1) Phillips head screw from above instrument cluster.
2
Unclip and remove dash trim panel.
3
Remove (4) Phillips head screws securing the radio. Unplug and remove the radio.
4
Continue to kit preparation.
*Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery terminal to prevent an accidental short circuit.
1
Page 6
4
95-1003 DASH DISASSEMBLY
SPORTAGE 1998-2000
Unclip and remove dash trim panel.
2
Remove (4) Phillips head screws securing the radio. Unplug and remove the radio.
3
Continue to kit preparation.
*Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery terminal to prevent an accidental short circuit.
1
Page 7
5
95-1003 DASH DISASSEMBLY
SPORTAGE 2001-2003
Unclip and remove climate con­trol/vent trim panel.
(Figure A)
2
Remove screw covers from trim panel below steering column and remove screws from behind cov­ers. Lower the trim panel (it is not necessary to remove the panel).
(Figure B)
3
Remove (3) Phillips head screws from bottom of steering column housing and remove both upper and lower sections of housing.
4
Remove (1) Phillips head screw from outside left edge of dash and (2) Phillips head screws from near hood release.
(Figure C)
5
Loosen nut behind hood release and remove lower left side dash trim.
(Figure C)
6
Remove (4) Phillips head screws from instrument trim panel and remove panel.
(Figure D)
7
Remove (4) Phillips head screws securing the radio. Unplug and remove the radio.
8
Continue to kit assembly.
*Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery terminal to prevent an accidental short circuit.
1
A
B
C
D
Page 8
6
95-1003 KIT PREPARATION
KIT ASSEMBLY PREPARATION
RIO 2001 SEPHIA 1995-1997
SEPHIA 1998-2001 SPECTRA 2000-2001
Continue to kit assembly.
*Note: Refer also to the instructions included with the aftermarket radio.
Use the trim with notched corners at the top and the first set of tabs on the brackets.
(Figure A)
SPORTAGE 1998-2003 DDIN BRACKETS
Use the trim without the notched cor­ners and the third set of mounting tabs.
(Figure C)
Use the following sets of mounting tabs for each model respectively. The fourth set of tabs will not be used in this kit.
Use the trim without the notched cor­ners and the second set of mounting tabs.
(Figure B)
BA
C
1st Set
2nd Set
3rd Set
4th Set
(Not Used in this kit)
D
Page 9
95-1003 KIT ASSEMBLY
DOUBLE DIN / STACKED ISO DIN
HEAD UNIT PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
7
B
A
Clip the brackets into the sides of the DDIN trim plate. (Figure A)
2
Reassemble dash in reverse order of disassembly.
4
Slide the Double DIN head unit or stacked ISO head units into the bracket/radio housing assembly and secure to the assembly using the screws supplied with the radio. (Figure B)
3
Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.
1
Page 10
95-1003 INSTRUCTIONS
NOTES
Page 11
95-1003 INSTRUCTIONS
NOTES
Page 12
95-1003 INSTRUCTIONS
1-800-221-0932
Rev. 11/16/09 © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION INST95-1003
