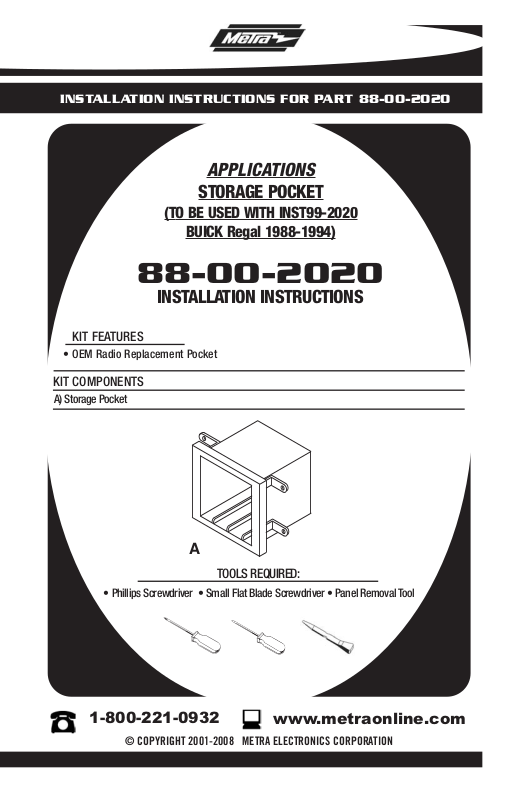

INSTALLATION INSTRUCTIONS FOR PART 88-00-2020
APPLICATIONS
STORAGE POCKET
(TO BE USED WITH INST99-2020
BUICK Regal 1988-1994)
88-00-2020
INSTALLATION INSTRUCTIONS
KIT FEATURES
• OEM Radio Replacement Pocket
KIT COMPONENTS
A) Storage Pocket
A
TOOLS REQUIRED:
• Phillips Screwdriver • Small Flat Blade Screwdriver • Panel Removal Tool
1-800-221-0932
© COPYRIGHT 2001-2008 METRA ELECTRONICS CORPORA
www.metr
aonline.com
TION
88-00-2020
K
NOWLEDGE IS POWER
Enhance your installation and fabrication skills
by enrolling in the most recognized and
respected mobile electronics school in our
industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take
steps toward a better tomorrow.
TABLE OF CONTENTS
Dash Disassembly - All Vehicles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Final
Assembly .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
*Note:
Refer also to the instructions included with the aftermarket radio.
Chevrolet
- Blazer 1973-1987, Pickup 1973-1987 . . . . . . . . . . . . . . . . . . . . . . . . .1
GMC
Factory Radio
Module
88-00-2020 DASH DISASSEMBLY
ALL VEHICLES
DASH DISASSEMBLY
Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip
the entire dash trim bezel and remove. Remove 9/32" fasteners from the right side of
the factory radio module and (2) fasteners from the left side. Disconnect the wiring and
remove the module. Refer also to instructions included with Metra Kit INST99-2020.
See Fig. A. Continue to final assembly.
A
1
88-00-2020 FINAL ASSEMBLY
ALL VEHICLES
FINAL ASSEMBLY
Insert the Metra storage pocket in the radio cavity. (See Fig. A)
1
A
1-800-221-0932
REV. 12/17/08 © COPYRIGHT 2001-2008 METRA ELECTRONICS CORPORATION INST99-2020
www.metraonline.com
2
