Metra Electronics 71-7552 User Manual

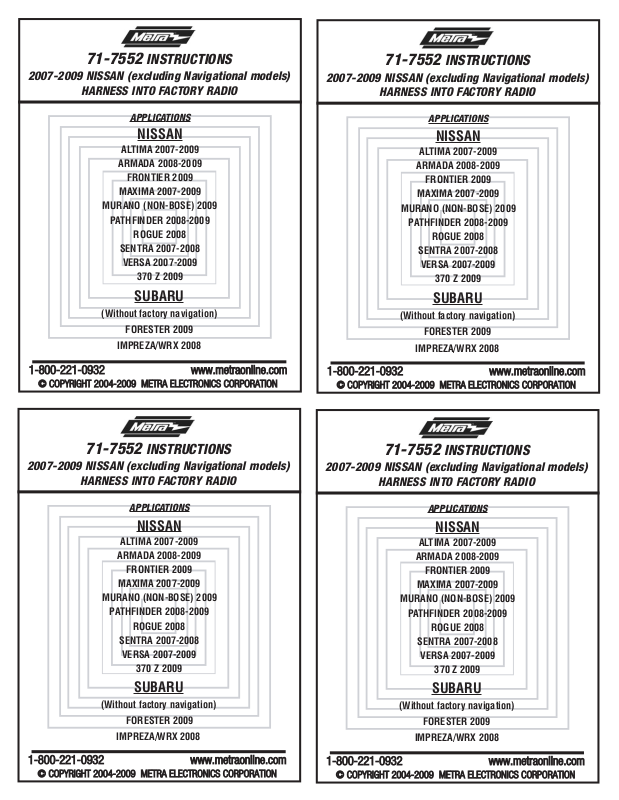

71-7552 INSTRUCTIONS
2007-2009 NISSAN (excluding Navigational models)
HARNESS INTO FACTORY RADIO
71-7552 INSTRUCTIONS
2007-2009 NISSAN (excluding Navigational models)
HARNESS INTO FACTORY RADIO
APPLICATIONS
NISSAN
ALTIMA 2007-2009
ARMADA 2008-2009
FRONTIER 2009
MAXIMA 2007-2009
MURANO (NON-BOSE) 2009
PATHFINDER 2008-2009
ROGUE 2008
SENTRA 2007-2008
VERSA 2007-2009
370 Z 2009
SUBARU
(Without factory navigation)
FORESTER 2009
IMPREZA/WRX 2008
11--880000--222211--00993322 wwwwww..mmeettrraaoonnlliinnee..ccoomm
©© CCOOPPYYRRIIGGHHTT 22000044--22000099 MMEETTRRAA EELLEECCTTRROONNIICCSS CCOORRPPOORRAATTIIOON
N
APPLICATIONS
NISSAN
ALTIMA 2007-2009
ARMADA 2008-2009
FRONTIER 2009
MAXIMA 2007-2009
MURANO (NON-BOSE) 2009
PATHFINDER 2008-2009
ROGUE 2008
SENTRA 2007-2008
VERSA 2007-2009
370 Z 2009
SUBARU
(Without factory navigation)
FORESTER 2009
IMPREZA/WRX 2008
11--880000--222211--00993322 wwwwww..mmeettrraaoonnlliinnee..ccoomm
©© CCOOPPYYRRIIGGHHTT 22000044--22000099 MMEETTRRAA EELLEECCTTRROONNIICCSS CCOORRPPOORRAATTIIOON
N
71-7552 INSTRUCTIONS
2007-2009 NISSAN (excluding Navigational models)
HARNESS INTO FACTORY RADIO
APPLICATIONS
NISSAN
ALTIMA 2007-2009
ARMADA 2008-2009
FRONTIER 2009
MAXIMA 2007-2009
MURANO (NON-BOSE) 2009
PATHFINDER 2008-2009
ROGUE 2008
SENTRA 2007-2008
VERSA 2007-2009
370 Z 2009
SUBARU
(Without factory navigation)
FORESTER 2009
IMPREZA/WRX 2008
71-7552 INSTRUCTIONS
2007-2009 NISSAN (excluding Navigational models)
HARNESS INTO FACTORY RADIO
APPLICATIONS
NISSAN
ALTIMA 2007-2009
ARMADA 2008-2009
FRONTIER 2009
MAXIMA 2007-2009
MURANO (NON-BOSE) 2009
PATHFINDER 2008-2009
ROGUE 2008
SENTRA 2007-2008
VERSA 2007-2009
370 Z 2009
SUBARU
(Without factory navigation)
FORESTER 2009
IMPREZA/WRX 2008
11--880000--222211--00993322 wwwwww..mmeettrraaoonnlliinnee..ccoomm
©© CCOOPPYYRRIIGGHHTT 22000044--22000099 MMEETTRRAA EELLEECCTTRROONNIICCSS CCOORRPPOORRAATTIIOON
N
11--880000--222211--00993322 wwwwww..mmeettrraaoonnlliinnee..ccoomm
©© CCOOPPYYRRIIGGHHTT 22000044--22000099 MMEETTRRAA EELLEECCTTRROONNIICCSS CCOORRPPOORRAATTIIOON
N
Pin Color Function
Pin Color Function
1 blue/white amplifier turn on (amplified models only) 2 white left front speaker (+) (left front input (+)
amplified models)
3 white/black left front speaker (-) (left front input (-)
amplified models)
4 green left rear speaker (+) (left rear input (+)
amplified models)
5 green/black left rear speaker (-) (left rear input (-)
amplified models)
6 brown/blue steering wheel control A (up) 7 red 12 volt accessory 8 orange/black illumination (-) 9 orange illumination (+) 10 black/yellow signal ground (amplified models) 11 gray right front speaker (+) (right front input (+)
amplified models)
12 gray/black right front speaker (-) (right front Input (-)
amplified models)
13 violet right rear speaker (+) (right rear input(+)
amplified models)
14 violet/black right rear speaker (-) (right rear input (-)
amplified models)
15 black/gray steering wheel control C
(ground reference)
16 brown/black steering wheel control B (down) 17 open 18 open 19 yellow 12 volt constant 20 black ground (Subaru only)
1 blue/white amplifier turn on (amplified models only) 2 white left front speaker (+) (left front input (+)
amplified models)
3 white/black left front speaker (-) (left front input (-)
amplified models)
4 green left rear speaker (+) (left rear input (+)
amplified models)
5 green/black left rear speaker (-) (left rear input (-)
amplified models)
6 brown/blue steering wheel control A (up) 7 red 12 volt accessory 8 orange/black illumination (-) 9 orange illumination (+) 10 black/yellow signal ground (amplified models) 11 gray right front speaker (+) (right front input (+)
amplified models)
12 gray/black right front speaker (-) (right front Input (-)
amplified models)
13 violet right rear speaker (+) (right rear input(+)
amplified models)
14 violet/black right rear speaker (-) (right rear input (-)
amplified models)
15 black/gray steering wheel control C
(ground reference)
16 brown/black steering wheel control B (down) 17 open 18 open 19 yellow 12 volt constant 20 black ground (Subaru only)
Rev. 04/02/09 INST71-7552
Pin Color Function
1 blue/white amplifier turn on (amplified models only) 2 white left front speaker (+) (left front input (+)
amplified models)
3 white/black left front speaker (-) (left front input (-)
amplified models)
4 green left rear speaker (+) (left rear input (+)
amplified models)
5 green/black left rear speaker (-) (left rear input (-)
amplified models)
6 brown/blue steering wheel control A (up) 7 red 12 volt accessory 8 orange/black illumination (-) 9 orange illumination (+) 10 black/yellow signal ground (amplified models) 11 gray right front speaker (+) (right front input (+)
amplified models)
12 gray/black right front speaker (-) (right front Input (-)
amplified models)
13 violet right rear speaker (+) (right rear input(+)
amplified models)
14 violet/black right rear speaker (-) (right rear input (-)
amplified models)
15 black/gray steering wheel control C
(ground reference)
16 brown/black steering wheel control B (down) 17 open 18 open 19 yellow 12 volt constant 20 black ground (Subaru only)
Rev. 04/02/09 INST71-7552
Pin Color Function
1 blue/white amplifier turn on (amplified models only) 2 white left front speaker (+) (left front input (+)
amplified models)
3 white/black left front speaker (-) (left front input (-)
amplified models)
4 green left rear speaker (+) (left rear input (+)
amplified models)
5 green/black left rear speaker (-) (left rear input (-)
amplified models)
6 brown/blue steering wheel control A (up) 7 red 12 volt accessory 8 orange/black illumination (-) 9 orange illumination (+) 10 black/yellow signal ground (amplified models) 11 gray right front speaker (+) (right front input (+)
amplified models)
12 gray/black right front speaker (-) (right front Input (-)
amplified models)
13 violet right rear speaker (+) (right rear input(+)
amplified models)
14 violet/black right rear speaker (-) (right rear input (-)
amplified models)
15 black/gray steering wheel control C
(ground reference)
16 brown/black steering wheel control B (down) 17 open 18 open 19 yellow 12 volt constant 20 black ground (Subaru only)
Rev. 04/02/09 INST71-7552
Rev. 04/02/09 INST71-7552
