Metra Electronics 71-5520 User Manual
71-5520
71-5520
71-5520
71-5520

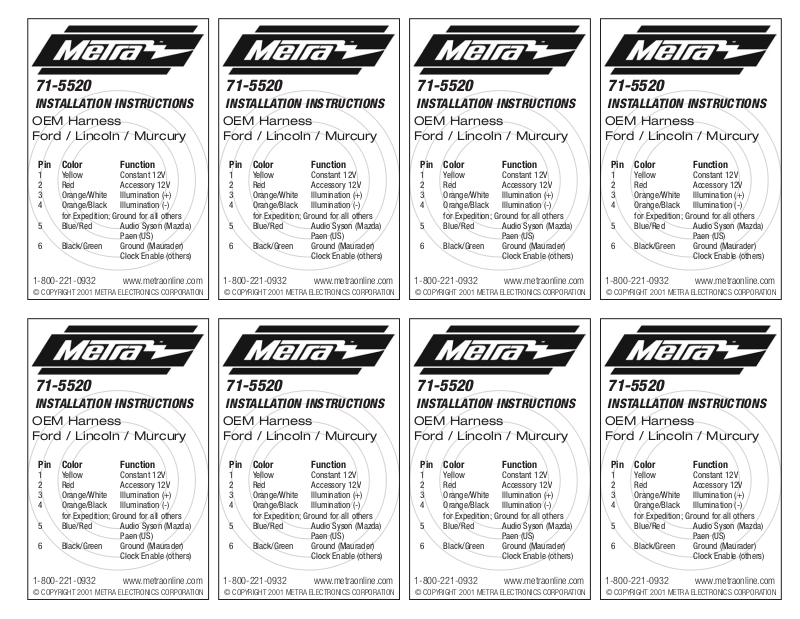

INSTALLATION INSTRUCTIONS
OEM Harness
Ford / Lincoln / Murcury
Pin Color Function
1 Yellow Constant 12V
2 Red Accessory 12V
3 Orange/White Illumination (+)
4 Orange/Black Illumination (-)
for Expedition; Ground for all others
5 Blue/Red Audio Syson (Mazda)
Paen (US)
6 Black/Green Ground (Maurader)
Clock Enable (others)
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION
71-5520
INSTALLATION INSTRUCTIONS
OEM Harness
Ford / Lincoln / Murcury
Pin Color Function
1 Yellow Constant 12V
2 Red Accessory 12V
3 Orange/White Illumination (+)
4 Orange/Black Illumination (-)
for Expedition; Ground for all others
5 Blue/Red Audio Syson (Mazda)
Paen (US)
6 Black/Green Ground (Maurader)
Clock Enable (others)
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION
71-5520
INSTALLATION INSTRUCTIONS
OEM Harness
Ford / Lincoln / Murcury
Pin Color Function
1 Yellow Constant 12V
2 Red Accessory 12V
3 Orange/White Illumination (+)
4 Orange/Black Illumination (-)
for Expedition; Ground for all others
5 Blue/Red Audio Syson (Mazda)
Paen (US)
6 Black/Green Ground (Maurader)
Clock Enable (others)
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION
71-5520
INSTALLATION INSTRUCTIONS
OEM Harness
Ford / Lincoln / Murcury
Pin Color Function
1 Yellow Constant 12V
2 Red Accessory 12V
3 Orange/White Illumination (+)
4 Orange/Black Illumination (-)
for Expedition; Ground for all others
5 Blue/Red Audio Syson (Mazda)
Paen (US)
6 Black/Green Ground (Maurader)
Clock Enable (others)
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION
71-5520
INSTALLATION INSTRUCTIONS
OEM Harness
Ford / Lincoln / Murcury
Pin Color Function
1 Yellow Constant 12V
2 Red Accessory 12V
3 Orange/White Illumination (+)
4 Orange/Black Illumination (-)
for Expedition; Ground for all others
5 Blue/Red Audio Syson (Mazda)
Paen (US)
6 Black/Green Ground (Maurader)
Clock Enable (others)
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION
INSTALLATION INSTRUCTIONS
OEM Harness
Ford / Lincoln / Murcury
Pin Color Function
1 Yellow Constant 12V
2 Red Accessory 12V
Orange/White Illumination (+)
3
4 Orange/Black Illumination (-)
for Expedition; Ground for all others
5 Blue/Red Audio Syson (Mazda)
6 Black/Green Ground (Maurader)
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION
Paen (US)
Clock Enable (others)
INSTALLATION INSTRUCTIONS
OEM Harness
Ford / Lincoln / Murcury
Pin Color Function
1 Yellow Constant 12V
2 Red Accessory 12V
Orange/White Illumination (+)
3
4 Orange/Black Illumination (-)
for Expedition; Ground for all others
5 Blue/Red Audio Syson (Mazda)
6 Black/Green Ground (Maurader)
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION
Paen (US)
Clock Enable (others)
INSTALLATION INSTRUCTIONS
OEM Harness
Ford / Lincoln / Murcury
Pin Color Function
1 Yellow Constant 12V
2 Red Accessory 12V
Orange/White Illumination (+)
3
4 Orange/Black Illumination (-)
for Expedition; Ground for all others
5 Blue/Red Audio Syson (Mazda)
6 Black/Green Ground (Maurader)
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION
Paen (US)
Clock Enable (others)
REV. 010204
REV. 010204
REV. 010204
REV. 010204
Pin Color Function
7 Black/Yellow PTA (Expedition)
8 White Left Front Speaker (+)
9 Green Left Rear Speaker (+)
10 Purple Right Rear Speaker (+)
11 Gray Right Front Speaker (+)
12 Gray/Black Right Front Speaker (-)
13 Black Ground
14 Gray/Red VSS (+)
15 Red/White 12V In Start
16 Yellow/Orange No Function Yet
17 Yellow/Blue No Function Yet
18 Green/Red Steering Wheel Control (+)
19 Green/White Steering Wheel Control (-)
(Expedition)
20 Brown/Red Rear Parking Aid
(Expedition)
21 White/Black Left Front Speaker (-)
22 Green/Black Left Rear Speaker (-)
23 Purple/Black Right Rear Speaker (-)
24 Black Ground
REV. 010204
Pin Color Function
7 Black/Yellow PTA (Expedition)
8 White Left Front Speaker (+)
9 Green Left Rear Speaker (+)
10 Purple Right Rear Speaker (+)
11 Gray Right Front Speaker (+)
12 Gray/Black Right Front Speaker (-)
13 Black Ground
14 Gray/Red VSS (+)
15 Red/White 12V In Start
16 Yellow/Orange No Function Yet
17 Yellow/Blue No Function Yet
18 Green/Red Steering Wheel Control (+)
19 Green/White Steering Wheel Control (-)
20 Brown/Red Rear Parking Aid
21 White/Black Left Front Speaker (-)
22 Green/Black Left Rear Speaker (-)
23 Purple/Black Right Rear Speaker (-)
24 Black Ground
(Expedition)
(Expedition)
REV
. 010204
Pin Color Function
7 Black/Yellow PTA (Expedition)
8 White Left Front Speaker (+)
9 Green Left Rear Speaker (+)
10 Purple Right Rear Speaker (+)
11 Gray Right Front Speaker (+)
12 Gray/Black Right Front Speaker (-)
13 Black Ground
14 Gray/Red VSS (+)
15 Red/White 12V In Start
16 Yellow/Orange No Function Yet
17 Yellow/Blue No Function Yet
18 Green/Red Steering Wheel Control (+)
19 Green/White Steering Wheel Control (-)
(Expedition)
20 Brown/Red Rear Parking Aid
(Expedition)
21 White/Black Left Front Speaker (-)
22 Green/Black Left Rear Speaker (-)
23 Purple/Black Right Rear Speaker (-)
24 Black Ground
REV. 010204
Pin Color Function
7 Black/Yellow PTA (Expedition)
8 White Left Front Speaker (+)
9 Green Left Rear Speaker (+)
10 Purple Right Rear Speaker (+)
11 Gray Right Front Speaker (+)
12 Gray/Black Right Front Speaker (-)
13 Black Ground
14 Gray/Red VSS (+)
15 Red/White 12V In Start
16 Yellow/Orange No Function Yet
17 Yellow/Blue No Function Yet
18 Green/Red Steering Wheel Control (+)
19 Green/White Steering Wheel Control (-)
20 Brown/Red Rear Parking Aid
21 White/Black Left Front Speaker (-)
22 Green/Black Left Rear Speaker (-)
23 Purple/Black Right Rear Speaker (-)
24 Black Ground
(Expedition)
(Expedition)
REV
. 010204
Pin Color Function
7 Black/Yellow PTA (Expedition)
8 White Left Front Speaker (+)
9 Green Left Rear Speaker (+)
10 Purple Right Rear Speaker (+)
11 Gray Right Front Speaker (+)
12 Gray/Black Right Front Speaker (-)
13 Black Ground
14 Gray/Red VSS (+)
15 Red/White 12V In Start
16 Yellow/Orange No Function Yet
17 Yellow/Blue No Function Yet
18 Green/Red Steering Wheel Control (+)
19 Green/White Steering Wheel Control (-)
(Expedition)
20 Brown/Red Rear Parking Aid
(Expedition)
21 White/Black Left Front Speaker (-)
22 Green/Black Left Rear Speaker (-)
23 Purple/Black Right Rear Speaker (-)
24 Black Ground
Pin Color Function
7 Black/Yellow PTA (Expedition)
8 White Left Front Speaker (+)
9 Green Left Rear Speaker (+)
10 Purple Right Rear Speaker (+)
11 Gray Right Front Speaker (+)
12 Gray/Black Right Front Speaker (-)
13 Black Ground
14 Gray/Red VSS (+)
15 Red/White 12V In Start
16 Yellow/Orange No Function Yet
17 Yellow/Blue No Function Yet
18 Green/Red Steering Wheel Control (+)
19 Green/White Steering Wheel Control (-)
20 Brown/Red Rear Parking Aid
21 White/Black Left Front Speaker (-)
22 Green/Black Left Rear Speaker (-)
Purple/Black
23
Black
24
(Expedition)
(Expedition)
Right Rear Speaker (-)
Ground
Pin Color Function
7 Black/Yellow PTA (Expedition)
8 White Left Front Speaker (+)
9 Green Left Rear Speaker (+)
10 Purple Right Rear Speaker (+)
11 Gray Right Front Speaker (+)
12 Gray/Black Right Front Speaker (-)
13 Black Ground
14 Gray/Red VSS (+)
15 Red/White 12V In Start
16 Yellow/Orange No Function Yet
17 Yellow/Blue No Function Yet
18 Green/Red Steering Wheel Control (+)
19 Green/White Steering Wheel Control (-)
20 Brown/Red Rear Parking Aid
21 White/Black Left Front Speaker (-)
22 Green/Black Left Rear Speaker (-)
Purple/Black
23
Black
24
(Expedition)
(Expedition)
Right Rear Speaker (-)
Ground
Pin Color Function
7 Black/Yellow PTA (Expedition)
8 White Left Front Speaker (+)
9 Green Left Rear Speaker (+)
10 Purple Right Rear Speaker (+)
11 Gray Right Front Speaker (+)
12 Gray/Black Right Front Speaker (-)
13 Black Ground
14 Gray/Red VSS (+)
15 Red/White 12V In Start
16 Yellow/Orange No Function Yet
17 Yellow/Blue No Function Yet
18 Green/Red Steering Wheel Control (+)
19 Green/White Steering Wheel Control (-)
20 Brown/Red Rear Parking Aid
21 White/Black Left Front Speaker (-)
22 Green/Black Left Rear Speaker (-)
Purple/Black
23
Black
24
(Expedition)
(Expedition)
Right Rear Speaker (-)
Ground
