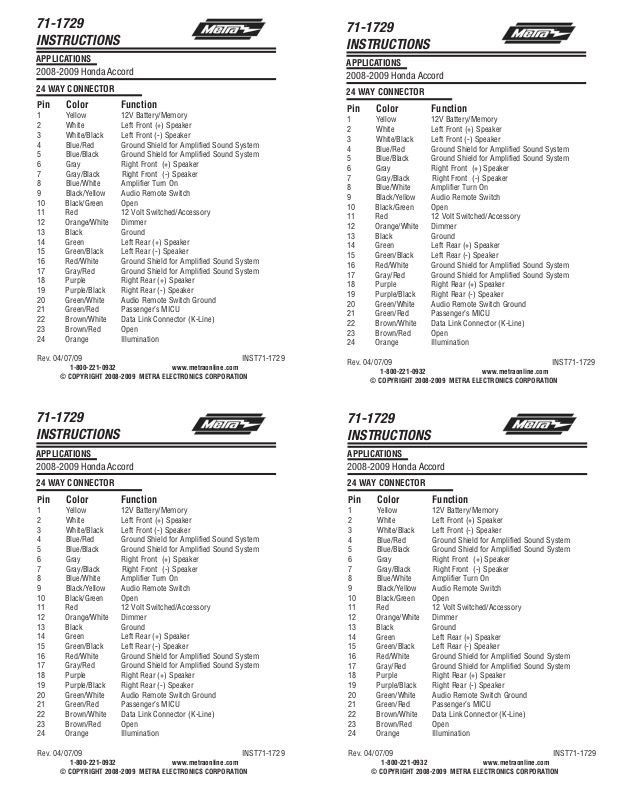

Metra Electronics 71-1729 User Manual
71-1729
INSTRUCTIONS
APPLICATIONS
2008-2009 Honda Accord
24 WAY CONNECTOR
P
in Color Function
1 Yellow 12V Battery/Memory
2 White Left Front (+) Speaker
3 White/Black Left Front (-) Speaker
4 Blue/Red Ground Shield for Amplified Sound System
5 Blue/Black Ground Shield for Amplified Sound System
6 Gray Right Front (+) Speaker
7 Gray/Black Right Front (-) Speaker
8 Blue/White Amplifier Turn On
9 Black/Yellow Audio Remote Switch
10 Black/Green Open
11 Red 12 Volt Switched/Accessory
12 Orange/White Dimmer
13 Black Ground
14 Green Left Rear (+) Speaker
15 Green/Black Left Rear (-) Speaker
16 Red/White Ground Shield for Amplified Sound System
17 Gray/Red Ground Shield for Amplified Sound System
18 Purple Right Rear (+) Speaker
19 Purple/Black Right Rear (-) Speaker
20 Green/White Audio Remote Switch Ground
21 Green/Red Passenger’s MICU
22 Brown/White Data Link Connector (K-Line)
23 Brown/Red Open
24 Orange Illumination
Rev. 04/07/09 INST71-1729
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2008-2009 METRA ELECTRONICS CORPORATION
71-1729
INSTRUCTIONS
APPLICATIONS
2008-2009 Honda Accord
24 WAY CONNECTOR
P
in Color Function
1 Yellow 12V Battery/Memory
2 White Left Front (+) Speaker
3 White/Black Left Front (-) Speaker
4 Blue/Red Ground Shield for Amplified Sound System
5 Blue/Black Ground Shield for Amplified Sound System
6 Gray Right Front (+) Speaker
7 Gray/Black Right Front (-) Speaker
8 Blue/White Amplifier Turn On
9 Black/Yellow Audio Remote Switch
10 Black/Green Open
11 Red 12 Volt Switched/Accessory
12 Orange/White Dimmer
13 Black Ground
14 Green Left Rear (+) Speaker
15 Green/Black Left Rear (-) Speaker
16 Red/White Ground Shield for Amplified Sound System
17 Gray/Red Ground Shield for Amplified Sound System
18 Purple Right Rear (+) Speaker
19 Purple/Black Right Rear (-) Speaker
20 Green/White Audio Remote Switch Ground
21 Green/Red Passenger’s MICU
22 Brown/White Data Link Connector (K-Line)
23 Brown/Red Open
24 Orange Illumination
Rev. 04/07/09 INST71-1729
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2008-2009 METRA ELECTRONICS CORPORATION
71-1729
INSTRUCTIONS
APPLICATIONS
2008-2009 Honda Accord
24 WAY CONNECTOR
P
in Color Function
1 Yellow 12V Battery/Memory
2 White Left Front (+) Speaker
3 White/Black Left Front (-) Speaker
4 Blue/Red Ground Shield for Amplified Sound System
5 Blue/Black Ground Shield for Amplified Sound System
6 Gray Right Front (+) Speaker
7 Gray/Black Right Front (-) Speaker
8 Blue/White Amplifier Turn On
9 Black/Yellow Audio Remote Switch
10 Black/Green Open
11 Red 12 Volt Switched/Accessory
12 Orange/White Dimmer
13 Black Ground
14 Green Left Rear (+) Speaker
15 Green/Black Left Rear (-) Speaker
16 Red/White Ground Shield for Amplified Sound System
17 Gray/Red Ground Shield for Amplified Sound System
18 Purple Right Rear (+) Speaker
19 Purple/Black Right Rear (-) Speaker
20 Green/White Audio Remote Switch Ground
21 Green/Red Passenger’s MICU
22 Brown/White Data Link Connector (K-Line)
23 Brown/Red Open
24 Orange Illumination
71-1729
INSTRUCTIONS
APPLICATIONS
2008-2009 Honda Accord
24 WAY CONNECTOR
P
in Color Function
1 Yellow 12V Battery/Memory
2 White Left Front (+) Speaker
3 White/Black Left Front (-) Speaker
4 Blue/Red Ground Shield for Amplified Sound System
5 Blue/Black Ground Shield for Amplified Sound System
6 Gray Right Front (+) Speaker
7 Gray/Black Right Front (-) Speaker
8 Blue/White Amplifier Turn On
9 Black/Yellow Audio Remote Switch
10 Black/Green Open
11 Red 12 Volt Switched/Accessory
12 Orange/White Dimmer
13 Black Ground
14 Green Left Rear (+) Speaker
15 Green/Black Left Rear (-) Speaker
16 Red/White Ground Shield for Amplified Sound System
17 Gray/Red Ground Shield for Amplified Sound System
18 Purple Right Rear (+) Speaker
19 Purple/Black Right Rear (-) Speaker
20 Green/White Audio Remote Switch Ground
21 Green/Red Passenger’s MICU
22 Brown/White Data Link Connector (K-Line)
23 Brown/Red Open
24 Orange Illumination
Rev. 04/07/09 INST71-1729
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2008-2009 METRA ELECTRONICS CORPORATION
Rev. 04/07/09 INST71-1729
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2008-2009 METRA ELECTRONICS CORPORATION
