ELECTRIC GRIDDLE
OFTE 40B
OFTE 40C
OFTE 60B
OFTE 60BR
Installation and Operation Manual
10/31 Electric heated Fry-Tops (600)
GB
INDEX
INSTALLATION INSTRUCTIONS -----------------------------------------------------------------------page ---11
WARNINGS ----------------------------------------------------------------------------------------------------------page ---11
INSTALLATION ------------------------------------------------------------------------------------------------------page ---11
Positioning
Assembly
In line union of the appliances
Electrical connection
Earth and unipotential connections
Important information specifically relating to appliances in the DROP-IN series
START-UP ------------------------------------------------------------------------------------------------------------page --- 11
Function check
Nominal heat input check
ANALYSIS OF SEVERAL FAILURES ---------------------------------------------------------------------------------page --- 11
Cooking plate does not heat up
Diffcult or lacking temperature adjustment
REPLACEMENT OF PARTS SUBJECT TO CHANGE -----------------------------------------------------------------page --- 12
Heating elements
Regulation thermostat
Safety thermostat
USE AND MAINTENANCE ----------------------------------------------------------------------------------page ---12
WARNINGS ---------------------------------------------------------------------------------------------------------- page --- 12
Safety devices
USE ------------------------------------------------------------------------------------------------------------------ page --- 12
Operation
Switching off heating
CLEANING AND MAINTENANCE ------------------------------------------------------------------------------------page ---12
Cleaning chromed radiant plate
LIST OF PARTS SUBJECT TO CHANGE -----------------------------------------------------------------------------page --- 12
Electric heated Fry-Tops (600) 11/31
the symbol (unipotential system).
Important information specifically relating to
appliances in the DROP-IN series
– The appliance must be installed in strict
compliance with the directions given in the
attached drawings.
– Appliances should only be installed on units
made of metal (and not wood and/or other
flammable materials).
– Take particular care with the power lead: the
channelways must be perfectly smooth with no
sharp corners and/or edges. The lead must not, at
any point, be subjected to temperatures of more
than 50°C above normal room temperature.
START-UP
Function check electrical system
– Start-up the appliance following the instructions
given; check function regularity and make sure
that the controls and heating elements are in good
working order, testing them with the various
function positions.
– Appliances are provided with a safety thermostat
which cuts off power supply to heating elements
if regulation thermostat is faulty.
Nominal heat input check
– After installation and at each maintenance
intervention check the heat input of the
appliance.
– The nominal heat input is stated in the
“Technical data” table.
– The appliance operates at the nominal heat
input when the electrical power is the one stated
in Table T1.
ATTENTION If the power supply value is not
within the limits indicated in Table T1, interrupt
the operation of the appliance and contact the
electricity delivery body.
ANALYSIS OF SEVERAL FAILURES
Cooking plate does not heat up
– Check fuse valves
– Main switch off
– Insufficient power or wrong electrical connection
– Regulation thermostat faulty
– Wrong connection or elements faulty
– Safety thermostat activated or faulty
Diffcult or lacking temperature adjustment
– Insufficient power or wrong electrical connection
– Regulation thermostat faulty
– Wrong connection or elements faulty
REPLACEMENT OF PARTS SUBJECT TO CHANGE
IMPORTANT Before carrying out repairs, unplug
appliance from mains disconnecting the main
switch. Sealed components must not be
tampered with.
To reach electrical components, i.e. controls and
INSTALLATION INSTRUCTIONS
WARNINGS
Installation, adjustments and maintenance of the
appliances must be done by authorized installers,
in accordance with the safety standards in force.
The manufacturer declines any responsibility
if such obligation is not observed.
INSTALLATION
Positioning
– The overall/connection dimensions and the
technical data are stated in the pages in the
appendix.
– Install the appliances only in sufficiently aired
rooms.
– Position appliances at least 5 cm from the nearby
walls.
– The appliances are not suitable for built-in
installation.
Assembly
– Remove the film which protects the external
panels. Any glue remaining on these is to be
removed with a suitable solvent.
– Assemble the spacer (if foreseen) by following
the instructions enclosed with the spacer itself.
In line union of the appliances
– Put the appliances next to eachother and level
them at the same height.
– Unite the appliances using the special union
joint-coverings supplied upon request.
Electrical connections
– Appliances are designed to operate at the voltage
indicated on the rating plate.
– Each appliance must be connected to an
independent mains supply of suitable capacity
(total power indicated in “Technical data” table)
with supplied flexible cable (features of which
are indicated in table T1).
– Make sure that the cables lenght allows for the
live wires to disconnect from terminal block
before the yellow/green ground wire, in case of
simultaneous pull.
– Automatic cutout omnipolar switches of suitable
capacity (with contacts opening to at least 3
mm) and highly sensitive automatic differential
protective devices must be fitted. These must
ensure that there is no direct or indirect contact
between live components and fault currents
and the ground, in accordance with current
regulations (maximum admissible leakage
current 1 mA/kW).
Earth and unipotential connections
– Appliances must be earthed on terminals marked
with the symbol .
– Connect the metallic structure of every electrical
appliance installed to the terminals, marked by
12/31 Electric heated Fry-Tops (600)
safety devices, remove drip collecting drawer and
control panel.
Heating elements
– Pull out the control knobs and remove control
panel. Disconnect and replace the faulty heating
element.
Regulation thermostat
– Pull out the control knobs. Remove the front
control panel. Remove the thermostat and
disconnect it. Extract the bulb (thermostat) from
its seat. Change the faulty component.
Safety thermostat
– Pull out the control knobs. Remove the front
control panel. Remove the thermostat and
disconnect it. Extract the bulb (thermostat) from
its seat. Change the faulty component.
USE AND MAINTENANCE
WARNINGS
Caution , appliance with hot surfaces!
The appliance is for professional use and must be
used by trained personnel. The appliance has to be
used only for direct cooking of food, laying the food
to be cooked (meat, hamburger, fish, vegetables,
etc.) directly on the hot surface of the plate. Any
other use of the appliance is considered improper.
It is absolutely forbidden to use the plate for
indirect cooking of food, laying pots casseroles
or pans containing food on the plate.
The installation and adaptation to other voltage
must be done by qualified and authorized installers.
In case of breakdown disconnect the main switch.
Sealed components must not be tampered with.
For repairs consult only authorized service centres
and ask for original spare parts only.
The manufacturer declines any responsability
if such obligations are not observed.
Carefully read this booklet and keep it in a safe place.
Before using the appliance carefully clean all the
surfaces that will come in contact with food.
Safety devices
The appliance is equipped with an additional
manually-reset safety thermostat which
automatically cuts off the electrical supply to the
heating elements when the temperature of the
plate exceeds the maximum working temperature
(operating thermostat faulty). If this should occur,
disconnect the appliance from the mains electrical
supply and contact your nearest customer service
centre.
USE
Operation
To switch on heating of cooking plate (green and
orange pilot lamps on) turn the thermostat knob
on the desired working position.
0 off
50 °C minimum temperature
100÷200 °C intermediate temperatures
300 °C maximum temperature
Switching off heating
– Turn thermostat knob on position 0.
CLEANING AND MAINTENANCE
– Before any cleaning operation disconnect the
electrical supply (if present).
– Clean stainless steel surfaces daily with water
and non abrasive common detergents, rinse and
dry thoroughly.
– Do not use iron scouring pads or chlorate
products.
– Never use sharp tools to handle the food during
cooking or to clean the chromed radiant plate,
as these may damage or ruin the finished surface.
– Do not use sharp objects which can scratch and
ruin the steel surface.
– Do not use corrosive products to clean the floor
under the appliance.
– Do not wash the appliance with water jets.
– Before a long period of inactivity disconnect the
main switch. Proceed to its thorough cleaning.
– At least twice a year, ask for the intervention of
an authorized technician authorized for checking
the appliance. It is advisable in any case to
stipulate a maintenance contract.
Cleaning chromed radiant plate
– Never use abrasive materials or detergents.
– Never use chemical agents (e.g. oven cleaner).
– The plate should be kept clean at all times and
any food residue left on the surface must always
be removed immediately after use. This type of
encrustation can be removed more easily when
the plate reaches a temperature of 140°C,
pouring over ice flakes or cubes and easing off
the residue with the help of a suitable scraper.
– Once the plate has cooled down (to 80-100°C),
wipe over the surface with a cloth soaked in
water or vinegar.
– Once the plate has cooled completely, clean the
surface with a non-scratch cleaning cream/fluid
to bring back its original shine.
– Rinse and wipe over the plate with a damp
cloth. Dry.
LIST OF PARTS SUBJECT TO CHANGE
– Heating element for cooking plate
– Cooking plate
– Thermostat
– Safety thermostat
– Knob for thermostat
– Knob for safety thermostat
– Pilot lamps
– Switch
TECHNICAL DATA
T1
Ø Ø
MIN MIN
H 07
MAX H 07 MAX
kW V A
RN-F
mm V A
RN-F
mm
OFTE-40B 3,9 3N AC 400 V 5,6
5 x 1 9+14
- -
-
-
OFTE-40C 3,9 3N AC 400 V 5,6
5 x 1 9+14
- -
-
-
OFT E-60 B , O F TE-60B R 7,8 3N AC 400 V 11,3
5 x 1,5 9+14
- - - -
MOD.
Total
power
OFTE-40...
OFTE-60...

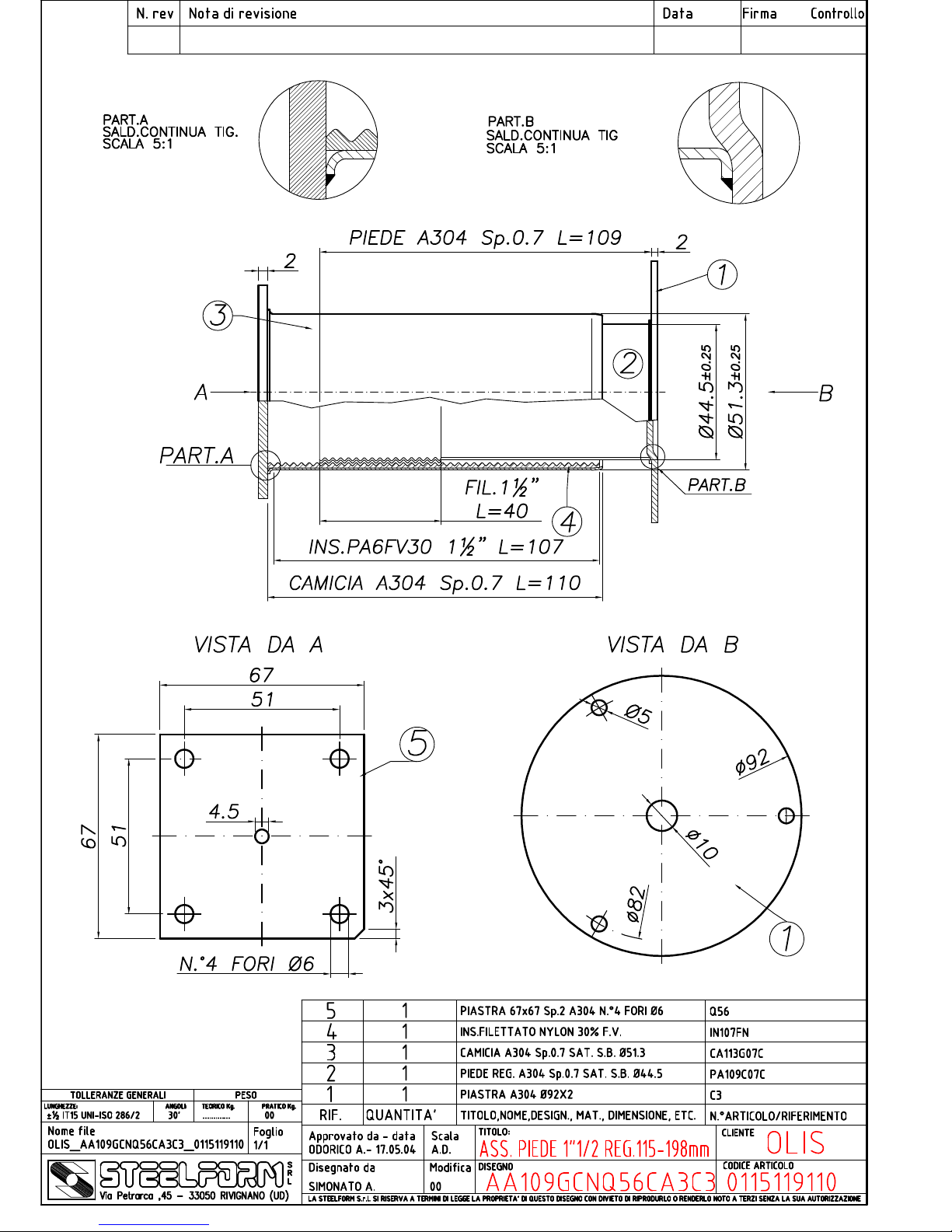

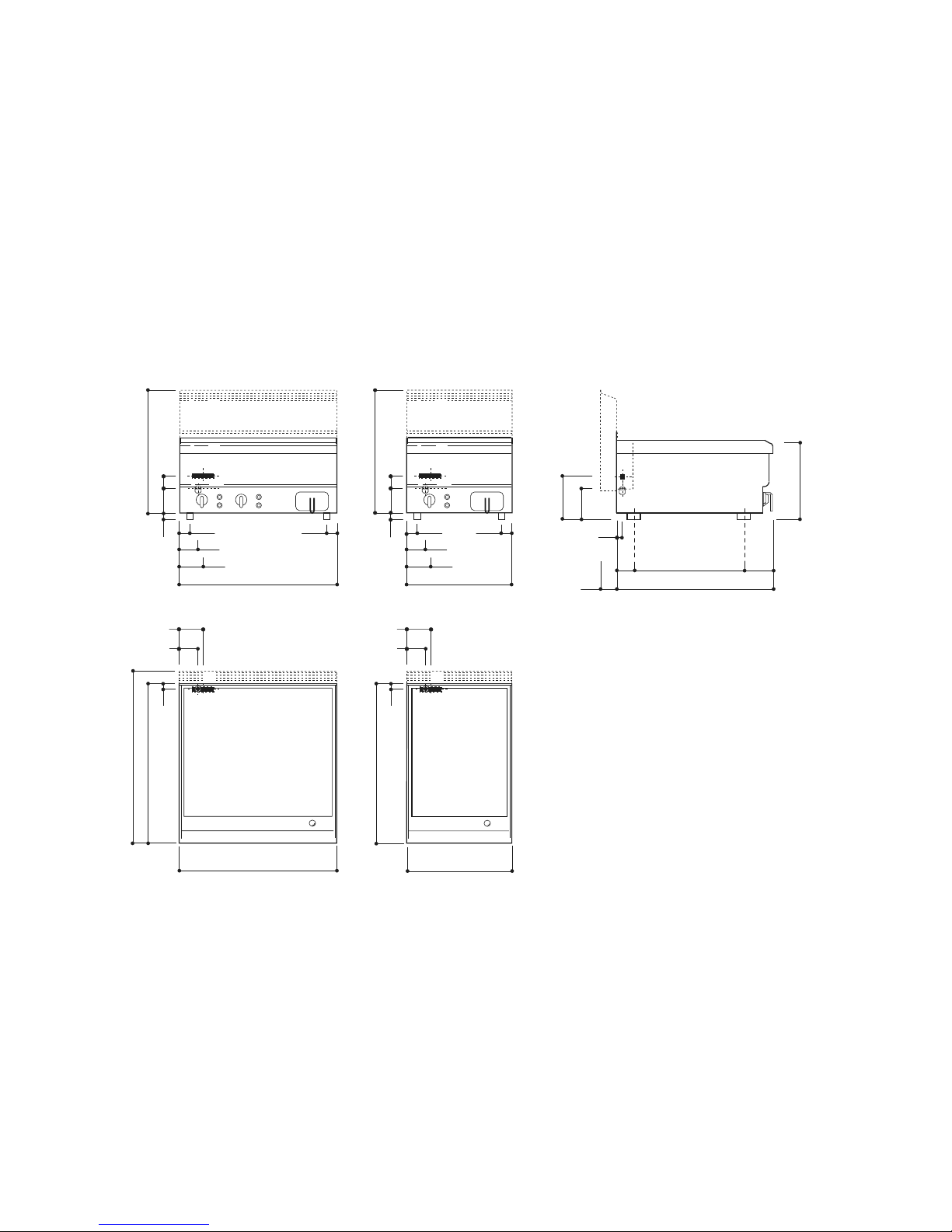

ASENNUSKUVA - INSTALLATIONSBILD - INSTALLATION DIAGRAM
(Mitat cm - Mått cm - Measurements cm)
06
60
5,2
6,64
06
40
9
4
M
P
6,9
4,1
8,4
P
6,9
4,1
8,4
P
3.56
9
4
M
P
M
M
5,2
6,64
40
3,6 3,6
6,9
8,4
5,2
6,64
60
3,6 3,6
6,9
8,4
5,92
1,4
5,3
60
1142,5
6,5
5,11
5,51
M
P
M
Verkkoliitin - Nätanslutning - El. power connection blocks
P
Sähkökaapelin vedonpoisto - Dragavlastare - Electric cable stress relief

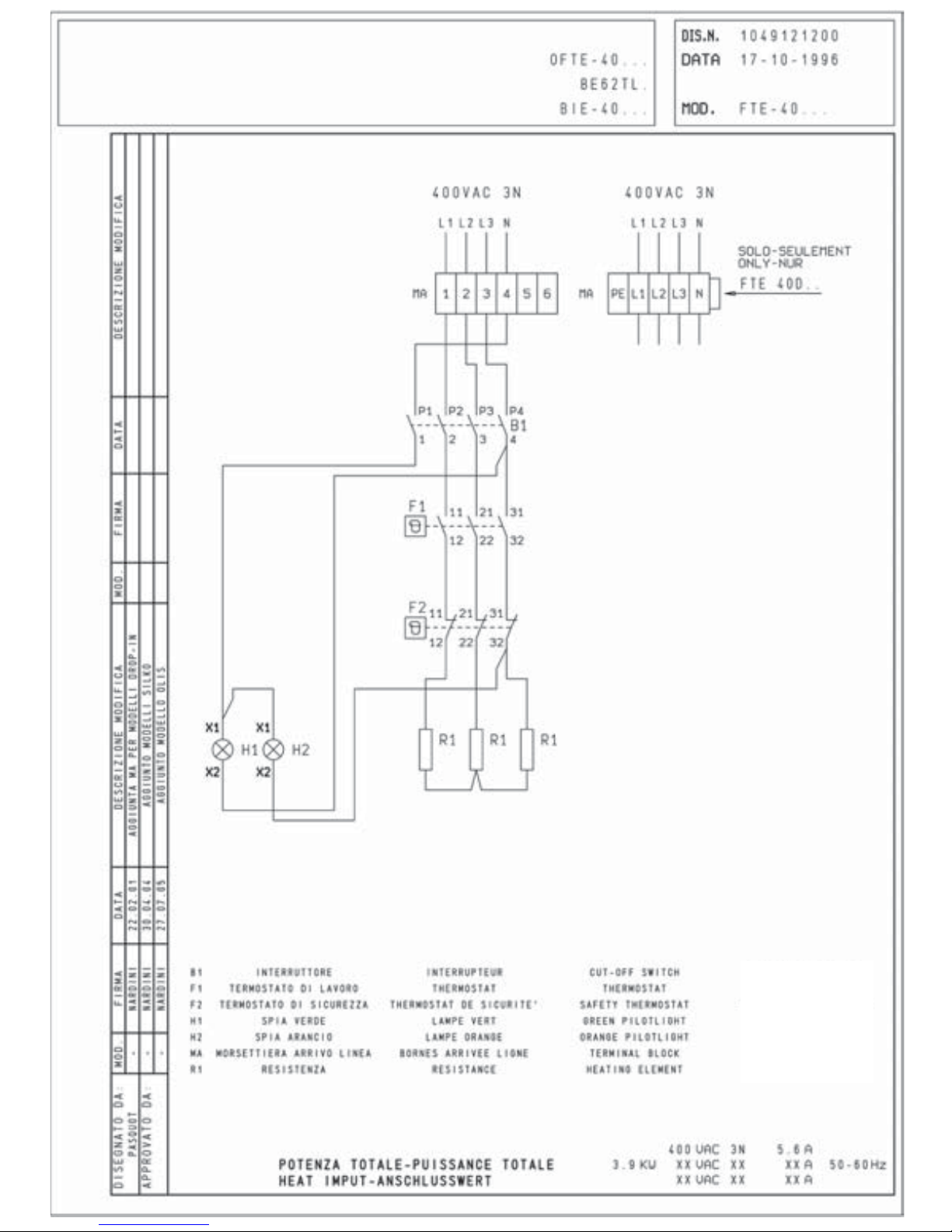

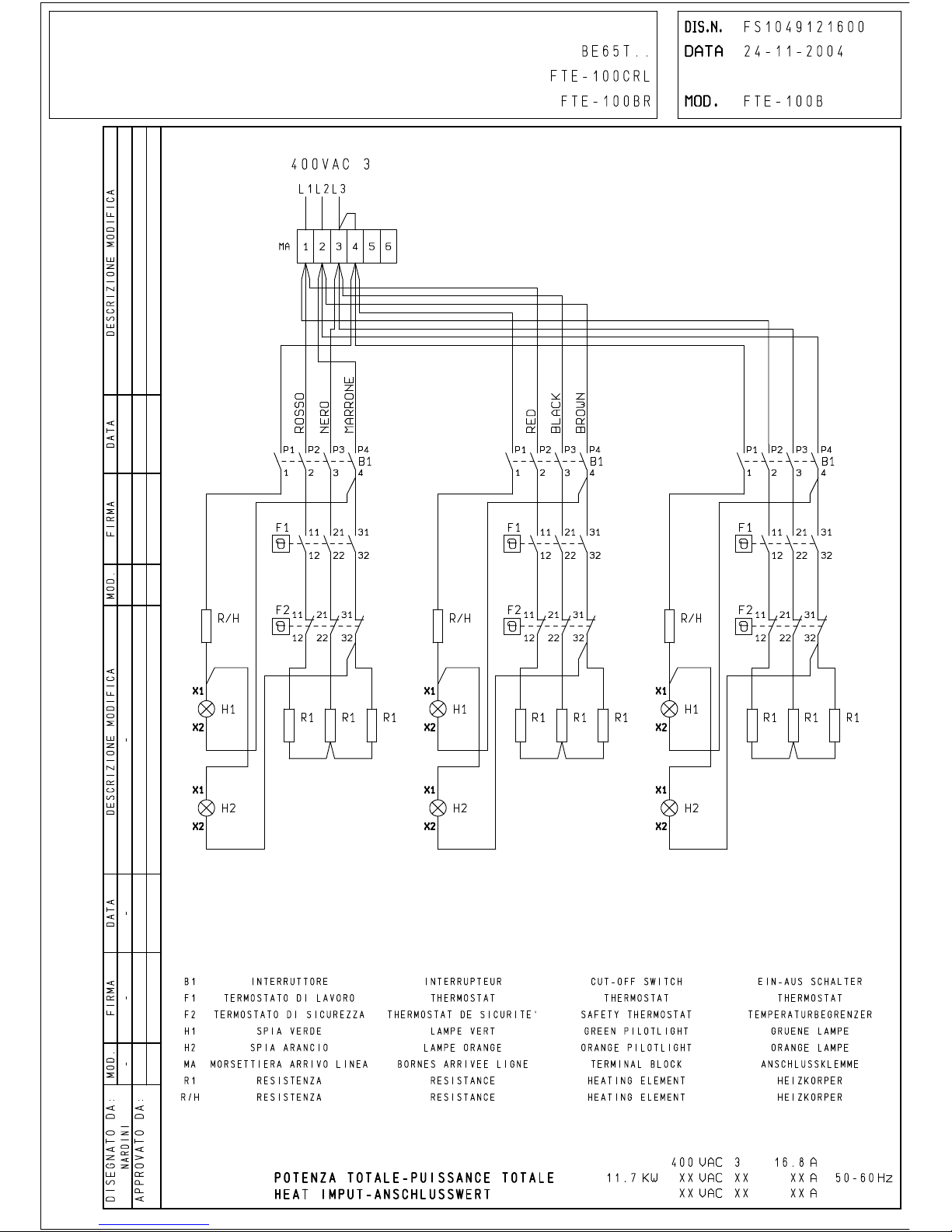

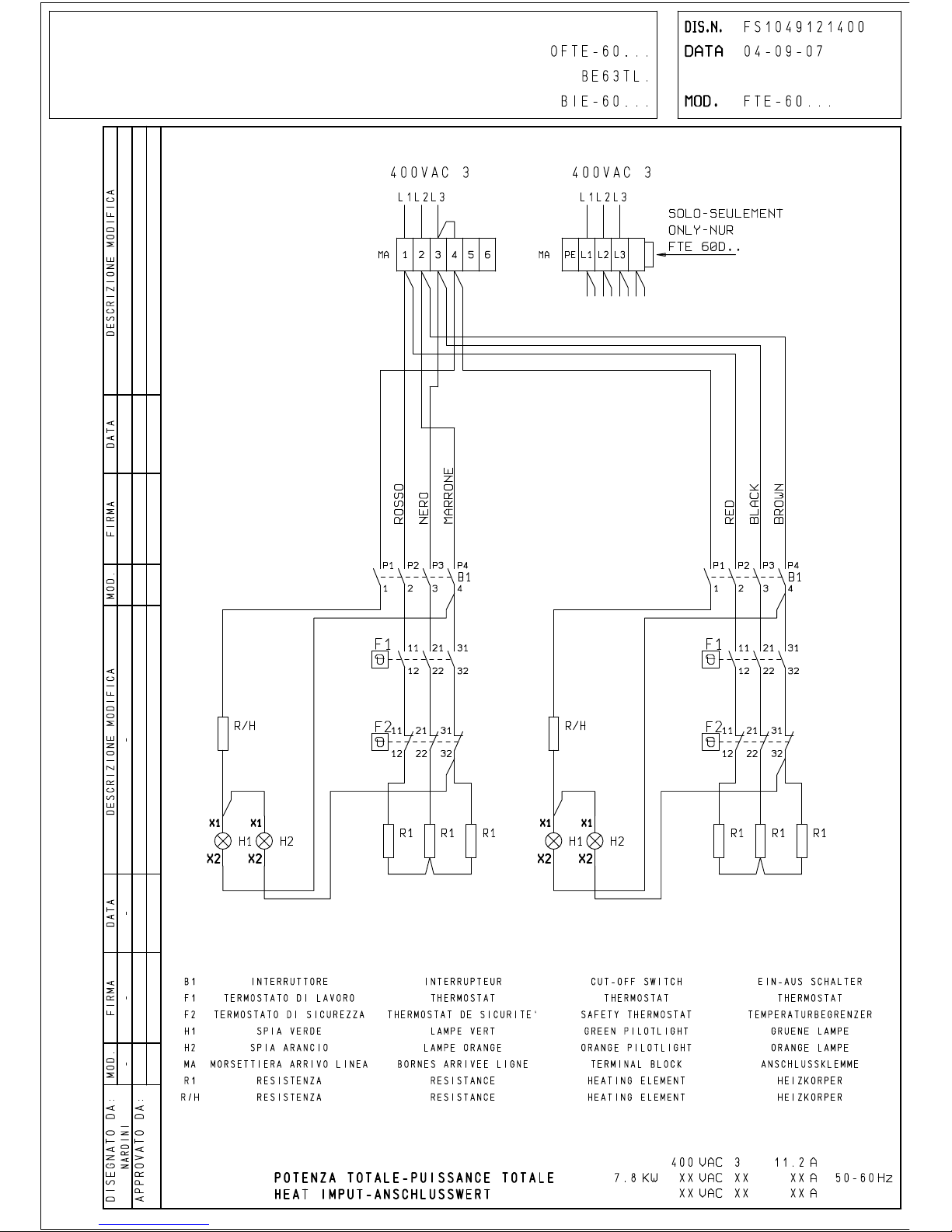

KYTKIN
TERMOSTAATTI
TURVATERMOSTAATTI
VIHREÄ MERKKILAMPPU
ORANSSI MERKKILAMPPU
VERKKOLIITIN
LÄMMITYSVASTUS

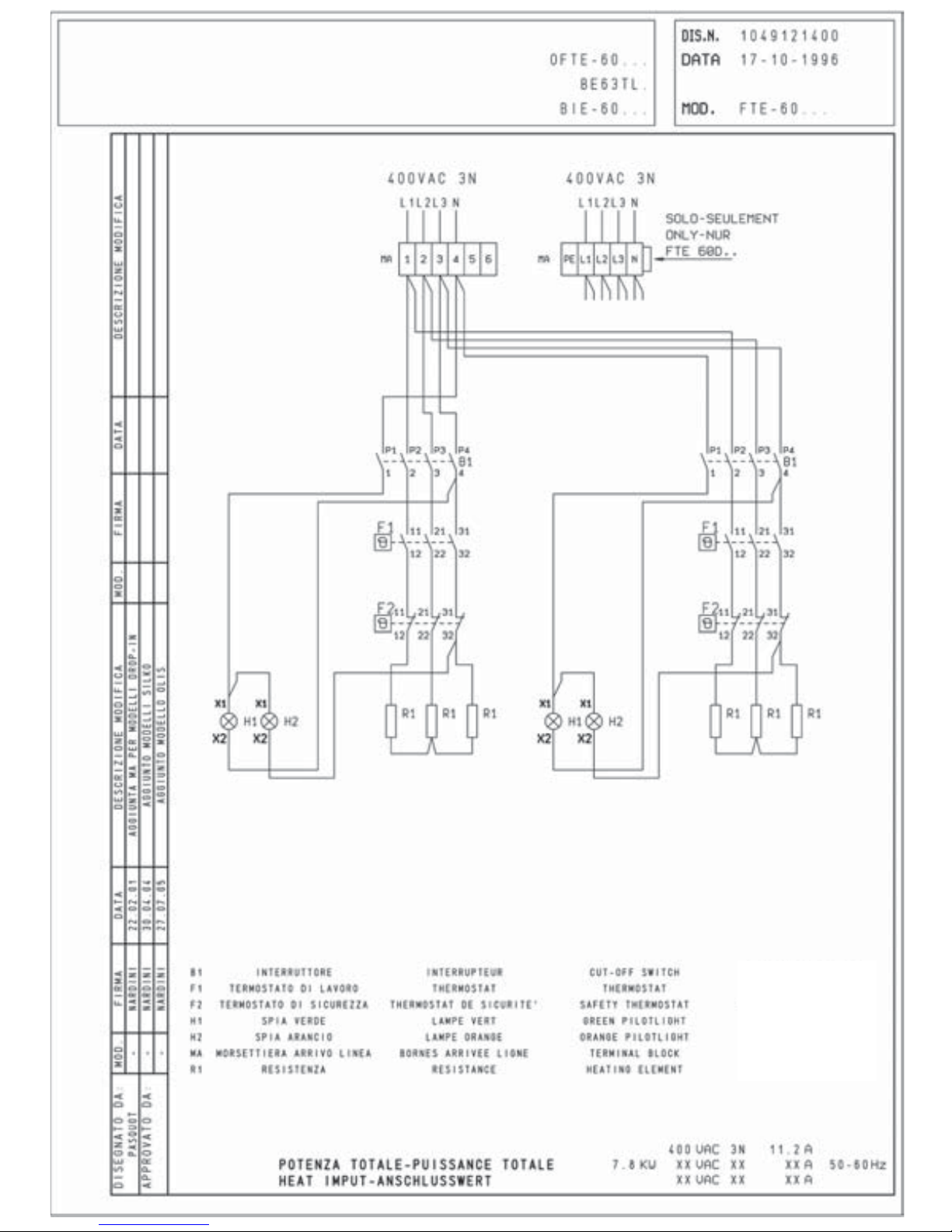

KYTKIN
TERMOSTAATTI
TURVATERMOSTAATTI
VIHREÄ MERKKILAMPPU
ORANSSI MERKKILAMPPU
VERKKOLIITIN
LÄMMITYSVASTUS
