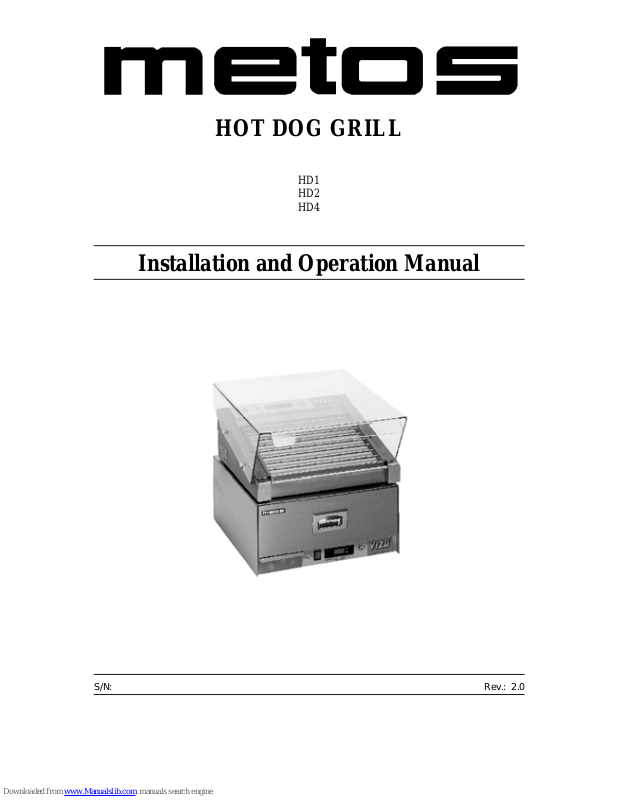

HOT DOG GRILL
HD1
HD2
HD4
Installation and Operation Manual
S/N: Rev.: 2.0
Page 2
Page 3
11.1.2002 Rev. 2.0
3
Dear Customer,
Congratulations on deciding to choose a Metos appliance for your kitchen activities. You
made an excellent choice. We will do our best to make you a satisfied Metos customer
like thousands of customers we have around the world.
Please read this manual carefully. You will learn correct, safe an d efficient working methods in order to get the best po ssible benefi t from th e appliance. The inst ruction s and hin ts
in this manual will give you a quick and easy start, and you will soon note how nice it is
to use the Metos equipment.
All rights are reserved for technical changes.
You will find the main technical data on th e rating plate fixed to the equipment. When you
need service or technical help, please let us know the serial number shown on the rating
plate. This will make it easier to provide you with correct service.
For your convenience, space is provided belo w for you to record your lo cal Metos service
contact information.
METOS TEAM
Metos service phone number:......................... ....................... ............................ ...................
Contact person:....................................................................................................................
Page 4
11.1.2002 Rev. 2.0
4
Page 5
11.1.2002 Rev.
5
1. General .......................................................................................................... 7
1.1 Symbols used in the manual .......................................................................................... 7
1.2 Symbols used on the appliance ...................................................................................... 7
1.3 Checking the relation of the appliance and the manual ................................................. 7
2. Functional description .................................................................................. 8
2.1 Application of the appliance .......................................................................................... 8
3. Operation instructions ................................................................................. 9
3.1 Before using the appliance ............................................................................................ 9
3.1.1 Unpacking the appliance ........................................................................................ 9
3.1.2 Assembly instructions ............................................................................................ 9
3.1.3 Installation ............................................................................................................. 9
3.2 Operation procedures ..................................................................................................... 9
3.2.1 Operating instructions ............................................................................................ 9
3.2.2 Grill plate temperature ......................................................................................... 10
3.3 After use ...................................................................................................................... 10
3.3.1 Cleaning .............................................................................................................. 10
4. Troubleshooting .......................................................................................... 11
6. Technical specifications .............................................................................. 21
Page 6
11.1.2002 Rev.
6
Page 7
11.1.2002 Rev. 2.0
General
7
1. General
Carefully read the instructions in this manual as they contain important information regarding proper, efficient and safe installation, use and maintenance of the appliance.
Keep this manual in a safe place for eventual use by other operators of the appliance.
The installation of this appliance must be carried out in accordance with the manufacturer’s instructions and following local regulations. The connection of the appliance to th e
electric and water supply must be carried out by qualified persons only.
Persons using this appliance should be specifically trained in its operation.
Switch off the appliance in the case of failure or malfunction. The periodical function
checks requested in the manual must be carr ied out according to the in structions. Have the
appliance serviced by a technically qualified person authorized by the manufacturer and
using original spare parts.
Not complying with the above may put the safety of the appliance in danger.
1.1 Symbols used in the manual
This symbol informs about a situation where a safety risk might be at hand. Given instructions are mandatory in order to prevent injury.
This symbol informs abo ut the r ight way to perfo rm in order to pr event bad res ults , appli ance damages or hazardous situations.
This symbol informs about recommendations and hints that help to get the best performance out of the appliance.
1.2 Symbols used on the appliance
This symbol on a part informs about electrical terminals behind the part. The removal of
the part must be carried out by qualified persons only.
1.3 Checking the relation of the appliance and the manual
The rating plate of the appliance indicates the serial number of the appliance. If the manuals are missing, it is possible to order new ones from the manufacturer or th e local representative. When ordering new manuals it is essential to quote the serial number shown
on the rating plate.
Page 8
11.1.2002 Rev. 2.0
Functional description
8
2. Functional description
2.1 Application of the appliance
The Hot Dog Grill is designed for re-heating hot dogs, frankfurters, and other pre-cooked
sausages. It is also suitable for English style uncooked sausages, but will probably require
a higher thermostat setting. Hot dogs and frankfurters must be completely defrosted before cooki ng.
Page 9
11.1.2002 Rev. 2.0
Operation instructions
9
3. Operation instructions
3.1 Before using the appliance
3.1.1 Unpacking the appliance
The machine has been tested and checked for proper operation before leaving the factory.
Upon delivery please check for any damage. If the unit is damaged contact the carrier immediately. Please retain all packing materials. Damage mus t be repo rt ed withi n 3 days o f
delivery.
3.1.2 Assembly instructions
• Remove protective plastic covering from all surfaces.
• Remove the grid and wash in hot, soapy water. Rinse and dry.
• Wipe all steel surfaces with proprietary stainless steel cleaner or a clean, h ot, damp
cloth. Dry thoroughly.
• Replace the grid on the drive studs.
3.1.3 Installation
Position the Hot Dog Grill preferably in a place where the movement of the grid and the
sausages will attract customers’ attention.
3.2 Operation procedures
3.2.1 Operating instructions
• Turn the red switch ‘ON’, the heating will start and the grid will travel up and
down.
• Allow 20 minutes for the grill plate to pre-heat.
• Temperature control is factory pre-set at 100°C.
• Using tongs place hot dogs/frankfurters between the roller bars. The product will
be ready to serve in 10-15 minutes, dependi ng on size and thickn ess. Recommended internal temperature for the product is 68-70°C.
The Hot Dog Grill operates on a “heat n’ hold” principle. The pre-set grill plate temperature will heat the products in a matter of minutes and hold them for several hours with lit-
Page 10
11.1.2002 Rev. 2.0
Operation instructions
10
tle or no deterioration in appearance or tas te. The unique f eature allows the Hot Dog Grill
to maximise the merchandising potential with minimal supervision. If any signs of deterioration appear, the grill plate temperature should be lowered (see next chapter “Grill
plate temperature).
3.2.2 Grill plate temperature
The grill plate temperature has been factory pre-set at 100°C. This operating temperature
can be adjusted between 80-130°C. To change the temperature proceed as follows:
• Press the button marked ‘SET’. ‘LI’ will appear in the window changing to the preset temperature (100°C), flashing on and off.
• While the number is flashing, press the up or down arrows on the right hand side
of the control panel to raise or to lower the operating temperature by increments of
5°C.
• Press ‘SET’ again, the new temperature setting is now held in the co ntrol memory.
• Allow 10 minutes for the new temperature to take effect.
3.3 After use
3.3.1 Cleaning
• Switch ‘OFF’ the machine and remove the power plug from the wall supply.
• Remove the grid and wash thoroughly in hot, soapy water using a soft brush.
• While the grill is still warm, clean it with a soft, clean cloth wrapped aro und a small
quantity of ice chips and dry thoroughly.
• Do not wash the grill surface with soapy water.
• Clean all stainless steel surfaces and the control panel with a proprietary stainless
steel cleaner or a soft, damp cloth. Dry thoroughly. Replace the grid on the drive
studs.
The grill plate has an anodised coat. Do not use any abrasive materials, scouring pads or
sharp implements to remove food residue. These will damage the plate surface and invalidate the warranty.
Page 11
11.1.2002 Rev. 2.0
Troubleshooting
11
4. Troubleshooting
Any servicing must be carried out by qualified personnel only. Always remove the machine from the power supply.
* HD4
** HD4, 2 elements
PROBLEM POSSIBLE CAUSE SOLUTION
1. Indicated ON/ OFF switch
does not light up.
No power to the machine. Check that the machine is plugg ed in and
switched ON. Check the 16A fuse in the plug.
Check that the external circuit breaker is 'IN'
at the main supply board.
Defective ON/ OFF switch. Call the service.
Defective wiring. Call the service.
2. Digital thermostat does not
indicate the temperature reading.
ON/ OFF switch not on. Switch ‘ON’.
ON/ OFF switch faulty. Call the service.
Digital thermostat faulty. Call the service.
Transformer faulty. Call the service.
3. The grid does not move. No power to the mac hine. See Problem 1.
ON/ OFF switch faulty. Call the service.
Motor faulty. Call the service.
Grill slides damaged. Call the service.
4. The grill does not heat up. No power to the machine. See Problem 1.
ON/ OFF switch faulty. Call the service.
Digital thermostat faulty. Call the service.
Transformer faulty. Call the service.
Switching relay faulty * Call the service.
Heating element faulty ** Call the service.
Probe faulty. Call the service.
5. The grid does not move
smoothly.
Drive component da m a ge d or ou t of
alignment.
Call the service.
Page 12
11.1.2002 Rev. 2.0
Troubleshooting
12
Page 13
11.1.2002 Rev. 2.0
Technical specifications
21
6. Technical specifications
Connection diagram HD1
Connection diagram HD2
Connection diagram HD4
Page 14
11.1.2002 Rev. 2.0
Technical specifications
22
Connection diagram HD1
Page 15
11.1.2002 Rev. 2.0
Technical specifications
23
Connection diagram HD2
Page 16
11.1.2002 Rev. 2.0
Technical specifications
24
Connection diagram HD4
Page 17
11.1.2002 Rev. 2.0
Technical specifications
25
Item Model Specification
Motor 220/ 230V 1~50Hz
Motor HD1 0,55 kW
Power HD2 1,1 kW
Power HD4 2,1 kW
Max.current HD1 2,2A
Max.current HD2 4.2A
Max.current HD4 8.4A
