Methven 37-2010, 37-2508, 37-2522, 37-2546 Installation Guide

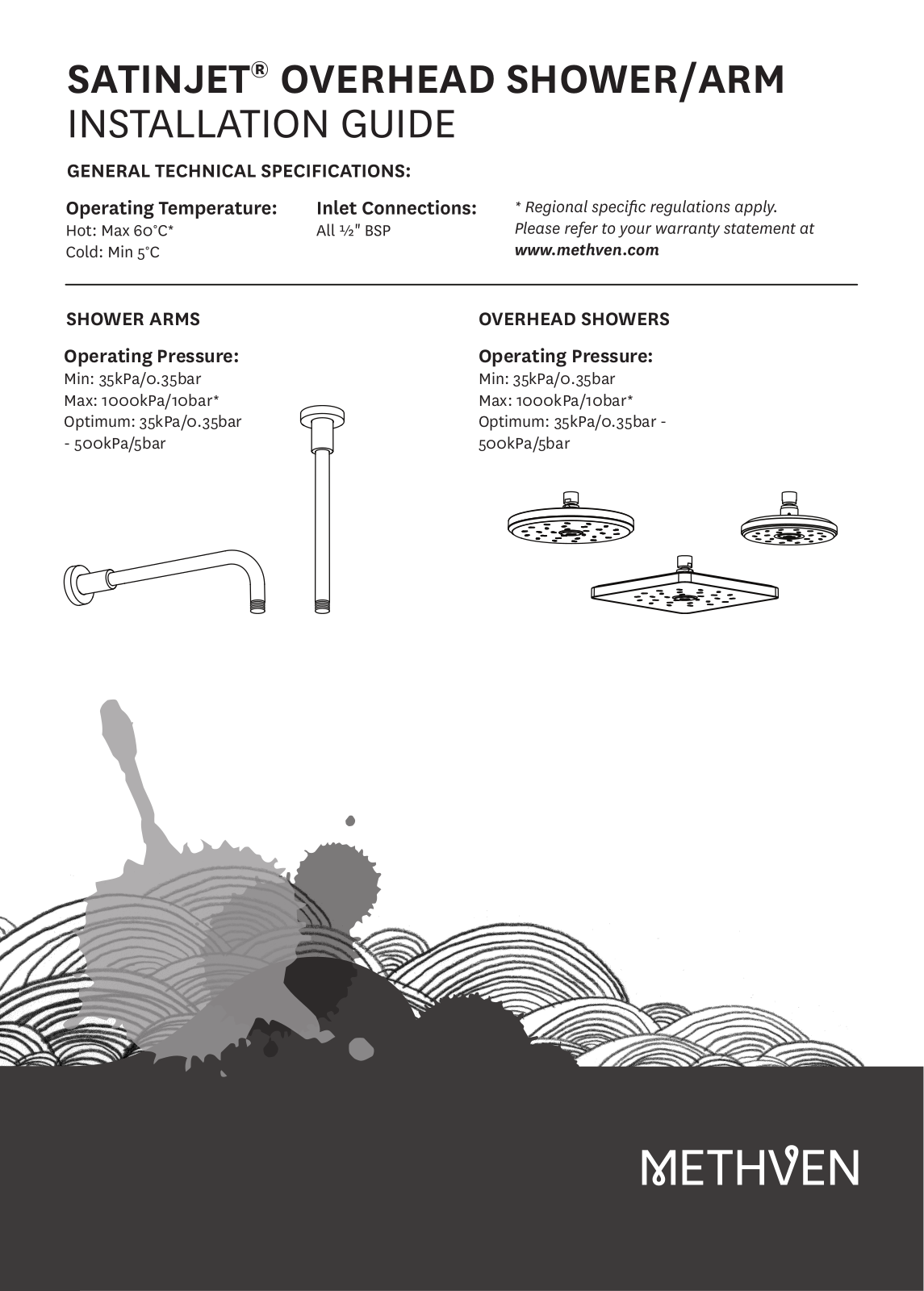

SATINJET® OVERHEAD SHOWER/ARM

SHOWER ARMS OVERHEAD SHOWERS

Operating Pressure:

Min: 35kPa/0.35bar
Max: 1000kPa/10bar*
Optimum: 35kPa/0.35bar

- 500kPa/5bar

Operating Pressure:

Min: 35kPa/0.35bar
Max: 1000kPa/10bar*
Optimum: 35kPa/0.35bar ­500kPa/5bar

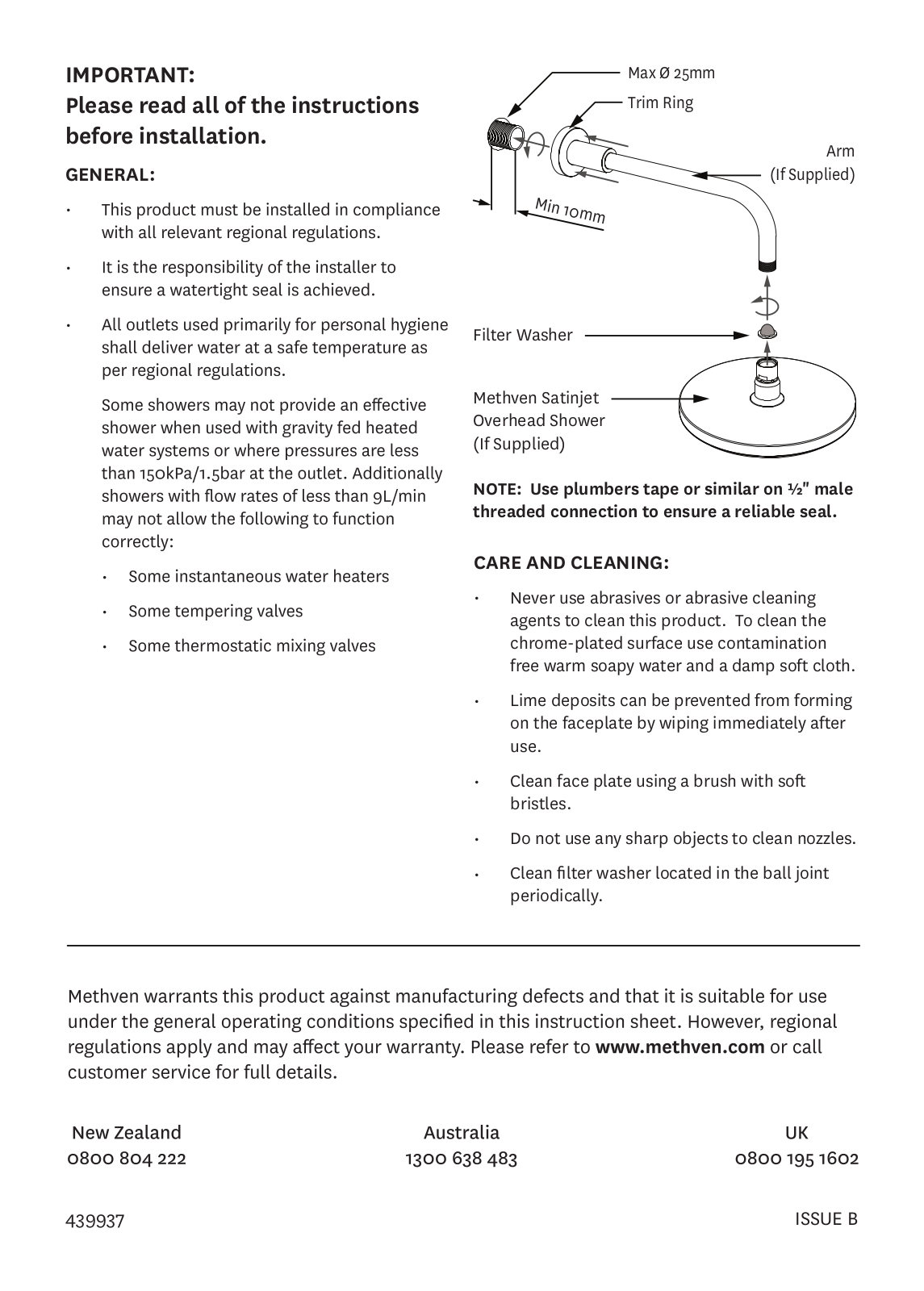

IMPORTANT:
Please read all of the instructions
before installation.

GENERAL:

•

•

Max Ø 25mm

Trim Ring

Arm

(If Supplied)

Min 10mm

•

Filter Washer

Methven Satinjet
Overhead Shower
(If Supplied)

NOTE: Use plumbers tape or similar on ¹⁄₂" male
threaded connection to ensure a reliable seal.

CARE AND CLEANING:

•

Never use abrasives or abrasive cleaning
agents to clean this product. To clean the
chrome-plated surface use contamination
free warm soapy water and a damp soft cloth.

•

Lime deposits can be prevented from forming
on the faceplate by wiping immediately after
use.

Clean face plate using a brush with soft

•

bristles.

•

Do not use any sharp objects to clean nozzles.

Clean filter washer located in the ball joint

•

periodically.

439937 ISSUE B
