30XR Digital Multimeter
Contents
Making Measurements............................................................................ 2
Verify Instrument Operation ............................................................... 2
Correcting an Overload (o) Indication W.......................................... 2
Measuring DC Voltage................................ See Figure -1-.................. 2
Measuring AC Voltage ................................See Figure -2-.................. 2
Preparing for Current Measurements .................................................. 2
Measuring DC Current................................ See Figure -3-.................. 3
Measuring AC Current ................................See Figure -4-.................. 3
Measuring Resistance ...............................See Figure -5-.................. 3
Measuring Continuity (<50 Ohms)..............See Figure -6-.................. 3
Checking Diodes ........................................See Figure -7-.................. 3
Measuring NCV (Non-Contact Voltage) .......See Figure -8-.................. 4
Testing Battery Voltage (1.5 and 9 volt) ......See Figure -9-.................. 4
Additional Features................................................................................. 4
Product Maintenance .............................................................................. 5
Battery and Fuse Replacement.................... See Figure -10-................ 5
Repair..................................................................................................... 5
WARRANTY....................................................................................... 6
Electrical Specifications .........................................................................7
XW
To Avoid possible electric shock, personal injury, damage to the meter or the
equipment under test, adhere to the following practices:
• Do not exceed the maximum overload limits per function (see specifications)
nor the limits marked on the instrument itself. Never apply more than 600VDC
between the test lead and earth ground.
• Inspect DMM, test leads and accessories before every use. Do not use any
damaged part.
• Never ground yourself when taking measurements. Do not touch exposed
circuit elements or probe tips.
• Do not operate the instrument in an explosive atmosphere.
• Exercise extreme caution when measuring voltage >20V // current >10mA // AC
power line with inductive loads // AC power line during electrical storms //
current, when the fuse blows in a circuit with open circuit voltage >600 V //
servicing CRT equipment.
• Always measure current in series with the load – NEVER ACROSS a voltage
source. Check fuse first. Never replace a fuse with one of a different rating.
• Do not change the position of the Function/Range Switch while the MIN MAX or
the HOLD feature is enabled. Erroneous readings will result.
• Remove test leads before opening battery or case to change battery or fuses.
Safety Information
Users Manual
1
Symbols Used in this Manual
B
Battery
T
Double insulated
F
Direct Current
B
Alternating Current
P
Complies with EU directives
I
Fuse
W
X
J
R
@
Refer to the manual
Dangerous Voltage
Earth Ground
Audible tone
Underwriters
Laboratories, Inc
Making Measurements
Verify Instrument Operation
Before attempting to make a measurement, verify that the instrument is operational
and the battery is good. If the instrument is not operational, have it repaired before
you attempting to make a measurement.
Correcting an Overload (o) Indication
An oor indication may appear on the display to indicate that an overload condition
exists. For voltage and current measurements, an overload should be immediately
corrected by selecting a higher range. If the highest range setting does not
eliminate the overload, interrupt the measurement until the problem is identified
and eliminated. The o indication is normal for some functions; for example,
resistance, continuity, and diode test.
Measuring DC Voltage See Figure -1-
1. Set the Range Switch to an appropriate L range.
Select the highest range and work down if the voltage level is unknown.
2. Connect the Test Leads: Red to VΩG, Black to COM
3. Connect the Test Probes to the circuit test points.
4. Read the display, and, if necessary, fix any overload (o) conditions.
Measuring AC Voltage See Figure -2-
1. Set the Range Switch to an appropriate K range.
Select the highest range and work down if the voltage level is unknown.
2. Connect the Test Leads: Red to VΩG, Black to COM
3. Connect the Test Probes to the circuit test points
4. Read the display, and, if necessary, fix any overload (o) conditions.
Preparing for Current Measurements
• Turn off circuit power before connecting the test probes.
• Allow the meter to cool between measurements if current measurements
approach or exceeds 10 amps.
• A warning tone sounds if you connect a test lead to a current input before you
select a current range.
• Open circuit voltage at the measurement point must not exceed 600 V.
• Always measure current in series with the load. Never measure current across a
voltage source.
W
2

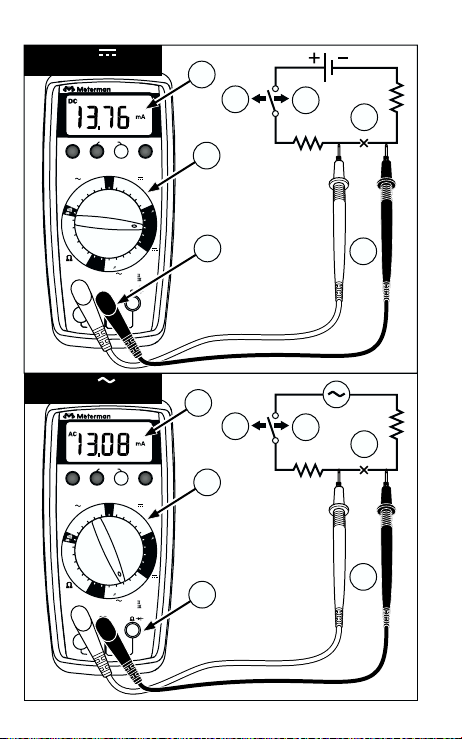

Measuring DC Current See Figure -3-
1. Set the Range Switch to an appropriate A range.
Select the highest range and work down if the current level is unknown.
2. Connect the Test Leads: Red to mA or 10A, Black to COM
3. Turn off power to the circuit being measured.
4. Open the test circuit (X) to establish measurements points.
5. Connect the Test Probes in series with the load.
6. Turn on power to the circuit being measured.
7. Read the display, and, if necessary, fix any overload (o) conditions.
Measuring AC Current See Figure -4-
1. Set the Range Switch to an appropriate ? range.
Select the highest range and work down if the current level is unknown.
2. Connect the Test Leads: Red to mA or 10A, Black to COM
3. Turn off power to the circuit being measured.
4. Open the test circuit (X) to establish measurements points.
5. Connect the Test Probes in series with the load.
6. Turn on power to the circuit being measured.
7. Read the display, and, if necessary, fix any overload (o) conditions.

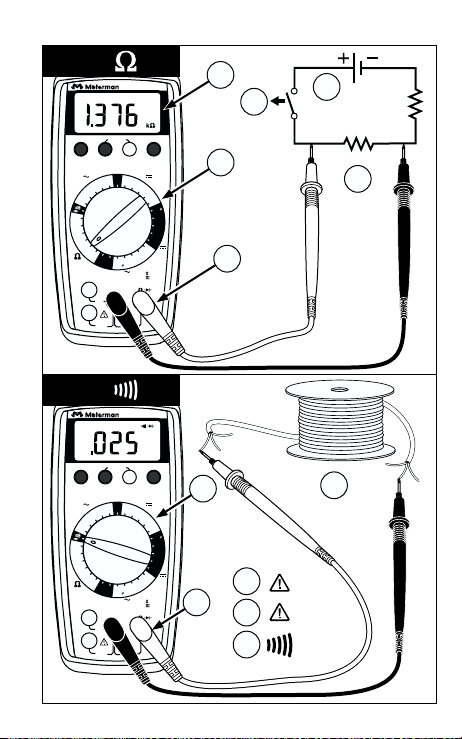

Measuring Resistance See Figure -5-
1. Set the Range Switch to an appropriate Ω range.
Select the highest range and work down if the resistance level is unknown.
2. Connect the Test Leads: Red to VΩG, Black to COM
3. Turn off power to the circuit being measured. Never measure resistance across
a voltage source or on a powered circuit.
4. Discharge any capacitors that may influence the reading.
5. Connect the Test Probes across the resistance.
6. Read the display. If o appears on the highest range, the resistance is too large
to be measured.
Measuring Continuity (<50 Ohms) See Figure -6-
1. Set the Range Switch to R.
2. Connect the Test Leads: Red to VΩG, Black to COM
3. Turn off power to the circuit being measured.
4. Discharge any capacitors that may influence the reading.
5. Connect the Test Probes across the resistance.
6. Listen for the tone that indicates continuity (< 50 Ohms).
Checking Diodes See Figure -7-
1. Set the Range Switch to G.
2. Connect the Test Leads: Red to VΩG, Black to COM
3. Turn off power to the circuit being measured.
4. Free at least one end of the diode from the circuit.
5. Connect the Test Probes across the diode.
6. Read the display. A good diode has a forward voltage drop of about 0.6 V. An
open or reverse biased diode will read o.
3
Measuring NCV (Non-Contact Voltage) See Figure -8-
1. Range switch may be set to OFF or any function/range.
2. Test leads are not used for the NCV test.
3. Press the NCV button. The display goes blank, a tone sounds and the red LED
next to the NCV button on the front panel lights up to verify that the instrument
is operational. While pressing the button hold the top-center of the meter
(sensor location) close to the conductor/circuit in question.
4. If a voltage of in the range of 70 to 600 V ac is present, a tone sounds and the
red LED next to the NCV button on the front panel lights up.
Testing Battery Voltage (1.5 and 9 volt) See Figure -9-
1. Set the Range Switch to the appropriate BATT setting, 1.5V or 9V.
2. Connect the Test Leads: Red to BATT 1.5V or BATT 9V, Black to COM
3. Connect the Test Probes across the battery. The meter applies an appropriate
load to the battery.
4. Read the display. A good 1.5 volt battery should measure >1.2 V, and a good 9
volt battery should measure > 7.2 V.
Additional Features
Input Lead Warning
The 30XR emits a continuous tone to indicate that the user has placed the unit in a
potentially dangerous configuration. Specifically, a test lead is in a current
connector and the Range Switch is set to measure some other function. If, in this
configuration, the DMM is connected to a voltage source, very high and potentially
dangerous current could result. The meter includes fast acting fuses as additional
protection for all current ranges.
MIN MAX Measurements
To avoid erronoeus readings, do not change the position of the
Function/Range Switch while the MIN MAX function is enabled.
The MIN MAX function works within the active measurement mode to capture and
display the minimum or maximum reading associated with that measurement.
Pressing the MIN MAX button for less than 1 second enables the function and
shows MIN or MAX along with the appropriate minimum or maximum reading on
the display. Each subsequent press toggles between the two modes. To exit the
function, press the MIN MAX button for more than 1 second.
HOLD Measurements
To avoid erronoeus readings, do not change the position of the
Function/Range Switch while the HOLD function is enabled.
The HOLD function is used to make a measurement and hold the reading after
removing the leads from the test circuit. Pressing the HOLD button during a
measurement will capture and hold the reading. Pressing the HOLD button again
will release the display for subsequent measurements.
XW
XW
WARNING
WARNING
4
Product Maintenance
Cleaning
To clean the meter, use a soft cloth moistened with water. Using benzene, alcohol,
acetone, ether, paint thinner, lacquer thinner, ketone or other solvents may deform
or discolor the meter and its display.
Troubleshooting
If the meter appears to operate improperly, check the following items first.
1. Review the operating instructions to ensure the meter is being used properly.
2. Inspect and test the continuity of the test leads.
3. Make sure the battery is in good condition. The low battery symbol B appears
when the battery falls below the level where accuracy is guaranteed. Replace a
low-battery immediately.
4. Check the condition of the fuses if the current ranges operate incorrectly.
To avoid electrical shock remove the test leads from both the
meter and the test circuit before accessing the battery or the
fuses.

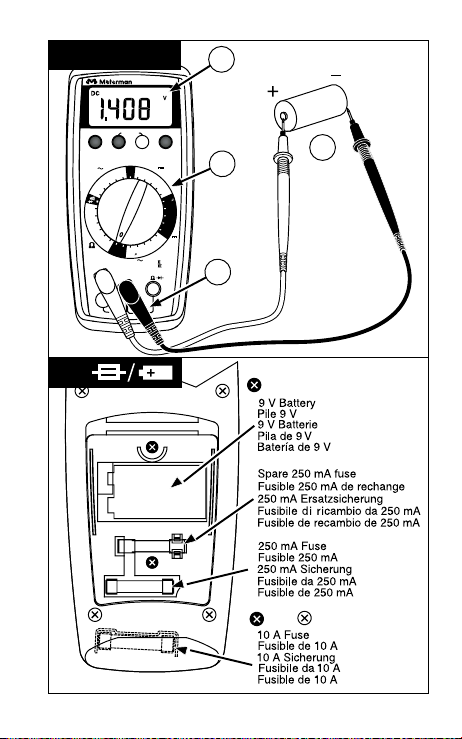

Battery and Fuse Replacement See Figure -10-
To access these parts, you must first remove the cover from the battery
compartment. The battery cover is on the rear of the meter and is held in place with
two screws. After removing these screws, you can easily remove and replace the
battery. To replace the mA fuse, pry it from its clips using a small screwdriver. A
spare mA fuse is located between the battery and the mA fuse.
Battery: 9 V NEDA mA Fuse: Fast Blow 250mA/600V (Meterman FP375)
To replace the 10 A fuse, remove the battery, remove the four rear-case screws,
separate the case, remove the 10 A fuse cover, and remove and replace the 10A
fuse. Re-install the fuse cover.
10A Fuse: Fast Blow 10A/600V, minimum interrupt rating 30 kA (10 x 38 mm)
fuse (Meterman FP160) or equivalent.
Repair
All test tools returned for warranty or non-warranty repair or for calibration should
be accompanied by the following: your name, company’s name, address, telephone
number, and proof of purchase. Additionally, please include a brief description of
the problem or the service requested and include the test leads with the meter.
Non-warranty repair or replacement charges should be remitted in the form of a
check, a money order, credit card with expiration date, or a purchase order made
payable to Meterman Test Tools.
In Warranty Repairs and Replacement – All Countries
Please read the warranty statement located at the front of this manual and check
your batteries and fuses before requesting repair. During the warranty period any
defective test tool can be returned to your Meterman Test Tools distributor for an
exchange for the same or like product. Please check the “Where to Buy” section on
www.metermantesttools.com for a list of distributors near you. Additionally, in the
United States and Canada In-Warranty repair and replacement units can also be
sent to a Meterman Test Tools Service Center (see below for address).
XW
WARNING
5
Non-Warranty Repairs and Replacement – US and Canada
Non-warranty repairs in the United States and Canada should be sent to a
Meterman Test Tools Service Center. Call Meterman Test Tools or inquire at your
point of purchase for current repair and replacement rates.
In USA In Canada
Meterman Test Tools Meterman Test Tools
1420 75th Street SW 400 Britannia Rd. E. Unit #1
Everett, WA 98203 Mississauga, ON L4Z 1X9
Tel: 800-993-5853 Tel: 905-890-7600
Fax: 425-446-6390 Fax: 905-890-6866
Non-Warranty Repairs and Replacement – Europe
European non-warranty units can be replaced by your Meterman Test Tools
distributor for a nominal charge. Please check the “Where to Buy” section on
www.metermantesttools.com for a list of distributors near you.
European Correspondence Address*
Meterman Test Tools Europe
P.O. Box 1186
5602 BD Eindhoven
The Netherlands
*(Correspondence only – no repair or replacement available from this address.
European customers please contact your distributor.)
The 30XR Digital Multimeter is warranted against any defects of material or
workmanship within a period of one (1) year following the date of purchase of the
multimeter by the original purchaser or original user. Any multimeter claimed to be
defective during the warranty period should be returned with proof of purchase to
an authorized Meterman Test Tools Service Center or to the local Meterman Test
Tools dealer or distributor where your multimeter was purchased. See maintenance
section for details. Any implied warranties arising out of the sale of a Meterman
Test Tools multimeter, including but not limited to implied warranties of
merchantability and fitness for a particular purpose, are limited in duration to the
above stated one (1) year period. Meterman Test Tools shall not be liable for loss
of use of the multimeter or other incidental or consequential damages, expenses, or
economical loss or for any claim or claims for such damage, expenses or
economical loss. Some states do not allow limitations on how long implied
warranties last or the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
WARRANTY
6
Specifications
General Specifications
Display: 3½ digit liquid crystal display
(LCD) with a maximum reading of 1999.
Polarity: Automatic, positive implied,
negative polarity indication.
Overrange: (OL) or (-OL) is displayed.
Zero: Automatic.
Low battery indication: The B
displayed when the battery voltage
drops below the operating level.
Measurement rate: 2.5 times per
second, nominal.
Operating environment: 0 °C to 45 °C
at < 70% R.H.
Storage temperature: -20 °C to 60 °C,
0 to 80% R.H. with battery removed
from meter.
Temperature Coefficient: 0.1 ×
(specified accuracy) per °C. (0 °C to
18 °C, 28 °C to 45 °C).
Environment: Indoor use, Altitude up to
2000 m
Power: Single standard 9-volt battery,
NEDA 1604, JIS 006P, IEC 6F22.
Battery life: 200 hours typical with
carbon-zinc.
Dimensions: 196 x 92 x 60 mm ( 7.7” x
3.5” x 2.4” ).
Weight: Approx. 426 gr.( 0.94 lb.)
without holster, including battery.
Accessories: One pair test leads (TL36),
9 V battery (installed), Magna Grip
Holster, and Operating Instructions.
Warranty: One (1) Year
is
Approvals:
LISTED
950Z
Safety: Conforms to UL1244;
EN61010-1: Cat II - 600V / Cat III 300V; Class 2, Pollution degree II.
The 30XR is recommended for use with
local level power distribution,
appliances, portable equipment, etc,
where only smaller transient
overvoltages may occur, and not for
primary supply lines, overhead lines and
cable systems.
EMC: Conforms to EN61326-1.
This product complies with
requirements of the following European
Community Directives: 89/ 336/ EEC
(Electromagnetic Compatibility) and 73/
23/ EEC (Low Voltage) as amended by
93/ 68/ EEC (CE Marking). However,
electrical noise or intense
electromagnetic fields in the vicinity of
the equipment may disturb the
measurement circuit. Measuring
instruments will also respond to
unwanted signals that may be present
within the measurement circuit. Users
should exercise care and take
appropriate precautions to avoid
misleading results when making
measurements in the presence of
electronic interference.
Electrical Specifications
(at 23 °C ± 5 °C, <75 % R.H. non-
condensing)
DC VOLTS
Ranges: 200m V, 2 V, 20 V, 200 V,
600 V
Accuracy: All ranges, ± (1.0% rdg + 1
dgt)
Resolution: 100 µV in 200m V range
Input impedance: 10 MΩ
Overload protection: 200mV range: 600
V dc or 600 V ac rms 15 seconds. Other
ranges: 600 V dc or 600 V ac rms
7
AC VOLTS (45 Hz - 500 Hz)
Ranges: 200m, 2 V, 20 V, 200 V, 600 V
Accuracy: All ranges, ± (1.5 % rdg + 4
dgts)
Resolution: 100 µV in 200m V range
Input impedance: 10 MΩ
Overload protection: 200mV range: 600
V dc or 600 V ac rms 15 seconds. Other
ranges: 600 V dc or 600 V ac rms
DC CURRENT
Ranges: 200µ A, 2m A, 20m A, 200m A,
10A
Accuracy:
200µ A to 200m A ranges: ± (1.5 % rdg
+ 1 dgt)
10A range: ± (2.0 % rdg + 3 dgts)
Resolution: 0.1 µA in 200µ A range
Burden voltage:
200 µA Range: 1 mV/ 1 µA
2 mA Range: 100 mV/ 1 mA
20 mA Range: 13 mV/ 1 mA
200 mA: 4.6 mV / 1 mA
10A: 40 mV / 1 A
Overload Protection:
µA / mA input: F 0.25A /600V, Min. I.R.
30 kA, (6.3x32 mm)
10A input: F 10A / 600V, Min. I.R.
100 kA, (10x38mm) (
maximum followed by a 12 minute cooling
)
period
AC CURRENT (45 Hz - 500 Hz)
Ranges: 200µ A, 2m A, 20m A,
200m A,10A
Accuracy:
200µ A to 200m A ranges: ± (2.0 % rdg
+ 4 dgts)
10A range: ± (2.5 % rdg + 4 dgts)
Resolution: 0.1 µA in 200µ A range
Burden voltage: See DC Current
Overload Protection:
µA / mA input: F 0.25A /600V, Min. I.R.
30 kA, (6.3x32mm)
10A input: F 10A / 600V, Min. I.R.
100 kA, (10x38mm) (10 A for 4 minutes
maximum followed by a 12 minute cooling
)
period
10 A for 4 minutes
RESISTANCE
Ranges: 200 Ω, 2k Ω, 20k Ω, 200k Ω,
2M Ω, 20M Ω
Accuracy:
200 Ω to 200k Ω ranges: ± (1.0 % rdg
+ 4 dgts)
2M Ω ranges: ± (1.5 % rdg + 4 dgts)
20M Ω range: ± (2.0 % rdg + 5 dgts)
Resolution: 100 mΩ in 200 Ω range
Open circuit volts:
200 Ω range: 3.0 V dc
Other ranges: 0.3 V dc typical
Overload protection: 600 V dc or
600 V ac rms
CONTINUITY
Audible indication: 75 Ω ± 25Ω
Response time: 100 ms
Overload protection: 600 V dc or
600 V ac rms
DIODE TEST
Test current: 1.0 mA (approximate)
Accuracy: ± (1.5 % rdg + 3 dgts)
Resolution: 0.001 V
Open circuit volts: 3.0 V dc typical
Overload protection: 600 V dc or
600 V ac rms
BATTERY TEST
Ranges: 1.5V, 9V
Accuracy: ± (3.5 % rdg + 2 dgts)
Resolution: 1 mV, 10 mV
Load Test current:
1.5V range: 150 mA typical
9V range: 5 mA typical
Overload protection: 600 V dc or
600 V ac rms
NON-CONTACT VOLTAGE (NCV)
AC Volts: 70 V to 600 V ac
Red LED and Audible Indicator
REPLACEMENT PARTS
TL36 – Test Lead Set w/ Alligator clips
FP375 - Fuse Pack 250mA/600V
(4 each)
FP160 - Fuse Pack 10A/600V (2 each)
8
1
MIN MAX
20M
2M
200k
V
30
NON
CONTACT
VOLTAGE
OFF
600
600
V
2
20k
2k
BATT 1.5V
mA
10A
V
200
200
20
20
2
10 A
200
200m
1.5V
20m
9V
2m
BATT
200
CAT 600V
A
CAT 300V
BATT 9V
V
COM
200mA
MAX
FUSED
MAX
10A MAX
600V
FUSED
600V
4
XR
HOLD
1
200m200m
200
2m
20m
200m
10 A
A
2
3
2
MIN MAX
20M
2M
200k
V
30
NON
CONTACT
VOLTAGE
OFF
600
600
V
2
20k
2k
BATT 1.5V
mA
10A
V
200
200
20
20
2
10 A
200
200m
1.5V
20m
9V
2m
BATT
200
CAT 600V
A
CAT 300V
BATT 9V
V
COM
200mA
MAX
FUSED
MAX
10A MAX
600V
FUSED
600V
4
XR
HOLD
1
200m200m
200
2m
20m
200m
10 A
A
2
3
9
3
A
30
30
7
XR
XR
3
6
4
NON
CONTACT
MIN MAX
20M
2M
200k
V
2
20k
2k
200
BATT 1.5V
mA
10A
HOLD
VOLTAGE
OFF
600
600
V
200
200
20
20
2
200m200m
200m
10 A
10 A
200m
1.5V
20m
9V
2m
BATT
200
CAT 600V
A
CAT 300V
BATT 9V
V
COM
200mA
MAX
FUSED
MAX
MAX
10A MAX
600V
600V
FUSED
600V
600V
1
200
2m
20m
2
A
5
4
A
7
30
XR
3
6
4
NON
CONTACT
MIN MAX
20M
2M
200k
V
2
20k
2k
200
BATT 1.5V
mA
10A
HOLD
VOLTAGE
OFF
600
600
V
200
200
20
20
2
200m200m
200m
10 A
10 A
200m
1.5V
20m
9V
2m
BATT
200
CAT 600V
A
CAT 300V
BATT 9V
V
COM
200mA
MAX
FUSED
MAX
10A MAX
600V
FUSED
600V
1
200
2m
20m
A
2
5
10
5
30
XR
NON
CONTACT
HOLD
VOLTAGE
OFF
600
600
V
200
200
20
20
2
200m200m
200
2m
20m
200m
10 A
10 A
200
200m
1.5V
20m
9V
2m
BATT
200
CAT 600V
A
CAT 300V
BATT 9V
V
COM
200mA
MAX
FUSED
MAX
10A MAX
600V
FUSED
600V
20M
2M
200k
MIN MAX
10A
20k
BATT 1.5V
V
2
2k
mA
6
3
4
1
5
A
2
6
30
XR
NON
CONTACT
MIN MAX
20M
2M
200k
10A
20k
BATT 1.5V
V
2
2k
mA
HOLD
VOLTAGE
OFF
600
600
200
200
20
20
200
200m
1.5V
20m
9V
2m
BATT
200
CAT 600V
A
CAT 300V
BATT 9V
V
COM
200mA
MAX
FUSED
MAX
10A MAX
600V
FUSED
600V
1
V
2
200m200m
200
2m
20m
200m
10 A
10 A
A
3
2
4
6
5
11
7
30
XR
30
XR
3
6
4
NON
CONTACT
MIN MAX
20M
2M
200k
V
2
20k
2k
200
BATT 1.5V
mA
10A
HOLD
VOLTAGE
OFF
600
600
V
200
200
20
20
2
200m200m
10 A
200m
1.5V
20m
9V
2m
BATT
200
CAT 600V
A
CAT 300V
BATT 9V
V
COM
200mA
MAX
FUSED
MAX
MAX
10A MAX
600V
600V
FUSED
600V
600V
1
200
2m
20m
200m
10 A
A
2
5
NCV
8
30
MIN MAX
3
XR
HOLD
1
OFF
600
600
V
2
20M
2M
200k
20k
2k
BATT 1.5V
mA
10A
V
200
200
20
20
2
200m200m
200
2m
20m
200m
10 A
10 A
200
1.5V
BATT
200mA
MAX
FUSED
10A MAX
FUSED
A
200m
20m
9V
2m
200
A
V
COM
MAX
600V
600V
CAT 600V
CAT 300V
BATT 9V
2
200k
20k
2k
200
BATT 1.5V
mA
10A
200mA
MAX
FUSED
10A MAX
FUSED
30
XR
MIN MAX
HOLD
V
200
600
20
OFF
2
200m
600
200
V
20M
20
2M
2
200m
200
2m
20m
1.5V
200m
9V
BATT
10 A
10 A
200
200m
2m
20m
A
A
CAT 600V
CAT 300V
COM
BATT 9V
V
MAX
600V
600V
4
12
BATT
9
NON
CONTACT
MIN MAX
VOLTAGE
OFF
600
600
V
200
200
20
20
2
20M
2M
200k
20k
2k
10 A
200
200m
1.5V
20m
9V
2m
BATT
200
CAT 600V
BATT 1.5V
A
CAT 300V
mA
BATT 9V
V
COM
200mA
MAX
FUSED
10A
MAX
10A MAX
600V
FUSED
600V
4
30
XR
HOLD
3
1
V
2
200m200m
200
2m
20m
200m
10 A
A
2
10
13
(2)
(2)
(4)
U.S. Service Center
Meterman Test Tools
1420 75th Street SW
Everett, WA 98203
Tel: 800-993-5853
Fax: 425-446-6390
Canadian Service Center
Meterman Test Tools
400 Britannia Rd. E. Unit #1
Mississauga, ON L4Z 1X9
Tel: 905-890-7600
Fax: 905-89-6866
European Correspondence Address*
Meterman Test Tools Europe
P. O. Box 1186
5602 BD Eindhoven
The Netherlands
*Correspondence only - no repair or replacement
available from this address. European customers
please contact your distributor.
Visit www.metermantesttools.com for
• Catalog
• Application notes
• Product specifications
• Product manuals
PN 1990776
October 2002
© Meterman Test Tools.
All rights reserved. Printed in Taiwan.
Please Recycle
Loading...
