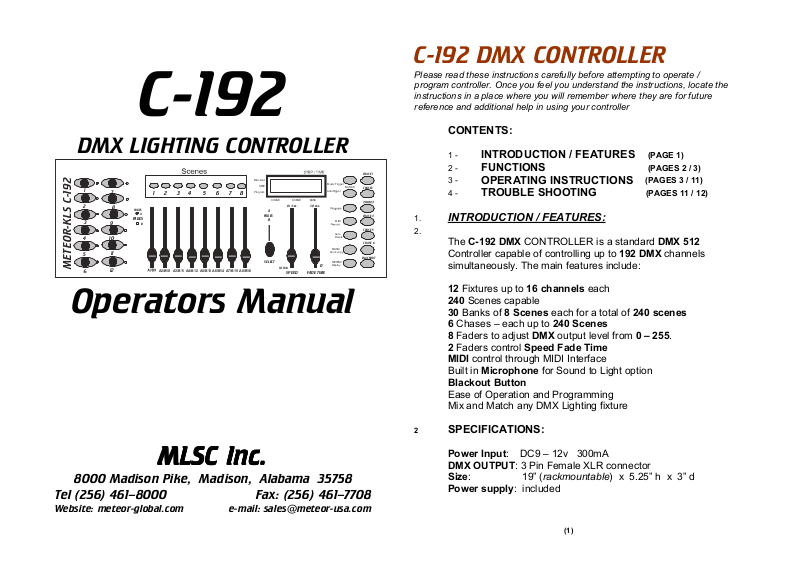

Operators Manual
MLSC Inc.
MLSC Inc.
MLSC Inc.MLSC Inc.
8000 Madison Pike, Madison, Alabama 35758
Tel (256) 461–8000 Fax: (256) 461–7708
Website: meteor-global.com e-mail: sales@meteor-usa.com
C-192 DMX CONTROLLER
Please read these instructions carefully before attempting to operate /
program controller. Once you feel you understand the instructions, locate the
instructions in a place where you will remember where they are for future
reference and additional help in using your controller
CONTENTS:
1 -
INTRODUCTION / FEATURES
2 -
FUNCTIONS
3 -
OPERATING INSTRUCTIONS
4 -
TROUBLE SHOOTING
(PAGES 11 / 12)
(PAGE 1)
(PAGES 2 / 3)
(PAGES 3 / 11)
1.
2.
INTRODUCTION / FEATURES:
The
C-192 DMX
CONTROLLER is a standard
DMX 512
Controller capable of controlling up to 192 DMX channels
simultaneously. The main features include:
12 Fixtures up to 16 channels each
240 Scenes capable
30 Banks of 8 Scenes each for a total of 240 scenes
6 Chases – each up to 240 Scenes
8 Faders to adjust DMX output level from 0 – 255.
2 Faders control Speed Fade Time
MIDI control through MIDI Interface
Built in Microphone for Sound to Light option
Blackout Button
Ease of Operation and Programming
Mix and Match any DMX Lighting fixture
2
SPECIFICATIONS:
Power Input: DC9 – 12v 300mA
DMX OUTPUT: 3 Pin Female XLR connector
Size: 19” (rackmountable) x 5.25” h x 3” d
Power supply: included
(1)
2
0.i /Sec.
FADE TIME
BLACKOUT
CHASE 5
CHASE 6
Delete
bank co py
AutoTrigger
Music Trigger
CHASE SCENE BANK
_______
_
FUNCTIONS / Buttons:
FRONT CONTROL PANEL
1) Scanners: to select any or all of the 12 units
2) Scenes: To create -store or run scenes
3) Page Select: To select Page A for Channel
1 to 8, or B for channels 9-16.
4) LCD Display: 3 digit showing numeric
value of DMX channel / Level
5) Bank ( up / down) : 30 banks are available
for use in selecting
6) Chases: To select any 1 of 6 Chases
7) Blackout – Disables all active channel
outputs without going into a DMX
reset
8) Program:
to activate the program mode.
Display “flashes” when activated
9) Midi / Record (typo- says reoord): To control
MIDI operations of Trigger / Run
10) Auto/Del: to Select Auto / Run in Chase
mode or to delete scenes and / or
chases
11) Music / Bank Copy: to trigger the Sound
Activation in Chase mode or to copy a
bank of scenes from one to another in
program mode
12) Tap SYNC/ Display: In Auto Chase mode
used to change the Rate of Chase
and in Program Mode to change LCD
display value.
13) Fade Time Slider: To adjust the Fade Time
- Fade time is the time takes the
to completely cross fade from one scene
to another scene.
14) 2- Speed Slider: to adjust the chase rate
in Auto Mode
15) Faders
( 1 – 8 ): to adjust the output level
from 0 – 255 or the intensity from 0% 100% of each channel
(2)
C-192
2
REAR CONTROL PANEL:
16) Midi In: to receive MIDI data.
17) DMX Polarity Select: make sure Polarity
of your fixture and set the DMX
SCENEMASTER to the proper polarity.
18) DMX Output: to send All DMX signals to
fixture or powerpacks / dimmers.
19) DC Input: to supply a DC 9 – 12v power,
300 mA minimum
20) ON / OFF switch
Blackout
1
7
2
8
PAGES
3
4
5
METEOR-KLS C-192
PAGES
9
10
11
12
2 3
4
A
B
_
_
A2/B10 A3/B11 A4/B12 A5/B13A 6/B14 A7/B15 A8/B16
6 7 81 5
Program
STEP
SPEED
30 sec.
MUSIC
TAPSYNC
Display
0
PAGES
SELECT
A
B
10 Min
CHASE 1
BANKS
CHASE2
CHASE 4
MIDI
Auto
3 - OPERATION INSTRUCTION:
Standard DMX 512 Addressing
Dip Switch Setting
Binary code
Dip Switch number: 1 2 3 4 5 6 7 8 9
DMX Value: 1 2 4 8 16 32 64 128 256
Select the address wanted: by adding the total of Dip Switches
on.
(note)
Dip switch # 10 is not used with DMX normally for
selectable functions, i.e. master/slave or sound
activation etc.
Each of the 12 fixtures is assigned 16 Channels (whether you
are using all those channels or not . The dip switches on
your fixtures are set as per the diagram on next page.
: Each Dip Switch has an address based on
(3)
Scanners Channels Dip Switches ON
1 1 - 16 all off
2 17 - 32 1, 5
3 33 - 48 1, 6
4 49 - 64 1, 5, 6
5 65 - 80 1, 7
6 81 - 96 1, 5, 7
7 97 - 112 1, 6, 7
8 113 - 128 1, 5, 6, 7
9 129 - 144 1, 8
10 145 - 160
1, 5, 8
11 161 - 176 1, 6, 8
12 177- 192 1, 5, 6, 8
•
note:
When addressing your fixtures, use the starting addresses
used in this instruction manual, not the addressing found in your
fixture manual.
3
SCENE PROGRAMMING:
1) Press and HOLD PROGRAM BUTTON for three (3)
seconds to activate PROGRAM Mode. The LCD next
to “PROGRAM” blinks. This indicates the Program
has been started.
2) Select the Fixture to program by pressing any or all
the FIXTURE buttons (1 – 12).
3) Adjust / move the Faders / sliders to the desired
output levels for all channels (i.e., color gobo, pan
and tilt, etc.) of the fixture(s) you selected. Press
PAGE SELECT A or B (if the fixture has more then 8
Channels). When selecting from page A or B, you
have to move the sliders to activate the channels.
4) If you have set the fixture to its correct position, color
gobo and you wish to program another fixture –
Press the Scanner button you have just finished
adjusting. This will hold that fixture and its values in
its final configuration. Select another fixture by
pressing the target Scanner Button and proceed to
adjust / set and change to the settings of your liking of
fixture two
Repeat Steps 2 and 3 until you have set the fixture to
5)
its correct position
(4)
6) When all the fixtures you want to be programmed are
in there correct position. Press the MIDI / ADD button
7) Select the desired Bank to store scene using the UP and
DOWN bank select button. There are 30 BANKS you can
store up to eight scenes per BANK. For a total of 240
Scenes.
8) Press the SCENE BUTTON (1-8) to store the SCENES.
All LED’s will flash 3 times. The LCD Screen will display the
BANK where your SCENE is stored.
9) Repeat Steps 2-8 to record all your desired SCENES. You
can copy the settings from one Scanner button to another in
case you want to add more fixtures to your show. Just press
and HOLD the SCANNER Button you want to copy. Then
press the Scanner Button (fixture) you want to copy to.
10) To exit PROGRAMMING Mode – Press and HOLD the
PROGRAM
button for 3 – 5 seconds.
(When you exit the Programming Mode, the BLACKOUT LE
comes on. Press BLACKOUT Button to disable BLACKOUT
3
function) Last switch on Bottom right
SCENE EDITING:
This function allows you to make changes in an already
programmed scene.
1) Press the PROGRAM button for three seconds to enter the
Program mode.
2) Use the BANK UP and DOWN button to select the bank
that stores the scene you would like to edit.
3) Select the Scene you want to edit by pressing the SCENE
button.
4) Use the faders / sliders to make your changes.
5) Press the
MIDI / Add
button then followed by the
SCENE
Button that corresponds to the scene you selected earlier
(otherwise you might accidentally record over an existing
scene).
3
SCENE COPY:
This function allows you to copy the setting of one scene
to another.
1) Press the PROGRAM button for three seconds to enter the
Program mode.
(5)
3
2) Use the BANK Up and Down to locate the bank that has
that particular scene in it.
3) Select the desired SCENE you want to copy by pressing the
SCENE Button.
4)
Use the
BANK
buttons UP and
DOWN
to select the Bank
where you want the to store the copied SCENE.
5) Press MIDI / Add button followed by the SCENE button
where you want to copy to.
3
SCENE DELETE:
This function will rest all the DMX channels incorporated within
a SCENE to a DMX value of “ 0 ” (off).
Select the desired
1)
SCENE
you would like to delete.
2) While Pressing and Holding AUTO / Del. Press the SCENE
button (1 – 8) you want to delete.
3
ERASE ALL SCENES:
This will ERASE all SCENES in ALL BANKS. All SCENES are
reset to DMX value zero (0).
Make double sure this is really what you are wanting to do
1) Press and hold down PROGRAM and BANK Down buttons
while turning power off.
2) Re-connect POWER. All SCENES should be erased.
Once you have successfully erased all SCENES, there is
NOTE:
way to retrieve them.
3
COPY A BANK:
This function enables you to copy the setting of one BANK
to another BANK.
1) Press and HOLD the PROGRAM Button for 3 seconds to
activate the PROGRAMMING Mode.
2) Select the BANK you want to copy.
3) Press and Release the MIDI / Add button.
4) Select the BANK into which you want to copy to.
Press the
5)
MUSIC / BANK-Copy
Button. The
LCD Display
will flash momentarily to indicate the process / copy has
been completed.
(6)
no
3
DELETE A BANK:
1) Press and HOLD the PROGRAM Button for 3 seconds to
activate the PROGRAM Mode.
2) Select the BANK to be deleted. Press AUTO / Del and
MUSIC / Bank Copy at the same time to delete the BANK.
The LCD will flash momentarily to indicate it has been
successfully deleted.
3
CHASE PROGRAMMING:
You must already have programmed SCENES before you
can program any chases.
1) PRESS and HOLD the PROGRAM Button down for three
(3) seconds to enter the
PROGRAMMING MODE
2) Choose any CHASE ( 1 – 6 ) to be programmed.
3) Select the desired SCENE from any of the BANKS.
SCENES run in the same order as they are entered into the
PROGRAM CHASE.
4) Press the MIDI / Add Button. All the LED’s will FLASH
three (3) times if it has successfully been loaded in CHASE
5) Repeat steps 3 and 4 as many times as you want. You can
record up to 240 SCENES in one CHASE.
6) When you are finished PROGRAMMING a CHASE – Press
and HOLD the PROGRAM Button for three (3) seconds.
3
COPY A BANK TO A CHASE:
1) Press and HOLD the PROGRAM Button for three (3)
seconds to enter the Programming Mode.
Select the
2)
BANK
of
SCENES
you wish to copy.
Select the CHASE to which you want to copy the bank of
SCENES.
Press MUSIC / Bank-Copy and MIDI / Add at the same
time. The SCENES of the BANK are now copied into the
CHASE.
Press and HOLD the PROGRAM Button for three (3)
seconds to exit the Programming Mode.
(7)
3
EDITING CHASES:
This feature allows you to ADD or DELETE unwanted
SCENES from an already existing CHASE.
1) PRESS and HOLD the PROGRAM Button down for three
(3) seconds to enter the Programming Mode.
2) Select the CHASE (1-6) to which you want to add a step.
3) PRESS the TAPSYNC / Display and the LCD shows the
SCENE and the BANK. That is the BANK containing the
SCENE you want to add to the CHASE.
4) PRESS the TAP SYNC / Display again and the LCD
shows the CHASE that you have selected to EDIT.
5) Use the UP or DOWN Buttons to scroll through the CHASE
to reach the step AFTER which you wish to add.
Press
6)
MIDI / Add
higher.
7) Press the SCENE Button you wish to add.
8) Press the MIDI / Add again to add the new step.
9) Press and HOLD the PROGRAM Button down for three (3)
seconds to exit the Programming Mode.
3
DELETING A STEP OR SCENE IN A CHASE:
1) Press and HOLD the PROGRAM Button for three (3)
Seconds to enter the Programming Mode.
2) Select the CHASE (1-6) from which you want to delete a
step (scene).
3) Press TAPSYNC / Display and the LCD shows the
CHASE you have selected.
1) Use the UP and Down Buttons to scroll through the
CHASE to reach the step (scene) you want to delete.
Press
2)
AUTO / Del
3) Press and HOLD the PROGRAM Button for three (3)
3
DELETE CHASE:
seconds to exit the Programming Mode.
1) Press
and HOLD down the
Seconds.
2) Press the AUTO /DELETE button.
3) Then Press the CHASE # you want to delete.
4) Press Auto/Delete and Chase # for 3 seconds
5) Screen Flashes – Chase # successfully deleted.
– the
and the
all SCENES still available
(
will read one step number
LCD
SCENE
will be deleted.
Program Button
(8)
)
for (3)
RUNNING SCENES:
MANUAL RUN SCENES
1) When the power is first turned on, the unit is in a MANUAL
Scene mode.
2) If in the Program Mode – Press and Hold the PROGRAM
Button for three (3) seconds. The
Program LED
The C-192 Controller is now in its MANAUL Mode.
3) Be Sure that the AUTO and MUSIC Button LED’s are OFF.
4) Select the BANK – using the UP or DOWN Button that
stores the SCENES you want to run.
5) Press the SCENE Button to run the SCENE you have
selected.
3
RUNNING SCENES:
AUTO RUN SCENES:
This function will run a BANK of PROGRAMMED
SCENES in a sequential loop.
1) Press AUTO / Del once to activate the AUTO RUN mode.
2) Use the UP or DOWN BANK Button to select a Bank of
SCENES to run.
Now you can use the
3)
SPEED
and
FADE
sliders to adjust
the SCENES to your liking
NOTE:
The FADE setting should never be slower then the
SPEED setting or the SCENES will not be completed.
4) You can change the BANKS “on the fly” by pressing the
3
UP or DOWN BANK Buttons.
RUNNING SCENES:
MUSIC RUN SCENES
1) Press the MUSIC / Bank-Copy Button and the
Corresponding indicator light will come on in the LCD.
2) Select the desired BANK that stores the SCENES you
want to CHASE by using the UP or DOWN Button
3
RUNNING SCENES:
MIDI RUN SCENES
1) Select BANK to run SCENES using MIDI – in MANUAL /
Auto or MUSIC Run Mode.
(9)
will go out.
3
1) Press and Hold the PROGRAM BUTTON for three (3)
2) Start a CHASE by selecting one of the six (6) CHASE
3) Press the TAP SYNC BUTTON. Each time you press
4) Use the BANK SELECT Button to scroll through the
5) PRESS and HOLD the PROGRAM BUTTON for three (3)
1) PRESS ANY or all of 6 CHASE BUTTONS (on right side) to
select the desired CHASE to RUN.
2) PRESS and Release the AUTO / DELETE. The
3) Adjust the FADE TIME and the SPEED Sliders to your
3
1) Press one of the six (6) CHASE Buttons to select the
CHASE desired.
2) Press and Release the MUSIC / Bank-Copy Button
The corresponding
3)
The CHASE will now run via the Sound / Music.
(10)
RUNNING CHASES:
MANUAL RUN CHASES:
This function will enable you to manually step
through “selected Chase.
Seconds to Enter the PROGRAMMING MODE.
BUTTONS (on right side of Controller)
Button, you will step through the Scenes in the CHASE.
CHASES.
seconds to exit the PROGRAMMING MODE.
RUNNING CHASES:
AUTO RUN CHASES:
corresponding
desired CHASE rate.
NOTE A - Never adjust the FADE TIME (last active slider
on right side of Controller) slower then the SPEED
setting Slider (second to last Slider on Right).
Otherwise your CHASES will not be completed
before each new scene is sent.
NOTE: B – If you wish to include ALL your CHASES. Press
AUTO / DELETE before selecting a CHASE.
RUNNING CHASES:
MUSIC RUN CHASES:
Music being played. Built in Microphone is
Located between Fixture switches 1 and 7 (hole
with no LED)
in screen will flash.
LED
will FLASH in the
LED
Triggered by the
.
LCD
3
ADVANCING/CHANGING to Different CHASE:
AUTO RUN CHASES:
1) Select and Press the Chase that is active (running)
(
LCD drops first number of the 4 numbers displayed.)
2) Select and Press the next CHASE you want to start.
(LCD adds new first number of this chase).
NOTE: When you exit a CHASE by Pressing the CHASE
Button, the Controller will automatically run the
SCENES that are in the last bank accessed.
To stop the movements of the light, either use the
3
BLACKOUT
Mode or in the AUTO
MIDI CHANNEL SETTING
MIDI RUNNING
button or Press MUSIC if in the Music
4) Press and HOLD the MIDI / Add Button. The third and
Fourth digits on the LCD display will FLASH – indicating
MIDI Mode.
5) Use the UP or Down Buttons to select the Midi channel
(1 – 16) you would like to use / run.
6) Press and HOLD the MIDI / Add Button once more to end
MIDI mode
3
MIDI CHANNEL SETTING
NOTE “ON”:
CORRESPONDING FUNCTIONS THE C-192
DMX CONTROLLER RECIEVES ONLY MIDI NOTES AND
YOU MIGHT WANT TO TRANSPOSE YOUR KEYBOARD
TO FIND THE PROPER MIDI NOTE.
RECEIVE NOTE “ON” SIGNALS TO EXECUTE
4
TROUBLE SHOOTING / OFTEN ASKED QUESTIONS:
MAKE SURE SPEED IS ADJUSTED, IF AVAILABLE FOR
(11)
COLORS DON’T RESPOND WHEN FADERS ARE MOVED
MAKE SURE DMX ADDRESS IS CORRECT / DIP SWITCHES
IF XLR CABLE IS MORE THEN 30 METERS (100FT), CHECK
TO SEE IF TERMINATED CORRECTLY.
MIRRORS DON’T RESPOND WHEN SLIDERS ARE MOVED
MAKE SURE DMX ADDRESS IS CORRECT / DIP SWITCHES
FASTER MIRROR MOVEMENT. NOT ALL UNITS HAVE
SPEED ADJUSTMENT
Mode if in the AUTO MODE
IF XLR CABLE IS MORE THEN 30 METERS (100FT), CHECK
TO SEE IF TERMINATED CORRECTLY.
* CHASES ARE CHASING SEQUENTIALLY, NOT AS ONE
CONTINIOUS LOOP. (common problem)
MAKE SURE YOU PRESS THE ACTIVE CHASE RUNNING BEFORE
ASSIGNING THE NEXT CHASE
SCENES DON’T RUN AFTER RECORDING THEM
MAKE SURE TO PRESS MIDI / ADD BUTTON BEFORE
PRESSING SCENE BUTTON. LED’s SHOULD FLASH
AFTER PRESSING EACH SCENE BUTTON.
BE SURE YOU ARE IN THE CORRECT BANK THAT THE
SCENES WERE RECORDED IN.
SCENES DON’T RUN CORRECTLY AS RECORDED
MAKE SURE YOU ARE IN THE CORRECT BANK THAT THE
SCENES WERE RECORDED IN
FIXTURES AREN’T DOING ANYTHING
(12)
MAKE SURE ALL FIXTURES WERE RECORDED IN SCENE
CHASES DON’T RUN AFTER RECORDING THEM
MAKE SURE TO PRESS THE MIDI/ADD BUTTON AFTER
PRESSING THE SCENE BUTTON. LED SHOULD FLASH
AFTER PRESSING MIDI / ADD.
BE SURE YOU ARE IN THE CORRECT CHASE THAT HAS
THE STEPS RECORDED IN
IF IN AUTO MODE – DID YOU ADJUST SPEED AFTER
SELECTING AUTO
FADE TIME IS TOO LONG FOR SPEED SELECTED
HAVE YOU READ THIS MANUAL COMPLETELY AND
FOLLOWED ALL THE RECORDING STEPS FOR
SCENES AND CHASES
DID YOU SET YOUR DIP SWITCHES ACCORDING TO THIS
MANUAL
ARE ALL UNITS PROPERLY CONNECTED WITH POWER
ON AND PROPERLY CONNECTED VIA DMX.
EC DECLARATION OF CONFORMITY
We declare that this product complies with the following specifications and
bears CE mark in accordance with the provisions of Electro- Magnetic
Compatibility (EMC) Directive 89/336/EEC EN55014-1:1994,
EN61000-3-2:1995, EN61000-3-3:1995 EN55014-2:1997
CATEGORY ll
EN61000-4-2:1995, EN61000-4-3:1995, EN61000-4-4:1995
EN61000-4-5:1995, EN61000-4-6:1995, EN61000-4-11:1994
HARMONIZED STANDARD
EN60598-1:1993 Safety of Household and similar electrical appliances
Par 1: General Requirements: Following the provisions of the Low voltage
Directive 73/23 EEC and 93/68/EEC
FOR TECHNICAL HELP / SUPPORT
MLSC Inc.
MLSC Inc.
MLSC Inc.MLSC Inc.
8000 Madison Pike, Madison, Alabama 35758
Tel (256) 461–8000 Fax: (256) 461–7708
Website: meteor-global.com e-mail: sales@meteor-usa.com
Loading...
