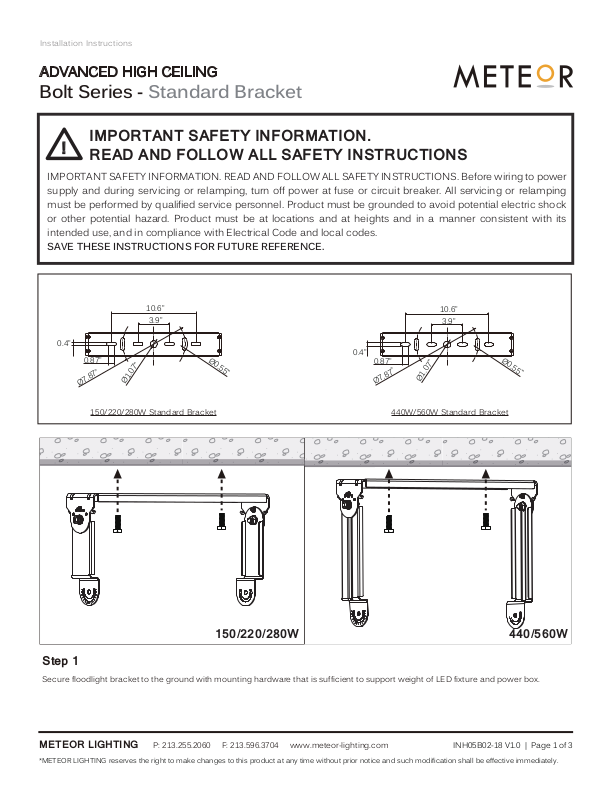

Meteor Bolt Quick Start Manual
Installation Instructions
ADVANCED HIGH CEILING
Bolt Series - Standard Bracket
IMPORTANT SAFETY INFORMATION.
!
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Before wiring to power
supply and during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping
must be performed by qualified service personnel. Product must be grounded to avoid potential electric shock
or other potential hazard. Product must be at locations and at heights and in a manner consistent with its
intended use, and in compliance with Electrical Code and local codes.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
0.4”
0.87”
Ø7.87”
Ø1.07”
10.6”
3.9”
Ø0.55”
0.4”
0.87”
Ø7.87”
10.6”
3.9”
Ø0.55”
Ø1.07”
440W/560W Standard Bracket150/220/280W Standard Bracket
440/560W150/220/280W
Step 1
Secure floodlight bracket to the ground with mounting hardware that is sufficient to support weight of LED fixture and power box.
METEOR LIGHTING P: 213.255.2060 F: 213.596.3704 www.meteor-lighting.com
*METEOR LIGHTING reserves the right to make changes to this product at any time without prior notice and such modification shall be effective immediately.
INH05B02-18 V1.0 | Page 1 of 3
Installation Instructions
ADVANCED HIGH CEILING
Bolt Series - Standard Bracket
150/220/280W
Step 2
Secure LED fixture to bracket with provided screws.
220/280W 440/560W
DC
Power Box
DC
AC
DIM
DIM
Dimming cable
AC cable
AC
Power Box
DC cable
150W
440/560W
Power Box
DC
DC
DIM
AC cable
AC
DC cable
Dimming cable

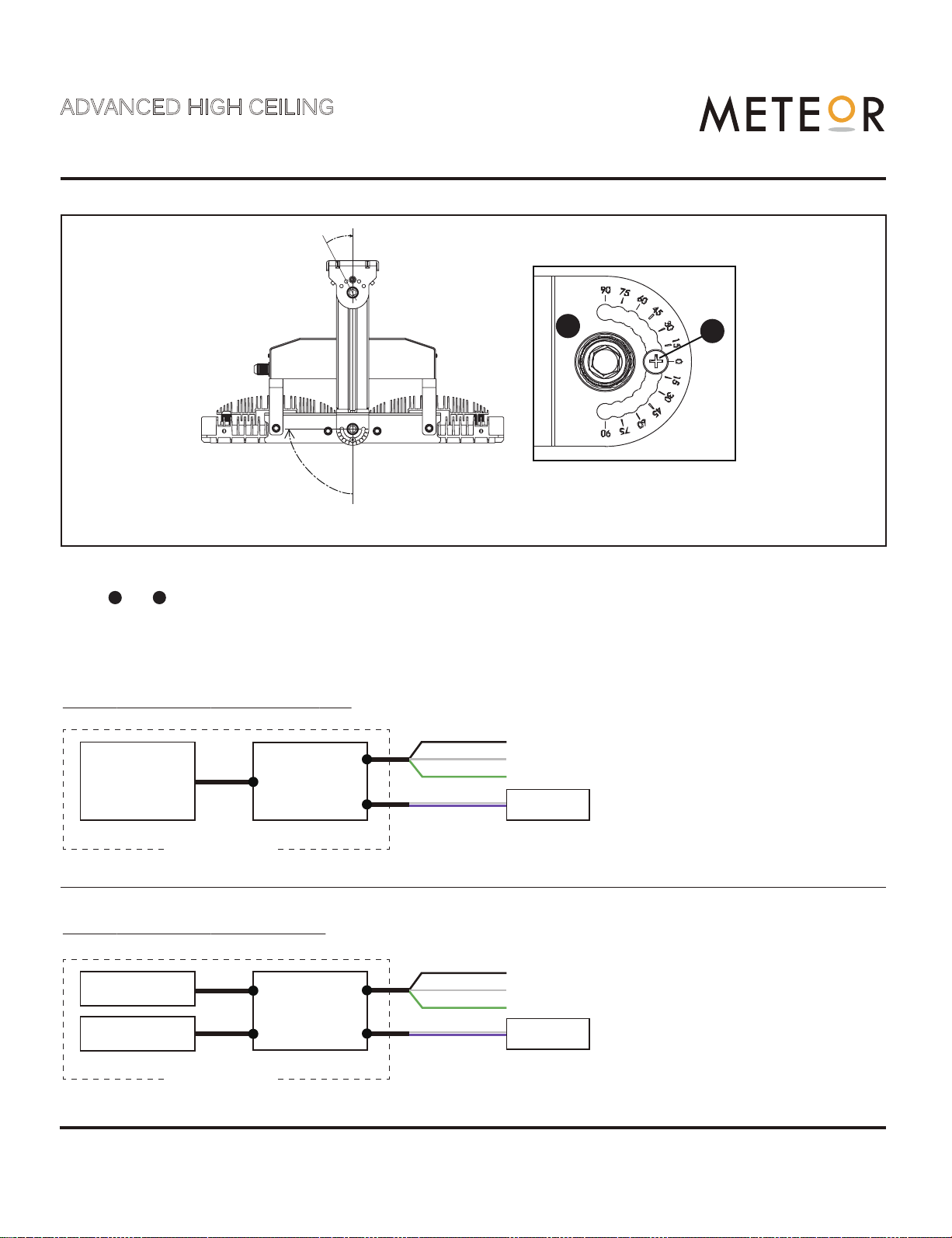

Step 3
Connect DC Cable to the DC Connector on powerbox.
AC / Dimming cable: standard length is 6ft.
AC cable
Dimming
cable
METEOR LIGHTING P: 213.255.2060 F: 213.596.3704 www.meteor-lighting.com
*METEOR LIGHTING reserves the right to make changes to this product at any time without prior notice and such modification shall be effective immediately.
INH05B02-18 V1.0 | Page 2 of 3
