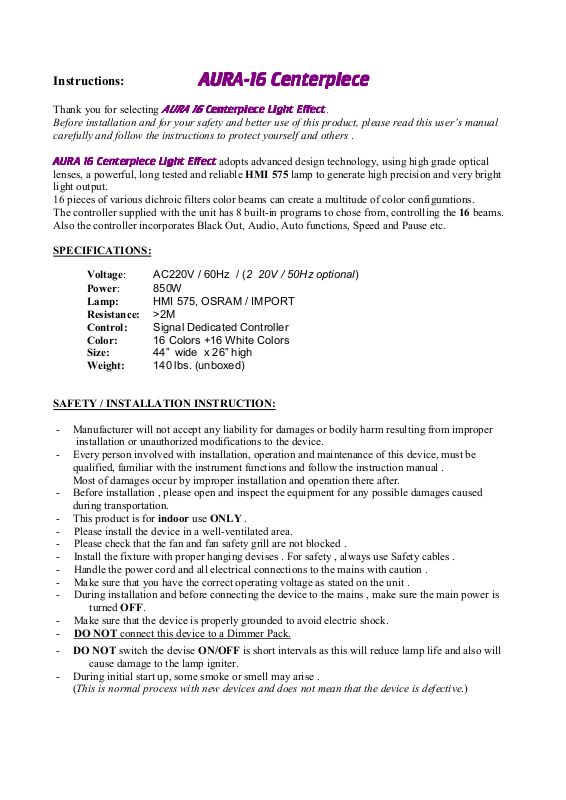

Meteor Aurora 16 User Manual

Instructions:

Thank you for selecting

Before installation and for your safety and better use of this product, please read this user’s manual
carefully and follow the instructions to protect yourself and others .

AURA 16 Centerpiece Light Effect

AURA 16 Centerpiece

URA 16 CenterpieceAURA 16 Centerpiece

A

lenses, a powerful, long tested and reliable HMI 575 lamp to generate high precision and very bright
light output.
16 pieces of various dichroic filters color beams can create a multitude of color configurations.
The controller supplied with the unit has 8 built-in programs to chose from, controlling the 16 beams.
Also the controller incorporates Black Out, Audio, Auto functions, Speed and Pause etc.

SPECIFICATIONS:

Voltage: AC220V / 60Hz / (2 20V / 50Hz optional)

Power: 850W

Lamp: HMI 575, OSRAM / IMPORT
Resistance: >2M
Control: Signal Dedicated Controller
Color: 16 Colors +16 White Colors
Size: 44” wide x 26” high
Weight: 140 lbs. (unboxed)

SAFETY / INSTALLATION INSTRUCTION:

- Manufacturer will not accept any liability for damages or bodily harm resulting from improper
installation or unauthorized modifications to the device.

- Every person involved with installation, operation and maintenance of this device, must be
qualified, familiar with the instrument functions and follow the instruction manual .
Most of damages occur by improper installation and operation there after.

- Before installation , please open and inspect the equipment for any possible damages caused
during transportation.

- This product is for indoor use ONLY .

- Please install the device in a well-ventilated area.

- Please check that the fan and fan safety grill are not blocked .

- Install the fixture with proper hanging devises . For safety , always use Safety cables .

- Handle the power cord and all electrical connections to the mains with caution .

- Make sure that you have the correct operating voltage as stated on the unit .

- During installation and before connecting the device to the mains , make sure the main power is
turned OFF.

- Make sure that the device is properly grounded to avoid electric shock.

-

DO NOT

- DO NOT switch the devise ON/OFF is short intervals as this will reduce lamp life and also will
cause damage to the lamp igniter.

- During initial start up, some smoke or smell may arise .
(This is normal process with new devices and does not mean that the device is defective.)

AURA 16

AURA 16

AURA 16 AURA 16

Light Effect

Light EffectLight Effect

connect this device to a Dimmer Pack.

AURA

AURA----16

AURAAURA

Centerpiece Light Effect

Centerpiece Light Effect.

Centerpiece Light EffectCenterpiece Light Effect

adopts advanced design technology, using high grade optical

16 Centerpiece

Centerpiece

1616

CenterpieceCenterpiece

FOR YOUR SAFETY - before replacing the lamp, wear safety glasses and gloves (as the lamp might
explode ) .

- Make sure that the main power is OFF and the lamp is cold (as the operating temperature of the

lamp could be over 200C)

- Open the lamp housing .

- DO NOT touch the lamp with bare hands.

- Replace the lamp.

- Cover the lamp housing .

- Restart the device .

DO NOT look directly into the lamp to avoid eye injury
Please use 10A/250V fuse

OPERATION INSTRUCTION:

Please use the following steps to start the unit up:

1 - Install the AURA 32 in the desire and safe location.

2 - Plug the control cable supplied with the controller into the light fixture (the cable is aprox.
30ft in length ).
3 - Turn the power on.

4 - The lamp will come on first . After approximately 20 seconds the electronics will power on
and the fixture will go thru an entire RESET mode. Once this is completed, unit is ready to
operate

CONTROLLER OPERATION:

1 - Push the RESET button to reset the device .

You can use RESET Function to reset the unit without turning the power OFF to the whole
device.

2 - Push START key
3 - Push the PROGRAM key and choose one of the pre-programs from 1 thru 8
4 - Move SPEED Fader up or down to change the effect speed.
5 - Move TIME Fader up or down to change the program speed.

AUDIO:

1 - Push AUDIO button . In this mode the Audio Mic will sound activate the unit to change
programs and randomly pick movement.

PAUSE:

1 - Push PAUSE button, if you want the program to be stopped / paused temporarily on a

2 - Push again to cancel .

particular scene .

2 - The letter H (Hold) will be display in the program window.
3 - Push again to cancel.

MLSC, Inc. (METEOR LIGHT and SOUND Inc).

8000 MADISON PIKE, MADISON ALA. 35758. [phone]: FAX: [phone]
