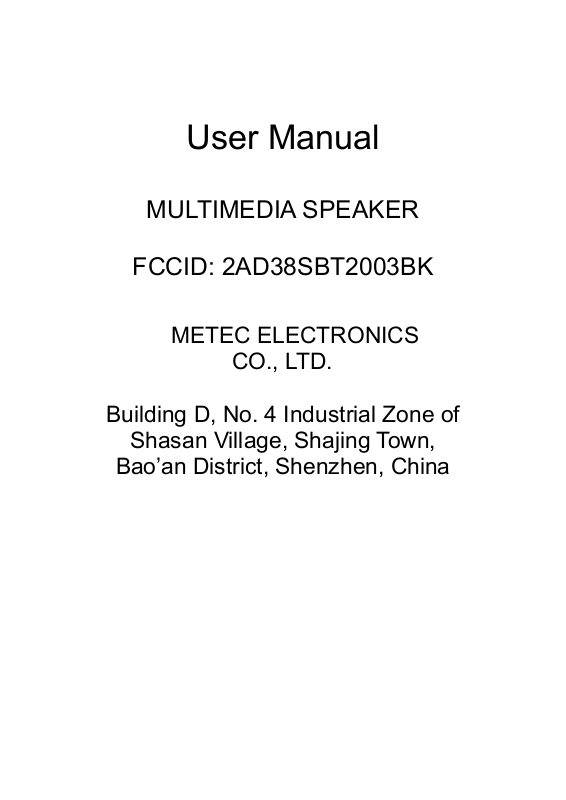

User Manual
MULTIMEDIA SPEAKER
FCCID: 2AD38SBT2003BK
METEC ELECTRONICS
CO., LTD.
Building D, No. 4 Industrial Zone of
Shasan Village, Shajing Town,
Bao’an District, Shenzhen, China
Warning：
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. changes or modifications not expressly
approved by the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for
help.
Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment.
MODEL NO: SBT2003BK
2.1 MULTIMEDIA SPEAKER
5. Adaptor
plug one end of adaptor into
power input on the rear panel of the woofer, the other end into the power socket.
the red light in the rear panel lights up.
Ratating BT/AUX knob to select between bluetooth and AUX input.
4
AUX
BT
E
VOLU ME
F
BASS
G
DC:12V/1.0AC
E.
BT/AUX
Rotate the knob to select bewteen Bluetooth and AUX input. Bluetooth
input with blue light indication, AUX input with red light indication
F. VOLUME+/-
Adjust overall volume
G. BASS+/-
Adjust bass
3
Built in Bluetooth
back
Output Power
Frequency response
Impedance
Signal to Noise ratio
Separation
Subwoofer drive
Satellite speaker drive
er
Adaptor
Po
Power
: 10W + 3W x 2
: 40Hz - 20KHz
: Subwoofer 6 Ohm Satellite 8 Ohm
: ≥80dB
: ≥45dB
: 4 inch
: 2inch
: AC100-240V 60/50Hz
4
SUPER BASS 2.1CH MULTIMEDIA SPEAKER
