DRILLS
ENGINEERING
RESULTS FOR
INDUSTRIAL
NEEDS.
The Metabo rotary drill range is designed and built to meet the
needs of the industrial world. Be it for applications in wood,
metal, plastic, liquids, ceramic or masonry Metabo has a drill
in the range to suit. This versatility results from the use of
quality components, high manufacturing tolerances and high
quality standards throughout the manufacturing process. With
a Metabo you can be sure it will deliver engineering results
demanded by industry. Metabo. Work. Don’t play.
92 |
Page 2
DRILLS
| 93
Page 3
DRILLS
ROTARY ONLY – FOR THE SPECIALIST.
Rotary only drills are usually considered as specialist
machines, however Metabo‘s vast range can cover a
whole host of applications. This class are in their element
for high tolerance drilling in wood, plastic and metal.
Small high speed models come into their own for those
repetitive small jobs where as high torque models are
ideal for use with diamond cores, torque screws, augers
and paddles etc. Whatever the application, with Metabo
you will always find the right machine for the job.
Infinitely variable
speed control
For setting the
ideal speed without
problems.
Marathon motor
with coil guard
Expertly machined and
balanced motors use
high grade coppers and
steels, increase efficiency
and provide optimum
per formance. Thick resin
coatings on the armature
and field coil protect the
motor from harmful
debris, increasing
service life.
Metabo S-automatic torque
limiting clutch
Prevents sudden reverse kick
back if a disc or bit should
jam in the work piece - protecting machine and user.
Die cast aluminium gear housing
Metal gear housings ensure
optimum integral machine
strength and maximum heat
dissipation which aids motor
cooling and prolongs service life.
Hexagon socket
in the spindle
The screwdriver bit can
be inserted directly into
the spindle.
Metabo quick-action
keyless chuck
Simple and fast tool
change without key.
Special areas of application
Even when working at places difficult
to reach, Metabo drills can be used
without problems.
94 |
Special areas of application
Drills with high torque are not only
suitable simply for drilling, but can
also be used for stirring thick fluids
such as gypsum, joint fillers, readymade plaster or tile adhesive.
Ergonomic design
Ideal adaptation of the design
to the user’s needs that enables safe,
comfortable and fatigue-free work.
Page 4
DRILLS
Which drill for which application?
Drilling Inserting screws, stirring Type and output Page
Pilot drilling of riveted joints, aluminium and BE 4006 96
thin sheet metal, pilot drilling of wood, 400 Watts
kitchen installation
Nail holes in strips
Wood – small diameter Light screwing applications BE 4010 96
Vehicle body manufacture 400 Watts
Steel and cast iron
Inox profiles, pipes and sheets
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
Wood – smaller diameter B 561 96
Vehicle body manufacture 560 Watts
Steel and cast iron
Sheet metal, switch cabinet manufacture
Wood – smaller diameter Light screwing applications BE 561 96
Vehicle body manufacture 560 Watts
Steel and cast iron
Sheet metal, switch cabinet manufacture
Drilling of stainless steel installations Screwing applications BE 622 S-R+L 97
(counter construction) Stirring of paint (painters) 620 Watts
Drilling with auger bits and forstner pattern bits Stirring of viscous fluids
Steel (mechanical engineering, Screwing applications BE 710 97
scaffolding manufacture, locks) Stirring of paint 710 Watts
Wood (carpenters, joiners, interior decorators)
Ceramic, tiles (building services, plumbers) Screwing applications BE 1020 97
Application with drill stand Stirring of paint 1.020 Watts
Service and assembly applications Application as driving unit
Steel – large diameter Stirring of paint BDE 1100 98
Wood – extremely large diameter Stirring of viscous fluids 1.100 Watts
Diamond Core drilling
Kitchen installation WBE 700 98
Mechanical engineering 705 Watts
Assembly work (furniture, locksmiths, fitters)
NEW
NEW
Stirring of viscous fluids: RWE 1100 99
Gypsum, filler compound, tile adhesive, joint filler, 1.100 Watts
mortar, ready-made plaster (painters, plasterers,
bricklayers)
Steel – large diameter Screws (long screws with large drilling B 32/3 10 0
Wood –large diameter diameter, e.g. frames and facade pegs) 1.800 Watts
Form work drill bit Stirring of viscous fluids
Drilling and hollow milling in steel substructures MAG 832 101
(mechanical engineering) 800 Watts
Drilling of steel carriers
Stationary drilling in wood, wood-like TB E 4512 102
materials, plastic and metal 700 Watts
TB E 5014
800 Watts
NEW
MACHINES
WOOD SANDING
ROUTERS
AND PLANERS
| 95
Page 5
DRILLS
COMMON FEATURES
Compact, lightweight machine with special
cup housing design
Small, handy bench machine
Ergonomic housing design with large trigger button
User-friendly guidance of machine exhaust in all working
situations
Variospeed (V) electronics
Long-life motor
Clockwise and anticlockwise rotation
Quick-action keyless chuck Futuro Plus
Spindle with hexagon recess for screwdriver bits
COMMON FEATURES
Small, handy bench machine
Sturdy double-shell housing
Ergonomic housing design with large trigger button
Long-life motor
Spindle with hexagon recess for screwdriver bits
Rubber-coated handle
BE 4006
BE 4010
400 Watt
Electronic
Drill
BE 4006
400 Watt
Electronic
Drill
BE 4010
Comparative
device characteristics
Torque 6 Nm 8 Nm
Drilling capacity in
- Steel 6 mm 10 mm
- Softwood 12 mm 20 mm
No load speed 0 - 4.000 /min 0 - 2.850 /min
Rated input power 400 W
400 W
Output power 220 W 220 W
Rated load speed 2.400 /min 1.800 /min
Collar diameter
Drilling spindle thread 1/2" - 20 UNF 1/2" - 20 UNF
Chuck capacity 1 - 10 mm 1 - 10 mm
Drilling spindle with hexagon
1/4" (6,35 mm) 1/4" (6,35 mm)
recess
Weight (without mains cable) 1,2 kg 1,2 kg
Standard equipment Quick-action
keyless chuck
Futuro Plus
Quick-action
keyless chuck
Futuro Plus
B 561 BE 561
NEWNEW
560 Watt
Drill
B 561
560 Watt
Electronic
Drill
BE 561
Special advantages
Variospeed (V) electronics
Thumbwheel for
preselection of speed
Clockwise and
anticlockwise rotation
Comparative
device characteristics
Torque 5 Nm 5 Nm
Drilling capacity in
- Steel 10 mm 10 mm
- Softwood 20 mm 20 mm
No load speed 2.800 /min 0 - 2.800 /min
Rated input power 560 W 560 W
Output power 320 W 320 W
Rated load speed 1.700 /min 1.700 /min
Collar diameter 43 mm 43 mm
Drilling spindle thread 1/2" - 20 UNF 1/2" - 20 UNF
Chuck capacity 1 - 10 mm 1 - 10 mm
Drilling spindle with hexagon
1/4" (6,35 mm)
recess
Weight (without mains cable) 1,7 kg 1,7 kg
Type BE 4006 BE 4010
Order no. 6.00554
6.00555
96 |
Order no. Machine with
–
Quick-action keyless chuck Futuro Plus
– Geared chuck and chuck key
– 6.01162.82
6.01161 6.01162.00
Type B 561 BE 561
Page 6
DRILLS
EQUIPMENT FEATURES
Die cast aluminium gear housing
Variospeed (V) electronics
Metabo S-automatic torque limiting clutch
Clockwise and anticlockwise rotation
Geared chuck
Spindle with hexagon recess for screwdriver bits
Suitable for drilling with drill bits with large diameter
(e.g. formwork drill bits) and for stirring thick
liquid-like materials
High torque
Long side handle for work with high torque
Auto-stop carbon brushes
COMMON FEATURES
Die cast aluminium gear housing
Optimal cooling by axial/radial fan
Ergonomic housing design with large trigger button
Thumbwheel for preselection of speed
Two-speed gear unit
Robust Metabo Marathon motor
Metabo S-automatic torque limiting clutch
Metabo winding protection grid
Clockwise and anticlockwise rotation
Spindle with hexagon recess for screwdriver bits
Auto-stop carbon brushes
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
B E 622 S- R+L BE 1020BE 710
620 Watt
Electronic Drill
B E 622 S- R+L
Comparative device characteristics
Torque 35 Nm
Drilling capacity in
- Steel 16 mm
- Softwood 40 mm
No load speed 0 - 550 /min
Rated input power 620 W
Output power 360 W
Rated load speed 330 /min
Collar diameter 43 mm
Drilling spindle thread 1/2" - 20 UNF
Chuck capacity 1,5 - 13 mm
Drilling spindle with hexagon
1/4" (6,35 mm)
recess
Weight (without mains cable) 2,1 kg
Standard equipment Geared chuck, chuck key,
long side handle
710 Watt
Electronic
Two-Speed
Drill
BE 710
1020 Watt
Electronic
Two-Speed
Drill
BE 1020
Special advantages
Variospeed (V) electronics
Vario Tacho Constamatic
(VTC) full-wave electronics
High torque
Overload protection
No-volt release switch
Brush wear indicator
Comparative
device characteristics
Torque 16 Nm/6 Nm 28 Nm/10 Nm
Drilling capacity in
- Steel 13 mm/8 mm 16 mm/8 mm
- Softwood 40 mm/25 mm 40 mm/25 mm
No load speed 0 - 1.000 /
0 - 3.000 /min
0 - 900 /
0 - 2.600 /min
Rated input power 710 W 1.020 W
Output power 420 W 620 W
Rated load speed 560/1.700 /min 900/2.600 /min
Collar diameter 43 mm 43 mm
Drilling spindle thread 1/2" - 20 UNF 1/2" - 20 UNF
Chuck capacity 1,5 - 13 mm 1,5 - 13 mm
Drilling spindle with hexagon
recess
1/4"
(6,35 mm)
1/4"
(6,35 mm)
Weight (without mains cable) 2,2 kg 2,3 kg
MACHINES
WOOD SANDING
Type B E 622 S- R+L
Order no. 6.00626
Standard equipment Side handle Long side
handle
Type BE 710 BE 1020
Order no. Machine with
– Quick-action keyless chuck Futuro Plus
– Geared chuck and chuck key
6.00830.91
6.00830.00 6.00831.00
–
ROUTERS
AND PLANERS
| 97
Page 7
DRILLS
EQUIPMENT FEATURES
Die cast aluminium gear housing
Variospeed (V) electronics
Two-speed gear unit
Metabo S-automatic torque limiting clutch
Clockwise and anticlockwise rotation
Geared chuck
Suitable for drilling with drill bits with large diameter
(e.g. formwork drill bits) and for stirring thick
liquid-like materials
High torque
Comfortable operation and safety through auxiliary handle
Auto-stop carbon brushes
EQUIPMENT FEATURES
Die cast aluminium gear housing
Vario Constamatic (VC) full-wave electronics
Thumbwheel for preselection of speed
Geared chuck
Especially suitable for working in places difficult to reach
Auto-stop carbon brushes
BDE 1100 WBE 700
1100 Watt
Electronic
Two-Speed Drill
BDE 1100
Comparative
device characteristics
Torque 55 Nm/22 Nm
Drilling capacity in
- Steel 16 mm/10 mm
- Softwood 40 mm/25 mm
No load speed 0 - 640 / 0 - 1.200 /min
Rated input power 1.100 W
Output power 620 W
Rated load speed 430/800 /min
Collar diameter 43 mm
Drilling spindle thread 5/8" - 16 UN
Chuck capacity 3 - 16 mm
Weight (without mains cable) 3,8 kg
Standard equipment Geared chuck, chuck key,
long side handle,
drilling depth guide
705 Watt
Electronic
Angle Drill
WBE 700
Comparative
device characteristics
Torque 8 Nm
Drilling capacity in
- Steel 10 mm
- Softwood 25 mm
No load speed 850 - 2.050 /min
Rated input power 705 W
Output power 430 W
Rated load speed 1.500 /min
Drilling spindle thread 1/2" - 20 UNF
Chuck capacity 1 - 10 mm
Weight (without mains cable) 1,8 kg
Standard equipment Geared chuck, chuck key,
side handle
Type BDE 1100
Order no. 6.00806
98 |
Order no. 6.00512
Type WBE 700
Page 8
EQUIPMENT FEATURES
Ideal stirring and mixing device for tough permanent use
for plastering, painting and brickwork
Suitable for stirring thick liquid-like materials
Die cast aluminium gear housing
Comfortable operation and safety through auxiliary handle
Variospeed (V) electronics
Soft start
Quick change adapter (accessory)
STIRRERS
ACCESSORIES FOR THE STIRRERS
Agitator paddles with M14 MThr
DiametermmLength
mm
Maximum
material
quantity kg
Maximum
speed
/min
Type RS 2, mixing effect from top to bottom
Paint, Varnish, Cement slurry/finished mortar
110 600 15 - 40 500 - 700 6.31950
140 600 30 - 60 500 - 700 6.31951
Type RS 3, mixing effect from top to bottom
Plaster, Mortar, Filler compound,
Thermal insulation materials
100 600 10 - 25 500 - 700 6.31952
130 600 20 - 50 500 - 700 6.31953
160 600 30 - 150 500 - 700 6.31954
Type RS 3, mixing effect from bottom to top
Plaster, Mortar, Filler compound,
Thermal insulation materials
Order
no.
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
RWE 1100
1100 Watt
Electronic
Stirrer
RWE 1100
Comparative
device characteristics
Torque 45 Nm
Maximum stirring basket diameter 160 mm
No load speed 0 - 700 /min
Rated input power 1.100 W
Output power 660 W
Rated load speed 480 /min
Collar diameter 43 mm
Bit retainer M 14 female thread
Weight (without mains cable) 3,4 kg
Standard equipment Side handle, without adapter
Type RWE 1100
Order no. 6.01111
100 600 10 - 25 500 - 700 6.31963
130 600 20 - 50 500 - 700 6.31964
160 600 30 - 150 500 - 700 6.31965
Type RS 4, mixing effect from bottom to top
2-component materials
100 600 10 - 20 500 - 700 6.31955
130 600 20 - 30 500 - 700 6.31956
160 600 30 - 150 500 - 700 6.31957
Type RS 8
Liquids, Granules, Float finish
120 600 35 - 70 500 - 700 6.31958
Connectors with M14 FThr
For machines with other spindle holders
Order
no.
Holder: 1/2" -20 UNF,
6.31959
M 14 female thread
Holder: 5/8"- 16 UN,
6.31960
M 14 female thread
Holder: M 14 male thread,
6.31961
M 14 female thread
Holder: M 18
6.31962
male thread,
M 14 female thread
Holder: B 16
6.31969
male thread,
M 14 female thread
Quick change adapter
Order
no.
for easily removing or fitting the
6.31966
agitator paddle for cleaning or
replacement purposes
MACHINES
WOOD SANDING
ROUTERS
AND PLANERS
| 99
Page 9
DRILLS
EQUIPMENT FEATURES
Powerful three-speed drill with extra high torque
for difficult drilling work, including into steel
Robust mechanical gearbox with oil bath lubrication
Die cast aluminium gear housing
Torque limiting clutch
Suitable for drilling with drill bits with large diameter
(e.g. formwork drill bits), for stirring thick liquid-like
materials and for screwing in long screws with large
diameter (e.g. in frame and facade pegs)
High torque
Long side handle for work with high torque
ACCESSORIES FOR THE B 32/3 DRILL
Taper arbors for chucks
Hardened and ground
For chuck with taper socket
Outer
morse
taper Ø
MK 3 B 16 134 0,31 6.35125
MK 3 B 18 141 0,32 6.35126
MK 3 B 22 147 0,39 6.35128
MK 3 J 3 135 0,31 6.35129
MK 3 J 33 129 0,31 6.35130
MK 3 J 6 129 0,31 6.35131
Reducing sleeves for tools with morse taper
Standard type
Similar to DIN 2185
Ground external taper
Outer
morse
taper Ø
MK 3 MK 1 99 0,25 6.35140
MK 3 MK 2 112 0,19 6.35143
Drift key
Suitable for
machine with
morse taper
MK 3 190 0,15 6.42396
According to DIN 238
Chuck taper Overall taper
arbor length
mm
Inner morse
Overall lengthmmWeight
taper Ø
Overall length
mm
Weight
kg
Weight
kg
kg
Order
no.
Order
no.
Order
no.
B 32/3
NEW
1800 Watt
Three-Speed
Drill
B 32/3
Comparative device characteristics
Torque 190 Nm/120 Nm/90 Nm
Drilling capacity in
- Steel 32 mm
- Softwood 70 mm
No load speed 170/320/470 /min
Rated input power 1.800 W
Output power 1.200 W
Rated load speed 110/190/280 /min
Collar diameter 65 mm
Drilling spindle with taper socket MK 3
Weight (without mains cable) 7,5 kg
Standard equipment Chuck key, long side handle
Type B 32/3
Order no. 6.00323
100 |
Page 10
EQUIPMENT FEATURES
Magnet base with high holding power for safe operation
Also suitable for working overhead on vertical and inclined
surfaces using the safety belt provided
Enables precise and clean drilling. Motor and carriage
form a unit
Height adjustment of carraige with pinion and toothed rack
The motor can only be turned on after turning on
the magnet base
Fatigue-free work by hollow milling
Two speeds
Holder bit for chuck (accessory) for working with
spiral drill bits
MAGNETIC DRILLING UNITS
ACCESSORIES FOR THE ELECTROMAGNETIC HOLE
CUTTING AND DRILLING UNIT MAG 832
Cutters
HPHSS
Weldon shank 19 mm
A centring pin is required for working
with the cutters.
Diameter
mm
14 25 6.30025
15 25 6.30026
16 25 6.30027
17 25 6.30028
18 25 6.30029
19 25 6.30030
20 25 6.30031
21 25 6.30032
22 25 6.30033
23 25 6.30034
24 25 6.30035
25 25 6.30036
26 25 6.30037
27 25 6.30038
28 25 6.30039
29 25 6.30040
30 25 6.30041
31 25 6.30042
32 25 6.30043
Cutting depth
mm
Order
no.
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
MAG 832
Electromagnetic
Hole Cutting and
Drilling Unit
MAG 832
Comparative device characteristics
Torque 50 Nm/19 Nm
Maximum cutting edge
32 mm
tool diameter
Magnet stand:
- Max. stroke 130 mm
- Power consumption 50 W
- Max. adhesive power 8.000 N
- Dimensions of the magnet base 90 x 170 mm
Motor:
Rated input power 800 W
Output power 450 W
No-load speeds 530/1.400 /min
Rated load speeds 320/850 /min
Collar diameter 43 mm
Spindle thread 5/8" - 16 UNF
Hole cutting and drilling unit:
Height (including motor) at
- Bottommost carriage position 405 mm
- Topmost carriage position 525 mm
Weight 14 kg
Standard equipment Tool holder (internal diameter
19 mm), 2 hexagon spanners,
safety belt
14 50 6.30075
15 50 6.30076
16 50 6.30077
17 50 6.30078
18 50 6.30079
19 50 6.30080
20 50 6.30081
21 50 6.30082
22 50 6.30083
23 50 6.30084
24 50 6.30085
25 50 6.30086
26 50 6.30087
27 50 6.30088
28 50 6.30089
29 50 6.30090
30 50 6.30091
31 50 6.30092
32 50 6.30093
Centring pins
For working with the cutters
Suitable for cutting depth up to
mm
Order
no.
25 6.30054
50 6.30055
Chuck holder
Order
no.
For chuck with female
6.30051
thread 1/2"-20 UNF
MACHINES
WOOD SANDING
Type MAG 832
Order no. 6.00832
ROUTERS
AND PLANERS
| 101
Page 11
BENCH DRILLING MACHINES
COMMON FEATURES
For drilling in wood, wood-like materials, plastics and metals
Vario Tacho Constamatic (VTC) full-wave electronics
Thumbwheel for preselection of speed
Reduced speed for reduced noise during no load
Powerful universal motor with high capacity reserve
Sturdy steel column
Easy setting of upper part of the machine
to the desired height
Solid base plate
Precise preselection of drilling depth
Thermal overload protection
Undervoltage protection
TB E 5014TB E 4512
Bench Drilling Machine
Magnum
TB E 4512
Bench Drilling Machine
Magnum
TB E 5014
Comparative device characteristics
Drilling capacity in
- Steel 12 mm 14 mm
- Aluminium 20 mm 25 mm
- Softwood 40 mm 40 mm
Rated input power 700 W 800 W
Output power 450 W 500 W
No load speed 500 - 3.000 /min 400 - 4.500 /min
Rated load speed 3.000 /min 4.500 /min
Distance, bit centre to column 200 mm 205 mm
Depth of feed 60 mm 60 mm
Column Ø 60 mm 60 mm
Spindle cone B 16 B 16
Chuck capacity 1 - 13 mm 1 - 13 mm
Height to top edge of upper section 675 mm 855 mm
Base plate
- Dimensions 220 x 380 mm 220 x 380 mm
- Clamping surface 220 x 280 mm 220 x 280 mm
- Clearance of the T-grooves 100 mm 100 mm
Maximum distance
Base plate chuck 210 mm 285 mm
Weight 28 kg 50 kg
Standard equipment Quick-action keyless chuck Futuro Top Quick-action keyless chuck Futuro Top
Type TB E 4512 TB E 5014
Order no. 6.04512 6.05014
102 |
102 |
Page 12

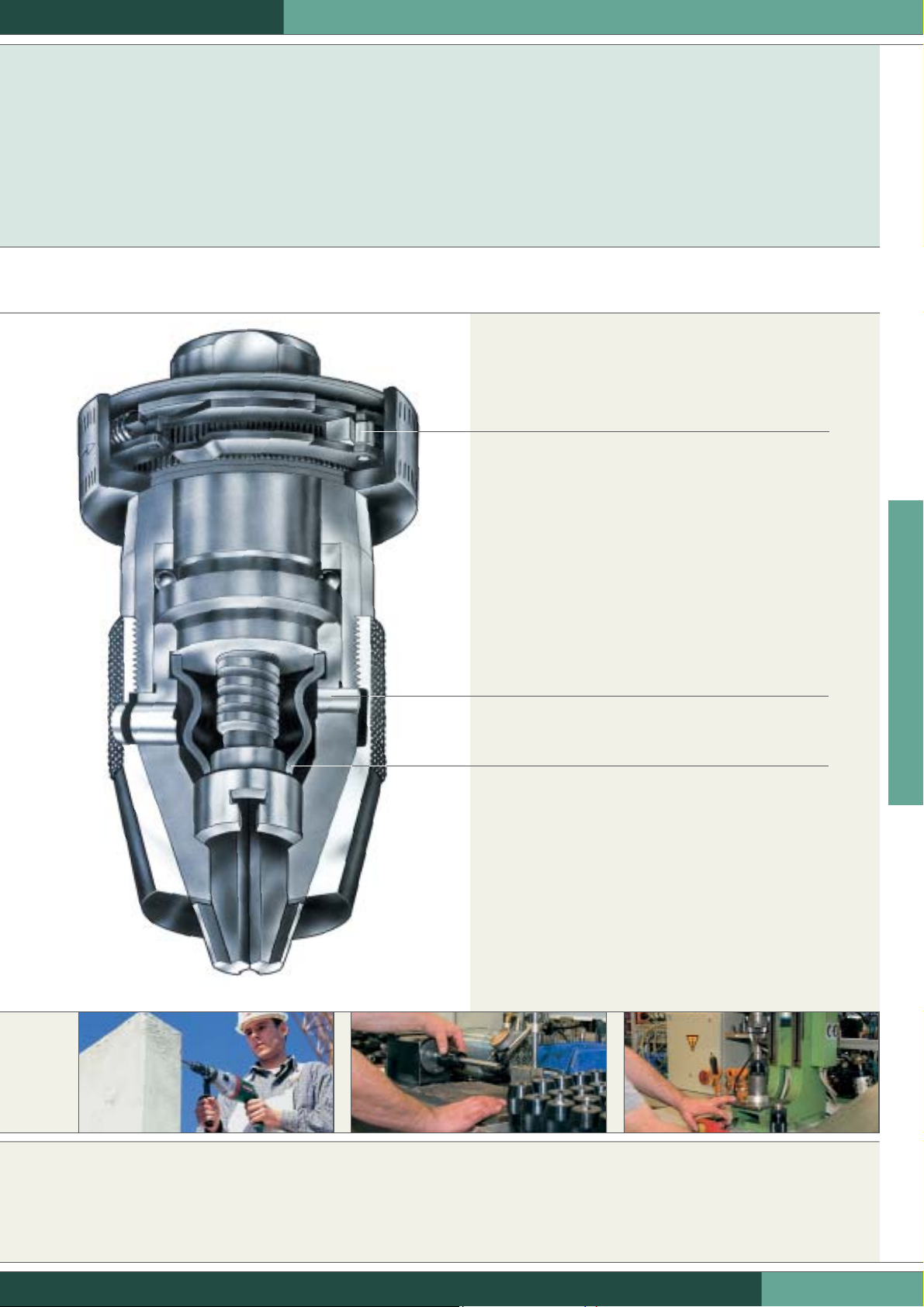

QUALITY WITHOUT COMPROMISE
Metabo chucks are available for all common drilling
machines-also stationary ones- and impact drilling
machines for any job. Precision up to the smallest
Metabo quick-action keyless chuck Futuro Top
CHUCK
details, easy handling and long cycle all common are
life characteristics of the Metabo drill-chucks.
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
Spring-loaded safety feature
for a strong grip of the drill bit - also under hardest and
continuous operating conditions of 62.000 impacts/min.
Dual dust protection
Any dust that may pass between the jaw guide
and the rubber bellow is ejected through the
openings in the chuck sleeve.
A hard-wearing, oil-resistant rubber bellow protects the
carrier-thread and the precision fit against dust and dirt.
Precise fitting parts and a long service life
All parts of the chuck subjected to severe loads, are hardened.
The clamping jaws, the guide sleeves and the chuck body have
a ground finish.
MACHINES
WOOD SANDING
Easy to handle
The chuck can be reopened easily and
conveniently even after it has been used
on tough drilling or impact drilling jobs.
Guarantee for optimal quality
More than 30 quality control checks
monitor the manufacture of the individual
components; and after assembly
every drill chuck is re-checked again on
concentric running and functional safety.
| 103
| 103
ROUTERS
AND PLANERS
Page 13

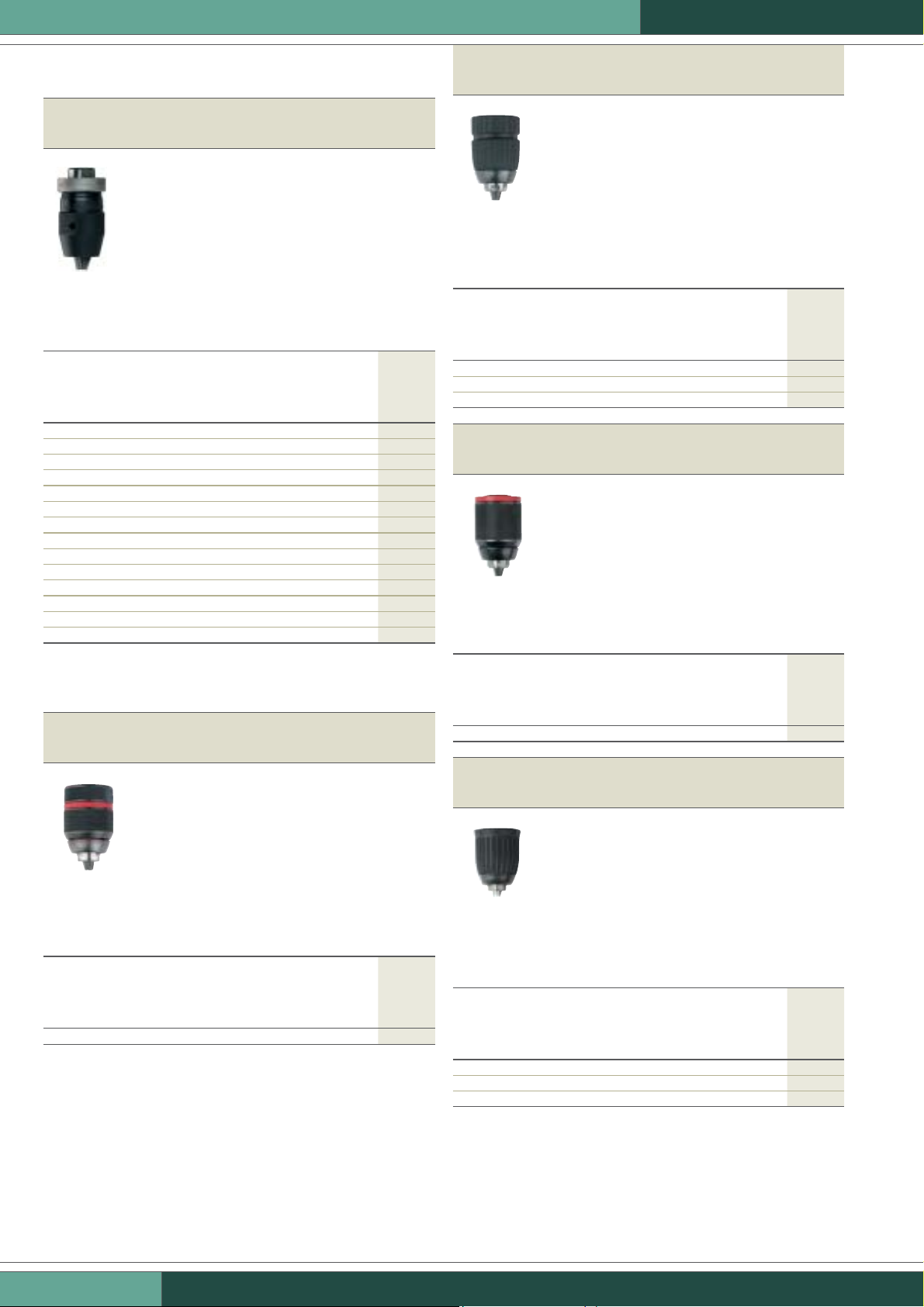

CHUCKS
QUICK-ACTION KEYLESS CHUCK, IMPACT-PROOF,
FOR CLOCKWISE ROTATION
Quick-action keyless chucks Futuro Top,
for clockwise rotation
The first impact-proof quick-action keyless
chuck, with built-in spring-loaded bit clamping
mechanism and dual dust protection
Keyless for quick tool change
Firmer grip of clamped tools even with
toughest load
A hard-wearing, oil-resistant rubber bellows
system protects the thread and the precision
press fit against dust and dirt
For clockwise rotating drills only
Clamping
width
Female
thread
Outside
Ø
mm
Length
(closed)
mm
WeightkgOrder
no.
mm
1 - 10 3/8"-24 UNF 42,8 77 0,35 6.36215
1 - 10 1/2"-20 UNF 42,8 77 0,35 6.36216
1 - 10 B12 42,8 77 0,35 6.36217
1 - 13 3/8"-24 UNF 42,8 89 0,5 6.36225
1 - 13 1/2"-20 UNF 42,8 89 0,5 6.36226
1 - 13 B16 42,8 103 0,6 6.36227
1 - 13 5/8" - 16 UN 50 111 0,8 6.36231
1 - 13 J6 50 111 0,8 6.36233
3 - 16 5/8" - 16 UN 50 113 1 6.36241
3 - 16 B16 50 113 1 6.36242
3 - 16 B18 50 113 1 6.36243
Self-service packaging
1 - 10 1/2"-20 UNF 42,8 77 0,35 6.36601
1 - 13 1/2"-20 UNF 42,8 89 0,5 6.36602

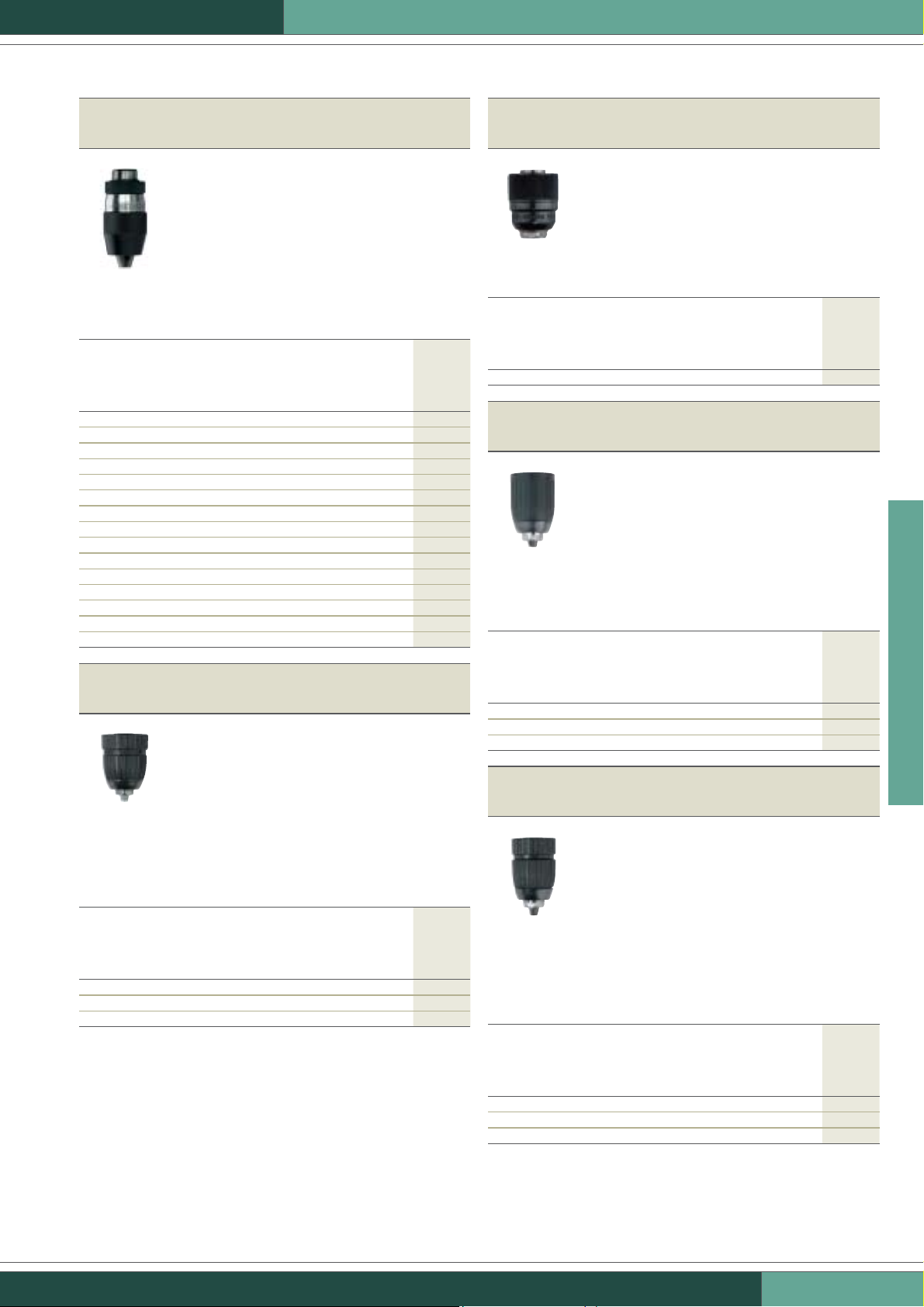

QUICK-ACTION KEYLESS CHUCK, IMPACT-PROOF,
FOR CLOCKWISE AND ANTI-CLOCKWISE ROTATION
Quick-action keyless chucks Futuro Plus S2 M,
for clockwise and anticlockwise rotation
Specially developed for impact drills
Sturdy design with metal sleeve
Double sleeve with radial locking
for secure tool clamping
Keyless for quick tool change
Impact-proof design
Drills through with locking screw
for clockwise and anticlockwise
operating machines
With key surface for assembly
and disassembly
Clamping
width
Female
thread
Outside
Ø
mm
Length
(closed)
mm
mm
1,5 - 13 1/2"-20 UNF 42,9 72,4 0,3 6.36620
WeightkgOrder
no.
Quick-action keyless chucks Futuro Plus S2,
for clockwise and anticlockwise rotation
Specially developed for lightweight
impact drills
Plastic sleeve
Double sleeve with radial locking for secure
tool clamping
Keyless for quick tool change
Impact-proof design
Drills through with locking screw for clockwise
and anticlockwise operating machines
With key surface for assembly
and disassembly
Clamping
width
Female
thread
Outside
Ø
mm
Length
(closed)
mm
WeightkgOrder
no.
mm
1 - 10 3/8"-24 UNF 42,8 61 0,2 6.36612
1 - 10 1/2"-20 UNF 42,8 61 0,2 6.36613
1,5 - 13 1/2"-20 UNF 42,8 72,4 0,2 6.36614
Quick-action keyless chucks Futuro Plus S1 M,
for clockwise and anticlockwise rotation
Special design for impact drills with
spindle stop
Sturdy design with metal sleeve
1-sleeve (without supporting ring)
Keyless for quick tool change
Impact-proof design
Drills through with locking screw
for clockwise and anticlockwise
operating machines
With key surface for assembly and disassembly
Clamping
width
Female
thread
Outside
Ø
mm
Length
(closed)
mm
WeightkgOrder
no.
mm
1,5 - 13 1/2"-20 UNF 42,9 72,4 0,3 6.36621
Quick-action keyless chucks Futuro Plus S1,
for clockwise and anticlockwise rotation
Specially developed for light impact
drills with spindle stop
Plastic sleeve
1-sleeve (without supporting ring)
Keyless for quick tool change
Impact-proof design
Drills through with locking screw
for clockwise and anticlockwise
operating machines
With key surface for assembly and disassembly
Clamping
width
Female
thread
Outside
Ø
mm
Length
(closed)
mm
WeightkgOrder
no.
mm
1 - 10 3/8"-24 UNF 42,7 61 0,2 6.36615
1 - 10 1/2"-20 UNF 42,7 61 0,2 6.36616
1,5 - 13 1/2"-20 UNF 42,7 72,4 0,2 6.36617
104 |
Page 14
CHUCKS
QUICK-ACTION KEYLESS CHUCK, NOT IMPACT-PROOF,
FOR CLOCKWISE ROTATION
Quick-action keyless chucks Futuro,
for clockwise rotation
Clamping bits and accessories on
hand-held and stationary drilling machines
without spanner
The chuck adjusts its grip automatically
to match the force applied by the bit's
cutting edges
The chuck can be reopened easily by hand even
after it has been used on tough drilling jobs
For maximum load
For clockwise rotating drills only
Not impact-proof
Clamping
width
Female
thread
Outside
Ø
mm
Length
(closed)
mm
mm
1 - 10 3/8"-24 UNF 37,5 77 0,35 6.36321
1 - 10 1/2"-20 UNF 37,5 77 0,35 6.36322
1 - 10 B12 37,5 77 0,35 6.36323
1 - 10 B16 40,5 103 0,6 6.36333
1 - 13 3/8"-24 UNF 40,5 89 0,6 6.36341
1 - 13 1/2"-20 UNF 40,5 89 0,6 6.36342
1 - 13 B16 40,5 103 0,6 6.36343
1 - 13 1/2"-20 UNF 47,5 111 0,8 6.36351
1 - 13 5/8" - 16 UN 47,5 111 0,8 6.36352
1 - 13 B16 47,5 111 0,8 6.36353
1 - 13 J6 47,5 111 0,8 6.36356
3 - 16 5/8" - 16 UN 50 113 1 6.36361
3 - 16 B16 50 113 1 6.36362
3 - 16 B18 50 113 1 6.36363
3 - 16 J6 50 113 1 6.36364
Quick-action keyless chucks Futuro Plus H2,
for clockwise rotation
Special development for cordless drills
and light drills
Plastic sleeve
2-sleeve with supporting ring for firm grip of
tools
Keyless for quick tool change
Not impact-proof
For clockwise rotating drills only
With key surface for assembly
and disassembly
Clamping
width
Female
thread
Outside
Ø
mm
Length
(closed)
mm
mm
1 - 10 3/8"-24 UNF 42,7 61 0,2 6.36512
1 - 10 1/2"-20 UNF 42,7 61 0,2 6.36513
1,5 - 13 1/2"-20 UNF 42,7 72,5 0,2 6.36514
WeightkgOrder
no.
WeightkgOrder
no.
QUICK-ACTION KEYLESS CHUCK, NOT IMPACT-PROOF,
FOR CLOCKWISE AND ANTI-CLOCKWISE ROTATION
Quick-action keyless chucks Futuro Plus H1 M,
for clockwise and anticlockwise rotation
Special design for drills with spindle stop
Sturdy design with metal sleeve
1-sleeve (without supporting ring)
Keyless for quick tool change
Not impact-proof
With key surface for assembly
and disassembly
Clamping
width
Female
thread
Outside
Ø
mm
Length
(closed)
mm
mm
0,8 - 6,5 1/2"-20 UNF 34 57 0,14 6.36623
Quick-action keyless chucks Futuro Plus H1,
for clockwise and anticlockwise rotation
Special design for drills with spindle stop
Plastic sleeve
1-sleeve without supporting ring
Keyless for quick tool change
Not impact-proof
Drills through with locking screw
for clockwise and anticlockwise
operating machines
With key surface for assembly
and disassembly
Clamping
width
Female
thread
Outside
Ø
mm
Length
(closed)
mm
mm
1 - 10 3/8"-24 UNF 42,7 61 0,2 6.36515
1 - 10 1/2"-20 UNF 42,7 61 0,2 6.36516
1,5 - 13 1/2"-20 UNF 42,7 72,4 0,2 6.36517
Quick-action keyless chucks Futuro Plus H2,
for clockwise and anticlockwise rotation
Special development for cordless drills
and light drills
Plastic sleeve
2-sleeve with supporting ring for firm
grip of tools
Keyless for quick tool change
Not impact-proof
Drills through with locking screw
for clockwise and anticlockwise
operating machines
With key surface for assembly
and disassembly
Clamping
width
Female
thread
Outside
Ø
mm
Length
(closed)
mm
mm
1 - 10 3/8"-24 UNF 42,7 61 0,2 6.36518
1 - 10 1/2"-20 UNF 42,7 61 0,2 6.36519
1,5 - 13 1/2"-20 UNF 42,7 72,4 0,2 6.36520
WeightkgOrder
no.
WeightkgOrder
no.
WeightkgOrder
no.
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
MACHINES
WOOD SANDING
| 105
ROUTERS
AND PLANERS
Page 15
CHUCKS

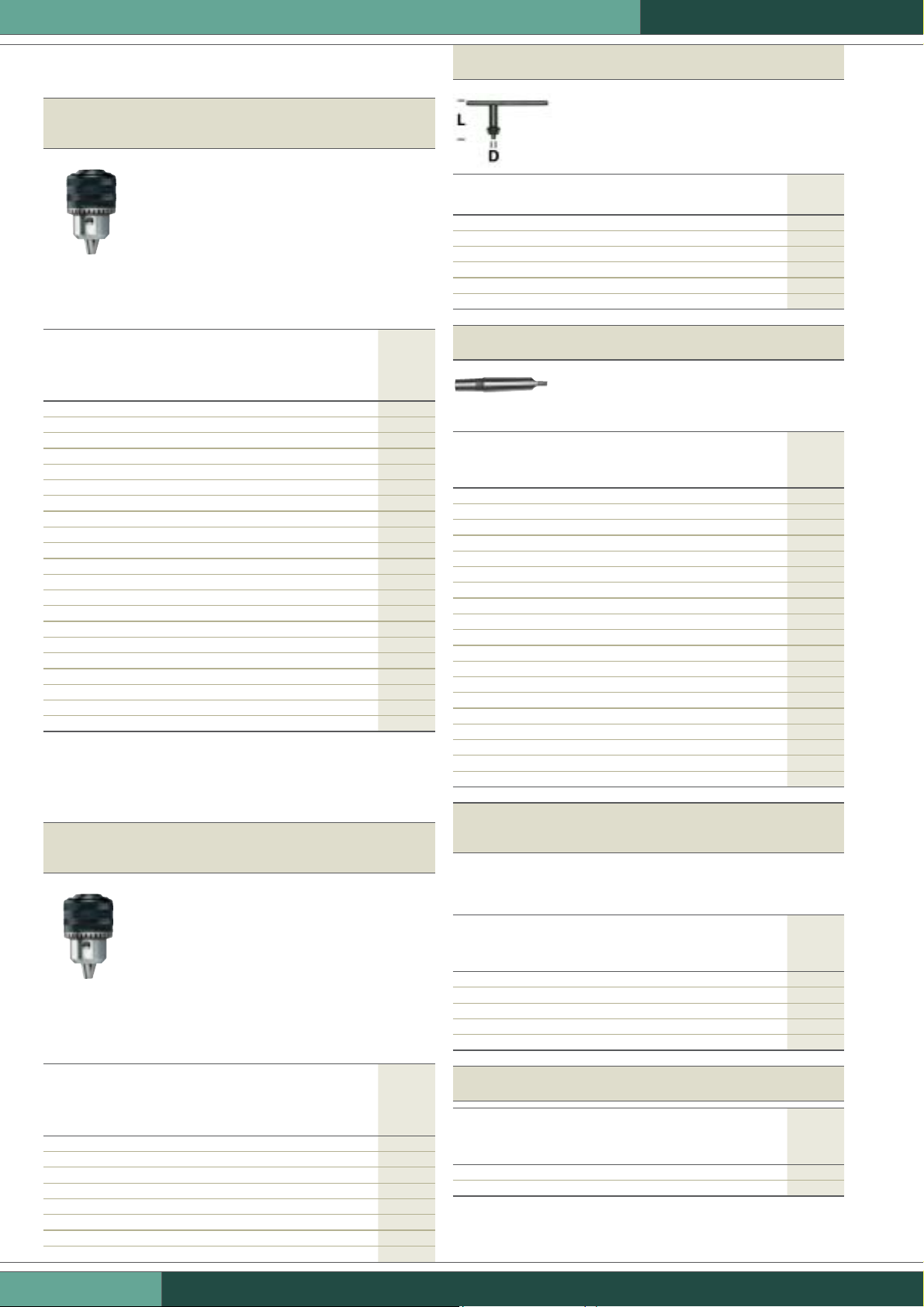

GEARED CHUCK, IMPACT-PROOF,
FOR CLOCKWISE ROTATION
Geared chucks with key,
for clockwise rotation
Tried and tested 1000 times
The chuck for every type of job
With FThr or taper socket for stationary
or hand-held drills and for hand-held
impact drills
The clamping force constant during drilling
and impact drilling
For clockwise rotating drills only
Clamping
width
Female
thread
Outside
Ø
mm
Length
(closed)
mm
WeightkgOrder
no.
mm
0,5 - 6,5 3/8"-24 UNF 30 53 0,17 6.35008
0,5 - 6,5 1/2"-20 UNF 30 55,5 0,13 6.35010
0,5 - 6,5 B10 30 53 0,19 6.35003
0,5 - 6,5 B12 30 58 0,15 6.35004
0,5 - 6,5 J1 30 53 0,19 6.35006
1 - 10 3/8"-24 UNF 33,3 61 0,21 6.35019
1 - 10 1/2"-20 UNF 33,3 61 0,2 6.35072
1 - 10 B12 33,3 61 0,24 6.35069
1,5 - 13 3/8"-24 UNF 42,5 74 0,32 6.35033
1,5 - 13 1/2"-20 UNF 42,5 74 0,31 6.35035
1,5 - 13 B16 42,5 78 0,35 6.35036
1,5 - 13 J6 42,5 81 0,63 6.35038
3 - 16 1/2"-20 UNF 50 87,5 0,6 6.35054
3 - 16 5/8" - 16 UN 50 87,5 0,59 6.35056
3 - 16 B16 50 86 0,64 6.35050
3 - 16 B18 50 94,5 0,63 6.35049
3 - 16 J6 50 86 0,62 6.35052
5 - 20 B22 65 113 0,75 6.35058
Self-service packaging
1 - 10 1/2"-20 UNF 33,3 61 0,17 6.35305
1,5 - 13 1/2"-20 UNF 42,5 74 0,31 6.35302
GEARED CHUCK, IMPACT-PROOF,
FOR CLOCKWISE AND
ANTI-CLOCKWISE ROTATION
Geared chucks with key,
for clockwise and anticlockwise rotation
Tried and tested 1000 times
The chuck for every type of job
With FThr or taper socket for stationary
or hand-held drills and for hand-held
impact drills
The clamping force constant during
drilling and impact drilling
Drills through with locking screw for clockwise
and anticlockwise operating machines
Clamping
width
Female
thread
Outside
Ø
mm
Length
(closed)
mm
mm
1 - 10 3/8"-24 UNF 33,3 61 0,17 6.35254
1 - 10 1/2"-20 UNF 33,3 61 0,17 6.35252
1,5 - 13 3/8"-24 UNF 42,5 74 0,31 6.35255
1,5 - 13 1/2"-20 UNF 42,5 74 0,31 6.35250
3 - 16 5/8" - 16 UN 50 87,5 0,6 6.35253
Self-service packaging
1 - 10 1/2"-20 UNF 33,3 61 0,15 6.35306
1,5 - 13 1/2"-20 UNF 42,5 74 0,32 6.35304
WeightkgOrder
no.
Spare chuck key
Gears according to DIN
For all geared chucks
Key size Spigot Ø D
mm
Shaft length L
mm
Order
no.
1 4 30 6.35165
2 6 52 6.35177
3 8 50 6.35168
4 9 75 6.35169
Self-service packaging
2 6 52 6.35167
Taper arbors for chucks
Hardened and ground
For chuck with taper socket
According to DIN 238
Outer
morse
taper Ø
Chuck taper Overall taper
arbor length
mm
WeightkgOrder
no.
MK 1 B 10 86 0,055 6.35103
MK 1 B 12 89 0,065 6.35104
MK 1 B 16 97 0,09 6.35105
MK 1 B 18 106 0,11 6.35106
MK 2 B 10 103,5 0,13 6.35113
MK 2 B 12 106,5 0,135 6.35114
MK 2 B 16 110,5 0,16 6.35115
MK 2 B 18 117,5 0,18 6.35116
MK 2 J 3 115 0,18 6.35120
MK 2 J 33 109,5 0,16 6.35119
MK 2 J 6 109,5 0,165 6.35121
MK 3 B 16 134 0,31 6.35125
MK 3 B 18 141 0,32 6.35126
MK 3 B 22 147 0,39 6.35128
MK 3 J 3 135 0,31 6.35129
MK 3 J 33 129 0,31 6.35130
MK 3 J 6 129 0,31 6.35131
MK 4 B 16 159 0,625 6.35132
MK 4 B 18 168 0,66 6.35133
Reducing sleeves for tools
with morse taper
Standard type
Similar to DIN 2185
Ground external taper
Outer
morse
Inner morse
taper Ø
Overall lengthmmWeightkgOrder
no.
taper Ø
MK 2 MK 1 92 0,095 6.35139
MK 3 MK 1 99 0,25 6.35140
MK 3 MK 2 112 0,19 6.35143
MK 4 MK 2 124 0,48 6.35144
MK 4 MK 3 140 0,36 6.35146
Drift key
Suitable for
machine with
Overall length
mm
Weight
kg
Order
no.
morse taper
MK 1, MK 2 140 0,07 6.42395
MK 3 190 0,15 6.42396
106 |
106 |
Page 16

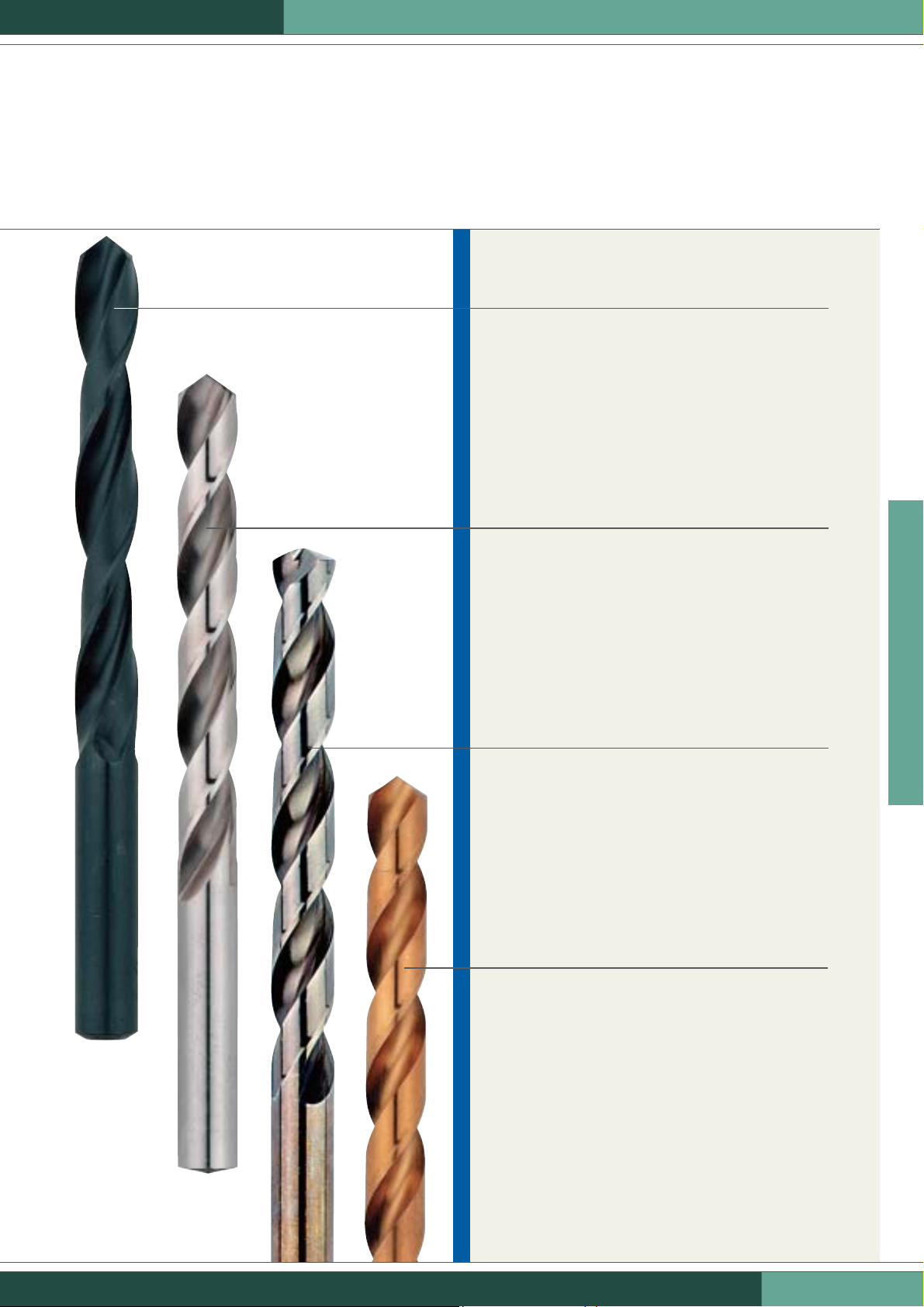

Drill bits for metall Page 110–115
DRILL BITS

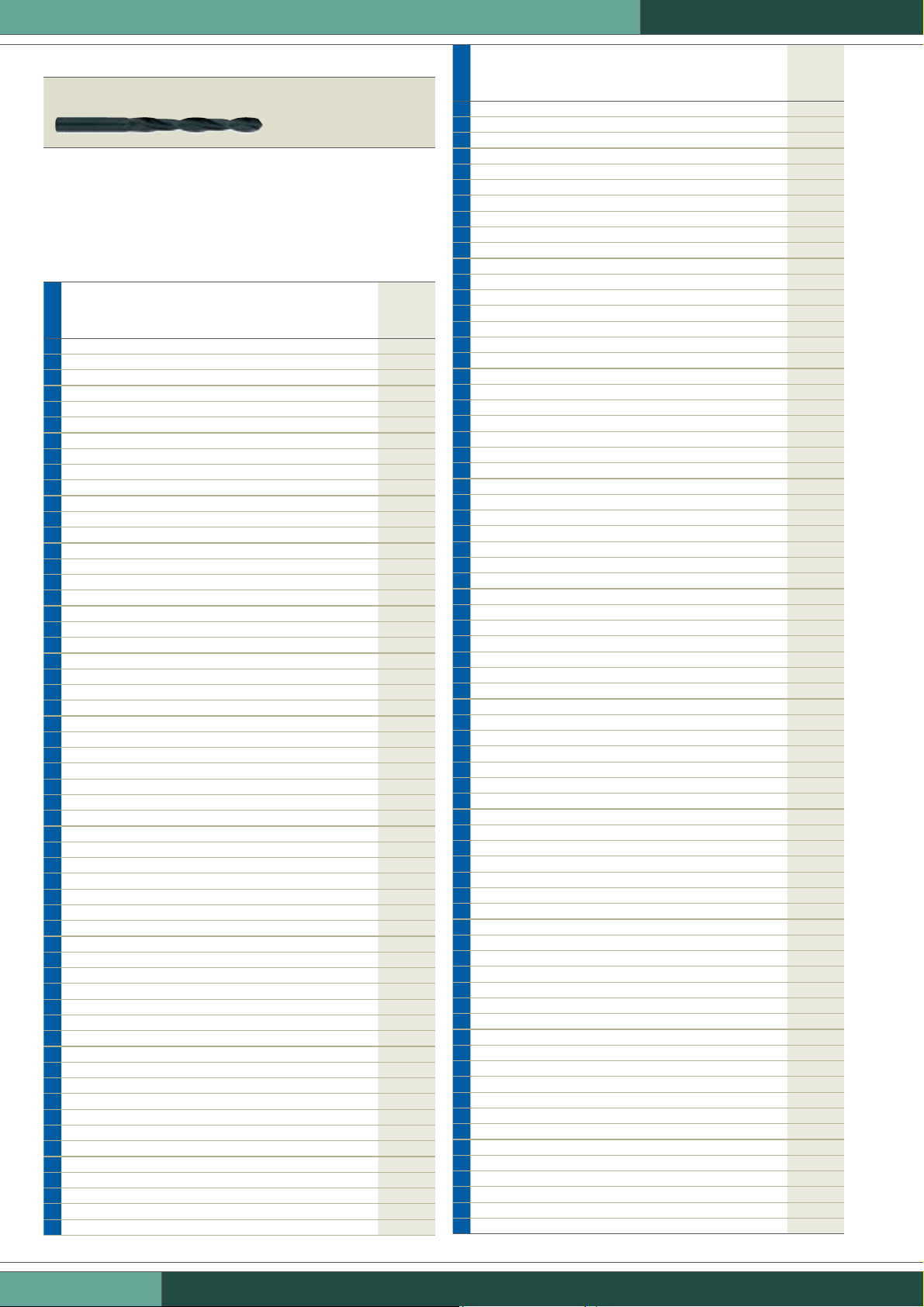

Metal drill bits, HSS-R, DIN 338, roll-milled
Precision spiral drill made of top grade high-speed steel
according to DIN 338, roll-milled, cylindrical, right-hand
cutting, Type N (black surface).
Application:
Suitable for drill jobs on the commonly used metallic
materials such as steel, NE-metals, alloyed and unalloyed
cast steel up to 900 N/mm
2
tensile strength.
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
Metal drill bits, HSS-G, DIN 338, ground
precision spiral drill made of high grade quick steel according
to DIN 338, cylindrical, right-hand cutting, type N, crosswise
ground 135° (from 3 mm upwards) to DIN 1412 C, bare
surface finish.
Application:
For highest demands and precision in industry and craft.
For drilling in steel and cast steel, alloyed and non-alloyed,
grey cast iron, sintered iron, nickel silver, graphite, etc.
Up to 900N/mm
2
tensile strength.
Metal drill bits, HSS-Co, DIN 338, ground finish
Precision spiral drills made of cobalt-alloy top-grade highspeed steel according to DIN 338, precision ground, cylindrical, type N, reinforced core thickness, crosswise ground 135°
(from 2 mm upwards) to DIN 1412 C, bronze finish.
Application:
For exceptional demands in craft and industry. For drilling
hard-to-machine materials such as heat, corrosion and
acid resistant steels, VA steel, special alloys, welded seams,
CrNi-steels. up to 1,100 N/mm
2
tensile strength.
Metal drill bits, HSS-TiN, DIN 338, ground finish
Precision spiral drill made of titanium coated top grade
high-speed steel according to DIN 338, precision ground,
cylindrical, right-hand cutting, type N, crosswise ground 135°
(from 3 mm upwards) to DIN 1412 C, gold colour surface
finish.
Application:
For exceptional demands in craft and industry. For drilling
steel and cast-steel, alloyed and non-alloyed, grey cast iron,
annealed cast-iron, nickel silver, graphite, bronze and brass
up to 900 N/mm2 tensile strength.
MACHINES
WOOD SANDING
| 107
| 107
ROUTERS
AND PLANERS
Page 17
DRILL BITS
Drill bits for stone Page 115–116 Universal drill bits Page 117

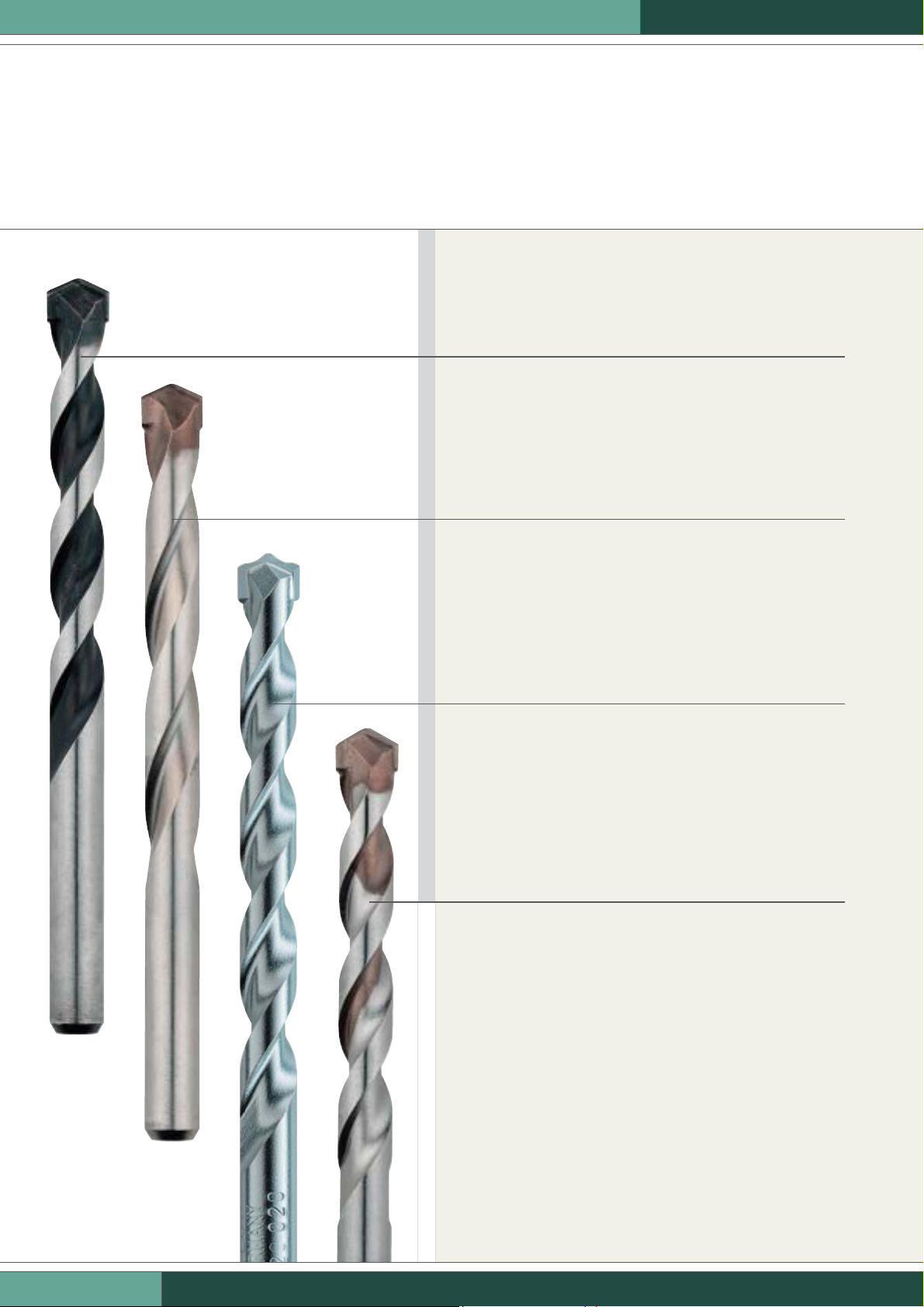

Masonry drill bit, Carbide-tipped
Very robust, high grade stone drill bits for rotary and impact drills,
HM plate 130°, milled angle groove, straight spiral intake, heat
resistant, good durability and long service life.
Application:
For drilling concrete, masonry and natural stone
Concrete drill bit, carbide-tipped, „classic“ series
Concrete drill for rotary and impact drills according to DIN 8039,
milled angle groove, straight spiral intake, long service life,
heat-resistant, carbide plate 130°, negative chamfer, robust version,
surface, shot peened.
Application:
For drilling concrete, masonry and natural stone
Concrete drill bit, carbide-tipped, „pro“ series
High grade, robust concrete drill, carbide plate 130°, specially heat
resistant, very long service life with special groove for rapid swarf
removal, surface blank with black grooves.
Application:
Suitable for drilling of concrete, brick walls, natural and artificial stone.
Universal drill bit, carbide-tipped
Multi purpose drill bit with cylindrical shaft for rotary use, diamond
ground HM inserts and a positive aggressive cutting angle,
ideally suited for the use with cordless machines.
Application:
Suitable for drilling in wood, metal, plastic, brick, gypsum boards,
gas concrete, tiles, ceramics, etc.
108 |
Page 18

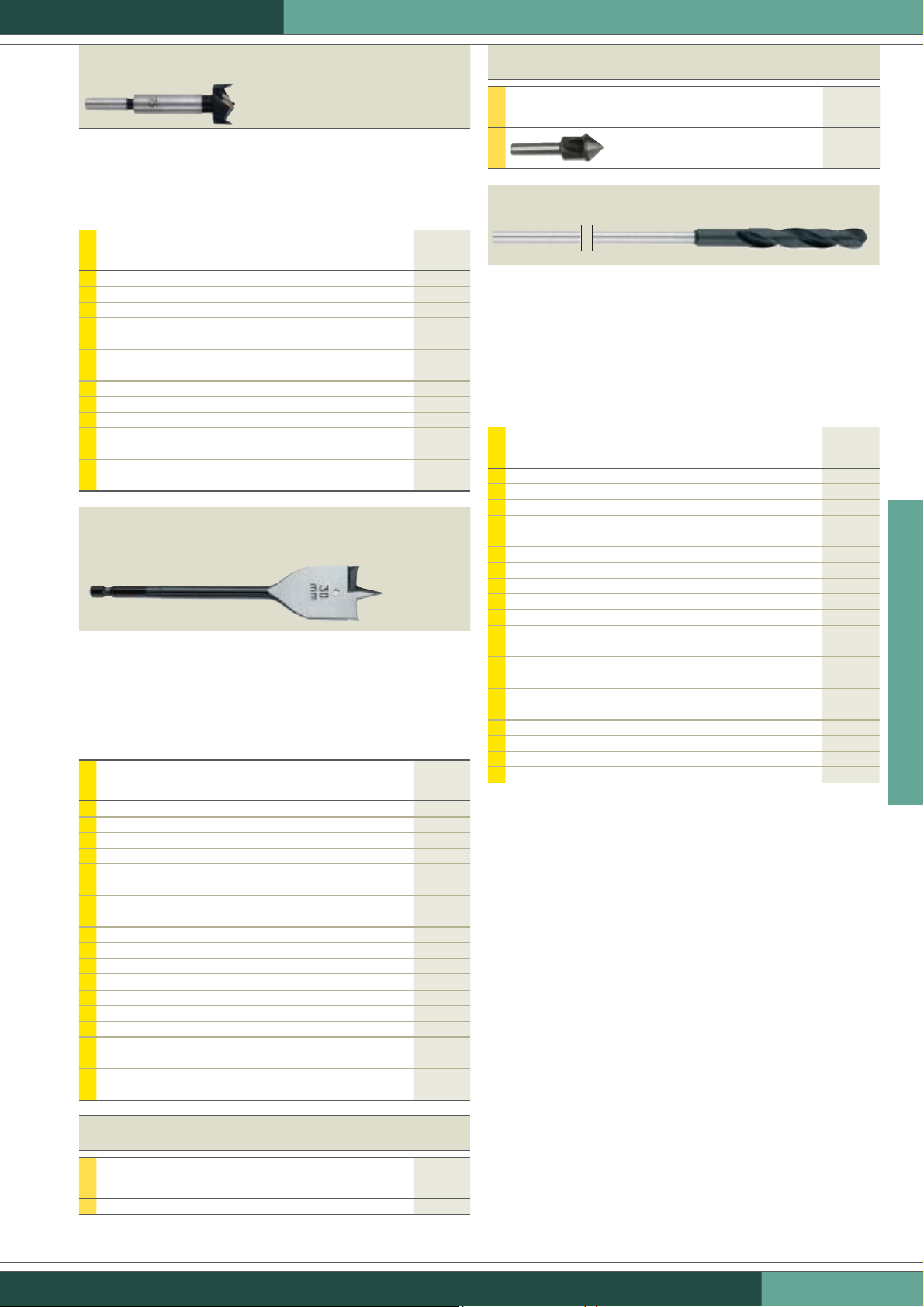

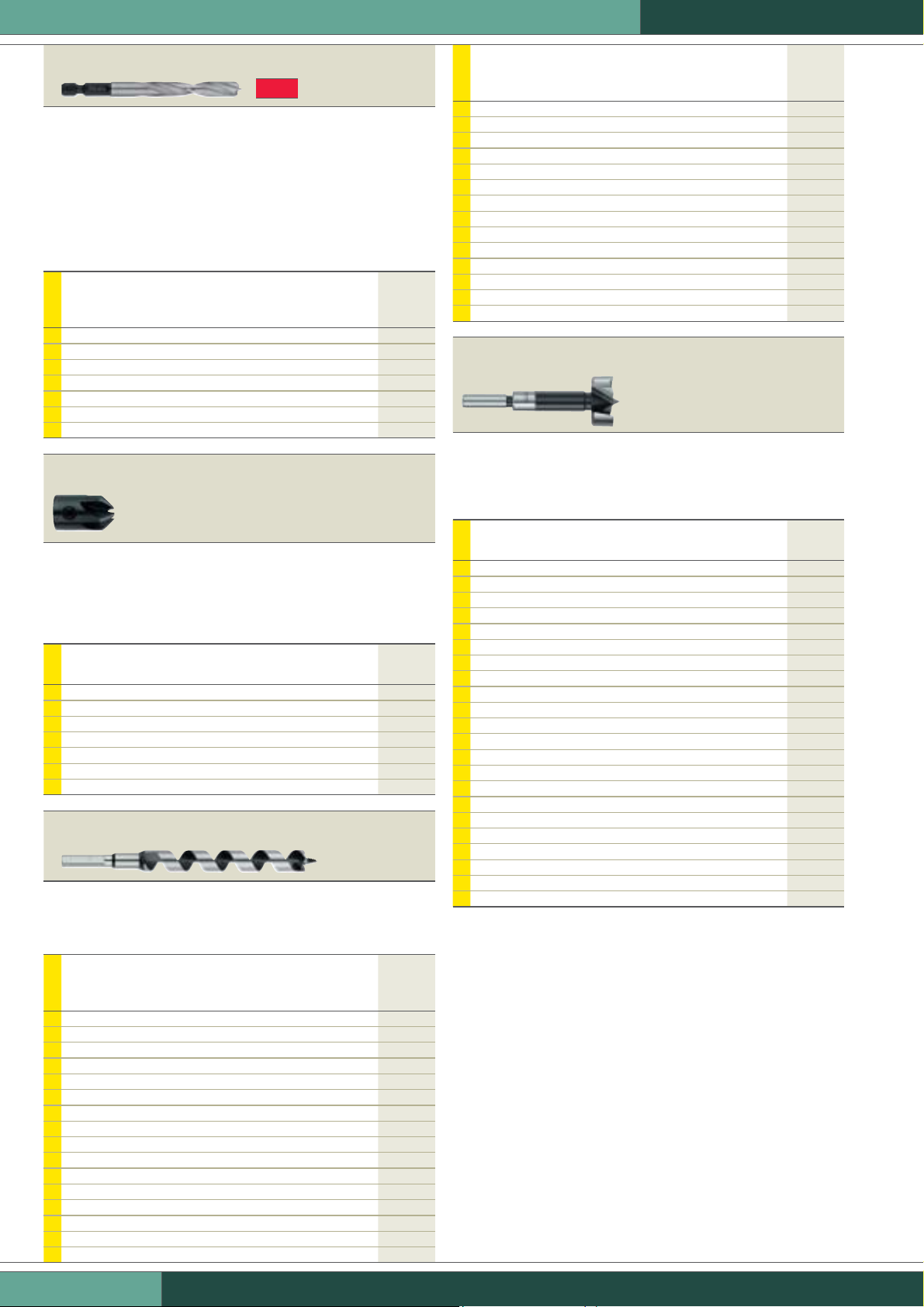

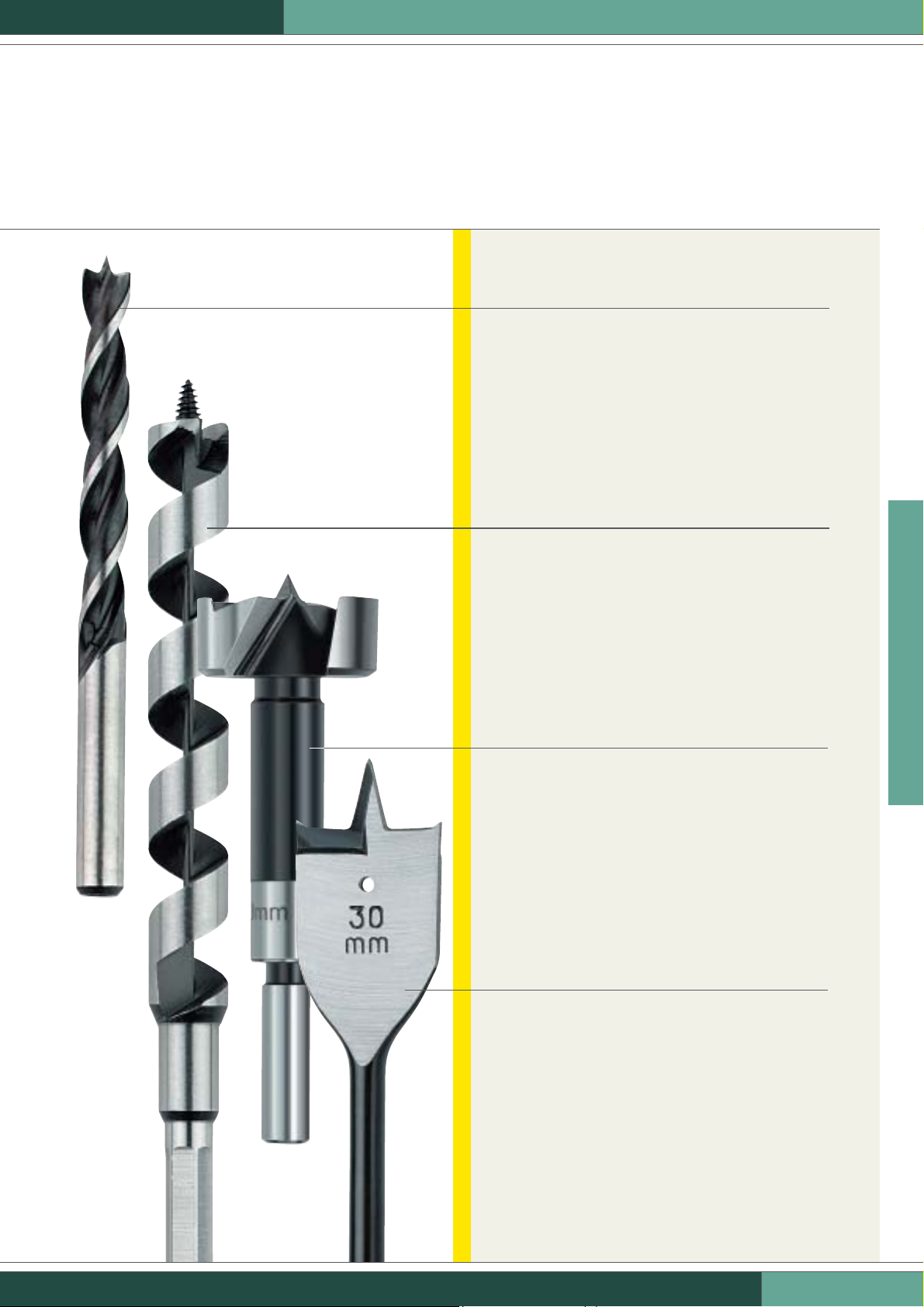

Drill bits for wood Page 117–119
DRILL BITS
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
Wood drill bit CV
Spiral drill of top quality for wood drilling, similar to
DIN 7487, hardened with spot drill point
Application:
For drilling hard and soft wood, plywood, chipboards etc.
Auger bit
Auger bit for timber with self centring thread point and
pre-cutting action, with hexagon shaft, specially fast drilling
cycle, very good swarf removal.
Application:
Ideal for drilling deep holes in thick hard and soft wood,
especially timber beams.
Forstner pattern drill bit
similar to DIN 7483 with spotting centre, 2 main cutting edges
and 2 taper taps.
Application:
For use on hard and soft wood, veneered wooden panels.
Suited for drilling blind holes.
Flat timber drill bit
Wood drill of top grade steel, manufactured with spotting
points for accurate spot drilling and equipped with
2 side cutting edges to ensure splinter-free drilling.
The 3/4" (6,35 mm) hexagonal shaft fits into common
chucks and into E 6.3 adapters.
Application:
For quick drilling soft wood, boards, chipboards, plywood, etc.
MACHINES
WOOD SANDING
ROUTERS
AND PLANERS
| 109
Page 19
DRILL BITS
DRILL BITS FOR METAL
HSS-R metal drill bit, DIN 338, roll-milled
Spiral drill bit made of high grade high speed steel according
to DIN 338, roll-milled, cylindrical, right-hand cutting, type N
Cone-shaped shell polished surface 118°, diameter tolerance h8
Black surface
Suitable for drilling in steel, non-ferrous metals, alloyed
and non-alloyed cast steel. Up to 900 N/mm² tensile strength.
Diameter
mm
Overall lengthmmWorking
length
mm
Packed loosely
1 34 12 10 6.27700
1,1 36 14 10 6.27701
1,2 38 16 10 6.27702
1,3 38 16 10 6.27703
1,4 40 18 10 6.27704
1,5 40 18 10 6.27705
1,6 43 20 10 6.27706
1,7 43 20 10 6.27707
1,8 46 22 10 6.27708
1,9 46 22 10 6.27709
2 49 24 10 6.27710
2,1 49 24 10 6.27711
2,2 53 27 10 6.27712
2,3 53 27 10 6.27713
2,4 57 30 10 6.27714
2,5 57 30 10 6.27715
2,6 57 30 10 6.27716
2,7 61 33 10 6.27717
2,8 61 33 10 6.27718
2,9 61 33 10 6.27719
3 61 33 10 6.27720
3,1 65 36 10 6.27721
3,2 65 36 10 6.27722
3,3 65 36 10 6.27723
3,4 70 39 10 6.27724
3,5 70 39 10 6.27725
3,6 70 39 10 6.27726
3,7 70 39 10 6.27727
3,8 75 43 10 6.27728
3,9 75 43 10 6.27729
4 75 43 10 6.27730
4,1 75 43 10 6.27731
4,2 75 43 10 6.27732
4,3 80 47 10 6.27733
4,4 80 47 10 6.27734
4,5 80 47 10 6.27735
4,6 80 47 10 6.27736
4,7 80 47 10 6.27737
4,8 86 52 10 6.27738
4,9 86 52 10 6.27739
5 86 52 10 6.27740
5,1 86 52 10 6.27741
5,2 86 52 10 6.27742
5,3 93 57 10 6.27743
5,4 93 57 10 6.27744
5,5 93 57 10 6.27745
5,6 93 57 10 6.27746
5,7 93 57 10 6.27747
5,8 93 57 10 6.27748
5,9 93 57 10 6.27749
6 93 57 10 6.27750
6,1 101 63 10 6.27751
6,2 101 63 10 6.27752
6,3 101 63 10 6.27753
6,4 101 63 10 6.27754
6,5 101 63 10 6.27755
Packing
unit
Order
no.
Diameter
mm
Overall lengthmmWorking
length
Packing
unit
Order
no.
mm
6,6 101 63 10 6.27756
6,7 101 63 10 6.27757
6,8 109 69 10 6.27758
6,9 109 69 10 6.27759
7 109 69 10 6.27760
7,1 109 69 10 6.27761
7,2 109 69 10 6.27762
7,3 109 69 10 6.27763
7,4 109 69 10 6.27764
7,5 109 69 10 6.27765
7,6 117 75 10 6.27766
7,7 117 75 10 6.27767
7,8 117 75 10 6.27768
7,9 117 75 10 6.27769
8 117 75 10 6.27770
8,1 117 75 10 6.27771
8,2 117 75 10 6.27772
8,3 117 75 10 6.27773
8,4 117 75 10 6.27774
8,5 117 75 10 6.27775
8,6 125 81 10 6.27776
8,7 125 81 10 6.27777
8,8 125 81 10 6.27778
8,9 125 81 10 6.27779
9 125 81 10 6.27780
9,1 125 81 10 6.27781
9,2 125 81 10 6.27782
9,3 125 81 10 6.27783
9,4 125 81 10 6.27784
9,5 125 81 10 6.27785
9,6 133 87 10 6.27786
9,7 133 87 10 6.27787
9,8 133 87 10 6.27788
9,9 133 87 10 6.27789
10 133 87 10 6.27790
10,2 133 87 5 6.27792
10,5 133 87 5 6.27795
11 142 94 5 6.27800
11,5 142 94 5 6.27805
12 151 101 5 6.27810
12,5 151 101 5 6.27815
13 151 101 5 6.27820
Self-service packaging
1 34 12 2 6.27821
1,5 40 18 2 6.27822
2 49 24 2 6.27823
2,5 57 30 2 6.27824
3 61 33 2 6.27825
3,2 65 36 2 6.27826
3,5 70 39 2 6.27827
4 75 43 2 6.27828
4,2 75 43 1 6.27829
4,5 80 47 1 6.27830
4,8 86 52 1 6.27831
5 86 52 1 6.27832
5,5 93 57 1 6.27833
6 93 57 1 6.27834
6,5 101 63 1 6.27835
6,8 109 69 1 6.27836
7 109 69 1 6.27837
7,5 109 69 1 6.27838
8 117 75 1 6.27839
8,5 117 75 1 6.27841
9 125 81 1 6.27842
9,5 125 81 1 6.27843
10 133 87 1 6.27844
10,5 133 87 1 6.27846
11 142 94 1 6.27847
11,5 142 94 1 6.27848
12 151 101 1 6.27849
12,5 151 101 1 6.27850
13 151 101 1 6.27851
110 |
Page 20
DRILL BITS

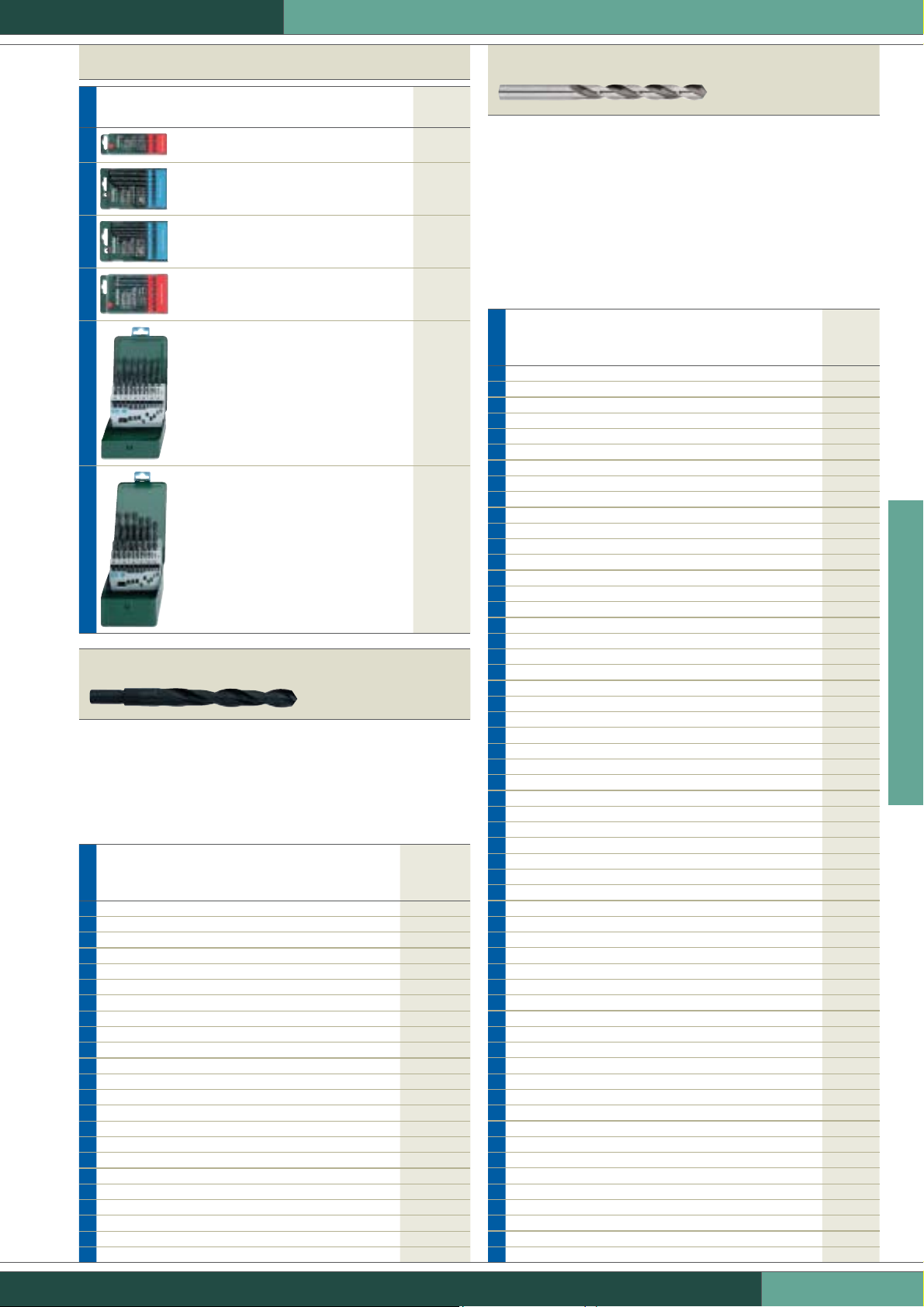

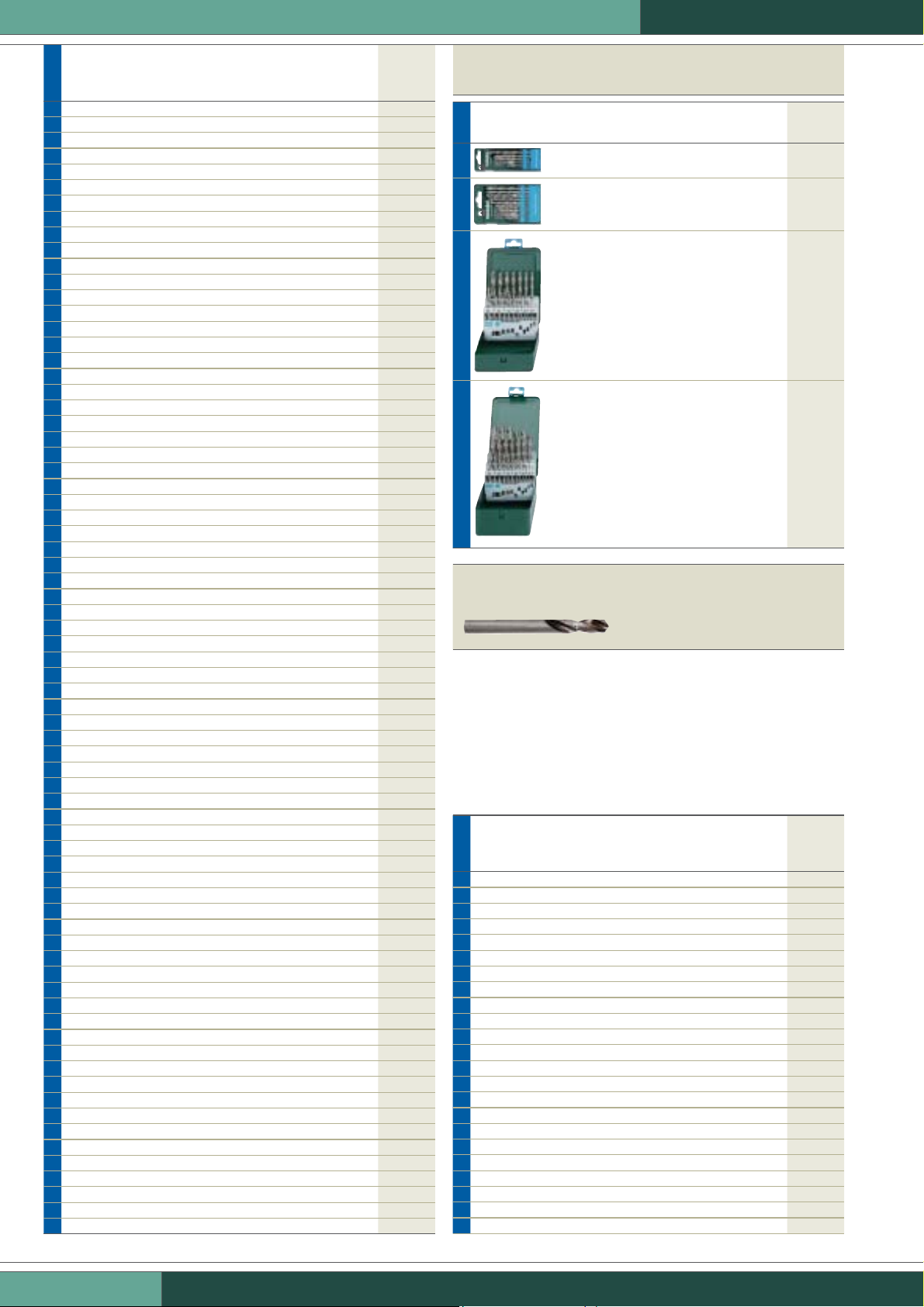

HSS-R metal drill bit, DIN 338, roll-milled, assortments
6-piece, in small plastic case
Ø 2 / 3 / 4 / 5 / 6 / 8 mm
10-piece, in small plastic case
Ø 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 mm
13-piece, in small plastic case
Ø 1.5 / 2 / 2.5 / 3 / 3.2 / 3.5 / 4 / 4.5 /
4.8 / 5 / 5.5 / 6 / 6.5 mm
13-piece, in small plastic case
Ø 2 / 2,5 / 3 / 3,5 / 4 / 4,5 / 5 / 5,5 /
6 / 6,5 / 7 / 7,5 / 8 mm
19-piece, in small metal case
Ø 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 /
5 / 5.5 / 6 / 6.5 / 7 / 7.5 / 8 / 8.5 /
9 / 9.5 / 10 mm
25-piece, in small metal case
Ø 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 /
5 / 5.5 / 6 / 6.5 /7 / 7.5 / 8 / 8.5 /
9 / 9.5 / 10 / 10.5 / 11 / 11.5 / 12 /
12.5 / 13 mm
HSS-R metal drill bit, DIN 338, with offset shaft
Spiral drill bit made of high grade high speed steel according
to DIN 338, roll-milled, cylindrical, right-hand cutting, type N
Cone-shaped shell polished surface 118°, diameter tolerance h8
Black surface
Suitable for drilling in steel, non-ferrous metals, alloyed
and non-alloyed cast steel. Up to 900 N/mm² tensile strength.
Diameter
mm
Overall lengthmmWorking
length
mm
Packing unit Order no.
Self-service packaging
Shaft-Ø 10 mm
10,5 133 87 1 6.25000
11 142 94 1 6.25001
11,5 142 94 1 6.25002
12 151 101 1 6.25003
12,5 151 101 1 6.25004
13 151 101 1 6.25005
13,5 160 108 1 6.25006
14 160 108 1 6.25007
14,5 169 114 1 6.25008
15 169 114 1 6.25009
15,5 178 120 1 6.25010
16 178 120 1 6.25011
Shaft-Ø 13 mm
16,5 184 125 1 6.25012
17 184 125 1 6.25013
17,5 191 130 1 6.25014
18 191 130 1 6.25015
18,5 198 135 1 6.25016
19 198 135 1 6.25017
19,5 205 140 1 6.25018
20 205 140 1 6.25019
Order
no.
6.27160
6.27158
6.27161
6.27162
6.27164
6.27159
HSS-G metal drill bit, DIN 338, ground
Precision spiral drill bit made of high-grade high speed steel
according to DIN 338, precision ground, cylindrical, right-hand
cutting, type N, crosswise grinding 135° according to DIN 1412 C
(from 3 mm), diameter tolerance h8
Bare surface
For maximum load and precision in industry and craft.
For drilling steel and cast steel, alloyed and unalloyed,
grey cast iron, malleable cast iron, ductile cast iron,
sintered iron, nickel silver, graphite, non-ferrous
metals, plastic. Up to 900 N/mm² tensile strength.
Diameter
mm
Overall lengthmmWorking
length
Packing
unit
mm
Packed loosely
1 34 12 10 6.27852
1,1 36 14 10 6.27853
1,2 38 16 10 6.27854
1,3 38 16 10 6.27855
1,4 40 18 10 6.27856
1,5 40 18 10 6.27857
1,6 43 20 10 6.27858
1,7 43 20 10 6.27859
1,8 46 22 10 6.27860
1,9 46 22 10 6.27861
2 49 24 10 6.27862
2,1 49 24 10 6.27863
2,2 53 27 10 6.27864
2,3 53 27 10 6.27865
2,4 57 30 10 6.27866
2,5 57 30 10 6.27867
2,6 57 30 10 6.27868
2,7 61 33 10 6.27869
2,8 61 33 10 6.27870
2,9 61 33 10 6.27871
3 61 33 10 6.27872
3,1 65 36 10 6.27873
3,2 65 36 10 6.27874
3,3 65 36 10 6.27875
3,4 70 39 10 6.27876
3,5 70 39 10 6.27877
3,6 70 39 10 6.27878
3,7 70 39 10 6.27879
3,8 75 43 10 6.27880
3,9 75 43 10 6.27881
4 75 43 10 6.27882
4,1 75 43 10 6.27883
4,2 75 43 10 6.27884
4,3 80 47 10 6.27885
4,4 80 47 10 6.27886
4,5 80 47 10 6.27887
4,6 80 47 10 6.27888
4,7 80 47 10 6.27889
4,8 86 52 10 6.27890
4,9 86 52 10 6.27891
5 86 52 10 6.27892
5,1 86 52 10 6.27893
5,2 86 52 10 6.27894
5,3 86 52 10 6.27895
5,4 93 57 10 6.27896
5,5 93 57 10 6.27897
5,6 93 57 10 6.27898
5,7 93 57 10 6.27899
5,8 93 57 10 6.27900
5,9 93 57 10 6.27901
6 93 57 10 6.27902
6,1 101 63 10 6.27903
6,2 101 63 10 6.27904
6,3 101 63 10 6.27905
6,4 101 63 10 6.27906
6,5 101 63 10 6.27907
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
Order
no.
MACHINES
WOOD SANDING
ROUTERS
AND PLANERS
| 111
Page 21
DRILL BITS
Diameter
mm
Overall lengthmmWorking
length
Packing
unit
Order
no.
mm
6,6 101 63 5 6.27908
6,7 101 63 5 6.27909
6,8 109 69 5 6.27910
6,9 109 69 5 6.27911
7 109 69 5 6.27912
7,1 109 69 5 6.27913
7,2 109 69 5 6.27914
7,3 109 69 5 6.27915
7,4 109 69 5 6.27916
7,5 109 69 5 6.27917
7,6 117 75 5 6.27918
7,7 117 75 5 6.27919
7,8 117 75 5 6.27920
7,9 117 75 5 6.27921
8 117 75 5 6.27922
8,1 117 75 5 6.27923
8,2 117 75 5 6.27924
8,3 117 75 5 6.27925
8,4 117 75 5 6.27926
8,5 117 75 5 6.27927
8,6 125 81 5 6.27928
8,7 125 81 5 6.27929
8,8 125 81 5 6.27930
8,9 125 81 5 6.27931
9 125 81 5 6.27932
9,1 125 81 5 6.27933
9,2 125 81 5 6.27934
9,3 125 81 5 6.27935
9,4 125 81 5 6.27936
9,5 125 81 5 6.27937
9,6 133 87 5 6.27938
9,7 133 87 5 6.27939
9,8 133 87 5 6.27940
9,9 133 87 5 6.27941
10 133 87 5 6.27942
10,2 133 87 5 6.27943
10,5 133 87 5 6.27944
11 142 94 5 6.27945
11,5 142 94 5 6.27946
12 151 101 5 6.27947
12,5 151 101 5 6.27948
13 151 101 5 6.27949
Self-service packaging
1 34 12 2 6.27950
1,5 40 18 2 6.27951
2 49 24 2 6.27952
2,5 57 30 2 6.27953
3 61 33 2 6.27954
3,2 65 36 2 6.27955
3,5 70 39 2 6.27957
4 75 43 2 6.27958
4,2 80 47 1 6.27960
4,5 80 47 1 6.27961
4,8 86 52 1 6.27962
5 86 52 1 6.27963
5,5 93 57 1 6.27966
6 93 57 1 6.27967
6,5 101 63 1 6.27968
6,8 109 69 1 6.27969
7 109 69 1 6.27970
7,5 109 69 1 6.27971
8 117 75 1 6.27973
8,5 117 75 1 6.27975
9 125 81 1 6.27976
9,5 125 81 1 6.27977
10 133 87 1 6.27978
10,5 133 87 1 6.27980
11 142 94 1 6.27981
11,5 142 94 1 6.27982
12 151 101 1 6.27983
12,5 151 101 1 6.27984
13 151 101 1 6.27985
HSS-G metal drill bit, DIN 338, ground,
assortments
6-piece, in small plastic case
Ø 2 / 3 / 4 / 5 / 6 / 8 mm
13-piece, in small plastic case
Ø 1.5 / 2 / 2.5 / 3 / 3.2 / 3.5 / 4 / 4.5 /
4.8 / 5 / 5.5 / 6 / 6.5 mm
19-piece, in small metal case
Ø 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 /
5 / 5.5 / 6 / 6.5 / 7 / 7.5 / 8 / 8.5 /
9 / 9.5 / 10 mm
25-piece, in small metal case
Ø 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 / 5 /
5.5 / 6 / 6.5 /7 / 7.5 / 8 / 8.5 / 9 / 9.5 /
10 / 10.5 / 11 / 11.5 / 12 / 12.5 / 13 mm
HSS-GS metal drill bit, DIN 1897,
extra short
Special spiral drill bit made of high grade high speed
steel according to DIN 1897, ground from the whole, extra short,
right-hand cutting, with crosswise grinding 118° (from 3 mm),
diameter tolerance h8
Bare surface
For drilling steel and cast steel, alloyed and non-alloyed.
Bis zu 900 N/mm² Zugfestigkeit.
Suitable for high demands on automatic systems
and revolving lathes.
Diameter
mm
Overall lengthmmWorking
length
Packing
unit
mm
Packed loosely
2 38 12 10 6.25071
2,1 38 12 10 6.25072
2,2 38 12 10 6.25073
2,3 40 13 10 6.25074
2,4 43 14 10 6.25075
2,5 43 14 10 6.25076
2,6 43 14 10 6.25077
2,7 46 16 10 6.25078
2,8 46 16 10 6.25079
2,9 46 16 10 6.25080
3 46 16 10 6.25081
3,1 49 18 10 6.25082
3,2 49 18 10 6.25083
3,25 49 18 10 6.25084
3,3 49 18 10 6.25085
3,4 52 20 10 6.25086
3,5 52 20 10 6.25087
3,6 52 20 10 6.25088
3,7 52 20 10 6.25089
3,8 55 22 10 6.25090
3,9 55 22 10 6.25091
4 55 22 10 6.25092
Order
no.
6.27094
6.27096
6.27097
6.27098
Order
no.
112 |
Page 22

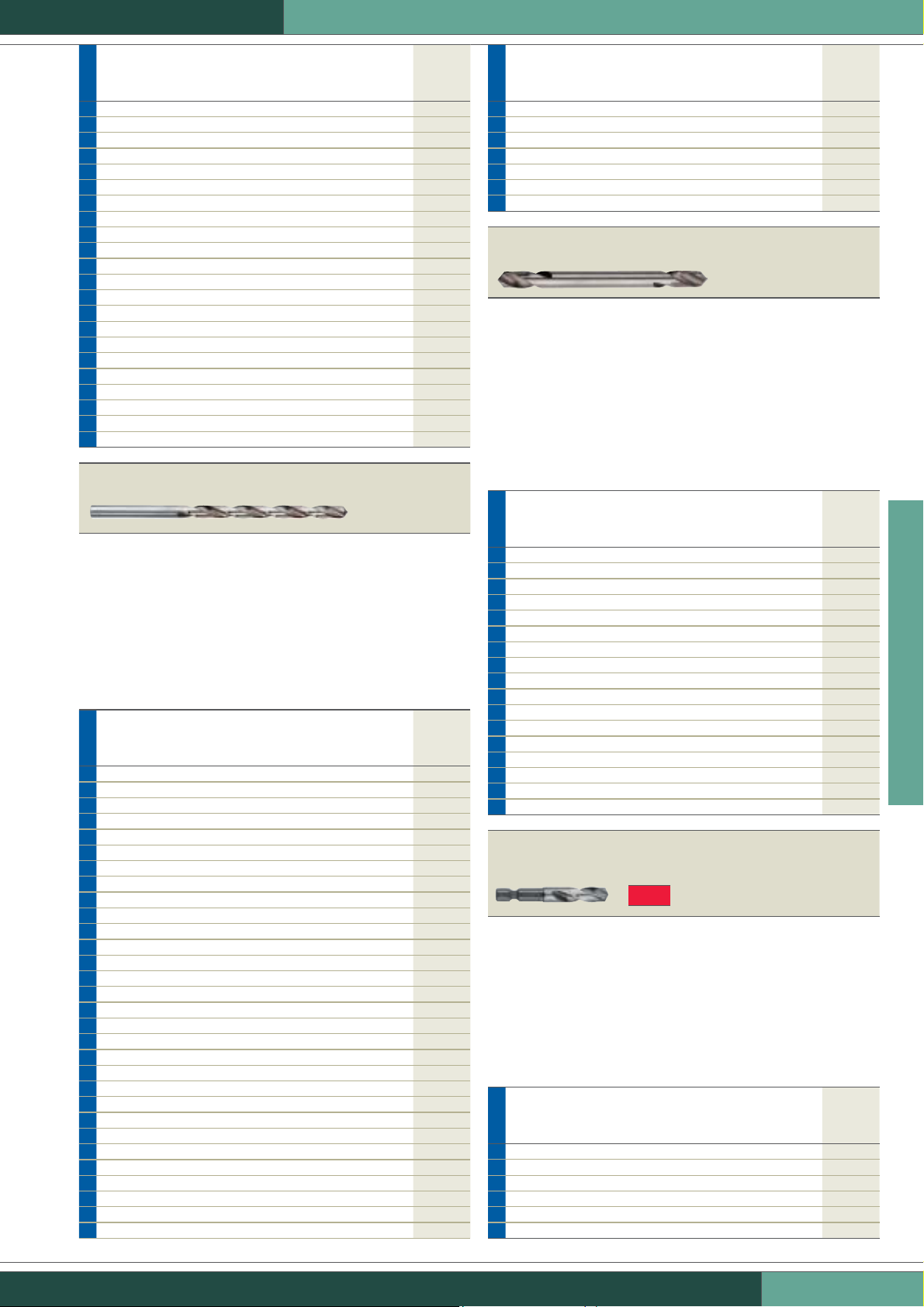

DRILL BITS
Diameter
mm
Overall lengthmmWorking
length
Packing
unit
mm
4,1 55 22 10 6.25093
4,2 55 22 10 6.25094
4,3 58 24 10 6.25095
4,4 58 24 10 6.25096
4,5 58 24 10 6.25097
4,6 58 24 10 6.25098
4,7 58 24 10 6.25099
4,8 62 26 10 6.25100
4,9 62 26 10 6.25101
5 62 26 10 6.25102
5,1 62 26 10 6.25103
5,2 62 26 10 6.25104
5,5 66 28 10 6.25105
5,7 66 28 10 6.25106
6 66 28 10 6.25107
6,5 70 31 10 6.25108
7 74 34 10 6.25109
7,5 74 34 5 6.25110
8 79 37 5 6.25111
8,5 79 37 5 6.25112
9 84 40 5 6.25113
10 89 43 5 6.25115
HSS-G metal drill bit, long, DIN 340
Precision spiral drill bit made of high grade high speed steel
according to DIN 340, ground from the whole, long, cylindrical,
right-hand cutting, type N, crosswise grinding 135° according
to DIN 1412 C (from 3 mm), diameter tolerance h8
Bare surface
For highest demands and precision in industry and craft
For drilling steels, cast steel, alloyed and unalloyed,
grey cast iron, ductile cast iron, sintered iron,
nickel silver, graphite. Up to 900 N/mm² tensile strength.
Diameter
mm
Overall lengthmmWorking
length
Packing
unit
mm
Self-service packaging
2 85 56 1 6.25031
2,5 95 62 1 6.25032
3 100 66 1 6.25033
3,1 106 69 1 6.25034
3,2 106 69 1 6.25035
3,3 112 73 1 6.25036
3,5 112 73 1 6.25037
4 119 78 1 6.25038
4,1 119 78 1 6.25039
4,2 119 78 1 6.25040
4,5 126 82 1 6.25041
4,8 132 87 1 6.25042
5 132 87 1 6.25043
5,1 139 87 1 6.25044
5,2 139 87 1 6.25045
5,3 139 87 1 6.25046
5,5 139 91 1 6.25047
5,7 139 91 1 6.25048
5,8 139 91 1 6.25049
6 139 91 1 6.25050
6,5 148 97 1 6.25051
6,8 156 102 1 6.25052
7 156 102 1 6.25053
7,5 156 102 1 6.25054
8 165 109 1 6.25055
8,5 165 109 1 6.25056
9 175 115 1 6.25057
9,5 175 115 1 6.25058
10 184 121 1 6.25059
Order
no.
Order
no.
Diameter
mm
Overall lengthmmWorking
length
Packing
unit
mm
10,2 184 121 1 6.25060
10,5 184 121 1 6.25061
11 195 128 1 6.25062
11,5 195 128 1 6.25063
12 205 134 1 6.25064
12,5 205 134 1 6.25065
13 205 134 1 6.25066
HSS-GS double-end drill bit
Special spiral drill bit made of high-grade high speed steel
according to works standards, ground from the whole,
extra short, right-hand cutting, with crosswise
grinding 118° (from 3 mm), diameter tolerance h8
Bare surface
Double-sided special drill for thin sheet holes
Sturdy construction for robust drilling conditions
in the hand-held drill
For drilling thin workpieces such as sheet steel,
brass sheet, zinc sheet, copper sheet, aluminium sheet,
plastic boards
Diameter
mm
Overall lengthmmWorking
length
Packing
unit
mm
Packed loosely
2,5 43 10 10 6.25133
3 46 12 10 6.25134
3,1 49 12 10 6.25135
3,2 49 12 10 6.25136
3,3 49 12 10 6.25137
3,5 52 12 10 6.25138
4 55 12 10 6.25139
4,1 55 12 10 6.25140
4,2 55 12 10 6.25141
4,5 58 12 10 6.25142
4,8 62 14 10 6.25143
5 62 14 10 6.25144
5,1 62 14 10 6.25145
5,2 62 14 10 6.25146
5,5 66 16 10 6.25147
6 66 19 10 6.25148
HSS-G metal drill bit, DIN 3126,
with hexagonal shank
NEW
High quality precision tool made of the finest hardened steel
Precision ground from one piece (not a bolted or
welded 2-piece product).
Ideal for the new generation of drills equipped with
quick change keyless chuck according to DIN 3126.
Our drills' strict compliance to DIN 3126 E6.3 ensures
that the chuck is not damaged.
Diameter
mm
Overall lengthmmWorking
length
Packing
unit
mm
2 47 16 1 6.27514
3 47 16 1 6.27515
4 53 20 1 6.27516
5 59 26 1 6.27517
6 59 26 1 6.27518
8 60 32 1 6.27519
Order
no.
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
Order
no.
MACHINES
WOOD SANDING
Order
no.
ROUTERS
AND PLANERS
| 113
Page 23

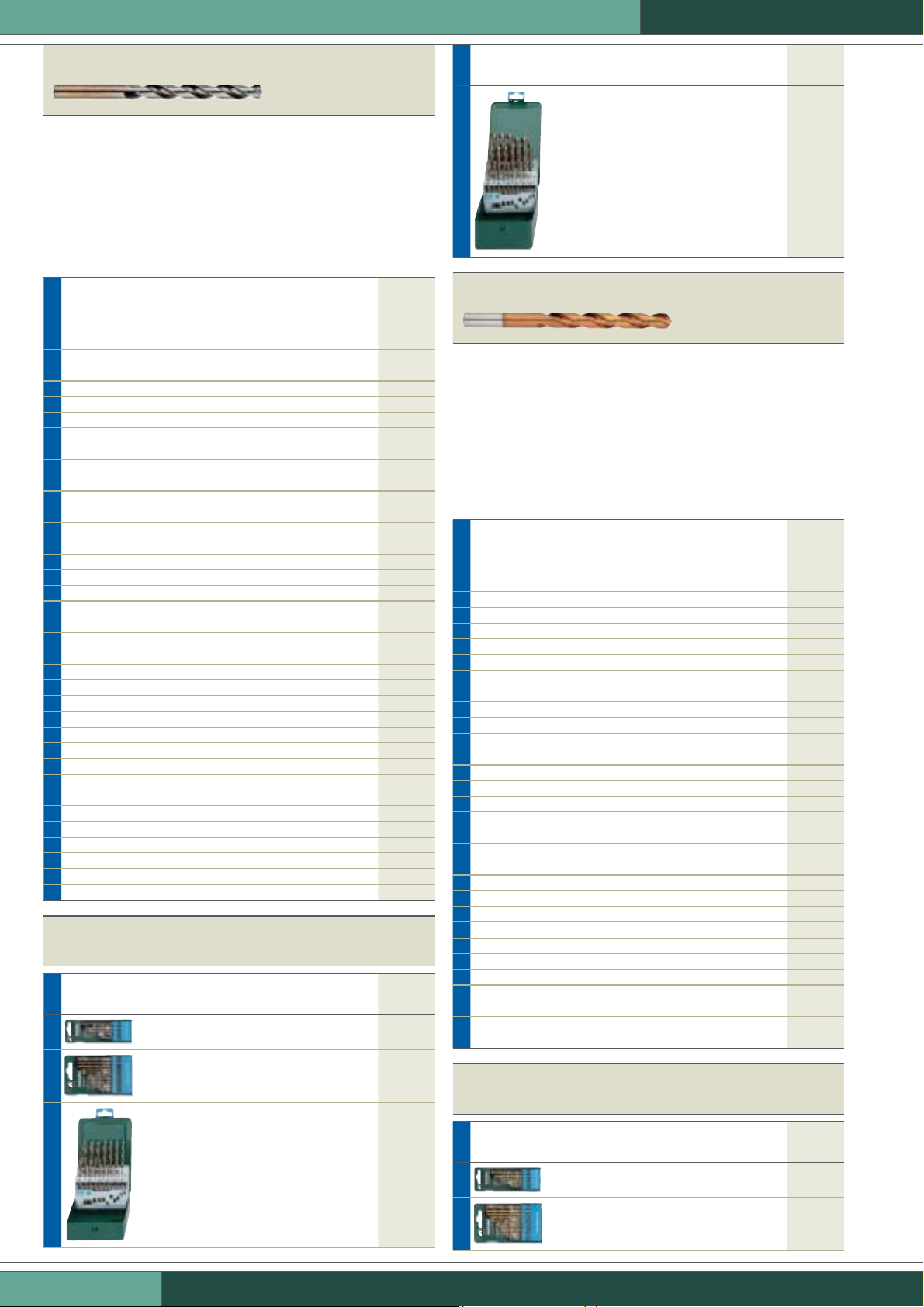

DRILL BITS
HSS-Co metal drill bit, DIN 338
Precision spiral drill bit made of cobalt-alloy high-grade high speed
steel according to DIN 338, precision-ground, cylindrical, type N,
reinforced core thickness, with crosswise grinding 135° according
to DIN 1412 C (from 2 mm), diameter tolerance h8
Bronze surface
For exceptional demands and precision work in small trading and
industry
For drilling in steel, VA steel, cast steel, NE metals, plastics, special
alloys, CrNi steel up to 1100 N/mm² tensile strength
Diameter
mm
Overall lengthmmWorking
length
Packing
unit
Order
no.
mm
Self-service packaging
1 34 12 2 6.27430
1,5 40 18 2 6.27431
2 49 24 2 6.27432
2,5 57 30 2 6.27433
3 61 33 2 6.27435
3,2 65 36 2 6.27436
3,3 65 36 2 6.27437
3,5 70 39 2 6.27438
4 75 43 2 6.27439
4,1 75 43 1 6.27440
4,2 75 43 1 6.27441
4,5 80 47 1 6.27442
4,8 86 52 1 6.27443
5 86 52 1 6.27444
5,1 86 52 1 6.27445
5,2 86 52 1 6.27446
5,5 93 57 1 6.27447
6 93 57 1 6.27448
6,5 101 63 1 6.27449
6,8 109 69 1 6.27450
7 109 69 1 6.27451
7,5 109 69 1 6.27452
8 117 75 1 6.27454
8,2 117 75 1 6.27455
8,5 117 75 1 6.27456
9 125 81 1 6.27457
9,5 125 81 1 6.27458
10 133 87 1 6.27459
10,2 133 87 1 6.27460
10,5 133 87 1 6.27461
11 142 94 1 6.27462
11,5 142 94 1 6.27463
12 151 101 1 6.27464
12,5 151 101 1 6.27465
13 151 101 1 6.27466
HSS-Co metal drill bit, DIN 338,
assortments
Order
no.
6-piece, in small plastic case
6.27119
Ø 2 / 3 / 4 / 5 / 6 / 8 mm
13-piece, in small plastic case
6.27120
Ø 1.5 / 2 / 2.5 / 3 / 3.2 / 3.5 / 4 / 4.5 /
4.8 / 5 / 5.5 / 6 / 6.5 mm
19-piece, in small metal case
6.27121
Ø 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 /
5 / 5.5 / 6 / 6.5 / 7 / 7.5 / 8 / 8.5 /
9 / 9.5 / 10 mm
25-piece, in small metal case
Ø 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 / 5 /
5.5 / 6 / 6.5 /7 / 7.5 / 8 / 8.5 / 9 / 9.5 /
10 / 10.5 / 11 / 11.5 / 12 / 12.5 / 13 mm
HSS-TiN metal drill bit, DIN 338
Precision spiral drill bit made of high grade high speed steel
according to DIN 338
Coating with titanium nitride for especially high tool life,
precision-ground, cylindrical, right-hand cutting, type N,
crosswise grinding 135° according to DIN 1412 C (from 3 mm),
diameter tolerance h8.
Gold painted surface
For drilling steels, cast steel, alloyed and unalloyed,
grey cast iron, non ferrous metals, plastics.
Up to 900 N/mm² tensile strength.
Diameter
mm
Overall lengthmmWorking
length
Packing
unit
mm
Self-service packaging
1 34 12 2 6.27540
1,5 40 18 2 6.27541
2 49 24 2 6.27542
2,5 57 30 2 6.27543
3 61 33 2 6.27545
3,2 65 36 2 6.27546
3,5 70 39 2 6.27548
4 75 43 2 6.27550
4,2 75 43 1 6.27552
4,5 80 47 1 6.27554
4,8 86 52 1 6.27555
5 86 52 1 6.27556
5,5 93 57 1 6.27559
6 93 57 1 6.27560
6,5 101 63 1 6.27561
6,8 109 69 1 6.27562
7 109 69 1 6.27563
7,5 109 69 1 6.27564
8 117 75 1 6.27566
8,5 117 75 1 6.27568
9 125 81 1 6.27569
9,5 125 81 1 6.27570
10 133 87 1 6.27571
10,5 133 87 1 6.27573
11 142 94 1 6.27574
11,5 142 94 1 6.27575
12 151 101 1 6.27576
12,5 151 101 1 6.27577
13 151 101 1 6.27578
HSS-TiN metal drill bit, DIN 338,
assortments
6-piece, in small plastic case
Ø 2 / 3 / 4 / 5 / 6 / 8 mm
13-piece, in small plastic case
Ø 1.5 / 2 / 2.5 / 3 / 3.2 / 3.5 / 4 / 4.5 /
4.8 / 5 / 5.5 / 6 / 6.5 mm
Order
no.
6.27122
Order
no.
Order
no.
6.27171
6.27176
114 |
Page 24

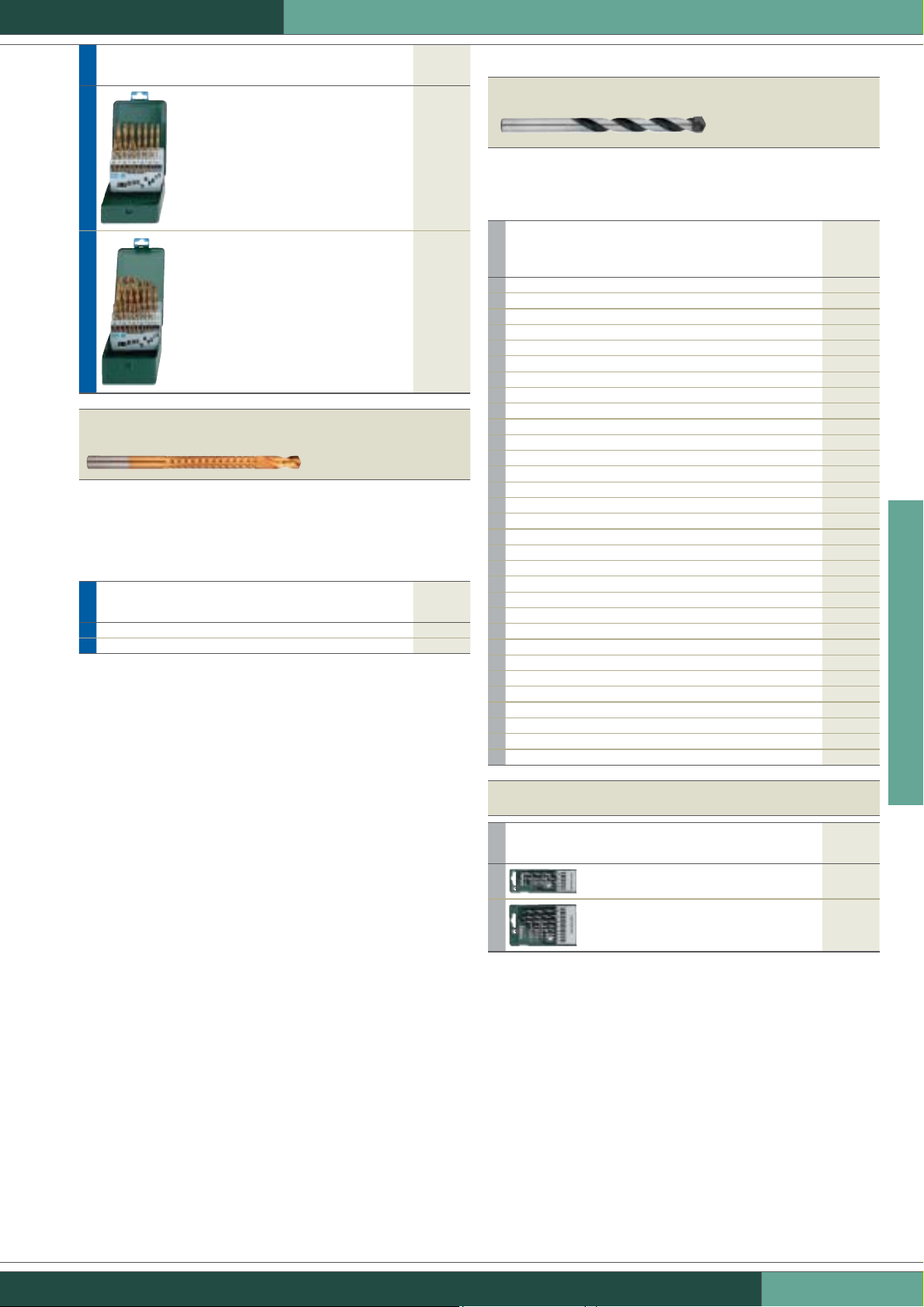

DRILL BITS
19-piece, in small metal case
Ø 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 /
5 / 5.5 / 6 / 6.5 / 7 / 7.5 / 8 / 8.5 /
9 / 9.5 / 10 mm
25-piece, in small metal case
Ø 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 /
5 / 5.5 / 6 / 6.5 /7 / 7.5 / 8 / 8.5 / 9 / 9.5 /
10 / 10.5 / 11 / 11.5 / 12 / 12.5 / 13 mm
HSS-TiN routing drill bit
Routing drill bit made of HSS steel with very efficient
routing spirals, crosswise grinding 135° according
to DIN 1412 C, titanium nitride coating
Extremely suitable for drilling and moulding/routing
any contours in sheets and other thin-walled materials
Diameter
Overall lengthmmPacking unit Order
mm
Self-service packaging
6 90 1 6.25150
Order
no.
6.27173
6.27191
no.
MASONRY DRILL BIT
Drill bit for stone, carbide-tipped
Masonry drill bit for rotary and impact drills, milled version,
carbide plate 130°, robust version
Suitable for drilling in bricks, masonry, natural stone ...
Diameter
mm
Overall lengthmmWorking
length
mm
Self-service packaging
3 60 30 1 6.27467
4 75 40 1 6.27468
5 85 50 1 6.27469
5,5 85 50 1 6.27470
6 100 55 1 6.27471
6,5 100 60 1 6.27472
7 100 60 1 6.27473
8 120 70 1 6.27474
9 120 70 1 6.27475
10 120 70 1 6.27476
11 150 85 1 6.27477
12 150 85 1 6.27478
13 150 95 1 6.27479
14 150 95 1 6.27480
15 150 95 1 6.27481
16 150 95 1 6.27482
18 160 105 1 6.27483
20 160 105 1 6.27484
5 150 85 1 6.27485
5,5 150 85 1 6.27486
6 150 85 1 6.27487
6,5 150 85 1 6.27488
7 150 85 1 6.27489
Packing
unit
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
Order
no.
6 200 135 1 6.27490
8 200 135 1 6.27491
10 200 135 1 6.27492
12 200 135 1 6.27493
14 200 135 1 6.27494
Masonry drill bits, carbide tipped, assortments
5-piece, in small plastic case
Ø 4 / 5 / 6 / 8 / 10 mm
8-piece, in small plastic case
Ø 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 mm
Order
no.
6.27192
6.27193
MACHINES
WOOD SANDING
| 115
ROUTERS
AND PLANERS

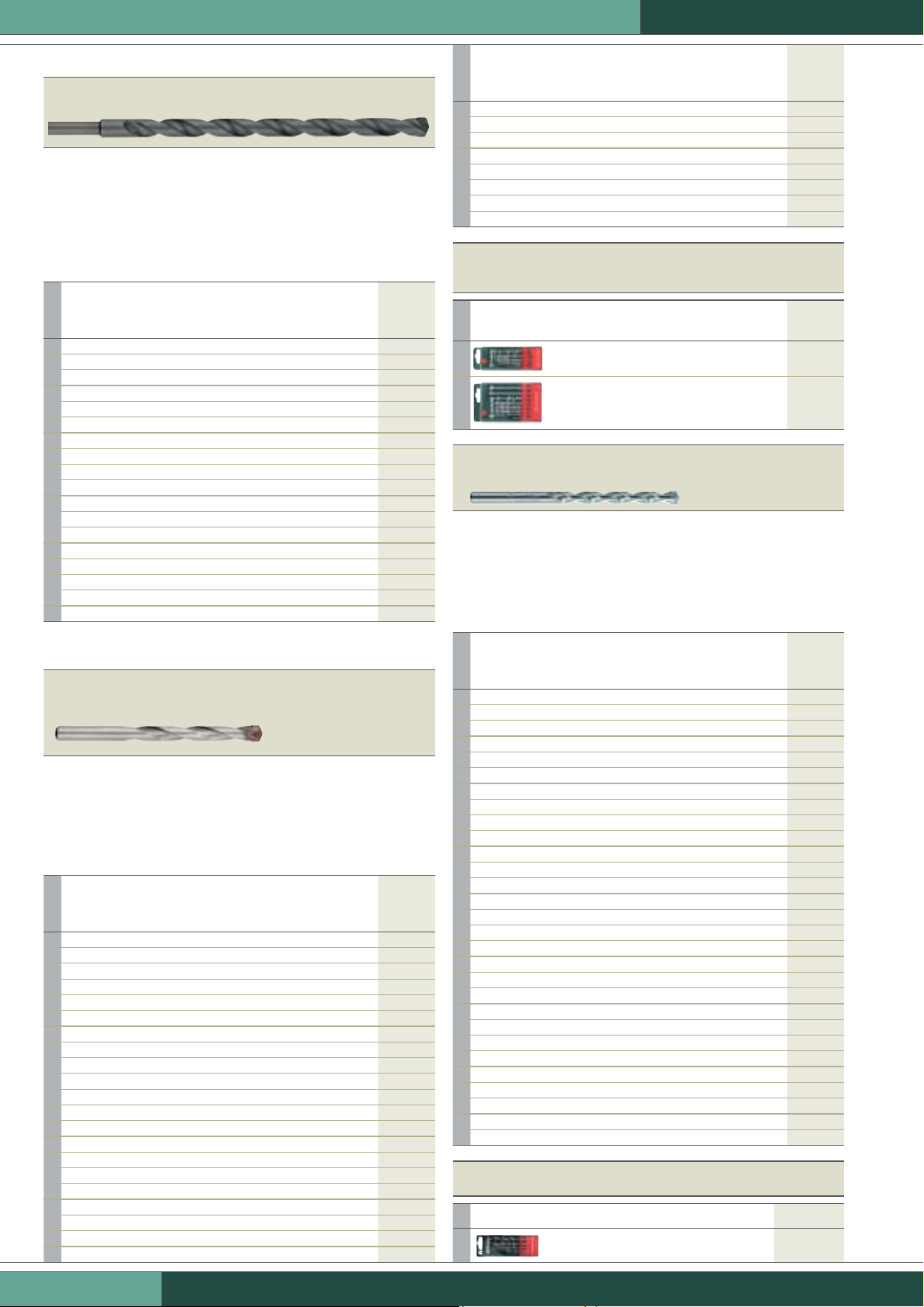

Page 25
DRILL BITS
MASONRY DRILL BIT
Masonry drill bits, carbide tipped
Strong masonry drill bit for rotary and impact drills,
milled version with carbide plate 130°
Shaft model: drill bit Ø 8 - 15 mm = round shaft
Shaft model: drill bit Ø 16 -22 mm = hexagonal shank
Suitable for drilling deep holes in bricks, masonry,
natural and artificial stone
Diameter
mm
Overall lengthmmWorking
length
Packing
unit
mm
Self-service packaging
8 400 300 1 6.27208
10 400 300 1 6.27209
12 400 300 1 6.27210
14 400 300 1 6.27211
16 400 300 1 6.27212
18 400 300 1 6.27213
20 400 300 1 6.27207
22 400 300 1 6.27214
8 600 450 1 6.27215
10 600 450 1 6.27216
12 600 450 1 6.27217
14 600 450 1 6.27218
16 600 450 1 6.27219
18 600 450 1 6.27220
20 600 450 1 6.27222
22 600 450 1 6.27221
CONCRETE DRILL
Drill bit for concrete, carbide-tipped,
"classic" series
Concrete drill bit for rotary and impact drills according
to DIN 8039, milled angle groove, straight spiral intake,
long tool life, heat-resistant, carbide plate 130°,
negative chamfer, robust version
Surface: shot blasted
Suitable for drilling in concrete, masonry, natural stone
Diameter
mm
Overall lengthmmWorking
length
mm
Self-service packaging
4 75 40 1 6.27625
5 85 40 1 6.27626
5,5 85 50 1 6.27627
6 100 55 1 6.27646
6,5 100 55 1 6.27650
7 100 55 1 6.27651
8 120 70 1 6.27652
9 120 70 1 6.27653
10 120 70 1 6.27654
11 150 90 1 6.27655
12 150 90 1 6.27656
13 150 90 1 6.27657
14 150 90 1 6.27658
15 160 100 1 6.27659
16 160 100 1 6.27661
18 160 100 1 6.27662
20 160 100 1 6.27664
5 150 90 1 6.27665
5,5 150 90 1 6.27674
Packing
unit
Order
no.
Order
no.
Diameter
mm
Overall lengthmmWorking
length
Packing
unit
mm
6 150 90 1 6.27675
6,5 150 90 1 6.27677
7 150 90 1 6.27678
8 200 150 1 6.27679
10 200 150 1 6.27697
12 200 150 1 6.27698
14 200 150 1 6.27699
Concrete drill bits, carbide tipped, "classic" series,
assortments
5-piece, in small plastic case
Ø 4 / 5 / 6 / 8 / 10 mm
8-piece, in small plastic case
Ø 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 mm
Drill bit for concrete, carbide-tipped, "pro" series
High grade, robust concrete drill bit according to DIN 8039 with
carbide plate 130°, especially heat-resistant, very long tool life,
with special groove for quick boring dust discharge
Suitable for 3 light rotary hammers and 3 master taps
Surface: blank with black grooves
Suitable for drilling in concrete, masonry,
natural and artificial stone
Diameter
mm
Overall lengthmmWorking
length
Packing
unit
mm
Self-service packaging
4 75 40 1 6.27224
5 85 40 1 6.27225
5,5 85 50 1 6.27226
6 100 55 1 6.27227
6,5 100 55 1 6.27228
7 100 55 1 6.27229
8 120 70 1 6.27230
9 120 70 1 6.27389
10 120 70 1 6.27391
11 150 90 1 6.27392
12 150 90 1 6.27393
13 150 90 1 6.27394
14 150 90 1 6.27395
15 150 90 1 6.27396
16 150 90 1 6.27399
18 160 95 1 6.27409
20 160 95 1 6.27410
5 150 105 1 6.27421
5,5 150 105 1 6.27422
6 150 105 1 6.27423
6,5 150 105 1 6.27424
7 150 105 1 6.27425
8 200 135 1 6.27426
10 200 135 1 6.27427
12 200 135 1 6.27428
14 200 135 1 6.27429
Concrete drill bits, carbide tipped, "pro" series, assortments
Order no.
5-piece, in small plastic case
6.27181
Ø 4 / 5 / 6 / 8 / 10 mm
Order
no.
Order
no.
6.27180
6.27182
Order
no.
116 |
Page 26

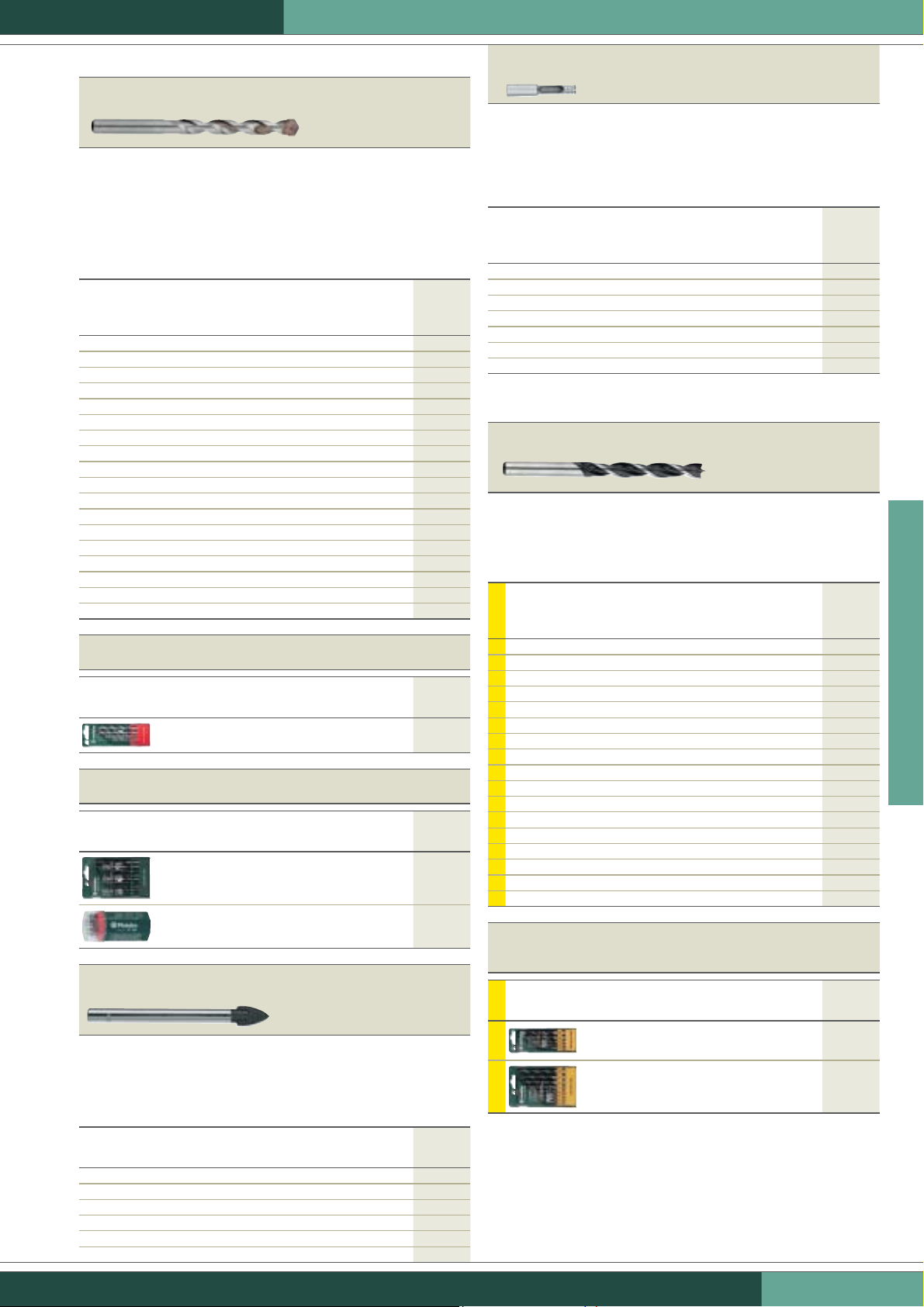

DRILL BITS
DRILL FOR VARIOUS MATERIALS
Universal drill bit, carbide-tipped
Multi-purpose drill bit for straight shaft, for rotary use
With diamond-ground carbide plate and positive,
aggressive cutting angle. Ideal also for use in
cordless drills
Suitable for drilling in wood, metal, plastic, brick,
gypsum boards, aerated concrete, tiles,
ceramics, etc.
Diameter
mm
Overall lengthmmWorking
length
Packing
unit
mm
Self-service packaging
3 70 40 1 6.27696
4 85 50 1 6.27680
5 85 50 1 6.27681
5,5 85 50 1 6.27682
6 100 60 1 6.27683
6 150 90 1 6.27684
6,5 100 60 1 6.27685
6,5 150 90 1 6.27686
7 100 60 1 6.27687
8 120 80 1 6.27688
8 250 200 1 6.27689
9 120 80 1 6.27690
10 120 80 1 6.27691
10 250 200 1 6.27692
12 150 90 1 6.27693
12 250 200 1 6.27694
14 250 200 1 6.27695
Universal drill bits, carbide tipped, assortments
4-piece, in small plastic case
Ø 5 / 6 / 8 / 10 mm
Assortment of drill bits for metal, stone, wood
9-piece, in small plastic case
3 x Ø 5 / 6 / 8 mm each
18-piece, in small plastic case
3 x Ø 3 / 4 / 5 / 6 / 8 / 10 mm each
Glass drill bits, carbide tipped
Glass drill bit with special carbide plate
For drilling in glass, mirror glass, bottles, tiles, etc.
Attention: set low speeds and sufficient cooling
Order
no.
Order
no.
6.27185
Order
no.
6.27179
6.27190
Diamond drill bit
High-performance diamond drill bits for all types of tiles
up to a scratch hardness of class 8. Also suitable for glass,
porcelain, marble, etc.
The drill bit must be cooled with water constantly. For this,
use the supplied cooling and centering system.
For this, use the supplied cooling and centring system.
Diameter
mm
Overall lengthmmWorking
length
Packing
unit
Order
no.
Self-service packaging
5 55 30 1 6.27534
6 55 30 1 6.27535
7 55 30 1 6.27536
8 55 30 1 6.27537
10 55 30 1 6.27538
12 55 30 1 6.27539
WOOD DRILL BITS
CV drill bit for wood, with centring point
Similar to DIN 7487
Wood spiral drill bit made of high grade steel, hardened,
with centring point
For use in hard and soft wood, plywood, chipboards, etc.
Diameter
mm
Overall lengthmmWorking
length
Packing
unit
mm
Self-service packaging
3 61 33 1 6.27986
4 75 43 1 6.27987
5 86 52 1 6.27988
6 93 57 1 6.27989
7 109 69 1 6.27990
8 117 75 1 6.27991
9 120 81 1 6.27992
10 133 87 1 6.27993
11 142 89 1 6.27994
12 151 96 1 6.27995
13 151 96 1 6.27996
14 151 96 1 6.27997
15 160 100 1 6.27998
16 160 100 1 6.27999
18 180 130 1 6.27339
20 200 140 1 6.27340
Wood drill bits, CV, with centring point,
assortments
5-piece, in small plastic case
Ø 4 / 5 / 6 / 8 / 10 mm
8-piece, in small plastic case
Ø 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 mm
Order
no.
Order
no.
6.27200
6.27202
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
MACHINES
WOOD SANDING
Diameter
mm
Overall length
mm
Packing unit Order
no.
Self-service packaging
4 65 1 6.27243
5 65 1 6.27244
6 65 1 6.27245
8 70 1 6.27246
10 80 1 6.27247
ROUTERS
AND PLANERS
| 117
Page 27
DRILL BITS
Wood drill bits with hexagonal shank, DIN 3126
NEW
High quality precision tool made of the finest hardened steel
Precision ground from one piece (not a bolted or welded 2-piece
product).
Ideal for drills equipped with quick change keyless chuck according
to DIN 3126.
Our drills' strict compliance to DIN 3126 E6.3 ensures that the chuck
is not damaged.
With centering point for precise spot-drilling.
Diameter
mm
Overall lengthmmWorking
length
Packing
unit
Order
no.
mm
2 55 20 1 6.27522
3 65 35 1 6.27523
4 75 40 1 6.27524
5 85 50 1 6.27525
6 90 55 1 6.27526
8 90 55 1 6.27527
10 100 60 1 6.27528
Rose bits 90°
5-cut rose bit made of WS steel for acute-angled countersinks,
with Allen screw, for fitting on wood spiral bits
Can also be used as depth guide, countersink easy to rotate
Diameter
mm
Overall lengthmmPacking unit Order
no.
Self-service packaging
3 16 1 6.25020
4 16 1 6.25021
5 16 1 6.25022
6 16 1 6.25023
8 20 1 6.25024
10 20 1 6.25025
Timber auger bits for wood with hexagonal shank
Timber auger bit with self-centring thread tip and rough cutter
Ideal for drilling deep holes in hard and soft wood,
especially beams
Diameter
mm
Overall lengthmmWorking
length
Packing
unit
Order
no.
mm
Self-service packaging
6 230 155 1 6.27115
7 230 155 1 6.27116
8 230 155 1 6.27124
10 230 155 1 6.27125
12 230 155 1 6.27126
14 230 155 1 6.27127
16 230 155 1 6.27128
18 230 155 1 6.27129
20 230 155 1 6.27130
22 230 155 1 6.27131
24 230 155 1 6.27132
26 230 155 1 6.27133
28 230 155 1 6.27134
30 230 155 1 6.27135
32 230 155 1 6.27136
Diameter
mm
Overall lengthmmWorking
length
Packing
unit
mm
8 460 385 1 6.27137
10 460 385 1 6.27138
12 460 385 1 6.27139
14 460 385 1 6.27140
16 460 385 1 6.27141
18 460 385 1 6.27142
20 460 385 1 6.27143
22 460 385 1 6.27144
24 460 385 1 6.27145
26 460 385 1 6.27146
28 460 385 1 6.27147
30 460 385 1 6.27148
32 460 385 1 6.27150
Forstner pattern bits, similar to DIN 7483 G
Forstner pattern bit, similar to DIN 7483 G with centering point,
2 main cutters and 2 ring cutters
For use in hard and soft wood, veneered wooden boards,
etc. Suitable for drilling blind holes.
Diameter
Overall lengthmmPacking unit Order
mm
In plastic round box
10 90 1 6.27579
12 90 1 6.27580
14 90 1 6.27581
15 90 1 6.27582
16 90 1 6.27583
18 90 1 6.27584
20 90 1 6.27585
22 90 1 6.27586
24 90 1 6.27587
25 90 1 6.27588
26 90 1 6.27589
28 90 1 6.27590
30 90 1 6.27591
32 90 1 6.27592
34 90 1 6.27593
35 90 1 6.27594
36 90 1 6.27595
38 90 1 6.27596
40 90 1 6.27597
45 90 1 6.27598
50 90 1 6.27599
Order
no.
no.
118 |
Page 28
DRILL BITS
Carbide multi-spur machine bits
Precision multispur machine bit, similar to DIN 7483 C with
centring point, 2 sharp rough cutters and 2 main cutters made
of carbide steel
For professional use and non-splintering drilling in veneered wooden
boards as well as all natural hard and soft wood types
Diameter
mm
Overall lengthmmPacking unit Order
no.
In plastic round box
10 90 1 6.25120
15 90 1 6.25121
18 90 1 6.25122
20 90 1 6.25123
22 90 1 6.25124
24 90 1 6.25125
25 90 1 6.25126
26 90 1 6.25127
30 90 1 6.25128
35 90 1 6.25129
40 90 1 6.25130
45 90 1 6.25131
50 90 1 6.25132
Flat timber drill bits with 1/4" (6.35 mm)
hexagonal shank
Countersink
Order
no.
pierced
6.23521
Ø 16 mm
Formwork drill bits HSS, DIN 7490
Spiral drill bit made of HPHSS steel for extra long tool life
Corresponds to the safety requirements of the Wood Professional
Association according to DIN 7490
No clamping in drill hole, good chip removal
For drilling in wallings in construction industry as
well as boards, bars, floor boards made of soft and
hard wood. Also suitable for facade and roofer's drill for metal,
profile sheets etc.
Diameter
mm
Overall lengthmmPacking unit Order
no.
Self-service packaging
6 400 1 6.27330
8 400 1 6.27331
10 400 1 6.27332
12 400 1 6.27333
14 400 1 6.27334
16 400 1 6.27335
18 400 1 6.27336
20 400 1 6.27337
22 400 1 6.27338
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
Wood drill bit made of high grade steel, with centring point for
high-precision spot-drilling and two side cutters for quick and
non-splintering drilling in soft wood, chipboard, plywood, light
construction materials...
1/4" (6.35mm) -hexagonal shank fits into conventional chucks
and E6.3 ends
Diameter
Overall lengthmmPacking unit Order
mm
Self-service packaging
8 160 1 6.27311
10 160 1 6.27312
12 160 1 6.27313
13 160 1 6.27314
14 160 1 6.27315
16 160 1 6.27316
18 160 1 6.27317
19 160 1 6.27318
20 160 1 6.27319
22 160 1 6.27320
24 160 1 6.27321
25 160 1 6.27322
26 160 1 6.27323
28 160 1 6.27324
30 160 1 6.27325
32 160 1 6.27326
36 160 1 6.27327
38 160 1 6.27328
Extension for flat timber drill bit
Working length
Packing unit Order
mm
305 1 6.27329
6 600 1 6.27400
8 600 1 6.27401
10 600 1 6.27402
12 600 1 6.27403
14 600 1 6.27404
16 600 1 6.27405
18 600 1 6.27406
20 600 1 6.27407
22 600 1 6.27408
no.
MACHINES
WOOD SANDING
no.
ROUTERS
AND PLANERS
| 119

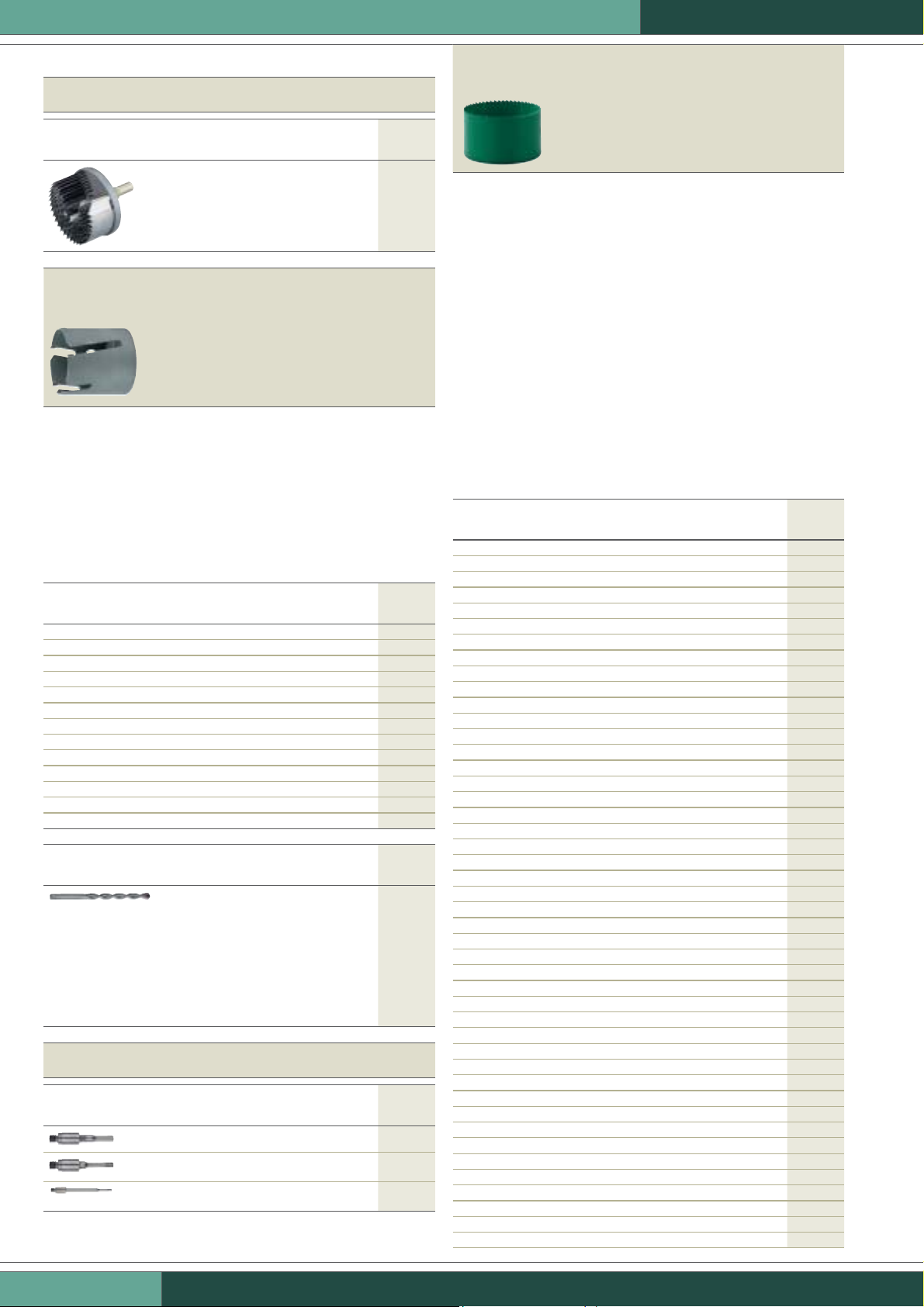

Page 29
DRILLS AND IMPACT DRILLS
SAWING ACCESSORIES
Hole saw set for wood
Order
no.
with 8 interchangeable
inserts Ø 25-68 mm,
with pilot drill Ø 6 mm,
shaft Ø 10 mm
Multipurpose hole saw "Pionier", carbide tipped,
with M 16 FThr
Hole saw with carbide cutters. ideal for electricians, tile layers,
sanitation installers, heater contractors, cabinet makers,
kitchen studios, artisans
For solid wood, plywood, chipboard, plastics,
acrylic glass, tiles (up to scratch hardness 6),
plaster concrete blocks, aerated concrete,
wood-wool boards, fibre cement, solid brick
Maximum cutting depth 60 mm
Only use for rotating, turn off impact
Diameter
mm
Self-service packaging
25 6.27001
30 6.27002
35 6.27003
40 6.27004
50 6.27005
60 6.27006
63 6.27007
65 6.27008
68 6.27009
74 6.27010
80 6.27012
105 6.27013
Pilot drill
For work with light core bits
and the universal hole
saws "Pionier" (M16 FThr) in
combination with one of
the anchor-head holders
Diameter: 8 mm
Overall length: 120 mm
Anchor-head holders with M 16 male thread
Shaft type Overall lengthmmOrder
SW11 118 6.27037
SDS-plus
118 6.27038
shank end
SDS-plus
220 6.27039
shank end
6.23531
Order
no.
Order
no.
6.27040
no.
HSS bi-metal hole saws
with Vario-tooth pitch
Hole saws made of bi-metal with hardened teeth
made of high alloyed quick steel
Quicker and softer chip removal through new kind
of teeth with irregular tooth shape and division;
thus less vibration
The larger teeth gaps and the inclination ensure
effective chip removal
For use in cast steel and grey cast iron, stainless steel,
constructional steel, aluminium, bronze, copper, PVC,
acrylic glass, wood.
Maximum cutting depth approx. 40 mm
When sawing thick or heavy materials it is advantageous
to drill many thin holes directly on the inside
of the round cut
This simplifies chip removal and prevents frequent
interruption in cutting and cleaning of teeth points
When sawing in wood, it is best to end the working
cycle from the other side to avoid splintering
Diameter
mm
Packing unit Order
no.
Self-service packaging
14 1 6.25160
16 1 6.25161
17 1 6.25162
19 1 6.25163
20 1 6.25164
21 1 6.25165
22 1 6.25166
24 1 6.25167
25 1 6.25168
27 1 6.25169
29 1 6.25170
30 1 6.25171
32 1 6.25172
33 1 6.25173
35 1 6.25174
37 1 6.25175
38 1 6.25176
40 1 6.25177
41 1 6.25178
43 1 6.25179
44 1 6.25180
46 1 6.25181
48 1 6.25182
51 1 6.25184
52 1 6.25185
54 1 6.25186
56 1 6.25187
57 1 6.25188
59 1 6.25189
60 1 6.25190
64 1 6.25191
65 1 6.25192
67 1 6.25193
68 1 6.25194
70 1 6.25195
73 1 6.25196
76 1 6.25197
79 1 6.25198
83 1 6.25199
86 1 6.25200
89 1 6.25201
92 1 6.25202
95 1 6.25203
98 1 6.25204
120 |

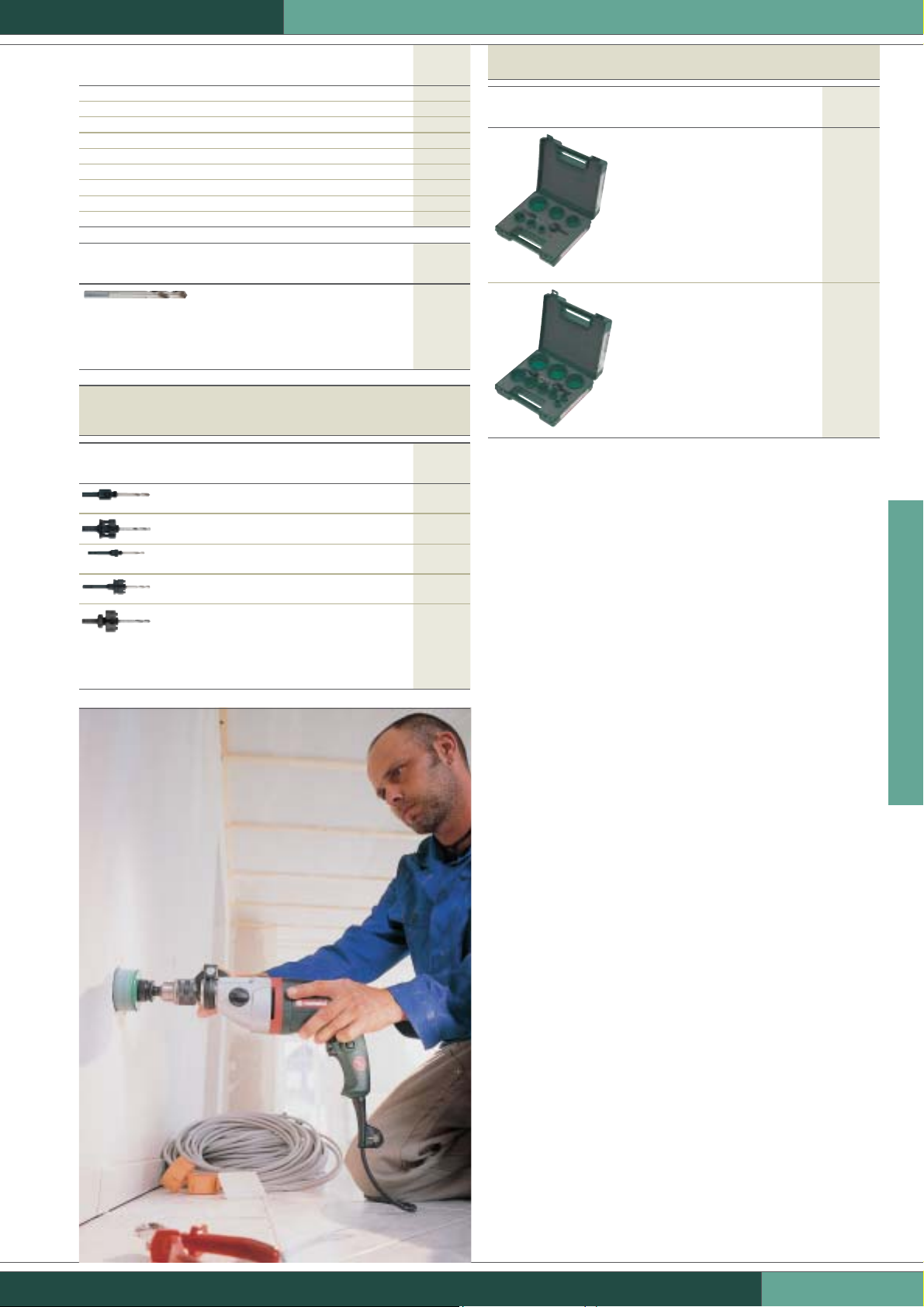

Page 30
DRILLS AND IMPACT DRILLS
Diameter
mm
Packing unit Order
no.
102 1 6.25205
105 1 6.25206
108 1 6.25207
111 1 6.25208
114 1 6.25209
121 1 6.25210
127 1 6.25211
140 1 6.25213
152 1 6.25214
Order
no.
Pilot drill
6.25220
for work with the HSS bi-metal
hole saws in combination with
one of the anchor-head holders
Diameter: 6,35 mm
Anchor-head holders for
HSS bi-metal hole saws
Order
no.
Hole saw Ø: 14 - 30 mm
6.25215
Shaft type: SW9
Hole saw Ø: 32 - 152 mm
6.25216
Shaft type: SW11
Hole saw Ø: 14 - 30 mm
6.25217
Shaft type: SDS-plus shank end
Hole saw Ø: 32 - 152 mm
6.25218
Shaft type: SDS-plus shank end
For tough applications:
6.25219
reduces vibrations and
increases the tool life
of the hole saw
Hole saw Ø: 38 - 152 mm
Shaft type: SW9
HSS bi-metal hole saws, assortments
HSS bi-metal assortment 1
(9-piece)
Comprising bi-metal
hole saws Ø 22,29, 35,
44, 51 and 64 mm,
Adapter for Ø14-30 mm (KW 9),
Adapter for Ø 32-152 mm (KW 11)
and ejection spring.
In carry case
HSS bi-metal assortment 2
(12-piece)
Comprising bi-metal
hole saws Ø 19, 22, 29, 35,
44, 51, 57, 64 and 68 mm,
Adapter for Ø14-30 mm (KW 9),
Adapter for Ø 32-152 mm (KW 11)
and ejection spring.
In carry case
Order
no.
6.25434
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
6.25435
| 121
MACHINES
WOOD SANDING
ROUTERS
AND PLANERS

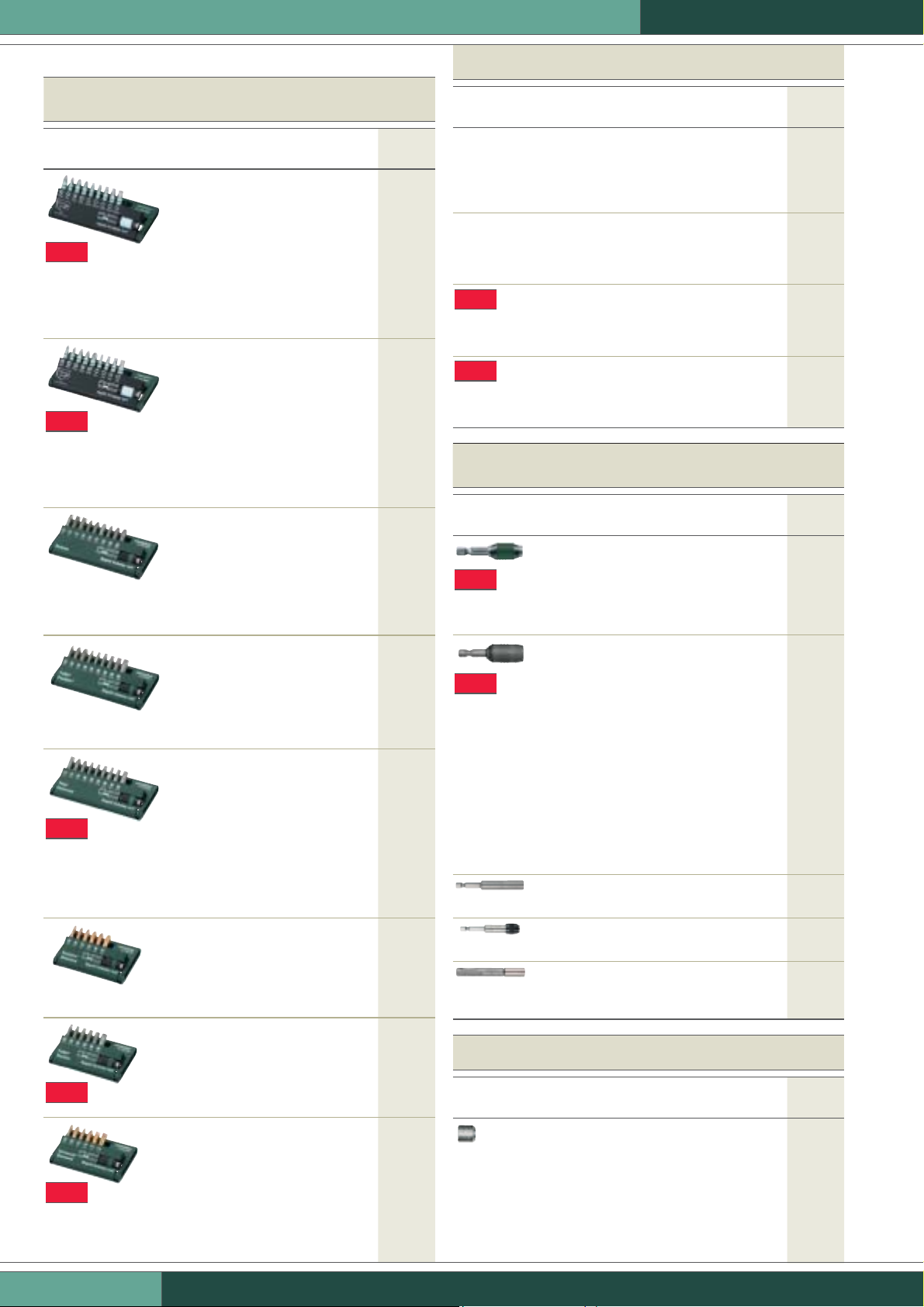

Page 31
DRILLS AND IMPACT DRILLS
ACCESSORIES FOR FASTENING SCREWS
Screwdriver bit assortments
1/4" (6.35 mm) hexagonal shank
Bit box with stainless steel bits
(10-piece)
Small plastic case
Consisting of a "rapid in/easy out"
bit holder and the bits mostly
NEW
NEW
NEW
commonly used in woodwork.
Sizes: PH2, PZ2x2, PZ1, TX10,
TX15, TX20, TX25, TX30
Bits and holders are made from
stainless steel.
Bit box with stainless steel bits
(10-piece)
Small plastic case
Consisting of a "rapid in/easy out"
bit holder and the bits most
commonly used in
metal-working.
Sizes: PH1x2, PH2x2, PH3,
Allen 2.5,3.0,4.0,5.0.
Bits and holders are made from
stainless steel.
Bit box torsion (10-piece)
Small plastic case
Consisting of:
Phillips bits, sizes 1, 2, 3 (1 each size)
Pozidriv bits, sizes 1, 2, 3 (1 each size)
each with one bit for slotted-head
screws 0.8 x 5.5 mm, 1.0 x 5.5 mm
und 1.2 x 6.5 mm
Bit holder "Rapid in/easy out"
Bit box Torx + Pozidriv (10-piece)
Small plastic case
Consisting of:
Pozidriv bits sizes 1, 2,
3 (torsion bits, 1 each size)
Torx bits sizes TX 10, 15, 20,
25, 30 and 40 (1 each)
Bit holder "Rapid in/easy out"
Bit box torsion Universal (10-piece)
Small plastic case
Consisting of:
Phillips bits, sizes 1, 2,
3 (1 each size)
Pozidriv bits, sizes 1, 2,
3 (1 each size)
bits for slotted-head
screws 0.8x5.5 mm, 1.0x5.5 mm
and 1.2x6.5 mm (1 each)
Bit holder "Rapid in/easy out"
Bit box diamond Pozidriv (7-piece)
Small plastic case
Consisting of:
Pozidriv bits 2 x size 1, 3 x size 2,
1 x size 3 (diamond)
Bit holder "Rapid in/easy out"
Order
no.
6.25388
6.25389
6.25390
6.25391
6.25396
6.25393
Screwdriver bit sets
Torsion Phillips bit set
(3-piece)
Self-service packaging
Consisting of Phillips bits,
sizes 1, 2 and 3 (1 each size)
Pozidriv bit set (3-piece)
Self-service packaging
Consisting of Pozidriv bits,
sizes 1, 2 and 3 (1 each size)
NEW
Bit set Torx (3-piece)
Self-service packaging
Consisting of one Torx bit
size 15, size 20, size 25
NEW
Slotted bit set (3-piece)
Self-service packaging
Consisting of one slotted bit
size 0.8, size 1.0, size 1.2
Bit holders
with 1/4" (6.35 mm) hexagonal shank
Quick action, rapid in/easy
out bit holder. Also for bits
NEW
according to DIN 3126-C 6.3
and also suitable for E 6.3.
Overall length: 50 mm
Quick action, rapid in/easy
out bit holder. Also for bits
according to DIN 3126-C 6.3
NEW
and also suitable for E 6.3.
Ideal for fastening
very long screws and for
overhead fastening. The zinc
phosphate coating makes it
particularly resistant to corrosion.
Overall length: 60 mm
non-magnetic,
with snap ring
Overall length: 75 mm
magnetic,
with quick-action coupling
Overall length: 76,5 mm
magnetic,
with quick-action coupling
Overall length: 79 mm
Order
no.
6.31560
6.31561
6.24405
6.24406
Order
no.
6.25386
6.25387
6.30560
6.30648
6.25509
NEW
NEW
122 |
Bit box torsion Torx (7-piece)
Small plastic case
Consisting of:
Torx bits 8, 9, 10, 15, 20, 25, 27, 30
and 40 (1 each)
Bit holder "Rapid in/easy out"
Bit box diamond Universal (7-piece)
Small plastic case
Consisting of:
Phillips bits, sizes 1, 2, 3 (1 each size)
Pozidriv bits, sizes 1, 2, 3 (1 each size)
bits for slotted-head
screws 0.8x5.5 mm, 1.0x5.5 mm
nd 1.2x6.5 mm (1 each)
Bit holder "Rapid in/easy out"
6.25394
6.25397
Bit retaining bush
Bit retaining bush
For fitting bits and sockets
with 1/4" (6.35 mm) hexagon
in the spindle of drills and
impact drills with spindle
thread 1/2"-20 UNF and
hexagon recess 1/4" (6.35 mm)
Order
no.
6.31281

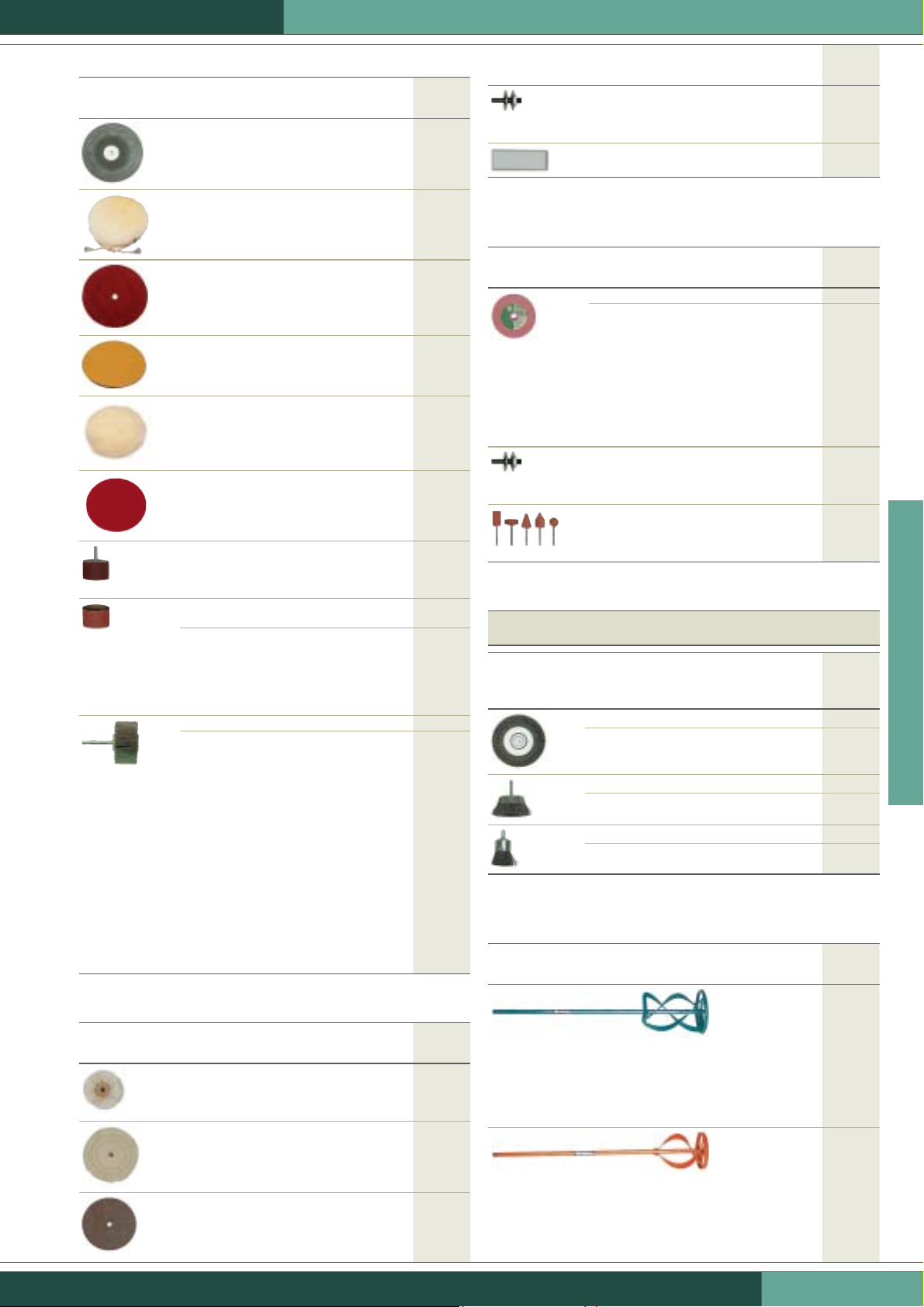

Page 32
DRILLS AND IMPACT DRILLS
ACCESSORIES FOR SANDING/GRINDING AND POLISHING
Order
no.
Rubber backing pad
Dimensions: Ø 125 mm
Clamping shaft Ø: 6 mm
Packing unit: 1
Lambswool bonnet
Diameter: 130 mm
Packing unit: 1
Backing pad
Dimensions: Ø 115 mm
Clamping shaft Ø: 6 mm
Packing unit: 1
Cling-fit abrasive nylon web
Dimensions: Ø 115 mm
Grit: P 100
Packing unit: 1
Cling-fit lambswool
polishing disc
Dimensions: Ø 115 mm
Packing unit: 1
Cling-fit polishing sponge
Dimensions: Ø 130 mm
Packing unit: 1
Sanding drum
Dimensions: Ø 45 x 30 mm
Clamping shaft Ø: 6 mm
Packing unit: 1
Abrasive bands
for sanding drum
Dimensions: Ø 45 x 30 mm
Grit: P 60
Packing unit: 6
Dimensions: Ø 45 x 30 mm
Grit: P 100
Packing unit: 6
Flap wheels
Shaft Ø: 6 mm
Grit: P 60
Diameter x width:
Ø 50 x 20 mm
Maximum speed: 15.300 /min
Packing unit: 1
Shaft Ø: 6 mm
Grit: P 60
Diameter x width:
Ø 60 x 30 mm
Maximum speed: 12.700 /min
Shaft Ø: 6 mm
Grit: P 60
Diameter x width:
Ø 60 x 40 mm
Maximum speed: 12.700 /min
6.23259
6.23266
6.24839
6.24838
6.24911
6.31222
6.23269
6.24207
6.24208
6.31110
6 . 3 1111
6.31112
Arbor
Dimensions: Ø 10 mm
Clamping shaft Ø: 8 mm
Packing unit: 1
Polishing paste
Packing unit: 1
ACCESSORIES
FOR GRINDING METAL
Grinding wheels
Dimensions:
Ø 75x10x10 mm;
pink aluminium oxide type
Grit: P 80
Packing unit: 1
Dimensions:
Ø 75x10x10 mm;
pink aluminium oxide type
Grit: P 80
Packing unit: 1
Arbor
Dimensions: Ø 10 mm
Clamping shaft Ø: 8 mm
Packing unit: 1
Mounted points set
Pink aluminium oxide,
grit and grade 80 N
Packing unit: 5
BRUSHING ACCESSORIES
Steel-wire brushes
Clamping
shaft Ø
mm
Steel-wire wheel brush
6 75 Fine 6.30550
6 100 Coarse 6.30551
Steel-wire cup brushes
6 75 Coarse 6.30552
6 75 Fine 6.30553
Steel-wire busby-end brush
6 25 Crimped 6.30554
ACCESSORIES
FOR STIRRING PAINT ETC.
Order
no.
6.27104
6.27231
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
Order
no.
6.27383
6.27384
6.27104
6.27521
Outside ØmmVersion Order
no.
Order
no.
POLISHING ACCESSORIES
Cotton polishing mop
Dimensions:
70x20x10 mm
Packing unit: 1
Buffing mop
Dimensions:
100x13x10 mm
Packing unit: 1
Felt disc
Dimensions:
100x15x10 mm
Packing unit: 1
Order
no.
6.23270
6.23244
6.23234
Special stirrer
Special stirrer for thick liquid-like materials
(e.g. plaster and mortar)
Shaft type: SW12
Stirring basket Ø: 130 mm
Length: 600 mm
Universal stirrer
Also suitable for stirring mortar
Shaft type: SW10
Stirring basket Ø: 100 mm
Length: 600 mm
6.31043
6.31044
| 123
MACHINES
WOOD SANDING
ROUTERS
AND PLANERS

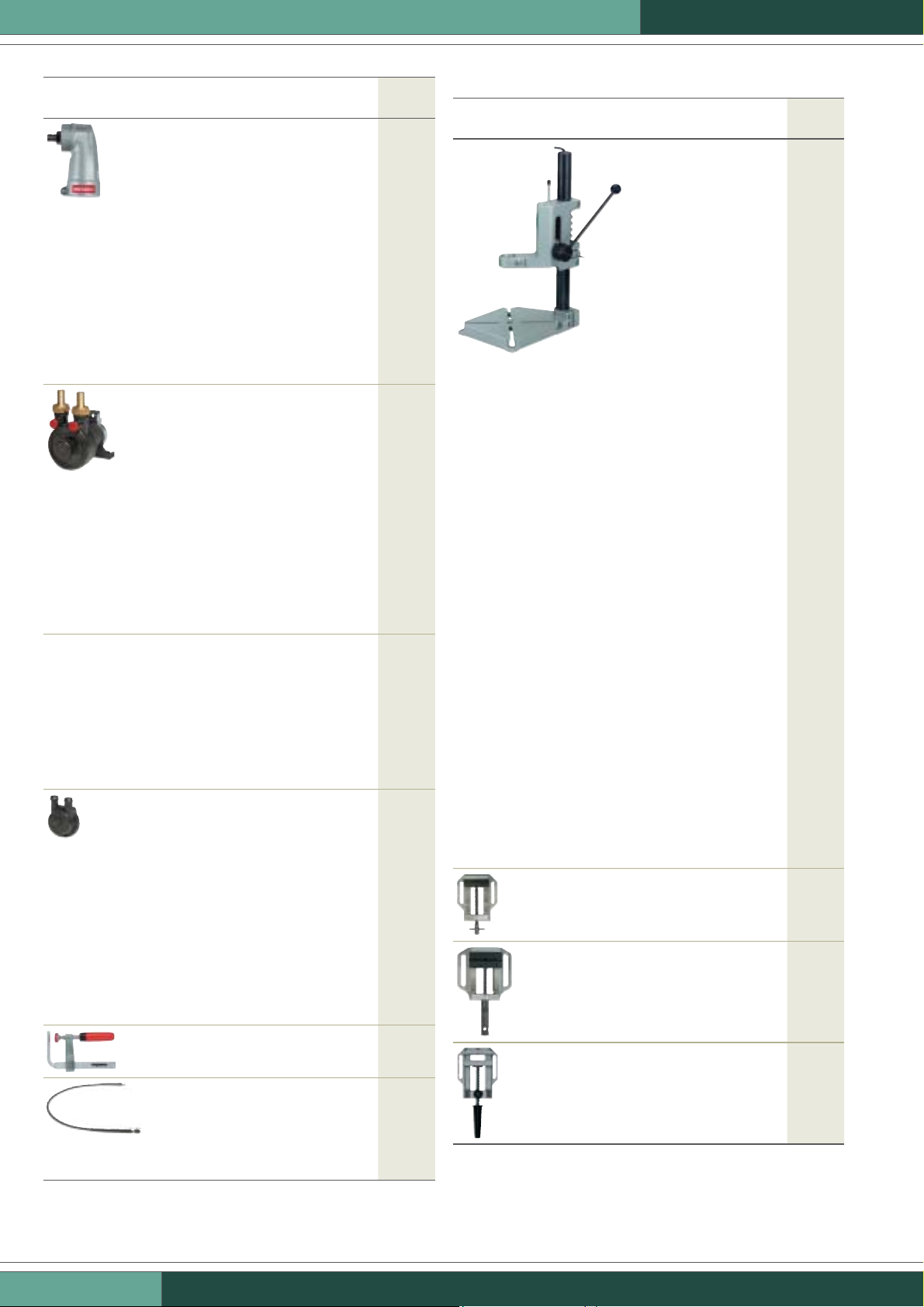

Page 33
DRILLS AND IMPACT DRILLS
ANGLE ATTACHMENTS
Angle drilling and screw-driving
attachment (fits most corded rotary
& impact drills)
Makes easy work of drilling and
screw-driving in confined spaces
Spindle with hexagon
recess for screwdriver bits;
bit retaining bush
Suitable for clockwise and
anticlockwise rotation
Metabo quick-action
coupling
Gear ratio 1:1
Locating bore: 43 mm
Spindle thread: 1/2" - 20 UNF
Spindle with hexagon recess:
1/4" (6.35 mm)
Weight: 0,5 kg
Pump attachment BPV 03
Self-priming
Suitable for driving units
with speed up to 3400 rpm
Metabo quick-action
coupling
Featuretext Z4
Maximum delivery output:
3.000 l/h
Maximum suction
height: 4 m
Maximum delivery
height: 20 m
Locating bore: 43 mm
Connection piece for
hose: R 3/4"
Weight: 0,6 kg
Hexagon nut
With female thread 1/2"-20 UNF;
To drive the angle
attachment 6.31078 or the pump
attachment 6.27640 on a drill
with a 1/2"-20 UNF threaded
spindle, but no hexagon shoulder
on the spindle, requires a 19 mm
AF hexagon nut (KW 19)
with 1/2"-20 UNF female thread.
Order
no.
6.31078
6.27640
6.27601
DRILL STANDS AND
MACHINE VICES
Drill stand 890
The design of
the feed mechanism
enables the
maximum drilling
depth of 65 mm to
be achieved with a
swivelling motion
Asymmetrical
arrangement of the
column to the
base plate enables the
processing of larger
workpieces
Unlimited access
to the controls of
drill and drill stand
by angled cantilever
No risk of injury
or drill breakage
by the safe
adjustment of
the device carrier
to the required
working height
Stable base
plate with
grooves for locking
a machine vice
Adjustable
depth guide
Distance, bit centre
to column: 165 mm
Working
stroke: 65 mm
Height of
column: 500 mm
Column Ø: 40 mm
Locating
bore: 43 mm
Base plate:
220 x 213 mm
Weight: 5,5 kg
Order
no.
6.00890
Pump attachment BPV 01
Self-priming
Suitable for driving units
with speed up to 2600 rpm
Fitted with its pin in the
chuck of the driving unit
Featuretext Z4
Maximum delivery
output: 1.500 l/h
Maximum suction
height: 2 m
Maximum delivery
height: 4 m
Connection piece
for hose: 1/2"
Weight: 0,1 kg
Clamp
For the secure fitting
on a work table
Flexible shaft
Suitable for speeds of
2000 to 5000 rpm
Length: 1,2 m
Driving shaft Ø: 6 mm
Collet bore: 6 mm
Weight: 0,8 kg
6.27621
6.27107
6.27608
Machine vice 041
Width of jaws: 80 mm
Clamping width: 86 mm
Machine vice 038
Width of jaws: 100 mm
Clamping width: 100 mm
Machine vice 27106
Width of jaws: 80 mm
Clamping width: 80 mm
6.12003
6.12001
6.27106
124 |

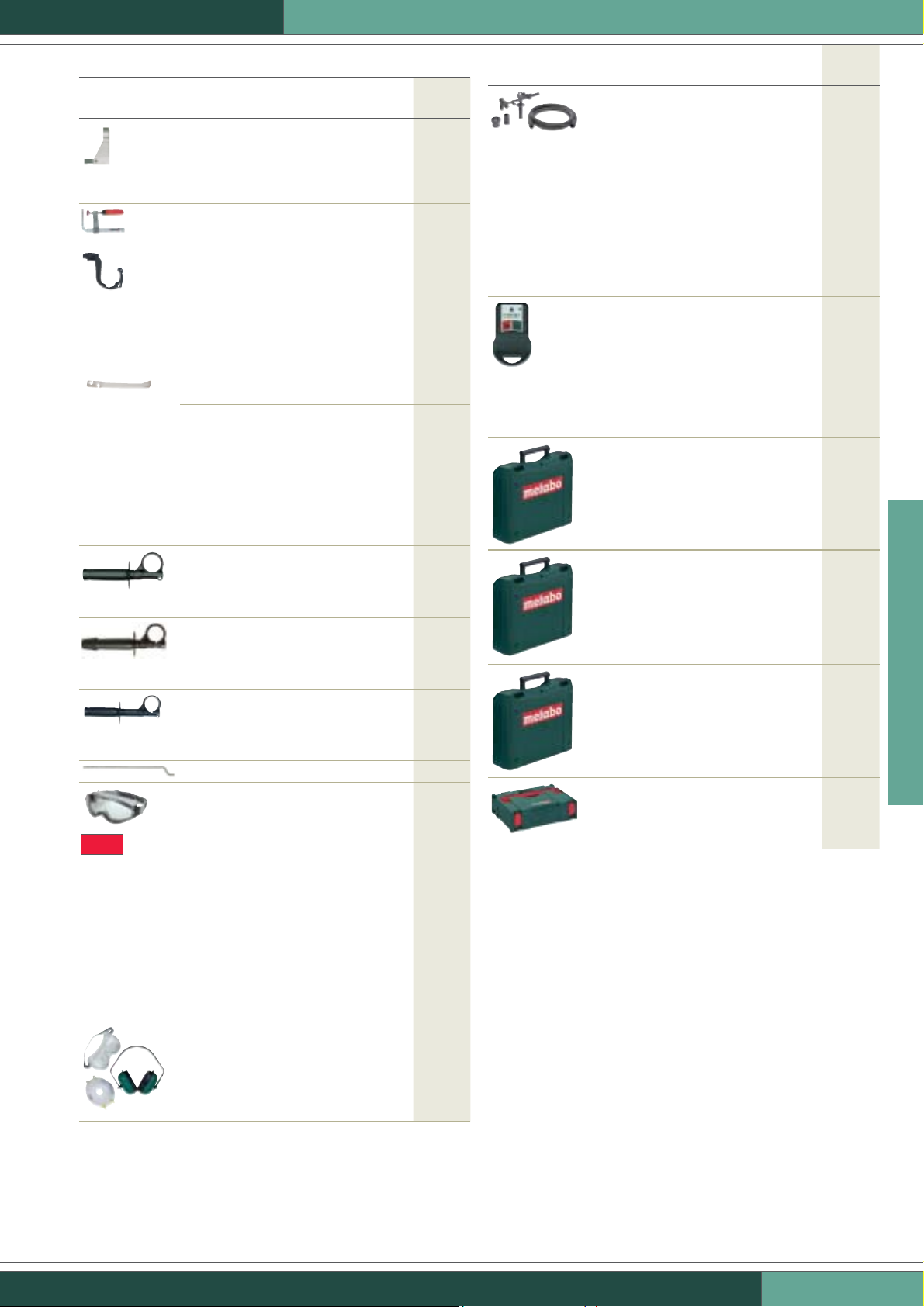

Page 34
DRILLS AND IMPACT DRILLS
OTHER ACCESSORIES
Clamping stand
For clamping the router
motor when working with
the flexible shafts
Locating bore Ø 43 mm
Clamp
For the secure fitting
on a work table
Scaffolding hook
Scaffolding hook with simple
snap-on connection
For hanging the machine
securely on scaffoldings
or ladders
For SE 2800, SE 4000
For BE 4006, BE 4010
For BHE 20 Compact
Cable strain relief strap
For attaching between
the machine power plug
and the extension lead socket
(prevents the plug of the
power tool from accidentally
being pulled out of the socket)
Order
no.
6.27354
6.27107
6.25070
6.31070
Dust extraction set
For all machines with 43 mm collar
diameter
Diameter of locating
bore: 43 mm
Comprising extraction unit
for drilling with 4-20 mm
diameter drill bits, support handle,
suction hose, 28 mm diameter,
(5 metres long), adapter and
connector for connecting the
suction hose to a Metabo
multi-purpose vacuum cleaner
or to a normal domestic
vacuum cleaner
Code! Key
For protection of Metabo
machines (with CODE!
configuration) from misuse
The complete Metabo
tool park (with CODE!
configuration)
can be protected with a
single CODE! protected
with key
Carry case for
impact drill
SBE 600 Impuls
Order
no.
6.31600
ANGLE GRINDERSMETAL PROCESORSHAMMERSIMPACT DRILLSDRILLSSCREWDRIVERS
6.23127
6.25442
NEW
Side handle for rotary
hammers and impact drills
Diameter of locating
bore: 43 mm
Side handle with case
for rotary hammers
and impact drills
Diameter of locating
bore: 43 mm
Side handle, long type,
for rotary hammers and
impact drills
Diameter of locating
bore: 43 mm
Drilling depth guide
Full-view safety goggles
Very comfortable full-view
safety goggles. Only light pressure
around the eye area, giving
a comfortable secure fit due
to the use of two compound
materials (hard and soft
components). The excellent
ventilation leaves the eye area
feeling pleasant and free from
irritation. Also suitable for
people who wear glasses.
UV protection 2-1, coating
on the lens: scratch-free
on the outside and mist-free
on the inside.
6.31052
6.31072
6.31074
6.27288
6.31071
Carry case for impact drills
SB 660, SBE 660, SBE 705
Carry case for impact drills
SBE 750 -1010
Metabox I for all
impact drills
For SB 660, SBE 660,
SBE 705, SBE 750,
SBE 850, SBE 1010 Plus
6.25443
6.25444
6.23598
Personal safety set
Provides protection
against dust, noise,
and sparks, comprising:
mask with valve, ear
protection and full-view
safety goggles, flexible
6.31750
MACHINES
WOOD SANDING
ROUTERS
AND PLANERS
| 125
Loading...
