User
Manual
201508 021 A1
USB Keyboard Controller
SAC021
1
Table of Contents
1 Product Overview 2
1.1 Keyboard Controller 2
1.2 Keyboard Joystick Operation (Pan/Tilt/Zoom Control) 3
2 Application 4

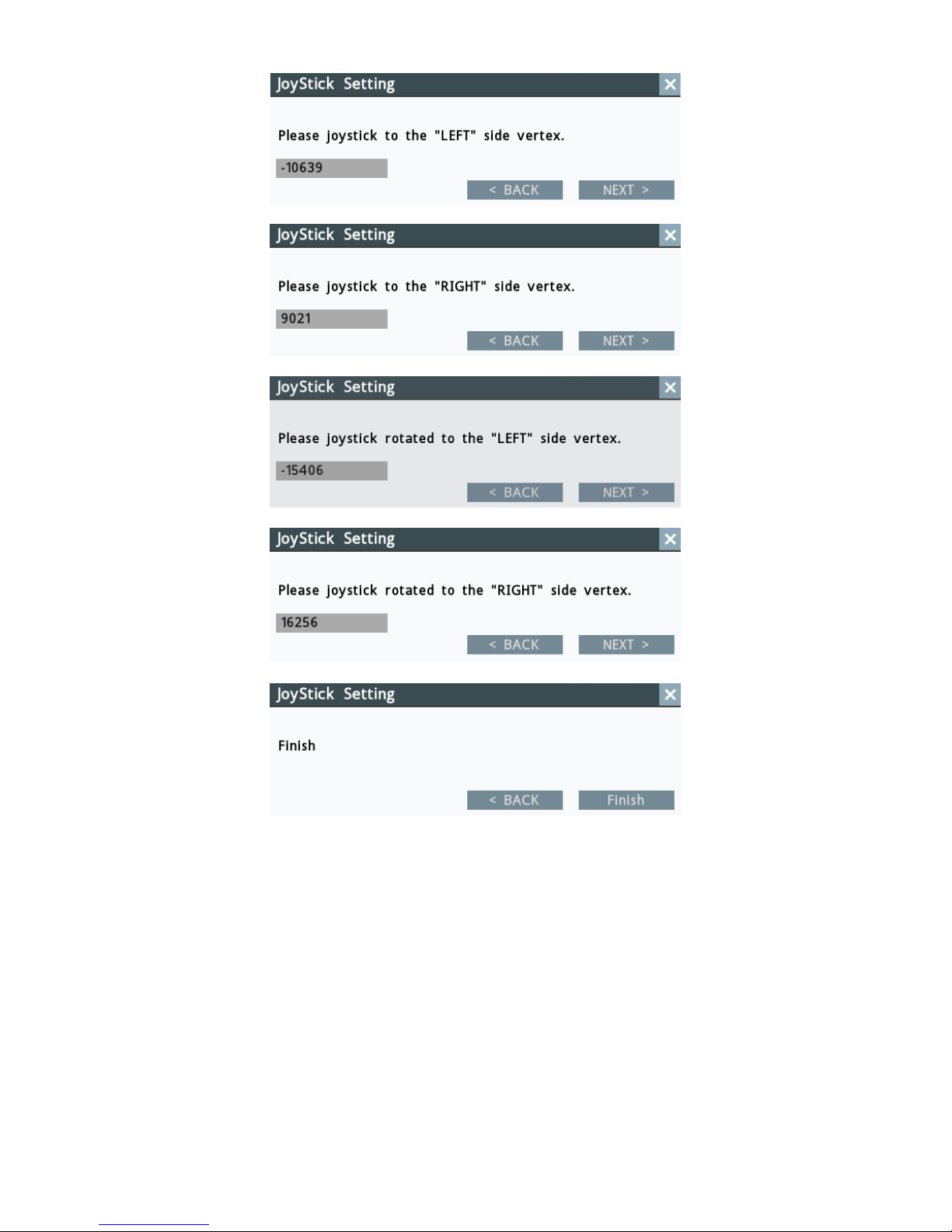

2.1 Connecting with NVR 4

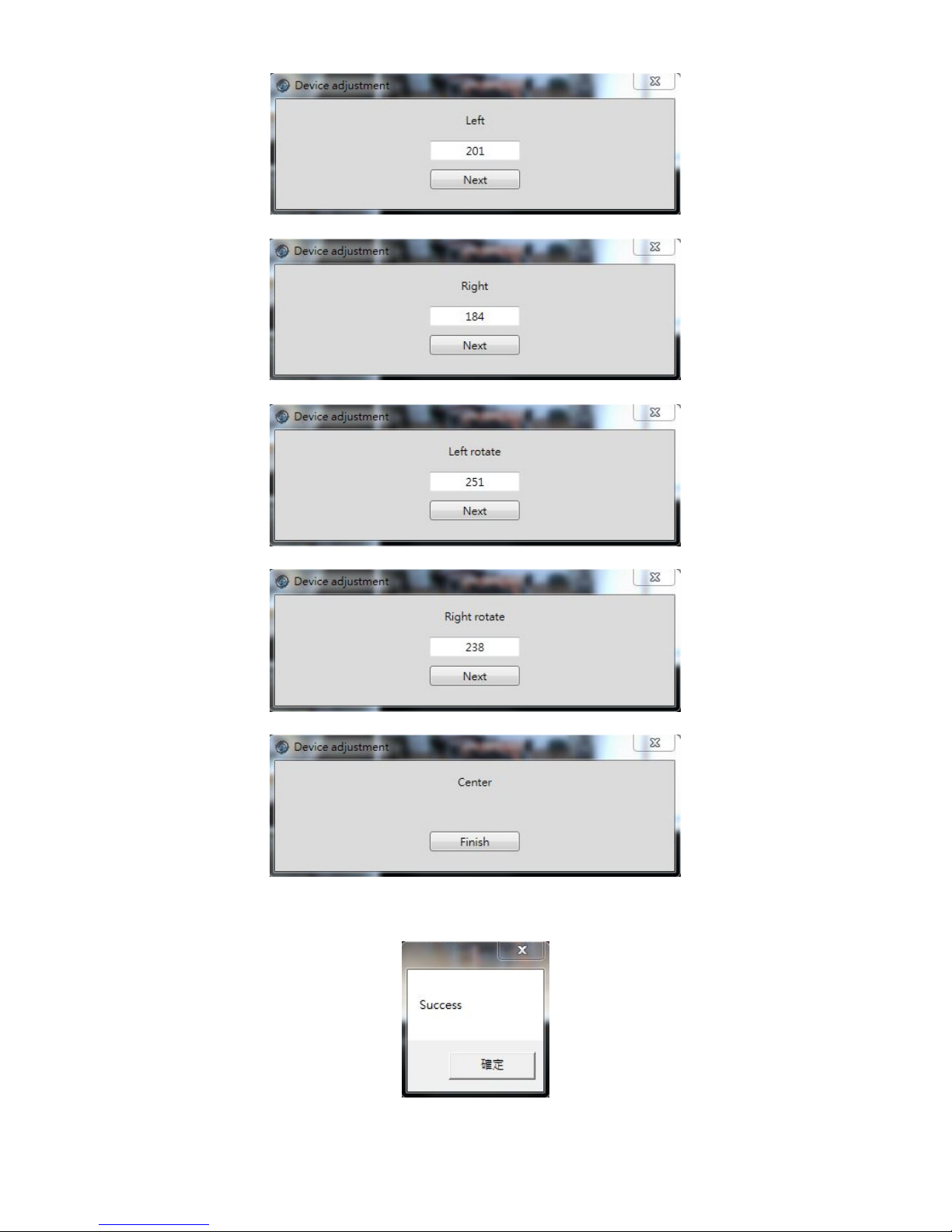

2.2 Connecting with CMS PRO 6
Appendix: Specications 8
2
SAC021 USB keyboard controller is a plug-and-play device, used to pan, tilt, zoom PTZ camera. It can work with MESSOA
Lite NVR, including NVR203-004/008/004P/008P, NVR206, NVR208 and CMS PRO to realize easy operation and accurate
rotation through 3D joystick.
1.1 Keyboard Controller
The 10 preset buttons( 0~9) on the side of the keyboard controller are used to call the presets 1~10 of PTZ cameras user set
in the NVR.
1 Product Overview
