NETWORK CAMERA
User’s Manual
ZS10-0000003G 890 A.3
Table of Content
1. Notice of Use................................................................................................................................................... 2
2. Product Overview............................................................................................................................................ 3
2.1 Camera Parts and Definition..................................................................................................................4
2.2 Specification...........................................................................................................................................5
3. Camera Installation ......................................................................................................................................... 6
3.1 Installation.............................................................................................................................................. 6
3.2 Network Camera Diagram ..................................................................................................................... 8
3.3 Hardware/Software Requirement........................................................................................................... 8
3.4 Connecting the Camera to Personal Computer..................................................................................... 8
3.4.1Setting IP ...................................................................................................................................... 8
3.4.2 Connect the camera to personal computer ................................................................................. 9
3.5 Use “SmartFocus” to Adjust Focus Quickly and Easily ....................................................................... 10
3.6 Using “IPFinder” to Search Camera’s IP Address ............................................................................... 10
4. Live View....................................................................................................................................................... 13
4.1 Video Format........................................................................................................................................ 13
4.2 Snapshot.............................................................................................................................................. 13
4.3 Recording LED.....................................................................................................................................13
5. Configuration................................................................................................................................................. 14
5.1 Image Settings.....................................................................................................................................14
5.1.1 Image......................................................................................................................................... 14
5.1.2 Image Advanced Settings..........................................................................................................16
5.2 Network................................................................................................................................................ 17
5.2.1 Network......................................................................................................................................18
5.2.2 FTP............................................................................................................................................19
5.2.3 SMTP......................................................................................................................................... 19
-SMTP Server Setting......................................................................................................................... 19
5.2.4 NTP............................................................................................................................................19
5.3 System .................................................................................................................................................20
5.3.1 DateTime ................................................................................................................................... 20
5.3.2 Time Stamp................................................................................................................................ 21
5.3.3 User ........................................................................................................................................... 21
5.3.4 Audio..........................................................................................................................................21
5.3.5 Update ....................................................................................................................................... 22
5.3.6 Information................................................................................................................................. 23
5.4 Application............................................................................................................................................ 23
5.4.1 Setting........................................................................................................................................23
5.4.1.1 Video File................................................................................................................................ 24
5.4.1.2 FTP.........................................................................................................................................24
5.4.1.3 SD Card Storage .................................................................................................................... 25
5.4.1.4 SMTP...................................................................................................................................... 25
5.4.2 Schedule.................................................................................................................................... 26
5.4.2.1 Record Type ........................................................................................................................... 26
5.4.2.2 Period Setting .........................................................................................................................26
5.4.3 Alarm.......................................................................................................................................... 27
5.4.3.1 Event.......................................................................................................................................27
5.4.3.2 Action...................................................................................................................................... 28
5.5 SD Card ............................................................................................................................................... 29
1
1. Notice of Use
This manual is designed for administrators and users of the network camera. Please read it carefully
before use. All requirements should be followed before using this camera.
We are not responsible for any technical or typographical errors and reserve s the rights to change the
product and manuals without notice.
Keep this document for future reference.
Please make sure the power source is 12V DC/24V AC. Only connect to the camera to this required
power system.
The camera must be installed on a solid mounting surface.
Keep the camera and other accessories dry.
We are not responsible for any damage caused by inappropriate use.
2
2. Product Overview
Key Features
Exceptional Images
The camera employs a 5MP Lumii sensor that quadruples sensitivity without blurring. The camera utilizes
Lumii technology to monitor the surveillance area in great detail in even the most difficult lighting conditions,
delivering crisp and detailed images that are perfect for object- and person-recognition. The camera’s high
resolution also enables it to provide larger overviews, increasing the size of the surveillance area without
affecting image resolution.
Smartfocus
A built-in nine-point focus indicator enables the camera to focus precisely and automatically on objects, relieving
users of the need to adjust the focus manually.
Powerful IR Illuminator
The powerful IR illuminator lights objects evenly, reducing image noise and storage requirements. The IR
illuminator activates automatically when the lighting dims to under 10 lux. In night mode, the illuminator enables
the camera to capture images at even 0 lux. To help minimize energy usage, the camera also comes equipped
with a high-power LED.
ICR Day/Night Switching
The camera incorporates a mechanical ICR filter to capture perfect pictures at any light level. The camera
switches between its day and night modes automatically depending on the lighting conditions, enabling it to
capture color video in even 0.3-lux conditions and black/white video in as little as 0 lux, ensuring crisp, clea r
images at all times. The camera’s megapixel resolution and mechanical ICR filter deliver sharp, detailed
captures and images of distant objects in even total darkness.
Vandal-Proof Housing Certified to IP66 and IP67
Certified to IP66 and IP67, the die-cast aluminum alloy housing protects the camera against extreme bad
weather and vandalism, making it perfect for outdoor surveillance.
SD Memory Card Storage
The camera is equipped with an SD card that enables round-the-clock monitori ng, ensuring that the camera
can store captured images even in the event that its network connection goes down. The cam era delivers
all-day surveillance and round-the-clock security.
Camera Overview
3
2.1 Camera Parts and Definition
1
2
3
4
5
6
7
partial enlargement
10
9
815
14
13
11
12
1.
Power In (Red+/Black-):
power connector, DC12V/AC24V
2. RJ-45 Ethernet Connector:
network connection. Support PoE (Power over Ethernet)
3. BNC:
video output
4. Audio Out (Green):
audio output
5. Audio In (Red):
audio input
6. Alarm Out (Orange):
alarm signal output port
RS485+(Green):
function reserved
RS485- (Yellow):
function reserved
7. GND:
ground (electricity) in electrical circuits
Alarm In (Red):
alarm signal input port
Alarm Reset (Brown):
for resetting an external alarm device
8. Level adjustment:
for future use
9. Monitor:
video out
10. SD card slot:
insert a SD card for image storage
11. Zoom lever:
adjust the image view
12. Focus lever:
adjust picture sharpness
13. Pan adjustment:
adjust the pan/tilt angle
14. Main bracket:
adjust the pan angle
15. Reset:
use an appropriate tool to press the button for few seconds to reset the camera
4
2.2 Specification
Image System
Image sensor 1/2.5" 5 MP Lumii image sensor optimized for low-light performance
Effective pixels 2592 (H) X 1944 (V)
Image Compression
Method
Triple Streaming : MPEG4 x2/ Motion JPEG x1
Resolution/ Frame MPEG4: HD 720P 1280 X 720 @30fps, 640 X480@30fps, 352 X192@30fps
rate MJPEG: 640 X 480@30fps, 640 X 352@30fps
Electric
Sync system Internal
f=2.7 ~ 9 mm, F1.2, Varifocal Megapixel lens
Built-in lens
IR-corrected, Angle of view: 30∘~ 101∘(Horizontal)
Shutter time AES 1/10000 to 1/3.75 sec
Audio Two-way Mono Audio, Full-duplex, G.711 PCM 8kHz 64kbit/s
Alarm Yes; 1x Alarm-in, 1x Alarm-out
Motion detection Yes; 4 x 3 MD window & 5 level sensitivity
SD Card Support micro SDHC card (up to 32 Gb)
Day & Night Mode Mechanical ICR Filter
IR LED OFF: 0.3lux (F1.2, 50 IRE)
Minimum illumination
IR LED ON: 0lux
IR LED IR LED 24pcs(850nm)
IR distance 25 meters (82 ft.)
IR turn on status Under 10 lux by auto control
LED life More than 10,000 hours (50ºC)
TV output
NTSC, 720 X 480
@30fps
PAL, 720 X 576
@25fps
NTSC, 720 X 480
@30fps
PAL, 720 X 576
@25fps
Feature
BLC ON/Off
White Balance Auto/Daylight/Fluorescent/Incandescent
Sharpness Low/ Middle/High
Saturation
Low/ Middle/High
Brightness
Low/ Middle/High
Contrast
Low/ Middle/High
Other Mirror, Flip, system log, snapshot
Power supply
Power requirement
DC12V/ AC24V±10%/ PoE(IEEE 802.3af)
When using the heater:DC24V/ AC24V±10%
Power consumption < 8W (When using the heater: < 18W)
Power connector Screwless Terminal block
Environment
Operating temperature
-10ºC ~ 50ºC (14ºF ~ 122 ºF) -40ºC ~ 50ºC (-40ºF ~ 122 ºF)
Operating humidity 10~ 90% RH
Storage temperature -20ºC ~ 60ºC (-4ºF ~ 140 ºF)
Network
Ethernet 10Base-T/100Base-TX
Internet protocol TCP/IP, UDP, HTTP, SMTP, DNS, DHCP, NTP, FTP, RTP,RTSP, ICMP, uPNP
Connectors RJ-45 Ethernet 10Base-T/100Base-TX
Browser IE browser 6.0 or above
I/O connector
Video port BNC X1, 1.0Vp-p, 75Ω
Alarm port Terminal block
Audio port 3.5mm Phone Jack
Mechanism
Dimensions(øxH) ø158mmx144mm (ø6.22" x 5.7")
Weight 1.28 kg (2.82 lb.)
Protection Class IP66/IP67, vandal-proof: 1000 kg impact resistance
Option Without Heater With Heather
5
3. Camera Installation
Please use the appropriate brackets or equipment to mount this camera on a desired location.
After installing the camera, your network camera should be accessed from your local network. Please
configure network routers first.
Package Content:
Camera *1 Screwdriver *1
Self-tapping screws (4x31mm)*3 Guide Pattern Sticker *1
Self-tapping screws (4x45mm)*3 Plastic anchor *3
Cable adaptor * 1 BNC connector * 1
Printed Quick Start Guide *1 Document CD *1
3.1 Installation
1. Mark hole positions
: use the guide pattern sticker to mark hole positions on the desired location. Drill 3
holes according the guide pattern and then insert the plastic anchors into holes which you drill.
2. Install the camera:
install the camera onto the ceiling/wall and fasten securely using the screws provided.
3. Adjust the pan/tilt angle:
rotate the main bracket (or the pan adjustment) adjust the pan angle and rotate
the pan adjustment to adjust the tilt angle. Then adjust the camera zoom to a suitable position.
use the screws
to fasten the camera securely
6
Rotate
the main bracket
4. Adjust
zoom lever:
loosen the zoom lever counterclockwise, and then rotate the zoom to adjust the
image view. To fix the setting, please tighten after adjustment.
5. Adjust focus lever:
loosen the focus lever counterclockwise, and then adjust the focus for optimum
picture sharpness. To main the setting, please tighten after adjustment.
Zoom lever
Focus lev
er
6. Install the
dome cover:
place the dome cover to match the screw positions and then tighten 3 screws to
lock it securely using the screwdriver provided.
7
3.2 Network Camera Diagram
Connection type:1
Connection type 2:
3.3 Hardware/Software Requirement
Computer
-Windows Vista or XP as OS
-Internet Explore Version 6.0 or later
-CPU: Intel Pentium 4.2 GHz or higher
-Memory: 512 MB or more
Power Supply
This camera requires a DC12V/AC24V /PoE power supply. Please make sure you use the correct power
supply before connecting to the camera.
Network Connector
Please use the RJ45 network connector for connecting the camera to your co mputer or hub switch.
Hub Switch
If you want to monitor many network cameras from the same computer, the hub switch is required.
3.4 Connecting the Camera to Personal Computer
3.4.1Setting IP
This camera is a network-based camera and must be assigned an IP address first.
Enter a default IP address manually. The camera’s default IP address is 192.168.1.30 and submask
address is 255.255.255.0.
Obtain an IP address automatically from the DHCP server. You don’t need to change the camera’s IP
address if your network uses a DHCP server.
8
3.4.2 Connect the camera to personal computer
1. Connect the network cable to the camera and then turn on the camera’s power.
2. Set the personal computer’s IP address, other than the camera’s default IP address: 192.168.1.30 and
submask as 255.255.255.0.
3. To make sure if you have already connected the camera to the personal computer, ping the IP address
you set. Start a command prompt and type the IP address you set. If the message of “Reply from…”
appears, it means the connection is done.
4. Start a browser and enter IP address: http://192.168.1.30. Then a pop-out window comes out and
requires you to login into the camera. Enter the default user name: admin and password: 1234 to login
into.
5. Install ActiveX viewer. It is required to monitor both MPEG4 and Motion-JPEG video modes.
6. Images of the camera can be viewed through Internet Explorer. Before viewing, follow these steps to
enable the display.
a. Enable Cookies as shown below:
- In Internet Explorer, click Internet Options on the Tools menu.
- On the Privacy tab, move the settings slider to Low or Accept All Cookies.
- Click OK.
b. Set “Browser setting when proxy sever is used” when a proxy server is used.
c. Change “security” in Internet options as shown below:
- On tool menu, click “Internet Option”.
- Press the Security tab.
- If the camera operates inside the intranet, click the “Intranet” icon. If the camera operates on
the Internet, click the “Internet” icon.
- Click “Custom level”. This will open the “Security Settings – Internet Zone” screen.
- Scroll down to the “ActiveX controls and plug-ins” radio buttons and enable all of them as
shown in the illustrations:
- Press OK to save the settings. Close all Internet Explorer Windows and start a new window.
This will allow the new settings to take effect.
7. Type your set IP address into the browser.

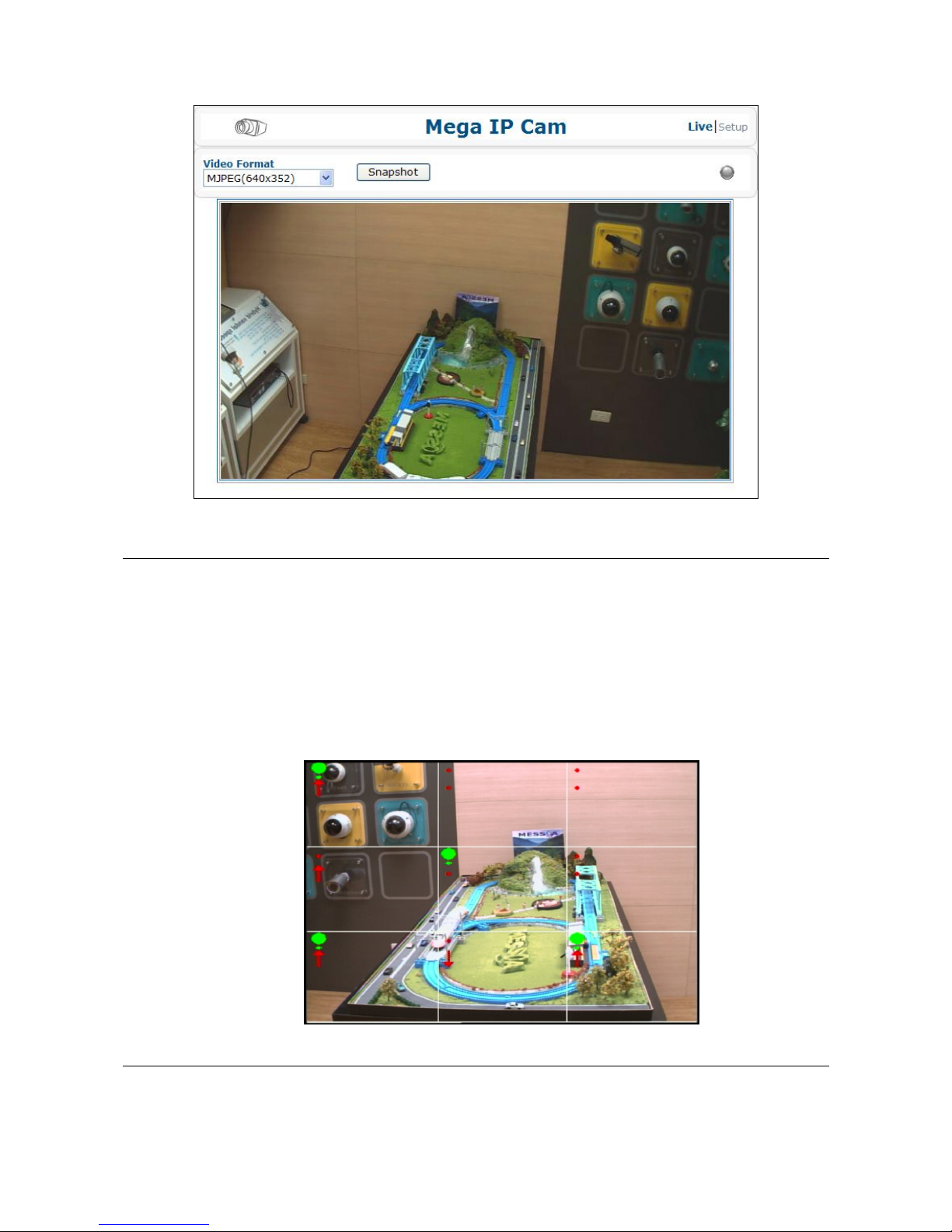

8. Then you should be able to see the camera image screen as follows:
9
3.5 Use “SmartFocus” to Adjust Focus Quickly and Easily
This network dome camera provides “SmartFocus” to obtain correct focus on a subject, instead of requiring
users to adjust focus manually. 9 view zones are provided. When you obtain correct focu s on each view
zone, the green light will be turned on.
1. Directly connect the video output cable to your monitor.
2. Press the reset button until the power is on.
3. The nine zones will appear in your monitor. Adjust the lens focus and symbols will be displayed on the
top left corner of each zone.
The green light: it means each view zone’s best focus position.
The red arrow: it means it is near the best focus position. You just need to fine-tune it.
3.6 Using “IPFinder” to Search Camera’s IP Address
“IPFinder” is a program which helps users find network cameras Please note that “IPFinder” is only
compatible with Windows Vista and Windows XP.
10
1.
Insert the CD in the CD-ROM driver.
2. Double click “IPFinder.msi” to run the program. Follow the instructions to install,
3. After successfully installing “IPFinder”, double click the “IPFinder” icon which is displayed in your
desktop. A “IPFinder” window will pop out. The window will display a list of net cameras which you are
using currently.
4. Click “Tool” on the tool bar to set related functions. Press “Search Net work” to search cameras. Press
“Set Master ID and Password” to set a master ID and password for all cameras. Or click “Management
Tool” to either restart the camera, update firmware, reset all of the camera settings to default (except
network settings) or reset all of the camera parameters to default.
5. After searching cameras, choose one to view detailed information. The top right frame of the “IPFinder”
window will display the camera’s monitor section and the bottom right frame of “IPFinder” will display the
camera’s IP address and related information.
11
6. Right click a camera to set it’s related functions. Press “Go to Presentation URL” to access the camera
which you want to login. Press “Set Device ID and Password” to set the camera’s login ID and password.
Click “Network Information” to configure the camera’s network settings. Or Press “Management Tool” to
either restart the camera, update firmware, reset all of the camera settings to default (except network
settings) or reset all of the camera parameter to default.
12
4. Live View
Live view is designed for general users to control the camera. " Video Format", “Snapshot”, “Recording LED”,
“Live” and “Setup” functions are listed on the live view. Please note, only administrators can access “Setup”
to configure camera settings.
4.1 Video Format
Select a resolution type for live view.
4.2 Snapshot
The “Snapshot” function is for snapshot capture. Press the “Snapshot” button to take a picture which will be
automatically saved into an IPCAM folder which is created automatically and saved in your computer.
4.3 Recording LED
The recording LED becomes red when the alarm/event function is triggered.
13
5. Configuration
5 setting categories: Image Settings, Network Settings, System Settings, Application Settings and SD Card
Settings are provided for administrator to set up the camera’s functionalities.
5.1 Image Settings
In the “Image” page, “Image” and “Advanced” are provided for image settings. Please be sure to click
“Save” button to keep your settings.
5.1.1 Image
-Basic Setting
Every parameter of “Basic Setting” affects the displayed image. Specify appropriate parameters in the
following section.
Camera Name: enter a desired network camera name. The name will be displayed at the top of the Live
page.
Video Codec: select a compression mode to be displayed for general users to choose
for live view or compression which include "MPEG4_1+MPEG4_2+MJPEG", "MPEG4_1+MJPEG",
"MPEG4_1+MPEG4_2", and "Single MPEG4_1".
- MPEG4_1 is for high-resolution live view/compression mode.
- MPEG4_2 is for low-resolution live view/compression mode.
- MJPEG is for middle-resolution live view/compression mode.
Resolution: “Resolution” and “Video Codec” are dependent fields.
14
- If "MPEG4_1+MPEG
4_2+MJPEG" is selected, "1280x720, 352x192, 640x352" can be
set.
- If "MPEG4_1+MJPEG" is selected, "640x480, 640x480" or "1280x720, 640x352" can be set.
- If "MPEG4_1+MJPEG_2" is selected, "1280x720, 352x192" can be set.
- If "Single MPEG4_1" is selected, “1280x720” can be set.
*Note: the corresponding fields are listed below.
Video Codec Field Resolution
Live View/Compression
Selections
MPEG4_1+MPEG4_2+MJPEG 1280x720, 352x192, 640x352 MJPEG (640x352)
MPEG4_1 (1280x720)
MPEG4_2 (352x192)
640x480, 640x480 MJPEG (640x480)
MPEG4_1 (640x480)
MPEG4_1+MJPEG
1280x720, 640x352 MJPEG (640x352)
MPEG4_1 (1280x720)
MPEG4_1+MJPEG_2 1280x720, 352x192 MPEG4_1 (1280x720)
MPEG4_2 (352x192)
Single MPEG4_1 1280x720 MPEG4_1 (1280x720)
TV System: "NTSC" and "PAL" are provided for different TV system settings.
Mirror: set images as left or right. Select ON or OFF to enable or disable this function.
Flip: set images as upside or down. Select ON or OFF to enable or disable this function.
-JPEG Setting
Quality: set the image’s quality as “Basic”, “Normal” or “Best”.
-MPEG-4_1 Setting
Bit Rate: according to your bandwidth, specify a value for data transmission rate (kbit/s).
Frame Rate: the frame rate is the image transfer speed. 5 is 5 images transmission per second, 10 is10
images transmission per second…etc. If “Auto” is selected, the camera will decide the image transfer
speed automatically.
-MPEG-4_2 Setting
The values contained in the frame rate field are displayed depending on the value you set in the video code
field (please note that you have to press the save button to save the value you select in the video code field
first and then the corresponding values contained in the frame rate filed will be displayed for selection.) Here
lists the corresponding values.
Video Codec Field Frame Rate Field
MPEG4_1 + MPEG4_2+MJPEG 15, 7.5, 2.5
MPEG4_1+MJPEG N/A
MPEG4_1+MPEG4_2 30, 15, 5
Single MPEG4_1 N/A
Bit Rate: according to your bandwidth, specify a value for data transmission rate (kbit/s).
Frame Rate: the frame rate is the image transfer speed. 15 is 15 images transmission per
second, 7.5 is 7.5 images transmission per second…etc.
15
5.1.2 Image Advanced Settings
“White Balance”, “Day and Night”, “AES”, “Lumii”, “Working Environment”, “Lens Format”, “BLC”,
“Brightness”, “Contrast”, “Saturation” and “Sharpness” are provided for you to set the quality of images.
Please click the “Save” button to save your image settings.
-Advanced settings
White Balance: select a white balance mode according to external lighting condition for the best color
temperature.
- Auto: adjust the white balance automatically according to the environment conditions.
- Daylight: adjust the white balance if the external light source is daylight.
- Fluorescent: adjust the white balance if the external light source is fluorescent.
- Incandescent: adjust the white balance if the external light source is incandescent.
Day and Night: This function enables this network camera to gain sensibility automatically according to
the lighting conditions. This function is always enabled.
- Auto：enable the auto mode by turning to the black-white function automatically in low light condition.
AES: automatic exposure values which determine how much light passes through the camera aperture
to the focus. The higher the value, the brighter the images.
Lumii: this Lumii function increases the sensitivity, reduces video noise in low light conditions, as well as
makes night images bright and clear. This function is always active.
- ON: the Lumii function is always enabled.
Working Environment:
- Normal: the camera’s color is automatically adjusted for normal environment.
- Anti-Flicker: reduce color rolling for indoor environment.
Lens Format: choose an appropriate lens matching with the lens size which you have installed. The
camera’s lens format is always “1/3”.
BLC: the BLC function is to provide clear images under back light circumstances.
- ON: enable the BLC function.
- OFF: disable the BLC function.
Brightness: adjust the image brightness level, which has “Low”, “Middle” and “High”. The default is
“Middle”.
Contrast: adjust the image contrast level, which has “Low”, “Middle” and “High”. The default is “Middle”.
Saturation: adjust the image saturation level, which has “Low”, “Middle” and “High”. The default is
“Middle”.
Sharpness: adjust the image sharpness level, which has “Low”, “Middle” and “High”. The default is
“Middle”.
Default All Image parameters: All image parameters will be set back to default. Further more, you can
use the key to fine-tune the pan/tilt degree up to 0.02°.
16
5.2 Network
Click the “Network” to view the current network settings, including “Network”, “FTP”, “SMTP” and “NTP”.
Please configure all Network, FTP, SMTP and NTP settings in the Network section.
17
5.2.1 Network
-Basic Setting
DHCP: the IP address is automatically obtained when this is checked; otherwise, uncheck it to set up
the network settings manually. If you enable the DHCP function, just specify DNS and HTTP Ports in
the below fields.
IP Address: specify your IP address here if you don’t select DHCP.
Subnet Mask: use default number: 255.255.255.0.
Default Gateway: leave blank as default setting. It is not required if it is not used. Please contact your
Network Administrator for Default Gateway information.
DNS: leave blank as default setting. It is not required if it is not used. Please contact your Network
Administrator for DNS information.
HTTP Port: We recommend using the default path. Contact your Network Administrator if it needs to be
changed.
Press “Save” to save your settings.
Network Error
Entering the wrong values can result in a network error.
18
5.2.2 FTP
-FTP Server Setting
Enable the FTP function and configure FTP settings here.
FTP Server/ Port: enter your FTP server address. The port default value is 21.
User Name: input a user login name.
Password: enter a user password.
File Upload Path: enter a folder path where you’d like to upload files to.
5.2.3 SMTP
-SMTP Server Setting
My Server Requires authorization: Check it to enable the server authorization requirement setting.
SMTP Server: enter the SMTP server address.
User Name: enter a user name.
Password: enter a user password.
Sender: enter an outgoing mail server in the “E-mail Server (SMTP)” field.
Receiver: enter an incoming mail server in the “E-mail Server (POP)” field.
5.2.4 NTP
-NTP Server Setting
NTP Server: assign an IP address or domain name for a time server.
Time Zone: select a correct time zone.
19
5.3 System
In this section, you can configure the system settings, including “Date Time”, “Time Stamp”, “Users”, “Audio”,
“Update” and “Information”. Please click the “Save” button to save your settings.
5.3.1 DateTime
-Current Time
It displays the current time of the camera. Date and time will be changed after you configure it in the “New
Time” section.
-New Time
You can set the camera time by “Set Manually”, “Synchronize with Computer Timer” and “Synchronize with
NTP Server”. Then, select a date format type. “YYYY/MM/DD’, “MM/DD/YYYY” and “DD/MM/YYYY” are
choices provided.
Set Manually: set date and time manually.
Synchronize with Computer Timer: synchronize your camera’s date and time with the computer’s timer.
Synchronize with NTP Server: synchronize your camera’s date and time with the NTP server’s timer.
20
5.3.2 Time Stamp
- Time Stamp
Enable the “Enable Date and Time Stamp” function to display the current time in the “Live” page.
Enable Date and Time Stamp: check “Enable Date and Time Stamp” to activate this function.
Date Format: select a date format. “YYYY/MM/DD”, “MM/DD/YYYY” and “DD/MM/YYYY” are choices
provided.
5.3.3 User
- User List
It displays the list of users. Only two roles can be specified, administrator (admin) and guest
(viewer). If you want to delete a user, select a user and then press the “Delete User” button.
- Add/Modify User
You can add a new user or modify a user’s information or authority.
To add/modify a new user, enter a user name and password. Then, specify his/her role as Admin or
Viewer.
Press “Add” to add a user or to modify a user’s password or authority.
5.3.4 Audio
Audio Recording: if the camera is connected to an external microphone, select “ON” to record the
external voice or “OFF” to disable the audio recording function.
Audio Playing: if the camera is connected to an external speaker, select “ON” to output audio signals
from the computer to outside.
21
Alarm level: specify a value for voice volume in the “Alarm Level” field. The volume increase in the order
of “1”, “2”, “3” and “4”. This function only works when the Audio Playing function is enabled. Audio
Recording: if the camera is connected to an external microphone, select “ON” to record the external
voice or “OFF” to disable the audio recording function.
Audio Playing: if the camera is connected to an external speaker, select “ON” to output audio signals
from the computer to outside.
Alarm level: specify a value for voice volume in the “Alarm Level” field. The volume increase in the order
of “1”, “2”, “3” and “4”. This function only works when the Audio Playing function is enabled.
5.3.5 Update
This function is designed to update firmware. Stop all camera operation when you update firmware. Do not
turn off power and keep internet connected during the firmware update process. Please restart the camera
after you have updated firmware successfully.
Restart camera: restart the camera that this action will cause disconnection.
Factory Default: reset all of the camera settings to default, except network settings.
Hard factory default: reset all of the camera parameters to default.
22
5.3.6 Information
It displays all login and alarm records.
5.4 Application
In this section, you can configure system settings, including “Setting” (Video File, FTP, SD Card and SMTP),
“Schedule” (Record Type and Period Setting) and “Alarm” (Event and Action).
5.4.1 Setting
Set video record time by selecting a value in the “AVI duration” field and a video record format when the
alarm is triggered. Press the “Save” button to save your settings.
23
5.4.1.1 Video File
Set video record time by selecting a value in the “AVI duration” field and set a video format when the alarm
is triggered. The values contained in the AVI format fields are displayed depending on the values you set in
the video code and resolution fields in the image setting page. The corresponding values are listed below.
Video Codec Field Resolution Field AVI Format Field
MPEG4_1 + MPEG4_2+MJPEG 1280x720,352x192, 640x352 MPEG4(720) MPEG4(CIF)
640x480,640x480 MPEG4(VGA)
MPEG4_1 + MJPEG
1280x720,640x352 MPEG4(720)
MPEG4_1+MPEG4_2 1280x720,352x192 MPEG4(720)/ MPEG4(CIF)
Single MPEG4_1 1280x720 MPEG4(720)
AVI duration: select video record time by selecting a value in the “AVI duration” field once the alarm is
triggered.
AVI Format: select a video record format.
Note: If you insert the SD card in this camera, the AVI Duration function cannot be set.
5.4.1.2 FTP
Set a format of video which is set to be saved to FTP. The values contained in the file format field are
displayed depending on the values you set in the video code field of the image setting section. The
corresponding values are listed below.
Video Codec Field File Format
MPEG4_1 + MPEG4_2+MJPEG
MPEG4_1+MJPEG
MPEG4
JPEG
MPEG4_1+MPEG4_2
Single MPEG4_1
MPEG4
SD card insert JPEG
FTP Networking section: it displays FTP information.
File Format: select a format of file which set to be saved to FTP. Please note that if you have inserted a
SD card into the camera, only JPEG can be selected.
Click “Save” to save your settings.
24
5.4.1.3 SD Card Storage
Set a format of video which is set to be saved on the SD card. Configure related setting in the below section.
The values contained in the file format field are displayed depending on the values you set in the video code
field of the image setting section. The corresponding values are listed below.
Video Codec Field File Format
MPEG4_1 + MPEG4_2+MJPEG
MPEG4_1+MJPEG
MPEG4
JPEG
MPEG4_1+MPEG4_2
Single MPEG4_1
MPEG4
File Format: set a saved file’s format.
Capability: displays the SD card storage capability.
Usage: displays information about the SD card usage volume.
SD card Format: format the SD card.
SD card Unmount: unmount the SD card
Press “Save” to save your settings.

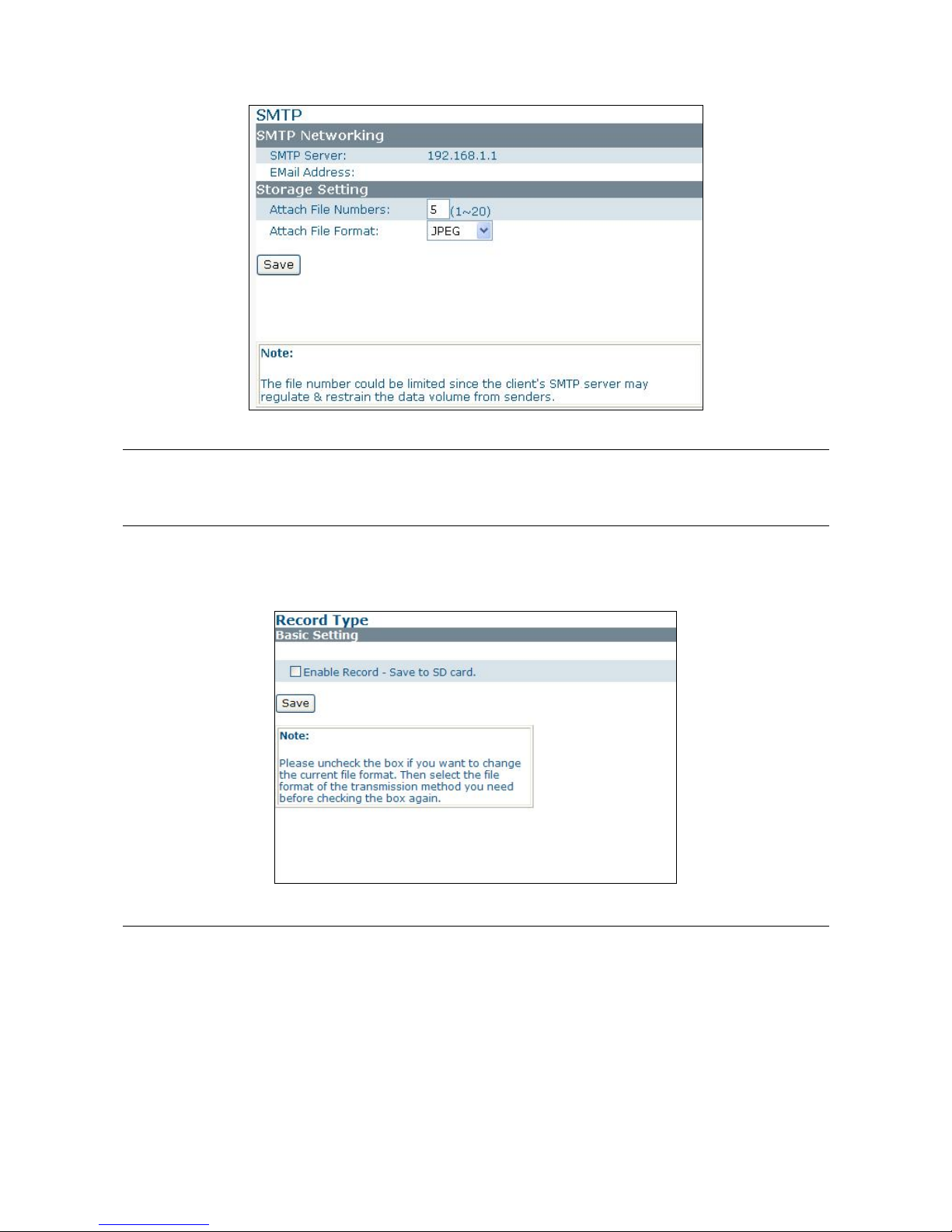

5.4.1.4 SMTP
You can set the number and type of images which you want to receive via e-mail. The values contained in
the “Attach File Format” field are displayed depending on the values you set in the video code field in the
image setting page. The corresponding values are listed below.
Video Codec Field File Format
MPEG4_1 + MPEG4_2+MJPEG
MPEG4_1+MJPEG
MPEG4
JPEG
MPEG4_1+MPEG4_2
Single MPEG4_1
MPEG4
SD card insert JPEG
SMTP Server: displays the SMTP address which can be set in Network>SMTP.
Email Address: the receiver’s mail address which can be set in Network>SMTP.
Attach File Number: specify the number of files which can be attached to a mail.
Attach File Format: select a format of files which can be attached to a mail. Please note that if you have
inserted a SD card into the camera, only JPEG can be selected.
25
5.4.2 Schedule
This function can be activated at preset times, in a repeating pattern on selected weekdays.
5.4.2.1 Record Type
Enable SD card recording to save your images. Enable Record-Save to SD card: save files on the SD
card.
Press “Save” to save your settings.
5.4.2.2 Period Setting
Store image files based on the schedule you set. Configure settings and then press “Save” to save settings.
26
Note: if you set up recording schedules, the “AVI duration” function (refer to 5.4.1.1 for related
settings) or the “alarm duration” function (refer to 5.4.3 for related settings) can not work.
5.4.3 Alarm
You can set to trigger alarms on the conditions that an event or action signal has been sent to the camera.
5.4.3.1 Event
Trigger an Alarm When Ethernet is Lost: set an alarm condition when Ethernet disconnected.
Digital Input: send a signal to the camera to trigger an alarm. Check it to enable this function. Then, set
digital input as “High” or “Low”
Motion Detection: this function is designed to record video once the camera detects a motion condition.
Select “Disable” to disable this function or “Enable” to enable this function.
Sensibility: set sensibility level as “Lowest”, “Low”, “Medium”, “High” or “Highest”. Or input a value from
0 to 99 in the customized threshold field. Higher number gets higher sensitivity.
Press “Save” to save your settings.
Select a motion detection area by clicking squares displayed on the screen to enable a detection
area. 12 motion detection areas are choices provided. Then press “Save Motion Windo w” to save
your motion detection area setting.
27
5.4.3.2 Action
Configure image transfer settings after triggering an alarm.
Select an image transfer method. You could upload the file via FTP server, save into the SD card, or
send via SMTP.
Digital Output: select “OFF” to disable this function or “ON” to enable this function. If select “ON”,
choose an output file’s resolution as “Low” or “High”.
Digital Output
- If you want to set digital output function start, you need to set ON. After that, you need to set “Active
Type” (Low or High) about digital output by the hardware.
Alarm duration
- The alarm time period of digital output.
28
5.5 SD Card
Insert a SD card into camera. Click “SD Card”, and you could see a notice that guides you to get the files on
the web page in SD card option
View SD Card Files
1. Confirm there is a SD card in the camera’s SD card slot.
29

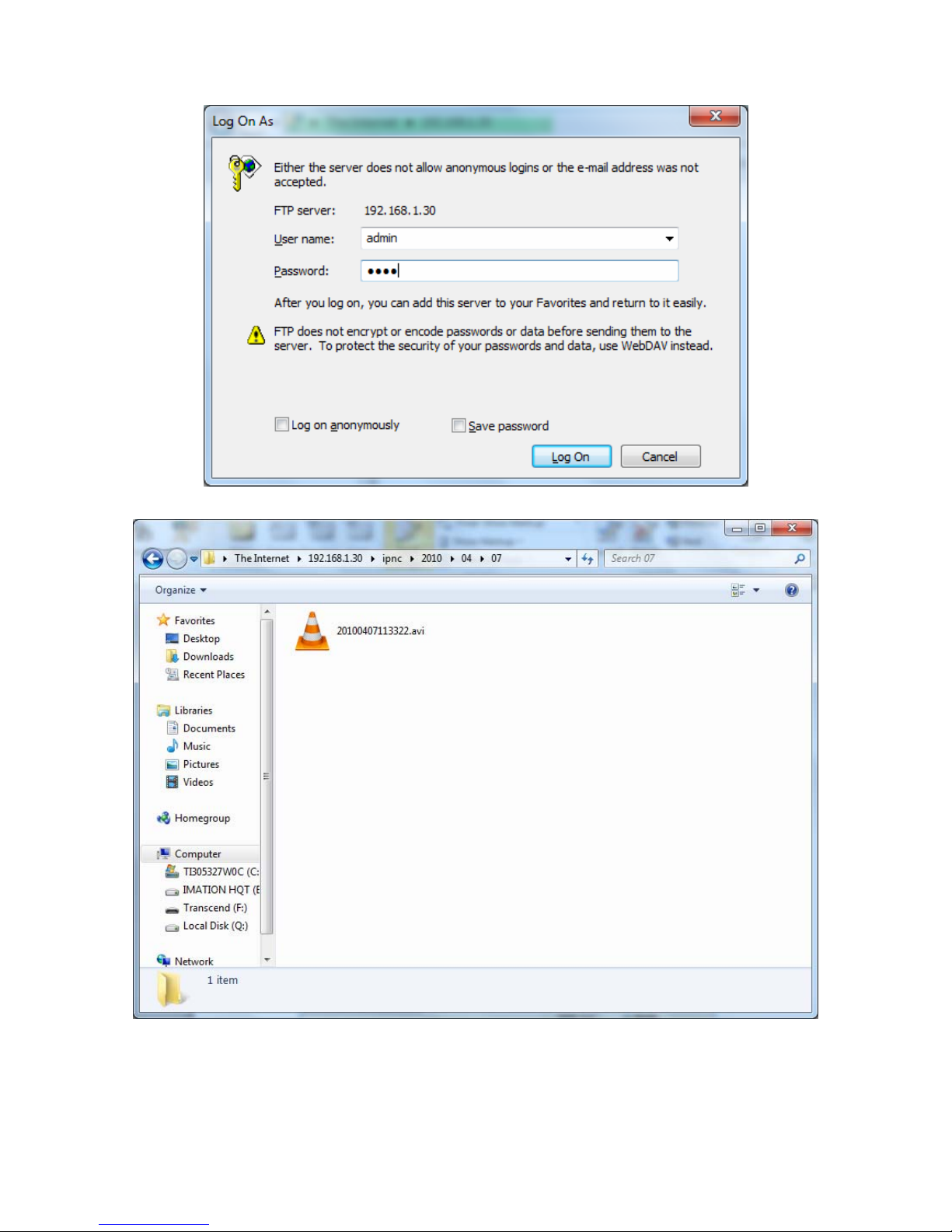

2. Open “My Computer”. In the “Address” field enter the current IP address used by the camera
(default IP ftp://192.168.1.30) and press Enter.
3. A login box will appear. Enter your login information.(username: admin)
30
4. After login, you will see the SD card files. Note that the files are sorted by date.
31
Loading...
