Messoa NCB855E, NCB855PRO User Manual

www.messoa.com

User Manual

Fixed Network Camera

NCB855E/NCB855PRO

2 NCB855E/NCB855PRO l User Manual

Safety Notice

The camera is intended for indoor use. To use the camera outdoors, it must be installed in an

outdoor housing (not provided).

Make sure the supplied voltage meets the power consumption requirements of the camera before

powering the camera on. Incorrect voltage may cause damage to the camera.

The camera should be protected from water and moisture, excessive heat, direct sunlight and

cold.

The installation should be made by a qualied service personnel and should conform to all local

codes.

Unplug the camera during lightening storms or when unused for long period of time.

Operating Notice

This device should use power source as follows:

• 12VDC/24 VAC or by POE (IEEE 802.3af).

Avoid viewing very bright objects (e.g. light xtures) for extended periods.

Avoid operating or storing the unit in conditions as follows:

• Extremely humid, dusty, hot/cold environments where the operating temperature is outside
the recommended range of -10°C to +55°C.

• Close to sources of powerful radio or TV transmitters.

• Close to uorescent lamps or objects reecting light.

• Under unstable light sources (may cause ickering).

NCB855E/NCB855PRO l User Manual 3

CE Compliance Statement

This equipment complies with the following requirements of the EMC Directive 2004/108/EC for CE
Marking: EN 55022: 2006 + A1: 2007 Class B, EN 61000 and EN 50130.

FCC Compliance Statement

If the declaration of conformity markings are present on the equipment, the following statements
apply:

Tested to comply with FCC standards for HOME OR OFFICE USE.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit other than the one to which the receiver is
connected.

• Consult the dealer or an experienced radio/TV technician for help.

WEEE

Waste Electrical and Electronic Equipment

Correct disposal of this product (applicable in the European Union and other
European countries with separate collection systems). This product should
be disposed of, at the end of its useful life, as per applicalbe local lows,
regulations and procedures.

The specications or appearance of this product are subject to change without a prior notice.

4 NCB855E/NCB855PRO l User Manual

Table of Contents

Table of Contents

1. Overview ................................................................................................ 6

1.1 Introduction .................................................................................................... 6

1.2 Package Contents ............................................................................................ 6

1.3 Hardware Overview .......................................................................................... 6

1.3.1 Dimensions ......................................................................................................... 6

1.3.2 Part Names ......................................................................................................... 7

1.3.3 Rear Panel .......................................................................................................... 7

1.4 Specications .................................................................................................. 9

2. Camera Installation .............................................................................. 10

2.1 Installing the Lens ......................................................................................... 10

2.2 Mounting the Camera ..................................................................................... 10

2.3 Connecting the Cables .................................................................................... 10

2.4 Adjusting the View and Focus .......................................................................... 10

3. Network Deployment ............................................................................ 11

3.1 Network Connection Types .............................................................................. 11

3.2 Accessing the Camera for the First Time ............................................................ 12

3.3 Using “IP Finder” to Manage Cameras ............................................................... 15

3.3.1 Installing IP Finder ..............................................................................................15

3.3.2 Using IP Finder ...................................................................................................15

4. Web-based Interface ............................................................................. 18

4.1 Overview ...................................................................................................... 18

4.1.1 Main Screen .......................................................................................................18

4.1.2 Setup Menu........................................................................................................19

4.1.3 Applying Settings ................................................................................................19

4.2 Image Settings ............................................................................................. 19

4.2.1 Codec ..............................................................................................................19

4.2.2 Exposure ...........................................................................................................22

4.2.3 White Balance ....................................................................................................24

4.2.4 Basic Setting ......................................................................................................25

4.2.5 Smart Encoding ..................................................................................................26

4.2.6 Smart Focus .......................................................................................................27

4.2.7 Privacy Zone ......................................................................................................27

4.2.8 ePTZ .................................................................................................................28

4.3 Network ....................................................................................................... 29

Table of Contents

NCB855E/NCB855PRO l User Manual 5

4.3.1 Basic .................................................................................................................29

4.3.2 FTP ...................................................................................................................30

4.3.3 SMTP ................................................................................................................30

4.3.4 NTP ..................................................................................................................32

4.3.5 RTSP .................................................................................................................32

4.3.6 ONVIF ...............................................................................................................33

4.4 System ........................................................................................................ 34

4.4.1 Date and Time ....................................................................................................34

4.4.2 Time Stamp .......................................................................................................34

4.4.3 Firmware ...........................................................................................................35

4.4.4 User Management ...............................................................................................37

4.4.5 Language ..........................................................................................................37

4.4.6 Log ...................................................................................................................38

4.4.7 Audio ................................................................................................................39

4.5 Event ........................................................................................................... 40

4.5.1 Motion Detection .................................................................................................40

4.5.2 External Alarms ..................................................................................................41

4.5.3 Face Detection ....................................................................................................42

4.5.4 Blur Detection ....................................................................................................43

4.5.5 Audio Detection ..................................................................................................44

4.5.6 Ethernet Detection ..............................................................................................45

4.5.7 Event Management ..............................................................................................45

4.6 Recording ..................................................................................................... 46

4.6.1 Settings – Video File ............................................................................................46

4.6.2 Settings – FTP ....................................................................................................46

4.6.3 Settings – SMTP .................................................................................................47

4.6.4 SD Card Storage Format Selection .........................................................................48

4.6.5 Period Setting.....................................................................................................49

1. Overview

6 NCB855E/NCB855PRO l User Manual

1. Overview

1.1 Introduction

This network camera is equipped with a mechanical (ICR) day/night switch, making it ideal for 24/7
surveillance over the network. It suits any applications where maximum image quality and efcient
bandwidth usage are vital. At night and in low lighting conditions, its high sensitivity sensor ensures
clear and noise free images. Meanwhile, crisp images also consume less bandwidth and storage.
It also comes with various detection functions to keep you informed upon events. Other supported
features include micro SD/SDHC card slot, video out and two-way audio.

1.2 Package Contents

The package includes these items:

Fixed Network Camera x1

CD-ROM (User manual and IP Finder utility) x1

Quick Start Guide x1

2-pin Captive Screw Terminal Block x1

6-pin Captive Screw Terminal Block x1

CS-C Mount Adapter Ring x1

1.3 Hardware Overview

1.3.1 Dimensions

114mm (4.5”)

66mm (2.6”)

56mm(2.2”)

65mm(2.6”)

1. Overview

NCB855E/NCB855PRO l User Manual 7

1.3.2 Part Names









1.

Lens mounting ring:

For mounting a C-mount or CS-mount lens.

2.

Back Focus Control:

Allows to adjust the distance between the back ange of the lens mounting

and the image sensor.

3.

Auto Iris lens connector:

Supplies power and control signals to an auto-iris lens.

4.

Tripod mount screw holes:

Use these screw holes to attach a tripod mount. You can attach the

mount to either the top or bottom side. (screw: 1/4”).

1.3.3 Rear Panel

Micro
SD
Card

Audio Out Audio In

Reset

Power

Video

DC 12V
AC

24V

+
~

~

Ethernet/PoE

1 2 3 4 5 6

RS485+

GND

ALM-In 1

ALM-In 2

RS485

ALM-Out



















1.

DC 12V/AC 24V:

Connect the power terminals to a power supply. If using DC 12V power supply,

make sure to connect the power contacts to correct polarities (Red+/White–).

2.

Video:

To perform focus adjustments during the installation, connect the video port to a monitor.

3.

Power LED:

The LED lights on when power is applied.

4.

Audio In:

Connect to a microphone

5.

Reset:

Using a pointed object, hold down the reset button within 5 seconds and release to restart
the camera. Or hold down the reset button longer than 5 seconds to reset the camera to factory
defaults.

6.

Audio Out:

Connect to a speaker.

7.

microSD/SDHC Card Slot:

Insert a microSD/SDHC card to the slot for recording and storage.

8.

I/O:

Connect your external devices, e.g., sensors and alarms to the corresponding I/O contacts.

The pins of the I/O terminal block control the following signals:

1. Overview

8 NCB855E/NCB855PRO l User Manual

Pin Signal Connection

1 RS485+ Reserved.

2 RS485- Reserved.

3 GND Ground (electricity) in electrical circuits.

4 ALM-Out Connects to alarm device that responds to

alarm signals, such as buzzers or LED lights.
Besides, an external relay is also employed
as a switch accompanying the buzzer or LED
light. Therefore, a diode is recommended being
connected in parallel with the relay to protect
against transient voltages that may damage the
component inside the camera. Note that the
supplied voltage and current for the relay must
not exceed DC 30V and 1A.

5 ALM-IN 1 Connects to device that triggers alarm signals

which range between DC +3.3 and 6 Volts for
High level activation, and under +1 Volt for Low
level activation.

6 ALM-IN 2 Connects to device that triggers alarm signals

which range between DC +3.3 and 6 Volts for
High level activation, and under +1 Volt for Low
level activation.

9.

Ethernet/PoE:

Connects to the LAN port of a standard 10BaseT/100BaseTX device, e.g., hub,

switch or router. The LED indicators show the status as below:

Color Status Indication

Green On Network connection is established.

Off No network connection.

Orange Blinking Networking is active

On Collision occurs

Off Networking is inactive

1. Overview

NCB855E/NCB855PRO l User Manual 9

1.4 Specications

Video

Sensor Type 1/2.7" image sensor optimized for low-light performance

Active Pixels 1920x1080 (HxV)

Compression H.264, MPEG-4, MJPEG

Streaming Triple simultaneous streams

Resolution

NCB855E 720P, XGA, SVGA, D1, VGA, 2CIF, CIF

NCB855PRO 1080p, SXVGA, 720P, XGA, SVGA, D1, VGA, 2CIF, CIF

Max.
Frame
Rate

NCB855E 30/25 fps at 1280x720 (NTSC/PAL)

NCB855PRO 30/25 fps at 1920x1080 (NTSC/PAL)

Day/Night Mechanical (ICR) D/N Control

Day/Night Mode Auto, Forced BW, Forced Color, External

Shutter Time

1/10000s to 1/3.75s Selectable (60Hz);
1/10000s to 1/3.125s Selectable (50Hz)

Min. llumination

0.08 lux @30IRE; 0.20 lux @50IRE (F1.2, Shutter Speed:
1/15sec)

Video Output NTSC: 720 X 480@30fps; PAL: 720 X 576@25fps

Bit Rate Control CBR/VBR (Primary Stream)

Lens Mount CS Mount; Adjustable lens back focus

Audio

Audio Communication Two-Way Mono Audio, Full-Duplex

Compression G.711, PCM, 8kHz

Audio In/Out External microphone and speaker

Image Enhancement

Image Settings

AWB, AES, AGC
Exposure mode, white balance, backlight compensation,
brightness, contrast, sharpness, staturation, digital WDR,
privacy zone

Image Orientation Mirror, Flip

Frequency Control 50Hz, 60Hz

Date & Time Stamp Yes

Intelligent Video

Motion Detection 5x5 zones, 5-level sensitivity or customized threshold

Face Detection 3-level sensitivity

Audio Detection 5-level sensitivity or customized threshold

Blur Detection Customized sensitivity in seconds

Ethernet Detection Network loss detection

Smart Encoding Congurable ROI

Others Snapshot, Smart Focus, e-PTZ, optimized i-frame interval

Event

Event Trigger

Motion detection, face detection, audio detection, blur de­tection, Ethernet detection, external alarm

Event Management

File upload via FTP, SMTP and SD Card;
Notication via email, HTTP and TCP;
External output activation

Local Storage

Memory Card Slot microSD/SDHC Card up to 32 GB

Memory Card Overwrite Yes

Recording Trigger Alarm, Event, Schedule

Network

Protocol

IPv4, TCP/IP, UDP, HTTP, SMTP, DNS, DHCP, NTP, FTP, RTP,
RTSP, RTCP, ICMP, UPnP

Ethernet 10Base-T/100Base-TX

PoE IEEE 802.3af, Class 3

ONVIF Yes

Browser IE Browser 6.0 or Above

Security Two-level access with password protection

I/O & Controls

Power 2-pin screwless terminal block

Alarm In/Out 2-in/1-out within the terminal block

Network 1 x RJ-45 with LED indicators

Audio In/Out 1-in/1-out, 3.5mm phone jacks

RS-485 Reserved

Analog Video BNC x 1, 1.0Vp-p, 75 ohm

Reset System reboot/factory default

Power

Power Requirement DC 12V & AC 24V ± 10% / PoE (IEEE 802.3af)

Power Consumption 6W (max.)

Mechanical

Dimensions (DxHxW) 114 x 66 x 65 mm (4.5" x 2.6" x 2.6")

Weight 320g (0.70 lb) w/o lens

Environmental

Operating Temperature -10ºC ~ 50ºC (-14ºF ~ 122 ºF)

Operating Humidity 10~ 90% RH

Storage Temperature -20ºC ~ 60ºC (-4ºF ~ 140 ºF)

Regulatory

Approvals CE, FCC Class B, RoHS

2. Camera Installation

10 NCB855E/NCB855PRO l User Manual

2. Camera Installation

2.1 Installing the Lens

Attach your lens onto the camera’s lens mounting ring.



CS-Mount lens:

Attach the lens to the camera directly.



C-Mount lens:

You must mount the supplied CS-C mount

adapter ring rst and then attach the C-Mount lens.

If you are using an auto-iris lens, connect the auto-iris cable
to the IRIS connector on the camera.

2.2 Mounting the Camera

Attach a stand (not provided) to the camera and mount the camera to your intended location.

Make sure to rmly attach the camera to a suitable at surface.

2.3 Connecting the Cables

1. Optionally connect external input/output devices to the camera.

2. Optionally connect a speaker and microphone to the camera.

3. Connect the camera to a power source, using one of these options:

•

DC 12V or AC 24V:

Connect to the power terminals on the rear panel. If using DC 12V power

supply, make sure to connect to correct polarities (Red+/White–).

•

PoE:

Using a Cat. 5/5e or above UTP/STP cable, connect the LAN port to a PoE-capable

network device. Power will be supplied through the Ethernet cable.

4. Optionally connect a video monitor if you want to perform focus adjustments during the
installation.

2.4 Adjusting the View and Focus

Adjust the focus controller, and zoom controller of the lens to get the best resolution. If needed,
adjust the back focus to achieve the focus.

3. Network Deployment

NCB855E/NCB855PRO l User Manual 11

3. Network Deployment

3.1 Network Connection Types

There are many different ways that you can connect the camera to your network, depending on
your applications requirements. You should always set the camera’s network settings according to
your network congurations. The following diagrams depict some typical applications with guidelines
on network settings. For more information on network settings, always consult with your network
administrator or ISP as required.

Type 1— Direct Connection to a PC

Directly connect the camera to a PC using a standard Ethernet cable.

To extend the connection length, you should use a RJ-45 female/female coupler to connect two
Ethernet cables together.

RJ-45 Coupler

Note

Although an RJ-45 coupler is used to extend the connection length, the total length between the PC
and the IP camera must not exceed 100 meters (328 feet). The LAN port of the camera supports auto
MDI/MDIX (Medium dependent interface crossover) so there is no need to use cross-over cable.

To access the camera, the PC must be on the same network as the camera. The default IP address of
the camera is a static one (192.168.1.30). Congure your PC’s IP address as 192.168.1. X (where X
is a number between 2 to 254, excluding 30 and subnet mask as 255.255.255.0, and then your PC
should be able to access the camera.

Type 2: Connecting Camera(s) to a Local Area Network (LAN)

To add the camera(s) to an existing LAN, just connect the camera(s) to the hub or switch on your
network. If you want to provide the camera power via the Ethernet connection, a PoE compliant hub/
switch is required.

Note

The LAN port of the camera supports auto MDI/MDIX (Medium dependent interface crossover) so
there is no need for an uplink port or the use of a cross-over cable.

3. Network Deployment

12 NCB855E/NCB855PRO l User Manual

Assign an IP address to your camera following your network IP allocation policy. You can manually
specify the IP address or allocate the IP address automatically using a DHCP server, if available on
your network.

Then, you can monitor and manage the camera via a web browser from a local PC.

Router/Switch/Hub

Type 3: Remote Connection via the Internet

If the network where the camera resides is connected to the Internet, you can also provide remote
access to your camera over the Internet.

Typically a broadband router has a built-in DHCP function to assign a local IP address to your camera.
You can alternatively assign a xed IP address to the camera to prevent it from frequently changing.

Router

xD SL /Cable
Modem

To access the camera from a local PC, simply use the local IP address of the camera.

To enable remote access, you must congure your router/rewall to forward an incoming request to
that xed local IP address of the camera. Therefore, when an external host sends a request to access
your camera, the request will rst reach the router’s external IP address and then be forwarded to
the local IP address of the camera.

Port forwarding is based on the service you want to provide. For example, forward HTTP port to
enable remote web access to your camera, or RTSP port to enable access to video/audio streams
from the camera.

If your camera is congured to use a non-standard HTTP port, then you have to forward that port
accordingly.

3.2 Accessing the Camera for the First Time

3. Network Deployment

NCB855E/NCB855PRO l User Manual 13

The camera comes with a web-based setup utility, allowing you to view the video of the camera and
congure the camera for optimal use in your environment.

To access the camera’s web-based control utility, you need a PC that meets the following
requirements:



Operating System: Windows Vista® or XP



Browser: Internet Explorer Version 6.0 or later



CPU: Intel® Pentium® 4 Processor 2GHz or higher



RAM: 512 MB or more.

Then take the following steps to connect your PC to the camera.

Step 1: Make the connection

For initial setup purposes, connect one end of an Ethernet cable to the RJ45 connector of the camera
and the other end to the LAN port on your PC.

Step 2: Congure your PC’s IP address

The camera uses a default IP address of 192.168.1.30 and subnet mask of 255.255.255.0. To have
your PC on the same network with the camera, congure your PC’s IP settings as below:



IP address: 192.168.1. X, where X is a number between 2 to 254, excluding 30.



Subnet mask: 255.255.255.0.

Ignore all other settings and click OK.

Step 3: Link Verication between PC and Camera

1. Launch the Command Prompt by clicking the Start menu, Programs, Accessories and then
Command Prompt.

2. At the prompt window, type

ping x.x.x.x

, where x.x.x.x is the IP address of the camera (the

default is 192.168.1.30).

If the message of “Reply from…” reponds, it means the connection is established.

3. Network Deployment

14 NCB855E/NCB855PRO l User Manual

Step 4: Accessing the Camera from IE Browser

Open the IE browser and enter the IP address of the camera in the URL eld. The default is

192.168.1.30.

When prompted for login, enter the user name and the password (The defaults: admin, 1234). Note
that the user name and password are case-sensitive.

3. Network Deployment

NCB855E/NCB855PRO l User Manual 15

Upon successful login, you will see the live view screen shown below, which is taken from NCB855PRO
for series introduction.

3.3 Using “IP Finder” to Manage Cameras

IP Finder is a management tool included on the product CD. It is designed to manage your network
cameras on the LAN. It can help nd multiple network cameras, set IP addresses, show connection
status and manage rmware upgrades.

3.3.1 Installing IP Finder

Before proceeding, make sure your operating system is Windows Vista or Windows XP.

To install the software, simple locate and double-click the IP Finder setup le on the provided CD.
Then follow the on-screen prompts to proceed.

3.3.2 Using IP Finder

To launch IP Finder, double-click the IP Finder shortcut on the desktop or click Start > Programs >
IP Finder > IP Finder.

After you launch IP Finder, it will search for all the available cameras on the same network. Click
the plus sign next to “All Devices” to expand the menu and display all the found cameras.

Clicking a target camera will show the live view (if available) and the detailed information of the
camera, including the MAC address. Each camera comes with a unique MAC address, which is
indicated on the product label. It helps identify which camera is currently accessed, particularly when
multiple cameras are connected on your network.

3. Network Deployment

16 NCB855E/NCB855PRO l User Manual

The Tool menu of the IP Finder allows you to perform these tasks:

Search Network: This option allows you to search the cameras on the network.

Set Master ID and Password: Allows you to set a master ID and password for managing the

cameras with IP Finder.

Management Tool: Allows you to restart the camera, update rmware, reset all of the camera

settings to default (except network settings) and reset all of the camera parameters to default.

For an individual camera, right-click the camera and a menu will provide these options:

Go to Presentation URL: Launch IE browser to access the web-based utility of the camera.

Set Device ID and Password: Set the login ID and password for managing the camera with IP

Finder.

3. Network Deployment

NCB855E/NCB855PRO l User Manual 17

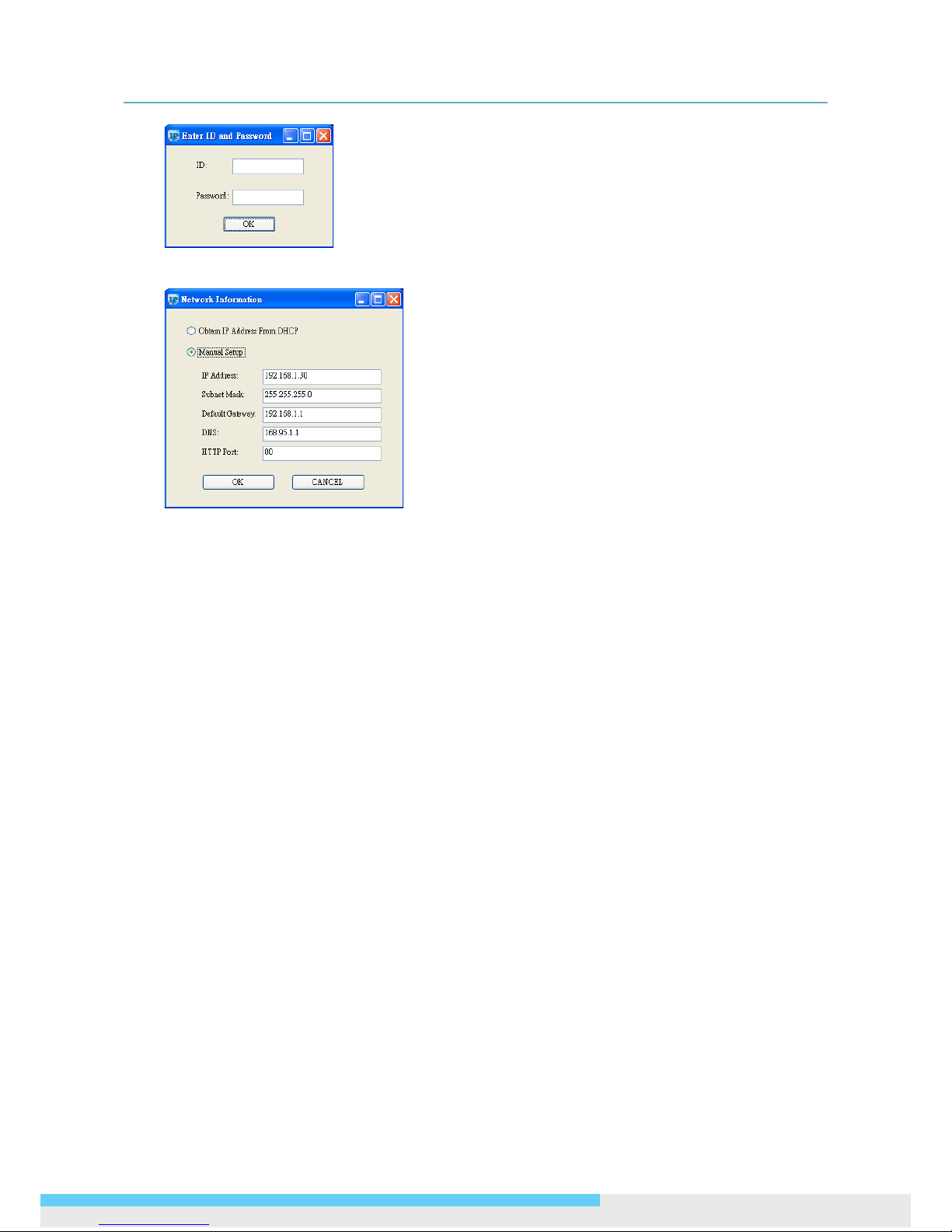

Network Information: Allows you to congure the camera’s network settings.

4. Web-based Interface

18 NCB855E/NCB855PRO l User Manual

4. Web-based Interface

4.1 Overview

4.1.1 Main Screen

After you log in to the camera’s web-based control utility, you will rst see the live view screen of the
camera. The screen below is taken from NCB855PRO for series introduction.

Snapshot button

Setup button

Live view video

Alarm Indicator

Recording Indicator

Camera name

The live view screen of the utility provides these options:

Snapshot: Pressing this button takes a snapshot of the current live view screen.

Live: Pressing this button displays the live view of the camera.

Setup: Pressing this button allows you to access the setup page.

Camera name: Displays the name of the camera.

Recording Indicator: Turns red when the recording is proceeding.

Alarm Indicator: Appears when an alarm is triggered.

Live view video: Shows the live view of the camera.

Note that the accessibility to the options varies according to the login account.

Viewer: Allowed to view only the live view screen. Access to other options is restricted.

Administrator: Can access all the options on the live view page and make congurations on the

setup pages.

4. Web-based Interface

NCB855E/NCB855PRO l User Manual 19

4.1.2 Setup Menu

The Setup options are categorized into ve groups: Image, Network, System, Event and
Recording. Clicking the name will expand its sub-menu. See the ensuing sections for more

information.

4.1.3 Applying Settings

Each conguration page provides a Save button. Settings are applied right after you press the Save
button. And the browser will refresh to load the latest setting or otherwise pop up the “Save OK”
message to indicate that settings have been applied.

4.2 Image Settings

4.2.1 Codec

The Codec page allows you to congure the video streams for the camera. You can optionally
congure a secondary or third stream to a resolution as required by your third-party device or
software.

* The gure above is taken from NCB855PRO for web interface introduction purposes. Options within each item
may differ slightly among series products.

4. Web-based Interface

20 NCB855E/NCB855PRO l User Manual

Camera Name Settings

Enter a descriptive name of the camera. Note that if you want to make the camera ONVIF

compliant (see Network > ONVIF ), no space is allowed in the camera name.

H.264 Codec Settings

Resolution: Click the drop-down menu to choose a resolution for the video.

Bit Rate: According to your bandwidth, specify a value for data transmission rate (kbps). Higher

value gets higher video quality but consumes more bandwidth.

Frame Rate: Choose the intended frame rate, i.e., the number of frames to transmit per second.

I-fram Interval: While keeping the same frame rate, you can specify longer I-frame interval

to achive reduced bit rate, optimized bandwidth consumption and minimized storage space
consumption. Generally, it’s recommended setting longer interval for less motion and sufcient
lighting conditions, and shorter interval for scenes with lots of motion and low lighting conditions.
Click the drop-down menu to select options including 1/2, 1, 2, 3, 4 seconds.

MPEG4 Codec Settings

Resolution: Click the drop-down menu to choose a resolution for the video.

Bit Rate: According to your bandwidth, specify a value for data transmission rate (kbps). Higher

value gets higher video quality but consumes more bandwidth.

Frame Rate: Choose the intended frame rate, i.e., the number of frames to transmit per second.

I-fram Interval: While keeping the same frame rate, you can specify longer I-frame interval

to achive reduced bit rate, optimized bandwidth consumption and minimized storage space
consumption. Generally, it’s recommended setting longer interval for less motion and sufcient
lighting conditions, and shorter interval for scenes with lots of motion and low lighting conditions.
Click the drop-down menu to select options including 1/2, 1, 2, 3, 4 seconds.

MJPEG Codec Settings

Resolution: Click the drop-down menu to choose a resolution for the video.

Quality: Set the image’s quality as High, Normal or Low.

Frame Rate: Choose the intended frame rate, i.e., the number of frames to transmit per second.

Note

1. Live View uses the MJPEG codec. If no streaming is using MJPEG, it will result in no video for Live
View.

2. If MJPEG is selected for both the primary stream and the third stream, Live View will always
display video using the third stream codec settings.

4. Web-based Interface

NCB855E/NCB855PRO l User Manual 21

Refer to the tables below for selectable codec types for each streaming:

NCB855PRO Streaming Combination

Primary Secondary Third

Codec Resolution Codec Resolution Codec Resolution

MJPEG

1080P

OFF N/A

OFF N/A

H264
MPEG4

D1
VGA
2CIF
CIF

SXVGA
720P
XGA
SVGA
D1

OFF N/A

OFF N/A

MJPEG

VGA
CIF

H264
MPEG4

D1
VGA
2CIF
CIF

OFF N/A

MJPEG

VGA
CIF

H264
MPEG4

1080P

OFF N/A

OFF N/A

MJPEG

VGA
CIF

SXVGA
720P
XGA
SVGA
D1

OFF N/A

OFF N/A

MJPEG

VGA
CIF

H264
MPEG4

D1
VGA
2CIF
CIF

OFF N/A

MJPEG

VGA
CIF

NCB855E Streaming Combination

Primary Secondary Third

Codec Resolution Codec Resolution Codec Resolution

MJPEG

H264
MPEG4

720P
XGA
SVGA
D1

OFF N/A

OFF N/A

MJPEG

VGA
CIF

H264
MPEG4

D1
VGA
2CIF
CIF

OFF N/A

MJPEG

VGA
CIF

Mirror Settings

This option allows you to mirror or ip the video image if required.

OFF: Turns off this function.

HORIZONTAL: Flips the images horizontally.

4. Web-based Interface

22 NCB855E/NCB855PRO l User Manual

VERTICAL: Flips the images vertically.

BOTH: Flips the images vertically and horizontally.

Rate Control

Choose a bit rate control to manage your bandwidth usage.

Variable Bit Rate (VBR): VBR keeps the video stream quality as constant as possible by varying

bit rate. This mode ensures high quality image for motion scene and is often selected when image
quality demands priority. However, this mode requires more bandwidth in order to vary the bit
rate.

Constant Bit Rate (CBR): CBR maintains a specic and constant bit rate by varying the stream

quality. With CBR, streaming is smooth and network throughput is stable for any scene. This
mode is typically used with a limited bandwidth environment.

TV Output Stream

Turn on this option if you connect an analog monitor to the camera’s Video connector for video
output.

4.2.2 Exposure

The Exposure page allows you to congure the Exposure Mode and Backlight Compensation
settings according to the light conditions of the camera.

Exposure Mode

Auto Exposure Settings

Method: Select which area of the image will be used to measure the amount of light to achieve

best exposure.

• Center Weighted: Exposure metering is averaged over the entire frame but emphasis is
placed on the central area.

4. Web-based Interface

NCB855E/NCB855PRO l User Manual 23

• Object Targeted: This option meters the exposure based on the targets you specify. When
this option is selected, dene your target by clicking squares displayed on the image and
then press Save Spot Window to save the setting.

EV: In a scene with predominantly light or dark areas, the image will be underexposed or

overexposed, causing an image to be too dark or bright. In such situations, you can adjust a
compensation value to optimize the exposure. Decrease the value if images appear too light
(overexposed). Increase the value if images are too dark (underexposed).

Max/Min. Exp: Select the maximum / minimum exposure time according to the light source. The

selectable value will change according to the frequency setting under Image > Basic Settings.

Sensitivity: Select how sensitive the camera reacts to the light. A higher value enables the

camera to be more sensitive to the light conditions and adjust the exposure in the shortest time
interval.

Max Gain: Specify the maximum amount of amplication applied to the image. A high level of

gain allows images to be viewable in very low light, but will increase the image noise.

Manual Exposure Settings

Exposure Time: Enter a desired exposure time.

Gain: Select a gain value from 0 to 16. A high level of gain allows images to be viewable in very

low light, but will increase image noise.

BLC (Backlight Compensation)

The Backlight Compensation function allows you to provide the optimal exposure of subjects under
back light circumstances.

OFF/ON: Choose to enable or disable the BLC function.

BLC area setting: BLC area refers to the dark area where more details are expected. Dene your

BLC area by clicking squares displayed on the screen and then press Save BLC Window to save
the setting.

Digital Wide Dynamic Range

4. Web-based Interface

24 NCB855E/NCB855PRO l User Manual

When there are both very bright and very dark areas simultaneously in the eld of view, you can
enable Digital Wide Dynamic Range (WDR) function. It optimizes an image to ensure that dark areas
are more visible while retaining details in bright areas.

Level: Depending on the contrast/dynamic range of a scene, you can select different level of

WDR. Higher level of WDR suits for higher contrast/dynamic scene.

4.2.3 White Balance

Select a white balance mode according to external light condition for the best color temperature.

Auto White Balance: Use this option when there is no special lighting in the environment. The

camera will automatically adjust the color temperature according to the light conditions and
the sensitivity you specify. The higher the sensitivity, the faster the adjustment. If the lighting
conditions change frequently, select a lower sensitivity to prevent the camera from frequently
changing white balance.

Manual White Balance: With any special light in the environment, you can use this option to

manually adjust the red, green and blue channels, which are mostly affected by the special light.
For example, if red color is too bright, then you should lower the R Gain value.

4. Web-based Interface

NCB855E/NCB855PRO l User Manual 25

4.2.4 Basic Setting

The Basic Setting allows you to specify a frequency and adjust the basic image settings to optimize
your video image.

Frequency: Select an appropriate frequency to reduce the icker on the image. “50 Hz” and

“60 Hz” are provided Frequencies settings will affect the Max. Exposure and Min. Exposure
settings under

Image > Exposure.

TV System: Displays the current video standard: NTSC or PAL. This setting cannot be changed

via web interface.

Brightness: Adjust the image brightness level.

Contrast: Adjust the image contrast level.

Saturation: Adjust the image saturation level.

Sharpness: Adjust the image sharpness level.

Default All Image parameters: Pressing this button will restore all the image settings to the

defaults.

4. Web-based Interface

26 NCB855E/NCB855PRO l User Manual

4.2.5 Smart Encoding

On the Smart Encoding page you can specify a specic region of the video as more important, i.e.,
a region of interest (ROI). When a ROI is specied, the camera will assign a higher number of bits to
the ROI area to deliver better video quality than non-ROI areas.

Note

The Smart Encoding function is only available when H.264 is selected for one of the streams.

Basic Setting

To dene a smart encoding area, click and drag your mouse on the image to dene the region of
interest and click Save Window to save the region. Click anywhere on the image to cancel the
current dened area.

Mode: Select Fixed ROI to enable smart encoding function.

Priority: Select a priority level for the ROI.

4. Web-based Interface

NCB855E/NCB855PRO l User Manual 27

4.2.6 Smart Focus

In addition to observing the live view image to see if focus is achieved, you can also enable Smart
Focus to help you verify if focus is locked. If this function is enabled, whenever focus is achieved,

the focus window turns green.

Basic Settings

To focus on a desired subject using the Smart Focus function:

1. Click on the subject that you want to focus on and then click Save Window.

2. Check the Smart Focus Enabled box. This will turn the smart focus indicator to red.

3. Use the focal length and focus controls to optimize the focus. When focus is achieved, the
indicator turns green.

4.2.7 Privacy Zone

Privacy Zone allows you to mask sensitive areas of the image for privacy protection. If enabled, it
will mask the live view and the recorded video clips/JPEG les.

To turn on the privacy zone function:

1. Click and drag your mouse on the image to dene the region to be masked and then click Save
Window.

2. Select ON to enable Privacy Zone. This will turn the masked area to black.

4. Web-based Interface

28 NCB855E/NCB855PRO l User Manual

4.2.8 ePTZ

Using the ePTZ function, you can use the pan, tilt and zoom controls to steer the camera to a desired
position and focus on desired close-up areas, without moving the camera physically.

On the main screen, a PTZ button appears. After you click the ePTZ button, an ePTZ control panel
will shows up where you can click the corresponding indicators to perform desired operations:

• To zoom in/out: Click the +/- indicator repeatedly to zoom in/out the live view image.

• To pan left/right: Click the left/right indicator to pan the viewing area. The pan function

does not work if the video is not zoomed-in (no zoom status).

• To tilt up/down: Click the up/down indicator to tilt the viewing area. The tilt function does

not work if the video is not zoomed-in (no zoom status).

• To preset to home: Click the home indicator and the image will return to the original view.

4. Web-based Interface

NCB855E/NCB855PRO l User Manual 29

4.3 Network

4.3.1 Basic

DHCP: If there is a DHCP server on the network and you enable this option, the server will

automatically assign an IP address and related information to the camera.

Note

If there is no DHCP server on your network or you prefer to manually assign an IP address to the
camera, leave the DHCP checkbox blank.

4. Web-based Interface

30 NCB855E/NCB855PRO l User Manual

IP Address & Subnet Mask: If the DHCP function is not enabled, you have to assign an IP

address with the subnet mask to the camera.

Default Gateway: Enter the IP address of the gateway if required. Please contact your network

administrator whether you need to set up the gateway.

DNS: Enter the IP address of a DNS server. If you enter a domain name instead of an IP address

in server-related elds, e.g., FTP, SMTP or NTP server, then the camera will need a DNS server
to translate domain names into an IP address that is actually used for communication on the
Internet.

HTTP Port: Use the standard HTTP port number 80 or alternatively specify another port number

between 1025 and 65535.

If you choose to use a non-standard port, and the camera on the LAN is to be accessible from the
Internet, then you must congure your router/rewall to forward incoming HTTP request to that
specied port (via NAPT/port forwarding settings).

MAC: Display the MAC address of the camera. Each camera comes with a unique MAC address,

which is indicated on the product label. It helps you to identify which camera is currently
accessed, particularly when multiple cameras are connected to your network.

4.3.2 FTP

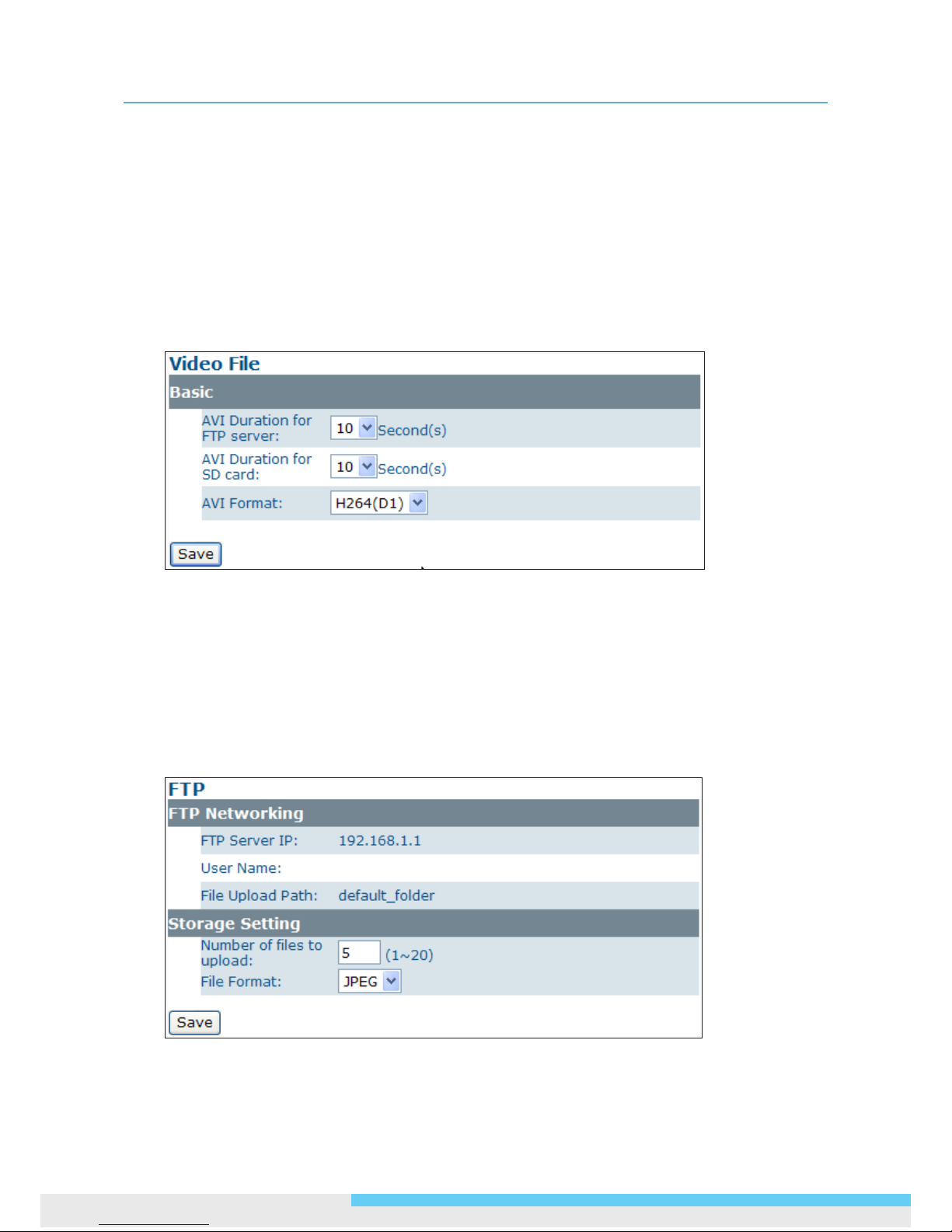

To allow the camera to upload recorded video clips/JPEG les to an FTP server, you have to specify an
FTP server and congure related settings.

FTP Server IP: Enter the IP address of the FTP server.

FTP Server Port: Enter the port number of the FTP server.

User Name: Enter the user name to logon to the FTP server.

Password: Enter the password to logon to the FTP server.

File Upload Path: Specify the folder which has been created under FTP server root directory.

4.3.3 SMTP

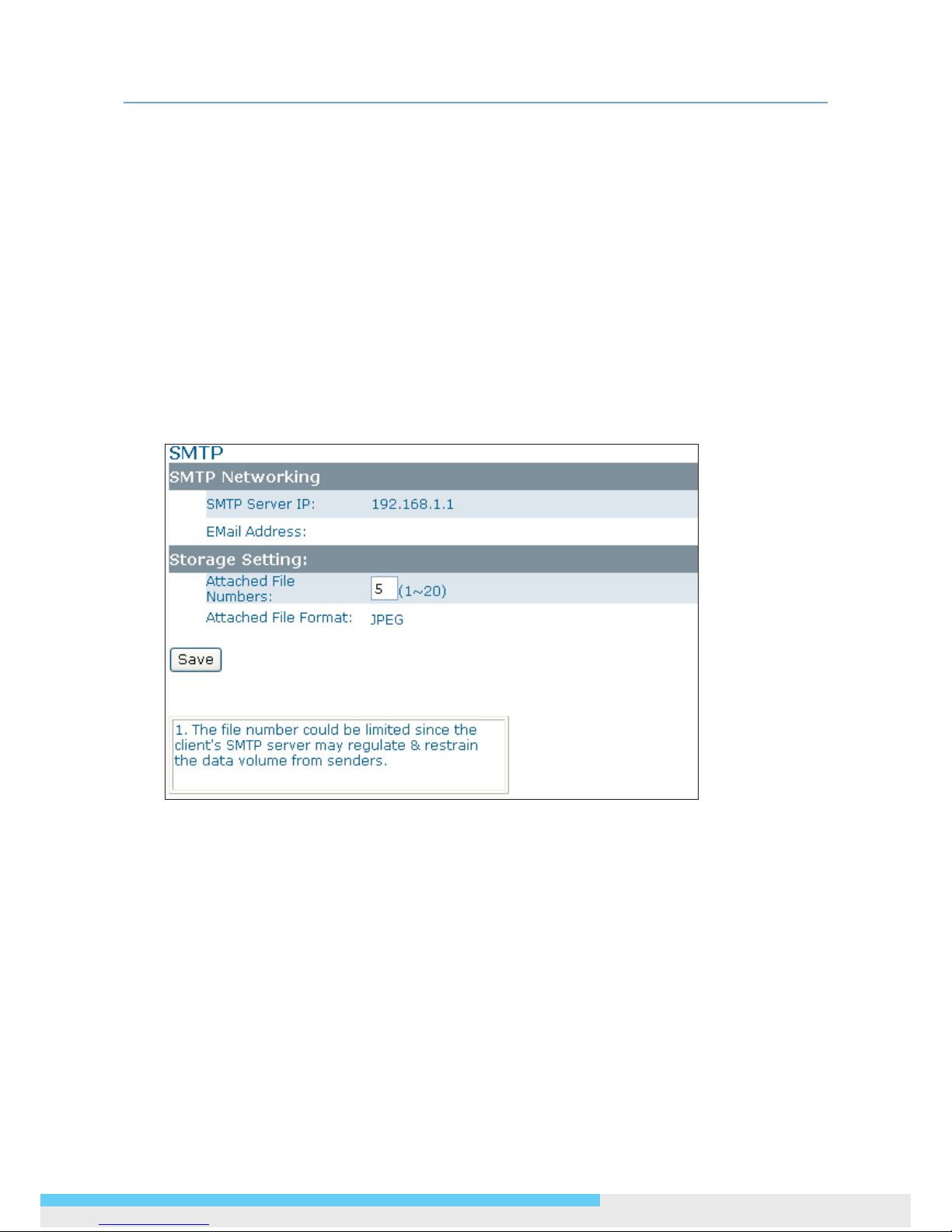

To enable the camera to send you email notications when an alarm is triggered, you need to specify
an SMTP server to send the emails.

4. Web-based Interface

NCB855E/NCB855PRO l User Manual 31

My Server Requires Authorization: If your SMTP server requires authorization to send emails,

enable this option.

SMTP Server IP: Enter the IP address of the SMTP server.

User Name: Enter the user name to log on to the SMTP server.

Password: Enter the password to log on to the SMTP server.

Sender: Enter the email address to be shown as the sender of the notication email.

Receiver: Enter the email address to which the notication email is sent.

4. Web-based Interface

32 NCB855E/NCB855PRO l User Manual

4.3.4 NTP

If you want the camera to synchronize its time clock with an NTP (Network Time Protocol) sever,
congure the NTP server settings here.

NTP Server: Enter the IP address or the domain name of the NTP server to synchronize with.

Time Zone: Select a time zone in which the camera is located.

DST: Tick the Automatically Adjust for Daylight Saving Time Changes check box to apply

the daylight saving time and users are supposed to congure the start/end time period by clicking
the drop-down menus respectively.

4.3.5 RTSP

RTSP is a standard for connecting a client to establish and control streaming data over the web. If
you want to allow third-party devices or software to access video/audio streams from the IP camera
over the network, you must congure the RTSP ports. You can provide up to 6 streams according to
the specic codec mode with different RTSP port.

To use an RTSP player to access the camera’s streams, you have to use correct the RTSP URL to
request the streams. Refer to the table below for RTSP URLs:

4. Web-based Interface

NCB855E/NCB855PRO l User Manual 33

Stream URL

MJPEG Primary rtsp://192.168.1.30:8555/mjpeg

MJPEG Third rtsp://192.168.1.30:8558/mjpeg

H.264 Primary rtsp://192.168.1.30:8557/h264

H.264 Secondary rtsp://192.168.1.30:8556/h264

MPEG4 Primary rtsp://192.168.1.30:554/mpeg4

MPEG4 Secondary rtsp://192.168.1.30:8554/mpeg4

*Replace the IP address and the port number with the camera’s settings if otherwise congured.

4.3.6 ONVIF

ONVIF is a standard that ensures interoperability between IP-based physical security products
regardless of the manufacturers. This camera is ONVIF compliant and you can congure whether the
camera can be found by other ONVIF compliant products and the related settings.

Basic Settings

Discovery via ONVIF: Check the box if you want the camera to be found by other ONVIF

compliant devices in a network, e.g., an ONVIF compliant NVR.

Accept command/functionality outside of Discovery capability: If checked, the camera

is allowed to accept commands from ONVIF compliant device thus changing the camera’s
functionality.

User Authentication: If an ONVIF compliant device needs authentication for communication,

enable this option.

4. Web-based Interface

34 NCB855E/NCB855PRO l User Manual

4.4 System

4.4.1 Date and Time

Current Time

Displays the current date and time of the camera. Date and time will be updated after you congure
new settings in the New Time section and click Save to apply the settings.

New Time

You can set the camera time by one of the following methods:

Set Manually: Manually enter the camera’s date and time settings in the given elds.

Synchronize with Computer Timer: Use this option to synchronize the camera’s date and time

with the computer timer.

Synchronize with NTP Server: Use this option to synchronize the camera’s date and time with

an NTP (Network Time Protocol) server, which can be congured under Network > NTP.

Date Format: Allows you to specify a desired date format.

4.4.2 Time Stamp

The Time Stamp function allows you to overlay the date and time stamp on the video. When
enabled, the recorded video will be displayed with the date and the time.

4. Web-based Interface

NCB855E/NCB855PRO l User Manual 35

Enable Date and Time Stamp: Check this box to enable the date and time stamp on images/

video clips; to disable this function, uncheck the box.

Date Format: Select the desired date format for the time stamp.

4.4.3 Firmware

Current Version Description: Displays the current version of the rmware.

Specify the Firmware to Update: This function is designed to update the rmware of the camera.

To perform the rmware upgrade, follow these parameters:

Keep the network connected during the update process.

DO NOT turn off or restart the camera during the rmware update process.

To update the rmware:

1. Click the Browse button to locate the rmware le.

2. Click the Update button to start update.

3. When prompted, click OK to proceed.

4. Web-based Interface

36 NCB855E/NCB855PRO l User Manual

1. Wait about 20~60 seconds until the le is successfully updated. Once the update is completed,
the browser will show a message reads “Firmware update successful”. Then it will take 60 seconds
to restart the camera.

2. The utility will automatically go back to live view screen after rmware has been updated
successfully.

You can also perform these tasks on the Firmware page:

Restart camera: Restart the camera. This will cause all streams to disconnect.

Factory Default: Reset all of the camera settings to the defaults, except network settings. After

you conrm to reset, the camera will reset and restart automatically. When complete, you will
return to the live view page.

Hardware Factory Default: Reset all of the camera parameters to the defaults, including the

network settings.

4. Web-based Interface

NCB855E/NCB855PRO l User Manual 37

4.4.4 User Management

The User Management page allows you to manage user accounts and access privileges.

User List

Displays the list of current user accounts of the camera. To delete a user account, select the
unwanted user account from the list and then click Delete User.

Add/Modify User

You can add a new user or modify current user’s account or authority.

To add a new user, enter the user name and password and specify the authority. Then click User

Add to add a user.

To modify the password of the existing user, enter the user name and modify the password.

Two types of account can be specied:

• Admin (Administrator): Can access all camera functions, pages and make congurations.

• Viewer (Guest): Can only access the live view page and take snapshots.

4.4.5 Language

The Language drop-menu allows you to change the language of the web interface. Supported
languages include English, Spanish, Italian, Simplied Chinese and Traditional Chinese. Click Save to
apply the language setting, and the browser will automatically refresh to reect the change.

4. Web-based Interface

38 NCB855E/NCB855PRO l User Manual

4.4.6 Log

This page displays detailed information about the camera’s operations and activities, including all the
login and alarm records.

Clear Log File: Click the button to clear the log cache.

Download Log File: Click the button to save the current log into a text le. When a dialog

window shows up, click the Save button to locate the directory where the logle.txt is to be
stored.

4. Web-based Interface

NCB855E/NCB855PRO l User Manual 39

4.4.7 Audio

Audio Receiving: If a microphone is connected to the camera, you can select ON to allow the

camera to record the audio and transmit to your PC. This enables the camera to pick up sounds in
the background.

Audio Receiving Volume: Allows you to adjust the audio recording volume of the camera

ranging from 1 to 4.

Audio Playing: If a speaker is connected to the camera, you can select ON to allow the camera

to play the audio transmitted from your PC. This enables you to speak to the person(s) around
the camera.

Audio Playing Volume: Allows you to adjust the audio playing volume of the camera ranging

from 1 to 4.

Using the two-way audio function

Note that the two-way audio function is only active in the live view page using the web browser.
To use the two-way audio function:

1. Make sure a speaker is connected to the Audio Out port and a microphone is connected to the
Audio In port of the camera.

2. Enter System > Audio and enable both the Audio Receiving and Audio Playing functions.
Then adjust the audio volume to the desired level.

3. To access the two-way audio streams:

4. Make sure your computer is connected to a microphone and speaker. Enter the live view page of
the web-based utility.

5. Speak into the microphone and the person(s) around the camera should hear your voice.

6. When people around the camera are talking to you, you should hear them from the speaker that
is connected to the computer.

4. Web-based Interface

40 NCB855E/NCB855PRO l User Manual

4.5 Event

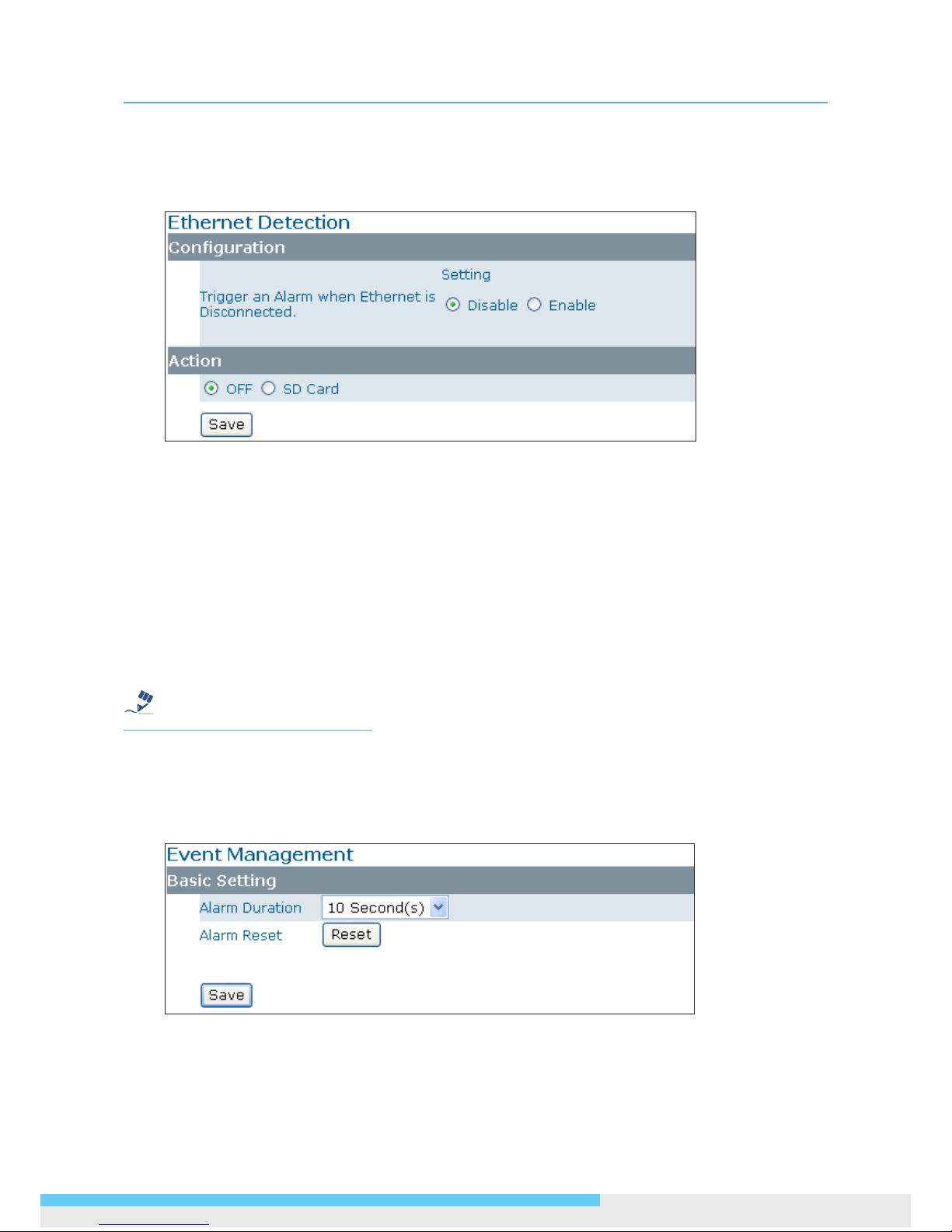

When an event occurs, it triggers an alarm and the camera will take a pre-dened action, e.g.,
sending a recorded video clip or JPEG les to a designated server. With this camera, an event can
be triggered by external alarm devices or the camera’s detection mechanism, including motion, blur,
audio and Ethernet detection.

Note

1. When there is more than one recording to be carried out at the same time, the scheduled video
recording takes top priority, followed by the recording triggered by an Ethernet disconnection and
lastly the recording triggered by other events.

2. Only one event will be handled at a time. If an event is already triggered, other event will be
logged to the system but no action will be taken.

4.5.1 Motion Detection

When the Motion Detection is enabled, the camera detects motion under a pre-specied condition
within a designated area. When motion is detected, the camera will generate an alarm and then take
a specied action.

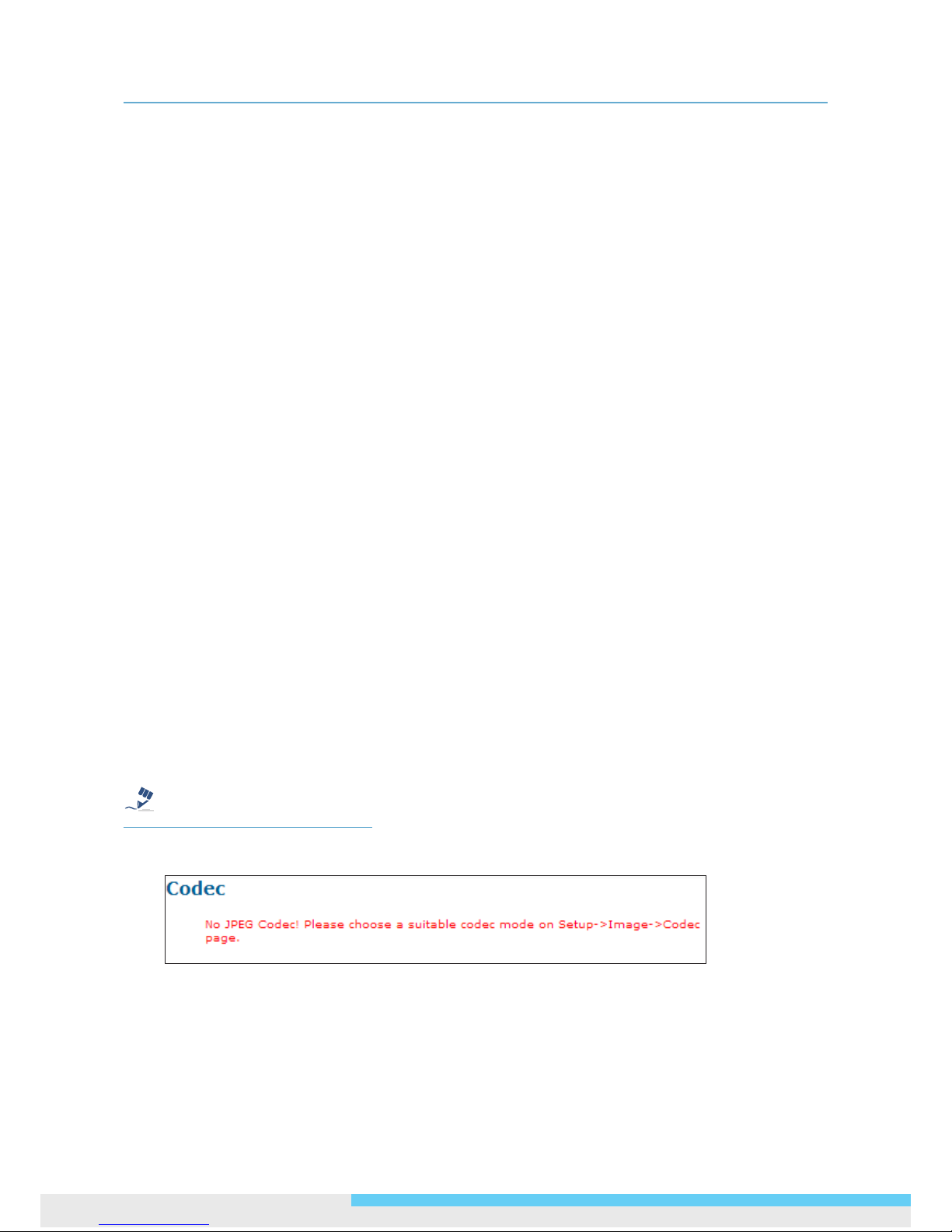

Note that to use the motion detection function, the following two conditions must be met:

1. You must select MJPEG codec for one of the streams to enable the live view.

2. You must select H.264 or MPEG4 codec for one of the streams to process the motion detection.

4. Web-based Interface

NCB855E/NCB855PRO l User Manual 41

Conguration

Motion Sensitivity: Specify the sensitivity to moving objects before the camera triggers an

alarm. The higher the sensitivity, the slighter the movement is required to set off an alarm.
You can alternatively select User Dene and enter a value from 1 to 100 in the Customized
Threshold eld. When the motion within a specied area exceeds the threshold, an alarm will be
triggered.

Select OFF to disable the motion detection

Motion Area Setting

Motion area setting: Click target squares displayed on the screen to dene detection areas;

once congured, click Save Motion Area to save settings.

Action

Specify the action to be taken when an alarm is triggered upon motion detection:

OFF: No action will be taken, but an alarm will be logged.

FTP: Recorded video clips/JPEG les will be uploaded to the FTP server when alarm is triggered.

SMTP: Notication email with the recorded JPEG les attached will be sent to the SMTP server.

SD Card: Recorded video clips will be saved to the SD card when the alarm is triggered.

4.5.2 External Alarms

If external alarm devices, e.g., sensors and alarms, are connected to the camera’s alarm input/
output, the following settings must be made:

Conguration

Setting: Enable the Alarm I/O that is connected with the respective external alarm device.

Level: Set the (electricity) current as low or high to dene the active state.

4. Web-based Interface

42 NCB855E/NCB855PRO l User Manual

Action

Specify the action to be taken when external alarm is triggered:

OFF: No action will be taken, but an alarm will be logged.

FTP: Recorded video clips/JPEG les will be uploaded to the FTP server when alarm is triggered.

SMTP: Notication email with the recorded JPEG les attached will be sent to the SMTP server.

SD Card: Recorded video clips will be saved to the SD card when the alarm is triggered.

Note

To perform a video recording, you must select MJPEG codec for one of the streams.

4.5.3 Face Detection

With the Face Detection enabled, one or multiple square frames will cover the faces detected in
the scene. You can specify a particular area by clicking and dragging your mouse, and then click the

Save Window button. People’s faces appearing within the area will be detected. Click the Delete
Window button followed by clicking Save to remove the dened region.

Basic Settings

Face Detection: Enable/Disable face detection. When the selected radio button is changed and

the Save button is clicked, the camera may take around 25 seconds to restart while the web
displaying the status being loading.

Detection Box: Select ON to show square frames on the screen for the detected faces.

4. Web-based Interface

NCB855E/NCB855PRO l User Manual 43

Direction: Select the orientation of faces in the video stream. UP means the top of the face

is generally in the up direction. The orientation may need to be adjusted when the camera is
installed on its side or at an angle.

Threshold: Select a face detection acceptance tolerance ranging from 0 to 9.

Minsize: Select the minimum size of the detection box. Options include 20, 25, 32 and 40;

smaller value means smaller faces in the distance can be detected.

Priority: Select whether face regions have higher or lower encoding priority when the Advanced

Settings ROI feature is applied.

Action

Select the radio buttons for actions in response to the pictures saved to FTP server, SMTP server or
SD card if a face detection alarm is triggered. OFF is set by default.

OFF: No action will be taken (but an alarm is logged).

FTP: Recorded AVI/JPEG les will be uploaded to an FTP server when the alarm is triggered.

SMTP: Notication e-mail attached with the recorded JPEG les will be sent to a SMTP server.

SD Card: Recorded AVI/JPEG les will be saved to the SD card when the alarm is triggered.

4.5.4 Blur Detection

With the Blur Detection enabled, when the camera detects incidents that make video image blur,
e.g. redirection, blocking or defocusing, the camera will generate an alarm and then take a specied
action.

Note

Note that to use the blur detection function, the following two conditions must be met:

1. You must select MJPEG codec for one of the streams to enable the live view.

2. You must select H.264 or MPEG4 codec for one of the streams to process the motion detection.

4. Web-based Interface

44 NCB855E/NCB855PRO l User Manual

Conguration

Blur Detection: Select Enable to enable Blur Detection; select Disable to disable this function.

Sensitivity: You can alternatively customize the camera’s sensitivity to a blur. The camera will

judge whether it has been tampered based on the sensitivity threshold specied.

Action

OFF: No action will be taken, but an alarm will be logged.

FTP: Recorded video clips/JPEG les will be uploaded to the FTP server when alarm is triggered.

SMTP: Notication email with the recorded JPEG les attached will be sent to the SMTP server.

SD Card: Recorded video clips will be saved to the SD card when the alarm is triggered.

4.5.5 Audio Detection

With the Audio Detection enabled, when the camera detects any sound, the camera will generate
an alarm and then take a specied action.

Conguration

Audio Sensitivity: Specify the camera’s sensitivity level to the audio signal. The higher the

sensitivity, the lower the volume is required to set off an alarm.

When set to OFF, the audio detection is disabled.

Action

Specify the action to be taken when an alarm is triggered upon audio detection:

OFF: No action will be taken, but an alarm will be logged.

FTP: Recorded video clip will be uploaded to the FTP server when the alarm is triggered.

SMTP: A notication email attached with the recorded video clip will be sent to the SMTP server.

SD Card: Recorded video clip will be saved to the SD card when the alarm is triggered.

Note

To perform a video recording, you must select MJPEG codec for one of the streams.

4. Web-based Interface

NCB855E/NCB855PRO l User Manual 45

4.5.6 Ethernet Detection

With Ethernet detection enabled, when the camera detects an Ethernet disconnection, the camera
will generate an alarm and then take a specied action.

Conguration

Trigger an Alarm When Ethernet is Disconnected: Select whether to disable/enable this

function.

Action

Specify the action to be taken when an alarm is triggered upon audio detection:

OFF: No action will be taken, but an alarm will be logged.

SD Card: Recorded video clips will be saved to the SD card in AVI format when the alarm is

triggered.

Note

Regardless of your settings in Recording > SD card, when an Ethernet disconnection is triggered,
the video clip recording will always be saved in AVI format.

4.5.7 Event Management

Basic Setting

Alarm Duration: Specify the duration of the alarm when an event is triggered.

4. Web-based Interface

46 NCB855E/NCB855PRO l User Manual

Alarm Reset: Use this button to stop the current alarm and to restart event detection again.

4.6 Recording

Recording allows you to congure recording-related settings and schedule recording. The defaults are
listed in the table below:

4.6.1 Settings – Video File

Congure the duration and format of video to be recorded when an alarm is triggered.

Basic Settings

AVI Duration for FTP Server: Select recorded video duration in seconds for the FTP server.

AVI Duration for SD Card: Select recorded video duration in seconds for the SD card.

AVI Format: Select a desired video format. Available formats depend on the primary and the

secondary streaming codec/resolution settings.

4.6.2 Settings – FTP

4. Web-based Interface

NCB855E/NCB855PRO l User Manual 47

FTP Networking

Displays the current FTP settings, which are specied via Network > FTP.

Storage Setting

Number of les to upload: Enter the number of JPEG les to be uploaded to the FTP per event.

File Format: Select the format in which to upload the recorded video le to the FTP server when

an event has been triggered.

• JPEG les: The camera will record specied number of JPEG les and upload to the FTP
server.

• AVI les: The camera will record AVI les and upload to the FTP sever. For the duration and
AVI format, see Recording > Setting > Video File.

4.6.3 Settings – SMTP

SMTP Networking

Displays the current SMTP settings, which are specied via Network > SMTP.

Storage Setting

Attached File Numbers: Enter the number of JPEG images that will be attached to the

notication email. Set a lower number if SMTP server has an email size limit.

Attached File Format: In JPEG format always.

4. Web-based Interface

48 NCB855E/NCB855PRO l User Manual

4.6.4 SD Card Storage Format Selection

Storage Setting

File Format: Specify the format of the video/picture to be saved to the SD card when an event is

triggered.

Capacity/Usage: Shows the card capacity and the space usage percentage.

SD Card Format: Use this button to format the SD card. This option is not available if an SD card

has not been inserted in the camera.

Remove SD Card: Click this button before safely removing the SD card. This option is not

available if an SD card has not been inserted in the camera.

SD Card Overwrite: Select ON to enable overwriting once the storage is full.

Accessing SD Card

Note

Users can access the SD card via the FTP service by entering the FTP address (ftp://192.168.1.30
by default) in the URL eld of the web browser.

Then an FTP login window shows up asking for login ID and password. After lling in the login ID and
password elds (defaults are admin and 1234 respectively), you can see the the FTP directory with
successful login.

4. Web-based Interface

NCB855E/NCB855PRO l User Manual 49

Besides, users can also just launch the Windows Explorer to access SD card. The same, users are
supposed to enter the FTP address (ftp://192.168.1.30 by default) in the address eld and nish
login process. Then you can directly get into the directory.

4.6.5 Period Setting

The Period Setting allows you to schedule video recordings at specied times. Set the automatic
recording times by selecting the desired weekday and the period of time. Up to 7 scheduled
recordings can be set. Check Save to SD Card should you wish to save the recorded video clips to
the SD card.

4. Web-based Interface

50 NCB855E/NCB855PRO l User Manual

Note

The scheduled recording always demands higher priority than the alarm-based recording. When a
scheduled recording is proceeding, the alarm-based recording will be disabled but the alarms will be
logged.

MESSOA TAIWAN, R.O.C.

6F, No.26, Wuquan 6th Rd., Wugu District,

New Taipei City 248, Taiwan (R.O.C.)

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

MESSOA USA

13611 12th St, Unit B Chino, CA 91710, USA

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

MESSOA SHANGHAI INC.

Room 301, Yuanzhong Ofce Building, No.2007

Hongmei Rd., Xuhui District, Shanghai 201103

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

MESSOA JAPAN

8F Salute Bldg 72 Yoshidamachi,

Naka-Ku Yokohama Kanagawa 231-0041, Japan

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

All brand names and registered trademarks referred in this document are the property of their respective owner(s).

All designs and specications are subject to change without prior notice.
