Messoa Maven User Manual

User
Manual

201502 A4

Network Camera

Maven Series

1

Table of Contents

1 Network Deployment 4

1.1 Network Topology 4

1.2 Connection 5

1.2.1 Checking Appearance 5

1.2.2 Default IP address 5

1.2.3 Connecting from a computer & Viewing Preparation 5

1.3 IP Finder 9

2 Administration and Conguration 10

2.1 Live View 10

2.1.1 Model Reference Table 12

2.2 Conguration 13

2.2.1 Information 13

2.2.2 Image Parameter 13

2.2.3 Network Settings 21

2.2.4 Account Management 26

2.2.5 Event Settings 27

2.2.6 Record Settings 30

2.2.7 System Settings 32

2.2.8 Event Log 34

Appendix A: Specications of Indoor Dome Network Camera (Manual Focus Model) 35

Appendix B: Specications of Indoor Dome Network Camera (Motorized Lens Model) 37

Appendix C: Specications of Indoor IR Dome Network Camera(Fixed Lens Model) 39

Appendix D: Specications of Outdoor IR Dome Network Camera 41

Appendix E: Specications of Fixed Network Camera 43

Appendix F: Specications of IR Bullet Network Camera 45

Appendix G: Specications of Flat Mini Dome Network Camera 47

2

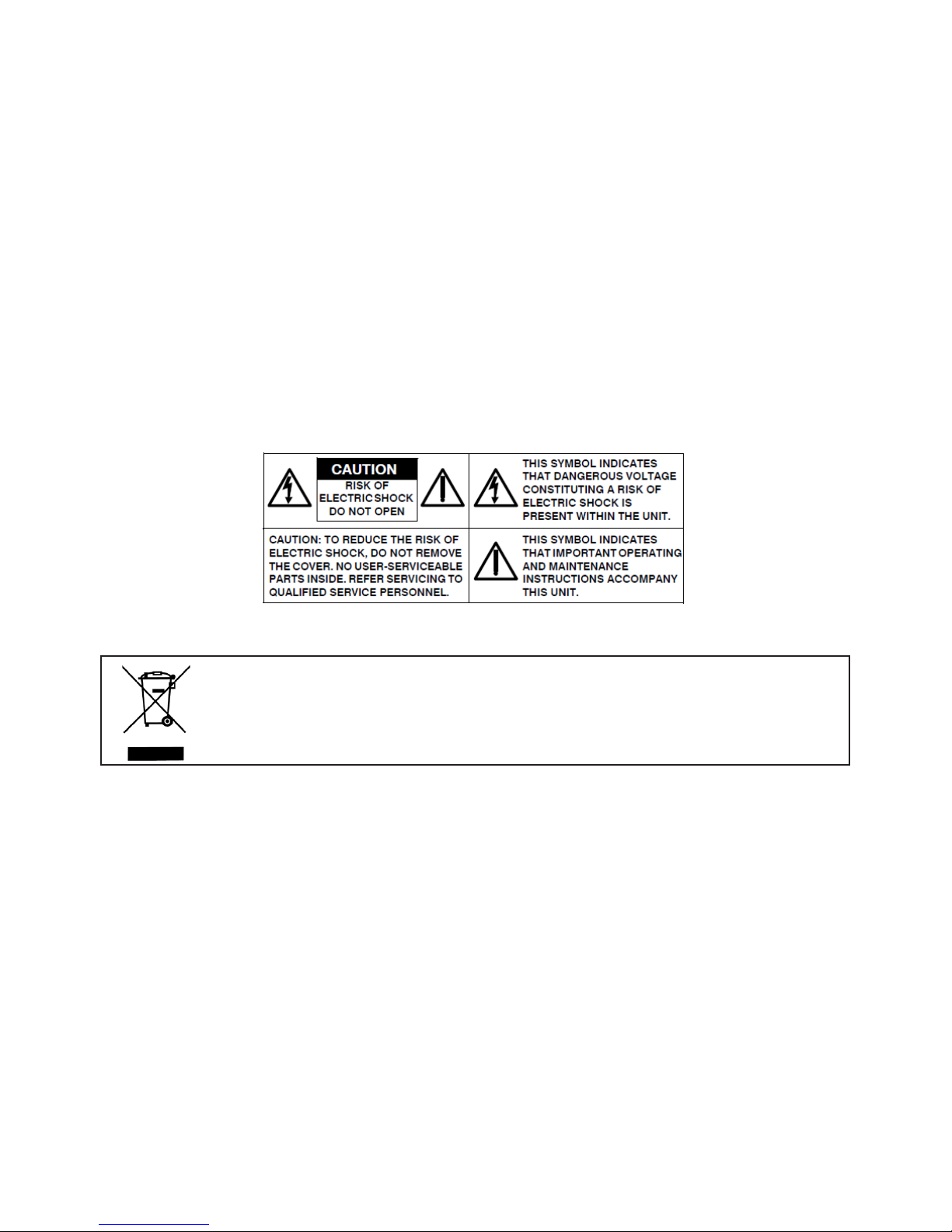

WARNING

●The unit operates at DC 12V/AC 24V/ PoE (for Indoor Dome & Fixed Network Camera), AC 24V/ PoE (for Outdoor IR Dome
& IR Bullet Network Camera), DC12V/PoE (for Flat Mini Dome Network Camera), PoE(for Indoor IR Dome Network Camera).

●Installation and service should be performed only by qualied and experienced technicians and comply with all local
codes and rules to maintain your warranty.

●To reduce the risk of re or electric shock, do not expose the product to rain or moisture.

●Wipe the camera with a dry soft cloth. For tough stains, slightly apply with diluted neutral detergent and wipe with a dry
soft cloth.

●Do not apply benzene or thinner to the camera, which may cause the surface of unit to be melted or lens fogged.

●Avoid aligning the lens to very bright objects (example, light xtures) for long periods of time.

●Avoid operating or storing the unit in the following locations:

• Extremely humid, dusty, or hot/cold environments [ Recommended operating temperature: -10°C to +50°C, (for Indoor

Dome, Indoor IR Dome Network Camera & Fixed Network Camera), -40°C to +50°C (for IR Bullet Network Camera), -50°C
to +50°C (for Outdoor IR Dome Network Camera)]

• Close to sources of powerful radio or TV transmitters

• Close to uorescent lamps or objects with reections

• Under unstable or ickering light sources

WEEE (Waste Electrical and Electronic Equipment). Correct disposal of this product (applicable in the
European Union and other European countries with separate collection systems). This product should be
disposed of, at the end of its useful life, as per applicable local laws, regulations, and procedures.

Get Started

This user manual is designed as a reference for the installation and manipulations of the unit including the camera’s features,
functions, and detailed explanation of the menu tree. Please read this manual thoroughly and save it for future use before
attempting to connect or operate the unit. The reader is supposed to be able to get the following information in this manual.

●Product Overview: the main functions and system requirements of the unit.

●Installation and Connection: instructions on unit installation and wire connections.

●Administration and Conguration: the main menu navigation and controls explanations.

3

FCC Compliance Statement

Information to the user: This unit has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This unit generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation.

If this unit does cause harmful interference to radio or television reception, which can be determined by turning the unit o
and on, the user is encouraged to try to correct the interference by one or more of the following measures:

●Reorient or relocate the receiving antenna.

●Increase the separation between the unit and receiver.

●Connect the unit to an outlet on a circuit dierent from that to which the receiver is connected.

●Consult the dealer or an experienced radio/TV technician for help.

CE Statement

Operation is subject to the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired
operation. The manufacturer declares that the unit supplied with this guide is compliant with the essential
protection requirements of EMC directive and General Product Safety Directive GPSD conforming to

requirements of standards EN55022 for emission, EN 55024 for immunity, EN 300 and EN 328 for WIFI.

Caution

Changes or modications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the unit.

4

1.1

Network Topology

The unit, which is equipped with Ethernet RJ-45 network interface, can deliver video images and audio in real time via either
Internet or Intranet. Please refer to the skeleton drawings shown below for understanding. (Here takes Indoor Dome Network
Camera as the example in the illustration.)

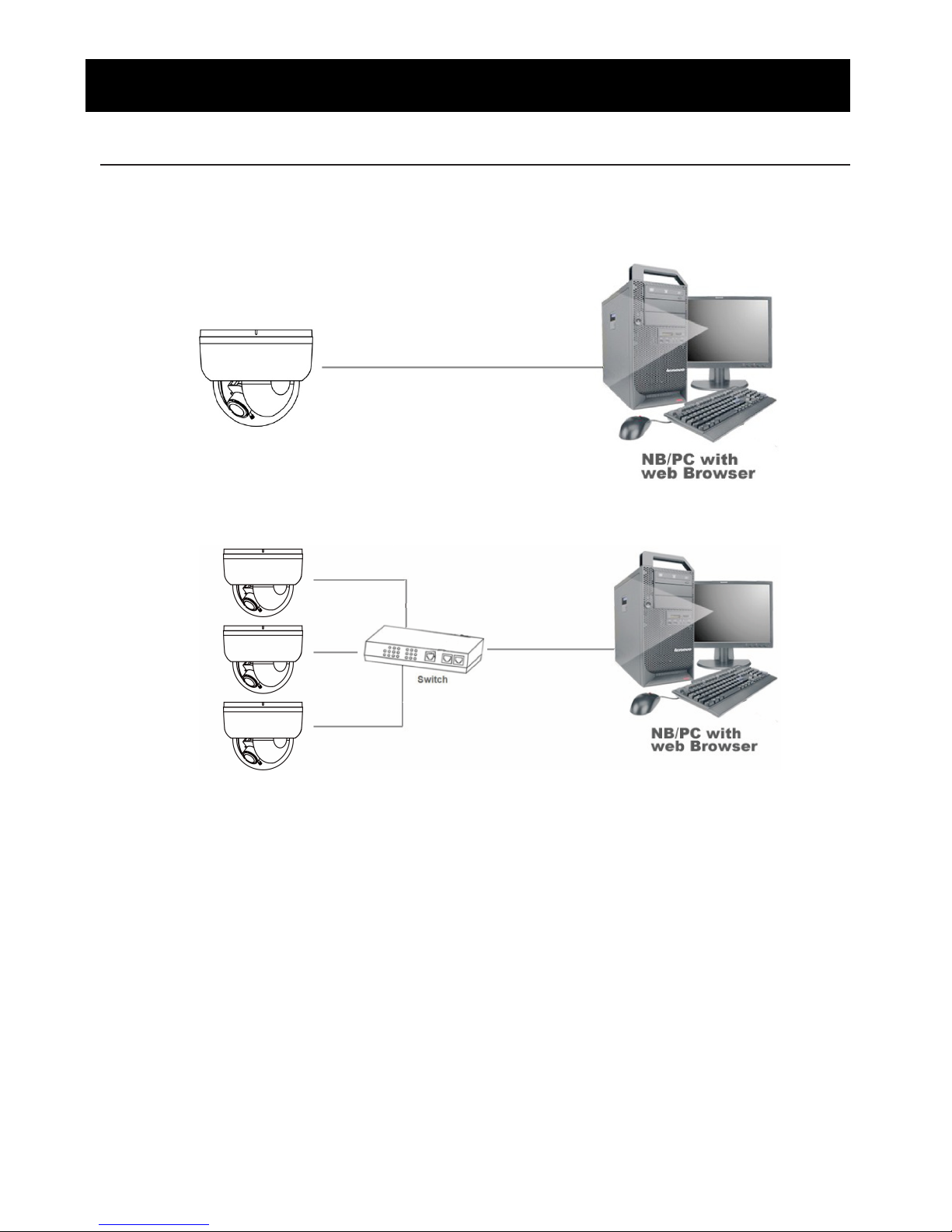

Figure 1 - 1: Network Topology Type 1

Figure 1 - 2: Network Topology Type 2

1 Network Deployment

5

1.2.1 Checking Appearance

Below table lists the minimum requirement to implement and operate the unit. No hardware/software component inferior to
the requirements is recommended.

Table 1 - 1: System Requirements

System Hardware
CPU Intel Pentium 4 2.4GHz or equivalent
RAM 1 GB or above
Display NVIDIA GeForce 6 Series or ATI Mobility Radeon 9500

System Software

Operating System Microsoft Windows XP, Windows Vista, or Windows 7
Browser Internet Explorer 8 or above, Chrome, Firefox

Unit

Power Supply

DC 12V / AC 24V / PoE (for Indoor Dome Network Camera & Fixed Network Camera)
AC 24V/ PoE (for Outdoor IR Dome Network Camera & IR Bullet Network Camera)
DC12V/PoE (for Flat Mini Dome Network Camera)
PoE (for Indoor IR Dome Network Camera)

Networking

Wired** 10/100BASE-T Ethernet (RJ-45 connector)

*a switch is required for surveillance on multiple units.

Note

Caution

All the installation and operations should comply with your local electricity safety rules.

To avoid damage to the unit, never connect more than one type of power supply (PoE IEEE802.3
Ethernet Class 0, DC 12V / AC 24V or AC24V power plug) at the same time. If using PoE, this unit must be
connecting only to PoE networks without routing to heterogeneous devices.

1.2.2 Default IP address

Since this is a network-based unit, an IP address must be assigned at the very first. The unit’s default IP address is

192.168.1.30 and sub mask is 255.255.255.0. However, if you have a DHCP server in your network, the unit would obtain
an IP address automatically from the DHCP server so that you don’t need to change the camera’s IP address. But be sure to
enable DHCP in "Network Settings".

1.2.3 Connecting from a computer & Viewing Preparation

Connecting from a computer

1. Make sure the unit and your computer are in the same subnet.

2. Check whether if the networking available between the unit and the computer by executing ping the default
IP address. To do this, simply start a command prompt (Windows: from the Start Menu, select Program.
Then select Accessories and choose Command Prompt.), and type “Ping 192.168.1.30”. If the message
“Reply from…” appears, it means the connection is available.

3. Start Internet Explorer and enter IP address: 192.168.1.30. A login window should pop up. In the window,
enter the default user name: admin and password: 1234 to log in.
Further administration on the unit can be found in “2. Administration and Conguration".

1.2

Connection

6

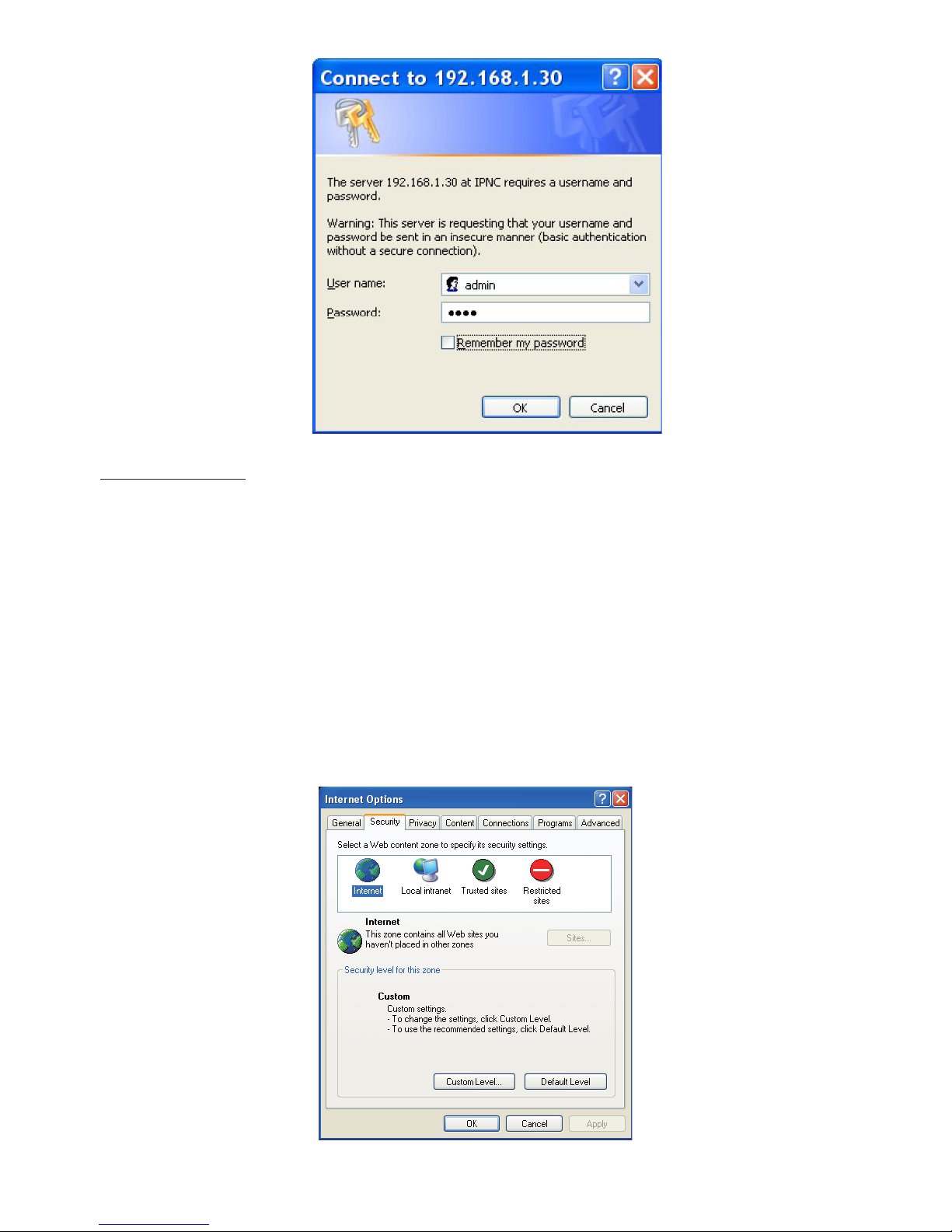

Figure 1 - 3: Login Window

Viewing Preparation

Images of the unit can be viewed through Microsoft Internet Explorer 8 or above. Before viewing, follow these steps to
enable the display.

1. Enable Cookies as instructions below



In Internet Explorer, click Internet Options on the Tools menu.



On the Privacy tab, move the settings slider to Low or Accept All Cookies.



Click OK.

2. When a proxy server is used, click Internet Options on the Tools menus of Internet Explorer, select Connect
tab, click LAN button, and set proxy server.

3. Change Security in Internet options as instructions below



On tool menu, click Internet Option.



Press the Security tab.



If the camera operates inside of the intranet, click the Intranet icon.



If the camera operates outside of the intranet, click the Internet icon.



Click Custom Level. This will open the Security Settings – Internet Zone screen.

Figure 1 - 4: Security Settings 1/4

7



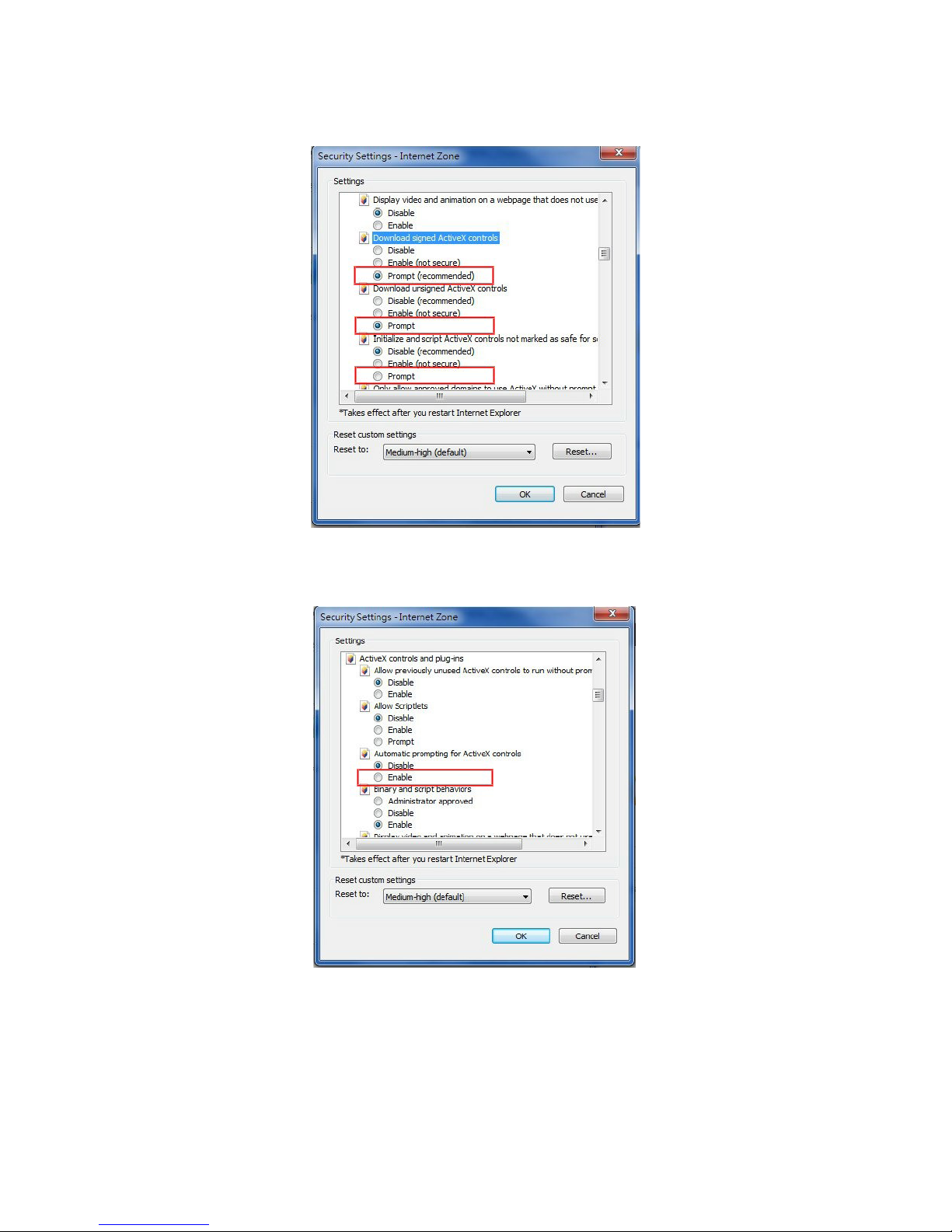

Scroll down to the ActiveX controls and plug-ins radio buttons and set as follows:

【

Download signed ActiveX controls

】



Prompt (recommended)

【

Download unsigned ActiveX controls

】



Prompt

【

Initialize and script ActiveX not marked as safe for scripting

】



Prompt

Figure 1 - 5: Security Settings 2/4

【

Automatic prompting for ActiveX controls

】



Enable

Figure 1 - 6: Security Settings 3/4

8

【

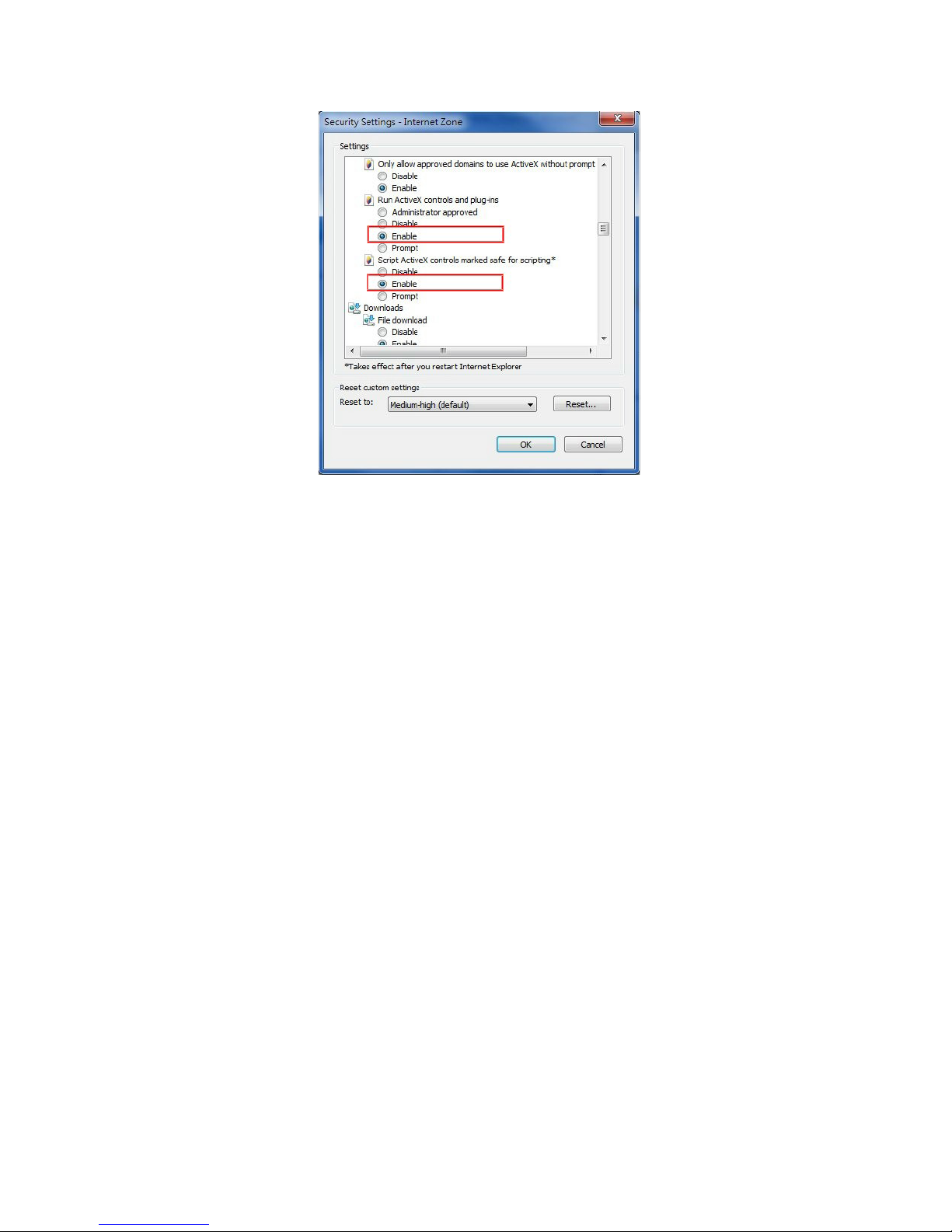

Run ActiveX controls and plug-ins

】



Enable

【

Script ActiveX controls marked safe for scripting*

】



Enable

Figure 1 - 7: Security Settings 4/4



Press OK to save the settings.



Close all Microsoft Internet Explorer Windows and restart a new window. This will allow the new settings taking eect.



Type your setting IP address into the browser.



Then you should be able to see the camera image screen.

9

IP Finder is a utility program that helps users locate the unit in the local area network which the computer is connected to.
Please note that IP Finder works only on Microsoft Windows XP, Microsoft Windows Vista, and Microsoft Windows 7. Steps to
get the utility program running are listed below.

1. Download IP Finder from MESSOA Website to the computer.

2. Double click on IPFinder.exe in the IP Finder folder, and the IP Finder window should pop out.
3 The window would list information of units in operation at present. Press FIND CAMERA to nd more units.

4. Locate and double-click one of the cameras in the list you want to congure the network settings. If you have multiple
cameras connected to your local network, locate the MAC address on the camera to distinguish the target camera from
others.

5. Congure the following settings as needed.

• NAME: Enter a descriptive name for the camera.

• NETWORK SETTINGS: If you have a DHCP server on your network to assign IP addresses to network devices, enable the

DHCP option. Otherwise, manually enter the IP ADDRESS, NET MASK and GATEWAY values.

• USERNAME & PASSWORD: Manually setup preferred username and password.

• SET: Whenever you make revision of camera settings, click “SET” to take eect.

• SW DEFAULT: To perform the factory defaults excluding network settings of the selected camera.

• HW DEFAULT: To perform the factory defaults of the selected camera.

• RESET: To reboot the selected camera.

Click Save to enable the settings and click Exit to exit the utility.

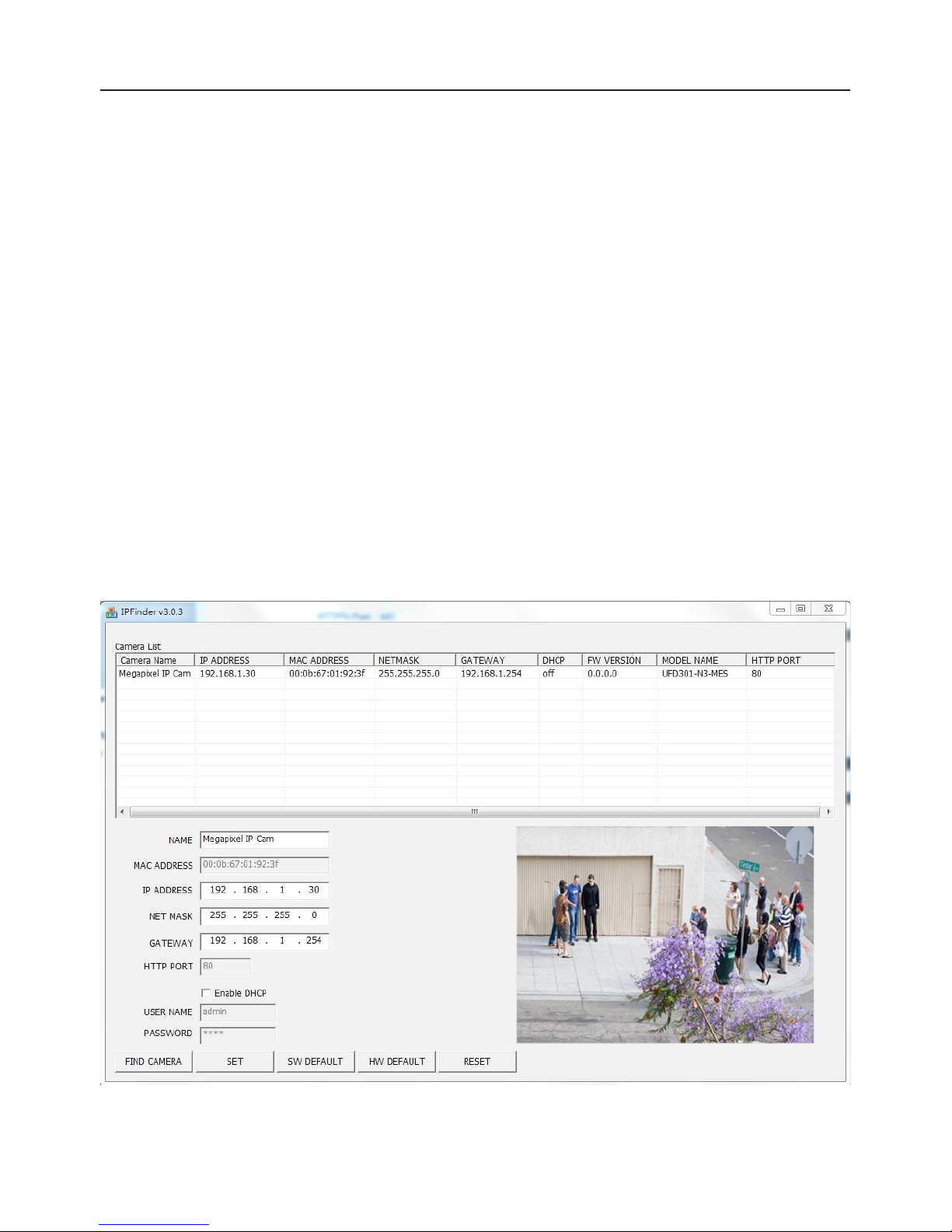

Figure 1 - 8: IP Camera Finder

1.3

IP Finder

10

2 Administration and Conguration

2.1

Live View

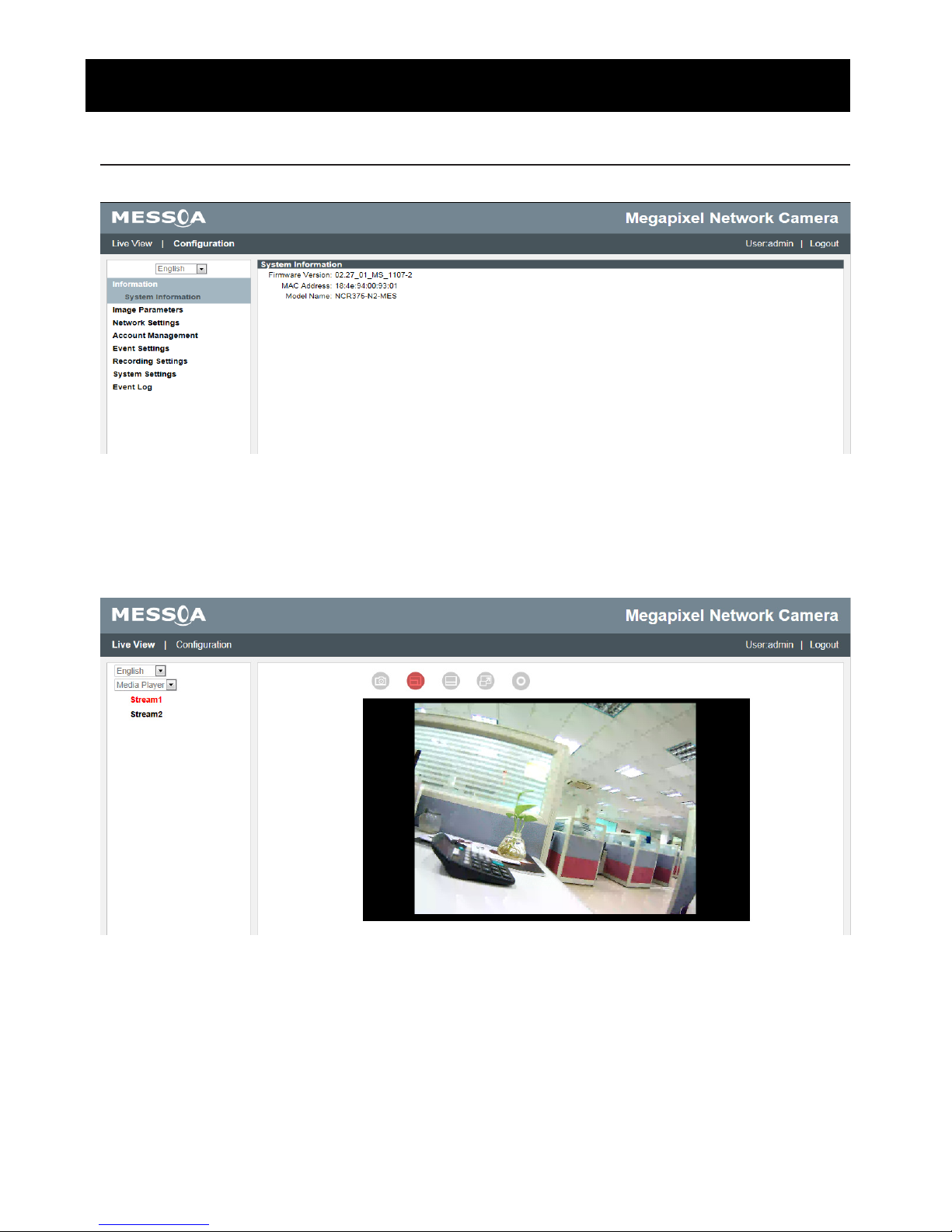

Figure 2 - 1: First Login Page

After accessing and login to the IP address of the unit, the screen will be shown as the above screenshot. There are 2 main
options on the upper left side: “Live View” and “Conguration”. While the upper right side indicates your current login user
level with “Logout” option which enables you to log out after pressing. We mainly focus on “Live View” functionalities in this
chapter and will detail “Conguration” in the “2.2 Conguration” later.

Figure 2 - 2: Live View

After clicking “Live View”, you will be led to real-time live view screen, the left dropdown menu is for user interface language
changing and the “Stream” lets users toggle among each stream settings for better adaptation in different network
condition, for which you may refer to “Edit Proles & Streams” for more details.
The following icons within the table, which are on the top of live view screen, are for some functions activating and alarm
warning status. Please refer to the detailed denitions below for more understanding (Flat Mini Dome Series have some
dierences with other network cameras).

Mouse scrolling up and down can zoom out and in live view screen respectively.

11

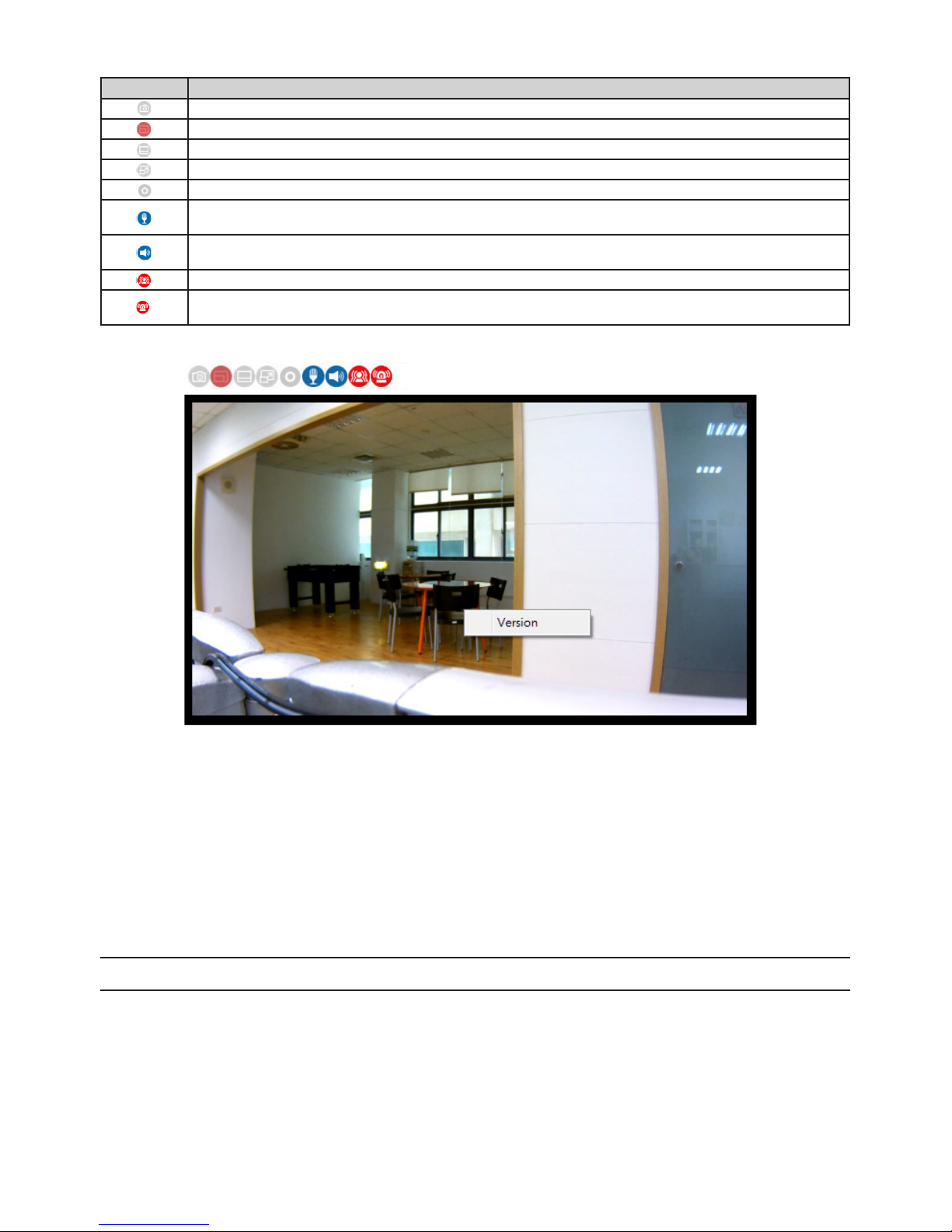

Icon Denition

The “Snapshot” button is for taking a snapshot saved in a user-preferred le path.
The “Fit” button is for users to display a xed size live view screen.
The “1:1” button is for users to display a real size streaming live view screen.
The “Full Screen” button is for users to display a full screen live view display. (Press Esc to back)
The "Manual Recording" is for users to start recording and store image les in a specic path.
The “Audio Input” button is for users to toggle on/o the audio input function.

(1M Flat Mini Dome Network Camera Excluding)
The “Audio Output” button is for users to toggle on/o the audio output function.

(1M Flat Mini Dome Network Camera Excluding)
The vibration-like icon indicates motion(s) being detected in camera coverage.
The siren-like icon indicates that alarm input event is triggered.

(1M/3M Flat Mini Dome Network Camera Excluding)

Table 2 - 1: Live View Icon Denition

Figure 2 - 3: Live View Right-Clicking Controls

Right clicking on the live view screen can pop up more functions to select.

●Version

Click to view the version details.

Note

Keep the zoom level of IE as 100% to display normal live view.

Mouse scrolling up and down can zoom out and in live view screen respectively.

12

2.1.1 Model Reference Table

Below table tells the model dierences that can be seen on the home page. “√” indicates functions which can be found on
the model. “A-F” each indicates a model type, “a-d” indicates dierent lens as shown below:

A. 1MP/3MP/5MP Indoor Dome Network Camera
B. 3MP/5MP Outdoor IR Dome Network Camera
C. 3MP/5MP Fixed Network Camera
D. 3MP/5MP IR Bullet Network Camera
E. 1MP Flat Mini Dome Network Camera
F. 3MP Flat Mini Dome Network Camera
G. 5MP Indoor IR Dome Network Camera

(*) a. Manual Focus Lens; b. Motorized Lens; c. CS Mount; d. Fixed Focal Lens

Model
Function

A B C D E F G

a b a b c a b d d d d
Snapshot √ √ √ √ √ √ √ √ √ √ √
Motion Detection √ √ √ √ √ √ √ √ √ √ √
Alarm I/O √ √ √ √ √ √ √ √ - - ­SD Recording √ √ √ √ √ √ √ √ - √ √
Audio √ √ √ √ √ √ √ - - √ ­Remote Lens

Control

Zoom Control - √ - √ - - √ - - - ­Focus Control - √ - √ - - √ - - - -

Power
Requirement

DC 12V √ √ - - √ - - - - √ ­AC 24V √ √ √ √ √ √ √ √ - - ­PoE √ √ √ √ √ √ √ √ √ √ √

Operating
Temperature

-10ºC ~ 50ºC
(-14ºF ~ 122ºF)

√ √ - - √ - - - - - √

-40ºC ~ 50ºC
(-40ºF ~ 122ºF)

- - √ √ - √ √ √ √ √ -

Defrost - - √ √ - - - - - - -

13

After clicking the “Conguration” option, the screen will be shown as below with several menu options for users to congure
on the left side. We will thoroughly introduce them one by one in the following chapters.

Figure 2 - 4: Congure

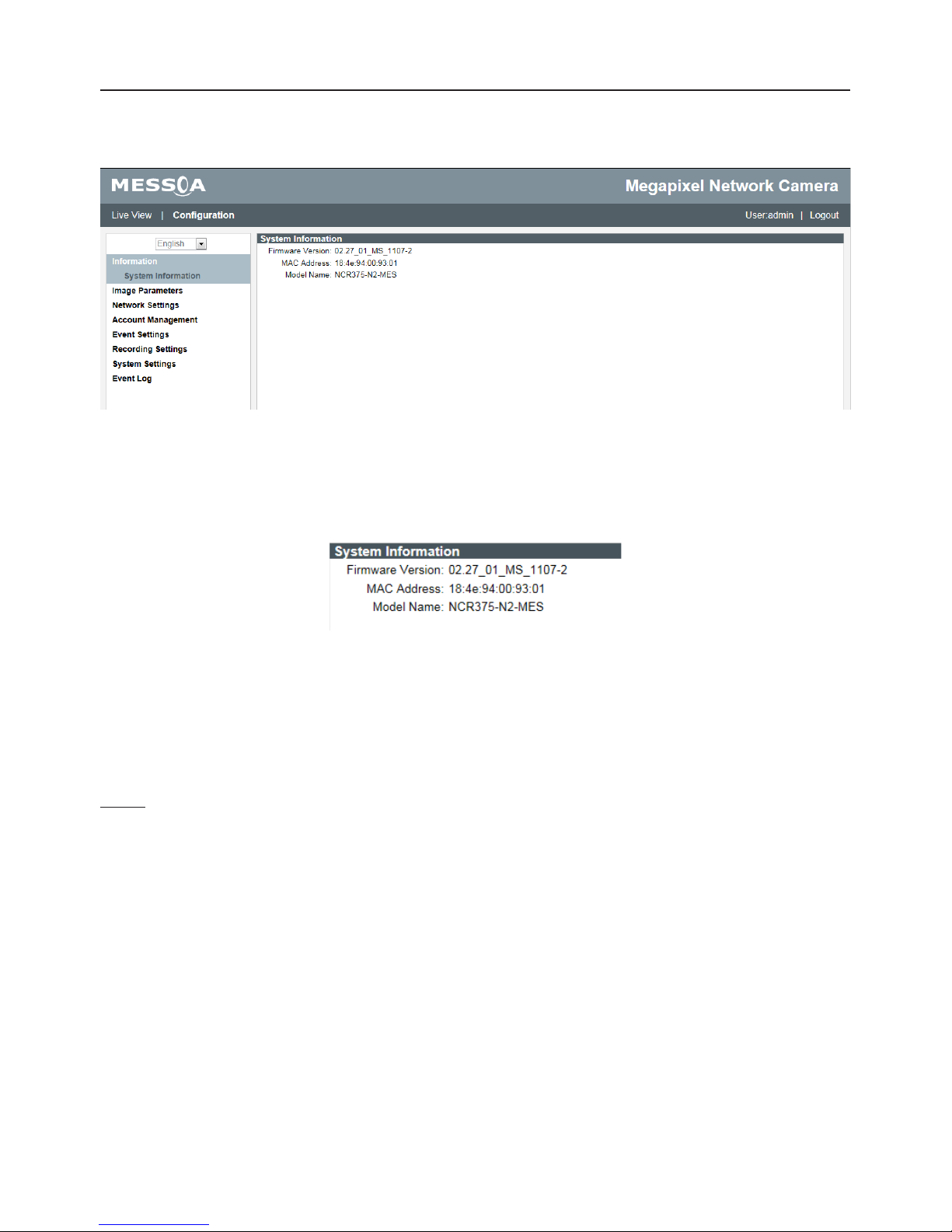

2.2.1 Information

Users can view, after clicking “Information”, the detailed information related to the unit including Firmware Version, MAC
Address and Model Name in the middle of the screen.

Figure 2 - 5: Information

2.2.2 Image Parameter

The Image Parameter contains several basic display settings like resolution, codec, FPS, GOP and so on. In addition, it has

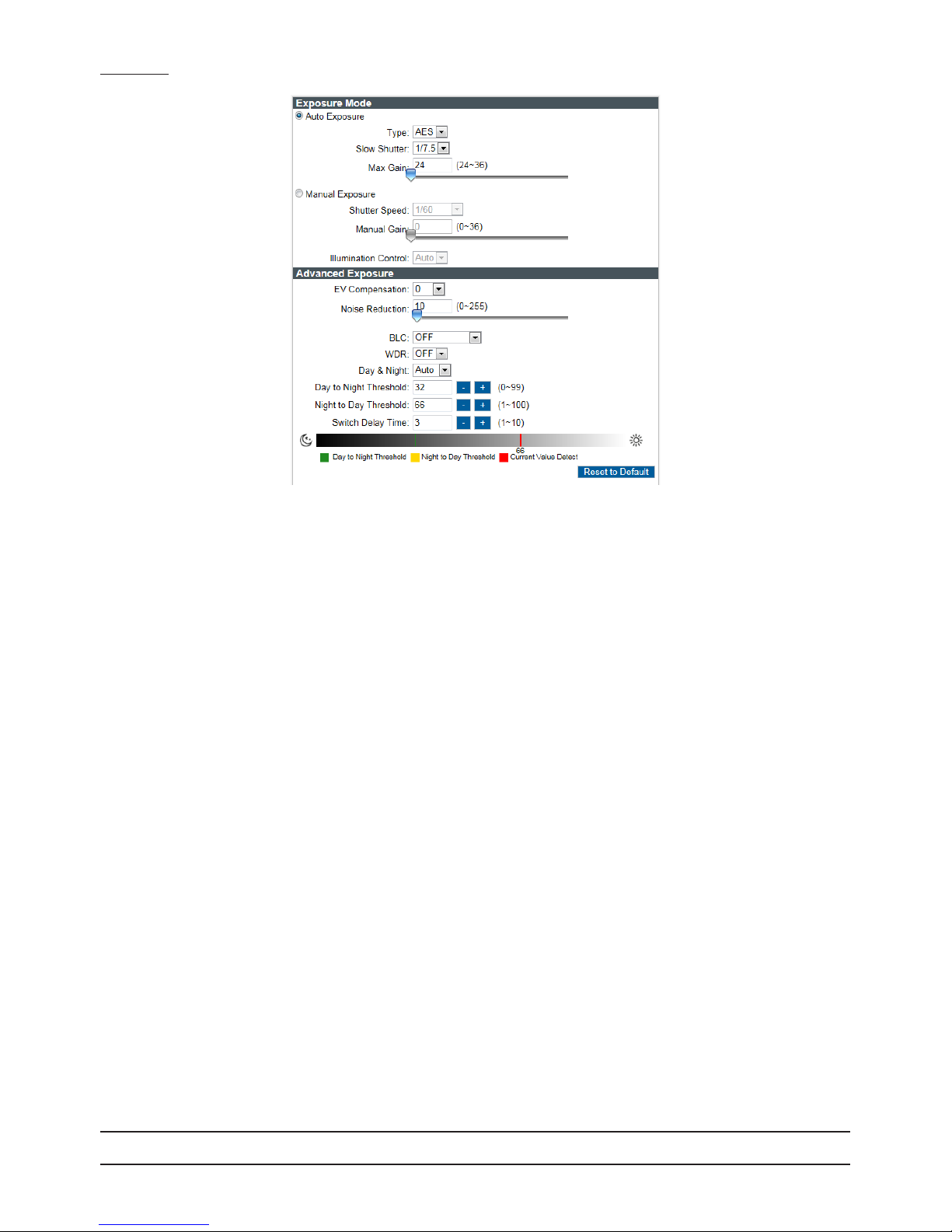

some extending settings including exposure, color, and white balance for the unit. Also, users can set preferred privacy zone
under this menu tree as well.

Codec

●Edit Proles & Streams:

Basically, this unit oers two choices of video codec for real-time viewing: H.264 or MJPEG. By default, there are up to
6 proles, which have own respective sub settings including Resolution, Codec, Frame Rate, GOP Length, QoS (DSCP)
Codepoint, Rate Control and Bit Rate, can be chosen. And each prole contains up to 3 streams arrangement depending
on your settings: Stream1, Stream2, and Stream3, which can be configured separately to send video signals for
simultaneous triple streams with optimized quality and bandwidth based on your network environment. After setting up,
please be sure to click “Save” to have the desired settings take eect.

• Current Prole: To choose one of the 6 proles for implementing, click “Save Prole” after selecting.

• Edit Prole: Select one of 6 proles for editing the sub options.

• MJPEG: While selecting this codec, you can then select sub menu including Frame Rate & Quality.

• H.264: If choosing this codec, there will be more sub menu for you setting. Frame Rate, GOP Length, QoS (DSCP)

Codepoint, Rate Control, which contains 2 kinds including CBR & VBR, and each has its specic Bit Rate value control.

For more details in terms of sub settings under Codec, please refer to the tables listed below.

2.2

Conguration

14

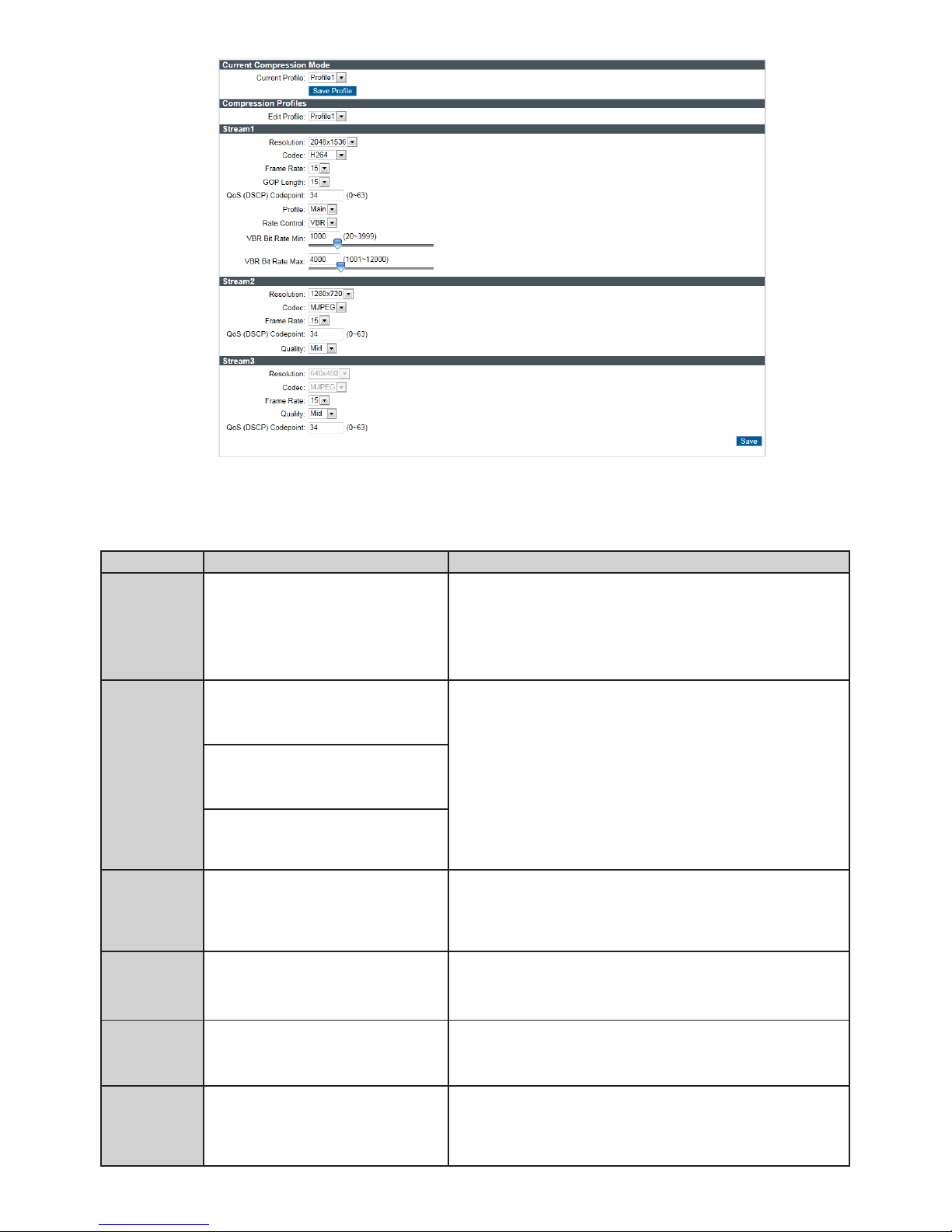

Table 2 - 2: Edit Prole Options

Item Option Description

Video Codec

MJPEG
H.264

MJPEG: Each video frame is individually compressed as single jpeg image with full-scale
contents itself and can be retouched freely with ease. However, due to completeness of
each frame, it brings about larger le size and thus easily tends to lose frames under limited
network bandwidth.
H.264: The latest best-renowned video compression format, it adopts intelligent technology
to record variation in each frame rather than record each full frame. As a result, less network
bandwidth it requires and le size is prone to be smaller compared with MJPEG.

Resolution

5M Model: 5M(2592x1944), 3M(2048×1536) ,
1080P(1920×1080) , SXGA(1280×960) , 720P(1280×720),
SVGA(800×600), VGA(640×480), VGA (640x360),
QVGA(320x240), QVGA (320x180)

5M Model:
5M(2592x1944) is the highest resolution
QVGA (320x180) is the lowest resolution.

3M Models:
3M(2048×1536) is the highest resolution
QVGA (320x180) is the lowest resolution.

1M Model:
720P(1280×720) is the highest resolution
QVGA (320x180) is the lowest resolution.
Note: 5M (2592x1944) can be only selected under H.264 codec mode.

3M Models: 3M(2048×1536) , 1080P(1920×1080) ,
SXGA(1280×960) , 720P(1280×720), SVGA(800×600),
VGA(640×480), VGA (640x360), QVGA(320x240), QVGA
(320x180)

1M Model: 720P(1280×720), SVGA(800×600),
VGA(640×480), VGA (640x360), QVGA(320x240), QVGA
(320x180)

Frame Rate (fps)

NTSC: 1~30
PAL: 1~25

The utmost fps settings for 2 systems varies as the following:
NTSC: H.264 single stream: 2592×1944@12fps; H.264/MJPEG single stream:
2048×1536@15fps; H.264/MJPEG single stream: 1920×1080 to 320x180@30fps
PAL: H.264 single stream: 2592×1944@12fps; H.264/MJPEG single stream: 2048×1536@15fps;
H.264/MJPEG single stream: 1920×1080 to 320x180@25fps

GOP (Group Of
Pictures) Length

NTSC: 1~60
PAL: 1~50

Select the GOP length number from NTSC: 1 to 60 / PAL: 1 to 50. Less number means the
distance between 2 I-frames is smaller, which needs more network bandwidth with better
image. By contrast, larger number consumes less bandwidth but is hard to be recovered. The
available length number options of GOP will vary based on frame rate settings.

QoS (DSCP)
Codepoint

0 ~ 63

To classify and manage network trac and provide quality of service (QoS) on modern IP
networks, Dierentiated Services Code Point (DSCP) is a computer networking architecture
that specifies resources allocation to each device on a priority-based pattern for ideal
bandwidth management. The bigger value, the higher priority it will be.

Bit Rate Mode

CBR: Constant Bit Rate
VBR: Variable Bit Rate

Choose the bit rate control selection based on user requirements. Higher bit rate values will
result in better quality with bigger le size and thus consume more network bandwidth.
CBR stands for constant mode with certain xed rate by user denition, while VBR means
variable mode in which users can set a range of upper and lower limits respectively for bit
rate control.

Figure 2 - 6: Basic Parameter

15

Table 2 - 3: Correlations of Resolution/Streams/FPS/Codecs – NTSC

Resolution Single stream Double stream Triple stream

2592x1944

(for 5M Models)

2592x1944 @ 12fps

(H.264)

2592x1944 @ 12fps, 800x600 @ 12fps
2592x1944 @ 12fps, 640x480 @ 12fps
2592x1944 @ 12fps, 640x360 @ 12fps
2592x1944 @ 12fps, 320x240 @ 12fps
2592x1944 @ 12fps, 320x180 @ 12fps

(H.264, H.264/MJPEG)

2592x1944 @ 12fps, 800x600 @ 12fps, 640x480 @ 12fps
2592x1944 @ 12fps, 640x480 @ 12fps, 640x480 @ 12fps
2592x1944 @ 12fps, 640x360 @ 12fps, 640x480 @ 12fps
2592x1944 @ 12fps, 320x240 @ 12fps, 640x480 @ 12fps
2592x1944 @ 12fps, 320x180 @ 12fps, 640x480 @ 12fps

(H.264, H.264/MJPEG, MJPEG)

2048×1536

(for 3M/5M Models)

2048×1536 @ 15fps

(H.264/MJPEG)

2048x1536 @ 15fps, 1280x720 @ 15fps

2048x1536 @ 15fps, 800x600 @ 15fps
2048x1536 @ 15fps, 640x480 @ 15fps
2048x1536 @ 15fps, 640x360 @ 15fps
2048x1536 @ 15fps, 320x240 @ 15fps
2048x1536 @ 15fps, 320x180 @ 15fps

(H.264/MJPEG, H.264/MJPEG)

2048x1536 @ 15fps, 1280x720 @ 15fps, 640x480 @ 15fps

2048x1536 @ 15fps, 800x600 @ 15fps, 640x480 @ 15fps
2048x1536 @ 15fps, 640x480 @ 15fps, 640x480 @ 15fps
2048x1536 @ 15fps, 640x360 @ 15fps, 640x480 @ 15fps
2048x1536 @ 15fps, 320x240 @ 15fps, 640x480 @ 15fps
2048x1536 @ 15fps, 320x180 @ 15fps, 640x480 @ 15fps

(H.264/MJPEG, H.264/MJPEG, MJPEG)

1920x1080

(for 3M/5M Models)

1920x1080 @ 30fps

(H.264/MJPEG)

1920x1080 @ 30fps, 640x480 @ 30fps
1920x1080 @ 30fps, 320x240 @ 30fps
1920x1080 @ 30fps, 352x180 @ 30fps

(H.264/MJPEG, H.264/MJPEG)

1920x1080 @ 30fps, 640x480 @ 30fps, 640x360 @ 10fps
1920x1080 @ 30fps, 320x240 @ 30fps, 640x360 @ 10fps
1920x1080 @ 30fps, 352x180 @ 30fps, 640x360 @ 10fps

(H.264/MJPEG, H.264/MJPEG, MJPEG)

1280×960

(for 3M/5M Models)

1280x960 @ 30fps

(H.264/MJPEG)

1280x960 @ 30fps, 1280x720 @ 30fps

1280x960 @ 30fps, 800x600 @ 30fps
1280x960 @ 30fps, 640x480 @ 30fps
1280x960 @ 30fps, 640x360 @ 30fps
1280x960 @ 30fps, 320x240 @ 30fps
1280x960 @ 30fps, 320x180 @ 30fps

(H.264/MJPEG, H.264/MJPEG)

1280x960 @ 30fps, 1280x720 @ 30fps, 640x480 @ 10fps

1280x960 @ 30fps, 800x600 @ 30fps, 640x480 @ 10fps
1280x960 @ 30fps, 640x480 @ 30fps, 640x480 @ 10fps
1280x960 @ 30fps, 640x360 @ 30fps, 640x480 @ 10fps
1280x960 @ 30fps, 320x240 @ 30fps, 640x480 @ 10fps
1280x960 @ 30fps, 320x180 @ 30fps, 640x480 @ 10fps

(H.264/MJPEG, H.264/MJPEG, MJPEG)

1280×720

(for 1M/ 3M/5M Models)

1280x720 @ 30fps

(H.264/MJPEG)

1280x720 @ 30fps, 1280x720 @ 30fps

1280x720 @ 30fps, 800x600 @ 30fps
1280x720 @ 30fps, 640x480 @ 30fps
1280x720 @ 30fps, 640x360 @ 30fps
1280x720 @ 30fps, 320x240 @ 30fps
1280x720 @ 30fps, 320x180 @ 30fps

(H.264/MJPEG, H.264/MJPEG)

1280x720 @ 30fps, 1280x720 @ 30fps, 640x360 @ 10fps

1280x720 @ 30fps, 800x600 @ 30fps, 640x360 @ 10fps
1280x720 @ 30fps, 640x480 @ 30fps, 640x360 @ 10fps
1280x720 @ 30fps, 640x360 @ 30fps, 640x360 @ 10fps
1280x720 @ 30fps, 320x240 @ 30fps, 640x360 @ 10fps
1280x720 @ 30fps, 320x180 @ 30fps, 640x360 @ 10fps

(H.264/MJPEG, H.264/MJPEG, MJPEG)

Table 2 - 4: Correlations of Resolution/Streams/FPS/Codecs – PAL

Resolution Single stream Double stream Triple stream

2592x1944

(for 5M Models)

2592x1944 @ 12fps

(H.264)

2592x1944 @ 12fps, 800x600 @ 12fps
2592x1944 @ 12fps, 640x480 @ 12fps
2592x1944 @ 12fps, 640x360 @ 12fps
2592x1944 @ 12fps, 320x240 @ 12fps
2592x1944 @ 12fps, 320x180 @ 12fps

(H.264, H.264/MJPEG)

2592x1944 @ 12fps, 800x600 @ 12fps, 640x480 @ 12fps
2592x1944 @ 12fps, 640x480 @ 12fps, 640x480 @ 12fps
2592x1944 @ 12fps, 640x360 @ 12fps, 640x480 @ 12fps
2592x1944 @ 12fps, 320x240 @ 12fps, 640x480 @ 12fps
2592x1944 @ 12fps, 320x180 @ 12fps, 640x480 @ 12fps

(H.264, H.264/MJPEG, MJPEG)

2048×1536

(for 3M/5M Models)

2048×1536 @ 15fps

(H.264/MJPEG)

2048x1536 @ 15fps, 1280x720 @ 15fps

2048x1536 @ 15fps, 800x600 @ 15fps
2048x1536 @ 15fps, 640x480 @ 15fps
2048x1536 @ 15fps, 640x360 @ 15fps
2048x1536 @ 15fps, 320x240 @ 15fps
2048x1536 @ 15fps, 320x180 @ 15fps

(H.264/MJPEG, H.264/MJPEG)

2048x1536 @ 15fps, 1280x720 @ 15fps, 640x480 @ 15fps

2048x1536 @ 15fps, 800x600 @ 15fps, 640x480 @ 15fps
2048x1536 @ 15fps, 640x480 @ 15fps, 640x480 @ 15fps
2048x1536 @ 15fps, 640x360 @ 15fps, 640x480 @ 15fps
2048x1536 @ 15fps, 320x240 @ 15fps, 640x480 @ 15fps
2048x1536 @ 15fps, 320x180 @ 15fps, 640x480 @ 15fps

(H.264/MJPEG, H.264/MJPEG, MJPEG)

1920x1080

(for 3M/5M Models)

1920x1080 @ 25fps

(H.264/MJPEG)

1920x1080 @ 25fps, 640x480 @ 25fps
1920x1080 @ 25fps, 320x240 @ 25fps
1920x1080 @ 25fps, 352x180 @ 25fps

(H.264/MJPEG, H.264/MJPEG)

1920x1080 @ 25fps, 640x480 @ 25fps, 640x360 @ 12.5fps
1920x1080 @ 25fps, 320x240 @ 25fps, 640x360 @ 12.5fps
1920x1080 @ 25fps, 352x180 @ 25fps, 640x360 @ 12.5fps

(H.264/MJPEG, H.264/MJPEG, MJPEG)

1280×960

(for 3M/5M Models)

1280x960 @ 25fps

(H.264/MJPEG)

1280x960 @ 25fps, 1280x720 @ 25fps

1280x960 @ 25fps, 800x600 @ 25fps
1280x960 @ 25fps, 640x480 @ 25fps
1280x960 @ 25fps, 640x360 @ 25fps
1280x960 @ 25fps, 320x240 @ 25fps
1280x960 @ 25fps, 320x180 @ 25fps

(H.264/MJPEG, H.264/MJPEG)

1280x960 @ 25fps, 1280x720 @ 25fps, 640x480 @ 12.5fps

1280x960 @ 25fps, 800x600 @ 25fps, 640x480 @ 12.5fps
1280x960 @ 25fps, 640x480 @ 25fps, 640x480 @ 12.5fps
1280x960 @ 25fps, 640x360 @ 25fps, 640x480 @ 12.5fps
1280x960 @ 25fps, 320x240 @ 25fps, 640x480 @ 12.5fps
1280x960 @ 25fps, 320x180 @ 25fps, 640x480 @ 12.5fps

(H.264/MJPEG, H.264/MJPEG, MJPEG)

1280×720

(for 1M/ 3M/5M Models)

1280x720 @ 25fps

(H.264/MJPEG)

1280x720 @ 25fps, 1280x720 @ 25fps

1280x720 @ 25fps, 800x600 @ 25fps
1280x720 @ 25fps, 640x480 @ 25fps
1280x720 @ 25fps, 640x360 @ 25fps
1280x720 @ 25fps, 320x240 @ 25fps
1280x720 @ 25fps, 320x180 @ 25fps

(H.264/MJPEG, H.264/MJPEG)

1280x720 @ 25fps, 1280x720 @ 25fps, 640x360 @ 12.5fps

1280x720 @ 25fps, 800x600 @ 25fps, 640x360 @ 12.5fps
1280x720 @ 25fps, 640x480 @ 25fps, 640x360 @ 12.5fps
1280x720 @ 25fps, 640x360 @ 25fps, 640x360 @ 12.5fps
1280x720 @ 25fps, 320x240 @ 25fps, 640x360 @ 12.5fps
1280x720 @ 25fps, 320x180 @ 25fps, 640x360 @ 12.5fps

(H.264/MJPEG, H.264/MJPEG, MJPEG)

16

Exposure

Figure 2 - 7: Exposure

●Exposure Mode

It controls the light intensity of picture. There are 2 modes, Manual Exposure and Auto Exposure for adjustment depending on
dierent conditions. When in Manual mode, Shutter Speed is adjustable.

●Advanced Exposure

Advanced exposure section is for users to modify more detailed options related to exposure.

• EV Compensation: It is the exposure compensation telling the unit by setting value from -2.0 to 2.0 with intervals of per 0.5
for scenes to be either darker or brighter. (Unavailable when exposure mode is manual)

• Noise Reduction: It is the process of removing noises from a signal and be set from 0-255 to decrease noise on the screen.

• BLC: Set an area for Backlight Compensation. Backlight Compensation is a function that achieves the brightness of a selected

area to optimal image level. This function is necessary when an auto iris lens tends to close due to an intense light coming
from back of object in the area wished to view so that the area is too dark and dicult to see. In this case, users may set the
area corresponding to the portion wished to see. (Unavailable when exposure mode is manual)

• WDR: It is intended to provide clear images even under backlight circumstances where intensity of illumination can vary
excessively, namely where there are both very bright and very dark areas simultaneously in the eld of view. WDR enables
the capture and display of both bright and dark areas in the same frame, in a way that there are details in both areas, i.e.
bright areas are not saturated, and dark areas are not too dark.

• Day & Night: Set Day/night function by selecting Auto/Color/BW mode. Select Auto to allow the camera to switch between
Color and BW automatically. If selected Color mode, the unit is forced to stay in Day (Color) mode and BW for Black & White
(Night) mode at all times.

• Day to Night Threshold: Use ‘-’ or ‘+’ or enter a value from 0-99 to manually adjust the threshold of when the camera switches
from Color to BW.

• Night to Day Threshold: Use ‘-’ or ‘+’ or enter a value from 1-100 to manually adjust the threshold of when the camera
switches from BW to Color.

• Switch Delay Time: Use ‘-’ or ‘+’ or enter a value from 1-10 to manually adjust how long the switch will be delayed.

• A light spectrum shows where each of the thresholds sets in relation to one another and to the current value detected.

Note

Settings will be restored to the factory defaults if pressing “Reset to default”.

17

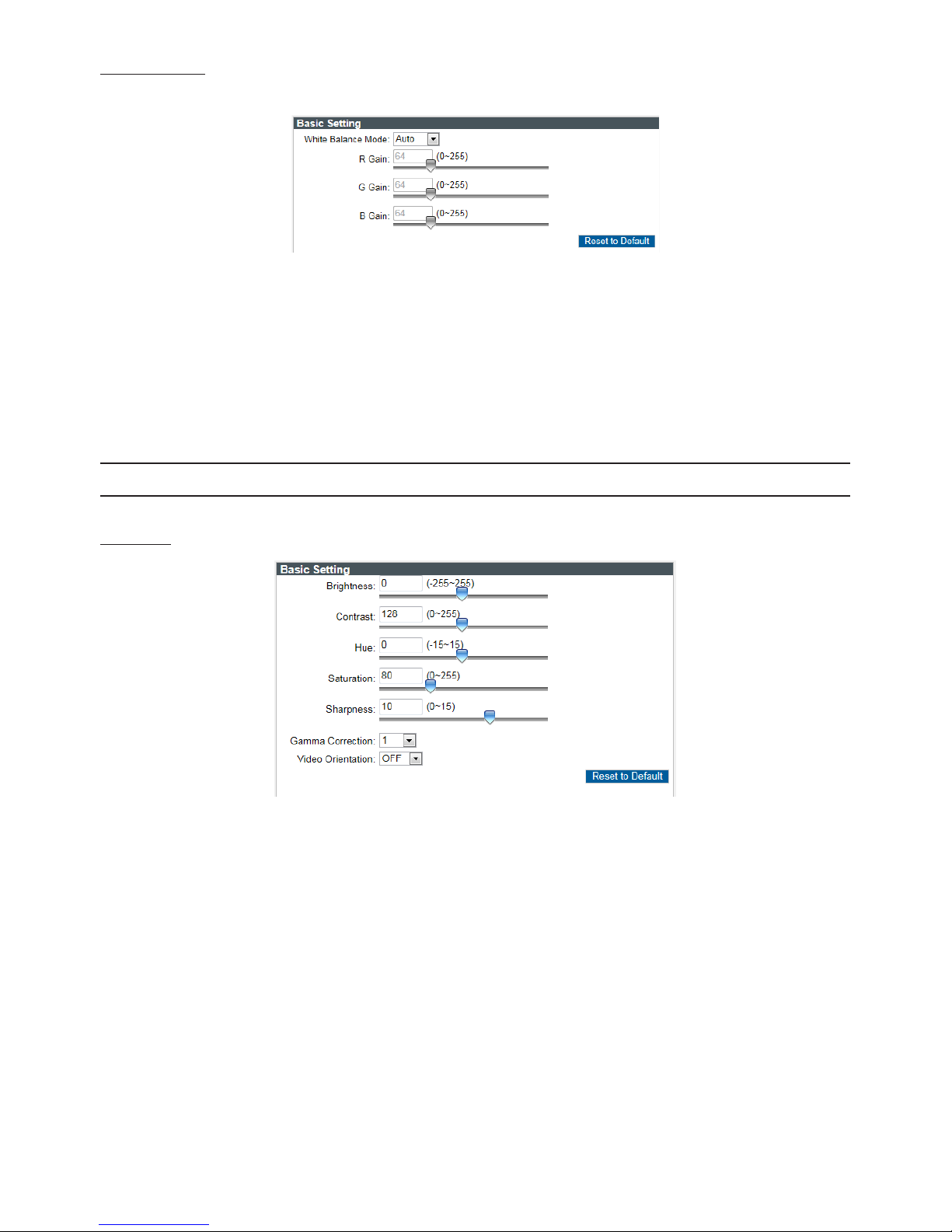

White Balance

To set the white balance values to meet ambience condition for best color rendition with 2 modes:

Figure 2 - 8: White Balance Settings

●Auto

It automatically controls color temperature ranging from 2500°K to 10000°K

●Manual

To manually set preferred gain values including the following:

• R (Red) Gain: It allows users to adjust red color in the image ranging from 0 to 255.

• G (Green) Gain: It allows users to adjust green color in the image ranging from 0 to 255.

• B (Blue) Gain: It allows users to adjust blue color in the image ranging from 0 to 255.

Note

Settings will be restored to the factory defaults if pressing “Reset to default”.

Basic Color

Figure 2 - 9: Basic Settings

●Brightness

Set image brightness from level -255 to 255. The 255 indicates the brightest image.

●Contrast

Set image contrast from level 0 to 255. The 255 provides the highest contrast.

●Hue

Set picture hue from level -15 to 15. Selecting 15 provides the deepest hue.

●Saturation

It describes the dierence of a color from the gray of the same lightness. Increasing saturation deepens the colors of your
images, making reds redder and blues bluer. Users can adjust picture saturation level from 0 to 255. Decreasing saturation
brings the image closer to a grayscale (that is, monochrome or black-and-white) image. Selecting 255 provides the highest
image saturation.

●Sharpness

Increasing the sharpness value will sharpen the edges and small feature of viewing images. If the edges appear too
smooth or blurred, increase the sharpness; otherwise, decrease the sharpness. Sharpness value can be set from 0 to 15.
The 15 oers the sharpest image.

18

●Gamma Correction

Set gamma correction between 1 and 0.45.

●Video Orientation

Set image to be left right reversal, upside down or both by selecting “Mirror”, “Flip” and “Both” individually. Selecting “OFF”
will deactivate video orientation function.

Note

Settings will be restored to the factory defaults if pressing “Reset to default”.

Remote Lens Control

(For Motorized Lens Model)

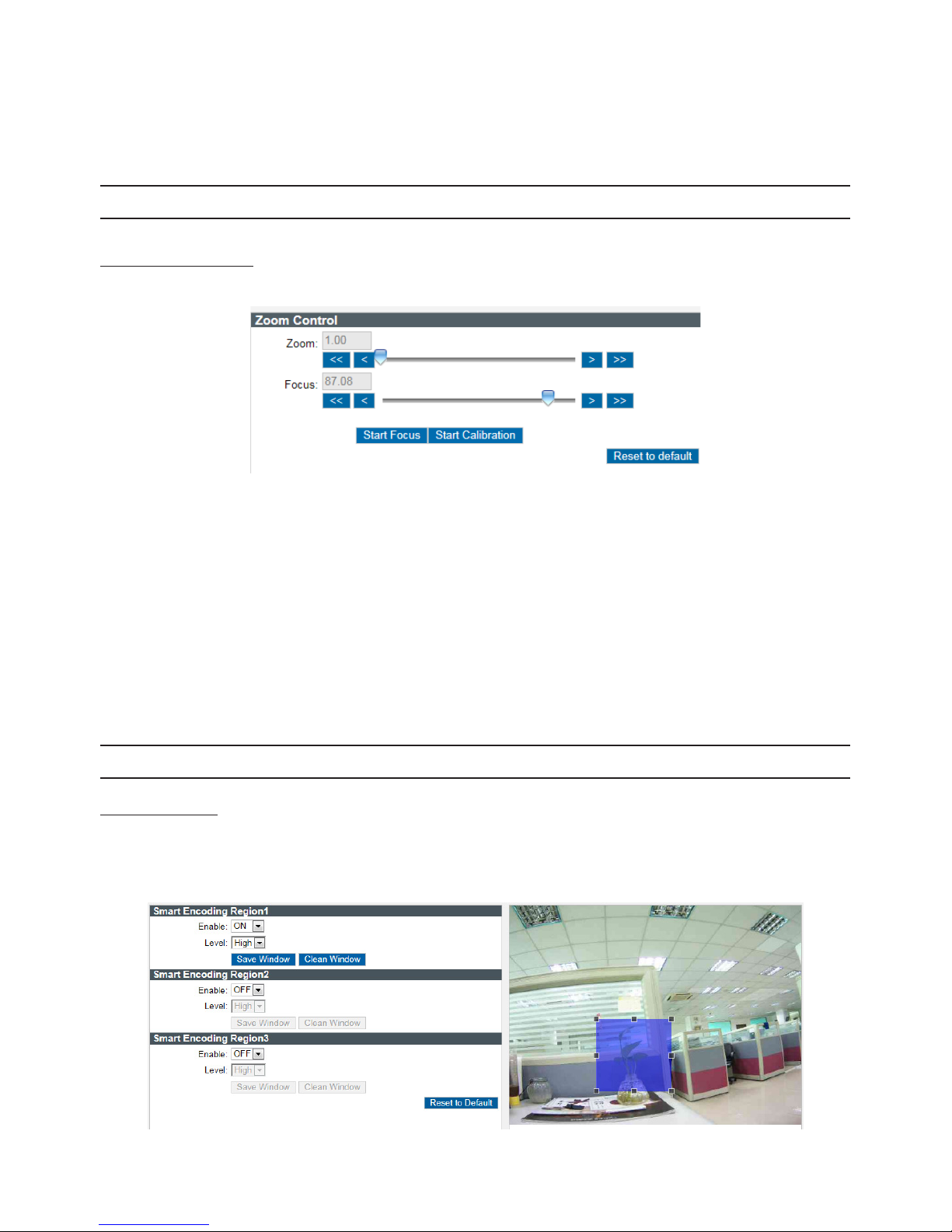

Figure 2 - 10: Remote Lens Control

●Zoom Control

• Use the zoom bar to zoom in and out, or click on a position on the bar to zoom to that position. The number indicates the
current zoom level.

• Use the focus bar to set focus, or click on a position on the bar to set focus at that position. The number indicates the current
focus level.

• The buttons < and > move the zoom/focus position one step in either direction. The buttons << and >> move the zoom/
focus position in multiple steps in either direction.

• Click “Start Focus” to have the lens focus automatically immediately.

• Click “Start Calibration” to have the lens calibrate and focus auto simultaneously at once.

Note

Settings will be restored to the factory defaults if pressing “Reset to default”.

Smart Encoding

On the Smart Encoding page you can specify a specic region of the video as more important. When a smart encoding area
is specied, the camera will assign a higher number of bits to the encoding region to deliver better video quality than other
regions.

Figure 2 - 11: Smart Encoding Setting

19

To dene a smart encoding area, you need rst to turn ON one of the Smart Encoding Regins and adjust by pressing with
left click and dragging to outline a desired region, Click anywhere on the image to cancel the current dened region. Click
“Save Window” to make settings take eect. If you intend to delete settings, click “Clean Window” to wipe out smart encoding
region settings.

Note

Settings will be restored to the factory defaults if pressing “Reset to default”.

Privacy Zone

Privacy Zone enables users to black out a specic portion of the screen for privacy concern. There are up to 8 sets of privacy
zones for users to dene. After setting up a privacy zone, the live view screen will appear a frame, whose color, size and
position can be customized by users’ preference.

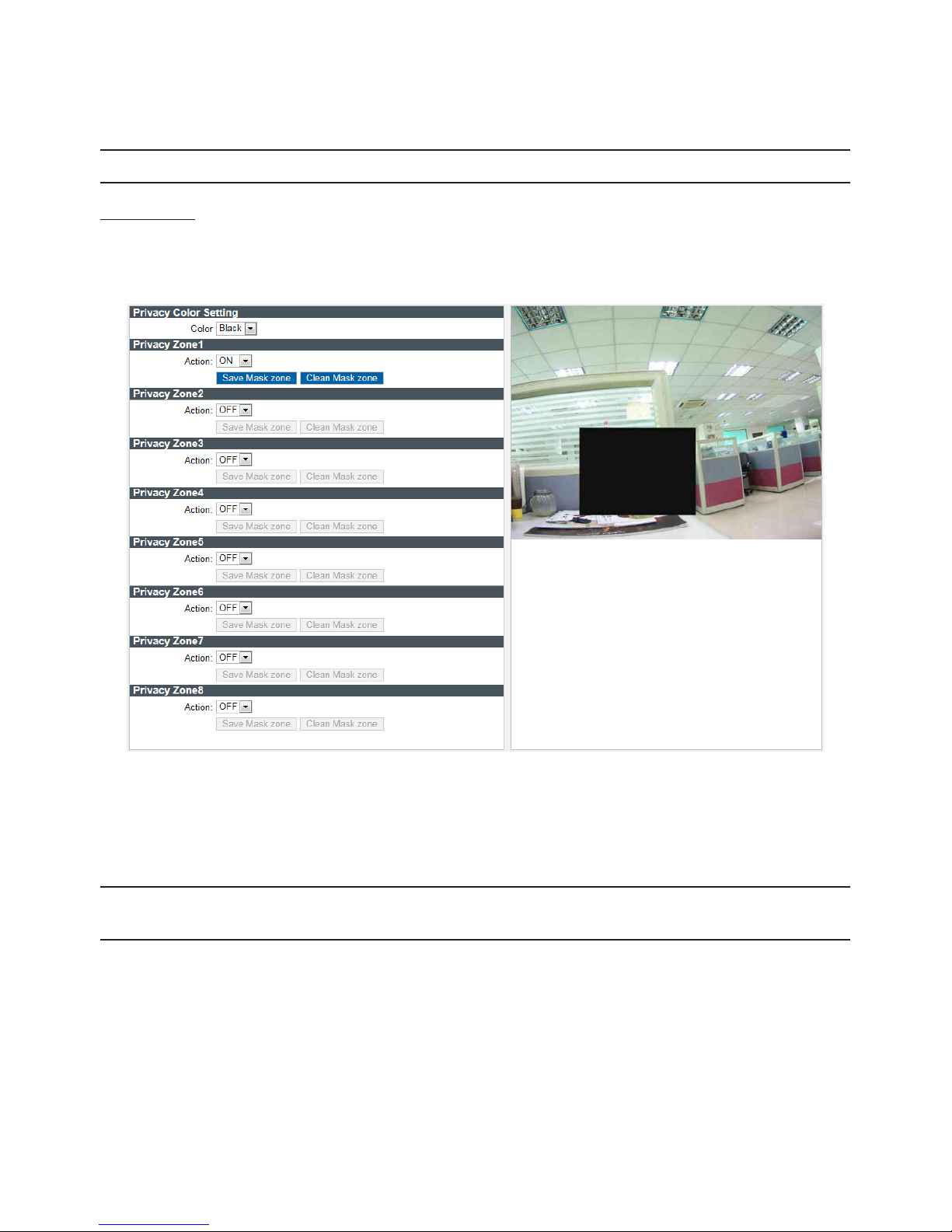

Figure 2 - 12: Privacy Zone Setting

To set up a privacy mask, you need rst to turn ON one of the eight privacy zones (multiple available) and adjust the privacy
mask size by pressing with left click and dragging to outline a desired privacy frame. Also, users can select a desired color
(Black, Grey or White) for privacy zone. Press “Save Mask zone” to make settings take eect. If you intend to delete settings,
click “Clean Mask zone” to wipe out privacy zone settings.

Note

It is recommended to set the privacy zone slightly larger than the actual area to ensure that privacy area is
not revealed during movement.

20

ROI

Region of interest (ROI) is used to determine the region what would be monitored.

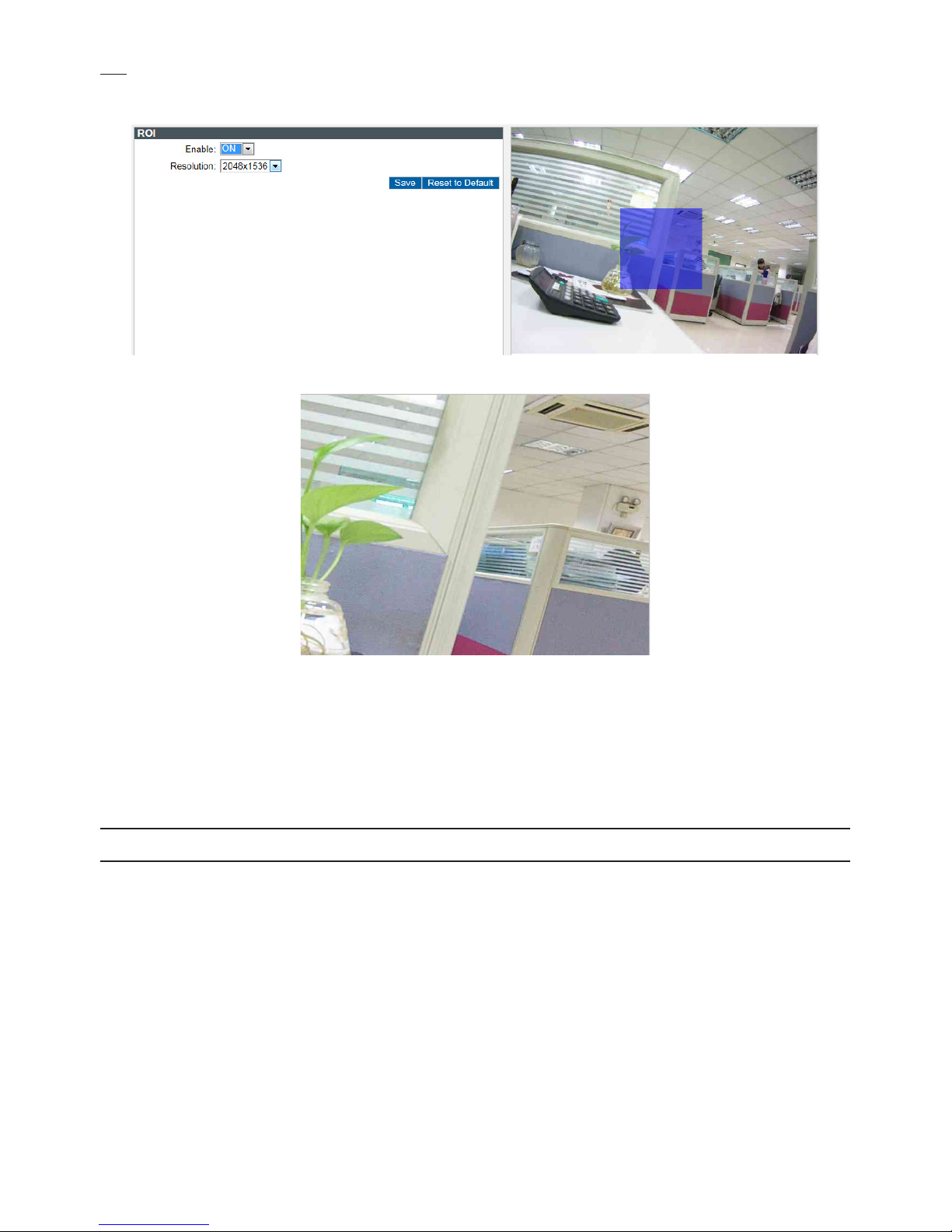

Figure 2 - 13: ROI Setting

●Enable

Set “ON” to activate ROI function. The ROI setup screen will pop out a blue rectangle for dening the ROI by dragging the
mouse to customize its size and position.

●Resolution

Select the display resolution for ROI, and click Save to display the image of ROI in the screen.

Note

Settings will be restored to the factory defaults if pressing “Reset to default”.

21

2.2.3 Network Settings

Network

This section for users to set detailed settings related to wired network condition for the unit.

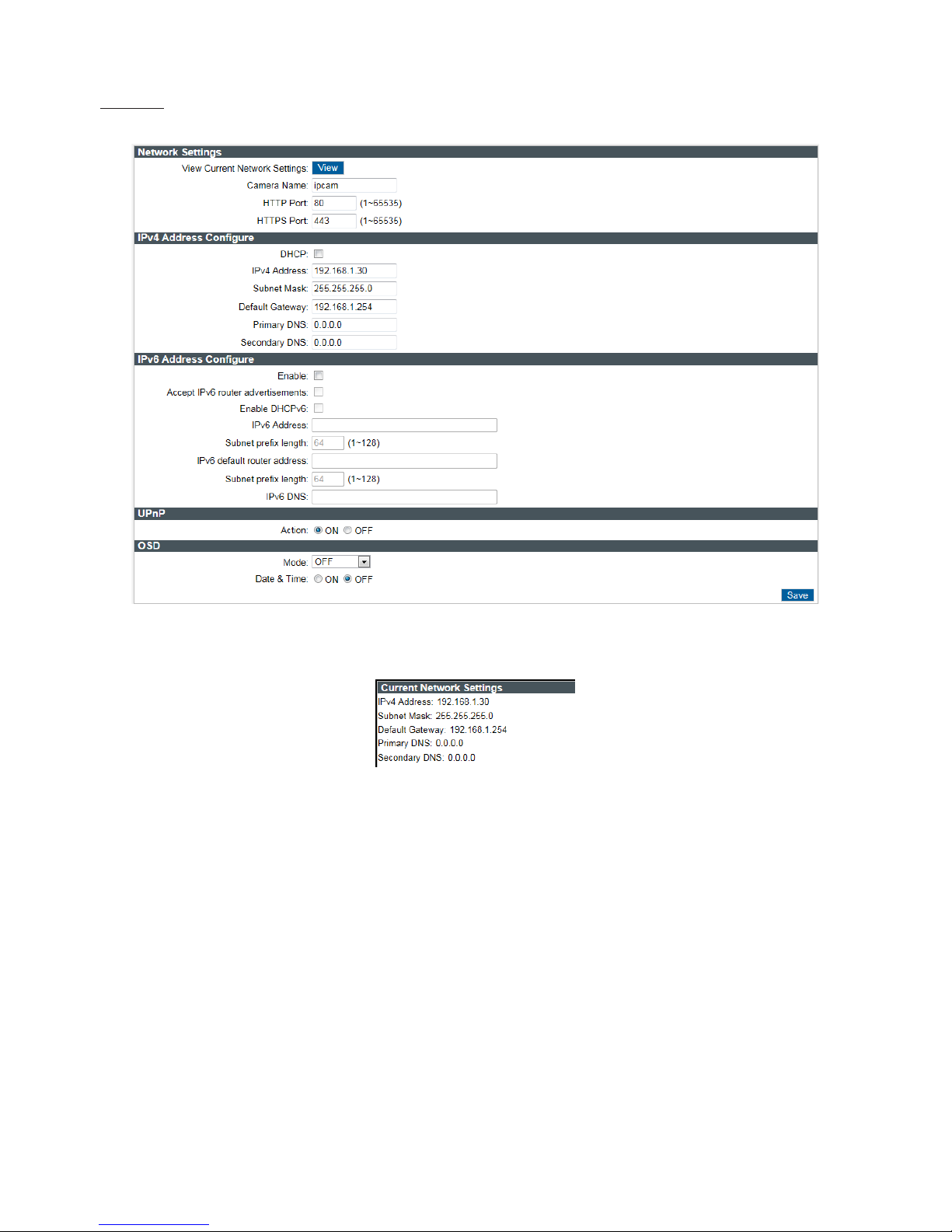

Figure 2 - 14: Network

●Network Settings

• View current network settings: Click “View” to see your current network related settings.

Figure 2 - 15: Current Network Settings

• Camera Name: Input your preferred camera name here.

• HTTP Port: This protocol allows for TCP protocol quality without having to open specic ports for streaming. Users inside

a rewall can utilize this protocol to allow streaming data through. It is recommended to use the default port number 80;
however, if it is required to change the port number, please contact your system administrator with options ranging from
1025 to 65535.

• HTTPS Port: More secured than HTTP, HTTPS is based on HTTP with SSL/TLS protocol, therefore increasing the security
capabilities of SSL/TLS on standard HTTP communications. By default, it’s recommended to adopt 443 as the initial port
number. Nevertheless, please also contact your system administrator for other port number ranging from 1025 to 65535 if
required.

●IPv4 Address Congure

To set your IP address with further settings under IPv4 here.

• DHCP: If enabled, the unit will automatically obtain an available dynamic IP address from the DHCP server each time it
connects to the LAN.

• IPv4 Address: To manually set an IP address under IPv4.

• Subnet Mask: Please use default address: 255.255.255.0. If subnet mask is not properly congured, the unit may not be able

to communicate with other devices.

22

• Default Gateway: Leave blank as default setting. No Default Gateway address required if not used. Ask your network
administrator for further information.

• Primary DNS: Same as the above.

• Secondary DNS: Same as the above.

●IPv6 Address Congure

To set your IP address with further settings under IPv6 here.

• Enable: If enabled, the unit will receive an IP address according to the conguration in the network router.

• Accept IPv6 router advertisements: check to accept receiving IPv6 router advertisements.

• DHCPv6: check to obtain IPv6 address from DHCP server on LAN automatically.

• IPv6 Address: To manually set an IP address under IPv6.

• Subnet prex length: Enter prex length of IPv6 address here. The default is 64

• IPv6 default router address: To manually set an IP default router address under IPv6.

• Subnet prex length: Enter prex length of IPv6 default router address here. The default is 64

• IPv6 DNS: Input DNS server’s IP address here.

●UPnP

• When UPnP (Universal Plug & Play) is set to “ON”, the unit can be detected automatically by any computer in the LAN to skip
the installation of the IP Finder utility.

●OSD

• “Camera Name” and “Date & Time” can be set ON to show on screen separately.

FTP

(1M Flat Mini Dome Network Camera Excluding)

In this page, users can set FTP connection related settings.

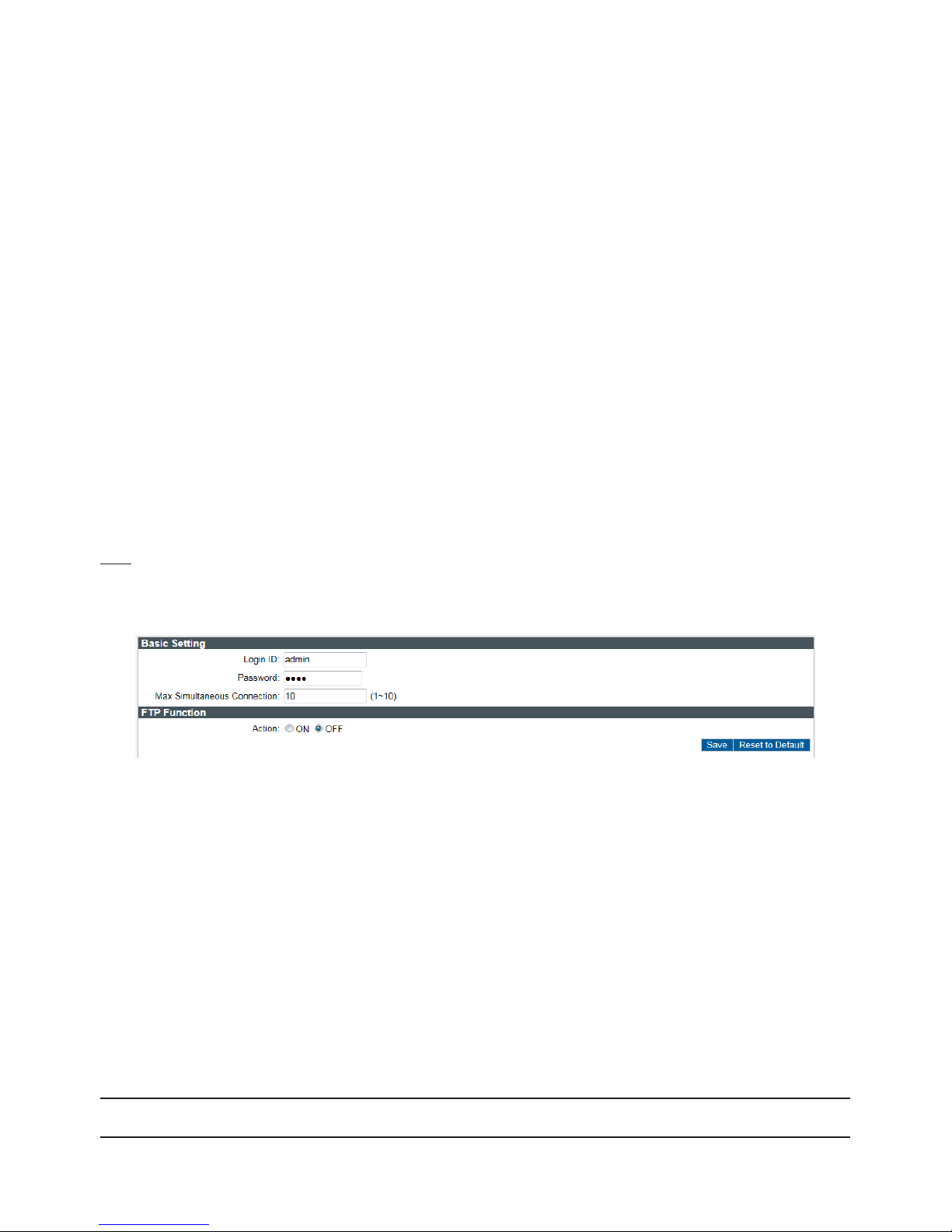

Figure 2 - 16: FTP Settings

●Action

Simply click “ON” to activate the FTP function or “OFF” to disable it.

●Login ID

Enter a login ID to be allowed to connect with FTP.

●Password

Enter a password associated with the login ID.

●Max Simultaneous Connection

Determine the number of maximum connections by inputting a number in the Max Simultaneous Connections field.
Please note that it is the maximum of FTP Client connections, not the maximum of IE Window’s connections.

To log on the FTP, simply enter ftp://<Login ID>:<Password>@<ip address> in the location field of Microsoft’s Internet
Explorer and the recordings will be shown up. The default setting is ftp://admin:[email protected]. Refer to the names of
le and the folder for date and time of recordings.

Note

Please click “Save” button to save your settings. Users can also click “Reset to Default” to set all the settings
back to the factory defaults.

23

RTSP

To enable RTSP, simply enter the Login ID, Password and Port (554 by default) with selecting “ON” in Authentication. For
accessing camera's live video over the Internet, click "ON" in NAT Setting to enable and enter the user-specied RTSP port
number on the router in RTSP Port over NAT eld.

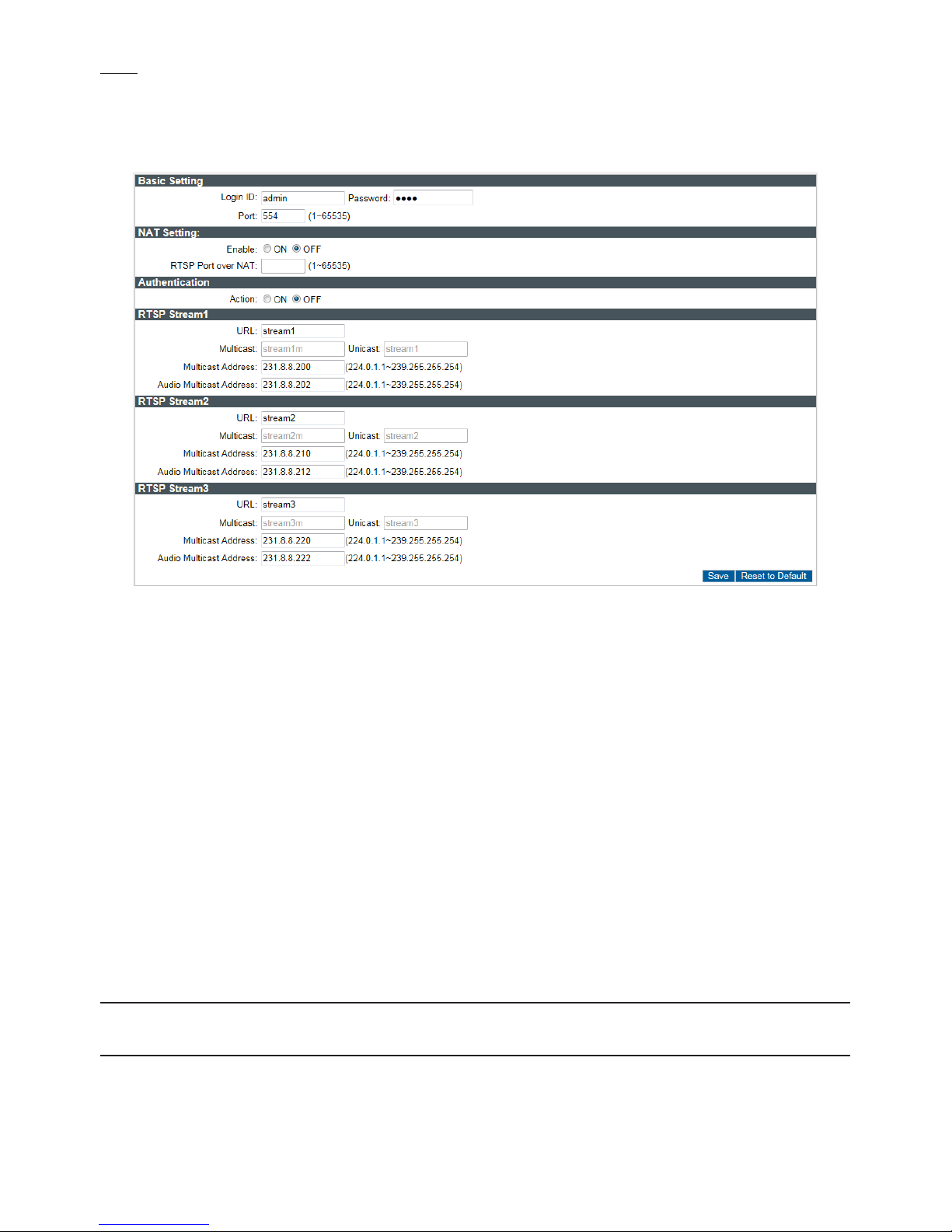

Figure 2 - 17: RTSP Settings

●URL

Input a preferred name for representing each RTSP Stream URL. Please note that there’re 2 transferring types of each
stream: Unicast and Multicast, and the URL name for each will be as the example below:

• Unicast: stream1

• Multicast: stream1m

●Multicast Address

The IP address for multicasting ought to be from 224.0.1.1 to 239.255.255.254. The RTSP URLs for RTSP Stream 1, RTSP
Stream 2, and RTSP Stream3 are as following respectively:

• rtsp://(ip address)/(stream 1)

• rtsp://(ip address)/(stream 2)

• rtsp://(ip address)/(stream 3)

For example: rtsp://224.0.1.1/stream1

●Audio Multicast Address

Similar to the above, IP address of audio multicast, responsible for audio transmitting, should be dened from 224.0.1.1 to

239.255.255.254 as well.

Note

Please click “Save” button to save your settings. Users can also click “Reset to Default” to set all the settings
back to the factory defaults.

24

SNMP

SNMP (Simple Network Management Protocol) is an Internet standard protocol on top of application layer that restructures
the exchange of management information among network-attached nodes, which helps administrators to remotely manage
network devices and master network problems with ease.

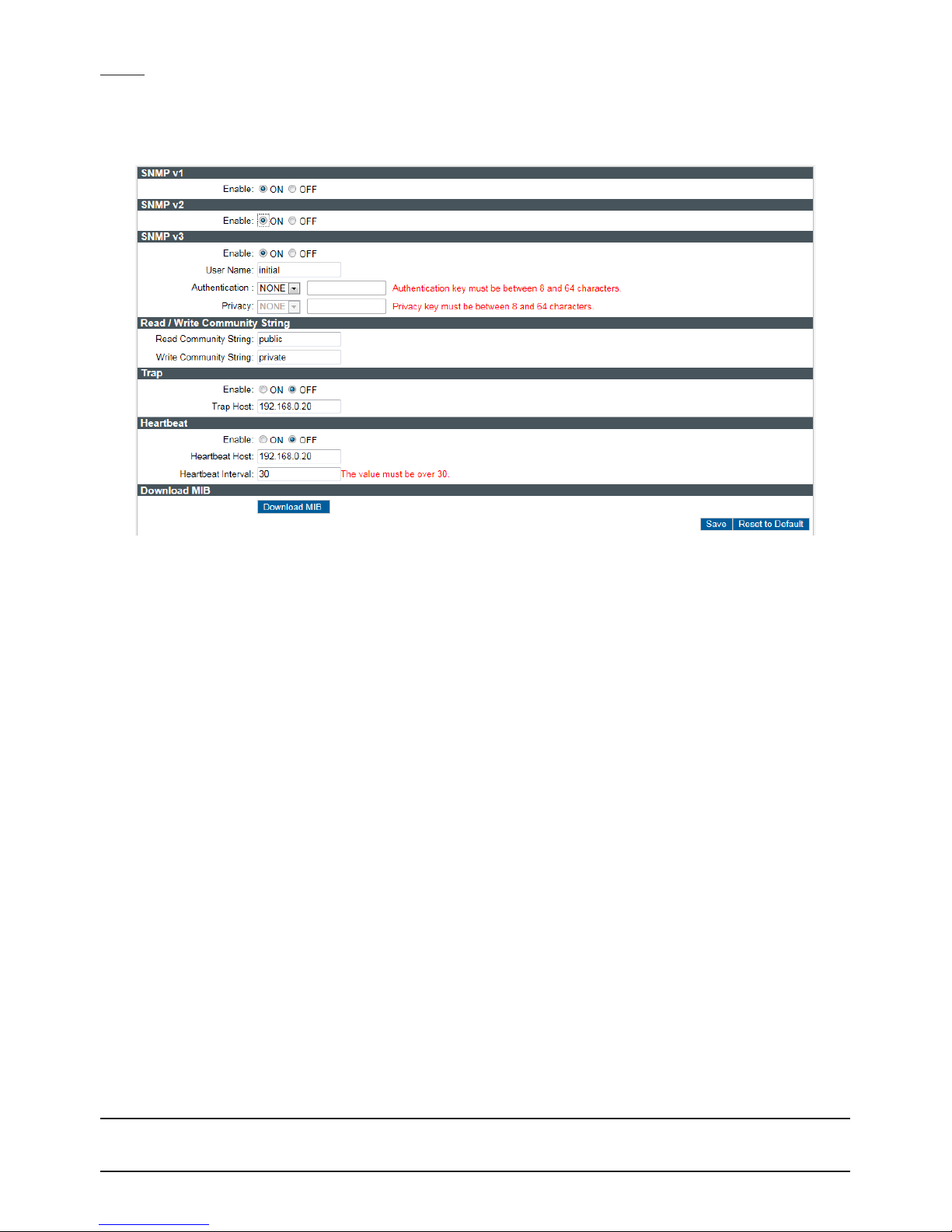

Figure 2 - 18: SNMP Settings

●SNMP V1

Tick “ON” or “OFF” to enable or disable.

●SNMP V2

Tick “ON” or “OFF” to enable or disable.

●SNMP V3

Tick “ON” or “OFF” to enable or disable. Type the SNMP user name in the User Name eld. Select the encryption algorithm
for authentication from the Authentication drop-down menu: None, MD5, or SHA.
If you use authentication method MD5 or SHA, type a password in the text box to the right of the selected Authentication
encryption. Select the privacy encryption algorithm setting from the Privacy drop-down menu: None, DES, or AES. If you
use privacy method DES or AES, type a password in the text box to the right of the selected Privacy encryption.

●Read/Write Community String

Enter the names of Read Community String and Write Community String.

●Trap

Trap under SNMP allows an agent to notify the management station of signicant events by way of an unsolicited SNMP
message, the asynchronous notication. Tick “ON” or “OFF” to enable or disable trap function here. Input IP address of Trap
Host.

●Heartbeat

To ensure a network free from delayed message, Heartbeat, this communications protocol sends back a message in a
given interval to properly conrm message is alive and in fact with a periodic heartbeat. Tick “ON” or “OFF” to enable or
disable heartbeat function here. Input IP address & Interval of Heartbeat Host.

● Download MIB

Click “Download” to get specics of MIB (Management Information Base). MIBs describe the structure of the management
data of a device subsystem; which uses a hierarchical namespace containing object identiers (OID). Each OID identies a
variable that can be read or set via SNMP.

Note

Please click “Save” button to save your settings. Users can also click “Reset to Default” to set all the settings
back to the factory defaults.

25

802.1X

802.1X is an IEEE Standard for Port-based Network Access Control and defines the encapsulation of the Extensible
Authentication Protocol (EAP) over IEEE 802 which is known as EAP over LAN. Simply click “ON” to activate it and further
select its related EAP protocol types.

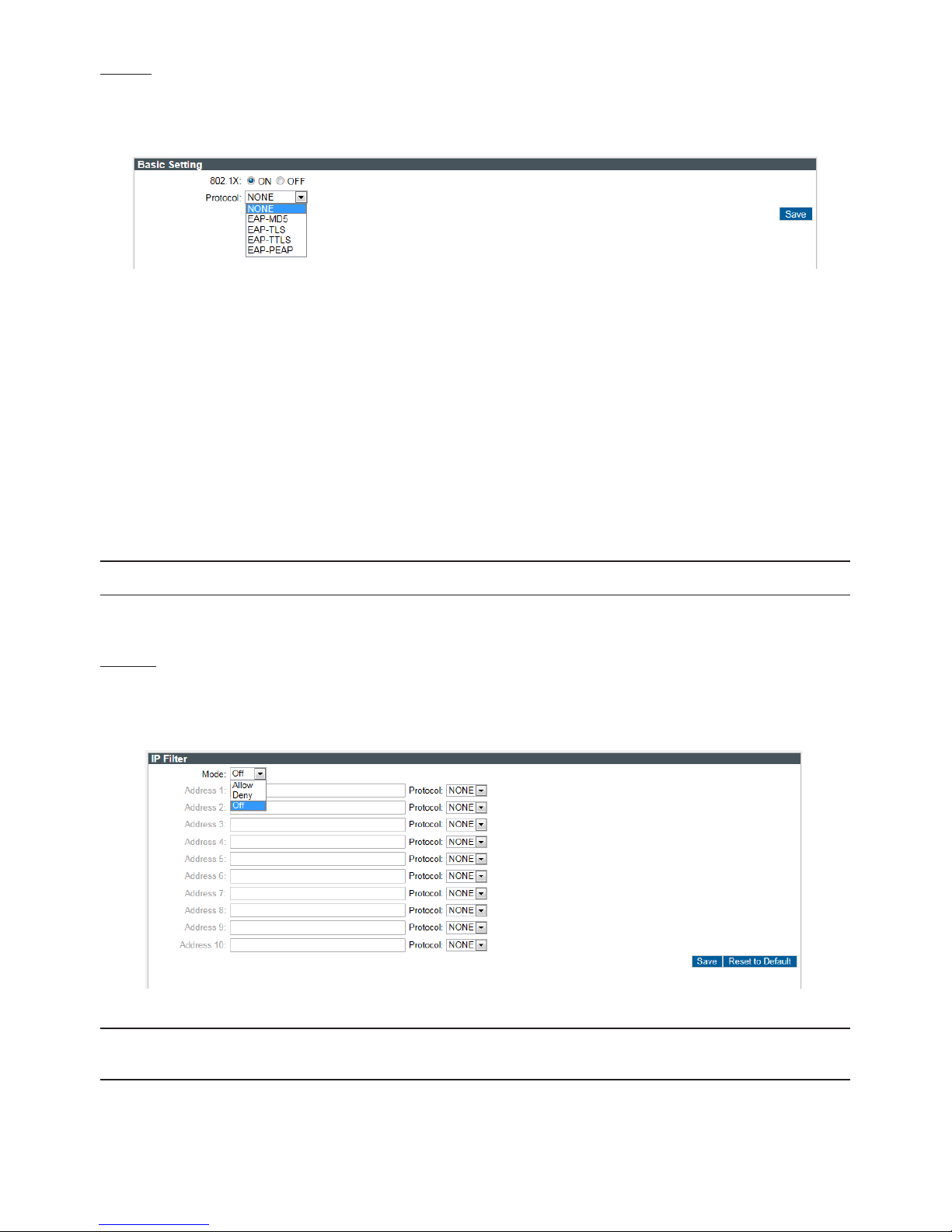

Figure 2 - 19: 802.1X Settings

●EAP-MD5

It is the only IETF Standards Track based EAP method and oers the minimal security.

●EAP-TLS

Transport Layer Security (TLS) is an IETF open standard and is well-supported among wireless vendors. Still, it is considered
one of the most secure EAP standards available

●EAP-TTLS

Tunneled Transport Layer Security (TTLS) is an EAP protocol that extends TLS and is widely supported across platforms.

●EAP-PEAP

The Protected Extensible Authentication Protocol (PEAP) was jointly developed by Cisco Systems, Microsoft, and RSA
Security and provides unique security for users.

IP Filter

IP Filter permits or denies access rights to dened IP addresses. When enabled, IP addresses in the list will be either allowed
or denied access according to the selection made in the drop-down list Allow/Deny the following IP addresses. Select O to
disable. The administrator can add up to 10 IP address entries to the list.

Figure 2 - 20: IP Filter Settings

Note

Please click “Save” button to save your settings. Users can also click “Reset to Default” to set all the settings
back to the factory defaults.

Note

Please click “Save” button to make your settings take eect.

26

2.2.4 Account Management

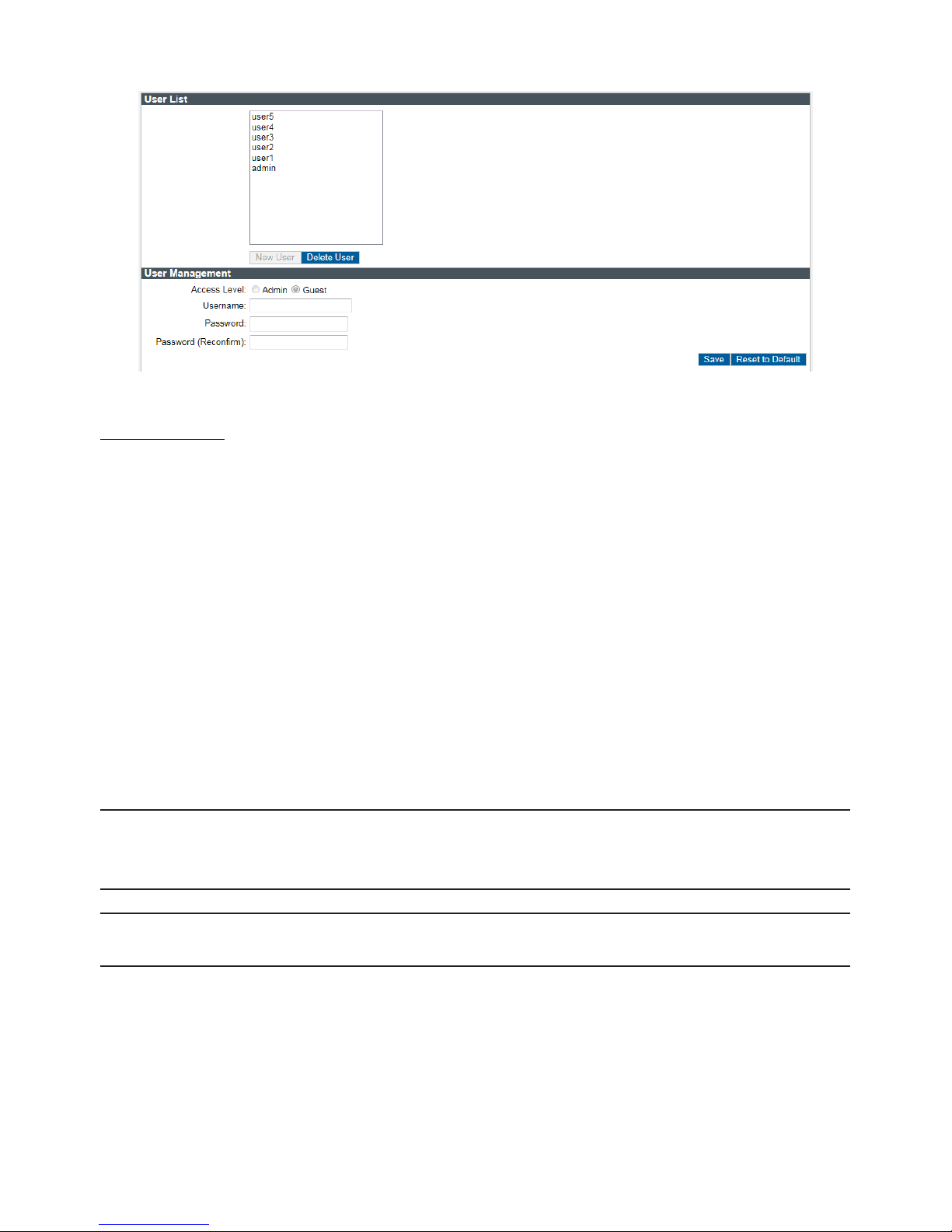

Figure 2 - 21: Account Settings

Account Settings

●Admin:

The unit privileged control can be dened under Admin level right here.
The default settings for system Login ID and Password are:

• Username: admin

• Password: 1234

●User:

Other than admin, Guest level can only access to unit under authorization from system administrator. At most 5 users are
allowed to view live view. No operation will be granted without authorization. The default user’s login name and password
are “user1” (user1~5) and “0000”.
To add/delete/change admin/user settings, please refer to the details below.

• New User: To add a new user, simply click “New User” and then input a desired username with password (reenter for
reconrm). Finally click “Save” to take eect.

• Delete User: Choose one of the users from the list and then click “Delete User” to remove it.

• Change Password: Choose admin or one of the users from the list first, and enter an updated password (reenter for

reconrm). Finally click “Save” to take eect.

Caution

• The login ID and Password is supported within 16 characters with the valid alphanumeric value merely
including '0' to '9', 'a' to 'z', 'A' to 'Z', '.','-','+','_'and '@'.

• It is NOT allowed to add or delete Admin Level user, which is only one by default.

Note

Please click “Save” button to save your settings. Users can also click “Reset to default” to set all the settings
back to the factory defaults.

27

2.2.5 Event Settings

Motion Detection

This function is designed to trigger a corresponding action when the unit detects motion(s).

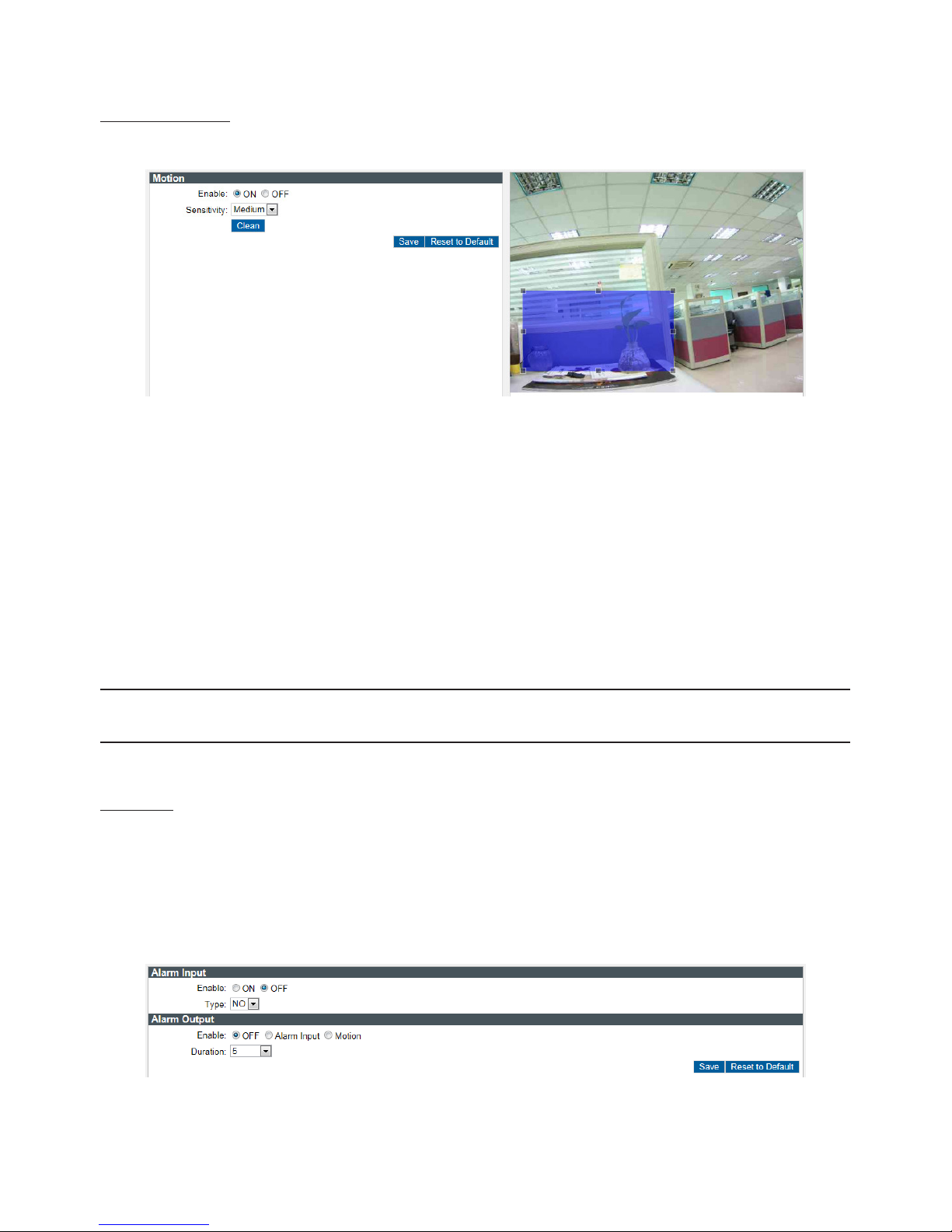

Figure 2 - 22: Motion Detection Settings

●Enable

Set “ON” to activate motion detection function.

●Sensitivity

Choose dierent 3 levels of detecting sensitivity. “High”: Motion is activated with slight changes in brightness or motion.
“Low”: Motion is activated with big changes in brightness or motion.

●Detect Zone

Adjust the detect zone by pressing with left click and dragging on the live view screen to outline a desired size of detected
frame.

●Clean

Click “Clean” to erase detect zone settings.

Note

Please click “Save” button to save your settings. Users can also click “Reset to default” to set all the settings
back to the factory defaults.

Alarm I/O

(1M/3M Flat Mini Dome and 5MP Indoor IR Dome Network Camera Excluding)

Connecting an alarm input device with the camera can largely extend warning functions. For example, when an infrared
detector connected with the camera detects motion based on heat emission, an alarm message would be displayed on the
Web-Client screen for notication. On the other hand, by connecting with an alarm output device such as siren, the camera
will send signal to notify siren and thus make it activated when detecting an alarm either by motion detection or signals from
alarm input devices.

Figure 2 - 23: Alarm Input / Output Settings

28

●Alarm Input

• Enable: Set Alarm Input as “ON” or “OFF”.

• Type: Choose NO for normally open or NC for normally close. NO (Normally Opened): An alarm will be triggered when the

external contact closes. NC (Normally Closed): An alarm will be triggered when the external contact opens.

●Alarm Output (3MP Fixed Focal Lens IR Bullet Network Camera Excluding)

• When set to “On”, external devices such as sirens or ashing lights that connected to the alarm output connector will signal
for alarm activation. And duration can be defined among 0/5/10 seconds, in which 5 seconds is the default settings. 0
second indicates unlimitedly continuous triggering while 5 and 10 seconds mean there’s a time interval between triggering
for respective settings.

Note

Please click “Save” button to save your settings. Users can also click “Reset to default” to set all the settings
back to the factory defaults.

Email Notication

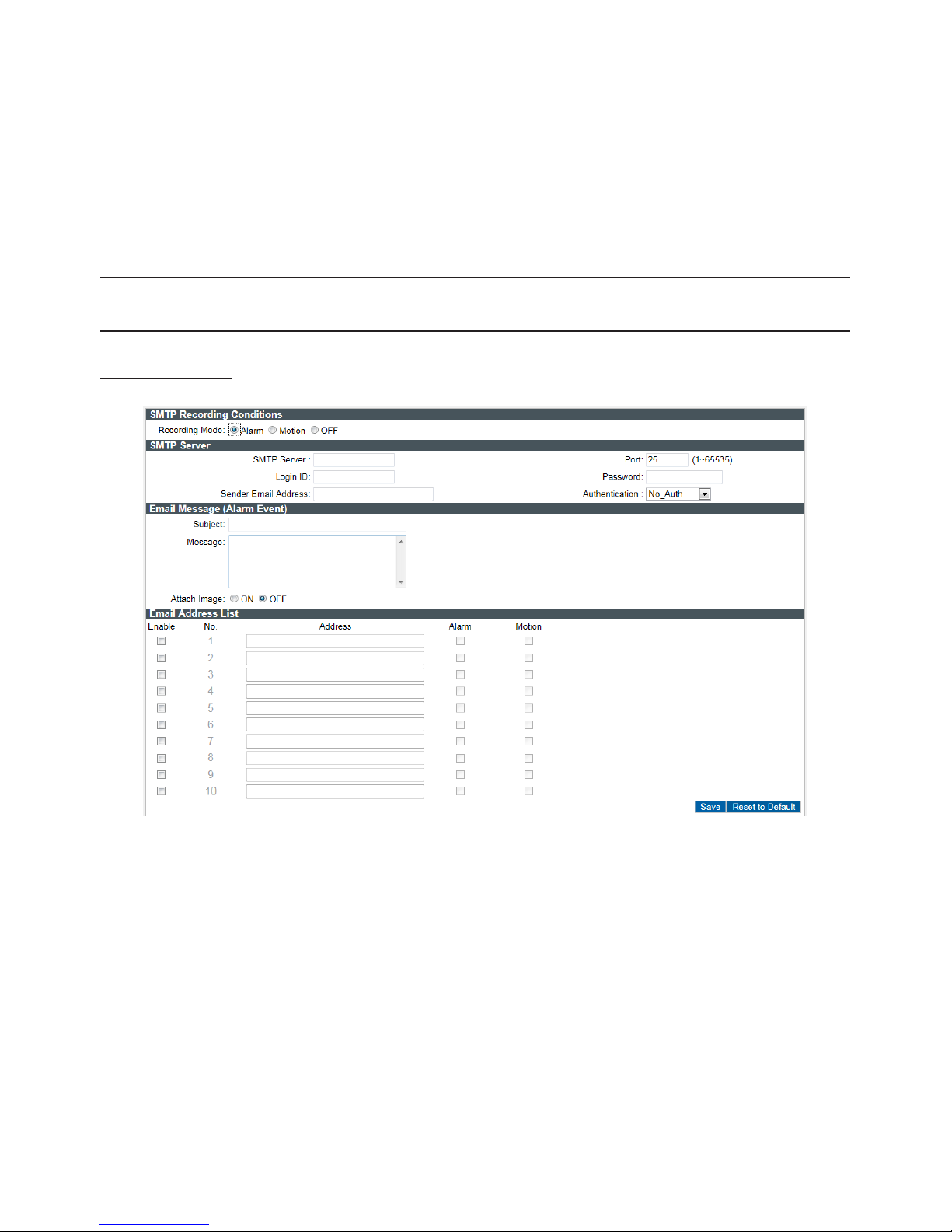

Figure 2 - 24: Email Notication

29

●SMTP Recording Condition

Simple Mail Transfer Protocol (SMTP) is an Internet standard for e-mail service across networking. Users can receive Alarm
or Motion triggered event via email notication by setting here.

●SMTP Server

• SMTP Server: Input a server name or address.

• Login ID: Input a user name with privilege to access the server.

• Password: Input the password associated with Login ID.

• Sender Mail Address: Enter the mail address of the sender

• Port: Set “25” as default or change to dedicated number.

• Authentication: Select an authentication type as following details:

» No_Auth: No restriction

» SMTP_Plain: PLAIN is the name of a registered SASL authentication mechanism which serves as a parameter to the

AUTH command. The PLAIN authentication mechanism is described in RFC 2595. Plain is the least secure of all the SASL
authentication mechanisms since the password is sent unencrypted across the network.

» Login: The Login mechanism is supported by Microsoft's Outlook Express and by some other clients.

» TLS_TTLS: TLS is usually implemented on top of any of the Transport Layer protocols encapsulating the application-

specific protocols such as HTTP, FTP, SMTP, NNTP and XMPP. The TLS protocol allows client-server applications to
communicate across a network in a way designed to prevent eavesdropping and tampering. TLS can also be used to
tunnel an entire network stack to create a VPN as is the case with OpenVPN.

●Email Notication Triggered

Either Motion detection or Alarm input is enabled; users can edit the related sending mail settings below:

• Subject: To preset a subject of sending email.

• Message: To preset message contents of sending email.

• Attach Image: Select “On” to enable attach the detected image to the sending email.

●E-mail Address List:

This function is designed to notify multiple users via email when alarm in or motion detection functions are set.

• Tick “Enable” and input the assigned email address accordingly.

• Address: Input an email address to which alarm and motion events will be sent. There’re maximum 10 email addresses can

be dened here.

• Select either detection (Alarm, Motion) or both for sending email.

Note

Please click “Save” button to save your settings. Users can also click “Reset to default” to set all the settings
back to the factory defaults.

30

2.2.6 Record Settings

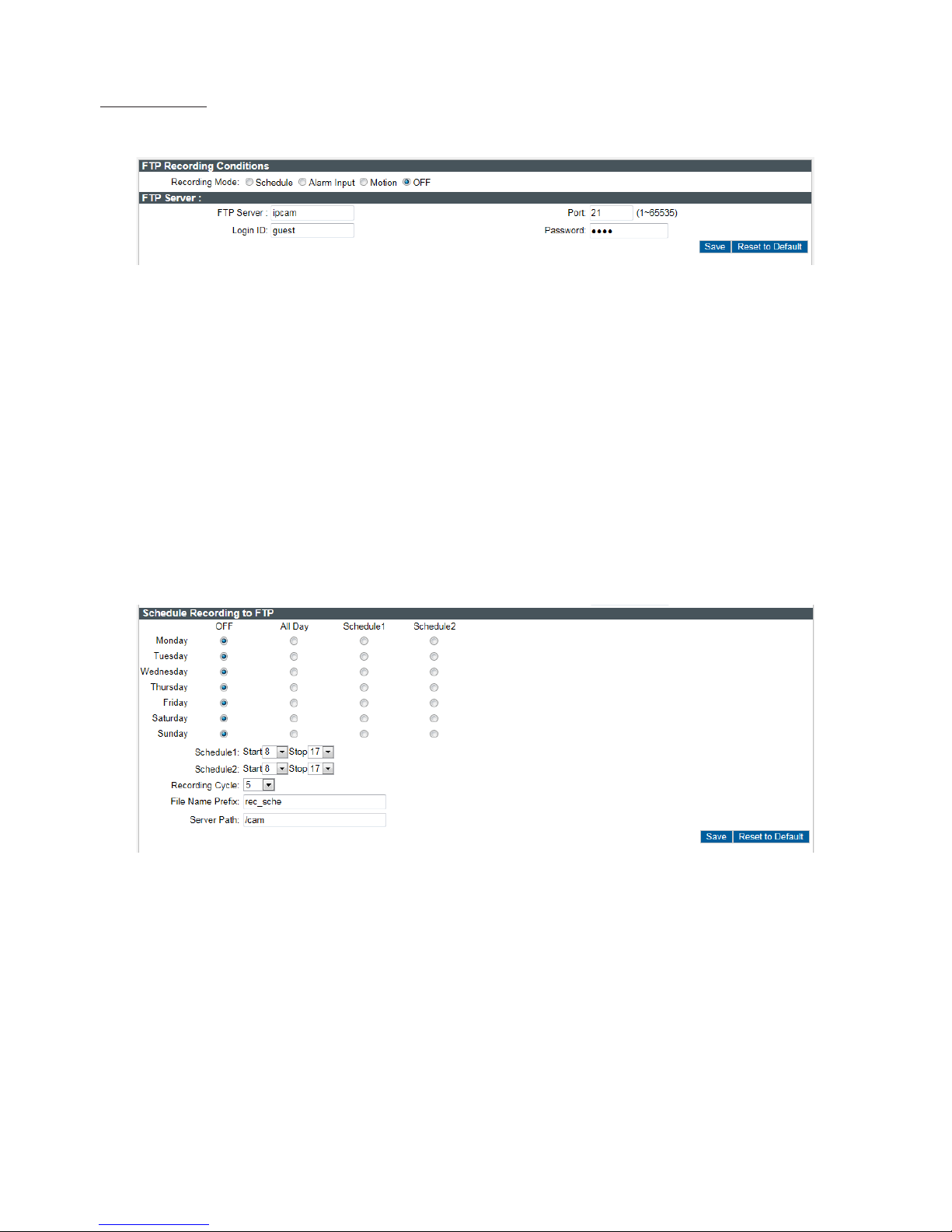

FTP Recording

Users can save image les via FTP server by setting FTP recording condition beforehand.

Figure 2 - 25: FTP Recording

●FTP Recording Conditions

You can store the image les by either mode including scheduled recording, alarm input triggered recording or motion
detection triggered recording.

●FTP Server

FTP (File Transfer Protocol) is used as a service component to transfer files by simply entering the FTP IP address or
hostname with the Login ID and password.

• FTP Sever: Input a FTP server name.

• Login ID: Input a user name with privilege to access the server.

• Password: Input the password associated with Login ID.

• Port: Set “21” as default or change to dedicated number.

●Scheduled Recording to FTP

Determine the scheduled recording condition: OFF, All Day, Schedule 1, or Schedule 2 during 24/7.

Figure 2 - 26: Scheduled Recording to FTP Settings

• Recording cycle: Set a time interval from 5 to 120 seconds for recording images.

• File Name Prex: Set a prexed name for recording le.

• Server Path: Set the desired path where the data is to be stored on the server.

31

●Alarm/Motion Event Recording to FTP

These functions are to dene the way to record video once a motion/alarm event is detected by the unit (1M/3M Flat Mini
Dome Network Camera do not support alarm event recording).

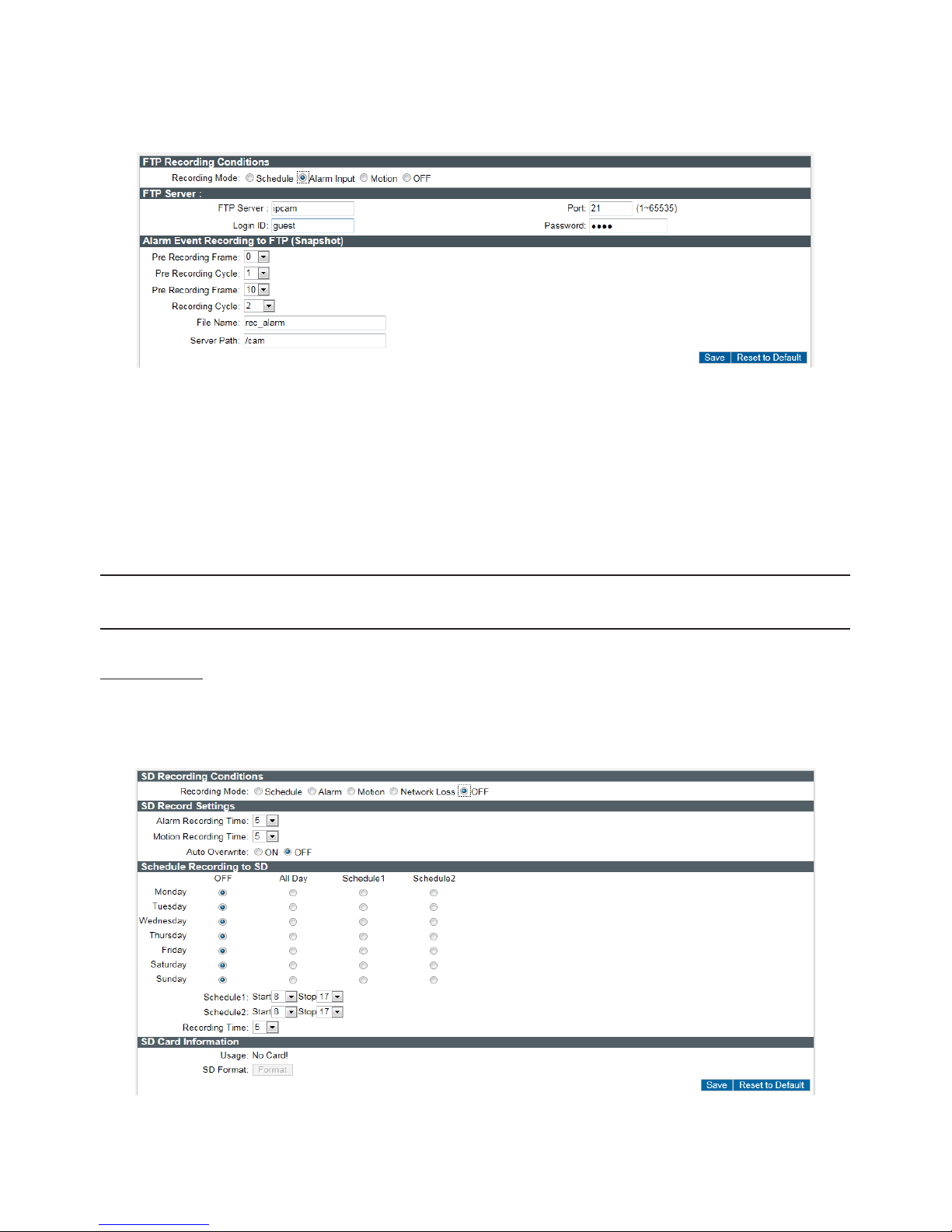

Figure 2 - 27: Alarm/Motion Event Recording to FTP Settings

• Pre Recording Frame: Set the number of frame to be recorded immediately before an event occurs.

• Pre Recording Cycle: Set a time interval before recording.

• Recording Frame: Set the number of frame while recording.

• Recording Cycle: Set a time interval for recording.

• File Name: Set le name to be stored for motion/alarm events separately.

• Sever Path: Set the desired path on the server to store data for motion/alarm events.

Note

Please click “Save” button to save your settings. Users can also click “Reset to default” to set all the settings
back to the factory defaults.

SD Recording

(1M Flat Mini Dome Network Camera Excluding)

Image les can be saved onto the SD card through well setting in this section. Please make sure to insert SD card prior to
enabling this function.

Figure 2 - 28: SD Recording

32

●SD Recording Conditions

Choose one of the conditions to enable the SD card recording: Schedule, Alarm, Motion, or Network Lose.

●SD Record Setting

• Alarm/Motion Recording Time: Set a time interval for SD card recording of alarm or motion event triggered.

• Auto Overwrite: Set “OFF” or “ON” to disable or enable overwriting SD card automatically when SD card is full of recording

les.

●Scheduled Recording to SD

Determine the scheduled recording condition: OFF, All Day, Schedule 1, or Schedule 2 during 24/7.

• Schedule 1/Schedule 2: Set a Start and Stop time for schedule recording.

• Recording cycle: Set a time interval from 5 to 120 seconds for recording images.

●SD Card Information

• Usage: Information of memory card usage.

• SD Format: To execute memory card format process.

2.2.7 System Settings

Date & Time

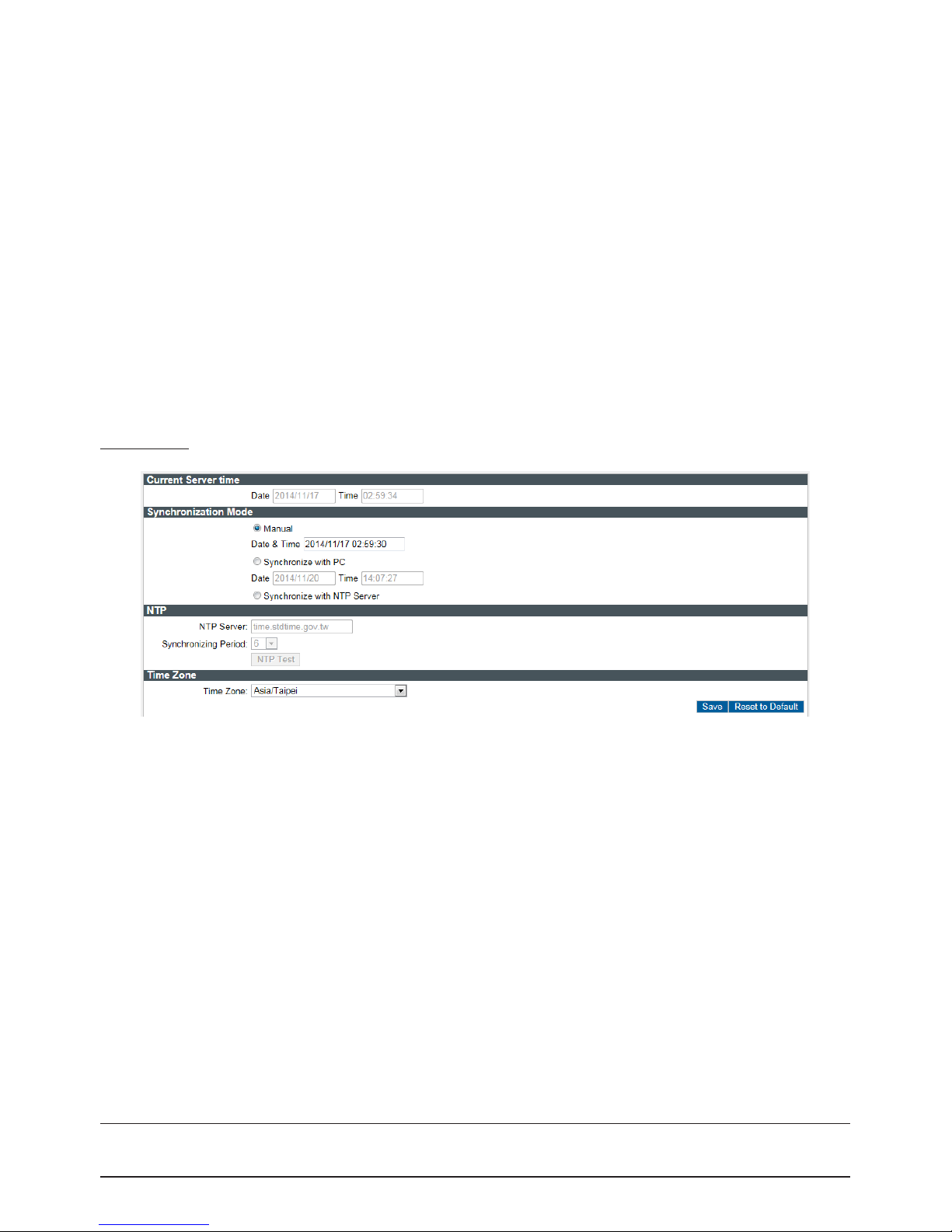

Figure 2 - 29: Date & Time

●Current Server Time

The server current date/time is displayed here.

●Synchronization Mode

There’re 3 modes for users to set date/time.

• Manual: Select it to manually set your date/time.

• Synchronize with PC Date: Select it to simply synchronize date/time with computer.

• Synchronize with NTP Server: Select it to synchronize date/time with the assigned NTP server.

●NTP

Set up your NTP related settings here if NTP Server enabled.

• NTP Server: Please input desired NTP server in the eld.

• Synchronizing Period: Select sync period between 1 and 24 by 6 of each interval.

• NTP Test: Click it to test if your assigned NTP server is workable.

●Time Zone

Choose one of the time zones based on your located country/area

.

Note

Please click “Save” button to save your settings. Users can also click “Reset to default” to set all the settings
back to the factory defaults.

33

Audio

(1MP Flat Mini Dome, 3MP Fixed Focal Lens IR Bullet and 5MP Indoor IR Dome Network Camera Excluding)

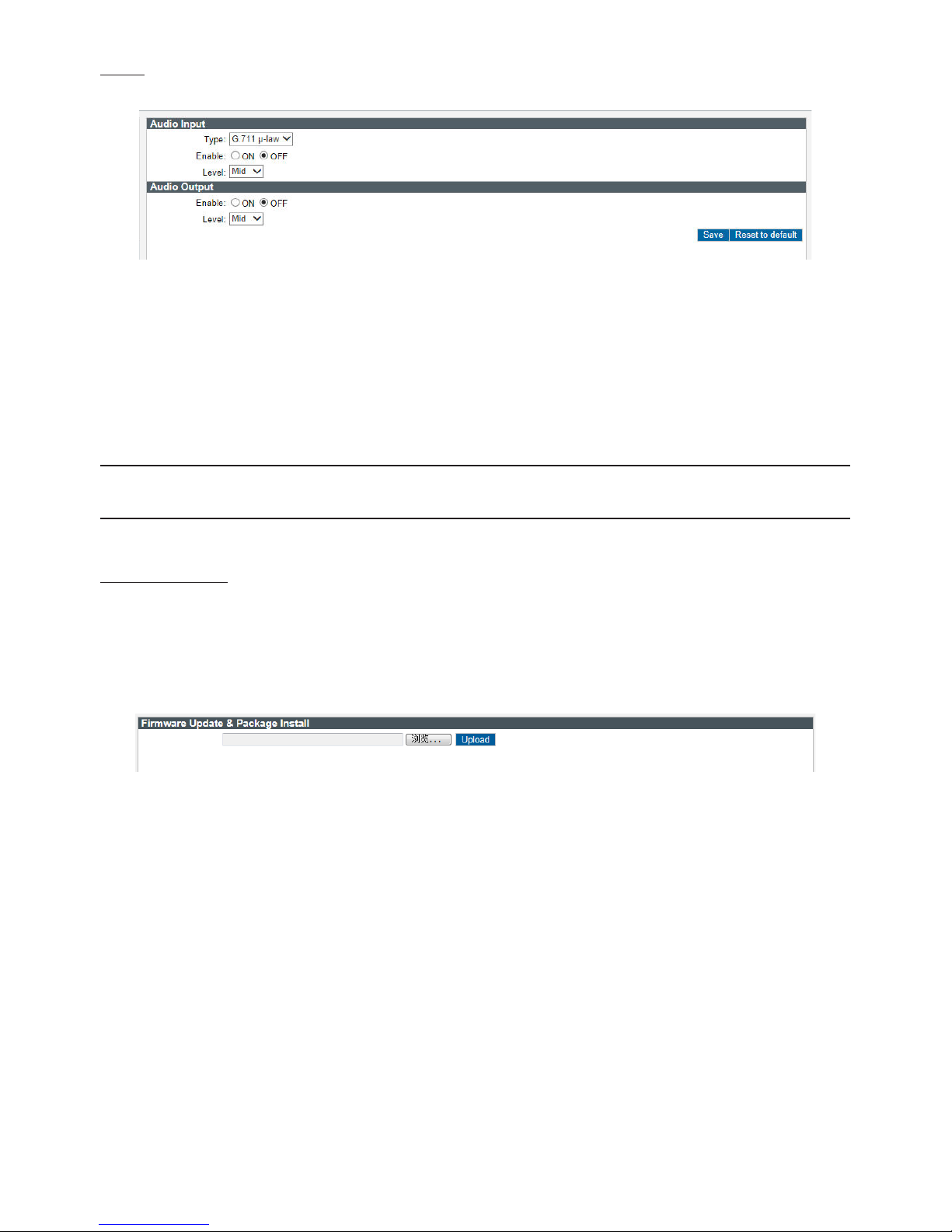

Figure 2 - 30: Audio Settings

●Type

Two audio codecs G711-Alaw/G711-Ulaw can be chosen from. (Audio Input only)

●Enable

Set "ON" to activate audio input/output when audio input/output devices are plugged.

●Level

The sound levels are selectable for audio input/output: Low/Mid/High for audio input/output.

Note

Please click “Save” button to save your settings. Users can also click “Reset to default” to set all the settings
back to the factory defaults.

Firmware Update

Users can manually update System Firmware if available. All unit motions will be stopped during rmware update. Please
close any other screens before rmware update. Never disconnect power or LAN cable during the updating process. It takes
approximately 3 minutes for the unit to reboot after firmware update process. Please reboot the computer as well after
rmware updated. Again, power can’t be lost when updating rmware since it will cause the update failure and manufacturer
maintenance will be required.

Figure 2 - 31: Firmware Update

●Click Browse to choose a corresponding rmware version and click Upload to proceed.

34

Initialize

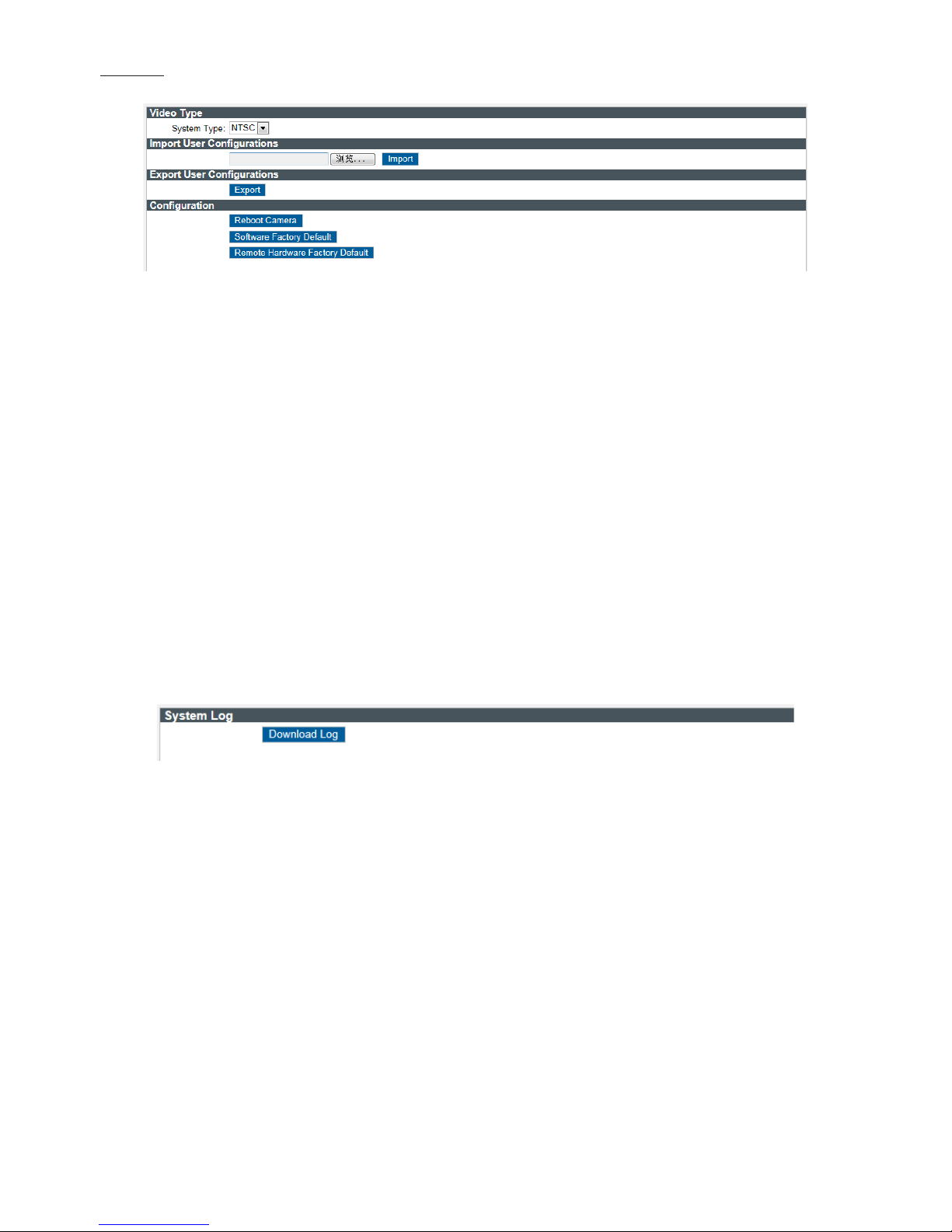

Figure 2 - 32: Initialize Settings

●Video Type

Select “NTSC” or “PAL” as required. Flickering by uorescent light can be reduced by selecting “PAL” for the power frequency
50Hz, “NTSC” for the power frequency 60Hz

●Import User Conguration

Press “Browse” to select the le and then click “Import” to upload conguration settings from local to the unit.

●Export User Conguration

Press “Export” to download conguration settings to local computer.

●Reboot Camera

Press “Reboot Camera” to reboot the unit.

●Software Factory Default

Press it to reset all conguration settings back to factory defaults excluding network settings.

●Remote Hardware Factory Default

Press it to reset all conguration settings back to factory defaults.

2.2.8 Event Log

Figure 2 - 33: System Log

●Click “Download Log” to save the log le of unit to your local computer.

35

Appendix A: Specifications of Indoor Dome Network
Camera (Manual Focus Model)

Video

Model Type 1M Manual Focus Model 3M Manual Focus Model
Sensor Type 1/4" progressive scan CMOS sensor 1/3" progressive scan CMOS sensor
Active Pixels 1280 x 800 (HxV) 2304 x 1536 (HxV)
Compression H.264 / MJPEG
Streaming Triple simultaneous streams with multiple video prole

Resolution

720P, SVGA(800x 600), VGA(640x480), 640x360,
QVGA(320x240), 320x180

QXGA(2048x1536), 1080P, 1280x960, 720P, 800x600,
VGA(640x480), 640x360, QVGA(320x240), 320x180

Max. Frame Rate HDTV 720p (1280x720) at 30/25fps (NTSC/PAL)

3MP 4:3 (2048x1536) at 15fps;

2MP Full HD 16:9 (1920x1080) at 30/25fps (NTSC/PAL)
Day/Night Mechanical (ICR) D/N Control
Day/Night Mode Auto/ BW/ Color

Shutter Time

1/10,000s to 1/7.5s Selectable (60Hz);
1/10,000s to 1/6.25s Selectable (50Hz)

Minimum Illumination

Color: 0.1 lux at 50 IRE, 0.02 lux at 10 IRE, F1.4;
B/W: 0.02 lux at 50 IRE, 0.004 lux at 10 IRE, F1.4

(Shutter speed: 1/15 sec)
Video Output NTSC: 720x480 @30fps; PAL: 720x576 @25fps
Bit Rate Control CBR, VBR

Lens

Lens Type Built-in; Varifocal
Focal Length f=2.8~10mm, F1.4 f=3~9mm, F1.2
Focus / Zoom Manual
View Angle H: 68°(Wide)~23°(Tele) H: 78°(Wide)~28°(Tele)
IRIS Control DC IRIS

Audio

Audio Communication Two-way Audio
Compression G.711 PCM 8kHz, a/μ-law support
Audio In/Out External microphone and speaker

Image Enhancement

Image Settings

AES, AWB, AGC

Exposure Mode: AES / ALC / Flickerless / Manual;

White Balance: Auto / Manual;

Backlight Compensation

Congurable Brightness, Contrast, Hue, Saturation, and Sharpness

Gamma Correction
WDR Enhanced Digital WDR
DNR Congurable 3DNR setting
Privacy Zone Yes, up to 8 privacy zones
Image Orientation Mirror, Flip
Frequency Control NTSC(60Hz)/ PAL(50Hz)
Date & Time Stamp Yes

Intelligent Video & Event Management

Motion Detection Yes, 3-level sensitivity
Ethernet Detection Network loss detection
Others Optimized i-frame (GOP) setting
Events Motion detection, ethernet detection, external alarm

Event Actions

Event snapshot to remote FTP storage / email recipients;

Edge recording to SD card;

HTTP event query, HTTP event client pulling
Store Category Event snapshot, Edge recording, Manual Snapshot, Manual Recording

Local Storage

Memory Card Slot SDXC/SDHC card support
Memory Card Overwrite Yes

36

Network

Protocol

ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, RTSP/RTCP/RTP, QoS, SMTP, SNMP, TCP, UDP,

UPnP, IEEE802.1X
Ethernet 10Base-T/100Base-TX Ethernet connection for LAN / WAN, RJ-45
ONVIF Yes
Browser Internet Explorer, Chrome, Firefox

Security

Multiple user access levels with password protection; IP address ltering;

IEEE 802.1X network access control, HTTPS encryption, and digest authentication

I/O & Controls

Power 2-pin Terminal block/ Female RJ-45 10BASE-T/100BASE-TX PoE
Power LED Indicator System power and status indicator
Alarm In/Out Terminal block 1 in / 1 relay out(30V, 1A)
Network RJ-45 with LED Indicator
Audio In/Out Terminal block 1 in / 1 out
Analog Video 1 x composite video out, micro JST
System Reboot Reset x 1
Factory Default Default x 1, pressing 5 sec for loading factory default

Power

Power Requirement DC 12V & AC 24V ± 10% / PoE (IEEE 802.3af, class 0)
Power Consumption (Max.) 6W 6.5W

Mechanical

Dimensions(ΦxH) Φ125mm x 106mm (Φ4.92" x 4.18")
Weight 500g (1.1 lb)
3-Axis Yes
Pan/Tilt Adjustment Pan: 0°-350°, Tilt: 15°-90°, Rotate: 0°-350° (Max.)

Environmental

Operating Temperature -10ºC ~ 50ºC (-14ºF ~ 122ºF)
Operating Humidity 90% RH, non-condensing
Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F)

Regulatory

Approvals CE, FCC, RoHS

Note: Product specications and pictures are subject to change without notice.

37

Appendix B: Specifications of Indoor Dome Network
Camera (Motorized Lens Model)

Video

Model Type 3M Motorized Lens Model 5M Motorized Lens Model
Sensor Type 1/3" progressive scan CMOS sensor 1/3.2" progressive scan CMOS sensor
Active Pixels 2304 x 1536 (HxV) 2592x1944 (HxV)
Compression H.264 / MJPEG
Streaming Triple simultaneous streams with multiple video prole

Resolution

QXGA(2048x1536), 1080P, 1280x960, 720P,

SVGA(800x600), VGA(640x480), 640x360,

QVGA(320x240), 320x180

2592x1944, QXGA(2048x1536), 1080P, 1280x960,
720P, SVGA(800x 600), VGA(640x480), 640x360,
QVGA(320x240), 320x180

Max. Frame Rate

3MP 4:3 (2048x1536) at 15fps;

2MP Full HD 16:9 (1920x1080) at 30/25fps (NTSC/PAL)

5MP 4:3 (2592x1944) at 12 fps
3MP 4:3 (2048x1536) at 15 fps

2MP Full HD 16:9 (1920x1080) at 30/25fps (NTSC/PAL)
Day/Night Mechanical (ICR) D/N Control
Day/Night Mode Auto/ BW/ Color

Shutter Time

1/10,000s to 1/7.5s Selectable (60Hz);
1/10,000s to 1/6.25s Selectable (50Hz)

Minimum Illumination

Color: 0.1 lux at 50 IRE, 0.02 lux at 10 IRE;
B/W: 0.02 lux at 50 IRE, 0.04 lux at 10 IRE;
F1.2, (Shutter speed: 1/15 sec)

Color: 0.15 lux at 50 IRE, 0.03 lux at 10 IRE,

B/W: 0.03 lux at 50 IRE, 0.006 lux at 10 IRE,

F1.2 (Shutter speed: 1/15 sec)
Video Output NTSC: 720x480 @30fps; PAL: 720x576 @25fps
Bit Rate Control CBR, VBR

Lens

Lens Type Built-in; Varifocal
Focal Length f=3~9mm, F1.2
Focus / Zoom Autofocus, motorized / Remote Autofocus, motorized / Remote
View Angle H: 78°(Wide)~28°(Tele)
IRIS Control DC IRIS

Audio

Audio Communication Two-way Audio
Compression G.711 PCM 8kHz, a/μ-law support
Audio In/Out External microphone and speaker

Image Enhancement

Image Settings

AES, AWB, AGC
Exposure Mode: AES / ALC / Flickerless / Manual;
White Balance: Auto / Manual;
Backlight Compensation
Congurable Brightness, Contrast, Hue, Saturation, and Sharpness

Gamma Correction
WDR Enhanced Digital WDR
DNR Congurable 3DNR setting
Privacy Zone Yes, up to 8 privacy zones
Image Orientation Mirror, Flip
Frequency Control NTSC(60Hz)/ PAL(50Hz)
Date & Time Stamp Yes

Intelligent Video & Event Management

Motion Detection Yes, 3-level sensitivity
Ethernet Detection Network loss detection
Others Optimized i-frame (GOP) setting
Events Motion detection, ethernet detection, external alarm

Event Actions

Event snapshot to remote FTP storage / email recipients;

Edge recording to SD card;

HTTP event query, HTTP event client pulling
Store Category Event snapshot, Edge recording, Manual Snapshot, Manual Recording

Local Storage

Memory Card Slot SDXC/SDHC card support
Memory Card Overwrite Yes

38

Network

Protocol

ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, RTSP/RTCP/RTP, QoS, SMTP, SNMP, TCP, UDP,

UPnP, IEEE802.1X
Ethernet 10Base-T/100Base-TX Ethernet connection for LAN / WAN, RJ-45
ONVIF Yes
Browser Internet Explorer, Chrome, Firefox

Security

Multiple user access levels with password protection; IP address ltering;

IEEE 802.1X network access control, HTTPS encryption, and digest authentication

I/O & Controls

Power 2-pin Terminal block/ Female RJ-45 10BASE-T/100BASE-TX PoE
Power LED Indicator System power and status indicator
Alarm In/Out Terminal block 1 in / 1 relay out(30V, 1A)
Network RJ-45 with LED Indicator
Audio In/Out Terminal block 1 in / 1 out
Analog Video 1 x composite video out, micro JST
System Reboot Reset x 1
Factory Default Default x 1, pressing 5 sec for loading factory default

Power

Power Requirement DC 12V & AC 24V ± 10% / PoE (IEEE 802.3af, class 0)
Power Consumption (Max.) 7W

Mechanical

Dimensions(ΦxH) Φ125mm x 106mm (Φ4.92" x 4.18")
Weight 500g (1.1 lb)
3-Axis Yes
Pan/Tilt Adjustment Pan: 0°-350°, Tilt: 15°-90°, Rotate: 0°-350° (Max.)

Environmental

Operating Temperature -10ºC ~ 50ºC (-14ºF ~ 122ºF)
Operating Humidity 90% RH, non-condensing
Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F)

Regulatory

Approvals CE, FCC, RoHS

Note: Product specications and pictures are subject to change without notice.

39

Appendix C. Specifications of Indoor IR Dome Network
Camera(Fixed Lens Model)

Video

Sensor Type 1/3.2" progressive scan CMOS sensor
Active Pixels 2592 x 1944 (HxV)
Compression H.264 / MJPEG
Streaming Triple simultaneous streams with multiple video prole
Resolution 2592x1944, QXGA(2048x1536), 1080P, 1280x960, 720P, SVGA(800x 600), VGA(640x480), 640x360,

QVGA(320x240), 320x180

Max. Frame Rate

5MP 4:3 (2592x1944) at 12 fps

3MP 4:3 (2048x1536) at 15 fps

2MP Full HD 16:9 (1920x1080) at 30/25fps (NTSC/PAL)
Day/Night Mechanical (ICR) D/N Control
Day/Night Mode Auto / BW / Color
Shutter Time 1/10,000s to 1/7.5s Selectable (60Hz);

1/10,000s to 1/6.25s Selectable (50Hz)

Minimum Illumination

IR LED OFF: Color: 0.4 lux at 50 IRE, 0.08 lux at 10 IRE, F1.8

(Shutter speed: 1/15 sec)

IR LED ON: 0 Lux
Bit Rate Control CBR, VBR

Lens

Lens Type Built-in; xed focal
Focal Length f=2.8mm, F1.8
View Angle H: 78° / V: 43°

IR LEDs

LED Quantity 4pcs (850nm)
IR Distance 10 meters (33 ft.)
IR turn on status Under 5 Lux by auto control
LED Life More than 10,000 hours

Image Enhancement

Image Settings AES, AWB, AGC

Exposure Mode: AES / ALC / Flickerless / Manual;

White Balance: Auto / Manual;

Backlight Compensation;

Congurable Brightness, Contrast, Hue, Saturation, and Sharpness,

Gamma Correction
WDR Enhanced Digital WDR
DNR 3DNR
Privacy Zone Yes, up to 8 privacy zones
Image Orientation Mirror, Flip
Frequency Control NTSC (60Hz) / PAL (50Hz)
Date & Time Stamp Yes

Intelligent Video & Event Management

Motion Detection Yes, 3-level sensitivity
Ethernet Detection Network loss detection
Others Optimized i-frame (GOP) setting
Events Motion detection
Event Actions Event snapshot to remote FTP storage/email recipients,

HTTP event query, HTTP event client pulling
Store Category Event snapshot, Manual Snapshot, Manual Recording

Local Storage

Memory Card Slot SDXC/SDHC card support (Card not included)
Memory Card Overwrite Yes

Network

Protocol ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, RTSP/RTCP/RTP, QoS, SMTP, SNMP, TCP, TLS/TTLS,

UDP, UPnP, IEEE802.1X
Ethernet IEEE 802.3, 10Base-T/100Base-TX Ethernet connection

for LAN / WAN, 1 x RJ45
ONVIF Yes

40

Browser Internet Explorer, Chrome, Firefox
Security Multiple user access levels with password protection;

IP address ltering

IEEE 802.1X network access control, HTTPS encryption,

and digest authentication

I/O & Controls

Power All-in-one tail cable out, Female RJ-45
Power LED Indicator System power and status indicator
Network Female RJ-45
System Reboot Reset x 1
Factory Default Default x 1, pressing 5 sec for loading factory default

Power

Power Requirement PoE (IEEE 802.3af), class 0
Power Consumption (Max.) 7W

Mechanical

Dimensions(ΦxH) Ø126mm x 56mm (Φ4.96” x 2.20”)
Weight 300g (0.66 lb)
3-Axis Yes
Pan/Tilt Adjustment Pan:-177°~177°(Max.), Tilt: 35°-90°(Max.),

Rotate: -177°-177°(Max.)

Environmental

Operating Temperature -10ºC ~ 50ºC (-14ºF ~ 122ºF)
Operating Humidity 90% RH, non-condensing
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)

Regulatory

Approvals CE, FCC, RoHS, UL/cUL

Note: Product specications and pictures are subject to change without notice.

41

Appendix D: Specifications of Outdoor IR Dome Network
Camera

Video

Model Type 3M Manual Focus Model 3M Motorized Lens Model 5M Motorized Lens Model

Sensor Type 1/3" progressive scan CMOS sensor

1/3.2" progressive scan CMOS

sensor
Active Pixels 2304 x 1536 (HxV) 2592x1944 (HxV)
Compression H.264 / MJPEG
Streaming Triple simultaneous streams with multiple video prole

Resolution

QXGA(2048x1536), 1080P, 1280x960, 720P, SVGA(800x600), VGA(640x480),
640x360, QVGA(320x240), 320x180

2592x1944, QXGA(2048x1536),

1080P, 1280x960, 720P, SVGA(800x

600), VGA(640x480), 640x360,

QVGA(320x240), 320x180

Max. Frame Rate

3MP 4:3 (2048x1536) at 15fps;
2MP Full HD 16:9 (1920x1080) at 30/25fps (NTSC/PAL)

5MP 4:3 (2592x1944) at 12 fps

3MP 4:3 (2048x1536) at 15 fps

2MP Full HD 16:9 (1920x1080) at

30/25fps (NTSC/PAL)
Day/Night Mechanical (ICR) D/N Control
Day/Night Mode Auto/ BW/ Color

Shutter Time

1/10,000s to 1/7.5s Selectable (60Hz);
1/10,000s to 1/6.25s Selectable (50Hz)

Minimum Illumination

IR LED OFF:
Color: 0.1 lux at 50 IRE, 0.02 lux at 10 IRE;
F1.2 (Shutter speed: 1/15 sec)
IR LED ON: 0 lux

IR LED OFF:

Color: 0.15 lux at 50 IRE,

0.03 lux at 10 IRE;

F1.2(Shutter speed: 1/15 sec)

IR LED ON: 0 lux
Video Output NTSC: 720x480 @30fps; PAL: 720x576 @25fps
Bit Rate Control CBR, VBR

Lens

Lens Type Built-in; Varifocal
Focal Length f=3~9mm, F1.2
Focus / Zoom Manual Auto Focus / Motorized remote focus control
View Angle H: 78°(Wide)~28°(Tele)
IRIS Control DC IRIS

IR LEDs

LED Quantity 20 pcs(850nm)
IR Distance 20 meters (65ft) 25 meters (82ft)
IR Turn on Status Under 5 lux by auto control
LED Life More than 10,000 hours

Audio

Audio Communication Two-way Audio
Compression G.711 PCM 8kHz, a/μ-law support
Audio In/Out External microphone and speaker

Image Enhancement

Image Settings

AES, AWB, AGC
Exposure Mode: AES / ALC / Flickerless / Manual;
White Balance: Auto / Manual;
Backlight Compensation
Congurable Brightness, Contrast, Hue, Saturation, and Sharpness

Gamma Correction
WDR Enhanced Digital WDR
DNR Congurable 3DNR setting
Privacy Zone Yes, up to 8 privacy zones
Image Orientation Mirror, Flip
Frequency Control NTSC(60Hz)/ PAL(50Hz)
Date & Time Stamp Yes

Intelligent Video & Event Management

Motion Detection Yes, 3-level sensitivity
Ethernet Detection Network loss detection

42

Others Optimized i-frame (GOP) setting
Events Motion detection, ethernet detection, external alarm

Event Actions

Event snapshot to remote FTP storage / email recipients;

Edge recording to SD card;

HTTP event query, HTTP event client pulling
Store Category Event snapshot, Edge recording, Manual Snapshot, Manual Recording

Local Storage

Memory Card Slot microSDXC/SDHC card support
Memory Card Overwrite Yes

Network

Protocol

ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, RTSP/RTCP/RTP, QoS, SMTP, SNMP, TCP, UDP,

UPnP, IEEE802.1X
Ethernet 10Base-T/100Base-TX Ethernet connection for LAN / WAN, RJ-45
ONVIF Yes
Browser Internet Explorer, Chrome, Firefox

Security

Multiple user access levels with password protection; IP address ltering;

IEEE 802.1X network access control, HTTPS encryption, and digest authentication

I/O & Controls

Power 2-pin Terminal block/ Female RJ-45 10BASE-T/100BASE-TX PoE
Power LED Indicator System power and status indicator
Alarm In/Out Terminal block 1 in / 1 relay out(30V, 1A)
Network RJ-45 with LED Indicator
Audio In/Out Terminal block 1 in / 1 out
Analog Video 1 x composite video out, micro JST
System Reboot Reset x 1
Factory Default Default x 1, pressing 5 sec for loading factory default

Power

Power Requirement

Heater Drive: AC 24V ± 10% / PoE (IEEE 802.3af)

*Arctic power-on support by PoE at -50°C

Defrost Drive: AC 24V ± 10%
Power Consumption (Max.) 26W

Mechanical

Dimensions(ΦxH) Φ147mm x 140mm (Φ5.79" x 5.5")
Weight 1250g (2.76 lb)
3-Axis Yes
Pan/Tilt Adjustment Pan: 0°-350°, Tilt: 15°-90°, Rotate: 0°-350° (Max.)
Protection IP66 Certied, IP67/IP68 Compliant, IK10 Compliant

IK10 Compliant

Operating Temperature -50ºC ~ 50ºC (-58ºF ~ 122ºF)
Operating Humidity 90% RH, non-condensing
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)

Regulatory

Approvals CE, FCC, RoHS

Note: Product specications and pictures are subject to change without notice.

43

Appendix E: Specications of Fixed Network Camera

Video

Model Type 3M Fixed Network Camera 5M Fixed Network Camera
Sensor Type 1/3" progressive scan CMOS sensor 1/3.2" progressive scan CMOS sensor
Active Pixels 2304 x 1536 (HxV) 2592x1944 (HxV)
Compression H.264 / MJPEG
Streaming Triple simultaneous streams with multiple video prole

Resolution

QXGA(2048x1536), 1080P, 1280x960, 720P,

SVGA(800x600), VGA(640x480), 640x360,

QVGA(320x240), 320x180

2592x1944, QXGA(2048x1536), 1080P, 1280x960,
720P, SVGA(800x 600), VGA(640x480), 640x360,
QVGA(320x240), 320x180

Max. Frame Rate

3MP 4:3 (2048x1536) at 15fps;

2MP Full HD 16:9 (1920x1080) at 30/25fps (NTSC/PAL)

5MP 4:3 (2592x1944) at 12 fps
3MP 4:3 (2048x1536) at 15 fps

2MP Full HD 16:9 (1920x1080) at 30/25fps (NTSC/PAL)
Day/Night Mechanical (ICR) D/N Control
Day/Night Mode Auto/ BW/ Color
Shutter Time 1/10,000s to 1/7.5s Selectable (60Hz);

1/10,000s to 1/6.25s Selectable (50Hz)

Minimum Illumination Color: 0.1 lux at 50 IRE, 0.02 lux at 10 IRE;

B/W: 0.02 lux at 50 IRE, 0.04 lux at 10 IRE;
F1.2, (Shutter speed: 1/15 sec)

Color: 0.15 lux at 50 IRE, 0.03 lux at 10 IRE,

B/W: 0.03 lux at 50 IRE, 0.006 lux at 10 IRE,

F1.2 (Shutter speed: 1/15 sec)
Video Output NTSC: 720x480 @30fps; PAL: 720x576 @25fps
Bit Rate Control CBR, VBR

Lens

IRIS Control DC IRIS
Lens Mount CS Mount; External back-focus adjustment

Audio

Audio Communication Two-way Audio
Compression G.711 PCM 8kHz, a/μ-law support
Audio In/Out External microphone and speaker

Image Enhancement

Image Settings

AES, AWB, AGC
Exposure Mode: AES / ALC / Flickerless / Manual;
White Balance: Auto / Manual;
Backlight Compensation
Congurable Brightness, Contrast, Hue, Saturation, and Sharpness

Gamma Correction
WDR Enhanced Digital WDR
DNR Congurable 3DNR setting
Privacy Zone Yes, up to 8 privacy zones
Image Orientation Mirror, Flip
Frequency Control NTSC(60Hz)/ PAL(50Hz)
Date & Time Stamp Yes

Intelligent Video & Event Management

Motion Detection Yes, 3-level sensitivity
Ethernet Detection Network loss detection
Others Optimized i-frame (GOP) setting
Events Motion detection, ethernet detection, external alarm

Event Actions

Event snapshot to remote FTP storage / email recipients;

Edge recording to SD card;

HTTP event query, HTTP event client pulling
Store Category Event snapshot, Edge recording, Manual Snapshot, Manual Recording

Local Storage

Memory Card Slot SDXC/SDHC card support
Memory Card Overwrite Yes

Network

Protocol

ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, RTSP/RTCP/RTP, QoS, SMTP, SNMP, TCP, UDP,

UPnP, IEEE802.1X
Ethernet 10Base-T/100Base-TX Ethernet connection for LAN / WAN, RJ-45
ONVIF ONVIF
Browser Internet Explorer, Chrome, Firefox

44

Security

Multiple user access levels with password protection; IP address ltering;

IEEE 802.1X network access control, HTTPS encryption, and digest authentication

I/O & Controls

Power 3-pin spring terminal/ Female RJ-45 10BASE-T/ 100BASE-TX PoE
Power LED Indicator System power and status indicator
Alarm In/Out Terminal block 1 in / 1 relay out(30V, 1A)
Network RJ-45 with LED Indicator
Audio In/Out Terminal block 1 in / 1 out
Analog Video BNC X1, 1.0Vp-p, 75Ω
System Reboot Reset x 1
Factory Default Default x 1, pressing 5 sec for loading factory default

Power

Power Requirement DC 12V & AC 24V ± 10% / PoE (IEEE 802.3af, class 0)
Power Consumption (Max.) 6W

Mechanical

Dimensions(WxDxH) 125 x 69 x 56 mm (4.9" x 2.7" x 2.2")
Weight 400g (0.88 lb) w/o lens

Environmental

Operating Temperature -10ºC ~ 50ºC (-14ºF ~ 122ºF)
Operating Humidity 90% RH, non-condensing
Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F)

Regulatory

Approvals CE, FCC, RoHS

Note: Product specications and pictures are subject to change without notice.

45

Appendix F: Specications of IR Bullet Network Camera

Video

Model Type 3M Motorized Lens Model 3MP Fixed Focal Lens Model 5M Motorized Lens Model
Sensor Type 1/3" progressive scan CMOS sensor 1/3.2" progressive scan CMOS

sensor
Active Pixels 2304 x 1536 (HxV) 2592x1944 (HxV)
Compression H.264 / MJPEG
Streaming Triple simultaneous streams with multiple video prole

Resolution

QXGA(2048x1536), 1080P, 1280x960, 720P, SVGA(800x600), VGA(640x480),
640x360, QVGA(320x240), 320x180

2592x1944, QXGA(2048x1536),

1080P, 1280x960, 720P,

SVGA(800x 600), VGA(640x480),

640x360, QVGA(320x240), 320x180

Max. Frame Rate

3MP 4:3 (2048x1536) at 15fps;
2MP Full HD 16:9 (1920x1080) at 30/25fps (NTSC/PAL)

5MP 4:3 (2592x1944) at 12 fps

3MP 4:3 (2048x1536) at 15 fps

2MP Full HD 16:9 (1920x1080) at

30/25fps (NTSC/PAL)
Day/Night Mechanical (ICR) D/N Control
Day/Night Mode Auto/ BW/ Color

Shutter Time

1/10,000s to 1/7.5s Selectable (60Hz);
1/10,000s to 1/6.25s Selectable (50Hz)

Minimum Illumination

IR LED OFF:
Color: 0.1 lux at 50 IRE, 0.02 lux at 10
IRE,
F1.2; (Shutter speed: 1/15 sec)
IR LED ON: 0 Lux

IR LED OFF:
Color: 0.3 lux at 50 IRE, 0.06 lux at 10
IRE, F2.0;
(Shutter speed: 1/15 sec)
IR LED ON: 0 Lux

IR LED OFF:

Color: 0.15 lux at 50 IRE, 0,03 lux at

10 IRE,

F1.2; (Shutter speed: 1/15 sec)

IR LED ON: 0 lux

Video Output

NTSC: 720x480 @30fps;
PAL: 720x576 @25fps

- NTSC: 720x480 @30fps;
PAL: 720x576 @25fps

Bit Rate Control CBR, VBR

Lens

Lens Type Built-in; Varifocal Built-in; Fixed focal Built-in; Varifocal
Focal Length f=3~9mm, F1.2 f=2.8mm, F2.0 f=3~9mm, F1.2
Focus / Zoom Autofocus, motorized / Remote Manual Autofocus, motorized / Remote
View Angle H: 78°(Wide)~28°(Tele) H: 90°±5%, V: 67°±5% H: 78°(Wide)~28°(Tele)
IRIS Control DC IRIS

IR LEDs

LED Quantity 48 pcs (850nm) 24 pcs (850nm) 48 pcs (850nm)
IR Distance 30 meters (98ft) 20 meters (65ft) 30 meters (98ft)
IR Turn on Status Under 5 lux by auto control
LED Life More than 10,000 hours

Audio (3MP Fixed Focal Lens Model Excluding)

Audio Communication Two-way Audio
Compression G.711 PCM 8kHz, a/μ-law support
Audio In/Out External microphone and speaker

Image Enhancement

Image Settings

AES, AWB, AGC
Exposure Mode: AES / ALC / Flickerless / Manual;
White Balance: Auto / Manual;
Backlight Compensation
Congurable Brightness, Contrast, Hue, Saturation, and Sharpness

Gamma Correction
WDR Enhanced Digital WDR
DNR Congurable 3DNR setting
Privacy Zone Yes, up to 8 privacy zones
Image Orientation Mirror, Flip
Frequency Control NTSC(60Hz)/ PAL(50Hz)
Date & Time Stamp Yes

Intelligent Video & Event Management

Motion Detection Yes, 3-level sensitivity
Ethernet Detection Network loss detection
Others Optimized i-frame (GOP) setting
Events Motion detection, audio detection, ethernet detection, external alarm

46

Event Actions

Event snapshot to remote FTP storage/ email recipients, Edge recording to SD card, HTTP event query, HTTP

event client pulling
Store Category Event snapshot, Edge recording, Manual Snapshot, Manual Recording

Local Storage (3MP Fixed Focal Lens Model Excluding)

Memory Card Slot microSDXC/SDHC card support
Memory Card Overwrite Yes

Network

Protocol

ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, RTSP/RTCP/RTP, QoS, SMTP, SNMP, TCP, UDP,

UPnP, IEEE802.1X
Ethernet 10Base-T/100Base-TX Ethernet connection for LAN / WAN, RJ-45
ONVIF Yes
Browser Internet Explorer, Chrome, Firefox

Security

Multiple user access levels with password protection; IP address ltering;

IEEE 802.1X network access control, HTTPS encryption, and digest authentication

I/O & Controls

Power All-in-one tail cable out, 2-pin Terminal block/ Female RJ-45 10BASE-T/100BASE-TX PoE
Power LED Indicator System power and status indicator

Alarm In/Out

Terminal block 1 in /

1 relay out (30V, 1A)

Terminal block 1 in

Terminal block 1 in /

1 relay out (30V, 1A)
Network RJ-45 with LED Indicator
Audio In/Out Terminal block 1 in / 1 out - Terminal block 1 in / 1 out
Analog Video 1 x composite video out, micro JST - 1 x composite video out, micro JST
System Reboot Reset x 1
Factory Default Default x 1, pressing 5 sec for loading factory default

Power

Power Requirement

AC 24V ± 10% / PoE (IEEE 802.3af)

*Arctic power-on support by PoE at -40°C
Power Consumption (Max.) 11.5W 9.5W 11.5W

Mechanical

Dimensions(WxDxH)

115 x 264 x 110 mm

(4.53” x 10.39” x 4.33”)

91 x 244 x 83 mm
(3.58" x 9.61" x 3.27")

115 x 264 x 110 mm
(4.53” x 10.39” x 4.33”)

Weight 1600g (3.44 lb) 1000g (2.15 lb) 1600g (3.44 lb)

Protection

IP67 Certied, IP68 Compliant,

IK10 Compliant

IP67 Certied, IP68 Compliant

IP67 Certied, IP68 Compliant,

IK10 Compliant

Environmental

Operating Temperature (On-board heating device) -40°C ~ 50°C (-40°F ~ 122°F)
Operating Humidity 90% RH, non-condensing
Storage Temperature -20°C ~ 60°C (-4°F~ 140°F) 40°C~60°C (-40°F~140°F) -20°C ~ 60°C (-4°F ~ 140°F)

Regulatory

Approvals CE, FCC, RoHS

Note: Product specications and pictures are subject to change without notice.

47

Appendix G: Specifications of Flat Mini Dome Network
Camera

Video

Model Type 1M Fixed Lens Model 3M Fixed Lens Model
Sensor Type 1/4" progressive scan CMOS sensor 1/3" progressive scan CMOS sensor
Active Pixels 1280 x 800 (HxV) 2304 x 1536 (HxV)
Compression H.264 / MJPEG
Streaming Triple simultaneous streams with multiple video prole

Resolution

720P, SVGA(800x 600), VGA(640x480), 640x360,
QVGA(320x240), 320x180

QXGA(2048x1536), 1080P, 1280x960, 720P, SVGA(800x

600), VGA(640x480), 640x360, QVGA(320x240),
320x180

Max. Frame Rate HDTV 720p (1280x720) at 30/25 fps (NTSC/PAL)

3MP 4:3 (2048x1536) at 15 fps

2MP Full HD 16:9 (1920x1080) at 30/25 fps (NTSC/PAL)
Day/Night Mechanical (ICR) D/N Control
Day/Night Mode Auto/ BW/ Color
Shutter Time 1/10,000s to 1/7.5s Selectable (60Hz); 1/10,000s to 1/6.25s Selectable (50Hz)

Minimum Illumination

Color: 0.3 lux at 50 IRE, 0.06 lux at 10 IRE,
B/W: 0.2 lux at 50 IRE, 0.04 lux at 10 IRE,
F1.8 (Shutter speed: 1/15 sec)

Color: 0.4 lux at 50 IRE,0.08 lux at 10 IRE,

B/W: 0.3 lux at 50 IRE, 0.07 lux at 10 IRE,

F1.8 (Shutter speed: 1/35 sec)
Video Output NTSC: 720x480 @30fps; PAL: 720x576 @25fps
Bit Rate Control CBR, VBR

Lens

Lens Type Built-in; Varifocal
Focal Length f=3.6mm, F1.8
View Angle H: 63° H: 83°

Audio

Audio Communication - Two-way Audio
Compression - G.711 PCM 8kHz, a/μ-law support

Audio In/Out -

1 in / 1 out for external microphone/speaker;

Built-in Microphone

Image Enhancement

Image Settings

AES, AWB, AGC
Exposure Mode: AES / ALC / Flickerless / Manual;
White Balance: Auto / Manual;
Backlight Compensation
Congurable Brightness, Contrast, Hue, Saturation, and Sharpness

Gamma Correction
WDR Enhanced Digital WDR
DNR Congurable 3DNR setting
Privacy Zone Yes, up to 8 privacy zones
Image Orientation Mirror, Flip
Frequency Control NTSC(60Hz)/ PAL(50Hz)
Date & Time Stamp Yes

Intelligent Video & Event Management

Motion Detection Yes, 3-level sensitivity
Ethernet Detection Network loss detection
Others Optimized i-frame (GOP) setting
Events Motion detection, ethernet detection

Event Actions

Event snapshot to remote FTP storage/ email

recipients, HTTP event query, HTTP event client pulling

Event snapshot to remote FTP storage/ email
recipients, Edge recording to SD card,

HTTP event query, HTTP event client pulling
Store Category Event snapshot, Manual Snapshot, Manual Recording

Local Storage

Memory Card Slot - microSDXC/SDHC card support
Memory Card Overwrite - Yes

Network

Protocol

ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, RTSP/RTCP/RTP, QoS, SMTP, SNMP, TCP, UDP,

UPnP, IEEE802.1X
Ethernet 10Base-T/100Base-TX Ethernet connection for LAN / WAN, RJ-45
ONVIF ONVIF

48

Browser Internet Explorer, Chrome, Firefox

Security

Multiple user access levels with password protection; IP address ltering;

IEEE 802.1X network access control, HTTPS encryption, and digest authentication

I/O & Controls

Power All-in-one tail cable out, Female RJ-45 10BASE-T/100BASE-TX PoE
Power LED Indicator System power and status indicator
Network Female RJ-45
Audio In/Out Terminal block 1 in / 1 out
Analog Video 1 x composite video out, micro JST
System Reboot Reset x 1
Factory Default Default x 1, pressing 5 sec for loading factory default

Power

Power Requirement PoE (IEEE 802.3af), class 0 DC12V/ PoE (IEEE 802.3af, class 0)
Power Consumption (Max.) 7.7W 8.5W

Mechanical

Dimensions(ΦxH) Φ110mm x 47mm (Φ4.33" x 1.85")
Weight 340g (0.75 lb)
Protection IP66 Certied, IP67/IP68 Compliant, IK10 Compliant
Pan/Tilt Adjustment 3-dimensional spherical lens angle adjustment

Environmental

Operating Temperature -40ºC ~ 50ºC (-40ºF ~ 122 ºF)
Operating Humidity 90% RH, non-condensing
Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F)

Regulatory

Approvals CE, FCC, RoHS

Note: Product specications and pictures are subject to change without notice.
