Mesa Boogie Road King User Manual

Owner's Manual

ESA

OOGIE

Greetings from the Home of Tone

Congratulations on your choice of the ROADKING as your Guitar amplifier and welcome to the MESA/Boogie family! As a discriminating player you probably know that you have purchased the most comprehensive instrument for amplifying Guitar that is available. What you might not realize is that this entitles you to all the experience, resources and commitment our twenty-five years of service to musicians world wide has to offer. Our responsibility is to help you sound great! So, if at any time you feel you need help or direction, we are here for you...a phone call away.

Table of Contents

Precautions 0 Overview 1/2

Getting Started 3

Helpful Hints 3/4

FRONT PANEL:

MODES: Ch 1 & 2 Clean 5 Ch 1 & 2 Fat 5 Ch 1 Tweed 6 Ch 2 Brit 6 Ch 3 & 4 Raw 6 Ch 3 & 4 Vintage 7 Ch 3 & 4 Modern 7 CONTROLS: GAIN 8 TREBLE 9 MID 9/10 BASS 10 PRESENCE 10 MASTER 11

OUTPUT CONTROL 11/12 SOLO CONTROL 12 HI VOLTS & AC MAINS SWITCHES 12

REAR PANEL:

SLAVE 14 SPEAKER OUTPUT BANK A + B - Cabinet Switching 14 REVERB 15 CHANNEL STRIPS 15 PROGRESSIVE LINKAGE 15 SELECTING POWER TUBE ARRAY and TRIODE / PENTODE SWITCH (pg.17) 16/22 RECTIFIER SELECT with TUBE-TRACKING 22/23 SPEAKER A / B & A + B SELECT SWITCH 23 FX LOOP SWITCHES & CONTROLS 23/27 EXTERNAL SWITCHING 27 POWER: SPONGY & BOLD 27 FUSE 28 FACTORY SAMPLE SETTINGS 29/32 DIAGNOSING TUBES & TUBE MAINTENANCE 33/34 Feature Article: Bias Adjustment by Randall Smith 35/36/37 SPEAKER HOOK-UP & IMPEDANCE MATCHING GUIDE 38/43 Feature Article: Irishmen, Pentodes & Triodes by Randall Smith 44/45/46 PARTS SHEET 47

PRECAUTIONS & WARNINGS

Your MESA/Boogie Amplifier is a professional instrument. Please treat it with respect and operate it properly.

USE COMMON SENSE AND ALWAYS OBSERVE THESE PRECAUTIONS:

WARNING: EU: permission from the Supply Authority is needed before connection.

WARNING:

certain there is at least four inches (100mm) of space behind the rear of the amplifier cabinet. Keep away from curtains or any flammable objects.

Vacuum tube amplifiers generate heat. To insure proper ventilation always make

WARNING:

impede ventilation by placing objects on top of the amplifier which extend past the rear edge of its cabinet.

WARNING:

place objects filled with liquids on or nearby the amplifier.

WARNING:

Failure to do so could pose a shock hazard and may result in damage to the amplifier. Do not expose amplifier to direct sunlight or extremely high temperatures. Always insure that amplifier is properly grounded. Always unplug AC power cord before changing

fuse or any tubes. When replacing fuse, use only same type and rating. Avoid direct contact with heated tubes. Keep amplifier away from children. Be sure to connect to an AC power supply that meets the power supply specifications listed on

the rear of the unit. Remove the power plug from the AC mains socket if the unit is to be stored for an extended period of time. If there is any danger of lightning occurring nearby, remove the power plug from the wall socket in advance.

Do not block any ventilation openings on the rear or top of the amplifier. Do not

Do not expose the amplifier to rain, moisture, dripping or splashing water. Do not

Always make certain proper load is connected before operating the amplifier.

To avoid damaging your speakers and other playback equipment, turn off the power of all related equipment before making the connections.

Do not use excessive force in handling control buttons, switches and controls. Do not use solvents such as benzene or paint thinner to clean the unit. Wipe off the exterior with soft cloth.

Be sure to have the warranty card filled out by the store at which it was purchased and return to Mesa/Boogie.

YOUR AMPLIFIER IS LOUD! EXPOSURE TO HIGH SOUND VOLUMES MAY CAUSE PERMANENT HEARING DAMAGE !

No user serviceable parts inside. Refer service to qualified personnel. Always unplug AC power before removing chassis.

EXPORT MODELS: Always insure that unit is wired for proper voltage. Make certain grounding conforms with local standards.

READ AND FOLLOW INSTRUCTIONS OF PROPER USAGE.

Operating Instructions

OVERVIEW: Congratulations on choosing the choosing this all-tube hand-built instrument you have taken a step into the future of guitar amplification, for as you can see at a glance,

Road King

the

is more than just an amp. It’s a Array. This arsenal of sounds is so powerful that with them at your command, inspiration will take over and propel your playing to places you have only dreamed. Let’s take a moment and review the features that make up this house of tone.

First and foremost it will help you to digest this dictionary of amazing guitar sounds by realizing that, as daunting as it looks, it is really just four separate amps. If you view it as such and learn them individually and process easier. Each Preamp Channel on the Front Panel has a corresponding Power Amp/Effects Loop Control Panel on the Rear Panel (we call them Channel Strips). Once you have chosen a Channel/Mode combination for a sound, you simply go to the Rear Panel and select that Channels’ power amp choice (any 1 of 5 selections), choose y our Rectifier Style and program y our Eff ects Loop choices. There you go, one channel done…repeat this scheme three more times and you are ready to explore your first palate of sounds in the

Road King

as you go deeper. In case that was too simple sounding, here is a more expanded way of understanding the

Mesa Dual Rectifier Road King

collection of amps

as your amplifier and welcome to the

Mesa/Boogie

F amily! By

housed in one chassis that we refer to as an Advanced Amplifier

then

combine and dedicate them, you will find the

. Rest assured, many more combinations are lurking in there and you can look f orward to years of discov ery

King

Four independent preamp channels mak e up the front end of the

Road King

and though they ma y each be used f or any sound, the y are grouped as two sets of lower gain Rhythm Channels (1 & 2) and two sets of high gain Lead Channels (3 & 4). The two sets are stacked with the lower gain rhythm channels following the Input jack. Each of these channels house 3 different modes, which are voiced differently and in cer tain cases have different gain structures. You’ll notice the modes are duplicated in the two types of channels (excepting one in each Rhythm Channel) which makes it possible to use the them for different settings of the same sound. OVERVIEW: (Continued) This allows the

Road King

to be many amps to many players and roam confidently between extremely different musical styles while retaining the ability to focus in on any one and offer a multitude of great sounds for a specific genre. For example , a Blues pla yer might dial up 1 & 2 for different clean sounds using the same mode for both chording and solo fills , while 3 &

FRONT VIEW : COMBO

CLEAN

FAT

TWEED

GAIN TREBLE MID BASS PRESENCE MASTER

CLEAN

FAT

BRIT

REAR VIEW : COMBO

CH 2

4 A SLO BLO

CH 3

ROAD

KING

CHANNEL

FOOT

CONTROLLER

SOLO REVERB LOOP 1 LOOP 2

CH4 CH3

BOLD SPONGY

POWER FUSE

120 V~ 60 Hz 4 A

FUSE

Road King

WARNING

To reduce risk of fire or

electric shock, replace fuse with

same type and rating only. Do not

expose this unit to rain or moisture.

EXT.

SWITCH

CH2 CH1

LOOP SYSTEM

ACTIVE

BYPASS

LOOPS, SOLO

& MASTER CONTROLS

SEND 1

RETURN 1

CH1 CH3

LOOPS

WARNING

To reduce risk of fire or electric shock, Do not remove cover. No userserviceable parts inside. Refer servicing to qualified personnel.

NORMAL NORMAL

10%

FTSW MIX

SEND LEVEL

SEND 2 RETURN 2

GAIN TREBLE MID BASS PRESENCE MASTER

HANDBUILT

IN PETALUMA

CALIFORNIA, USA

90%

EXT. TRIGGERS

L A T C H I N G

P U L S E

2x6L6

2xEL34

2x EL34 2x

6L6

PROGRESSIVE

LINKAGE

DIODE

TUBE-TRACKING

RECTO

SPKR

6L6

2xEL+

4x6L6

CH 4

10% 90%

A + B

OFF

LOOP 1

NORMAL

LOOP 2

2x6L6

2xEL34

EL34

6L6

2xEL+

4x6L6

6L6

10% 90%

PROGRESSIVE

MIX

LINKAGE

CH 3

DIODE

A +

TUBE-TRACKING

RECTO

SPKR

LOOP 1

OFF

LOOP 2

OFF

NORMAL

LOOP 2

MIX

OFF

LOOP 2

RAW

MODERN

RAW

MODERN

2x6L6

2xEL34

2x EL34 2x

6L6

PROGRESSIVE

LINKAGE

DIODE

TUBE-TRACKING

RECTO

SPKR

VINTAGE

6L6

2xEL+ 4x6L6

CH 2

A + B

NORMAL

10% 90%

LOOP 2

MIX

OFF

LOOP 1

LOOP 2

EL34 2x

6L6

TUBE-TRACKING

OUTPUT SOLO

PROGRESSIVE LINKAGE

2x6L6

2xEL34

6L6

2xEL+ 4x6L6

PROGRESSIVE

LINKAGE

CH 1

DIODE

A + B

SPKR

RECTO

2xEL342x6L6

NORMAL

10% 90%

LOOP 2

MIX

OFF

LOOP 1

LOOP 2

2x6L6

ESA

CH 3 CH 1

REVERB

RECTIFIER TRACKING

OOGIE

COMBO

CH 2CH 4

CAUTION:

AC MAINS

HI VOLTS

DIODES5U4

5U4

SPEAKERS

4 OHM4 OHM8 OHM

USE WITH TWO 8 OHM CABS

USE SHORTING PLUG IF NO SPKRS IN B

LEVEL

SLAVE

OUT

PAGE 1

OVERVIEW: (Continued) 4 provide different levels of the same lower gain solo sound. Conversely, a Rock player might configure 1 & 2 for semi-clean and pushed rhythm sounds respectively and dedicate 3 & 4 to high gain crunch rhythm and lead sounds using different settings of the same modes.

This type of preamp versatility means you will never have to compromise, even when you change bands or venture into a new and different style with your playing…and you’ve chosen an amp that will grow with you.

This awesome preamp power is then sent to the

Road Kings’

Effects Loop section and we have provided both Series and Parallel Loops to assure a match to whatever type of processing you choose. These may be used individually or combined, and may be programmed active in any of the channels or, footswitched in and out on the fly.

From there we reach the coolest feature of all and the reason why the

Road King

is just that…our patented Progressive Linkage switchable, and in this case assignable, power section. That’s right, any of the 4 preamps can be combined with any one of the 5 power section configurations! You choices are the bubbly, elastic 2 x 6L6; the urgent, brash 2 x EL34; the tight, bold 4 x 6L6; the elusive, stinging 2 x 6L6 + 2 x EL34; and the huge, dominating power of 4 x 6L6 + 2 x EL34.

Each of these power configurations lends its own personality and when matched with the right preamp can sonically define a musical style. But it doesn’t end there…the

Road King

also features Rectifier Tracking, a feature which automatically matches the type of rectification for each of the preamp / power sections y ou have configured. This means you can tune the power f eel even further to the sound you are creating. You might want a lower wattage clean sound with the loose, airy feel of Tube Rectification and a high gain lead sound with higher power and the tight tracking bass response of the Solid State rectifier or vice versa. Many combinations are possible and the best part is that Rectifier Tracking follows your choices in power sections to always mate the proper amount of rectification for a given string of tubes. For example, if you are using either 2 x 6L6 or 2 x EL 34 and you choose Tube rectification, 1 x 5U4G will be applied. If you use either 4 x 6L6 or 2 x 6L6 + 2 x EL34 2 x 5U4G will be used. And finally, if you choose to run all six power tubes (4 x 6L6 + 2 x EL34) then the Silicon Diodes will be called up, ensuring that you have maximum headroom at all times. This Rectifier Tracking feature provides one more layer of focus to an already mindbending array of sounds to create the most expressive amplifier available anywhere.

And if this versatility isn’t enough, add to the palate Programmable Channel-specific Speaker Switching! That’s right, you can utilize two different types of speaker enclosures to enhance different sonic characteristics and combine these choices with each Channel/ Mode scheme. Use an open back 2 x 12 cabinet for more shimmering clean performance and switch to a closed back 2 x 12 for a bigger, more compressed lead sound. There are even provisions for using two cabinets of different impedance loads…the choice is yours.

Road King

The switched in and out via the

incorporates a rich analog Reverb , which is controlled per channel with the Rear Panel Reverb controls and ma y be

King Kontroller

Our SOLO feature is an additional Output Level control that is wired in parallel to the Output and provides a pre-assignable, footswitchable boost for stepping out when it’s time to solo.

A built-in Variac, our patented SPONGY/BOLD switch, is also included which enables you to reduce the A.C. line voltage for a looser

brown

feel and increased upper harmonic spread resulting in that

sound that has the elusive sag.

And finally, to keep you in constant control of all the f eatures aboard this v ehicle of expression, we have supplied one of the mightiest footswitches around…the

King Kontroller

. All possible Channels, Functions and Features are there for your instant access and

their status is monitored by LED illumination. So with an overview of the basic layout of the

Road King

behind us, let’s get ready to play.

1.) After unpacking the amplifier remove the plastic webbing from all of the tubes (including the preamp tubes behind the row of

power and rectifier tubes) and make sure all tubes are seated firmly in their sockets.

PAGE 2

Getting Started:

2.) Install the 5U4 Rectifier tubes (if they are not already in place) by bending back the spring steel tube clamps just enough so that

the base of the tube will have to barely push the clamps out of the way as they go in. Be sure to line up the guide with the slot in the socket, don’t force it…when it is lined up it will fit in the socket easily. When the tube is lined up gently press the tube into the socket while rocking it back and forth until it is seated.

3.) Connect the 8 Pin DIN Footcontroller Cable to the female DIN connector located on the Rear Panel just under the Rotary Mode

Select Switch.

4.) Connect your speaker enclosure(s) to the proper impedance SPEAKER OUTPUT jacks “A & B”. If only one speaker cabinet is to

be used make sure that the dummy plug connected to the chassis is connected to the “B” jack to prevent accidental output transformer damage due to a “no load” scenario.

5.) Connect the A.C. Power Cable to a grounded A.C. outlet.

6.) Flip the A.C. Mains switch to the ON position and wait at least 30 seconds for the power tube filaments to warm up with the HI

VOLTS switch in the down position. This cold star t procedure prolongs tube life so try to follow it each time you power up the amplifier.

7.) Turn the Front Panel OUTPUT control to zero before flipping the HI V OLTS switch to the ON position. This will prevent accidental

settings that are too loud for the room and y our ears. These amplifiers are LOUD and are capable of e xtreme v olumes and should be used with care to avoid damage to your hearing. Starting each power up with the OUTPUT control zero-ed help to eliminate painful and/or embarrassing situations.

8.) Flip the HI VOLTS to the ON position and enjoy your new realm.

Helpful Hints:

1.) The Rear Panel CHANNEL SELECT Rotary switch must be set to FOOTSWITCH to access either Channels or features via the footcontroller.

2.) The OUTPUT and SOLO controls work only if the Effects Loop is active. Switch out of the LOOP BYPASS position in the EFFECTS LOOP section of the Rear Panel.

3.) Should you select a Channel when the Cabinet Switching Feature is broken-up or distorted signal, or no signal at all… Check that the SPKR ASSIGN mini toggle in that Channels’ Strip is assigned to SPKR “A + B” or “B”.

4.) The SOLO Control is activated when the Footcontroller is connected to the FOOTSWITCH jack on the Rear Panel and the Effects Loop is tak en out of LOOP BYPASS and activated. When the Footcontroller is not connected the SOLO control will have no effect on the signal.

5.) When the Parallel Loop is activated it is normal to hear the volume drop a bit. Use the SEND LEVEL Control to bring the level back up even if no processor is in the Loop.

6.) The SOLO feature can be used to set a volume level above that of the OUTPUT control setting. It will not allow a setting below that of the OUTPUT control.

not being used and experience either low output or a

not

7.) The GAIN and TREBLE controls are the most powerful controls in all four channels. They should be used with taste and you will find that many of the best sounds are found with the controls set somewhere in their middle regions. Avoid setting the TREBLE above 2:00 when the GAIN is maxed as the possibility of unwanted noise and squealing from microphonic tubes increases dramatically above this setting.

PAGE 3

Helpful Hints: (Continued)

8.) You will notice a substantial volume increase when s witching from either the RAW or VINTAGE modes to the MODERN mode in Channels 3 & 4.When switching modes Always check your MASTER controls to avoid sudden volume increases. It is a good practice when setting up your channels, to get in the habit of zeroing out the Channel MASTER control each time you switch modes.

9.) When using the Parallel Effects Loop for exter nal processing, the best tonal results are usually obtained with the processors’ Dry/Wet mix set as close to 100% as possible and the Road Kings’ LOOP 2 and/or FTSW MIX set closer to the 10% region. This scheme will retain most of the pure sound of the amp and lower the chance of any degradation due to the processors’ limitations.

10.) The PRESENCE control determines alot about the voicing of gain sounds. Set lower it will fatten and compress single note sounds and lend a liquid feeling to the strings in the 3 modes of Channels 3 & 4. Set higher it will add cut and brightness to the sound and can be useful in keeping Bass response tight, especially at high GAIN settings when searching for crunch rhythm sounds.

11.) When using processing in both Effects Loops, keep in mind that Loop 1 (the Series Loop) comes before the SEND of Loop 2 (the Parallel Loop). Therefor, it may be wise to configure your processors so that the units used to derive effects such

as Chorus or Delay are inserted into LOOP1 and feed the unit(s) used to produce Reverb in LOOP 2. Generally, Reverb is put at the end of a string of effects and Chorus and or Delay is put earlier. These are just practices and certainly not rules.

12.) Always keep the dummy shorting jack connected to the “B” SPEAKER OUTPUTS when you are not using two sets of cabinets for Cab Switching. This will protect the output transformer from damage should signal accidentally be sent to the “A+B” or “B” OUTPUTS via the SPKR Program switch.

13.) Although Channels 3 & 4 contain duplicate modes, the PRESENCE controls are different and therefor settings and sounds will not dial up exactly the same. CHANNEL3 has been optimized for the RAW and VINTAGE modes with a

PRESENCE control that peaks just above “ver y bright” and at the low end of the control gets truly round and squashed. This response showcases the more warm and fury nature of these two modes. CHANNEL 4 houses a much more powerful

PRESENCE control that has been optimized for the MODERN mode and will go to realms of top end that are frankly ridiculous. However, up to the 2:00 region its’ more unbr idled response makes the Recto MODERN mode a force to reckon with. Think of the difference like this; the entire range of CHANNEL 3s’ PRESENCE control can be found below 10:00 on Channel 4s’ PRESENCE control. It plays out like this; using MODERN IN Channel 3 will require a PRESENCE setting at the top of the range and conversely, using RAW and VINTAGE in CHANNEL 4 will require a very low PRESENCE setting.

NOTE: CHANNELS3 & 4: Should you find that you favor RAW and VINTAGE and never need the aggressiveness of MODERN. Or

the opposite, you f a vor the shredding cut of MODERN and have no use for the w armer nature of RAW and VINTAGE, it is possible to duplicate the PRESENCE controls in CHANNELS 3 & 4 with a simple pot value change. However, before you call and have us send you the part, we strongly recommend working with the two channels as they are. Much thought was put into how to maximize the modes for the best performance under a broad range of styles. By spending some time exploring you may find that you come to love, and actually rely on, sounds you thought you had no use fo r. Such is the beauty of an amp that is capable of so much diversity.

14. When switching Channels with Reverb applied or switching the Reverb itself in and out of the signal path with the Footcontroller, it is normal to experience approximately 1-2 seconds of dela y bef ore the Rev erb eff ect is mixed bac k in with the dry signal. Se e NO TE: under REVERB in the Rear Panel section of this manual for more info.

Now that we have shared a few hints to make things easier, let’s take a look at the controls and modes.

PAGE 4

CHANNEL MODES:

CHANNELS 1 & 2: CLEAN This is the lowest gain circuit of the

Road Kings’

twelve modes and is optimized f or producing balanced

pristine clean sounds. This mode is duplicated in CHANNEL 2 as it is extremely useful for many different applications. For the best

understanding of how to achieve a great sound in this mode, please refer back to the GAIN control section of

CLEAN

FAT

TWEED

this manual. However, a great place to star t is 12:30 or so on the GAIN control with more sparkle available below this and more warmth apparent above...from there adjust according to your guitars individual response.

Because of its more traditional architecture this mode also works extremely well for vintage style drive sounds. By turning the gain all the way up, a beautiful old school solo sound is possible...especially with neck single coil pick-ups. The TREBLE and MIDDLE controls can also add gain and sustain to this sound ( reduce Presence to

CLEAN

FAT

BRIT

blend highs ), but you will probably want to run the BASS control below 10:30 to avoid flubbiness and preserve a focused attack.

CHANNELS 1 & 2: FAT This mode comes from our original

Mark 1 Boogie

and puts emphasis on the low mid and bottom end and as a result the top strings

of the instrument have more girth and width. This mode is duplicated in CHANNEL 2 is very useful for a variety of sounds. The

difference is wonderful for clean single note soloing where you need more body and warmth behind the notes.

CLEAN

FAT

TWEED

Because this mode is very different from the CLEAN mode, it requires that you reset the controls for balance. We suggest running the BASS control a couple notches lower, especially for chording.

It also helps to use the GAIN controls’ tonal influence (refer to GAIN in the controls section of this manual) to achieve the best results with this mode. We like to set the GAIN somewhere between 10:30 and 12:00 for chording as this brings out the sparkle and improves the headroom.

CLEAN

FAT

BRIT

For single note clean soloing you can run the GAIN up around 1:00 – 2:00. If you are going for a pushed rhythm sound with the GAIN all the way up, you will likely have to run the BASS below 9:30 to avoid flubbiness and boom.

CHANNEL 1: TWEED

This mode appears in CHANNEL 1 only and is a variation on the CLEAN that appears in both channels. Here we have emphasized the elastic, bouncy character of the low gain clean circuit to achie ve a more vintage f eel that has an element of sag b uilt in. This mode

feels easier to play and you would swear there is less resistance on the strings…almost as if you were using a lighter gauge set of strings, but it is just our treatment of the signal.

CLEAN

FAT

TWEED

This characteristic can be enhanced even further by assigning this mode to the 2 x 6L6 power section in CHANNEL 1’s Channel Strip. The bubbly nature of this lighter, brighter power feel mates perfectly with the TWEED mode enhancing what is already a rubber band joy-ride to achieve one of our favorite sounds in the entire amp.

CLEAN

And if you like this approach to clean sounds, be sure to check the beyond vintage feel by taking this scheme a

FAT

BRIT

step further and selecting SPONGY on the A.C. PO WER SELECT s witch and knocking the A.C . do wn f or a truly soupy vibe. Whether you choose to utilize TWEED for these lower headroom retro applications or, you want a high headroom sound with just a bit more resiliency, this mode is a wonderful voice for any style of clean playing.

PAGE 5

CHANNEL MODES:

(Continued)

CHANNEL 2: BRIT This mode appears in CHANNEL 2 only and, as the name implies, was inspired by the great sounding amps of the 50s’ & 60s’ that were built in Great Britain. These classic amplifiers were basically “upside down Leo circuits” b ut none the less had a signature sound all their own, due largely to the fact that they were powered by the pentode available to them at the time…the Euro style EL 34. This

difference, along with minor value differences in the circuit, created a very different sound than the tweed and black face amps born in the United States.

CLEAN

FAT

BRIT

We have combined all the great qualities of several of these classic circuits to arrive at a sound that is pure teabag. With emphasis on a lower region of Treble and more punch in the low mids, this mode is truly different than the other modes in CHANNEL 1 & 2. It works extremely well for both chording and single note soloing with its thicker, throatier nature. It also lends itself well to clipped sounds, with its less extended top end and wider mid section, producing some of the coolest crunch rhythm sounds around.

Needless to say, the 2 x EL34 power section was born to ser ve this mode and when these two parts are used together a level of character is unveiled that is the natur al equivalent opposite to TWEED feeding the 2 x 6L6 power harness. BRIT also works very well with the combination power sections of 2 x 6L6 + 2 x EL34 and 4 x 6L6 + 2 x EL34. These two schemes are great if y ou want the more urgent character of the ELs’ b ut need more headroom than they are capab le of providing by themselv es . The choice is y ours as to how best to use this very cool and different mode and we f eel sure that, no matter how y ou decide to dedicate your clean channels , you will find the BRIT mode an awesome addition to your bevy of sounds.

CHANNEL 3 & 4: RAW This new

Road King

mode is the lowest gain of the three in the two high gain lead channels. Its less saturated nature greatly

enhances the already versatile bag of sounds the two original lead channels offered. The range of gain available covers an extremely

wide spectrum and it can be set to double as a formidable alternate clean mode, a low gain purring blues sound and beyond, all the way up to a grinding crunch or searing solo sound.

RAW

VINTAGE

The TREBLE can be set relativ ely high (2:00) to add a little more gain and shred when using RAW for certain crunch rhythm sounds and keep in mind CHANNEL 4 is capable of more aggressive sounds

MASTER

MODERN

RAW

VINTAGE

MODERN

due to its more extreme PRESENCE control taper. Don’t overlook the amazing medium gain soloing potential RAW offers in CHANNELS 3 & 4 where, because of the PRESENCE controls more gradual response, a wider range of voice-like single note sounds appear that benefit from this more compressed character.

CHANNEL 1 & 2: VINTAGE

Recto

This high gain mode is the famous liquid

voice and it can be found in its original state in CHANNELS 3 & 4. Its lush harmonic content and fat creamy feel has found its way onto so many recordings, it is now a staple for anyone headed to the studio for an album project. combining this super juicy, expressive preamp with the

Rectos’

black magic, tube-rectified power section creates colors in gain that most players find truly addictive. Single note solo work is effortless as the strings become easy to play with VINTAGE modes musical and natural tube compression. Spend time learning the

MASTER

RAW

VINTAGE

MODERN

RAW

VINTAGE

MODERN

lower regions of the VINTAGE mode as the overlap between RAW and VINTAGE is a place where many beautiful sounds lie.

These two modes are similar enough when VINTAGE is set in its lower range and RAW is set in its medium to higher range and yet, each posses a character that is unique and identifiable. Remember that you can swap channels to achieve different voicings of the VINTAGE sound and no matter which you settle upon, you will likely find your trademark lead sound lurking somewhere in this sea of liquid gain.

PAGE 6

CHANNEL MODES:

(Continued)

CHANNEL 3 & 4: MODERN Aggressive. This is the word that best describes the menacing power of the

Road Kings’

most rebellious of all modes and appears

in its original form in CHANNELS 3 & 4. A take no pr isoners, crushing assault of top end cut and lightning fast response creates a

sound of unparalleled aggression that has set a new standard for hard core sounds.

RAW

The added tightness of the low end response combined with the radically more present top end keeps the MODERN mode tracking accurately even at extreme gain settings. Keep in mind that when using MODERN in CHANNEL 3 you will have to run the PRESENCE control almost all the way up to approach the lower range of the PRESENCE control in CHANNEL 4.

MASTER

VINTAGE

MODERN

RAW

VINTAGE

MODERN

This lack of extreme top end can be a benefit when searching for single note solo sounds in the MODERN mode as the more compressed nature of this tamer presence range in CHANNEL 3 tends to warm things up.

CONTROLS:

GAIN: This control adjusts the predominant gain stage in each channels’ circuit with the function and taper being optimized for each individual channel. Remember that your

Road King

channel looks identical, the GAIN control for each channel comes in a different place and adjusts a different point in that channels

circuit.

CLEAN

In most guitar amplifiers, and especially in all-tube circuits, the GAIN control is the most powerful

FAT

TWEED

GAIN

CLEAN

FAT

BRIT

control in the preamp. It shapes the overall style and character of the sound and is responsible for whether the sound is clean, overdriven or anywhere in between. In your control is even more powerful. It not only determines the amount of drive, but also acts as an integral part of the tone control string as well.

To simplify the GAIN controls’ role in shaping the overall tone of the sound we will look at it in two ways - 1; alone and 2; in conjunction with the tone controls.

1) By itself the GAIN control has basically three tonal regions -

is really three separate multi-mode amplifiers built onto one chassis , so though each

Road King

, the GAIN

Low ( 7:00 - 11:00 ) provides the cleanest, least saturated sounds and in this region the sound will be brighter and contain more upper harmonics lending a three dimensional character to the sound.

Middle ( 11:15 - 2:00 ) enhances the saturation and replaces some of the upper harmonics with a richer, warmer quality and a fuller bottom end response. Not yet fully saturated, this region is the easiest place to get a great sound in all three channels. This region contains many of the

Road Kings’

best sounds...especially for soloing due to the crucial blend of an e xpressive attac k combined with

ample sustain. High ( 2:15 - 5:00 ) saturates the signal and enhances low and low mid frequencies. While this region provides the maximum

saturation and therefor sustain, it also compresses and softens the attack characteristics. For this reason we suggest using this higher region of the GAIN control sparingly and only when maximum sustain is needed.

PAGE 7

CONTROLS:

(Continued)

NOTE: Due to the

Road Kings’

extreme gain potential, the highest regions of the GAIN control ma y possibly push the pre-amp tubes past what they can handle, producing microphonic squealing. While we screen and test the tubes your amplifier was shipped with and the tubes in your amp passed our rigourous test, we can’t predict how the tubes will respond over time exposed to extreme gain settings. Your tubes are warrantied for a period of 6 months under normal use, but you can save yourself the present and future inconvenience of having to deal with annoying microphonic tube problems by simply using a little common sense...Don’t turn the Gain all the way up!

If you must for a specific part or at ver y low volumes, back down the TREBLE and PRESENCE controls. Your

Road King

was designed to provide amazing gain and tone at less than extreme settings removing the need for you to crank everything all the way up. If you are not able to achieve the sound you want at sensible settings on any or all of the controls, your problem may lie elsewhere in the signal chain, i.e. pick-ups, cabinetry, processing etc. Keep in mind you can always call on one of our product specialist Monday through Thursday and seek some advice should you find yourself struggling to get the sound you want.

2.) GAIN - In conjunction with the Tone controls - Basically, a simple rule applies...as the Gain is increased the Tone control str ing has less and less effect on the signal until at 5:00 the signal is so saturated that y ou are getting mostly Gain and very little T one. Again, this is the reason we suggest using the GAIN control in its middle region. Here the Tone control string is very active and provides maximum shaping power - allowing you to dial virtually any sound you desire.

TREBLE: As in most tube guitar amplifiers, the TREBLE control ( in all four channels of your

Road King

) is the most powerful of the rotary controls and is next in line only to the GAIN control as a shaping tool. Because it is first in the signal path of the tone controls - and from here the Middle and Bass receive their signal - it is by far the dominant tone control. For this reason the setting of the TREBLE control

is very important for equal representation of the three frequency regions to appear

FAT

CLEAN

at their respective controls. Like most of the controls on your

Road King

an optimum region of the TREBLE control where ample top end is mixed in and yet enough signal is still passed on to the MIDDLE and BASS controls.

, there is

As you might surmise, here is the sweet spot. There are definitely great sounds above and below this middle region ( 11:00 - 1:30 ), but the balance between the TREBLE control and the other two tone controls is compromised.

The one place you may want to throw caution to the wind and set the TREBLE control above this median zone presents itself in CHANNEL 1 of your new

. In all 3 modes ( CLEAN, FAT & TWEED ), the TREBLE control can be used

King

Road

FAT

TWEED

CLEAN

BRIT

GAIN

TREBLE

to dump extra gain into the mix. This is especially effective in the TWEED mode for crunch sounds. When doing so use the PRESENCE control to roll off some of the more than ample top end for a more compressed feel and fatter voice. As you might surmise, the BASS controls’ effectiveness will be reduced, so you may have to run a much higher setting than you are used to seeing to achieve a balance. This said, keep in mind that the TREBLE control in Channel 1 TWEED should not be set much above 2:30 to avoid unwanted microphonic tube problems.

MID: The MID control is responsible for the b lend of midr ange frequencies in the mix and though its effect is not as dramatic as that of the TREBLE control, it plays an integral part in achieving any sound in y our

Road King

. It is capab le of changing the f eel dramatically as

it blends in a group of frequencies that tend to soften or stiffen the way a sound feels to play. Most players tend to lean in the direction of lo wer MIDDLE control settings ( 7:00 - 11:00 ) where a scoop in this region produces girth

( by letting the Bass become a little more dominant ) and a lack of punch lends a more compressed, even feel to the strings and

PAGE 8

CONTROLS:

(Continued)

MID: (Continued) therefore less apparent resistance to the pick. As the MIDDLE control is increased, ( 11:30 - 1:30 ) the sound is rounded-out and filled-in with a focused mid attack appearing rather quic kly. As y ou would guess, the feel starts to change - becoming more resistant. Above this region the MIDDLE control could be used to compensate for either weaker pick-ups or for times when a specific deficiency is produced by either an extremely high setting of other tone controls, or a physical anomaly in the room. While

these MIDDLE control settings ( 2:00 - 5:00 ) can introduce added gain and create enhanced focus, the trade-off will be a stiffer, more forward, less compressed feel.

CHANNELS 1 & 2 utilize a different MIDDLE control than that of the CHANNELS 3 and 4 with a custom-designed taper and value. In its low range ( below 12:00 ) it functions as a normal midrange control with a taper suited to blending fine increments of these frequencies. Most players lean toward a fairly radical scoop ( 7:00 - 10:30 ) for clean playing, pref erring to let Treble and Bass remain dominant, thus producing the signature sparkle and breath essential for a pristine

FAT

CLEAN

TWEED

CLEAN

BRIT

GAIN

TREBLE MID

clean sound.

As the MIDDLE control in CHANNELS 1 & 2 are swept past 1:00, it quickly starts to add gain in these midrange frequencies adding cut and punch. As the top end of the control is reached, ( 3:00 - 5:00 ) it becomes an additional gain control capable of taking both CLEAN and TWEED modes to extremes. Experiment with this cranked region in conjunction with conservative settings of the other tone controls to balance both sound and feel. While this added flexibility may make CHANNEL 1 & 2 MIDDLE control a little more tricky to learn at first, it will become quite valuable as you start to realize the power of this super versatile channel.

BASS: This control works similarly in all four channels in that it determines the amount of low frequencies present in a sound. However, the actual frequencies and style of lows it mixes in changes from channel to channel. Like the MIDDLE control, it falls in line signal-wise after the TREBLE control and the same scheme applies. When the TREBLE control is set high, the effectiveness of the BASS and MIDDLE controls is reduced. If the TREBLE control is set low these two controls become dominant.

For the most balanced sound and a balance of power between the three rotary tone controls, try to use the TREBLE control in its middle ranges. This scenario produces nearly equal representation of all the frequencies on the tone controls and provides a great nuetral starting point for further tweaking.

FAT

CLEAN

TWEED

CLEAN

BRIT

GAIN

TREBLE MID BASS

PRESENCE: The PRESENCE control is a high frequency attentuator that is placed at the end of each channels pre-amp stage and affects frequencies higher than those of the TREBLE control. It acts independantly of the other rotary tone controls and is cr ucial in voicing the Channel. It is a powerful global tone control. Lower PRESENCE control settings darken and, in fact compress the signal which works well to fatten single note solo sounds, giving them girth and focus. Some of the best lead sounds in your

Road Kings

will find

the PRESENCE control in its lower regions, where a balanced, vocal response is achieved.

PAGE 9

CONTROLS:

(Continued)

Higher settings unleash the mighty roar of your more aggressive crunch rhythm sounds in the high gain modes. Be sure to taunt the beast that lurks in CHANNEL 3 MODERN as the PRESENCE is truly amazing in this most agro mode.

NOTE: Read the following section on the Modes for CHANNEL 3 and 4 for more PRESENCE control related information.

Road King

and this can be great for sparkling clean sounds in Channels 1 & 2 and

MID PRESENCEBASS

MASTER: This control is the master feed from the end of the pre-amp to the driver stage and the Effects Loop. As you can see each Channel is fitted with its own MASTER control, enabling the f our channels relativ e v olumes to be matched regardless of their e xtremely di fferent sound styles and gain signatures. The MASTER control makes possible a wide range of sounds through its ability to use ver y low

Gain sounds at high volumes and conversly, high Gain sounds at low volumes and everywhere between.

Again, we suggest using the MASTER control in its sensible ranges ( 9:00 - 2:00 ). Here, the channels will be easier to match with each other and the Effects Loop will see more reasonable signal levels.

BASS MASTERPRESENCE

NOTE: Because the MASTER control creates the send to the Effects Loop, extreme settings will cause a large signal to be sent to the Loop for that Channel. Not only may this cause possible overloading of the processors Input stage, but will make balancing the four channels’ Effect Send level difficult.

OUTPUT CONTROL: This is the overall OUTPUT LEVEL control f or the entire amplifier. It is located at the input to the po wer section and allo ws you to raise adjust the playing le v el once you ha ve used the individual CHANNEL MASTER controls to balance the level of the four Channels. The OUTPUT receives its signal from the EFFECTS RETURN jacks of both LOOP 1 and LOOP 2 and therefor this control is only in the

signal path and active when the EFFECTS LOOP is set to LOOP SYSTEM ACTIVE. When in LOOP BYPASS the individual CHANNEL MASTER controls are the final output

OUTPUT SOLO

2xEL342x6L6

2x6L6

level controls. NOTE: USING THE ROAD KING AS A POWER AMP ONLY

It is possible to use the with external preamps, as half of a stereo power rig or, as a slave for another

in larger venues. Here’s how;

King

Road King’s

power section as a stand alone power amp f or use

Road

PA G E 1 0

CONTROLS:

OUPUT CONTROL: (Continued)

1.) Connect your preamp signal to the EFFECTS RETURN jack of LOOP 2.

2.) Select LOOP ACTIVE on the Rear Panel

3.) Use the OUTPUT control as your power amp level control.

4.) Adjust the PRESENCE control of the Channel you are using to taste.

5.) Select a Channel and a power setting in that Channel. All the Progressive Linkage Switching Power Functions will still work if you program power changes to the different CHANNELS and

then select channels with the Footcontroller. You do not have to use the switching feature, simply leave the Channel and select the power section you wish to use in that Channel Strip on the Rear Panel.

Keep in mind that all these different power sections will amplify a given preamp signal differently, so y ou when switching around. This if the Progressive Linkage Switching was used with a programmable tube preamp such as our another

Road King

(Continued)

Road King

will

have v olume differences

may

actually fit your needs and can be used to create some interesting power possibilities…especially

TriAxis

or another parallel with

in one

We recommend due to the removal of negative feedback in the power section creates an extremely hard to manage power amp. If you wish to use all four Channels when using the EFFECTS LOOP RETURN as a POWER IN jack we suggest using CHANNELS 1 & 2 in the CLEAN mode and CHANNEL 3 & 4 in the RAW mode. This will provide uniform input sensitivity and the only volume difference you will experience are those caused by the output power of the different tube harnesses.

SOLO: This control is an additional output control wired in parallel with the main OUTPUT that you can pre-set to a higher level and then switch to during performances. A simple idea that adds amazing potential to vir tually any sound in the amplifier. Like the OUTPUT

not using the MODERN mode of CHANNELS 3 & 4 for this application as the increased power sensitivity of this mode

control, SOLO gets its signal from the EFFECTS RETURN jacks of LOOP1 and LOOP 2 and therefor it is only in the signal path and active when the EFFECTS

OUTPUT SOLO

2xEL342x6L6

PROGRESSIVE LINKAGE

2x6L6

LOOP is set to LOOP SYSTEM ACTIVE. This control ma y be used to step out f or a solo or to compensate for other volume drops created by various switching scenarios. One might be a processor in the one of the LOOPS that you love the sound of, but steals gain from your signal when introduced via the LOOP. However you choose to use this valuable feature, SOLO adds power and versatility to an already mighty package.

NOTE: As mentioned above, when using the the SOLO control can be used to provide a footswitchable volume boost for the power amp.

Road King

as a slave po w er amp

HI VOLTS: Perfect for set breaks... this toggle switch also serves an even more important purpose. In the Standby position the tubes are at idle so that during power up they may warm up before being put to use. Before Power is switched on make sure the STANDBY switch is

in the Standby position. Wait at least 30 seconds and then flip the STANDBY switch to the ON

HI VOLTS

AC MAINS

position. This prevents tube problems and increases their toneful life substantially.

PAGE 11

CONTROLS:

A.C. MAINS: (power on) This switch deliv ers the A.C. po wer to your ne w must be connected whenever possible to avoid injury to the user as well as to the unit) and that the proper voltage is present. Follow

HI VOLTS

Now that we have reviewed the Channels and their Modes we are ready to go aft and check out the treasure chest of features that ride the Rear Panel.

AC MAINS

(Continued)

the cold start procedure described in the ON/ STANDBY section above when po wering up your new

Road King

. Make sure the unit is grounded (all three terminals of the A.C. power cord

REST AREA

PA G E 1 2

REAR PANEL CONTROLS & FEATURES

REAR VIEW : COMBO

CH 2

4 A SLO BLO

CH 3

ROAD

KING

CHANNEL

FOOT

CONTROLLER

SOLO REVERB LOOP 1 LOOP 2

CH4 CH3

BOLD SPONGY

POWER FUSE

120 V~ 60 Hz 4 A

FUSE

Road King

WARNING

To reduce risk of fire or

electric shock, replace fuse with

same type and rating only. Do not

expose this unit to rain or moisture.

EXT.

SWITCH

CH2 CH1

LOOP SYSTEM

ACTIVE

BYPASS

LOOPS, SOLO

& MASTER

CONTROLS

SEND 1

RETURN 1

WARNING

To reduce risk of fire or electric shock, Do not remove cover. No userserviceable parts inside. Refer servicing to qualified personnel.

NORMAL NORMAL

10%

FTSW MIX

SEND LEVEL

SEND 2 RETURN 2

HANDBUILT

IN PETALUMA

CALIFORNIA, USA

90%

EXT. TRIGGERS

L A T C H

I N G

P U L S E

2x6L6

2xEL34

EL34 2x 6L6

PROGRESSIVE

LINKAGE

DIODE

TUBE-TRACKING

RECTO

SPKR

4x 6L6

2xEL+ 4x6L6

CH 4

10% 90%

OFF

LOOP 1

NORMAL

LOOP 2

MIX

OFF

LOOP 2

2x6L6

2xEL34

EL34 2x 6L6

PROGRESSIVE

LINKAGE

DIODE

TUBE-TRACKING

RECTO

SPKR

6L6

2xEL+ 4x6L6

CH 3

10% 90%

A + B

OFF

LOOP 1

NORMAL

LOOP 2

MIX

OFF

LOOP 2

2x6L6

2xEL34

EL34 2x 6L6

PROGRESSIVE

LINKAGE

DIODE

TUBE-TRACKING

RECTO

SPKR

4x 6L6

CH 2

2xEL+ 4x6L6

A + B

NORMAL

10% 90%

LOOP 2

MIX

OFF

LOOP 1

LOOP 2

2x6L6

2xEL34

EL34 2x 6L6

PROGRESSIVE

LINKAGE

DIODE

TUBE-TRACKING

RECTO

SPKR

6L6

2xEL+ 4x6L6

CH 1

10% 90%

A + B

OFF

LOOP 1

NORMAL

LOOP 2

MIX

OFF

LOOP 2

ESA

CH 3 CH 1

REVERB

OOGIE

CH 2CH 4

SPEAKERS

COMBO

USE WITH TWO 8 OHM CABS

CAUTION:

USE SHORTING PLUG IF NO SPKRS IN B

4 OHM4 OHM8 OHM

LEVEL

SLAVE

OUT

SLAVE: This 1/4” jack and control provide a signal der ived from the speaker jack. Perfect for using either the

Road King

head version or

combo as a master pre-amp and additional power amps for more po w er when needed. Some players use the SLAVE to derive an FX

Send Signal and go to other amps for their wet sound.

SPEAKERS

4 OHM4 OHM

USE WITH TWO 8 OHM CABS

HORTING PLUG IF NO SPKRS IN B

LEVEL

SLAVE

OUT

NOTE: Once a signal is taken from the SLAVE, it can not be inserted back into the FX Loop Return jack or a feedback loop will occur. Much like holding a microphone into a PA system’s cabinets...a loud high pitched squeal will be the result.

SPEAKER OUTPUTS: Bank A & B - Cabinet Switching These are the speaker output jacks and there are pro visions for both 8 and 4 Ohm speaker loads. But as mentioned earlier , this is no

COMBO

SPEAKERS

4 OHM4 OHM8 OHM

USE WITH TWO 8 OHM CABS

ordinary amp…and these are no ordinar y speaker outputs. The

Road King

independent Channel concept a step further by providing two pre-assignable speaker outputs, enabling

takes the footswitchable

you to use two different types of speaker cabinets with the same power section. They can even be of

LEVEL

SLAVE

OUT

different impedance’ s! F or e xample y ou might want to use an open bac k cabinet with one type of speakers for your clean CHANNELS 1 & 2, and switch to closed back cabinetry with a different type of speakers for you lead work in CHANNELS 3 & 4. You can take this a step further and use both sets of jacks

CAUTION:

USE SHORTING PLUG IF NO SPKRS IN B

and combine them for a specific channel so that both open and closed back cabinets are on at once for a truly huge sound. These choices can be assigned per channel in the individual Channel Strips under

SPKR A/B. Use any cabinetry you like as the

Road King

is not particularly sensitive to speak er impedance mismatches, other than

decreasing headroom slightly or making your power tubes work a little harder. However, It Is Extremely Important To Keep A Load On The Output Transformer At All Times! F ailure T o Do So Will Damage The

Output Transformer And Void Your Warranty. For this reason we have included a Shor ting Dummy Plug that we have attached permanently to the chassis to prevent accidental “no load” scenarios. We ship this shorting jack connected the “B” SPEAKER OUTPUT so that if a channel is selected that is assigned to either the “B” or “A & B” OUTPUT choices, there will still be a load on the Output Transformer.

NOTE: Please make sure that the attached Shorting Jack is connected to the “B” SPEAKER OUTPUT jack at all times when not using the Cabinet Switching Feature.

NOTE: You will experience a brief second when both speaker cabinets will be active dur ing a cabinet switching sequence. This is normal and necessary to protect the output transformer from damage due a possible “no load” scenario during the instant of switching.

NOTE: If you switch to a Channel when

not using the Cabinet Switching Feature and experience low output combined with a broken up, distorted signal, or no output at all, check that Channels’ SPEAKER ASSIGN mini toggle to be sure that it is not set to SPKR “A + B” or “B”.

PA G E 1 3

REAR PANEL CONTROLS & FEATURES

(Continued)

SPEAKER OUTPUTS: (Continued) NOTE: Do not use the SPKR A + B selection when two 8 Ohm cabinets are each connected to the two 4 Ohm OUTPUTS of each Speaker Output Bank. A 2 Ohm load puts an excessive strain on the pow er tubes causing them to wear unusually fast.

REVERB: These 4 rotary controls determine the dry/wet mix ratio for the rich analog REVERB and are wired to the Reverb return circuit. Each of the 4 Channels have a dedicated control so that a different Reverb mix can be attained for each individual sound. The controls

sweep from a subtle bac kground eff ect at their low range to a drenched, swimming effect at the top of

ESA

OOGIE

CH 1

NORMAL

10% 90%

LOOP 2

MIX

OFF

LOOP 1

LOOP 2

CH 3 CH 1

REVERB

CH 2CH 4

8 OHM

COMBO

CAUTION

the control. Several factors affect the REVERB tone and dr ive including the different Modes’ gain structures, preamp gain settings and CHANNEL MASTER and OUTPUT control settings. Generally speaking, lower gain settings will produce cleaner, purer Reverb effects, while higher gain settings will produce more smeared, washy Reverb sounds. This difference can be useful, desirable and is a normal characteristic of Reverb circuits of this type.

The REVERB may be switched in and out of the circuit via the REVERB b utton on the F ootcontroller.

NOTE: It is normal to experience approximately 1-2 seconds of delay before the REVERB is mixed with the dry signal after switching the REVERB or Channels. This intentional built-in delay prevents both switching noise from the hard bypass relays used to isolate the pure dry signal from the effected REVERB signal, and the prior Channels sound coming through the REVERB in the current Channel when switching. At first this ma y seem strange , b ut after a couple minutes in real world situations you will see that it is prefer able to the embarrassing alternative of a loud overdriven crunch chord drowning out your beautiful clean passage in the middle of a breakdown.

CHANNEL STRIPS: These 4 clusters of switches and controls house the specific features that can be pre-assigned per individual channel. Once you have

Kings’

deciphered one, you have learned the

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

6L6

2xEL+

4x6L6

NORMAL

10% 90%

LOOP 2

MIX

This section is where you choose the status of LOOP 1 & 2, your choice of Speaker enclosure(s), what type of Rectifier you wish to use and most importantly the power section you wish to combine with your preamp choice with the PROGRESSIVE LINKAGE rotary control. Let’s go over the controls one at a time, beginning with this most important choice.

secret and are ready to rule, for they are simply repeated for the 4 channels.

CH 4

DIODE

TUBE-TRACKING

RECTO

PROGRESSIVE LINKAGE: This 5 position rotary control contains the most powerful feature ever found on a self contained amplifier, the ability to assign your choice of 5 different power amplifiers to one of the 4 preamps and footswitch to it. Although this is not our first amplifier to showcase

EL34

6L6

SPKR

2x6L6

2xEL34

PROGRESSIVE

LINKAGE

A +

6L6

2xEL+ 4x6L6

OFF

LOOP 1

OFF

LOOP 2

this patented feature – the single channel

BLUE ANGEL

first introduced it – the power of PROGRESSIVE LINKAGE reaches maturity here in a multi-channel format that should make all serious guitarists reconsider the very nature of channel switching amplifiers from here forward. By exploring the possibilities of this awesome feature and understanding how to combine the front end preamp choices with a power section that enhances that sound, you will be able to use the

Road King

PA G E 1 4

to its full potential. The choices

REAR PANEL CONTROLS & FEATURES

(Continued)

PROGRESSIVE LINKAGE: (Continued) are laid out in a logical left to right array with the lowest wattage settings to the left and the most powerful RMS ratings to the right. On the Front Panel you will find the valuable PROGRESSIVE LINKAGE LED status indicators, which keep you informed of your current power status at all times…even from across the stage. Here is a

one-dimensional

description of the choices and their individual characters.

SELECTING POWER TUBES: 2x6L6 produces roughly 50 watts of bubbly resilient magic and is one of our favorite setups in the entire amplifier. It is wonderful for both low and high gain styles and has probably the best balance frequency-wise f or both types of sounds . The low end is bouncy and rich, while the top end smiles with sweetness and seems to e xorcise all the harsh frequencies and sho wcase the pleasing ones. The inherently vintage voice of this power duo lends itself to blackface era clean sounds especially well and some of the best clean sounds in the entire amp can be found here.

Be sure to experiment with the TWEED mode of CHANNEL 1 in combination with the 2 x 6L6 for there are hours of good clean fun awaiting you here. Another attribute of this setting is the way it responds to both RAW and VINTAGE in CHANNEL 3. Because of its balance and harmonically friendly nature, the gain sounds seem to turn into the creamiest tone soup we’ve ever experienced. The overall character is elastic, making the strings feel easier to play and more expressive and yet they respond to every nuance of your playing style.

POWER FUSE

120 V~ 60 Hz 4 A

CHANNEL

4 A SLO BLO

FOOT

CONTROLLER

FUSE

EXT.

CH4 CH3

SOLO REVERB LOOP 1 LOOP 2

SWITCH

CH2 CH1

BYPASS

LOOPS, SOLO

& MASTER CONTROLS

RETURN 1

10%

FTSW MIX

SEND LEVEL

SEND 2 RETURN 2

COMBO VERSION 2 x 6L6

(partial rear chassis view)

EL 34 EL 34

HEAD VERSION 2 x 6L6 (partial rear chassis view)

CAUTION: USE SHORTING PLUG IF NO SPKR IN B

LEVEL

SLAVE

ESA

OOGIE

CH 1

CH 2

REVERB

OFF

LOOP 2

OFF

LOOP 1

CH 1

NORMAL

10% 90%

LOOP 2

MIX

EL34

6L6

PROGRESSIVE

I N G

90%

P U L S E

EXT. TRIGGERS

STR 430

6L6 GC

DIODE

RECTO

TUBE-TRACKING

2x6L6

2xEL34

LINKAGE

DIODE

TUBE-TRACKING

RECTO

6L6

2xEL+ 4x6L6

2x6L6

2xEL34

EL34

CH 4

A + B

OFF

SPKR

LOOP 1

OFF

LOOP 2

CH 3

DIODE

A + B

TUBE-TRACKING

OFF

SPKR

RECTO

LOOP 1

LOOP 2

STR 430

6L6 GC

DIODE

TUBE-TRACKING

RECTO

6L6

A + B

PROGRESSIVE

SPKR

STR 430

6L6 GC

LINKAGE

6L6 GC

STR 430

EXT TRIGGERS

OFF

LOOP 1

LOOP 2

A + B

CH 2

2x6L6

NORMAL

2xEL34

EL34

DIODE

RECTO

TUBE-TRACKING

DIODE

LOOP 2

LOOP 1

LOOP 2

A + B

CH 3

RECTO

TUBE-TRACKING

2x6L6

NORMAL

2xEL34

EL34

6L6

NORMAL 4x 6L6

DIODE

LOOP 1

S E

RECTO

TUBE-TRACKING

CH 4

2x6L6

2xEL34

EL34

6L6

6L6 GC

STR 430

RETURN 2

NORMAL

6L6

2xEL+ 4x6L6

SEND 2

NORMAL

10% 90%

CH 1

STR 430

6L6 GC

RETURN1

NORMAL

LOOP 2

MIX

BYPASS

LOOPS, SOLO

& MASTER CONTROLS

6L6 GC

STR 430

LOOP 2 LOOP 1

CH1 CH2

REVERB

REV ERB SOLO

EXT

SWITCH

CH 2CH 4

CH3 CH4

CAUTION:

USE SHORTING PLUG IF NO SPKRS IN B

6L6 GC

STR 430

CONTROLLER

FOOT

LEVEL

SLAVE

OUT

EL 34 EL 34

FUSE

POWER FUSE

120 V~ 4 A

PA G E 1 5

REAR PANEL CONTROLS & FEATURES

(Continued)

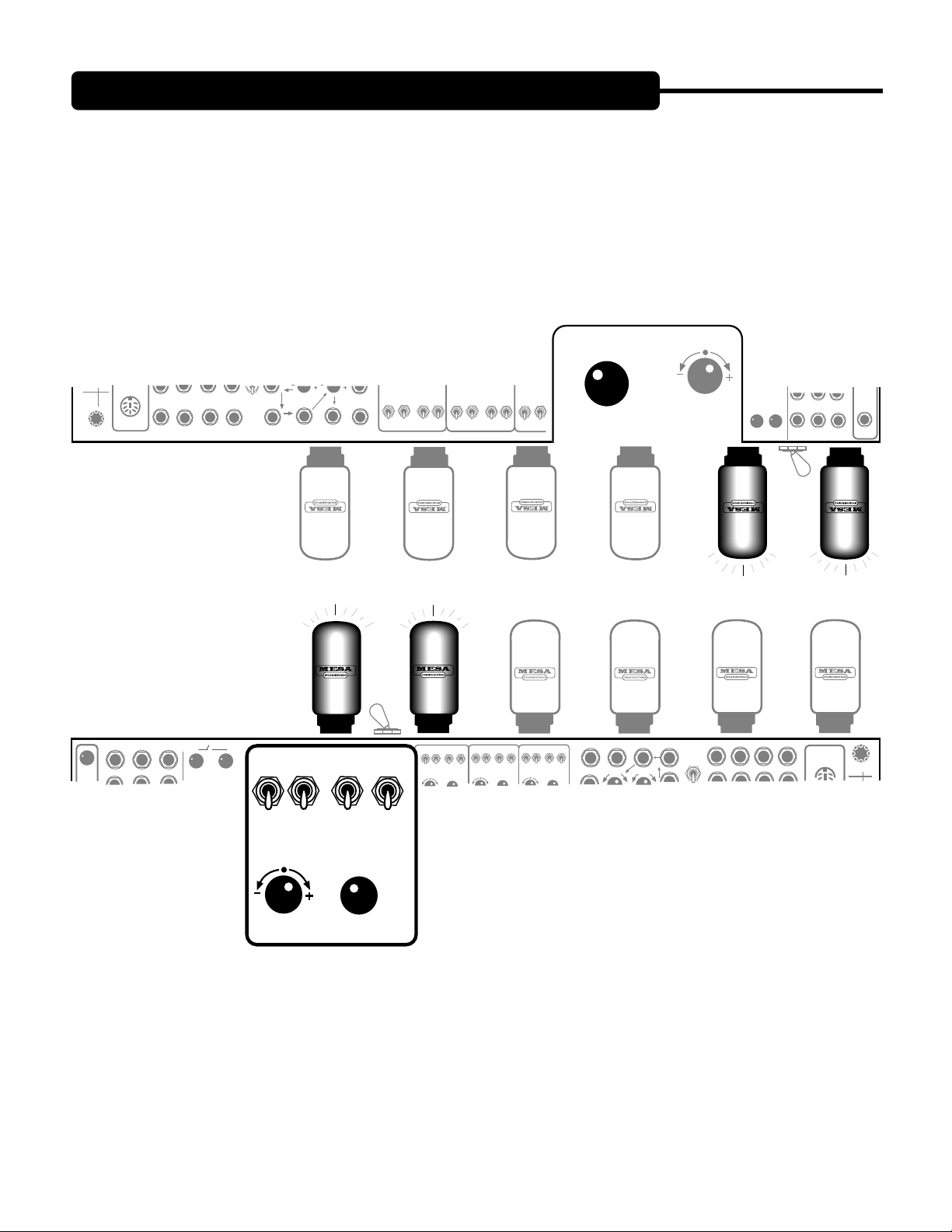

SELECTING POWER TUBES: (Continued) 2xEL34: is similar in output to the 2 x 6L6 duo b ut oddly enough can at times seem more po werful to the ear and has a v ery different character. The emphasis here is on top end and a more urgent str ipped attitude. While this setup works for both low and high gain sounds, the additional top end accentuation combined with a drier low end makes clean sounds a bit more challenging to dial. There are some great

edge of clean

sounds possible, especially in the BRIT mode of CHANNEL 2 where the lower mid characteristic is

complimentary to these brighter tubes. The EL’s have the harmonic spread, but not quite the balance of the 6L6 and this makes these Euro-born pentodes hygienically

challenged when compared to the 6L6. For gain sounds though, they have an attitude all their own that is undeniable in its brash urgent glory. The seeming lack of sub-low performance hinders them a bit for modern high gain mosh or metal sounds, but they own the territory between clean and crunch with a lushness of harmonics and top-end shred that is wicked, yet musical. Only these tubes respond with a looseness that is a benefit, for it produces that coming-apart-at-the-seams vibe that can put danger in any Rock and Roll part played through this rebellious team. Check out RAW and the lower half of VINTAGE in CHANNELS 3 and 4 for a world of these sounds, but ride the PRESENCE with care as there is substantially more high end here than any other power choice.

TRIODE/PENTODE EL34 ONLY: This toggle switch located on the top (head) or underside (combo) of the chassis selects the type of operation the 2 x EL34 power tubes are wired for . As you might imagine, this setting affects the sound not only when these tw o tubes are selected alone, but also the three power amp selections where they are combined with the 6L6s’ as well. The type of wiring scheme these tubes operate in also affects overall wattage and output as well as the voicing and feel of the power section(s).

NOTE: FULL SIZE TOGGLE SWITCH

COMBO VERSION 2 x EL 34 (partial rear chassis view)

LEVEL

SLAVE

OUT

EL 34

REVERB

CH 2CH 4

CAUTION:

CH 2CH 4

USE SHORTING PLUG IF NO SPKRS IN B

HEAD VERSION 2 x EL 34 (partial rear chassis view)

CAUTION: USE SHORTING PLUG IF NO SPKR IN B

LEVEL

SLAVE

ESA

IEOOG

CH 1

CH 2

REVERB

OFF

LOOP 2

OFF

LOOP 1

A +

DIODE

EL 34

TRIODE: produces a softer, creamier, more forgiving style of output section often associated with early vintage amplifiers. This setting produces less output from the pair of EL34s’ and the y can be pushed into clip more easily and ha v e a smoother, silkier sound when they do clip. Because of the lower output characteristic of TRIODE style wiring, all three of the output section choices that utilize the EL34s’ will be weak er output-wise . The y will also e xhibit a more rolled off cut region (treb le frequencies and abov e) and an o v er all softer attack. This is often preferable for Blues, Roots and higher gain legato single note solo sounds or any style that begs for a rounder, less pointed attack and sweeter clip characteristic.

PENTODE: offers a more powerful, urgent, punchy style of output power and would be considered the more modern way of wir ing a power section for efficiency and overall wattage. This position produces substantially more power and the onset of clip occurs at a much higher volume range. Along with the added power comes a more pronounced bump in the cut region that makes this setting seem even more po werful. Like the TRIODE position, this setting affects the sound any time the EL34s’ are combined with the 6L6s’. These three output sections will respond with substantially more output and increased punch. The Progressive Linkage rotary will demonstrate this when you sweep from the 2 x EL34 position up through the 2 x EL34 + 4 x 6L6 position with the volume getting

PA G E 1 7

REAR PANEL CONTROLS & FEATURES

(Continued)

PENTODE: (Continued) progressively louder as you add output tubes. Because of this, the PENTODE position would be best for demonstrating the Progressive Linkage feature. PENTODE is the choice for loud clean playing in Channels 1 & 2 where maximum headroom is needed along with a bright clear attack. PENTODE would also be the choice for the tightest Bass response in high gain or saturated settings in Channels 3 & 4. When pushed to clip in this setting the El34s’ respond with a more aggressive top end quality that is great for heavy styles of music where you need added sizzle and a brash, bold edge.

NOTE: It is normal for the volume level to drop as you switch the EL34s’ into the circuit with the combined power section choices (2 X 6L6 + 2 x EL34 etc.) when the TRIODE / PENTODE switch is set to TRIODE

POWER FUSE

CHANNEL

120 V~

4 A

60 Hz

SLO

4 A

BLO

FOOT

CONTROLLER

FUSE

EXT.

CH4 CH3

SOLO REVERB LOOP 1 LOOP 2

SWITCH

CH2 CH1

BYPASS

LOOPS, SOLO

& MASTER CONTROLS

RETURN 1

SEND LEVEL

SEND 2 RETURN 2

COMBO VERSION 2 x EL 34 (partial rear chassis view)

HEAD VERSION 2 x EL 34 (partial rear chassis view)

CAUTION: USE SHORTING PLUG IF NO SPKR IN B

LEVEL

SLAVE

ESA

OOGIE

CH 1

CH 2

REVERB

OFF

LOOP 2

OFF

LOOP 1

CH 1

NORMAL

10% 90%

LOOP 2

MIX

10%

FTSW MIX

EXT. TRIGGERS

P U L S E

DIODE

TUBE-TRACKING

RECTO

SPKR

CH 4

A + B

OFF

LOOP 1

I N G

90%

STR 430

6L6 GC

EL 34 EL 34

OFF

LOOP 2

6L6

2xEL+ 4x6L6

NORMAL

DIODE

RECTO

TUBE-TRACKING

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

OFF

TUBE-TRACKING

LOOP 2

STR 430

6L6 GC

OFF

LOOP 1

A + B

CH 2

2xEL34

EL34

2x6L6

DIODE

RECTO

TUBE-TRACKING

2x6L6

2xEL34

SPKR

CH 3

EL34

DIODE

TUBE-TRACKING

RECTO

6L6

A + B

PROGRESSIVE

SPKR

LINKAGE

A + B

OFF

LOOP 1

LOOP 2

6L6

2xEL+

4x6L6

STR 430

6L6 GC

STR 430

OFF

DIODE

LOOP 1

LOOP 2

A + B

RECTO

CH 3

2x6L6

NORMAL

2xEL34

EL34

6L6

DIODE

RECTO

TUBE-TRACKING

DIODE

LOOP 1

LOOP 2

RECTO

TUBE-TRACKING

CH 4

2x6L6

NORMAL

2xEL34

6L6

EL34

6L6

EXT TRIGGERS

P U L S E L A T C H

6L6 GC

STR 430

RETURN 2

NORMAL

SEND 2

NORMAL

10% 90%

CH 1

STR 430

6L6 GC

RETURN1

NORMAL

LOOP 2

MIX

BYPASS

LOOPS, SOLO

& MASTER CONTROLS

REVERB

CH 2CH 4

EL 34EL 34

6L6 GC

STR 430

REV ERB SOLO

LOOP 2 LOOP 1

EXT

CH1 CH2

SWITCH

CH3 CH4

CAUTION:

USE SHORTING PLUG IF NO SPKRS IN B

CONTROLLER

6L6 GC

STR 430

FOOT

POWER FUSE

LEVEL

SLAVE

FUSE

120 V~ 4 A

OUT

NOTE: It has been our experience that different types of EL34 seem to have drastically different sonic characters. The classic skinny

German Seimens type sound much as they look, skinny and bright with a looser nature, and are by far the best sounding EL34 to our ears. These tubes are out of production and are available only as coveted New Old Stock and most EL34 aficionados search far and wide for these harmonically luscious pentodes. For

Road King

owners we have a limited supply of these New Old Stock tubes and you can contact our Customer Service Dept. and they can sell you a set. However, these are unfortunately, less reliable and if you prefer these, we suggest that you keep a spare set and some fuses on hand should they go bad. We suggest using these tubes for recording only in a stable environment, as they do not seem sturdy enough for the rigors of the road.

PA G E 1 8

REAR PANEL CONTROLS & FEATURES

(Continued)

2xEL34: (Continued) Because the Seimens tubes are no longer available in quantity, we have shipped your amplifier with the best sounding EL34 currently available. This EL34 is made in Russia and has very similar characteristics to that of the Seimens and actually has slightly more output. Best of all is that these tubes are much more reliable and are available and still being made. We suggest using these for your live and all around applications. The fatter U.S. type (also known as 6CA7) produce a sound that has some of the characteristics of the 6L6 and they too sound like they look, f atter and beefier, which is not as readily identifiable as a true EL34 sound. As you might guess , we ha v e found these to be more reliable also and it comes down to which is more important to your individual needs. Regardless of your choice it is always a good idea to carry a full set of extra tubes and fuses in your cord bag at all times whenever using gear that relies on this quirky, yet most toneful technology.

2x6L6 / 2xEL34: revisits a harness we used back in the mid ‘80’s when we shipped our patented

Simul-Class Mark II-C

amplifiers with a pair of each of these classic tube types. The combination produced a legendary power sound that was used by the heaviest of L.A.’ s session pla yers of the da y. Steve Lukather , Mik e Landau and Dan Huff (as well as pla yers around the w orld) became instant fans of this unique sound and blessed many a great track with their phenomenal playing through this blistering power combo.

Simul

It made perfect sense to us to combine these two sonically opposite pentodes and the wiring of our

power section made this

previously overlooked magic possible. In the

Road King

this combination is achieved by different means but produces no less amazing results. This power section also works well with both clean and overdriven sounds as the combination produces the balance that the EL34’s sometimes lack for clean sounds.

For lead or crunch rhythm sounds it is an explosive blend as the 6L6 provide the midrange punch and low end fatness and definition, while the EL’s infuse the top end with their shredding aggressive urgency. This marriage of tubes produces one of the most aggressive power sounds of any amplifier ever. Be sure to check it out in combination with the CHANNEL 3 and 4 MODERN mode for a lesson in bad attitude.

POWER FUSE

120 V~

4 A

60 Hz

SLO

4 A

BLO

FUSE

CHANNEL

CH4 CH3

FOOT

CONTROLLER

SOLO REVERB LOOP 1 LOOP 2

EXT.

SWITCH

CH2 CH1

BYPASS

LOOPS, SOLO

& MASTER CONTROLS

RETURN 1

10%

FTSW MIX

SEND LEVEL

SEND 2 RETURN 2

90%

EXT. TRIGGERS

I N G

P U L S E

DIODE

TUBE-TRACKING

RECTO

SPKR

CH 4

2x6L6

2xEL34

EL34

DIODE

TUBE-TRACKING

RECTO

6L6

A + B

PROGRESSIVE

SPKR

LINKAGE

LOOP 2

CH 3

DIODE

A + B

OFF

TUBE-TRACKING

OFF

SPKR

RECTO

LOOP 1

LOOP 2

A + B

OFF

LOOP 1

6L6

2xEL+

4x6L6

10% 90%

CH 1

NORMAL

LOOP 2

MIX

REVERB

CH 2CH 4

CAUTION:

USE SHORTING PLUG IF NO SPKRS IN B

LEVEL

SLAVE

OUT

COMBO VERSION 2 x 6L6 and 2 x EL 34 (partial rear chassis view)

STR 430

6L6 GC

STR 430

6L6 GC

STR 430

6L6 GC

STR 430

6L6 GC

EL 34EL 34

PA G E 1 9

REAR PANEL CONTROLS & FEATURES

(Continued)

HEAD VERSION

EL 34 EL 34

6L6 GC

STR 430

6L6 GC

STR 430

6L6 GC

STR 430

6L6 GC

STR 430

2 x EL 34 and 4 x 6L6 (partial rear chassis view)

REV ERB SOLO

CAUTION: USE SHORTING PLUG IF NO SPKR IN B

LEVEL

SLAVE

RETURN 2

ESA

OOGIE

CH 1

CH 2

REVERB

OFF

LOOP 1

LOOP 2

NORMAL

10% 90%

LOOP 2

MIX

CH 1

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

DIODE

RECTO

TUBE-TRACKING

6L6

2xEL+ 4x6L6

OFF

LOOP 2

NORMAL

OFF

DIODE

LOOP 2

LOOP 1

A + B

RECTO

TUBE-TRACKING

CH 2

2x6L6

NORMAL

2xEL34

EL34

6L6

OFF

DIODE

LOOP 2

LOOP 1

A + B

RECTO

TUBE-TRACKING

CH 3

2x6L6

NORMAL

2xEL34

EL34

6L6

EXT TRIGGERS

OFF

DIODE

LOOP 1

S E

RECTO

TUBE-TRACKING

CH 4

2x6L6 2xEL34

EL34

6L6

NORMAL

T C H

SEND 2

NORMAL

RETURN1

4x6L6 is the tried and true power section for high power and great tone. This classic string provides the best o v er all balance for all 4

of the

Road King

preamps with no tonal downsides. There are no liabilities with this super tight, w ell rounded quartet as they produce smooth response over the entire frequency range and pro vide a cohesiveness to even the most extreme o v erdrive sounds . The y also provide the sweetest high power clean sounds because, even though all six power tubes run together produces more power, they create some peaks that are great for super high volume playing but lack the pristine blend of the 4 x 6L6 harness. This is also the power section that has been so successful in the

Dual Rectifier SOLO Head!

BYPASS

LOOPS, SOLO

& MASTER CONTROLS

LOOP 2 LOOP 1

CH1 CH2

EXT

SWITCH

CH3 CH4

FOOT

CONTROLLER

FUSE

POWER FUSE

120 V~ 4 A

If you are looking f or the amazing liquid gain sounds from the mode, this power setting will duplicate those radical sounds in all their glory. Remember to match up the Rectifier…to cop the

Rectos’

VINTAGE mode or the inf amous grind of the

Rectos’

MODERN

Rectos’

most popular settings set to TUBE TRACKING for VINTAGE and DIODE for MODERN.

POWER FUSE

120 V~

4 A

60 Hz

SLO

4 A

BLO

FUSE

CHANNEL

CH4 CH3

FOOT

CONTROLLER

SOLO REVERB LOOP 1 LOOP 2

EXT.

SWITCH

CH2 CH1

BYPASS

LOOPS, SOLO

& MASTER

CONTROLS

RETURN 1

10%

FTSW MIX

SEND LEVEL

SEND 2 RETURN 2

90%

EXT. TRIGGERS

I N G

P U L S E

DIODE

TUBE-TRACKING

RECTO

SPKR

CH 4

A B

2x6L6

2xEL34

EL34

DIODE

TUBE-TRACKING

RECTO

6L6

PROGRESSIVE

SPKR

LINKAGE

LOOP 2

CH 3

DIODE

A + B

OFF

TUBE-TRACKING

OFF

SPKR

RECTO

LOOP 1

LOOP 2

OFF

LOOP 1

6L6

2xEL+

4x6L6

10% 90%

CH 1

NORMAL

LOOP 2

MIX

REVERB

CH 2CH 4

CAUTION:

USE SHORTING PLUG IF NO SPKRS IN B

LEVEL

SLAVE

OUT

COMBO VERSION 4 x 6L6 (partial rear chassis view)

STR 430

6L6 GC

STR 430

6L6 GC

STR 430

6L6 GC

STR 430

6L6 GC

EL 34

PA G E 2 0

REAR PANEL CONTROLS & FEATURES

(Continued)

EL 34 EL 34

HEAD VERSION 4 x 6L6

6L6 GC 6L6 GC

STR 430 STR 430

6L6 GC

STR 430

6L6 GC

STR 430

(partial rear chassis view)

REV ERB SOLO

CAUTION: USE SHORTING PLUG IF NO SPKR IN B

LEVEL

SLAVE

RETURN 2

ESA

OOGIE

CH 1

CH 2

REVERB

OFF

LOOP 1

LOOP 2

NORMAL

10% 90%

LOOP 2

MIX

CH 1

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

DIODE

RECTO

TUBE-TRACKING

6L6

2xEL+ 4x6L6

OFF

LOOP 2

NORMAL

OFF

DIODE

LOOP 2

LOOP 1

A + B

RECTO

TUBE-TRACKING

CH 2

2x6L6

NORMAL

2xEL34

EL34

6L6

OFF

DIODE

LOOP 2

LOOP 1

A + B

RECTO

TUBE-TRACKING

CH 3

2x6L6

NORMAL

2xEL34

EL34

6L6

EXT TRIGGERS

OFF

DIODE

LOOP 1

S E

RECTO

TUBE-TRACKING

CH 4

2x6L6 2xEL34

EL34

6L6

NORMAL

T C H

SEND 2

NORMAL

RETURN1

2xEL34 + 2x6L6: is the heavy artillery for large venues, extreme headroom or for any time you need to add unequaled power to any

of your sounds. This setting wires up all six power tubes to produce roughly 135 watts of crushing power and therefor, you may find it hard to utilize in smaller rooms. In some cases the feel on the strings may be a bit stiff, or at least tighter at these lower relative volumes because the power section is running at idle up until volume levels loud enough to need substantial room to breath.

BYPASS

LOOPS, SOLO

& MASTER CONTROLS

LOOP 2 LOOP 1

CH1 CH2

EXT

SWITCH

CH3 CH4

FOOT

CONTROLLER

FUSE

POWER FUSE

120 V~ 4 A

Howe v er, when it comes time to play outdoor gigs or big stage venues , there is no mistaking the authority, punch and definition of this mighty power section. A bolder version of the 2 + 2 combination, this scheme relies more on the 6L6’s and therefor is a little richer in character with slightly less emphasis on the top end than the harness with equal pentode representation. This makes for a sound that has more midrange punch and low mid fatness and will work equally well for either clean rhythm or high gain lead sounds.

POWER FUSE

120 V~

4 A

60 Hz

SLO

4 A

BLO

FUSE

CHANNEL

CH4 CH3

FOOT

CONTROLLER

SOLO REVERB LOOP 1 LOOP 2

EXT.

SWITCH

CH2 CH1

BYPASS

LOOPS, SOLO

& MASTER

CONTROLS

RETURN 1

10%

FTSW MIX

SEND LEVEL

SEND 2 RETURN 2

90%

EXT. TRIGGERS

I N G

P U L S E

DIODE

TUBE-TRACKING

RECTO

SPKR

CH 4

2x6L6

2xEL34

EL34

DIODE

TUBE-TRACKING

RECTO

6L6

A + B

PROGRESSIVE

SPKR

LINKAGE

LOOP 2

CH 3

DIODE

A + B

OFF

TUBE-TRACKING

OFF

SPKR

RECTO

LOOP 1

LOOP 2

A + B

OFF

LOOP 1

6L6

2xEL+

4x6L6

10% 90%

CH 1

NORMAL

LOOP 2

MIX

REVERB

CH 2CH 4

CAUTION:

USE SHORTING PLUG IF NO SPKRS IN B

LEVEL

SLAVE

OUT

COMBO VERSION 4 x 6L6 and 2 x EL 34 (partial rear chassis view)

STR 430

6L6 GC

STR 430

6L6 GC

STR 430

6L6 GC

STR 430

6L6 GC

EL 34

PA G E 2 1

REAR PANEL CONTROLS & FEATURES

(Continued)

HEAD VERSION

EL 34 EL 34

6L6 GC

STR 430

6L6 GC

STR 430

6L6 GC

STR 430

6L6 GC

STR 430

2 x EL 34 and 4 x 6L6 (partial rear chassis view)

CH1 CH2

REV ERB SOLO

EXT

SWITCH

CH3 CH4

FOOT

CONTROLLER

FUSE

POWER FUSE

120 V~ 4 A

CAUTION: USE SHORTING PLUG IF NO SPKR IN B

LEVEL

SLAVE

RETURN 2

ESA

OOGIE

CH 1

CH 2

REVERB

OFF

LOOP 1

LOOP 2

CH 1

NORMAL

10% 90%

LOOP 2

MIX

A +

TUBE-TRACKING

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

DIODE

RECTO

6L6

2xEL+ 4x6L6

OFF

LOOP 2

NORMAL

OFF

DIODE

LOOP 2

LOOP 1

A + B

RECTO

TUBE-TRACKING

CH 2

2x6L6

NORMAL

2xEL34

EL34

6L6

OFF

DIODE

LOOP 1

LOOP 2

LOOP 1

A + B

RECTO

TUBE-TRACKING

CH 3

2x6L6

NORMAL

2xEL34

EL34

6L6

EXT TRIGGERS

OFF

DIODE

A +

S E

RECTO

TUBE-TRACKING

CH 4

2x6L6

2xEL34

EL34

6L6

NORMAL

T C H

SEND 2

NORMAL

RETURN1

BYPASS

LOOPS, SOLO

& MASTER CONTROLS

LOOP 2 LOOP 1

RECTIFIER SELECT with TUBE TRACKING: This amazing feature takes our patented Dual Switchable Rectifier concept a step further and allows the tube rectifier circuit to track the PROGRESSIVE LINKAGE switchable power and provide the correct amount of rectification for each pow er section. The original choices of TUBE or SILICON DIODE are still in place b ut here , when RECT O TUBETRACKING is selected in each Channel Strip, rectifier tubes are selected depending on the needs of each of the 5 power sections. This means that you can tune each of the Channels’ power feel to the preamp sound you are dialing. You might want CHANNEL 1 running the DIODE with 4 x 6L6 for high headroom clean work while CHANNEL 2 runs TUBE-TRACKING with 2 x EL34 for a loose

2x6L6

2xEL34

2x EL34 2x

6L6

PROGRESSIVE

LINKAGE

DIODE

TUBE-TRACKING

RECTO

6L6

2xEL+

4x6L6

SPKR

CH 4

edgy roots rhythm sound. For the Lead Channels, you might want CHANNEL 3 VINTAGE pumping TUBE-TRACKING through the 2 x 6L6 + 2 x EL34 for smoldering single note solos and DIODE pushing 4 x 6L6 for the tightest of CHANNEL 4 MODERN grinding crunch rhythm sounds. Countless choices are possible with the many different combinations and they all have their place for specific sounds. There are Front Panel LED indicators labeled RECTIFIER STATUS that keep y ou currently informed of your Channel Specific choices of Rectifier style. Here is an explanation of how the two choices work;

DIODE: calls up the silicon diode rectifier, which offers more punch, a tighter attack with more brightness and substantially more headroom. This rectifier choice provides the highest power and therefor the tightest rectification. This setting would be best for any application where maximum headroom is needed or tight bass response is called for. Situations that usually require this are clean rhythm playing or extreme high gain crunch rhythm sounds.

RECTO TUBE-TRACKING: takes a power section walk down memory lane, paying tribute to those vintage gems of yesteryear. In

were

those early days of amplification the only rectifiers available

tubes. Unbeknownst to their creators, these sweet sounding amplifiers would someday become relics as the demand for higher volumes and more power per package led to the abandonment of the tube as a rectifier, in favor of the five cent silicon diodes’ greater efficiency. With this decision went much of the sweetness and soul and by the late ‘60’s most amps were bold, loud and efficient…but unfortunately sometimes lacking that earlier soul. We sought to

6L6

PROGRESSIVE

ODE

RACKING

CTO

LINKAGE

SPKR

2xEL+ 4x6L6

10% 90%

LOOP 2

MIX

CH 4

A +

OFF

LOOP 1

LOOP 2

bring that magic soul, personality and feel to the circuit does just that.

In the

Road King

it was a little more of a challenge however, because each of the 5 power sections would

require a different amount

Dual Rectifier

PA G E 2 2

Series, and the resurrection of this age-old

REAR PANEL CONTROLS & FEATURES

(Continued)

RECTIFIER SELECT with TUBE-TRACKING: (Continued) of rectification to put out its full power potential. And beyond that, each channel would have to be able to have these two interrelated circuits pre-assigned specifically and independently! This led to the concept of RECTIFIER TUBE-TRACKING. In this innovative circuit a rectifier tube, or pair of rectifier tubes, is selected to correctly match the power tube choices you select. Here is a list of the matched sets;

Rectifier / Power Tube Combinations In TUBE-TRACKING

2 x 6L6 ~ 1 x 5U4G 2 x EL34 ~ 1 x 5U4G 2 x 6L6 + 2 x EL34 ~ 2 x 5U4G 4 x 6L6 ~ 2 x 5U4G 2 x EL34 + 4 x 6L6 ~ Silicon Diode

You will notice that when all six power tubes are in use, the rectification type matched to this high horsepower string is the silicon diodes. Tube rectification is not av ailab le or possible for this power harness and there are two reasons for this. First, the choice would rarely be used if it were available because the whole point of this extreme power section is very high volume applications such as in large venues or extreme heavy styles of music. In these two arenas the slower, looser tube rectifier would be out of its league and begin sagging-out before the power tubes reached their potential full output. We have confirmation of this by polling our

Rectifier

Diodes even when the y

Ar tists and players that use this mighty amp to its full volume potential in large venues and they uniformly use the Silicon

have the choice of TUBE RECTIFIER. Second, the

Road King

is supremely packed with circuitry making

Triple

the channel specific programmable features possible, including six power tubes, that there was literally no room to include one more 5U4G which would be needed to properly rectify this harness. After spending time with these choices you will find – like we did - that you use the highest power all-six-at-once section for exactly what it was designed for, and is best at…loud, crushing volumes and super tight attack. Two applications that are at the sonically opposing end of the spectrum from the characteristics of tube rectification.

SPEAKER A/B & A+B SELECT SWITCH: As mentioned earlier in the SPEAKER OUTPUT section, this mini toggle assigns the signal to either one or both of the Speaker Output jacks . The def ault setting would be considered “A” and therefor the dummy shorting jack that protects the output transformer is connected to the “B” Output and should remain so until you connect a speaker load to this output.

2x6L6

2xEL34

2x EL34 2x

6L6

PROGRESSIVE

LINKAGE

DIODE

6L6

2xEL+

4x6L6

CH 4

PLEASE READ THE SPEAKER OUTPUT SECTION AS IT CONTAINS INFORMATION PERTAINING TO YOUR WARRANTY, as well as information to help you utilize this feature to its full potential without damaging your amplifier.

NOTE: Do not use the SPKR A + B selection when two 8 Ohm cabinets are each connected to the two 4

TUBE-TRACKING

SPKR

RECTO

Ohm OUTPUTS of each Speaker Output Bank. Using a 2 Ohm load puts an excessive strain on the power tubes and will cause them to wear out unusually fast.

LOOP 1 & LOOP 2 SELECT SWITCHES: These two mini toggle switches assign the two EFFECTS LOOPS, Ser ies and Parallel respectively, in each of the Channels and determine their status in the signal path. Once the LOOPS have been engaged, their Channel specific status is sent to the Front Panel FX LOOPS LED indicators that sit between the pairs of Channels for at-a-glance monitoring of their status. See the EFFECTS LOOPS section for more information on the LOOPS.

NOTE: Remember that the EFFECTS LOOP must be engaged in the EFFECTS LOOP section of the Rear Panel for signal to be routed via these switches.

DIODE

TUBE-TRACKING

RECTO

SPKR

CH 4

A +

OFF

LOOP 1

OFF

LOOP 2

PA G E 2 3

REAR PANEL CONTROLS & FEATURES

(Continued)

LOOP 2 MIX: This rotary control determines the dry/wet ratio of the Parallel Effects Loop in each of the 4 Channels. Remember that the SERIES (LOOP 1) Loop dry/wet ratio must be controlled at the processor that is inserted into its SEND & RETURN jacks. LOOP 1 has a

predetermined level of RETURN signal strength at the Return stage of the amplifier, which is critical to overall performance. Only LOOP 2, because of its Parallel signal path, can be adjusted as to how much of its signal will be fed back in with the main signal. Keep this fact in mind when dedicating the processors you wish to use to one or the other of the LOOPS.

NOTE: Remember that the EFFECTS LOOP must be engaged in the EFFECTS LOOP section of the Rear Panel and something connected to the LOOP 2 insert jacks for this control to have any effect on the signal.

EL34

6L6

PROGRESSIVE

LINKAGE

2x6L6

2xEL34

6L6

2xEL+ 4x6L6

10% 90%

CH 4

A +

SPKR

NORMAL

LOOP 2

OFF

LOOP 1

MIX

OFF

LOOP 2

That wasn’t so bad…was it. Now you are a Master Of Channels and can confidently begin to dial and dedicate each of the four Channels to a specific sound and application. Before we continue, take a while to enjoy these different Channels and we will pick it up when you finish to go over the EFFECTS LOOP and the rest of the features on the Rear Panel.

EXTERNAL TRIGGERS: These two jacks provide trigger ports for the remote control of external effects de vices , drum machines, samplers or anything that will accept either momentary or tip-to-ground logic as a control language. By connecting a cable from the unit you wish to control to these

jacks you may control the status of the device(s) by hitting the EXT TRIG button located in the center of the Footcontroller. As mentioned, there are two types of logic and each has a separate jac k so that one button can control two devices.

PULSE triggers a “one-shot” momentary type pulse that will control virtually anything requiring momentary pulse logic.

latches

LATCHING connects the tip-to-ground and

unlatched

from ground.

them in this state until the EXT TRIG button re-

NORMAL

FTSW MIX

RETURN 2

HANDBUILT

IN PETALUMA

CALIFORNIA, USA

90%

EXT. TRIGGERS

L A T C H

N G

P U L S E

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

DIODE

TUBE-TRACKING

RECTO

CH 4

SPKR

offer or electric No userRefer sonnel

10%

ceives another keystroke, at which time the tip is NOTE: Unshielded (speaker cable will work) cable is recommended for the control lines used in the EXTERNAL TRIGGER applica-

tions. If you have only shielded cable, this will suffice until such time that you can obtain unshielded cable.

EFFECT LOOPS: As we mentioned earlier, there is a SERIES LOOP (1) and a PARALLEL LOOP (2) for your processing needs. The entire LOOP section of the amplifier may be hard Bypassed to omit all associated loop circuitry from the signal path. When BYPASS is selected,

both LOOPS along with their controls, the Front Panel OUTPUT and SOLO controls and two

LOOP SYSTEM

ACTIVE

BYPASS

LOOPS, SOLO

& MASTER CONTROLS

SEND 1

RETURN 1

WARNING: To reduce risk of fire or electric

shock, Do not remove cover. No userserviceable parts inside. Refer servicing to qualified personnel.

NORMAL NORMAL

10%

SEND LEVEL

SEND 2 RETURN 2

FTSW MIX

12AX7’s are taken out of the circuit. This leaves the individual Channel MASTER controls as the main volume controls. Front Panel LED indicators for each Loop located between the pairs of Channels to keep you abreast of LOOP 1 & 2 status.

90%

NOTE: It is important to understand that the two EFFECTS LOOPS were designed to work best with a unity gain signal. By increasing the gain on your processors Input or Output beyond this point, you run the risk of experiencing a high pitched squeal or feedback. This is a result of the SEND and RETURN jack being connected together by adding

excessive gain at the processors Input and Output stage, thus reducing the internal separation between these stages we have built into the

Road Kings’

EFFECTS LOOP. Wh y can’t there be more separ ation at this point in the circuit? There could be if we -and you

- didn’t care about TONE. This is an extremely sensitive part of any amplifier, and we have always chosen these most critical part values on the side of TONE, knowing that if the loops are used properly - with high quality processors there will be no problems.

PA G E 2 4

REAR PANEL CONTROLS & FEATURES

EFFECT LOOPS: (Continued) Please try to keep in mind that this is a high performance amplifier and should be used in conjunction with outboard gear of equal quality. If you must use lesser processing, you will have to tolerate any degradation in sound quality and remember that turning up the gain of such a processor much at all will only cause feedback problems.

LOOP 1 ~ SERIES: Since LOOP 1 is a series loop and has no controls for either send or return stages, it comes first in the signal path. Because of this, The LOOP 1 RETURN feeds the SEND of LOOP 2, so when dedicating processors to the LOOPS this should be considered. There are many who feel that Chorus, Flange and Dela y type effects should come before Reverb type effects in the signal path, but feel free to experiment as there is no telling what cool combinations you might come across.

LOOP 2 ~ PARALLEL: The PARALLEL LOOP is a more advanced Loop setup than the SERIES LOOP in which part of the signal is taken at the end of the preamp and a separate circuit is created for processing that runs in parallel with the main signal. After the RETURN jac k, a MIX control is wired in to blend a portion of this signal back into the main signal path. The point behind this type of loop is that you are not altering (degrading) the pure amp signal in any way. Then the altered (processed) signal can be mixed back with the original dry signal in small amounts, keeping the original signal as pure as possible and avoid changing the bold, urgent sound of the amp with processing devices. The pre-assign it per channel. This scenario created the need for 2 separate MIX controls; one in each Channel Strip and one connected to the footswitch buss. In this way you can have two settings of RETURN strength for the PARALLEL LOOP! The Channel Strip LOOP 2 MIX is active all the time once the EFFECTS LOOP has been activated and LOOP 2 switched into the signal path in a given Channel. The FTSW MIX overrides the Channels LOOP 2 MIX whenever the LOOP 2 button is selected on the Footcontroller. Though a little deeper to understand, this scheme provides for some wonderful performance possibilities.

Road King

is even more comprehensive, as you are able to footswitch this PARALLEL LOOP in and out on the fly or

(Continued)

NOTE: Remember that the LOOP BYPASS switch removes all LOOP circuitry from the signal path including, 2 x 12AX7s’, LOOPS 1 & 2, and the OUTPUT and SOLO controls.

The elements of the PARALLEL LOOP are as follows;

1.) An ASSIGN mini toggle switch labeled LOOP 2 in each of the 4 Channel Strips.

2.) A SEND LEVEL control that allows matching of post Channel levels to your processors Input.

3.) A LOOP 2 MIX in each of the 4 Channel Strips, allowing you to dial between 10% and 90% of the RETURN jacks signal

4.) A SEND jack that provides a padded signal from the preamp to accommodate the processors Input.

5.) A RETURN jack that accepts the signal from the processors OUTPUT and boosts the level back up to unity gain to be mixed back in with the original signal in parallel with the MIX controls.

6.) An OUTPUT control (Front Panel) that is the EFFECTS LOOP Return Stage level control that doubles as an overall level control. This allows the individual Channel levels to be matched using the Channel MASTER controls and then the entire amplifier can be turned up or down by using the OUTPUT control.

PATCHING EFFECTS: Try this method of interfacing outboard processors for the best results;

LOOP 1:

1.) Connect the SEND jack to the processors’ INPUT

PA G E 2 5

REAR PANEL CONTROLS & FEATURES

PATCHING EFFECTS: (Continued)

2.) Connect the processors’ OUTPUT (MONO) to the RETURN jack.

3.) Set the processors’ internal dry/wet mix to the desired level.

NOTE: Remember that LOOP 1 RETURN feeds the LOOP 2 SEND, so if there are any sequence related processing issues, put the first thing here in LOOP 1.

LOOP 2 :

1.) Connect the SEND jack to the processors’ INPUT

2.) Connect the processors’ OUTPUT (MONO) to the RETURN jack.

3.) Set the 4 Channels to their desired Mode and balance the volumes with the MASTER controls.

NOTE: Keep in mind that cleaner sounds, although they appear to be the same volume as saturated sounds, send a more dynamic signal to your processor and therefor will probab ly register a hotter signal on the processors’ Input indicator. This is not a prob lem, b ut it will be of interest when setting up your sounds in the channels. Set the Channels for their relative volume and don’t pay too much attention to the processors Input unless you experience clipping. If so, reduce all the Channel MASTER controls a bit and compensate with the OUTPUT control.

(Continued)

4.) Select the LOOP SYSTEM ACTIVE position on the EFFECTS LOOP switch.

5.) Assign the two LOOP select switches in each of the 4 Channel Strips to the desired status.

6.) Fine tune the Send level strength with the SEND LEVEL control in the EFFECTS LOOP section so that the processors input is not clipping in any Channel and still sending adequate level. The NORM region mar ked on the controls sweep between 11:00 and 2:00 should provide a good match for most processors. Don’t worry if the level dropped…you still have the OUTPUT level control at the RETURN stage.

7.) Set the desired mix of dry to wet with the LOOP 2 MIX control in each of the 4 Channel Strips.

8.) Bring the amplifier up to the desired playing level with the Front Panel OUTPUT control.

9.) Select the LOOP 2 button on the Footcontroller and set the FTSW MIX control in the EFFECTS LOOP section to the desired dry / wet mix ratio.

NOTE: The best tonal results are usually found with the PARALLEL LOOP by blending a small amount of a very wet signal back in

with the original dry sound. To do this, try setting the effects mix in the processor that is to be used in the PARALLEL LOOP to 100% wet and the LOOP 2 MIX or FTSW MIX to its lower region. This scheme will best preserve the original signal from degradation.

NOTE: It is possib le to use the Road King as a power sla ve f or additional Use the RETURN jack and turn the LOOP 2 MIX in the Channel you are using (we suggest Channel 1) to 100%. In this scenario the PRESENCE and OUTPUT level controls will remain active. The SOLO can still be used as a footswitchable boost.

Road Kings

, external preamps or effects in a stereo set-up .

NOTE: When using the CHANNELS1 and 2. For increased power sensitivity you may choose the incredibly sensitive CHANNEL 3 or 4 MODERN mode. This

Road Kings’

EFFECTS RETURN jack as a Power Amp Input, the input sensitivity will be most “normal” in

PA G E 2 6

REAR PANEL CONTROLS & FEATURES

(Continued)

PATCHING EFFECTS: (Contin ued) will increase the pow er section input sensitivity by an order of ten. Be warned, this will make the OUTPUT level control extremely sensitive and the amplifier will be LOUD!

NOTE: See the section on OUTPUT in the CONTROLS section earlier in this manual for more information on using the

Road King

as power amp only.

EXTERNAL SWITCHING: These eight jacks are provided so that you may control the 4 Channels, the 2 LOOPS, The Reverb and the SOLO feature with an external master Switching device. This is essential to use the

Road King

as part of a Midi rig where all sounds are called up via a Midi

Footcontroller and both amplifier and effects settings are stored under a midi program

WARNING

To reduce risk of fire or

CH 2

CH 1

CHANNEL

FOOT

CONTROLLER

CH 3

electric shock, replace fuse with

same type and rating only. Do not

ROAD

KING

expose this unit to rain or moisture.

CH4 CH3

SOLO REVERB LOOP 1 LOOP 2

EXT.

SWITCH

CH2 CH1

LOOP SYSTEM

ACTIVE

BYPASS

LOOPS, SOLO

& MASTER

CONTROLS

Two different A.C. power voltages may be Selected in your

number. The logic used to trigger these por ts is simple tip-to-ground, latching type and most Master switching systems incorporate several jacks dedicated to this logic.

The EXTERNAL SWITCHING jacks override the

Road Kings’

Footcontroller. Once a Channel or Feature has been triggered “On” at the EXT. Switch por ts, it may not be controlled or turned “Off” until the logic at the Switch Port is reversed.

Road King

by using the built-in Variac feature of the SPONGY / BOLD

switch.

POWER: SPONGY / BOLD SPONGY works as a Variac to reduce all internal voltages, giving the whole amplifier a sweeter, looser feel and when used with the

RECTIFIER TUBE-TRACKING can achieve the elusive “Brown” sound. Clean sounds will be scoopier in the midrange and the top end harmonics will move forward a bit in the mix. Overdrive sounds will seem more legato and spread out, feeling looser and slightly brighter. Be sure to check out SPONGY in combination with the 2 x EL34 power section set to RECTO TUBE-TRACKING for the

ultimate brown clip. Another cool (literally) benefit to using the SPONGY position is that tube life will be substantially

BOLD SPONGY

increased as the voltage is lowered to the point that the tubes are way below their ratings and will last longer with improved reliability.

POWER FUSE

120 V~

4 A

60 Hz

SLO

4 A

BLO

Don’t run your prefer the sound in BOLD (we do for most sounds) by all means…roast the buggers. With our many years of amplifier

Road King

in SPONGY for this reason alone…we have paid great attention to reliability and if you

building, and our contact with thousands of happy customers worldwide, tube life and reliability seem as much luck as anything else. Most customers never have to give their tubes a thought until they sound dull and need replacing as part

FUSE

of a routine maintenance schedule.

BOLD runs all internal voltages at their normal operating range and would be considered the all around, best sounding selection. This setting provides the highest headroom for the two Clean Channels and keeps the focus intact and the bass frequencies tight in the two high gain Channels. Use this setting for most live applications as it is the most versatile and powerful scenario.

PA G E 2 7

REAR PANEL CONTROLS & FEATURES

(Continued)

FUSE: This is the A.C.’s (Alternating Current) main fuse and provides protection from outside A .C. fluctuations as well as power tube failure damage. Should the FUSE blow, replace it with the same rating in a Slo-Blo type package. The domestic U.S. version requires a 4

amp Slo-Blo fuse. A power tube shor t or failure is often the cause of a blown fuse...Follow the cold start procedure

BOLD SPONGY

mentioned in the Hi Volts switch section and watch the power tubes as you flip the Hi Volts to the ON position. If a power tube is going bad or is arcing you will see it! Flip the Hi Volts switch down immediately and replace the faulty power tube and the FUSE if necessary.

POWER FUSE

120 V~ 60 Hz 4 A

4 A SLO BLO

If you see nothing abnormal as you lift the Hi Volts switch, it is possib le that a pow er tube shorted temporarily and blew the FUSE. If this is the case it may work again normally. To be safe, you might w ant to replace just the adjacent tube or all power tubes in the “shotgun” troubleshooting tradition and save the replaced set as spares. Spare fuses are a must

FUSE

for the fabled cord bag along with your spare tubes. Always carry both for they could be worth their weight in gold someday.

PA G E 2 8

FACTORY SAMPLE SETTINGS:

CHANNEL 1 SETTING #1 Versa Clean

CLEAN

FAT

TWEED

GAIN TREBLE MID BASS PRESENCE MASTER

CLEAN

FAT

BRIT

CHANNEL 1 SETTING #2 Spank

CLEAN

FAT

TWEED

GAIN TREBLE MID BASS PRESENCE MASTER

CLEAN

FAT

BRIT

CHANNEL 1 SETTING #3 Elastic Tweed

CLEAN

FAT

TWEED

GAIN TREBLE MID BASS PRESENCE MASTER

CLEAN

FAT

BRIT

DIODE

TUBE-TRACKING

RECTO

DIODE

TUBE-TRACKING

RECTO

DIODE

TUBE-TRACKING

RECTO

SPKR

CH 1

A +

CH 1

A +

CH 1

OFF

LOOP 1

OFF

LOOP 1

OFF

LOOP 1

OFF

LOOP 2

OFF

LOOP 2

OFF

LOOP 2

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

6L6

2xEL+ 4x6L6

10% 90%

CH 1

6L6

2xEL+ 4x6L6

10% 90%

CH 1

6L6

2xEL+ 4x6L6

10% 90%

CH 1

NORMAL

LOOP 2

MIX

NORMAL

LOOP 2

MIX

NORMAL

LOOP 2

MIX

CHANNEL 1 SETTING #4 Fat Solo

CLEAN

FAT

TWEED

GAIN TREBLE MID BASS PRESENCE MASTER

CLEAN

FAT

BRIT

DIODE

TUBE-TRACKING

RECTO

PA G E 2 9

SPKR

CH 1

A +

OFF

LOOP 1

OFF

LOOP 2

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

6L6

2xEL+ 4x6L6

10% 90%

CH 1

NORMAL

LOOP 2

MIX

FACTORY SAMPLE SETTINGS:

CHANNEL 2 SETTING #1 Skinny Skank

CLEAN

FAT

TWEED

GAIN TREBLE MID BASS PRESENCE MASTER

CLEAN

FAT

BRIT

CHANNEL 2 SETTING #2 Rhythm Mix

CLEAN

FAT

TWEED

GAIN TREBLE MID BASS PRESENCE MASTER

CLEAN

FAT

BRIT

CHANNEL 2 SETTING #3 Power Rhythm

CLEAN

FAT

TWEED

GAIN TREBLE MID BASS PRESENCE MASTER

CLEAN

FAT

BRIT

DIODE

TUBE-TRACKING

RECTO

DIODE

TUBE-TRACKING

RECTO

DIODE

TUBE-TRACKING

RECTO

SPKR

CH 2

A +

CH 2

A +

CH 2

OFF

LOOP 1

OFF

LOOP 1

OFF

LOOP 1

OFF

LOOP 2

OFF

LOOP 2

OFF

LOOP 2

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

6L6

2xEL+

4x6L6

10% 90%

CH 2

6L6

2xEL+ 4x6L6

10% 90%

CH 2

6L6

2xEL+ 4x6L6

10% 90%

CH 2

NORMAL

LOOP 2

MIX

NORMAL

LOOP 2

MIX

NORMAL

LOOP 2

MIX

CHANNEL 2 SETTING #4 Brit Grind

CLEAN

FAT

TWEED

GAIN TREBLE MID BASS PRESENCE MASTER

CLEAN

FAT

BRIT

DIODE

TUBE-TRACKING

RECTO

PA G E 3 0

SPKR

CH 2

OFF

LOOP 1

OFF

LOOP 2

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

6L6

2xEL+ 4x6L6

10% 90%

CH 2

NORMAL

LOOP 2

MIX

FACTORY SAMPLE SETTINGS:

CHANNEL 3 SETTING #1 Purring Blues

RAW

VINTAGE

GAIN TREBLE MID BASS PRESENCE MASTER

MODERN

RAW

MODERN

VINTAGE

DIODE

TUBE-TRACKING

RECTO

CHANNEL 3 SETTING #2 Smooth Grind

RAW

VINTAGE

GAIN TREBLE MID BASS PRESENCE MASTER

MODERN

RAW

MODERN

VINTAGE

DIODE

TUBE-TRACKING

RECTO

CHANNEL 3 SETTING #3 Liquid Solo (Recto Vintage)

RAW

VINTAGE

GAIN TREBLE MID BASS PRESENCE MASTER

MODERN

RAW

MODERN

VINTAGE

DIODE

TUBE-TRACKING

RECTO

CH3

SPKR

CH3

SPKR

CH3

SPKR

A +

OFF

LOOP 1

OFF

LOOP 1

OFF

LOOP 1

OFF

LOOP 2

OFF

LOOP 2

OFF

LOOP 2

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

6L6

2xEL+ 4x6L6

10% 90%

CH 3

6L6

2xEL+

4x6L6

10% 90%

CH 3

6L6

2xEL+

4x6L6

10% 90%

CH 3

NORMAL

LOOP 2

MIX

NORMAL

LOOP 2

MIX

NORMAL

LOOP 2

MIX

CHANNEL 3 SETTING #4 Giant Fur

GAIN TREBLE MID BASS PRESENCE MASTER

MODERN

RAW

MODERN

RAW

VINTAGE

DIODE

TUBE-TRACKING

RECTO

PA G E 3 1

CH 3

SPKR

OFF

LOOP 1

OFF

LOOP 2

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

6L6

2xEL+ 4x6L6

10% 90%

CH 3

NORMAL

LOOP 2

MIX

FACTORY SAMPLE SETTINGS:

CHANNEL 4 SETTING #1 Atlantic Blues

RAW

GAIN TREBLE MID BASS PRESENCE MASTER

MODERN

RAW

VINTAGE

MODERN

CHANNEL 4 SETTING #2 Stripped Grind

RAW

GAIN TREBLE MID BASS PRESENCE MASTER

MODERN

RAW

VINTAGE

MODERN

CHANNEL 4 SETTING #3 Hot Liquid Solo

RAW

GAIN TREBLE MID BASS PRESENCE MASTER

MODERN

RAW

VINTAGE

MODERN

VINTAGE

DIODE

TUBE-TRACKING

RECTO

DIODE

TUBE-TRACKING

RECTO

DIODE

TUBE-TRACKING

RECTO

CH4

SPKR

CH4

SPKR

CH4

SPKR

A +

OFF

LOOP 1

OFF

LOOP 1

OFF

LOOP 1

OFF

LOOP 2

OFF

LOOP 2

OFF

LOOP 2

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

6L6

2xEL+

4x6L6

10% 90%

CH 4

6L6

2xEL+ 4x6L6

10% 90%

CH 4

6L6

2xEL+ 4x6L6

10% 90%

CH 4

NORMAL

LOOP 2

MIX

NORMAL

LOOP 2

MIX

NORMAL

LOOP 2

MIX

CHANNEL 4 SETTING #4 Recto Modern

RAW

GAIN TREBLE MID BASS PRESENCE MASTER

MODERN

RAW

MODERN

VINTAGE

DIODE

TUBE-TRACKING

RECTO

PA G E 3 2

CH4

SPKR

A +

OFF

LOOP 1

OFF

LOOP 2

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

6L6

2xEL+

4x6L6

10% 90%

CH 4

NORMAL

LOOP 2

MIX

TUBE NOISE & MICROPHONICS: You may occasionally experience some form of tube noise or microphonics. Certainly no cause for alarm, this quirky behavior comes with the territory and the Tone. Much like changing a light bulb, you don’t need a technician to cure these types of minor user serviceable annoyances and in fact, you’ll be amazed at how easy it is to cure tube problems...by simply swapping out a pre-amp or power tube!

First may we suggest that you set the amplifier up on something so that you can get to the tubes comfortably without having to bend down. It also helps to have adequate lighting as you will need to see the tube sockets clearly to swap tubes. Use caution and common sense when touching the tubes after the amplifier has been on as they may be extremely hot! If they are hot and you don’t want to wait f or them to cool off, try grasping them with a rag and also note that the glass down around the b ulbous silvery tip is considerably less hot which makes it easier to handle. Gently rock the tube back and forth as you pull it away from its socket.

DIAGNOSING POWER TUBE FAILURE: There are two main types of tube faults: shorts and noise. Both large and small tubes may fall prey to either of these problems but diagnosis and remedy is usually simple.

If a fuse blows, the problem is most likely a shorted power tube and shorts can either be mild or severe. In a mildly shorted tube the electron flow has ov ercome the control grid and e xcess current flows to the plate . You will usually hear the amp become distorted and begin to hum slightly. If this occurs, quickly look at the power tubes as you switch the amp to STANDBY and try to identify one as glowing red hot. It is likely that two of a pair will be glowing since the “shorted” tube will pull down the bias for its adjacent mates, but one tube may be glowing hotter — and that one is the culprit. The other two are often fine — unless they’ve been glowing bright red for several minutes.

Because there is no physical short inside the tube (just electrons rioting out of control) merely switching to STANDBY for a few moments then back to ON will usually cure the problem...at least temporarily. Watch the tubes carefully now. Should the problem recur, the intermittent tube will visibly start to over heat before the others and thus it can be identified. It should be replaced with one from the same color batch, shown on its label. Call us and we will send one out to you.

The severe short is not nearly so benign. In the worst cases, a major arcing short occurs between the plate and the cathode with visible lightning inside the glass and a major noise through the speaker. If this is seen to happen, IMMEDIATELY turn the amp to STANDBY. By this time the fuse probably will have blown. Such a short is usually caused by a physical breakdown inside the tube including contaminate coming loose or physical contact (or near contact) between the elements. Replace it and the fuse with the proper slo-blo type and power up the amp using the power up procedure as we described earlier in this manual.

TUBE NOISE: Often caused by contamination within in a tube, the culprit can usually be identified, and by lightly tapping on the glass, you will probably hear the noise change. Hearing some noise through the speakers while tapping on the 12AX7’s is normal howe ver. And the one nearer the INPUT will always sound louder because its output is being further amplified by the second 12AX7.

The power tubes should be all but quiet when they are tapped. If crackling or hissing changes with the tapping, you have probably found the prob lem. To confirm a noisy power tube, merely put the on. It will cause no damage to run the

Road King

briefly with one power tube missing. You may notice a slight background hum,

Road King

on Standby, remove it from its socket and turn it back

however, as the push-pull becomes unbalanced. Whenever you are trying to diagnose a suspect tube, keep your other hand on the POWER and STANDBY switches ready to shut them off instantly in the unlikely case you provoke a major short. If you think you’ve located a problem tube but aren’t sure, we recommend substituting the suspect with a new one just to be sure of your diagnoses. You will be doing yourself and us a big favor by just following the simple guidelines previously mentioned regarding tube replacement. You’ll probably be successful with much less effort than is required to disconnect everything and haul the unit to a technician who will basically perform the same simple tests. If the tubes are still within their six-month warranty period, we will happily send you a replacement. Just note the color designation on the tube label so that we can send you the appropriate match.

PA G E 3 3

DIAGNOSING PREAMP TUBE PROBLEMS: Because your amplifier is an all tube design, it is quite possible that you will at some point experience minor pre-amp tube noise. Rest assured - this is no cause for alarm and you can take care of the problem yourself in a matter of minutes by simply swapping tubes.

Let us begin by saying; It is a “very good” idea to keep at least a couple of spare pre-amp tubes on hand at all times to insure uninterrupted performance. These minor pre-amp tube problems can take many f orms but can generally be described in two categories: Noise and Microphonics. Noise can be in the form of crackling, sputtering, white noise/hiss and/or hum. Microphonic problems usually appear in the form of a ringing or high pitched squealing that gets worse as the gain or volume is increased thus are more noticeable in the higher gain “HI” modes. Microphonic problems are easily identified because the problem is still present even with the instruments’ volume off or unplugged altogether - unlike pick-up feedback which ceases as the instrument is turned down. Microphonic noise is caused by mechanical vibration and shock: think of banging a microphone around and you’ll understand where the word came from.

The best wa y to approach a pre-amp tube problem is to see if it occurs only in one specific mode or channel. This should lead you to the tube needing replacement. Then all that remains is to swap the suspect tube for a known good performer. If you cannot narrow down the trouble to a specific mode or channel, the problem may be the small tube that drives the power tubes which is operational in all modes and channels. Though rare, a problem with the driver tube would show up in all aspects of performance - so if you can’t narrow the problem down to being mode or channel specific, you may want to try replacing the driver tube. Driver problems generally show themselves in the f orm of crackling or hum in all modes of perf ormance and/or weak ov erall output from the amplifier. Occasionally an anemic driver tube will cause the amplifier to sound flat and lifeless, but this is somewhat uncommon, as worn power tubes are a more likely suspect for this type of problem.

Sometimes making the diagnosis is more trouble than it’s worth and it’s faster and easier to merely replace the small pre-amp tubes ONE AT A TIME with a replacement known to be good. But MAKE SURE y ou keep returning the tubes to their original socket until y ou hit the one that cures the problem. You’ll notice that tubes located nearer to the INPUT jack always sound noisier...but this is because they are at the start of the chain and their noise gets amplified over and over by the tubes that follow. The tube that goes into this “input socket” (usually labeled V1) needs to be the least noisy of the bunch. The tube that goes at the end of the preamp chain - just ahead of the power tubes - can be quite noisy without causing any problem at all. The tubes in your amp have already been located in the most appropriate sockets and this is why you should NEVER pull them all out at once and ALWAYS swap them one at a time. ALWAYS return a perfectly good tube to its original socket. Also it’s a good idea to put the amp on STANDBY when swapping tubes to reduce the heat build up in the tubes themselves and to prevent explosive noises (which can still occur even if you are pulling the tubes away from their sockets gently) from coming through the speaker.

Remember , take your time, be patient and chances are real good that you can fix your amp yourself by finding and replacing the bad tube. It kills us to see someone who has shipped their amp back to us...and all it needed was a simple tube replacement! If you must send back your amp , remo v e the chassis from the cabinet by unscre wing the four mounting bolts on the bottom top. The chassis then slides back like a drawer and comes out from the back. Remove the big power tubes and mark them according to their location from left to right 1, 2 etc. They need to be wrapped separately with plenty of wadded up newspaper around them and put in a smaller box within the larger carton. Remove the Rectifier tubes and wr ap them also . You can leave the preamp tubes in or remo v e them and wrap them separately being sure to label their location. (See Tube Task Chart.)

To wrap the chassis, use plenty of tightly wadded up newspaper so there is at least six inches of “cr ush space” between the chassis and the cardboard box. Bubble wrap also works well, but please DON’T use styrene peanuts - they will shift during transit and get lodged inside your electronics as well as allowing your amp to end up at the bottom of the box unprotected and possibly damaged.

Pre-amp tubes don’t normally wear out as a rule. Therefore, it is not a good idea to change them just for the sake of changing them. If there isn’t a problem - don’t fix it. If there is no result from your substitutions, it may be possible that you have more than one problematic tube. Though rare, this does happen and though it makes the troubleshooting process a little more intimidating, it is still possible to cure the problem yourself.

NOTE: It is normal to hear a slight metallic ringing sound when tapping on the preamp tubes. As long as the tube does not break into oscillation or start crackling or any other form of bizzare noise, it is considered normal and functional.

PA G E 3 4

BIAS ADJUSTMENT: (part of a continuous series)

An Article written by Randall Smith that we thought you might find interesting.

Here’s a question we often hear:

CATHODE

( )

GRID SCREEN

( )

GRID

( )

BEAMCONFINING ELECTRODE

. .

PLATE

( , )

( )

“Why doesn’t in their amplifiers?”

Mesa

put bias adjustments

Structure of a 6L6 / 5881

Beam Power Pentode.

Well, there’s a short answer and a long answer to this question. The short answer is that during my 12 years of repairing Fenders, one of the most frequent problems I saw was bias controls that were

either set wrong or that had wandered out of adjustment due to vibration. As any honest tech will tell you, there’s lot’s of easy money to be made by sprinkling “holy water” on amplifiers ... uh, what I meant to say is “Your amp needed biasing.” See what I mean? What customer is going to argue with that?

It only takes a moment and a volt meter: The Fender diagram shows how: “Adjust this trim pot for - 52 volts.” That’s it. Nothing more. Now don’t be f ooled into thinking that tubes “draw” more or less bias, they don’t. The w ay a bias supply is connected to a tube is akin

to a dead end road, it just trails off to nowhere without really completing a circuit. It’s a static v oltage and regardless of what tube is in the socket — or even if the tubes aren’t plugged in at all, it doesn’t change the bias voltage a bit.

So the end of the short answer is this: Since a bias supply needs to put out the right voltage and never vary, I wanted to build amplifiers that were individually hard wired to the correct values and NEVER needed adjustment. And f or 25 years , that’ s how

Boogies

have been built.

MESA/

Time to change tubes? Just plug our tubes into any one of our amps and you’re DONE. No tech needed. NO bills and no BS about biasing. And most important: The bias is RIGHT because it can’t change!

Now, you want the long answer? Here’s more information on how our hard-wired bias avoids trouble. Please read on. But first, let’ s make an important distinction. Our b usiness is designing and building high perf ormance amplifiers. And for this we need

tubes whose variance is within a narrow range. Our warehouse is full of rejects ...oh, they work — they just don’t perform within our tolerance range. We have a ver y sophisticated computer - based tube testing system (nicknamed “Robotube”) that matches and measures tubes over seven important parameters. It can even predict which tubes are likely to have a shortened lifetime — even though they work perfectly during the test.

Because our business is building quality amps, we can afford to reject a lot of wayward tubes. The guys you hear complaining because

Boogies

don’t have bias adjusters are primarily in the business of selling tubes - not amps. They don’t want to throw a wa y 30

percent of their inventory, so they promote the idea that tubes outside our parameters can be used to “customiz e” amplifiers and they

MESA

criticize us because our amps can’t be adjusted to accommodate their out-of-

tolerance tubes.

Now you might be thinking, “But I thought you just said that tubes don’t “dr aw” bias , therefore the y don’t eff ect the bias supply and thus it doesn’t need to be adjustable.” When you set the bias (whether it’s by selecting the right resistors, as we do, or adjusting a trimmer — which is quicker) what you are doing is establishing the correct amount of idle CURRENT that flows through the power tubes. But you can’t adjust the current directly, you can only change it by adjusting the amount of bias VOLTA GE that goes onto the tubes’ control

PA G E 3 5

BIAS ADJUSTMENT: (Continued) grids. Voltage and current are NOT the same. Current is the AMOUNT of electricity, the “quantity” — and is measured in amperes. Voltage is the degree of electric charge — like the “pressure” to use the old water analogy. Let me illustrate how different voltage and current are:

When you scrape y our feet across a carpetted floor in dry, wintery conditions, your body can become charged with 50,000 to 100,000 volts of static electricity. And when you reach for the door knob, a spark jumps and you feel it! The voltage is super high but the current (measured in micro-amps) is tiny - otherwise you would die from electrocution.

Contrast this with your car battery, which puts out a mere 12 volts. You can lay your hands right across the terminals and not feel a thing. Yet the amount of current available can run to several hundred amperes .. enough to turn over a cold engine and get it started.

So current and voltage are two totally separate electrical parameters — though when you multiply them together, you get POWER, which is measured in watts.

When you set the bias of an amplifier, you are adjusting the static VOLTAGE at the control grid of the tube in order to produce a desired amount of idle CURRENT flowing to the tube’ s plate . A small change in grid voltage, produces a large change in the amount of current flowing — and that’ s basically how a tube works. Say that again because it’ s super important: A small change in v oltage at the grid causes a large change in current flowing to the plate. See, that’s the essence of amplification: A small change causing a large change. And here it’s a small voltage change causing a large current change.

The bias conditions are what determines how much current flows through the big power tubes when you’re not playing. And what drives your speak ers is flucuations in that current flo w when are ARE playing. If the amount of current increases and decreases 440 times per second, then you’ll hear an A note. If the fluctions in current flow are large and still at 440 per second, you’ll hear an A that is LOUD!

But for purposes of biasing, it’s the amount of “plate current” flowing with no signal applied that’s important. Unfortunately current is hard to measure because the circuit must be interuppted — as in “cut the wire” — and the meter spliced “in series” with the broken circuit. But measur ing VOLTAGE is easy. It is not necessar y to interrupt the circuit because a voltage reading can be taken in PARALLEL with the circuit intact.

Thus, as a matter of convenience, most bias settings are given in volts at the grid ... even though current through the plate is the important factor. In fact plate current is so inconv enient (and dangerous) to measure that Fender doesn’t even state what the correct value should be. They only give the grid voltage that will produce that current. (That’s the minus 52.) But that only happens if the tubes being used are “in spec.”

As long as the tubes ARE “in spec”, the right bias voltage will always give the correct plate “CURRENT” — but then there’s no need for the bias voltage to be adjustable!

If the tubes are NOT in spec, then the only proper way to re-set the bias is to cut the circuit and measure the current while adjusting the bias ... but no manufacturer I know even STATES the desired current value! Be that as it may, when the original bias voltage is altered far enough, it will compensate for the tube’s abnormal performance and the correct amount of idle current flow may then be restored. Clearly this is something most repair techs should not attempt.

Some newer amps have LED indicators connected to the circuit which will turn on when the right threshold of current flow has been reached. This is an improvement, and almost worthy if you’re willing to except resistors and lights added into your amplifier’s audio path — which we aren’t.

The other “advantage” of this system is that it allows some amp manufacturers to avoid matching their power tubes. The thinking is that adjusting the bias to each tube separately eradicates the inherent differences between the tubes by insur ing that the same current flows through each one.

PA G E 3 6

BIAS ADJUSTMENT: (Continued) Again, this has some merit .. but it’s still not as good as using tubes that are matched in the first place because compensating for the mis-match causes the push-pull circuit itself to become unbalanced. Two wrongs don’t really make a right.

Some of the other recommended biasing, “methods” — such as -”.. tubes running red hot, increase the bias .. sounds harsh and runs too cool, turn it down ...” are guessw ork at best. Luckily, one of the great things about tube amps is that they can usually stand some abuse without causing any real harm ... at least not immediately. But don’t these alterations imply that you are second-guessing the amp designer and that there’s a better set of operating conditions that the designer missed but the tube sellers have discovered?

Now some players may like the sound of their amp altered by tubes with extreme characteristics and with the bias set to help compensate. But often it is the mere novelty of change that they’re really responding to and when the amp goes back to the proper original way, we’ve seen them be far happier still!

Because every part in every one of our designs has been meticulously evaluated, compared and stressed over — no matter how seemingly insignificant it might be. And with e v ery design we look f or a “sweet spot” where all the parameters — including the bias — come together to give the best sonic performance, consistently and reliably. Ever y part and voltage is important — yet no one complains that these other parameters aren’t available for tinkering.

Consider our patented

Simul-Class

circuitry where there are two different bias voltages used f or separate pairs of power tubes ... and changing one voltage also changes the other. Great care goes into getting this just right and we think we’d be asking for trouble to have it adjustab le for the world to play with ... unless you like paying to have your amp messed up. Sorry, I meant to say, “Uh, ... your amp needed biasing.”

MESA

If that doesn’t appeal to you, then merely plug a matched set of

tubes into one of our amps and you’re ready for tone. Guaranteed. You’d be amazed at the number of service calls we field ev ery day that lead to a diagnosis of out-of-toler ance, non-spec tube problems. To think these would be prevented by including a bias adjustment is something of an insult to you and us. If you put the wrong size tires on your car, do you think changing the pressure will make them right?

Please, don’t think this is a blanket indictment of the other guys selling tubes — it isn’t. And their tubes aren’t all bad either. It just doesn’t make sense to pay more of your hard earned cash for tubes that were probably made in the same Russian or Chinese factory and which have the possibility of being outside the perf ormance window we select f or y our amp. And it pains us to hear the hype and mystique built up around biasing when twenty-five years of evidence affir ms our decision to make bias circuits that “never need adjustment”. How much money and trouble that has saved

MESA/Boogie

Our rigorously tested and hand selected tubes are available at your nearest

players you couldn’t estimate.

MESA/Boogie

Pro Center or from us directly. Nobody

offers better price, quality or warranty than we do ... so why swerve? Next time we’ll talk about our part in developing the great Sylvania STR 415 type 6 6 and how we’re on the verge of seeing something

fairly close reappear on the market. Remember, we still hav e some of these super rugged mondo-bottles available for older amps —

Boogies

only please! Until then, Relax, Breathe and Nourish your soul!

Cheers!

MESA/Boogie Ltd.

PA G E 3 7

SPEAKER IMPEDANCE MATCHING & HOOK-UP GUIDE: IMPEDANCE:

Wiring up speakers to provide the most effectiv e load and making sure that all of them are in phase will help in creating the best sound possible. This is not too difficult, as long as you understand a few things about loading and how to connect your speakers to provide an optimal resistive load.

MESA/Boogie

certain that the system can handle it properly; this can cause damage to the Output transformer. A few amplifiers can handle 2 ohms effectively without damaging them ( for example the example ) without damaging results, but too low of a resistance will likely cause problems.

MIS-MATCHING: When running a higher resistance ( for example: 8 ohm output into 16 ohm cabinet ), a slightly different feel and response will be eminent. A slight mismatch can provide a darker smoother tone with a little less output and attack. This response is a result of the amplifier running a bit cooler. Sometimes when using more than one cabinet a mismatch will be the only option.

WHAT IS MY CABINETS IMPEDANCE: If you have only a single speaker, you just match that single speakers impedance to the amplifier, and you are done. In many cases, you will hav e a number of speak ers , and then you must calculate the “load” that the amplifier will need to support. There are generally three ways to wire multiple speakers together. They are as follows:

SERIES: When you wire ( hook-up ) speakers in Series, the speakers resistance ( as measured in ohms ) is additive - i.e. putting two 8 ohm speakers in Series results in a 16 ohm load.

amplifiers can handle 4 and 8 ohms effectively. Never run below 4 ohms in a tube amplifier unless you are absolutely

MESA’S Bass 400+

). You can always have a higher resistance ( 16 ohms, for

POSITIVE =

Made by

Electro-Voice

Speaker A = 8 Ohms

SERIES:

Connect the Negative side of Speaker A

to the Positive side of Speaker B

PA G E 3 8

Made by

Electro-Voice

Speaker B = 8 Ohms

NEGATIVE =

SPEAKER IMPEDANCE MATCHING & HOOK-UP GUIDE: (Continued) PARALLEL:

When wiring in parallel, the resistance of the speakers decreases. Two 8 ohm speakers wired in ( hooked-up ) Parallel results in a 4 ohm load. It’ s easy to calculate the effect of a resistiv e load when all the speakers are all the same resistance. It is really not suggested to wire different resistiv e load v alues in Parallel ( 8 and 4, 16 and 8 etc. ) The formula for figuring the total impedance in Parallel is the multiplication of the two loads divided by the sum of the two loads - i.e. putting two 8 ohm speakers in Parallel results in a 4 ohm load. Connect the Positive side of Speaker A to the Positive side of Speaker B - Connect the Negative side of Speaker A to the Negative side of Speaker B.

Speaker A

8 Ohms

Electro-Voice

Made by

Electro-Voice

Made by

Speaker B

8 Ohms

NEGATIVE

POSITIVE

Total Load = 4 Ohms

COMBINATION OF SERIES & PARALLEL: This is really just two sets of Parallel wired speakers connected in series. This is how you maintain a consistent load with multiple speakers. The importance of this is more evident when you ha v e more than one cabinet to connect to y our amplifier. This is when you

need to figure out the loads and how to wire them up with-

SPEAKER A

All 4 Spkrs.are 8 Ohms

SPEAKER B

Made by

Electro-Voice

Made by

out applying too low of a resistance on the amplifier. Simply connect the P ositive side of Speaker A to the Posi-

tive side of Speaker C. Connect the Negative side of Speaker A to the Positive

side of Speaker B, then on to the Positive side of Speaker D and finally on to the Negative side of Speaker C.

SPEAKER C

Made by

Electro-Voice

POSITIVE

SPEAKER D

NEGATIVE

Made by

Electro-Voice

And lastly, connect the Negative side of Speaker B to the Negative side of Speaker D.

4 Eight ( 8 ) Ohm speakers wired in Series Parallel = a Total Load of 8 Ohms.

PA G E 3 9

WIRING SCHEMES...Amplifier to Speaker Cabinets

Partial back view of amplifier

8 OHM 4 OHM 4 OHM

8 Ohm Cabinet

4 Ohm Cabinet

Partial back view of

some Mesa amp

8 OHM 4 OHM 4 OHM

Partial back view of amplifier

8 OHM 4 OHM 4 OHM

4 Ohm Cabinet

Partial back view of amplifier

4 OHM 8 OHM 16 OHM

16 Ohm Cabinet

8 Ohm Cabinet

SAFE MISMATCH

PA G E 4 0

Partial back view of amplifier

4 OHM 8 OHM 16 OHM

16 Ohm Cabinet

SAFE MISMATCH

WIRING SCHEMES...Amplifier to Speaker Cabinets

8 Ohm Cabinet

Partial back view of amplifier

8 OHM 4 OHM 4 OHM

8 Ohm Cabinet

CORRECT MATCH

Partial back view of amplifier

4 OHM 4 OHM 8 OHM

8 Ohm Cabinet

SAFE MISMATCH

16 Ohm Cabinet

Partial back view of amplifier

8 OHM

4 OHM 4 OHM

8 Ohm

SERIES BOX

4 Ohm

CORRECT

MATCH

Partial back view of amplifier

8 OHM

4 OHM 4 OHM

8 Ohm

PARALLEL BOX

16 Ohm

CORRECT

MATCH

4 Ohm Cabinet

PA G E 4 1

16 Ohm Cabinet

WIRING SCHEMES...Amplifier to Speaker Cabinets

Partial back view of amplifier

4 OHM 4 OHM 8 OHM

8 Ohm Cabinet

16 Ohm

SERIES BOX

8 Ohm

8 Ohm Cabinet

SAFE MISMATCH

8 Ohm

8 Ohm Cabinet

Partial back view of amplifier

4 OHM 4 OHM

8 OHM

CORRECT MATCH

8 Ohm Cabinet

Partial back view of amp

4 OHM4 OHM8 OHM

8 Ohm

PARALLEL BOX

16 Ohm

16 Ohm Cabinet

SAFE MISMATCH

16 Ohm Cabinet

PA G E 4 2

16 Ohm Cabinet

WIRING SCHEMES...Amplifier to Speaker Cabinets

SERIES BOX

8 Ohm

8 Ohm Cabinet

16 Ohm

8 Ohm

SAFE MISMATCH

Partial back view of amplifier

4 OHM 4 OHM 8 OHM

8 Ohm Cabinet

16 Ohm Cabinet

Partial back view of amplifier

16 Ohm Cabinet

4 OHM4 OHM8 OHM

PARALLEL BOX

16 Ohm

16 Ohm Cabinet

8 Ohm

16 Ohm

16 Ohm Cabinet

SAFE MISMATCH

PA G E 4 3

ON TRIODES, PENTODES & IRISHMEN: With apologies to Friends and Relatives from the Emerald Isle - who will make their appearance soon enough - the humor which

follows is dedicated to the memories of Spec McAuliff and Fae (Rafael) McNally, two of the Tr ue Greats. As their numerical references suggest, the terms Diode, Triode and P entode indicate the number of elements within the v acuum tube

i.e. two, three or five. All tubes also require a filament or heater which is not included in the count. Its purpose is to excite electrons from the cathode coating by raising the temperature such that they are able to boil out of the electron-rich coating material and form a cloud of free electrons in the vacuum space surrounding the cathode.

Although the term filament and heater are often used interchangeably, there are specific differences: A filament is a directly heated cathode where cathode coating is applied directly to the heating element. Examples are 5U4 twin diode rectifier and 300B triode amplifier tubes. A heater , on the other hand, is a heating element which is separate from the cathode and is usually inserted within the tubular cathode sleeve. Examples are 12AX7 twin triode amplifier and 6V6 or EL84 beam power pentode tubes. In all cases this fundamental aspect of each tube’s construction is clearly visible, especially when the heating element is glowing red hot.

The cathode, then, would be considered the first numbered element because it is the source of the electrons. The word itself is from the Greek literally meaning completely down, which implies a sense of central origin - like the center of the earth where Tone begins. It might be said that an ecstatic audiophile experiences a positive catharsis, his soul being purified when his system transports him to Audio Nirvana. The only trouble with taking this positive imagery too far is that the cathode is, unfortunately, negative... at least electrically speaking. However this is easily remembered since virtually all musicians and audiophiles have also experienced the more common negative catharsis when they emerge from the emotional rebirth kicking and screaming in rage and frustration.

Once heated, the intrinsically negative electrons are energetic little fello ws of almost no mass. Thus they may be accelerated almost instantaneously and will travel through a vacuum a nearly the speed of light. Being of like, negative charge, they tend to repel one another and thus within the electron cloud surrounding the cathode, there is much jostling and elbowing as each one tries to maintain his distance from all the others... unless there is a strong and universal attraction from an outside influence.

Visualize, if you will, a group of sub-atomic Irishmen milling about and in a repellent, negativ e state of mind. All are sco wling and none wants to hav e an ything to do with the other. Now introduce a strong attr action sa y, a public bar, and you can easily picture an orderly, if rapid movement of the lot in a single direction. This is what happens when a positiv ely charged element called the anode or plate is introduced into the vacuum.

The plate is the large metal element most prominently visible through the glass of an electron tube. It is the outermost element of a tube’s structure and it surrounds all the others. The cathode is at the center radiating electrons outwards. As higher and higher positive voltage is applied to the plate, the attraction for the electrons surrounding the cathode is increased and with nothing standing in the way, full uninhibited flow to the plate occurs... sor t of like removing the doors and offering free drinks to the crowd of surly Irishmen milling around outside. As electrons flow to the plate, the space charge will continually be replenished by further ‘boiling’ of the hot, electron-rich cathode as you can easily imagine other Irishmen impatiently taking up the places of those who’ve gone inside

- until the entire village is deserted. Now, where do they come from and how do they emerge? Well, a grand and elegant lady once showed me how to revive flat

champagne: She dropped a r aisin into the glass. There w as a dramatic and immediate increase in eff ervescence with the introduction of a cathoding surface. Thousands of tiny bubbles suddenly appeared - and continued to flow from the raisin. Of course the bubbles were made up of gas dissolved in the beverage, but the analogy makes it easy to visualize the loosely bound electrons dissolved in the rich cathode coating as they effervesce from its heated surface.

But back to the electron flow. If the electrons are strongly attracted to a positively charged plate, then it follows that they are strongly repelled by a negatively charged plate and they are . Thus , if an alternating current - such as comes from a transf ormer - is applied to the plate, electrons will flow only during the times when the plate is positively charged. During periods of negative plate charge, electron flow is stopped and the space charge of electrons remains compressed in the area around the cathode.

PA G E 4 4

ON TRIODES, PENTODES & IRISHMENT: (Continued) Thus a diode tube - one with a cathode and an anode - is mostly used to rectify alternating current into direct current by passing it without restriction, but in one direction only. This also explains why closing time is stricly enforced at Irish pubs: During normal operation, the traffic flow is similarily unimpeded and uni-directional tow ard the bar and this process rectifies the work-day negativity. It goes without sa ying that no one leav es as long as the atmosphere around the bar remains positively charged.

TRIODES: This section is a continuing technical treatise on the workings of Irish Pubs but to make it easier for the layman to understand, it is explained in terms of vacuum tube technology. Enter the original bar - free beer and no doors. Well, it turns out that some control ov er the flow can be a necessary and useful advantage. This led to the inv ention of those swinging louvered saloon doors which are open at the top and bottom. They are patterned after the control grid of the vacuum tube, which is a loosely wound coil of thin wire located between the cathode and the plate.

In a Triode the plate is alwa ys positively charged with high voltage D.C. and even though the grid is blocking the path, those negative electrons can still FEEL the strong attraction - just as the Irishmen can see in through the louvers of the bar doors. They know what pleasures lie beyond, but to get there requires o vercoming the negative influences controlling the access. This negative influence is typically called a Bias. In electronic terms that means the grid is supplied with a voltage which is slightly MORE NEGATIVE than the already negative electrons. The more negative the Bias, the more it tends to neutralize the attraction of the plate and repel the electrons back toward the cathode.

The Irish can be similarily charged with Bias, but unless you are Irish yourself, this type of Biasing ma y be more difficult to understand. The effect is similar though: The more negative the Bias, the more it impedes forward progress. Generally speaking though, the electronic Bias of the grid is easiert to overcome, and for two main reasons: First, the Bias is set - like the bar doors - to allow some passage. Second, the grid is mostly NOT THERE, like the louvered doors which are mostly open spaces. Unlike the plate which is solid, the grid is like a coiled bed spring. It can create a repelling field but mostly it’s empty space in between widely seperated windings of wire. It’s very easy to control the electrons as they pass through the grid’s force field: Changing the grid voltage only slightly will have an enormous effect on how much current flows through... and that’s what AMPLIFICATION is: a small change in voltage at the grid causing a large change in current flowing to the plate.

The purpose of the louvered bar doors is similar to that of the grid, namely, to give momentary pause while still revealing the promise within. Hesitation mostly gives way to temptation, but there are those few stalwart Irishmen who think twice and decide to come back later. Most just pause slightly then go on through. That is the pur pose of the bar doors: to prevent everyone from crowding in all at once - and as the door is made less of a barrier, wider spaces between the louv ers, more of the bar’s attractive influence is felt outside thus amplifying the customer flow and increasing the crowd at the bar.

PENTODES: Occasionally though, bar doors - even the louvered type - were found to be too effective, and too many customers turned away. Something further was needed to increase the attraction of the bar and overcome the

resistance created by the door. Thus the

cocktail waitress was invented. Once again the idea was inspired by the vacuum tube. It had been discovered in some tubes, often large power types, that the

distance to the plate was too great to attract enough electrons past the negative influence of the control grid. So another grid coil of fine wire was inserted between the first grid and the plate. This was called the screen grid and carr ying a highly positive charge, it functioned as a “bait” for the plate.

In a properly designed power tube such as an EL84 or a 6V6, the windings of the screen grid are precisely aligned to fall in the shadow of the control grid. This way the electrons responding to the pull of the screen grid are lined up in sheets as they pass between windings of the inner control grid... only to find that they have been fooled! Once past the control grid and drawn toward the screen grid, they discover...there’s almost nothing there. The path they’re on has them aligned to zing straight through the spaces BETWEEN screen grid windings. So rather than a close and personal encounter, they just fly on past - and once they’re out that far, there’s no

PA G E 4 5

PENTODES: (Continued) stopping them. The influence of the plate takes over and - being solid metal and of the highest positive attraction - it is at this final destination that the electrons congregate.

Thus the proper cocktail waitress - visible through the louvers - is scantily clad so as to be all the more effective at reinforcing the attractive influence of her bar and by being located in between the door and the bar, she serves as bait to lure customers past the door’s negative influence. Once through the door however, it is the rare Irishman who actually comes in personal contact with the cocktail waitress as , for all intents and purposes, she - like the screen grid - turns out to be a vanishing illusion. Yet, having come this far, the solid influence of the bar itself now takes over and attracts the customers to cong regate, ha ving happily reached their destination.

If you’re still following this and haven’t lost track of the count, you’ll know we’re still one element short of the five needed to make a Pentode. This last part is a pair of beam-confining shields which being negatively charged, ser ve to direct the flow right toward the plate. This is much the way a short entrance hall to the bar prevents wandering accidentally into the Men’s room on the way.

Once at the bar though, the circuit is complete and the process of soul-nourishing works its ritual magic. Biases having been overcome, illusory nightingales having vanished, the spirits truly soar and the once surly Irishmen now are filled with warmth, wit and kindred friendship, enjoying the music and glowing nicely with their heaters on.

With appreciative thanks to the inhabitants of the Land of the Leprechaun, we have now concluded our little diversion into the mechanics of proper bar lay-out.

A feature article by Randall Smith Designer / President

PA G E 4 6

FRONT PANEL:

SWITCH

607303

pt#

ROADKING

2 GAIN POTS pt# 593794

2 TREBLE POTS pt# 593148

2 MID POTS pt# 592378

2 BASS POTS pt# 593148

2 PRESENCE POTS pt# 592738

NOTE

ALL KNOBS ON FRONT PANEL CHROME / KNURLED pt# 408110

2 MASTER POTS pt# 593792

SWITCH pt#

607303

POT pt#

593748

POT pt#

593748

CLEAN

FAT

PUSHED

GAIN TREBLE MID BASS PRESENCE MASTER

CLEAN

FAT

PUSHED

SWITCH pt#

607303

INSTRUMENT INPUT JACK pt# 610120

REAR PANEL:

ROTARY POT pt#

608100

SWITCH pt#

600115

CH 2

CH 1

CHANNEL

4 A SLO BLO

FOOT

CONTROLLER

408110

CH 3

KNOB pt#

BOLD SPONGY

POWER FUSE

120 V~ 60 Hz 4 A

FUSE

FUSE HOLDER pt#

790346

2 MASTER POTS pt# 593792

ROADKING

WARNING

To reduce risk of fire or

electric shock, replace fuse with

same type and rating only. Do not

ROAD

expose this unit to rain or moisture.

KING

EXT.

CH4 CH3

SWITCH

SOLO REVERB LOOP 1 LOOP 2

ALL 8 JACKS pt#

618357

ROTARY POT pt#

593736

LOOP SYSTEM

SEND 1

ACTIVE

LOOPS, SOLO

SWITCH pt#

607101

BYPASS

& MASTER

CONTROLS

618357

RETURN 1

CH2 CH1

SEND 1 & RETURN 1 JACKS pt #

CH1 CH3

LOOPS

2 GAIN POTS pt# 592794

2 TREBLE POTS pt# 592738

KNOBS pt#

408113

WARNING

To reduce risk of fire or electric

NORMAL NORMAL

10%

FTSW MIX

SEND LEVEL

SEND 2 RETURN 2

JACKS

pt#

618356

LATCHING & PULSE JACKS pt#

RAW

GAIN TREBLE MID BASS PRESENCE MASTER

2 MID POTS pt# 593737

2 BASS POTS pt# 593739

2 PRESENCE POTS pt# 593151

ALL 4 PROGRESSIVE LINKAGE 5 WAY ROTARY CONTROLS pt#

ROTARY POT pt#

593737

4 KNOBS (chrome / knurled) pt#

MODERN

RAW

MODERN

608300

ALL 4 LOOP 2 MIX CONTROLS pt#

4 KNOBS (chrome / knurled) pt#

HANDBUILT

IN PETALUMA

CALIFORNIA, USA

90%

EXT. TRIGGERS

618357

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

I N G

DIODE

P U

TUBE-TRACKING

RECTO

SWITCH pt#

NORMAL

6L6

2xEL+ 4x6L6

10% 90%

LOOP 2

MIX

CH 4

ON ON

A +

OFF

SPKR

LOOP 1

SWITCH pt#

607131

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

DIODE

OFF

TUBE-TRACKING

LOOP 2

RECTO

SWITCH pt#

607131

607133

SPKR

6L6

2xEL+

4x6L6

CH 3

NORMAL

10% 90%

LOOP 2

A +

OFF

LOOP 1

607131

MIX

OFF

LOOP 2

2x6L6

2xEL34

EL34

6L6

PROGRESSIVE

LINKAGE

DIODE

TUBE-TRACKING

RECTO

VINTAGE

SWITCH pt#

607303

408116

593737

408116

6L6

2xEL+ 4x6L6

10% 90%

CH 2

A +

SPKR

LOOP 1

REVERB CONTROL

NORMAL

6L6

LOOP 2

MIX

TUBE-TRACKING

OFF

LOOP 2

OUTPUT SOLO

2xEL342x6L6

2x6L6

PROGRESSIVE LINKAGE

RECTIFIER TRACKING

BULB pt# 703047

LENS pt# 703782

REVERB CONTROL KNOBS ( all 4 ) part#

CHANNEL 3 & 4

part# 592151

ESA

OOGIE

2x6L6

2xEL34

EL34

6L6

2xEL+

4x6L6

PROGRESSIVE

DIODE

RECTO

10% 90%

LINKAGE

CH 1

A +

SPKR

LOOP 1

REVERB CONTROL

CHANNEL 1 & 2

NORMAL

LOOP 2

OFF

MIX

OFF

LOOP 2

CH 3 CH 1

REVERB

COMBO

CH 2CH 4

CAUTION:

part# 593150

DIODES5U4

AC MAINS

5U4

HI VOLTS

BOTH SWITCHES

pt# 601073

408113

POT pt#

592378

KNOB pt#

SPEAKERS

USE WITH TWO 8 OHM CABS

USE SHORTING PLUG IF NO SPKRS IN B

(6) SPEAKER

JACKS

pt# 618357

408113

4 OHM4 OHM8 OHM

LEVEL

SLAVE

OUT

JACK pt#

618356

PA G E 4 7

The Spirit of Art in Technology

ESA

OOGIE

Thank you

company and we wish you many years of toneful enjoyment from this handbuilt all tube instrument.

for trusting MESA/Boogie to be your amplifier

The Spirit of Art in Technology

(707) 778-6565 FAX NO. (707) 765-1503

1317 Ross Street Petaluma, CA 94954

USA

Mesa Boogie Road King User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
