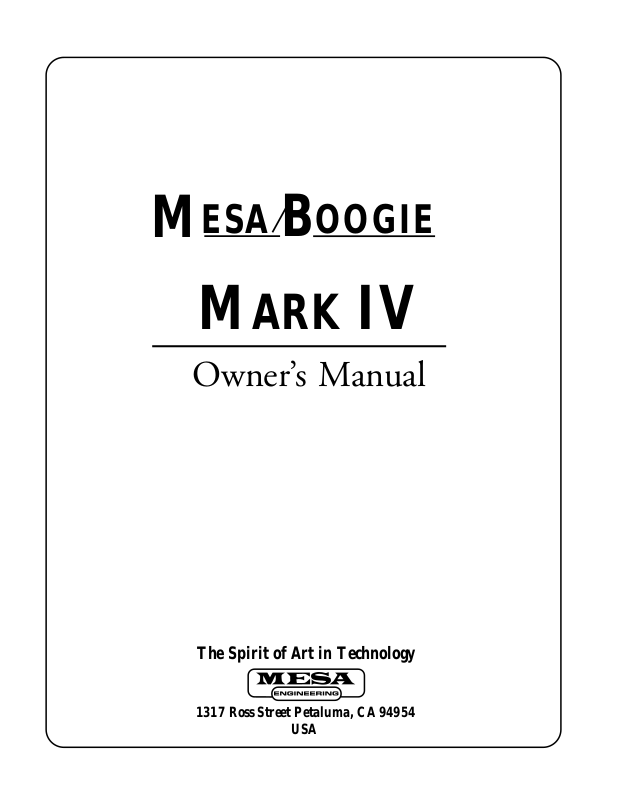

Mesa-Boogie Mark IV User Manual
M
ESA
B
OOGIE
M
Owner’s Manual
ARK
IV
The Spirit of Art in Technology
1317 Ross Street Petaluma, CA 94954
USA
Hello from the Tone Farm...
YOU, the smart player and all around intuitive human, have put your trust in us to
be your amplifier company. This is something we do not take lightly. Our reward is
that we’ve made a classic amplifier and by choosing this amplifier, you have become
part of the MESA family...Welcome! Our goal is to never let you down. Your reward
is that you are now the owner of an archetypical guitar amp bred of fine all tube amp
heritage...benefiting from the many patented pioneering MESA/Boogie circuits that
led to the refinement of your new instrument. Feel confident, as we do, this amp will
inspire many hours of musical satisfaction and lasting enjoyment. It was built with
you in mind, by players who know the value of a fine musical instrument and the
commitment it takes to make great music. The same commitment to quality, value
and support we make to you...our new friend.
MARK IV
