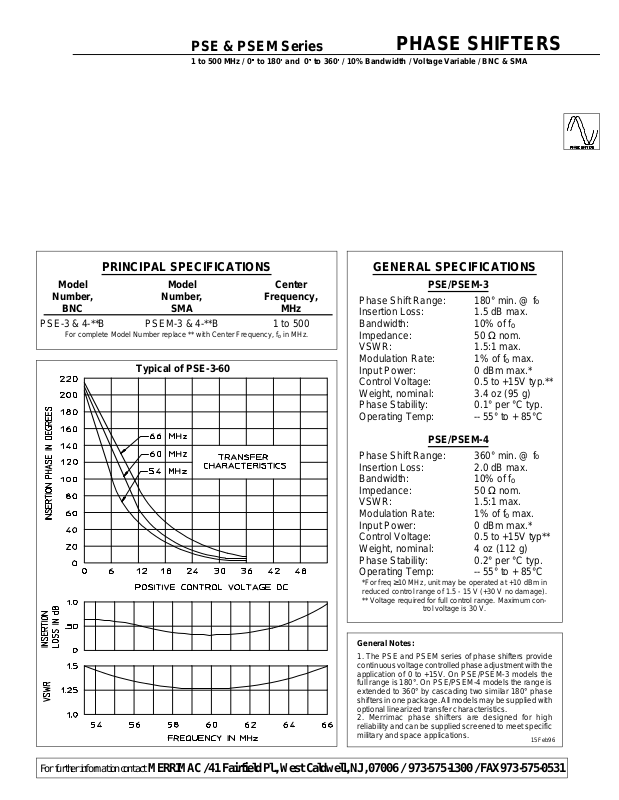

PSE & PSEM Series
1 to 500 MHz / 0 to 180 and 0 to 360 / 10% Bandwidth / Voltage Variable / BNC & SMA
PHASE SHIFTERS
PRINCIPAL SPECIFICATIONS
Model Model Center
Number, Number, Frequency,
BNC SMA MHz
PSE-3 & 4-**B PSEM-3 & 4-**B 1 to 500
For complete Model Number replace ** with Center Frequency, fo in MHz.

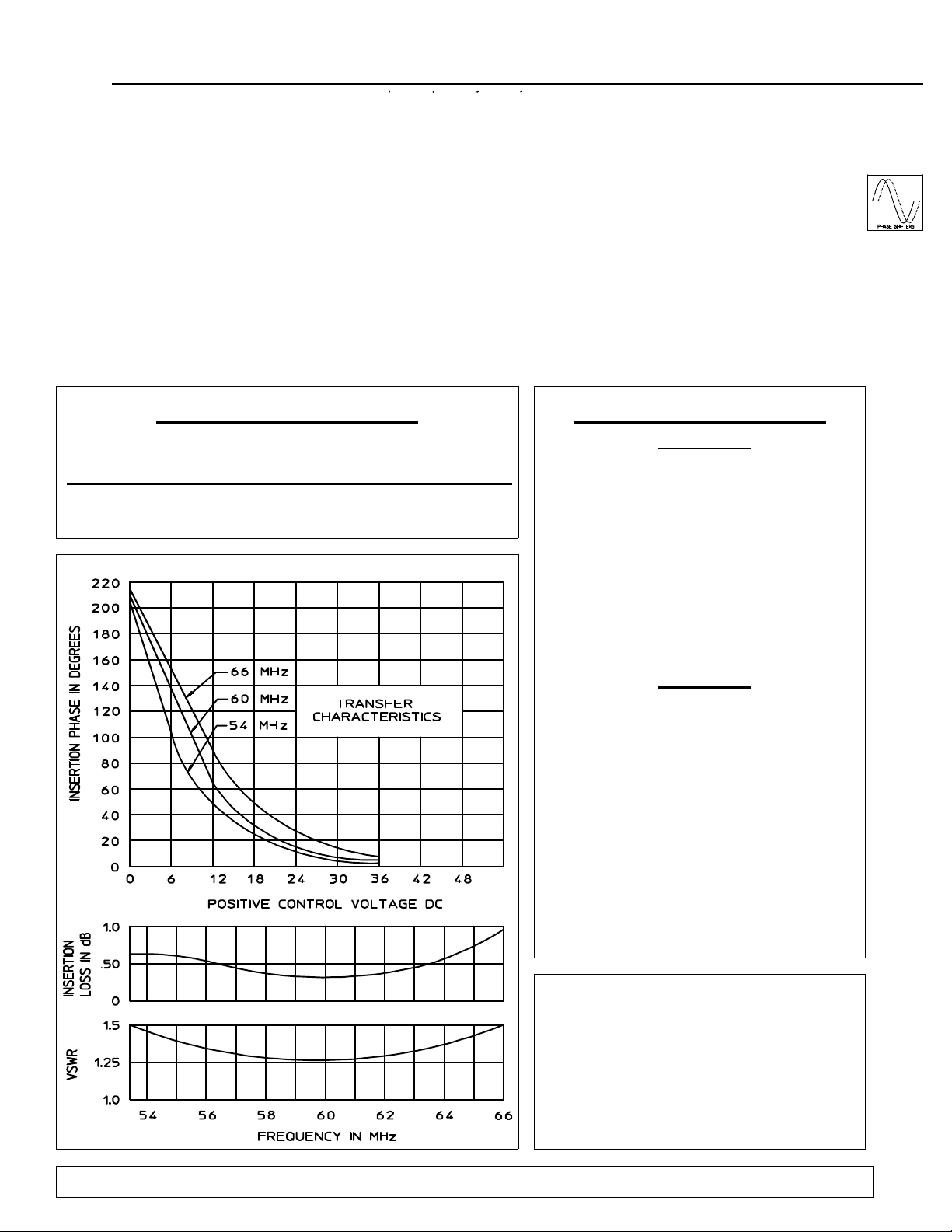

Typical of PSE-3-60
GENERAL SPECIFICATIONS
PSE/PSEM-3
Phase Shift Range: 180° min. @ f
Insertion Loss: 1.5 dB max.
Bandwidth: 10% of f
Impedance: 50 Ω nom.
VSWR: 1.5:1 max.
Modulation Rate: 1% of f
Input Power: 0 dBm max.*
Control Voltage: 0.5 to +15V typ.**
Weight, nominal: 3.4 oz (95 g)
Phase Stability: 0.1° per °C typ.
Operating Temp: -- 55° to + 85°C
PSE/PSEM-4
Phase Shift Range: 360° min. @ f
Insertion Loss: 2.0 dB max.
Bandwidth: 10% of f
Impedance: 50 Ω nom.
VSWR: 1.5:1 max.
Modulation Rate: 1% of f
Input Power: 0 dBm max.*
Control Voltage: 0.5 to +15V typ**
Weight, nominal: 4 oz (112 g)
Phase Stability: 0.2° per °C typ.
Operating Temp: -- 55° to + 85°C
*For freq ≥10 MHz, unit may be operated at +10 dBm in
reduced control range of 1.5 - 15 V (+30 V no damage).
** Voltage required for full control range. Maximum con-
trol voltage is 30 V.
o
max.
o
o
max.
o
o
o
General Notes:
1. The PSE and PSEM series of phase shifters provide
continuous voltage controlled phase adjustment with the
application of 0 to +15V. On PSE/PSEM-3 models the
full range is 180°. On PSE/PSEM-4 models the range is
extended to 360° by cascading two similar 180° phase
shifters in one package. All models may be supplied with
optional linearized transfer characteristics.
2. Merrimac phase shifters are designed for high
reliability and can be supplied screened to meet specific
military and space applications.
15Feb96
For further information contact MERRIMAC / 41 Fairfield Pl., West Caldwell, NJ, 07006 / 973-575-1300 / FAX 973-575-0531
Page 2

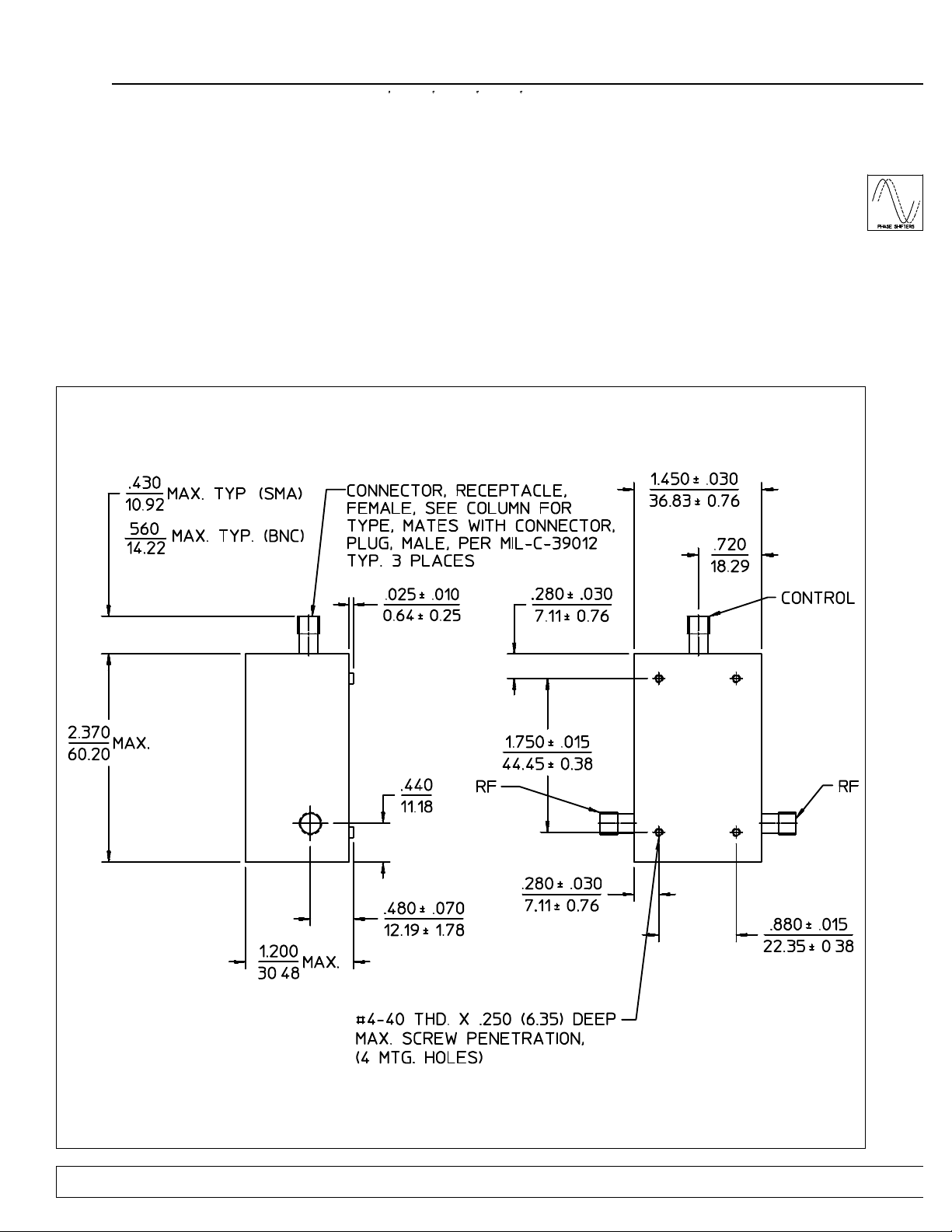

Package Outline
PSE & PSEM Series
1 to 500 MHz / 0 to 180 and 0 to 360 / 10% Bandwidth / Voltage Variable / BNC & SMA
PHASE SHIFTERS
Notes: 1. Tolerance on 3 place decimals ±0.20(.51) except as noted.
For further information contact MERRIMAC / 41 Fairfield Pl., West Caldwell, NJ, 07006 / 973-575-1300 / FAX 973-575-0531
2. Dimensions in inches over mm.
15Feb96
