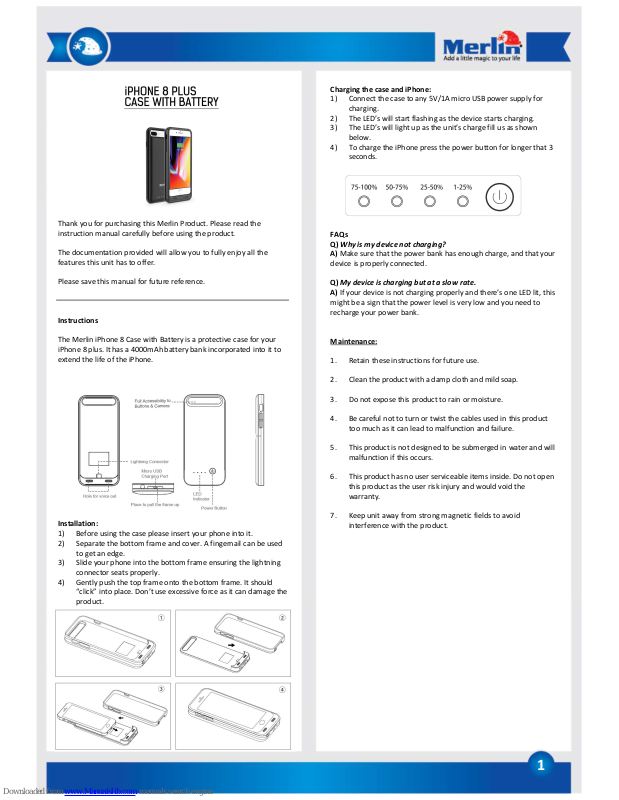

Merlin MFi8 Plus User Manual

Thank you for purchasing this Merlin Product. Please read the
instruction manual carefully before using the product.

The documentation provided will allow you to fully enjoy all the
features this unit has to offer.

Charging the case and iPhone:

1) Connect the case to any 5V/1A micro USB power supply for
charging.

2) The LED’s will start flashing as the device starts charging.

3) The LED’s will light up as the unit’s charge fill us as shown
below.

4) To charge the iPhone press the power button for longer that 3
seconds.

FAQs
Q) Why is my device not charging?
A) Make sure that the power bank has enough charge, and that your

device is properly connected.

Please save this manual for future reference.

Instructions

The Merlin iPhone 8 Case with Battery is a protective case for your
iPhone 8 plus. It has a 4000mAh battery bank incorporated into it to
extend the life of the iPhone.

Installation:

1) Before using the case please insert your phone into it.

2) Separate the bottom frame and cover. A fingernail can be used
to get an edge.

3) Slide your phone into the bottom frame ensuring the lightning
connector seats properly.

4) Gently push the top frame onto the bottom frame. It should
“click” into place. Don’t use excessive force as it can damage the
product.

Q) My device is charging but at a slow rate.
A) If your device is not charging properly and there’s one LED lit, this

might be a sign that the power level is very low and you need to
recharge your power bank.

Maintenance:

1. Retain these instructions for future use.

2. Clean the product with a damp cloth and mild soap.

3. Do not expose this product to rain or moisture.

4. Be careful not to turn or twist the cables used in this product
too much as it can lead to malfunction and failure.

5. This product is not designed to be submerged in water and will
malfunction if this occurs.

6. This product has no user serviceable items inside. Do not open
this product as the user risk injury and would void the
warranty.

7. Keep unit away from strong magnetic fields to avoid
interference with the product.
