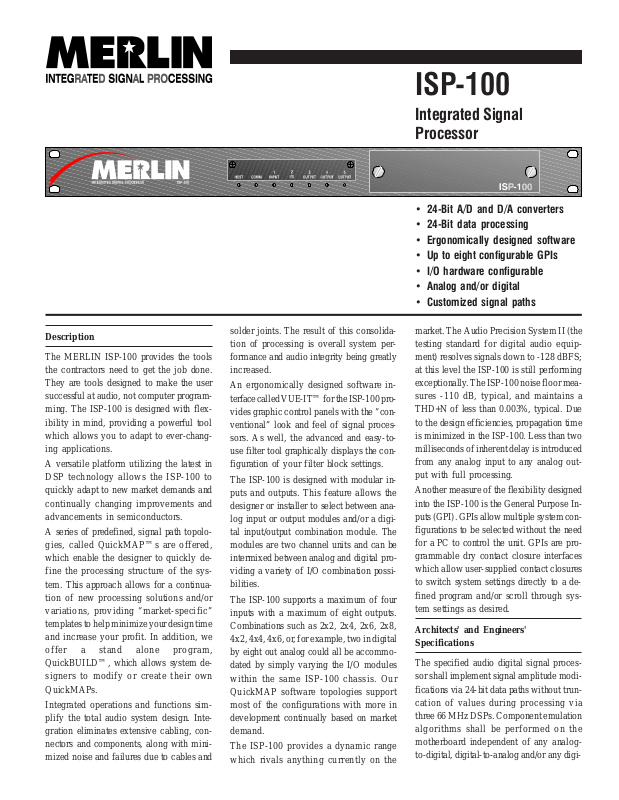

Merlin ISP-100 BROCHURE
ISP-100
Integrated Signal
Processor
24-Bit A/D and D/A converters
24-Bit data processing
Ergonomically designed software
Up to eight configurable GPIs
I/O hardware configurable
Analog and/or digital
Customized signal paths
Description
The MERLIN ISP-100 provides the tools
the contractors need to get the job done.
They are tools designed to make the user
successful at audio, not computer programming. The ISP-100 is designed with flexibility in mind, providing a powerful tool
which allows you to adapt to ever-changing applications.
A versatile platform utilizing the latest in
DSP technology allows the ISP-100 to
quickly adapt to new market demands and
continually changing improvements and
advancements in semiconductors.
A series of predefined, signal path topologies, called QuickMAP™s are offered,
which enable the designer to quickly define the processing structure of the system. This approach allows for a continuation of new processing solutions and/or
variations, providing “market-specific”
templates to help minimize your design time
and increase your profit. In addition, we
offer a stand alone program,
QuickBUILD™, which allows system designers to modify or create their own
QuickMAPs.
Integrated operations and functions simplify the total audio system design. Integration eliminates extensive cabling, connectors and components, along with minimized noise and failures due to cables and
solder joints. The result of this consolidation of processing is overall system performance and audio integrity being greatly
increased.
An ergonomically designed software interface called VUE-IT™ for the ISP-100 provides graphic control panels with the “conventional” look and feel of signal processors. As well, the advanced and easy-touse filter tool graphically displays the configuration of your filter block settings.
The ISP-100 is designed with modular inputs and outputs. This feature allows the
designer or installer to select between analog input or output modules and/or a digital input/output combination module. The
modules are two channel units and can be
intermixed between analog and digital providing a variety of I/O combination possibilities.
The ISP-100 supports a maximum of four
inputs with a maximum of eight outputs.
Combinations such as 2x2, 2x4, 2x6, 2x8,
4x2, 4x4, 4x6, or, for example, two in digital
by eight out analog could all be accommodated by simply varying the I/O modules
within the same ISP-100 chassis. Our
QuickMAP software topologies support
most of the configurations with more in
development continually based on market
demand.
The ISP-100 provides a dynamic range
which rivals anything currently on the
market. The Audio Precision System II (the
testing standard for digital audio equipment) resolves signals down to -128 dBFS;
at this level the ISP-100 is still performing
exceptionally. The ISP-100 noise floor measures -110 dB, typical, and maintains a
THD+N of less than 0.003%, typical. Due
to the design efficiencies, propagation time
is minimized in the ISP-100. Less than two
milliseconds of inherent delay is introduced
from any analog input to any analog output with full processing.
Another measure of the flexibility designed
into the ISP-100 is the General Purpose Inputs (GPI). GPIs allow multiple system configurations to be selected without the need
for a PC to control the unit. GPIs are programmable dry contact closure interfaces
which allow user-supplied contact closures
to switch system settings directly to a defined program and/or scroll through system settings as desired.
Architects' and Engineers'
Specifications
The specified audio digital signal processor shall implement signal amplitude modifications via 24-bit data paths without truncation of values during processing via
three 66 MHz DSPs. Component emulation
algorithms shall be performed on the
motherboard independent of any analogto-digital, digital-to-analog and/or any digi-
ISP-100 Integrated Signal Processor
tal signal input or output. Motherboard
shall provide means to connect up to five,
two-channel, I/O modules. Any conversions to or from the digital domain of the
audio signal shall be performed by said
modules. Mathematical calculations shall
be implemented as such that resultant precision exceeds current industry standard
test equipment abilities to measure processing noise floor. The unit shall be of a design and implementation process which limits any and all signal degradation between
20 Hz and 20 kHz to signal I/O conversion.
The efficiency of the processor shall be as
such that the inherent delay of the unit will
be no more than two milliseconds from any
analog input to any analog output with
full processing.

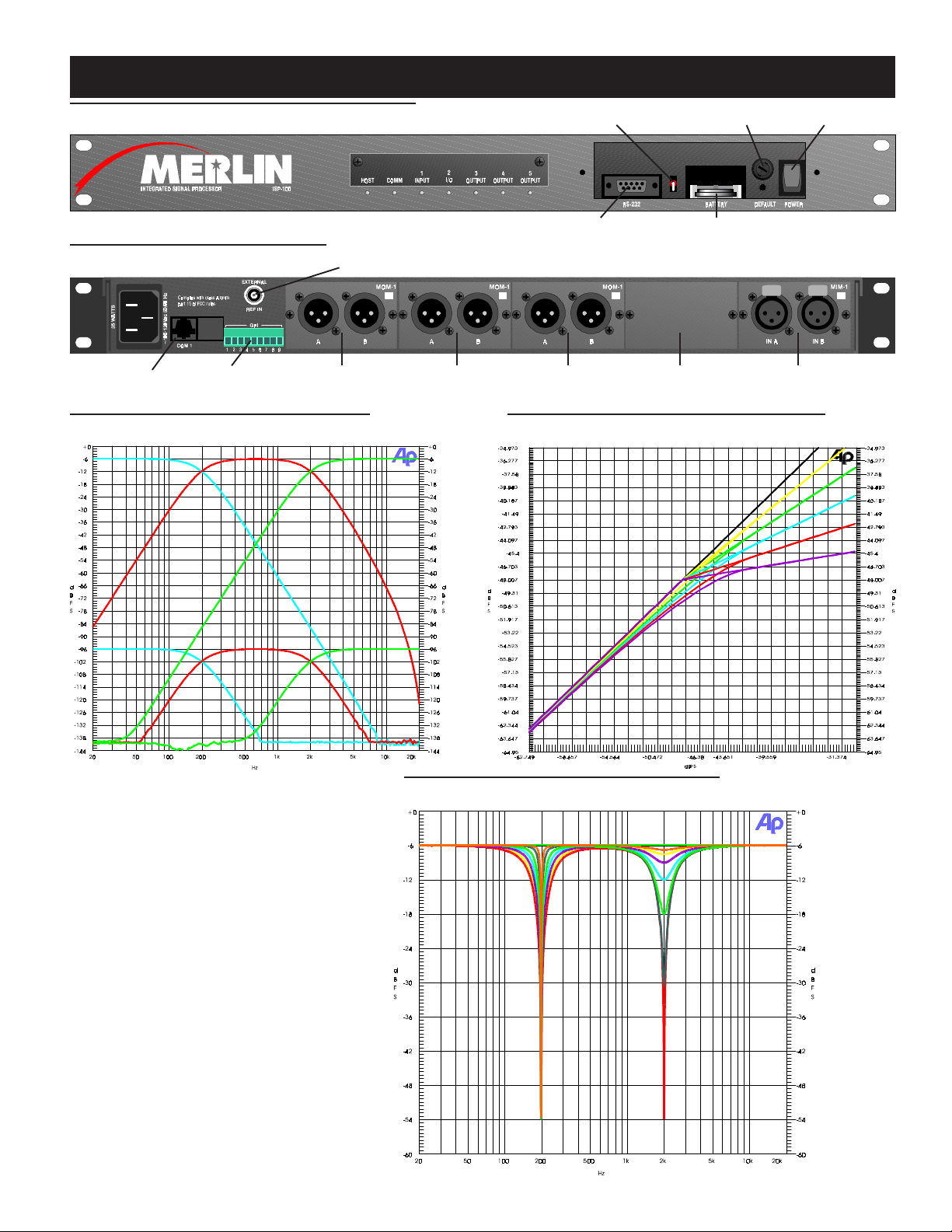

The specified unit shall provide a single
ISP-100 Integrated Signal Processor
chassis capable of being hardware configured for 2x2, 2x4, 2x6, 2x8, 4x2, 4x4 or 4x6
signal path operation. The specified unit
shall offer 24-bit A/D and D/A converters
with a minimum noise floor of -110 dB and
no more than 0.003% THD+N. The unit
shall have a 1k measurement for THD+N
of 0.002%. The chassis shall be capable of
accepting an AES/EBU (SPDIF) digital I/O
module for signal input and output. Both
digital and analog modules shall be able to
be used simultaneously within the same
chassis in any compliant I/O configuration
as stated above.
Communication exchange between the unit
and PC shall be conducted via RS232 serial port. Unit shall provide a DB-9 connector accessible from the front of the unit
and a RJ-45 connector on the rear of the
unit for serial connection to the PC. The
unit shall provide a selector switch allowing the operator to choose front or rear
communication connection. The unit will
accept up to eight independent dry contact closures via screw terminal connector.
The unit will provide the means for these
General Purpose Inputs (GPI) to interact
with the software program allowing the operator to switch between programmed presets using said contact closures without a
PC connected to the unit. GPIs shall be
able to switch system settings to any user
defined preset programmed into the unit.
2
There shall be no immediately accessible
buttons, knobs or switches on the front or
rear of the unit. The unit shall provide a
hot-swappable battery and tool for battery
removal and installation. The unit will provide front panel LEDs which will indicate
I/O modules installed, power on/off, signal clipping and host communications status. The unit shall be self-contained within
a 19-inch, single rack space (1 RU) chassis.
The unit shall be compatible with AMX®
RS-232 controls and networks.
Software environment for configuration
and operation of the processor shall provide static signal path topologies which
provide direct access to displayed processor options and the means to save multiple component configuration settings for
said topology in presets independently
which shall then be accessible via the GPI.
The software shall provide a stable interface environment in Windows 3.1/3.11®
and Windows 95®. Audio component
emulation within the program shall incorporate readily noticeable means of component operation. All displayed metering
during online operation shall incorporate
ballistics. Software shall provide the means
to save all programmed settings to the PC
hard disk. Software program capable of generating custom signal path topologies for
use in application software shall be made
available to qualified system designers.
The specified signal processor unit shall
be the MERLIN ISP-100.
Limited Warranty
MERLIN products are guaranteed against
malfunction due to defects in materials or
workmanship for a specified period, as
noted in the individual product-line
statement(s) below, or in the individual
product data sheet or owner’s manual, beginning with the date of original purchase.
If such malfunction occurs during the
specified period, the product will be repaired or replaced (at our option) without
charge. The product will be returned to the
customer prepaid. Exclusions and Limita-
tions: The Limited Warranty does not apply to: (a) exterior finish or appearance; (b)
certain specific items described in the individual product-line statement(s) below, or
in the individual product data sheet or
owner’s manual; (c) malfunction resulting
from use or operation of the product other
than as specified in the product data sheet
or owner’s manual; (d) malfunction resulting from misuse or abuse of the product;
or (e) malfunction occurring at any time
after repairs have been made to the product by anyone other than Telex Communications, Inc. Service or any of its authorized service representatives. Obtaining
Warranty Service: To obtain warranty service, a customer must deliver the product,
prepaid, to Telex Communications, Inc. Service or any of its authorized service representatives together with proof of purchase
of the product in the form of a bill of sale or
receipted invoice. A list of authorized service representatives is available from Telex
Communications, Inc. Service by mail at
9600 Aldrich Avenue South, Minneapolis,
MN 55420 or by phone at 612/884-4051.
Incidental and Consequential Damages Excluded: Product repair or replacement and
return to the customer are the only remedies provided to the customer. Merlin shall
not be liable for any incidental or consequential damages including, without limitation, injury to persons or property or loss
of use. Some states do not allow the exclusion or limitation of incidental or consequential damages so the above limitation
or exclusion may not apply to you. Other
Rights: This warranty gives you specific
legal rights, and you may also have other
rights which vary from state to state.
Speakers and Speaker Systems are guaranteed against malfunction due to defects
in materials or workmanship for a period of
five (5) years from the date of original purchase. The Limited Warranty does not apply to burned voice coils or malfunctions
such as cone and/or coil damage resulting
from improperly designed enclosures. Electro-Voice active electronics associated with
the speaker systems are guaranteed for
three (3) years from the date of original
purchase. Additional details are included
in the Uniform Limited W arranty statement.
Electronics are guaranteed against malfunction due to defects in materials or
