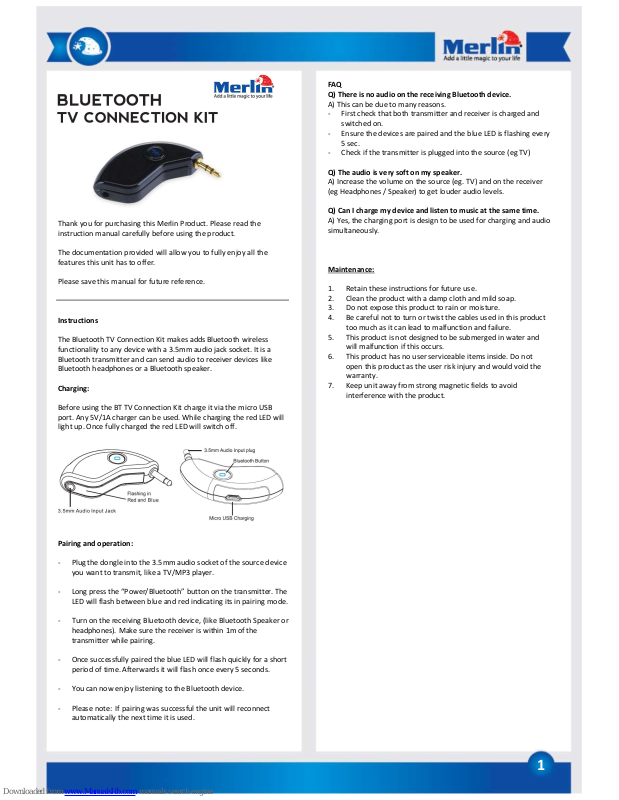

Merlin Bluetooth TV Connection Kit User Manual

Thank you for purchasing this Merlin Product. Please read the
instruction manual carefully before using the product.

The documentation provided will allow you to fully enjoy all the
features this unit has to offer.

Please save this manual for future reference.

Instructions

The Bluetooth TV Connection Kit makes adds Bluetooth wireless
functionality to any device with a 3.5mm audio jack socket. It is a
Bluetooth transmitter and can send audio to receiver devices like
Bluetooth headphones or a Bluetooth speaker.

Charging:

Before using the BT TV Connection Kit charge it via the micro USB
port. Any 5V/1A charger can be used. While charging the red LED will
light up. Once fully charged the red LED will switch off.

FAQ
Q) There is no audio on the receiving Bluetooth device.

A) This can be due to many reasons.

- First check that both transmitter and receiver is charged and
switched on.

- Ensure the devices are paired and the blue LED is flashing every
5 sec.

- Check if the transmitter is plugged into the source (eg TV)

Q) The audio is very soft on my speaker.

A) Increase the volume on the source (eg. TV) and on the receiver
(eg Headphones / Speaker) to get louder audio levels.

Q) Can I charge my device and listen to music at the same time.

A) Yes, the charging port is design to be used for charging and audio
simultaneously.

Maintenance:

1. Retain these instructions for future use.

2. Clean the product with a damp cloth and mild soap.

3. Do not expose this product to rain or moisture.

4. Be careful not to turn or twist the cables used in this product

too much as it can lead to malfunction and failure.

5. This product is not designed to be submerged in water and

will malfunction if this occurs.

6. This product has no user serviceable items inside. Do not

open this product as the user risk injury and would void the
warranty.

7. Keep unit away from strong magnetic fields to avoid

interference with the product.

Pairing and operation:

- Plug the dongle into the 3.5mm audio socket of the source device
you want to transmit, like a TV/MP3 player.

- Long press the “Power/Bluetooth” button on the transmitter. The
LED will flash between blue and red indicating its in pairing mode.

- Turn on the receiving Bluetooth device, (like Bluetooth Speaker or
headphones). Make sure the receiver is within 1m of the
transmitter while pairing.

- Once successfully paired the blue LED will flash quickly for a short
period of time. Afterwards it will flash once every 5 seconds.

- You can now enjoy listening to the Bluetooth device.

- Please note: If pairing was successful the unit will reconnect
automatically the next time it is used.
