Page 1

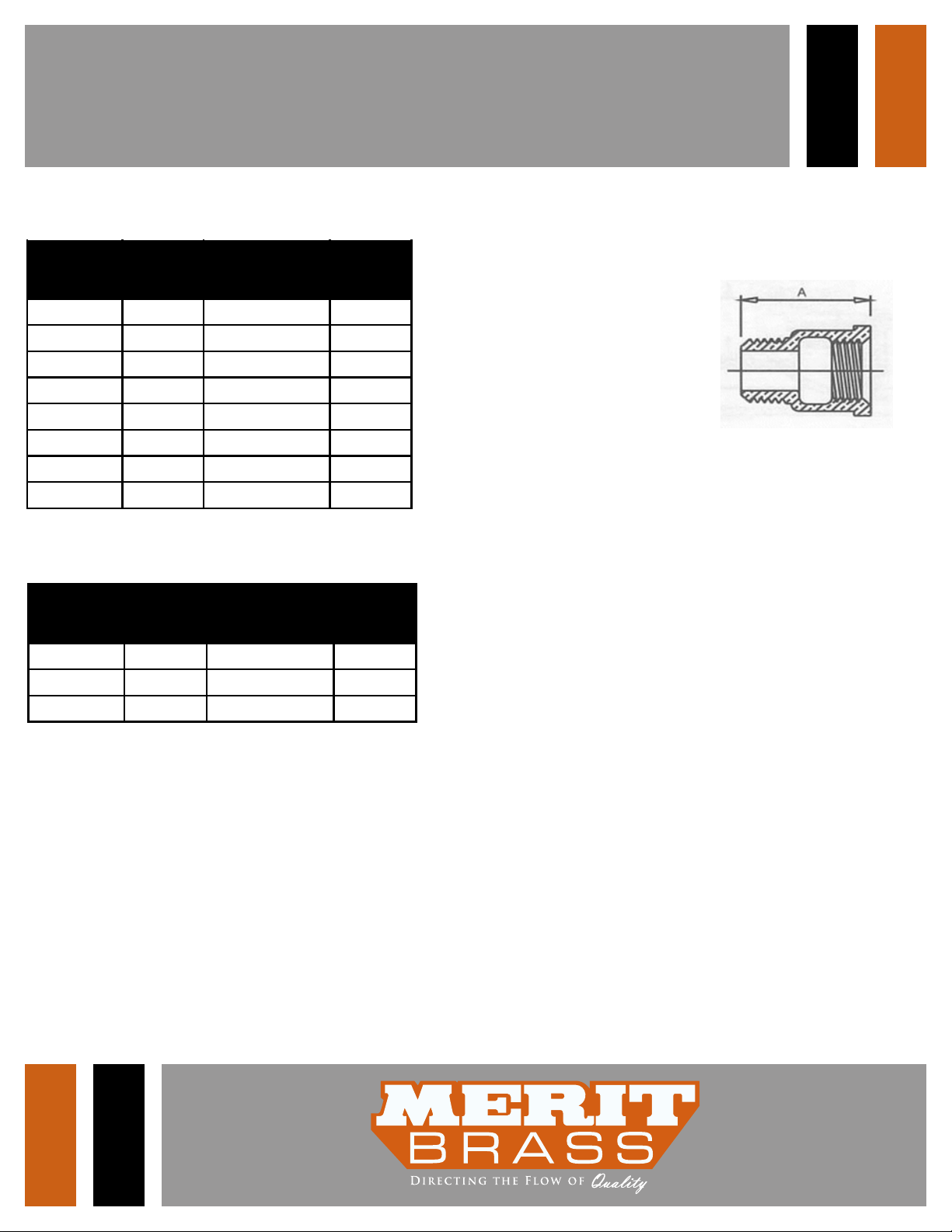

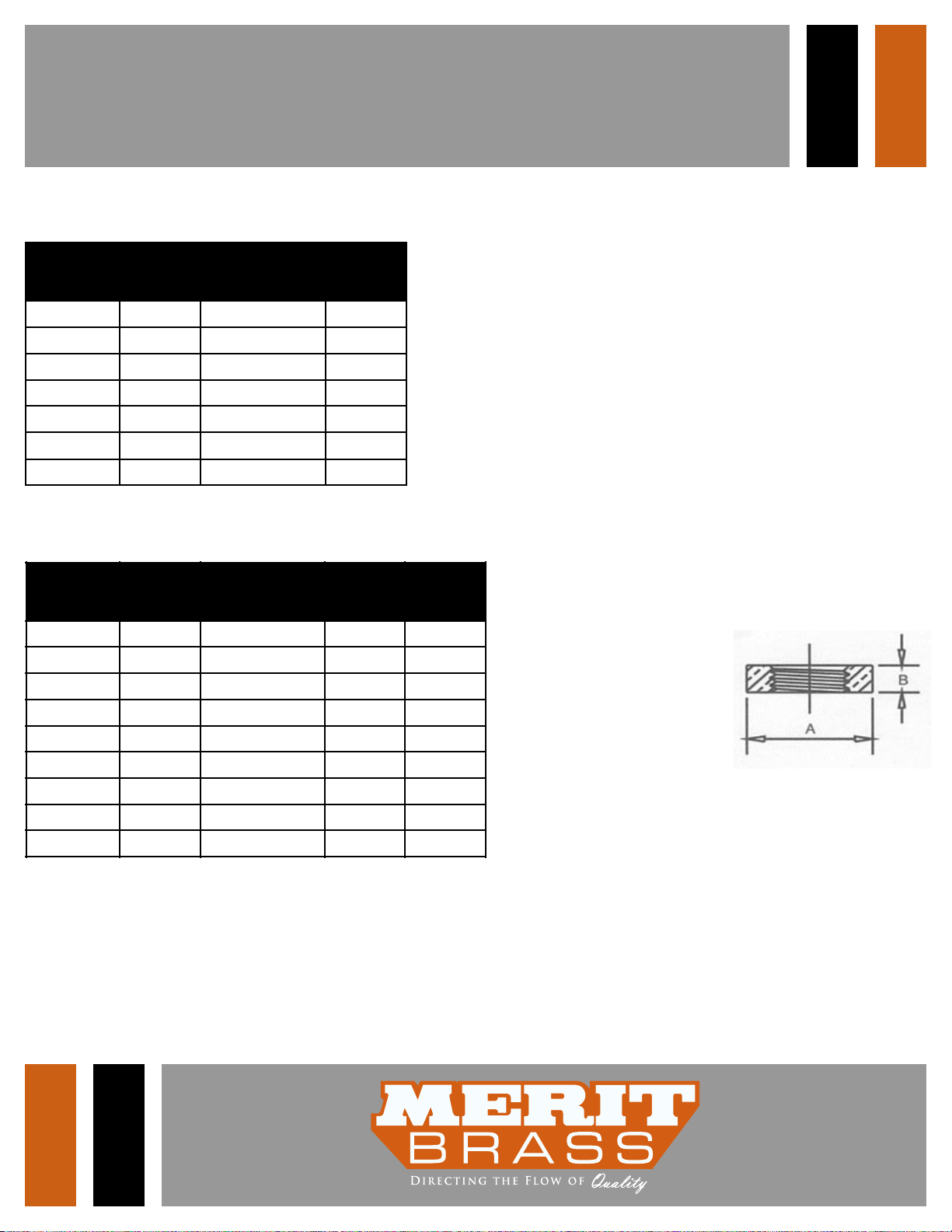

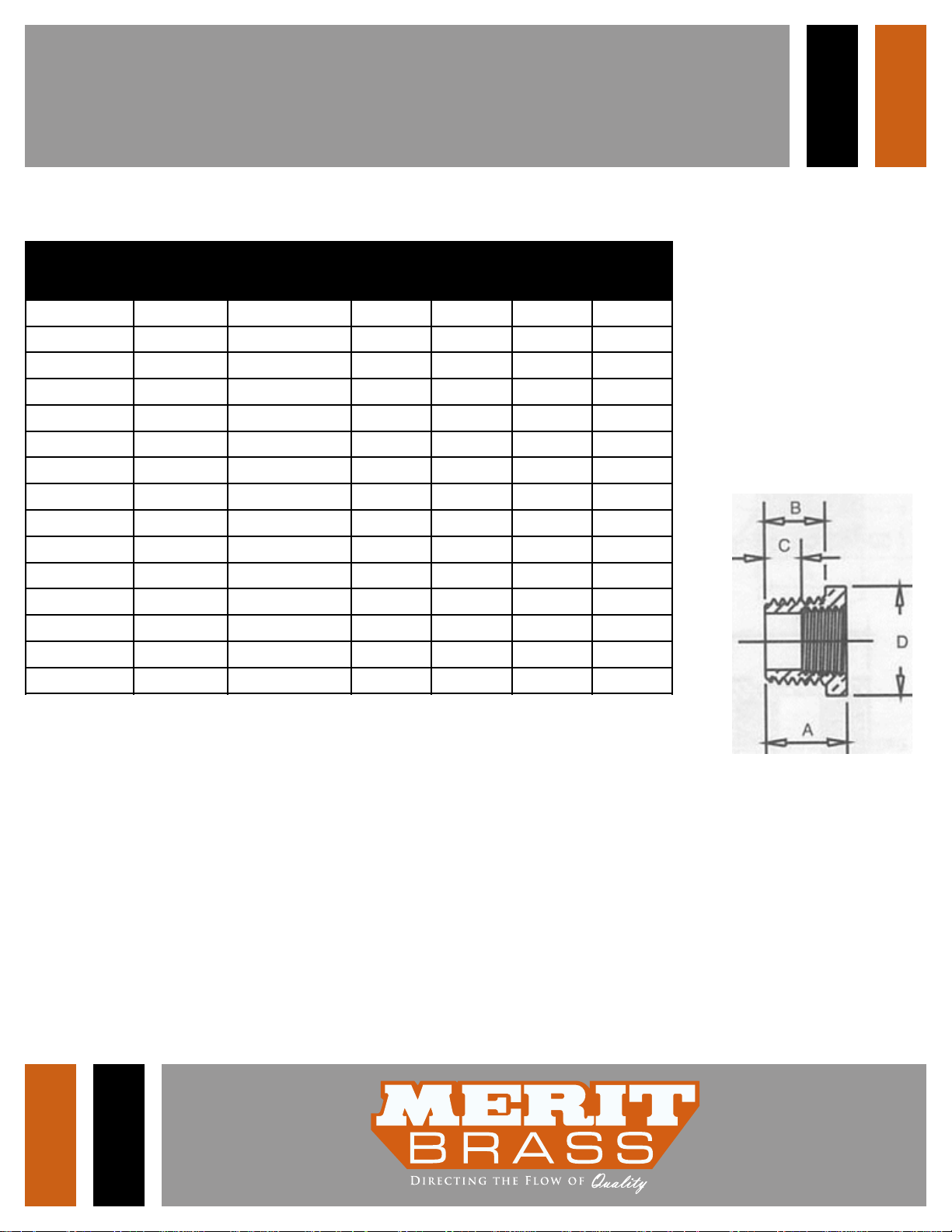

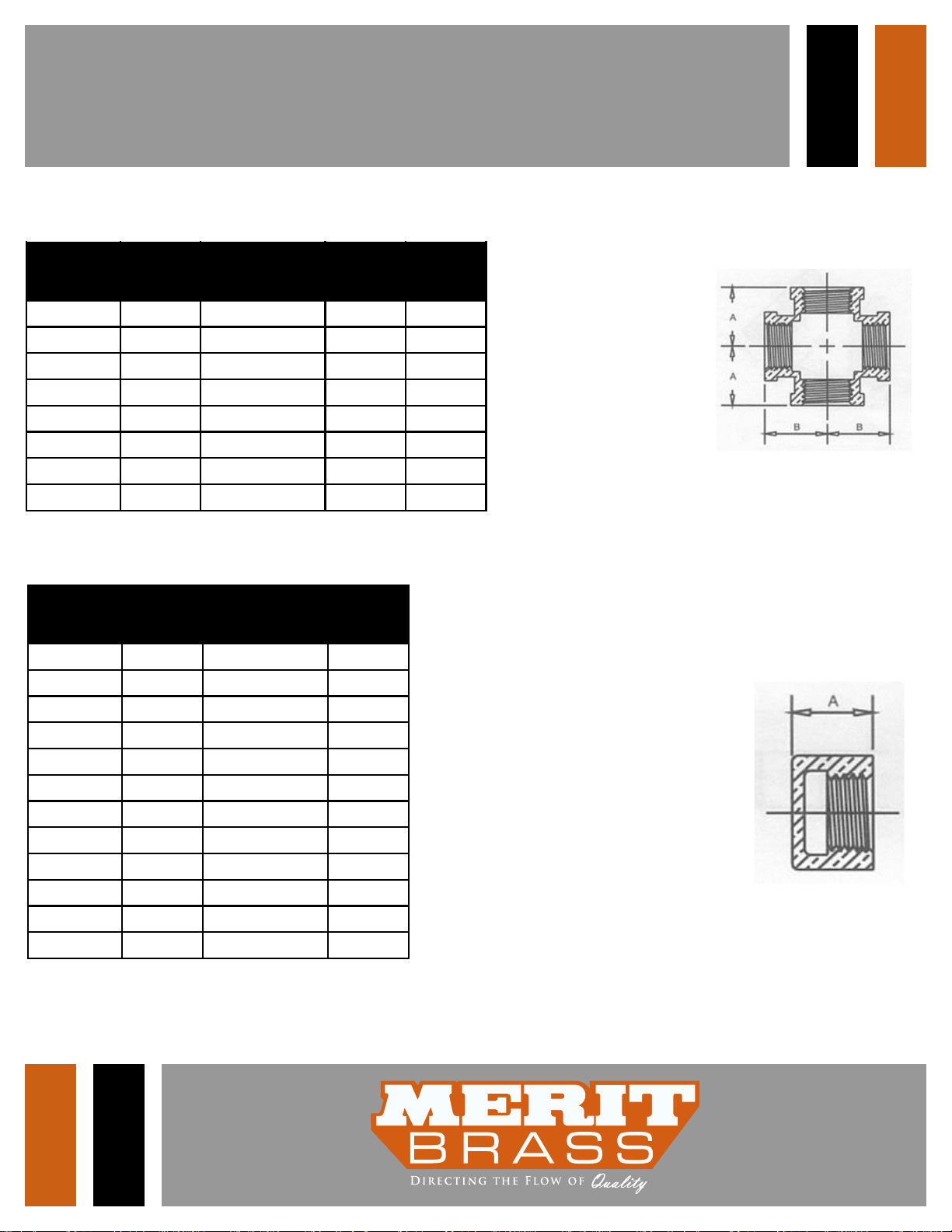

DIMENSIONAL SPECIFICATIONS
LEAD-FREE DOMESTIC BRASS FITTINGS* 125 LB.
90 DEGREE ELBOW
Part #
NL101-02 1/8 0.06 0.54 0.54
NL101-04 1/4 0.08 0.71 0.71
NL101-06 3/8 0.16 0.82 0.82
NL101-08 1/2 0.24 1.01 1.01
NL101-12 3/4 0.35 1.18 1.18
NL101-16 1 0.60 1.43 1.43
NL101-20 1-1/4 0.95 1.69 1.69
NL101-24 1-1/2 1.03 1.84 1.84
NL101-32 2 1.95 2.12 2.12
NL101-40 2-1/2 3.45 2.70 2.70
NL101-48 3 5.40 3.08 3.08
NL101-64 4 9.25 3.79 3.79
NL101-96 6 24.22 5.13 5.13
Size
(IN.)
Approx. Net
WT. (LB.)
AB
90 DEGREE STREET ELBOW
Part #
NL103-02 1/8 0.06 0.55 0.92
NL103-04 1/4 0.11 0.72 1.11
NL103-06 3/8 0.17 0.83 1.24
NL103-08
NL103-12
NL103-16 1 0.50 1.43 1.98
NL103-20 1-1/4 0.85 1.71 2.26
NL103-24 1-1/2 1.15 1.87 2.46
NL103-32 2 1.98 2.14 2.98
NL103-40 2-1/2 3.15 2.74 3.92
NL103-48 3 5.26 3.10 4.45
*Conforms with lead content requirements for lead-free plumbing as defined by the U.S. Safe Drinking Water Act. Certified <0.25 weighted average % lead.
Size
(IN.)
1/2 0.23
3/4 0.35 1.19 1.66
Approx. Net
WT. (LB.)
AB
1.03 1.51
Page 2
DIMENSIONAL SPECIFICATIONS
LEAD-FREE DOMESTIC BRASS FITTINGS* 125 LB.
90 DEGREE REDUCING ELBOW
Part #
NL101-0402 1/4 X 1/8 0.09 0.65 0.60
NL101-0602 3/8 X 1/8 0.14 0.67 1.00
NL101-0604 3/8 X 1/4 0.13 0.75 0.75
NL101-0804 1/2 X 1/4 0.17 1.78 1.69
NL101-0806 1/2 X 3/8 0.18 0.93 0.90
NL101-1204 3/4 X 1/4 0.30 1.00 1.00
NL101-1206 3/4 X 3/8 0.25 0.97 0.97
NL101-1208 3/4 X 1/2 0.31 1.08 1.11
NL101-1608 1 X 1/2 0.45 1.20 1.24
NL101-1612 1 X 3/4 0.50 1.30 1.31
NL101-2008 1-1/4 X 1/2 0.70 1.25 1.38
NL101-2412 1-1/4 X 3/4 0.88
NL101-2016 1-1/4 X 1 0.82 1.52 1.60
NL101-2416 1-1/2 X 1 0.96 1.55 1.72
NL101-2420 1-1/2 X 1-1/4 1.00 1.72 1.81
NL101-3208 2 X 1/2 1.25 1.17 2.92
NL101-3216 2 X 1 1.60 1.56 1.94
NL101-3224 2 X 1-1/2 1.78 1.89 2.07
NL101-4024 2-1/2 X 1-1/2 3.28 2.19 2.50
NL101-4032 2-1/2 X 2 3.02 2.39 2.60
Size
(IN.)
Approx. Net
WT. (LB.)
AB
1.30 1.31
*Conforms with lead content requirements for lead-free plumbing as defined by the U.S. Safe Drinking Water Act. Certified <0.25 weighted average % lead.
Page 3
DIMENSIONAL SPECIFICATIONS
LEAD-FREE DOMESTIC BRASS FITTINGS* 125 LB.
45 DEGREE ELBOW
Part #
NL102-02 1/8 0.05 0.43
NL102-04 1/4 0.09 0.55
NL102-06 3/8 1.14 0.63
NL102-08 1/2 0.19 0.79
NL102-12 3/4 0.30 0.91
NL102-16 1 0.50 1.07
NL102-20 1-1/4 0.75 1.23
NL102-24 1-1/2 0.95 1.31
NL102-32 2 1.70 1.47
NL102-40 2-1/2 2.79 1.89
Size
(IN.)
Approx. Net
WT. (LB.)
AB
45 DEGREE STREET ELBOW
Part #
NL103A-04 1/4 0.08 0.56 0.88
NL103A-06 3/8 0.12 0.63 0.92
NL103A-08 1/2 0.17 0.78 1.06
NL103A-12 3
NL103A-16 1 0.49 1.06 1.40
NL103A-20 1-1/4 0.70 1.22 1.64
NL103A-24 1-1/2 0.92 1.30 1.80
NL103A-32 2 1.37 1.45 2.14
Size
(IN.)
/4 0.29 0.89 1.23
Approx. Net
WT. (LB.)
AB
0.43
0.55
0.63
0.79
0.91
1.07
1.23
1.31
1.47
1.89
*Conforms with lead content requirements for lead-free plumbing as defined by the U.S. Safe Drinking Water Act. Certified <0.25 weighted average % lead.
Page 4
DIMENSIONAL SPECIFICATIONS
LEAD-FREE DOMESTIC BRASS FITTINGS* 125 LB.
45 DEGREE Y-BRANCH
Part #
NL122-06 3/8 0.28 1.78 1.28
NL122-08 1/2 0.29 2.19 1.58
NL122-12 3/4 0.62 2.62 1.90
NL122-16 1 0.97 3.18 2.33
NL122-20 1-1/4 1.63 3.85 2.83
NL122-24 1-1/2 1.96 4.24 3.14
NL122-32 2 3.25 5.00 3.76
NL122-40 2-1/2 6.39 6.25 4.75
NL122-48 3 10.19 7.25 5.56
Size
(IN.)
Approx. Net
WT. (LB.)
AB
*Conforms with lead content requirements for lead-free plumbing as defined by the U.S. Safe Drinking Water Act. Certified <0.25 weighted average % lead.
Page 5
DIMENSIONAL SPECIFICATIONS
LEAD-FREE DOMESTIC BRASS FITTINGS* 125 LB.
TEE
Part #
NL106-02 1/8 0.07 0.54 0.54 0.54
NL106-04 1/4 0.14 0.71 0.71 0.71
NL106-06 3/8 0.21 0.82 0.82 0.82
NL106-08 1
NL106-12 3
NL106-16 1 0.80 1.43 1.43 1.43
NL106-20 1-1/4 1.47 1.69 1.69 1.69
NL106-24 1-1/2 1.50 1.84 1.84 1.84
NL106-32 2 2.25 2.12 2.12 2.12
NL106-40 2-1/2 4.56 2.70 2.70 2.70
NL106-48 3 6.70 3.08 3.08 3.08
NL106-64 4 11.03 3.79 3.79 3.79
Size
(IN.)
/2 0.30
/4 0.50 1.18 1.18 1.18
Approx. Net
WT. (LB.)
AB C
1.01 1.01 1.01
STREET TEE
Part #
Size
(IN.)
Approx. Net
WT. (LB.)
AB
NL106A-08 1/2 0.27 2.19 1.59
NL106A-32 2 3.20 2.13 2.88
*Conforms with lead content requirements for lead-free plumbing as defined by the U.S. Safe Drinking Water Act. Certified <0.25 weighted average % lead.
Page 6
DIMENSIONAL SPECIFICATIONS
LEAD-FREE DOMESTIC BRASS FITTINGS* 125 LB.

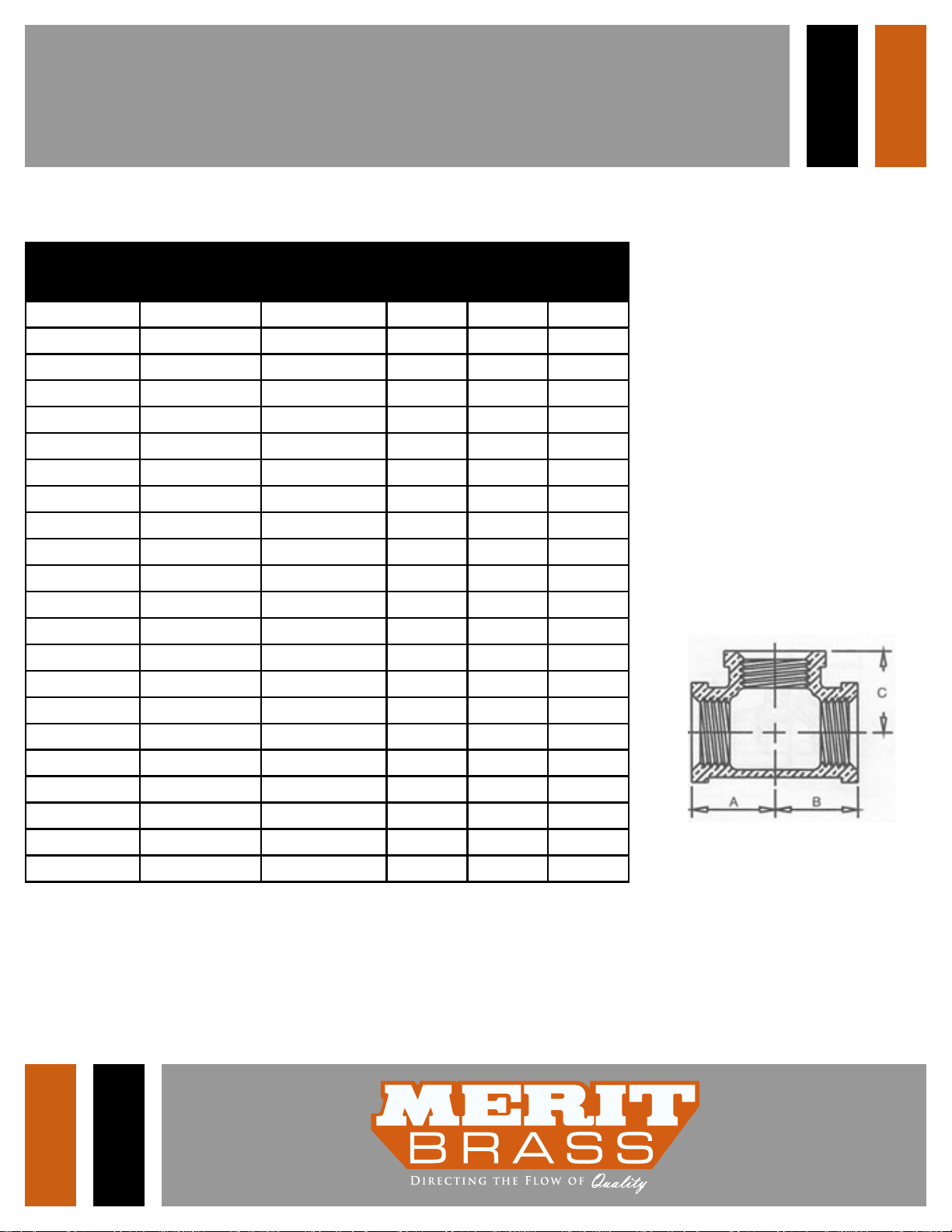

REDUCING TEE
Part #
NL106-060604
NL106-060608
NL106-080408
NL106-080606
NL106-080608
NL106-080806
NL106-080812
NL106-120808
NL106-120812
NL106-121204
NL106-121208
NL106-121216
NL106-160816
NL106-161208
NL106-161212
NL106-161216
NL106-161606
NL106-161608
NL106-161612
NL106-202008
NL106-202012
NL106-202016
Size
(IN.)
3/8 X 3/8 X 1/4
3/8 X 3/8 X 1/2
1/2 X 1/4 X 1/2
1/2 X 3/8 X 3/8
1/2 X 3/8 X 1/2
1/2 X 1/2 X 3/8
1/2 X 1/2 X 3/4
3/4 X 1/2 X 1/2
3/4 X 1/2 X 3/4
3/4 X 3/4 X 1/4
3/4 X 3/4 X 1/2
3/4 X 3/4 X 1
1 X 1/2 X 1
1 X 3/4 X 1/2
1 X 3/4 X 3/4
1 X 3/4 X 1
1 X 1 X 3/8
1 X 1 X 1/2
1 X 1 X 3/4
1-1/4 X 1-1/4 X 1/2
1-1/4 X 1-1/4 X 3/4
1-1/4 X 1-1/4 X 1
Approx. Net
WT. (LB.)
0.17 0.75 0.75 0.78
0.24 0.90 0.90 0.93
0.27 0.93 0.87
0.25 0.93 0.82 0.90
0.25 1.01 0.90 1.01
0.25 0.93 0.93 0.90
0.38 1.11 1.11 1.08
0.42 1.08 1.01 1.11
0.42 1.18 1.11 1.18
0.35 1.00 1.00 1.00
0.40 1.08 1.08 1.11
0.60 1.31 1.31 1.30
0.61 1.43 1.24 1.43
0.46 1.20 1.08 1.24
0.58 1.30 1.08 1.31
0.71 1.43 1.31 1.43
0.56 1.12 1.12 1.13
0.63 1.20 1.20 1.24
0.72 1.30 1.30 1.31
0.92 1.29 1.29 1.41
0.91 1.39 1.39 1.48
1.10 1.52 1.52 1.60
AB C
0.93
*Conforms with lead content requirements for lead-free plumbing as defined by the U.S. Safe Drinking Water Act. Certified <0.25 weighted average % lead.
Page 7
DIMENSIONAL SPECIFICATIONS
1/2
1/2
1/2
1/2 X 1/2
1
1/4
LEAD-FREE DOMESTIC BRASS FITTINGS* 125 LB.

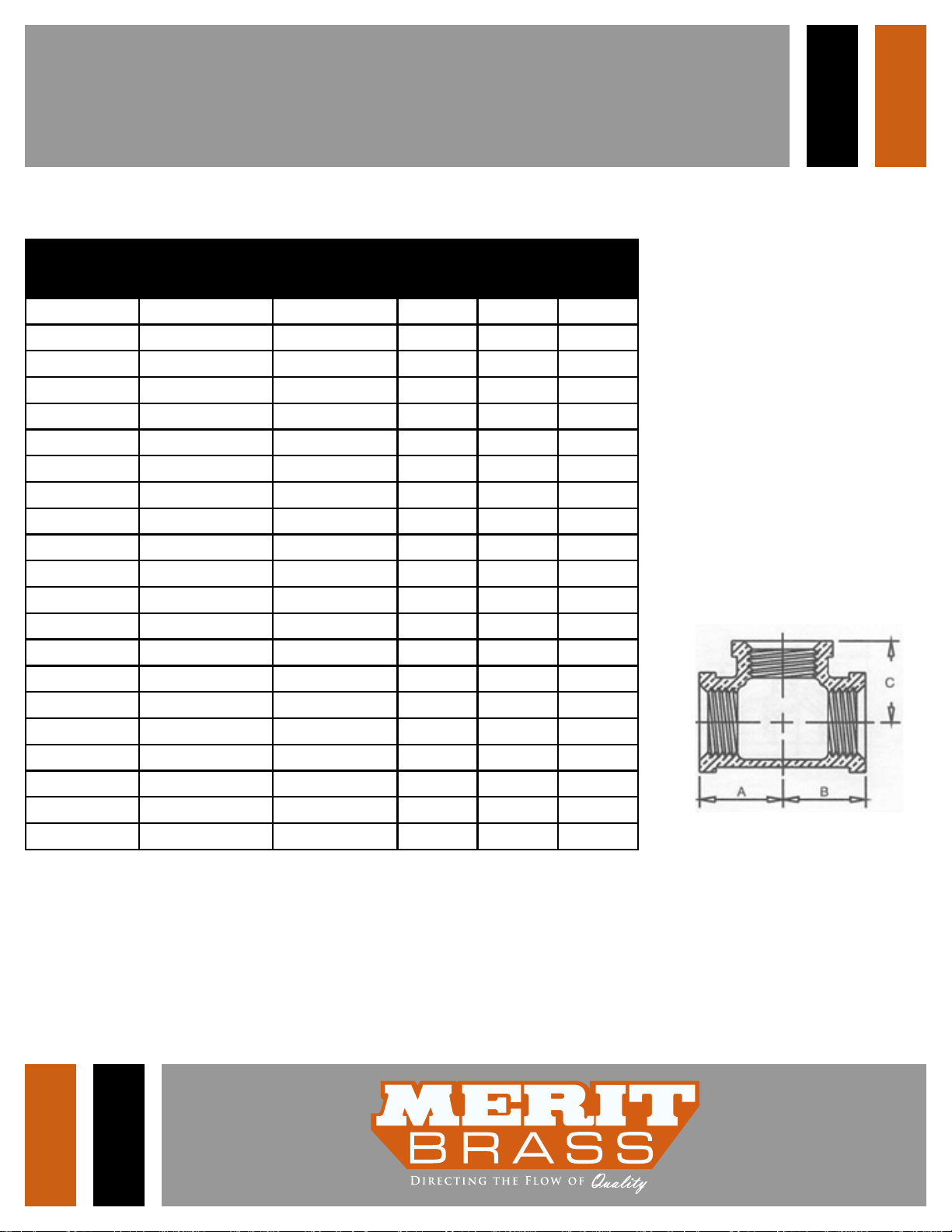

REDUCING TEE CONTINUED
Part #
NL106-2020241-1/4 X 1-1/4 X 1NL106-240824 1-1/2 X 1/2 X 1NL106-241224 1-1/2 X 3/4 X 1NL106-241616 1-1/2 X 1 X 1 1.10 1.63 1.50 1.81
NL106-241624 1-1/2 X 1 X 1-1/2 1.47 1.88 1.81 1.88
NL106-242408 1-1/2 X 1NL106-242412 1-1/2 X 1-1/2 X 3/4 1.14 1.42 1.42 1.60
NL106-242416 1-1/2 X 1-1/2 X 1 1.35 1.55 1.55 1.72
NL106-242420
NL106-242432 1-1/2 X 1-1/2 X 2 2.15 2.07 2.07 1.89
NL106-321232 2 X 3/4 X 2 2.56 2.13 1.84 2.13
NL106-322420 2 X 1-1/2 X 1-1/4 1.79 1.78 1.72 2.03
NL106-323208 2 X 2 X 1/2 1.67 1.50 1.50 1.88
NL106-323212 2 X 2 X 3/4 1.70 1.47 1.47 1.84
NL106-323216 2 X 2 X 1 1.83 1.59 1.59 1.95
NL106-323220 2 X 2 X 1-1/4 2.07 1.77 1.77 2.04
NL106-323224 2 X 2 X 1-1/2 2.18 1.89 1.89 2.07
NL106-403240 2-1/2 X 2 X 2-1/2 4.18 2.69 2.63 2.69
NL106-404016 2-1/2 X 2-1/2 X 1 2.98 1.88 1.88 2.38
NL106-404032 2-1/2 X 2-1/2 X 2 3.91 2.39 2.39 2.60
NL106-484832 3 X 3 X 2 5.61 2.52 2.52 2.89
Size
(IN.)
-1/2 X 1-1/2 X 1-
Approx. Net
WT. (LB.)
1.74 1.81 1.81 1.72
1.51 1.81 1.56 1.81
1.35 1.84 1.60 1.84
1.17 1.32 1.32 1.53
1.45 1.72 1.72 1.81
AB C
*Conforms with lead content requirements for lead-free plumbing as defined by the U.S. Safe Drinking Water Act. Certified <0.25 weighted average % lead.
Page 8
DIMENSIONAL SPECIFICATIONS
LEAD-FREE DOMESTIC BRASS FITTINGS* 125 LB.
CROSS
Part #
NL110-04 1/4 0.16 0.71 0.71
NL110-06 3/8 0.23 0.82 0.82
NL110-08 1/2 0.34 1.01 1.01
NL110-12 3/4 0.55 1.18 1.18
NL110-16 1 0.95 1.43 1.43
NL110-20 1-1/4 1.94 1.69 1.69
NL110-24 1-1/2 2.95 1.84 1.84
NL110-32 2 7.84 2.12 2.12
Size
(IN.)
Approx. Net
WT. (LB.)
AB
CAP
Part #
NL116-02 1/8 0.04 0.49
NL116-04 1/4 0.07 0.59
NL116-06 3/8 0.10 0.66
NL116-08
NL116-12
NL116-16 1 0.30 1.00
NL116-20 1-1/4 0.45 1.13
NL116-24 1-1/2 0.65 1.16
NL116-32 2 1.10 1.34
NL116-40 2-1/2 1.79 1.72
NL116-48 3 1.78 1.81
NL116-64 4 5.59 2.09
Size
(IN.)
1/2 0.12
3/4 0.21
Approx. Net
WT. (LB.)
A
0.78
0.84
*Conforms with lead content requirements for lead-free plumbing as defined by the U.S. Safe Drinking Water Act. Certified <0.25 weighted average % lead.
Page 9
DIMENSIONAL SPECIFICATIONS
LEAD-FREE DOMESTIC BRASS FITTINGS* 125 LB.

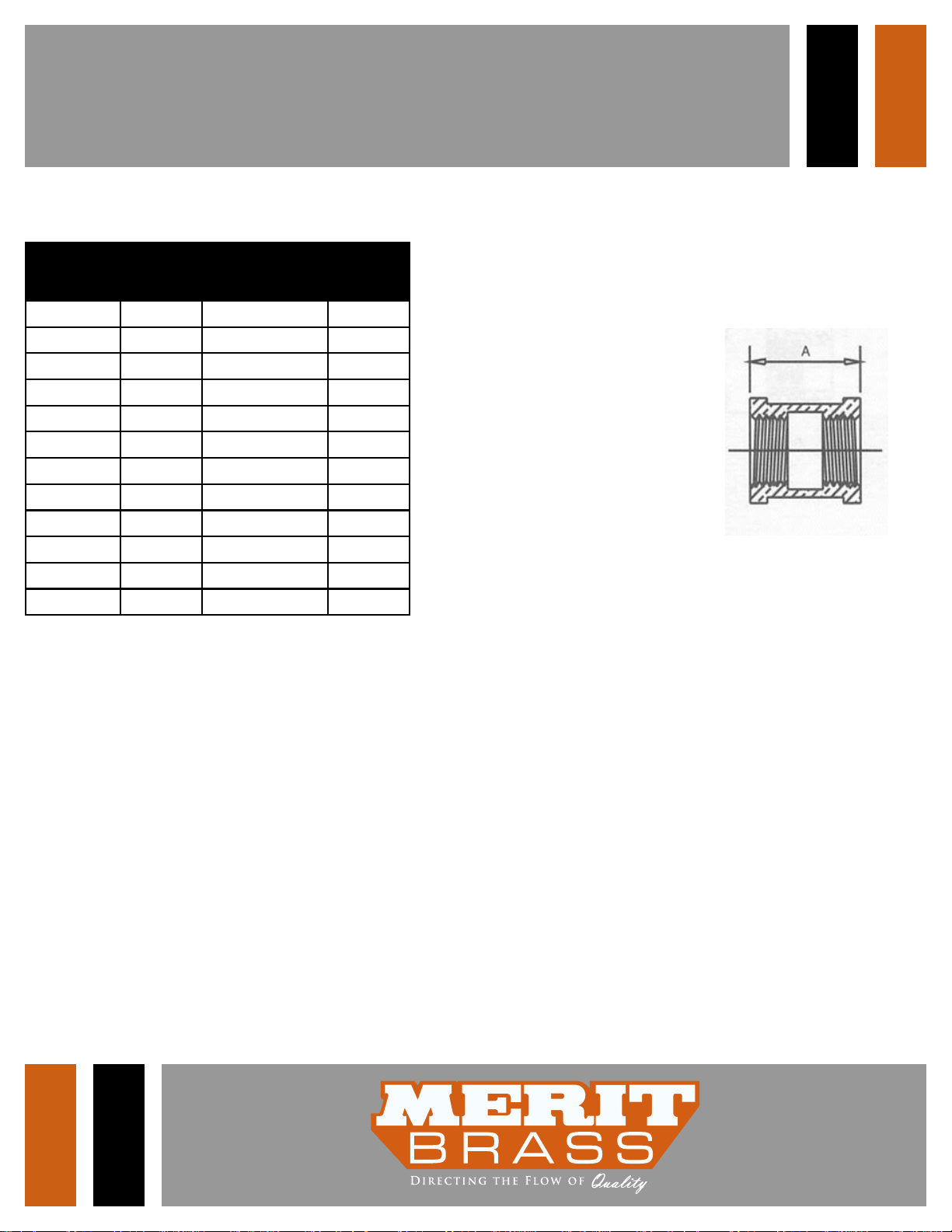

COUPLING
Part #
NL111-02 1/8 0.06 0.80
NL111-04 1/4 0.08 0.80
NL111-06 3/8 0.12 1.05
NL111-08 1
NL111-12 3/4 0.30 1.43
NL111-16 1 0.45 1.68
NL111-20 1-1/4 0.65 1.86
NL111-24 1-1/2 0.90 1.92
NL111-32 2 1.35 2.20
NL111-40 2-1/2 2.40 2.88
NL111-48 3 3.45 3.18
NL111-64 4 5.03 3.69
Size
(IN.)
/2 0.25 1.29
Approx. Net
WT. (LB.)
A
*Conforms with lead content requirements for lead-free plumbing as defined by the U.S. Safe Drinking Water Act. Certified <0.25 weighted average % lead.
Page 10
DIMENSIONAL SPECIFICATIONS
LEAD-FREE DOMESTIC BRASS FITTINGS* 125 LB.

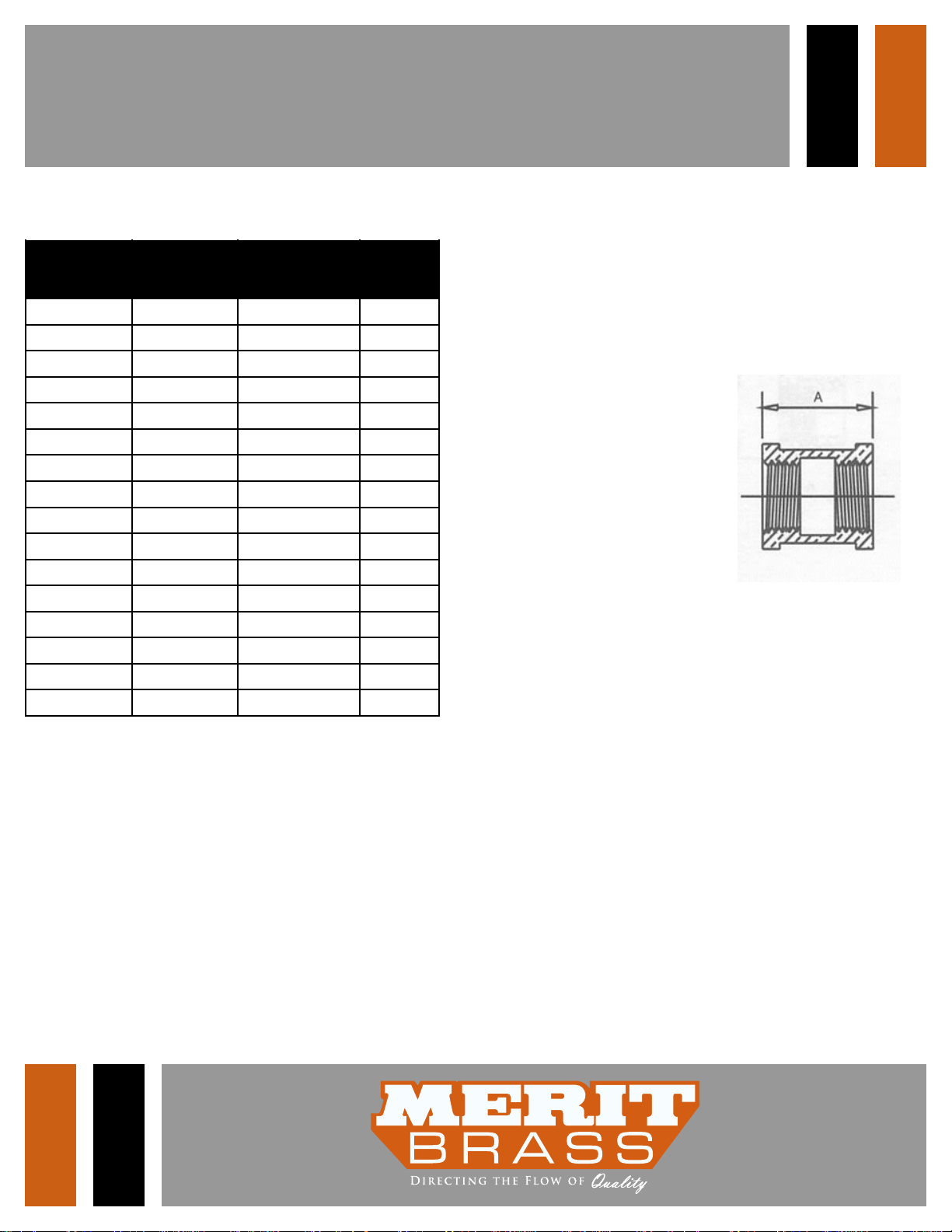

REDUCING COUPLING
Part #
NL112-0604 3/8 X 1/4 0.09 0.92
NL112-0806 1/2 X 3/8 0.16 1.17
NL112-1206 3/4 X 3/8 0.23 1.35
NL112-1208 3/4 X 1/2 0.25 1.35
NL112-1612 1 X 3/4 0.35 1.56
NL112-2012 1-1/4 X 3/4 0.62 1.77
NL112-2408 1-1/2 X 1/2 0.59 1.80
NL112-2412 1-1/2 X 3/4 0.65 1.80
NL112-2416 1-1/2 X 1 0.60 1.80
NL112-2420 1-1/2 X 1-1/4 0.75 1.80
NL112-3216 2 X 1 1.00 2.03
NL112-3220 2 X 1-1/4 1.05 2.03
NL112-4032 2-1/2 X 2 1.71 3.25
NL112-4832 3 X 2 2.70 3.69
NL112-4840 3 X 2-1/2 3.33 3.69
NL112-6432 4 X 2 4.29 4.38
Size
(IN.)
Approx. Net
WT. (LB.)
A
*Conforms with lead content requirements for lead-free plumbing as defined by the U.S. Safe Drinking Water Act. Certified <0.25 weighted average % lead.
Page 11
DIMENSIONAL SPECIFICATIONS
LEAD-FREE DOMESTIC BRASS FITTINGS* 125 LB.

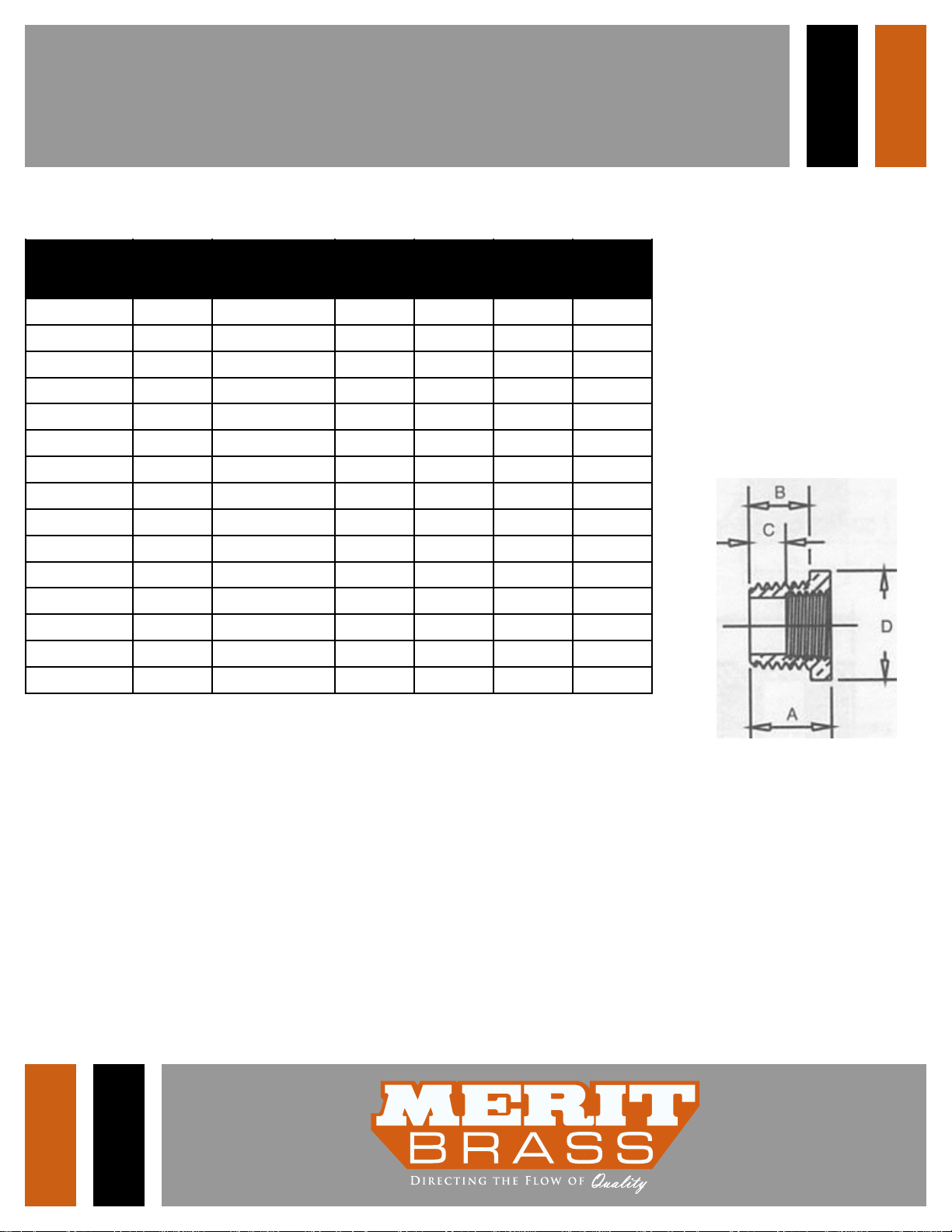

HEX BUSHING
Part #
NL114-0802 1/2 X 1/8 0.09 0.75 0.56 0.50 0.88
NL114-0804 1/2 X 1/4 0.10 0.75 0.56 0.43 0.88
NL114-0806 1/2 X 3/8 0.06 0.75 0.56 0.34 0.88
NL114-1202 3/4 X 1/8 0.14 0.88 0.63 0.25 1.16
NL114-1204 3/4 X 1/4 0.15 0.85 0.63 0.53 1.16
NL114-1206 3/4 X 3/8 0.14 0.85 0.63 0.49 1.16
NL114-1208 3/4X 1/2 0.11 0.85 0.63 0.32 1.16
NL114-1602 1 X 1/8 0.22 1.06 0.75 0.75 1.44
NL114-1604 1 X 1/4 0.25 1.05 0.75 0.73 1.44
NL114-1606 1 X 3/8 0.20 1.05 0.75 0.69 1.13
NL114-1608 1 X 1/2 0.25 1.00 0.75 0.57 1.13
NL114-1612 1 X 3/4 0.19 1.00 0.75 0.50 1.13
NL114-2008 1-1/4 X 1/2 0.40 1.14 0.80 0.71 1.34
NL114-2016 1-1/4 X 1 0.30 1.08 0.80 0.47 1.78
NL114-2412 1-1/2 X 3/4 0.50 1.20 0.83 0.70 1.63
Size
(IN.)
Approx. Net
WT. (LB.)
AB CD
*Conforms with lead content requirements for lead-free plumbing as defined by the U.S. Safe Drinking Water Act. Certified <0.25 weighted average % lead.
Page 12
DIMENSIONAL SPECIFICATIONS
1
1/4
2
LEAD-FREE DOMESTIC BRASS FITTINGS* 125 LB.
HEX BUSHING CONTINUED
Part #
NL114-2416 1-1/2 X 1 0.45 1.14 0.83 0.56 2.00
NL114-2420
NL114-3204 2 X 1/4 0.66 1.25 0.25 2.38
NL114-3208 2 X 1/2 1.00 1.31 0.88 0.88 1.34
NL114-3212 2 X 3/4 0.95 1.31 0.88 0.81 1.63
NL114-3220 2 X 1-1/4 0.75 1.22 0.88 0.55 2.50
NL114-3224 2 X 1-1/2 0.65 1.22 0.88 0.52 2.50
NL114-4016 2-1/2 X 1 1.03 1.53 1.09 0.94 1.97
NL114-4020
NL114-4032 2-1/2 X 2 1.15 1.44 1.07 0.69 2.41
NL114-4816 3 X 1 1.97 1.63 1.13 1.03 3.50
NL114-4820 3 X 1-1/4 1.75 1.63 1.13 0.94 3.50
NL114-4824 3 X 1-1/2 1.52 1.63 1.13 0.91 3.50
NL114-4832 3 X 2 1.65 1.61 1.13 0.86 3.50
NL114-4840 3 X 2-1/2 1.70 1.53 1.13 0.61 3.88
Size
(IN.)
-1/2 X 1-
-1/2 X 1-1/4 1.07 1.53 1.09 0.84 2.97
Approx. Net
WT. (LB.)
0.35 1.14 0.83 0.43 2.00
AB CD
0.73
*Conforms with lead content requirements for lead-free plumbing as defined by the U.S. Safe Drinking Water Act. Certified <0.25 weighted average % lead.
Page 13
DIMENSIONAL SPECIFICATIONS
LEAD-FREE DOMESTIC BRASS FITTINGS* 125 LB.

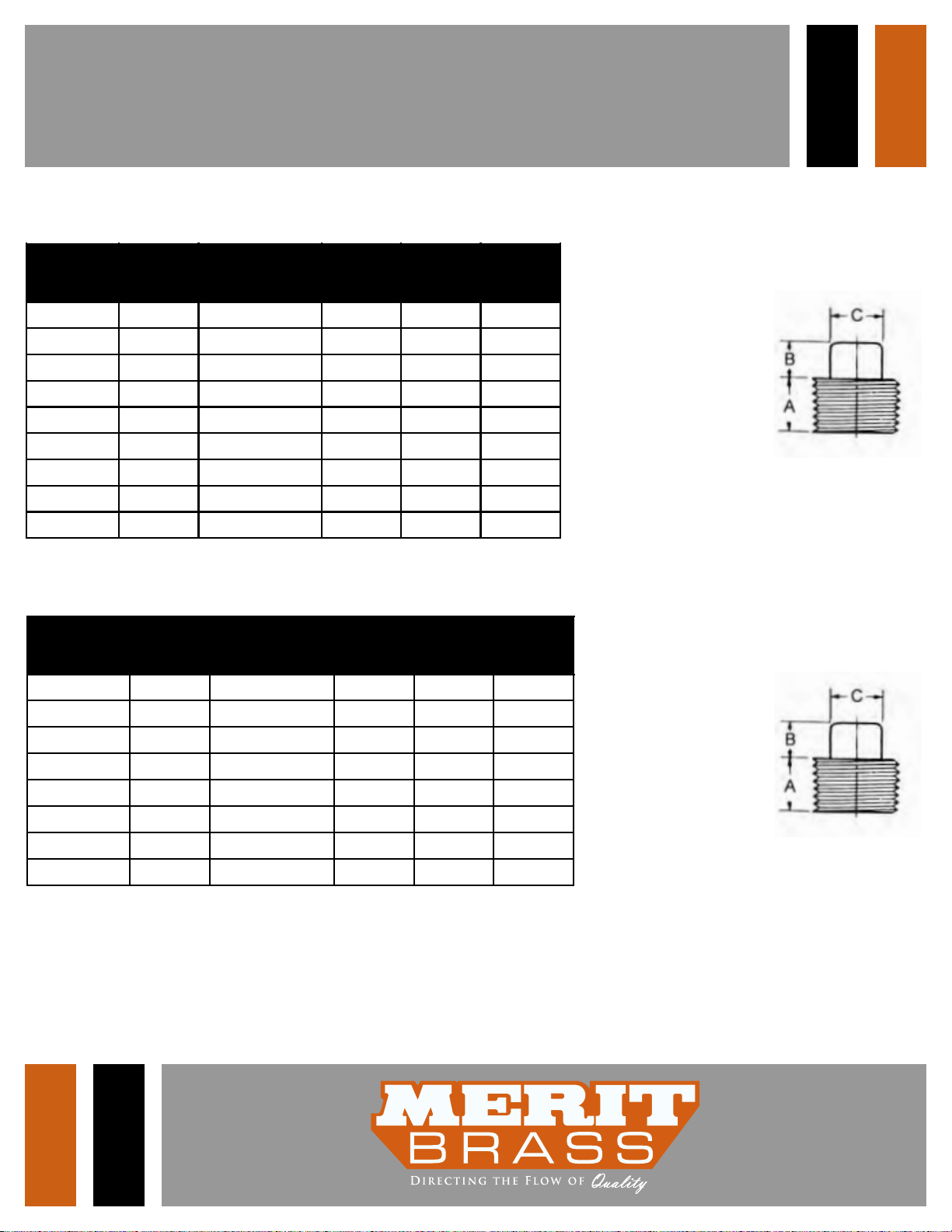

SQUARE HEAD CORED PLUG
Part #
NL117-08 1/2 0.11 0.54
NL117-12 3/4 0.15 0.55
NL117-16 1 0.26 0.69
NL117-20 1-1/4 0.35 0.71
NL117-24 1-1/2 0.45 0.73
NL117-32 2 0.60 0.76
NL117-40 2-1/2 1.13 1.07
NL117-48 3 1.90 1.13
NL117-64 4 3.22 1.22
Size
(IN.)
Approx. Net
WT. (LB.)
A
B
0.38
0.44
0.50
0.56
0.62
0.68
0.74
0.80
0.92
SQUARE HEAD SOLID PLUG
Part #
NL117A-06 3/8 0.06 0.41 0.31
NL117A-08 1/2 0.12 0.54 0.38
Size
(IN.)
Approx. Net
WT. (LB.)
AB
C
0.56
0.63
0.81
0.94
1.13
1.31
1.50
1.69
2.25
C
0.44
0.56
NL117A-12 3/4 0.20 0.55 0.44
NL117A-16 1 0.25 0.69 0.50
NL117A-20 1-1/4 0.60 0.71 0.56
NL117A-24 1-1/2 0.76 0.73 0.62
NL117A-32 2 1.13 0.76 0.68
NL117A-40 2-1/2 2.26 1.07 0.74
*Conforms with lead content requirements for lead-free plumbing as defined by the U.S. Safe Drinking Water Act. Certified <0.25 weighted average % lead.
0.63
0.81
0.94
1.13
1.31
1.50
Page 14
DIMENSIONAL SPECIFICATIONS
LEAD-FREE DOMESTIC BRASS FITTINGS* 125 LB.
SQUARE COUNTERSUNK PLUG
Part #
NL118-08 1/2 0.06 0.54
NL118-12 3/4 0.09 0.55
NL118-16 1 0.23 0.69
NL118-20 1-1/4 0.34 0.71
NL118-24 1-1/2 0.48 0.73
NL118-32 2 0.80 0.76
NL118-48 3 2.55 1.13
Size
(IN.)
Approx. Net
WT. (LB.)
A
HEX LOCKNUT
Part #
NL119-02 1/8 0.04 0.88 0.25
NL119-04 1/4 0.04 0.88 0.25
NL119-06 3/8 0.03 1.00 0.28
NL119-08
NL119-12 3/4 0.08 1.50 0.28
NL119-16 1 0.11 1.75 0.34
NL119-20 1-1/4 0.17 2.09 0.38
NL119-24 1-1/2 0.28 2.44 0.41
NL119-48 3 1.70 4.25 0.63
Size
(IN.)
1/2 0.07 1.28 0.31
Approx. Net
WT. (LB.)
AB
*Conforms with lead content requirements for lead-free plumbing as defined by the U.S. Safe Drinking Water Act. Certified <0.25 weighted average % lead.
Page 15
DIMENSIONAL SPECIFICATIONS
LEAD-FREE DOMESTIC BRASS FITTINGS* 125 LB.
EXTENSION PIECE
Part #
NL232-04
NL232-06
NL232-08
NL232-12
NL232-16
NL232-20
NL232-24
NL232-32
UNION
Part #
NL187-08
NL187-12
NL187-16
Size
(IN.)
1/4 0.20 1.25
3/8 0.30 1.48
1
/2 0.45 1.56
3/4 0.62 1.87
1 0.85 2.11
1-1/4 1.40 2.34
1-1/2 1.75 2.65
2 2.75 2.96
Size
(IN.)
1/2 0.19 1.47
3/4 0.26 1.81
1 0.45 2.19
Approx. Net
WT. (LB.)
Approx. Net
WT. (LB.)
A
A
*Conforms with lead content requirements for lead-free plumbing as defined by the U.S. Safe Drinking Water Act. Certified <0.25 weighted average % lead.
Loading...
