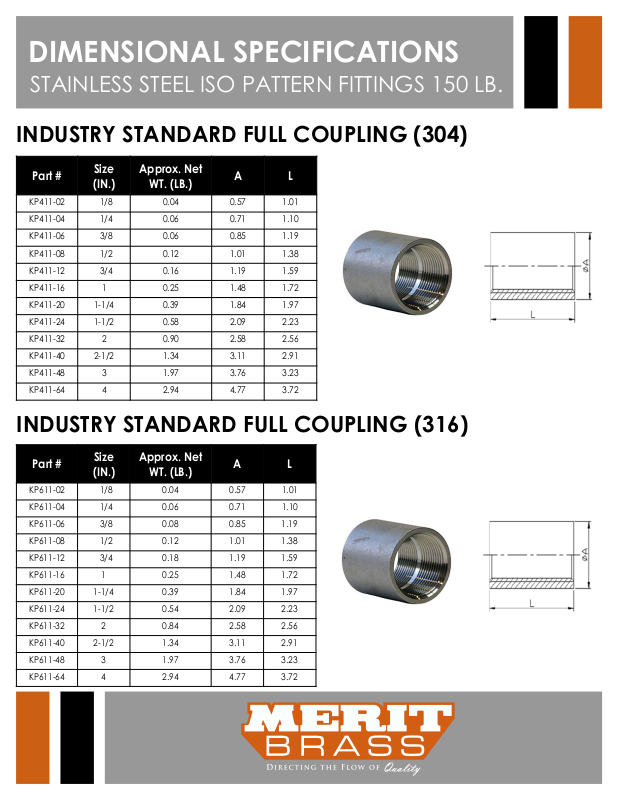

DIMENSIONAL SPECIFICATIONS

STAINLESS STEEL ISO PATTERN FITTINGS 150 LB.

INDUSTRY STANDARD FULL COUPLING (304)

Part #

KP411-02 1/8 0.04 0.57 1.01

KP411-04 1/4 0.06 0.71 1.10

KP411-06 3/8 0.06 0.85 1.19

KP411-08 1/2 0.12 1.01 1.38

KP411-12 3/4 0.16 1.19 1.59

KP411-16 1 0.25 1.48 1.72

KP411-20 1-1/4 0.39 1.84 1.97

KP411-24 1-1/2 0.58 2.09 2.23

KP411-32 2 0.90 2.58 2.56

KP411-40 2-1/2 1.34 3.11 2.91

KP411-48 3 1.97 3.76 3.23

KP411-64 4 2.94 4.77 3.72

Size

(IN.)

Approx. Net

WT. (LB.)

A L

INDUSTRY STANDARD FULL COUPLING (316)

Part #

Size

(IN.)

Approx. Net

WT. (LB.)

A L

KP611-02 1/8 0.04 0.57 1.01

KP611-04 1/4 0.06 0.71 1.10

KP611-06 3/8 0.08 0.85 1.19

KP611-08 1/2 0.12 1.01 1.38

KP611-12 3/4 0.18 1.19 1.59

KP611-16 1 0.25 1.48 1.72

KP611-20 1-1/4 0.39 1.84 1.97

KP611-24 1-1/2 0.54 2.09 2.23

KP611-32 2 0.84 2.58 2.56

KP611-40 2-1/2 1.34 3.11 2.91

KP611-48 3 1.97 3.76 3.23

KP611-64 4 2.94 4.77 3.72
