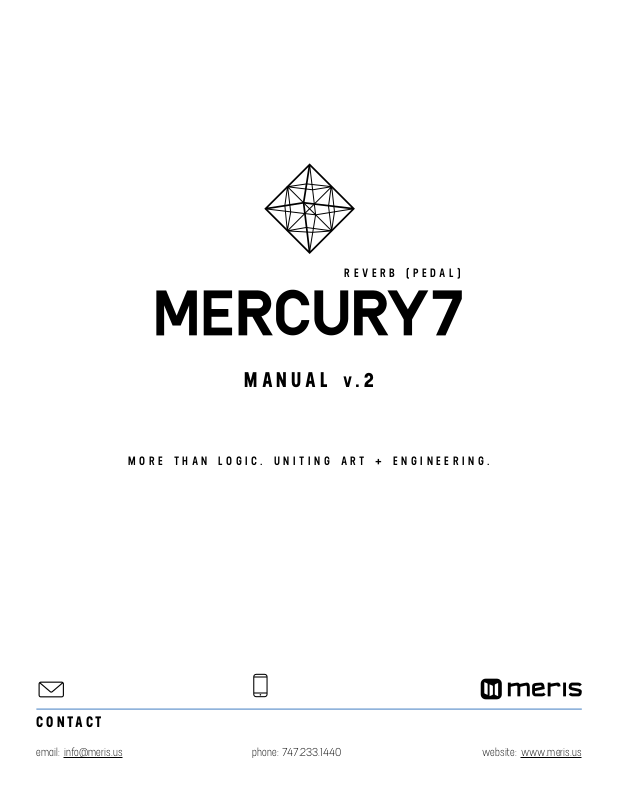

Meris Mercury7 User Manual

REVERB (PEDAL)

MANUAL v.2

MORE THAN LOGIC. UNITING ART + ENGINEERING.

CONTACT

email: [e-mail]

phone: [phone] website: www.meris.us

TABLE OF CONTENTS

SECTION 1 PG. 1 FRONT PANEL CONTROLS

SECTION 2 PG. 2-4 GLOBAL SETTINGS CONFIGURATION MODE

SECTION 3 PG. 4-5 EXPRESSION JACK MODES IN DEPTH

3a - EXPRESSION PEDAL

3b - TAP SWITCH

3c - 4 BUTTON PRESET SWITCH

3d - MIDI

SECTION 4 PG. 6 KNOB BEHAVIOR IN DEPTH

SECTION 5 PG. 6 PRESETS IN DEPTH

SECTION 6 PG. 7 MIDI CC TABLES

SECTION 7 PG. 8 PRESET 1 FACTORY SETTINGS

SECTION 8 PG. 9 TECHNICAL SPECIFICATIONS

SECTION 1 - FRONT PANEL CONTROLS

Space Decay: Sets decay energy of
the reverberation space
Alt Function: Predelay Sets amount
of time that elapses
before the onset of reverberation

Lo Frequency: Changes how low
frequencies react in the
reverb algorithm. When set closer to
max, low frequency decay times are
extended giving the impression
of a larger room
Alt Function: Density Sets amount of
initial build up of echoes before the
reverb tank

Modulate: Sets overall modulation depth of
the reverb algorithm
Alt Function: Mod Speed Sets dominant
modulation speed of the reverb algorithm

Mix: Adjusts Mix of Dry and
Wet signals in analog domain

Alt Function: Pitch Vector
Mix Adjusts mix between

intra-tank pitch shifted
reflections and normal
reflections
inside the reverb tank

Hi Frequency: Changes how
high frequencies react in the
reverb algorithm and alters
the high frequency absorb­tion of the reverb space.
Set lower to reduce the
amount of time high fre­quencies live in the algorithm
for a more natural room
reverb

Alt Function: Vibrato Depth

Adds vibrato to the reverb
input for lush, haunting trails

Swell LED / Alt Function Switch:

Switch LED ON when Swell is
active. Alt Functions only accessible
when ALT (HOLD) is held

Swell: Press to engage the auto
swell function.
Hold to maximize Space Decay
sustain

Pitch Vector: Sets intra tank pitch interval
to: Octave down, slight pitch up, slight pitch
down, 5th up, or octave up.
Decay, Pitch Vector Mix & Hi/Lo Freq
controls all interact to sculpt the intra-tank
pitch regeneration
Alt Function: Attack Time Sets the attack
time for the swell envelope

Bypass LED / Algorithm
Select Switch: Switch LED

indicates Bypass status.
Small LEDs indicate active
algorithm
ULTRAPLATE: Inspiring &
lush plate with a fast build
CATHEDRA: Massive &
ethereal algo with a slow
build

Bypass: Processes signal
when LED is ON, passes dry
signal entirely in analog
(buffered or relay) when OFF

1

LED indicates TRS

(L) LED indicates
INSTRUMENT LEVEL

LINE/SYNTH LEVEL:

I

N

S

T

R

U

M

E

N

T

L

E

V

MIDI THRU ON:

SECTION 2 - GLOBAL SETTINGS CONFIGURATION MODE

TO START GLOBAL SETTING
CONFIGURATION MODE

HOLD (L) LED switch on power up (power up takes 3
secs); all of the front panels LEDs will blink 3 times

KILL DRY:

only in active mode; in bypass, the entire pedal is muted

*With DRY MUTED, the pedal delivers wet

D

R

E

V

I

T

C

A

Y

R

D

Y

M

U

T

E

D

*

INPUT MODE:

N

I

O

N

O

M

(L) LED indicates MONO (R)

S

EXPRESSION MODE:

P

A

T

P

X

E

P

T

E

R

E

O

I

N

(

T

R

S

)

R

E

S

E

T

M

I

D

I

(L) LED indicates

DRY ACTIVE

2

(R) LED indicates
DRY MUTED

LEDs on front panel blink to indicate EXP, TAP,
PRESET, & MIDI
