Important safety instructions
Read these instructions.
•
Keep these instructions.
•
Heed all warnings.
•
Follow all instructions.
•
Do not use this apparatus near water.
•
Clean only with a dry cloth.
•
Do not block any ventilation openings. Install in accordance with the
•
manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers,
•
stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type
•
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly
•
at plugs, convenience receptacles, and the point where they exit
from the apparatus.
Only use attachments/accessories specified by the manufacturer.
•
Unplug this apparatus during lightning storms or when unused for
•
long periods of time.
Refer all servicing to qualified service personnel. Servicing is required
•
when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
This apparatus has been designed with Class 1 construction and
must be connected to a mains socket outlet with a protective earthing
connection (the third grounding pin).
This apparatus does not include a power switch. The apparatus may be
isolated from mains power either by unplugging the power connector from
the rear of the unit, or by unplugging the connector at the opposing end
of the power cord or cable from its supply outlet. As a result, either or
both of these connectors should remain accessible
Safety warnings
Do not expose the unit to dripping or splashing.
•
Do not place any object filled with liquid, such as a vase, on the unit.
•
Do not place naked flame sources, such as lighted candles, on
•
the unit.
To avoid overheating leave at least 10cm around the equipment to
•
ensure sufficient ventilation.
Do not position the unit in direct sunlight, near heat sources such as
•
a radiator, or directly on top of heat producing equipment, such as a
power amplifier.
To avoid interference do not position the unit near strong electrical or
•
magnetic radiation, such as near a power amplifier.
Radio interference
FCC Warning: This equipment generates and can radiate radio
frequency energy and if not installed and used correctly in accordance
with our instructions may cause interference to radio communications
or radio and television reception. It has been type-tested and complies
with the limits set out in Subpart J, Part 15 of FCC rules for a Class
B computing device. These limits are intended to provide reasonable
protection against such interference in home installations.
EEC: This product has been designed and type-tested to comply
with the limits set out in EN55013 and EN55020.
Copyright
Meridian Audio Ltd
Latham Road
Huntingdon
Cambridgeshire
PE29 6YE
England
Copyright © 2011 Meridian Audio Ltd.
Visit us on the Web:
http://www.meridian-audio.com
Part no: DSP3300 (P88398)
This guide was produced by: Human-Computer Interface Ltd,
http://www.interface.co.uk/
EN
L/C
R
Input
Output
SpeakerLink
Digital
Channel
Selector
Power Inlet
Fuse
Channel selector
SpeakerLink input
SpeakerLink output
Power
Fuse
Unpacking
DSP3300 User Guide
3
The DSP3300 is supplied with the following accessories:
Power cord.
•
This manual.
•
Connections
The following diagram gives details of the connections on
the base of the speaker:
If either of these items are missing please contact your dealer.
NOTE: You should retain the packaging in case you need to
transport the units.
Digital connections
Use this connection To connect to this
SpeakerLink input The SpeakerLink output of a Meridian
Sooloos component, Digital Surround
Controller, or Audio Core 200, or the
SpeakerLink output of another DSP
loudspeaker.
SpeakerLink output The SpeakerLink input of a second
DSP3300 digital speaker, when daisychaining the speakers.
Miscellaneous
Switch Description
Digital Channel Selector Set to L/C to use the speaker as a left
or centre channel speaker. Set to R
to use the speaker as a right channel
speaker.
Standby indicator
The status of the DSP3300 is shown by a green standby
indicator on the back panel.
Status Description
Dimly illuminated Speaker in standby
Brightly illuminated Speaker operating
The speakers are switched on or into standby as appropriate via
the SpeakerLink connections by the Meridian system they are
connected to.
DSP3300 User Guide
4 EN
EN
Meridian Audio Core 200
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
DSP3300 – Master
DSP3300 – Slave
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
SpeakerLink lead
SpeakerLink lead
SPEAKERLINK
IN OUT
Applications
Connect the upper SpeakerLink output on the Audio Core

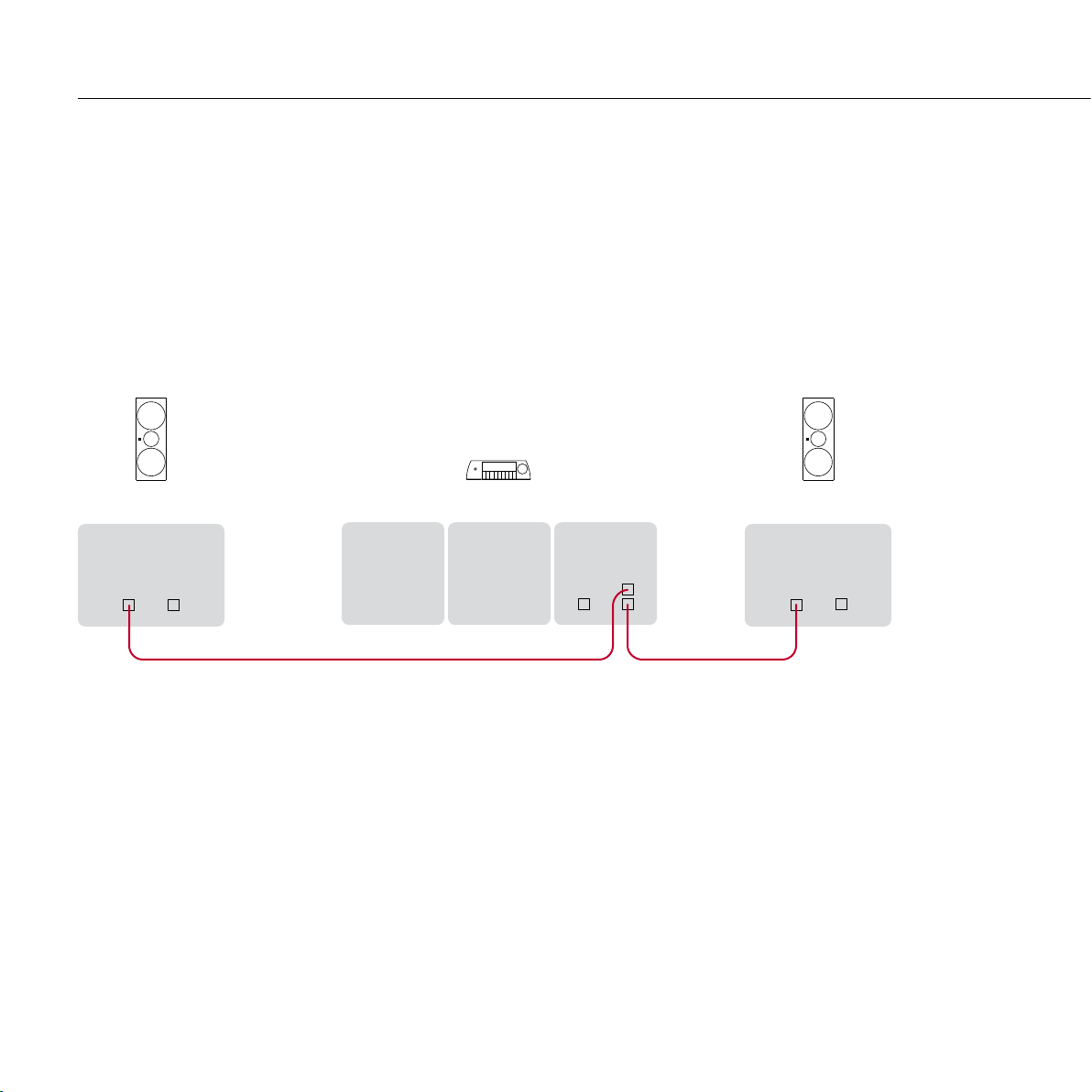

To connect a pair of DSP3300s to a Meridian
Audio Core 200
The DSP3300s are ideal for a compact Audio Core 200 based
system.
Connect the lower SpeakerLink output on the Audio Core
•
200 to the Master DSP3300, using a Meridian SpeakerLink
lead.
•
200 to the Slave DSP3300, using a Meridian SpeakerLink
lead.
Make sure the Channel selector is set to the L/C position on
•
the back of the left speaker and to the R position on the back
of the right speaker.
EN
Meridian Surround Controller
DSP3300 – Centre
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
SpeakerLink
DSW – Subwoofer
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
SpeakerLink SpeakerLinkSpeakerLink
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
DSP3200 – Rear L
DSP3200 – Front L (Master)
DSP3200 – Rear R
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
DSP3200 – Front R
SpeakerLink
SpeakerLink
MERIDIAN
SPEAKERLINK

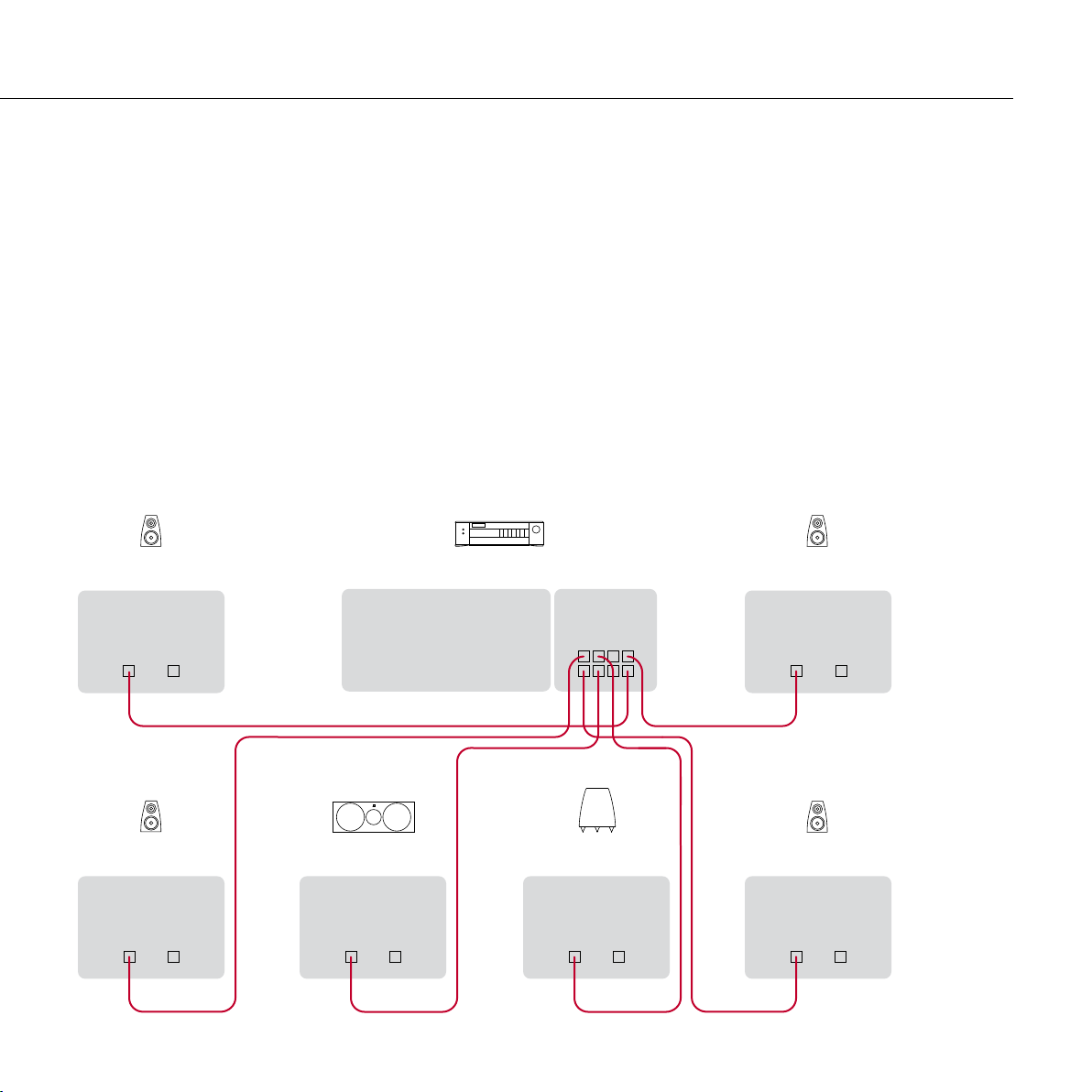

To use a DSP3300 as the centre speaker in a
Meridian Digital Theatre
The DSP3300 is ideal as the centre loudspeaker in a Meridian
Digital Theatre, in combination with DSP3200 or DSP3300
front and rear loudspeakers and a DSW subwoofer. The system
can be controlled by a Meridian Digital Surround Controller such
as the G68. The following diagram shows how to connect the
speakers using “home run” wiring.
Connect the L+R SpeakerLink output on the lower row of
•
the G68 to the Master digital speaker (here the front left
speaker), using a Meridian SpeakerLink lead.
Connect the appropriate SpeakerLink outputs on the G68
•
to each of the remaining speakers and the subwoofer, using
Meridian SpeakerLink leads.
DSP3300 User Guide
Set the Channel selector on the front and rear left speakers
•
to the L/C position, and on the front and rear right speakers
to the R position.
Set the Channel selector on the centre speaker to the L/C
•
position, and on the DSW subwoofer to the 2 position.
Alternatively you can connect the speakers using “daisy chain”
wiring: connect the front and rear L speakers to the G68,
and then link each pair of speakers together by connecting
the output from the L speaker to the input of the R speaker.
Likewise connect the centre speaker to the G68, and then
link the output from the centre speaker to the input of the
subwoofer.
Note that if the system includes DSP loudspeakers with
displays, such as the DSP5200, one of them must be set up as
the master in the system.
5
DSP3300 User Guide
6 EN
EN
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
DSP3300 – Master
DSP3300 – Slave
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
SpeakerLink lead
Media Core 200
SPEAKERLINK
OUT
NETWORK
SpeakerLink lead
Router
Internet

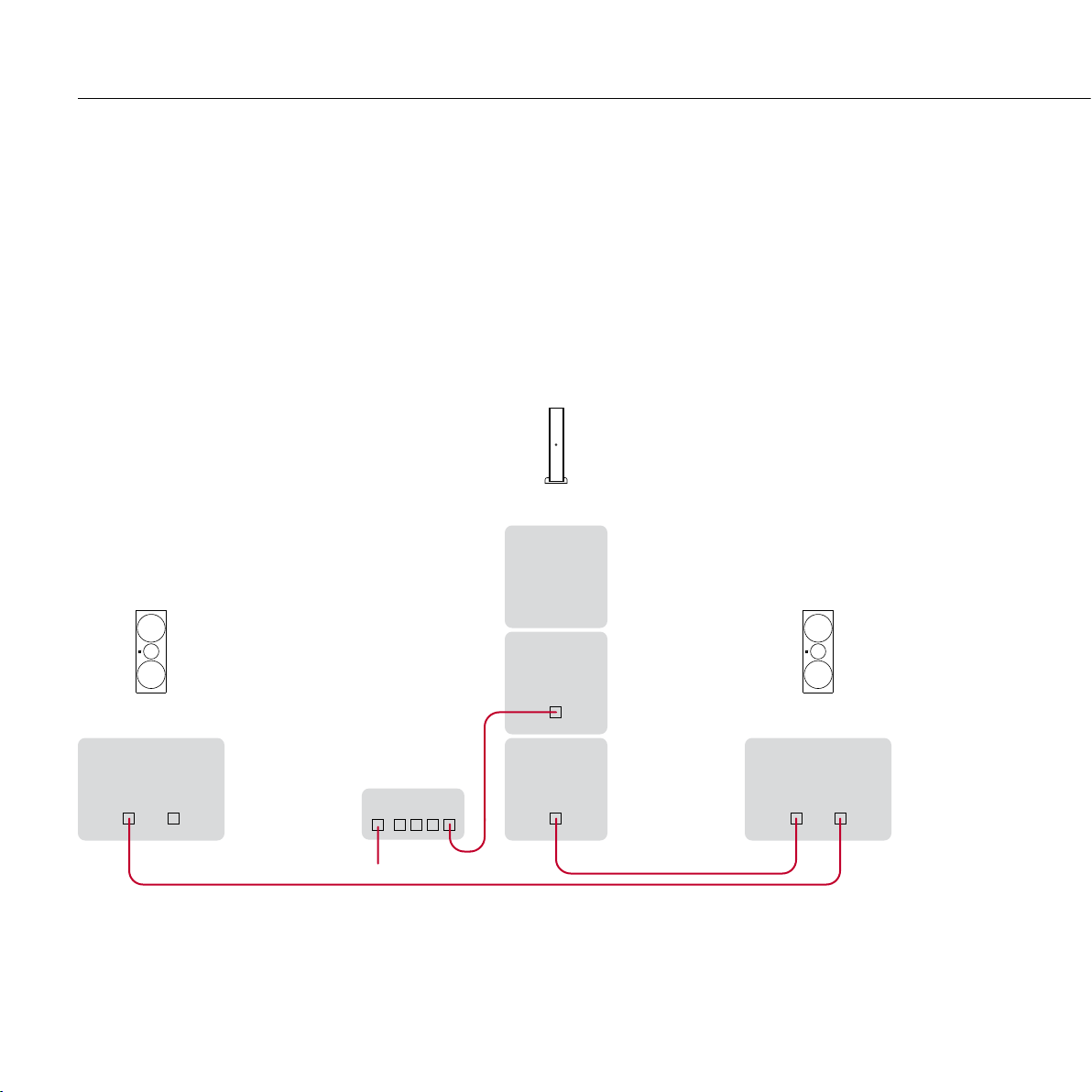

To create a stand-alone Sooloos system
The DSP3300s can be connected directly to a Meridian Media
Core 200 to make an ideal compact Sooloos system.
Make sure the WAN/Internet port on the Router is connected
•
to the rest of your network, or to your Cable/DSL Modem.
Connect the SpeakerLink output on the Media Core 200 to
•
the Master DSP3300 SpeakerLink input, using a Meridian
You can browse and control music on the system using the
SpeakerLink lead.
Sooloos application on an iPad, iPhone, or iPod Touch, or the
Connect the SpeakerLink output from the Master DSP3300
Control:PC/Control:Mac application on a computer.
•
to the SpeakerLink input of the Slave DSP3300, using a
Connect the Network socket on the Media Core 200 to one
•
Meridian SpeakerLink lead.
of the LAN network connections on your Router, using a
CAT5 cable.
For information on configuring your Media Core 200 please
refer to the
Media Core 200 User Guide
.
EN
DSP3300 User Guide
7
8 EN
DSP3300 User Guide
