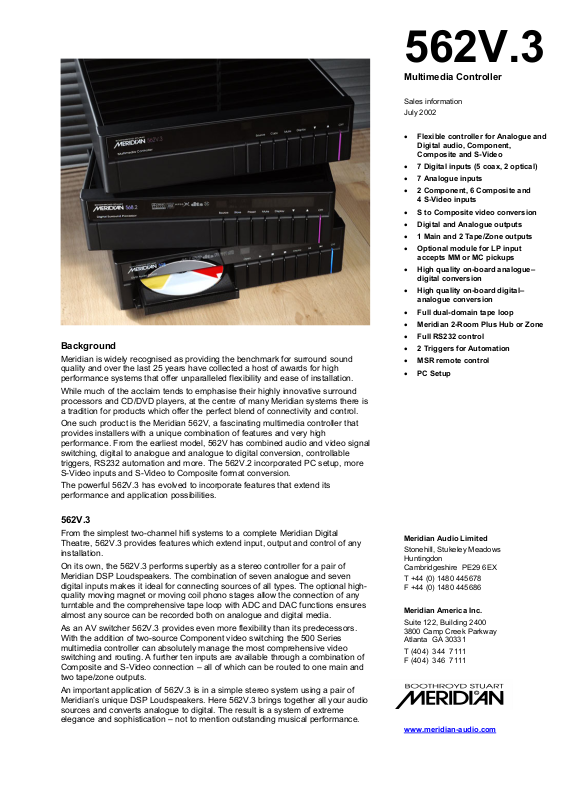

Meridian Audio 562 Mk3 Brochure
Background
Meridian is widely recognised as providing the benchmark for surround sound
quality and over the last 25 years have collected a host of awards for high
performance systems that offer unparalleled flexibility and ease of installation.
While much of the acclaim tends to emphasise their highly innovative surround
processors and CD/DVD players, at the centre of many Meridian systems there is
a tradition for products which offer the perfect blend of connectivity and control.
One such product is the Meridian 562V, a fascinating multimedia controller that
provides installers with a unique combination of features and very high
performance. From the earliest model, 562V has combined audio and video signal
switching, digital to analogue and analogue to digital conversion, controllable
triggers, RS232 automation and more. The 562V.2 incorporated PC setup, more
S-Video inputs and S-Video to Composite format conversion.
The powerful 562V.3 has evolved to incorporate features that extend its
performance and application possibilities.
562V.3
From the simplest two-channel hifi systems to a complete Meridian Digital
Theatre, 562V.3 provides features which extend input, output and control of any
installation.
On its own, the 562V.3 performs superbly as a stereo controller for a pair of
Meridian DSP Loudspeakers. The combination of seven analogue and seven
digital inputs makes it ideal for connecting sources of all types. The optional highquality moving magnet or moving coil phono stages allow the connection of any
turntable and the comprehensive tape loop with ADC and DAC functions ensures
almost any source can be recorded both on analogue and digital media.
As an AV switcher 562V.3 provides even more flexibility than its predecessors.
With the addition of two-source Component video switching the 500 Series
multimedia controller can absolutely manage the most comprehensive video
switching and routing. A further ten inputs are available through a combination of
Composite and S-Video connection – all of which can be routed to one main and
two tape/zone outputs.
An important application of 562V.3 is in a simple stereo system using a pair of
Meridian’s unique DSP Loudspeakers. Here 562V.3 brings together all your audio
sources and converts analogue to digital. The result is a system of extreme
elegance and sophistication – not to mention outstanding musical performance.
562V.3
Multimedia Controller
Sales information
July 2002
•
Flexible controller for Analogue and
Digital audio, Component,
Composite and S-Video
•
7 Digital inputs (5 coax, 2 optical)
•
7 Analogue inputs
•
2 Component, 6 Composite and
4 S-Video inputs
•
S to Composite video conversion
•
Digital and Analogue outputs
•
1 Main and 2 Tape/Zone outputs
•
Optional module for LP input
accepts MM or MC pickups
•
High quality on-board analogue–
digital conversion
•
High quality on-board digital–
analogue conversion
•
Full dual-domain tape loop
•
Meridian 2-Room Plus Hub or Zone
•
Full RS232 control
•
2 Triggers for Automation
•
MSR remote control
•
PC Setup
Meridian Audio Limited
Stonehill, Stukeley Meadows
Huntingdon
Cambridgeshire PE29 6EX
T +44 (0) 1480 445678
F +44 (0) 1480 445686
Meridian America Inc.
Suite 122, Building 2400
3800 Camp Creek Parkway
Atlanta GA 30331
T (404) 344 7111
F (404) 346 7111
www.meridian-audio.com
562V.3 & 568.2
A common application for the 562V.3 Multimedia Controller is in partnership with
the 568.2 Surround Processor. 562V.3 routes both analogue and digital audio
sources to the 568.2 and switches video signals in harmony with audio.
Together these products provide a powerful solution to the most demanding of
home theatre needs for both music and film.
Tape Loop
The 562V.3’s comprehensive tape loop enables the recording of analogue and
digital audio sources plus video sources on any of its three tape outputs (2
Analogue, 1 Digital).
Internal analogue–digital and digital–analogue converters mean that inputs can be
simply transferred to any recording output.
The tape loop also allows 562V.3 to act as either a ‘central’ or ‘zone hub’ in a
Meridian Two-Room Plus system. The ability to route digital audio from the main
system to other rooms in the house with direct connection to DSP loudspeakers in
the remote zone offers a dramatic advantage to installers and a simple and
reliable system for the customer.
562V.3
Multimedia Controller
Sales information
July 2002
Back panel
Specification
Digital inputs: 5 x cable, 75Ω, IEC958, MHR and data compatible, up to 24
bits, 32–96kHz
2 x optical, TOSLINK (EIAJ), IEC958, MHR and data
compatible, up to 24 bits, 32–96kHz
Analogue inputs: 7 x phono, 20kΩ input impedance with adjustable sensitivity
MM or MC modules available
Conversion: Internal A/D and D/A converters operate up to 48kHz.
Digital outputs: 1 x main SPDIF cable, 75Ω, up to 24 bits, 32–96kHz
Analogue outputs: 1 x main phono 2V fixed
2 x tape phono
Output 2Vrms, impedance 47Ω.
Distortion <0.01%
Noise and hum <-95dB CCIR
Video inputs: 6 x Composite RCA phono 75Ω, 1.5Vp–p
4 x S-Video 4-pin MiniDIN, 100MHz bandwidth
2 x Component Y, Pr, Pb phono, 150MHz bandwidth
Video outputs: 1 x main Composite RCA phono 75Ω, 1.5Vp–p
2 x tape Composite RCA phono 75Ω, 1Vp–p to VCRs
1 x main S-Video 4-pin MiniDIN
2 x tape S-Video 4-pin MiniDIN
1 x main Component Y, Pr, Pb phono
S-Video to Composite conversion on Main or Tape outputs
Control: 2 x Meridian Comms
9-Pin D connector for RS232 PC setup and control
2 x trigger outputs for SCART or external switching, 3.5mm
jack socket, 8VDC at 100mA
Dimensions: H 321mm (12.7”), W 88mm (3.5”), D 332mm (13.1”).
Weight: 5kg (10lb).
