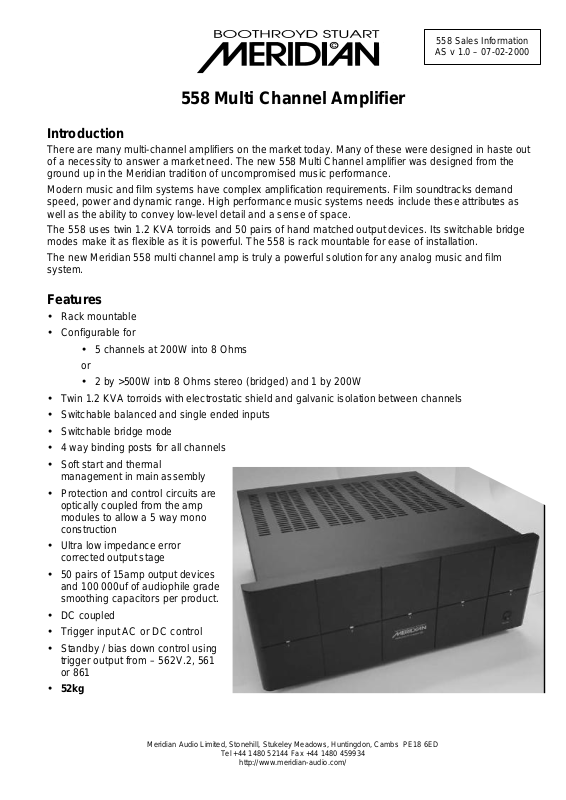

Meridian Audio 558 Brochure

558 Sales Information

AS v 1.0 – 07-02-2000

558 Multi Channel Amplifier

Introduction

There are many multi-channel amplifiers on the market today. Many of these were designed in haste out
of a necessity to answer a market need. The new 558 Multi Channel amplifier was designed from the
ground up in the Meridian tradition of uncompromised music performance.

Modern music and film systems have complex amplification requirements. Film soundtracks demand
speed, power and dynamic range. High performance music systems needs include these attributes as
well as the ability to convey low-level detail and a sense of space.

The 558 uses twin 1.2 KVA torroids and 50 pairs of hand matched output devices. Its switchable bridge
modes make it as flexible as it is powerful. The 558 is rack mountable for ease of installation.

The new Meridian 558 multi channel amp is truly a powerful solution for any analog music and film
system.

Features

• Rack mountable

• Configurable for

• 5 channels at 200W into 8 Ohms

or

• 2 by >500W into 8 Ohms stereo (bridged) and 1 by 200W

• Twin 1.2 KVA torroids with electrostatic shield and galvanic isolation between channels

• Switchable balanced and single ended inputs

• Switchable bridge mode

• 4 way binding posts for all channels

• Soft start and thermal

management in main assembly

• Protection and control circuits are
optically coupled from the amp
modules to allow a 5 way mono
construction

• Ultra low impedance error
corrected output stage

• 50 pairs of 15amp output devices
and 100 000uf of audiophile grade
smoothing capacitors per product.

• DC coupled

• Trigger input AC or DC control

• Standby / bias down control using

trigger output from – 562V.2, 561
or 861

• 52kg

Meridian Audio Limited, Stonehill, Stukeley Meadows, Huntingdon, Cambs PE18 6ED

Tel [phone] Fax [phone]

http://www.meridian-audio.com/

Technical Drawing

558 Sales Information

AS v 1.0 – 07-02-2000
