Page 1
DSP320
DSP Loudspeaker
User Guide
Page 2
DSP320 User Guide
2 EN
EN
Important safety instructions
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit
from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Unplug this apparatus during lightning storms or when unused for
long periods of time.
Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
The DSP320 is designed to be installed using the Meridian RF300
rough-in box only.
This apparatus has been designed with Class 1 construction and must
be connected to a AC supply socket outlet with a protective earthing
connection (the third grounding pin).
The DSP320 must be connected to an earthed AC supply socket outlet.
An all pole AC supply switch with a contact separation of at least 3mm
in each pole shall be incorporated into the electrical installation on the
building.
•
•
•
•
•
•
•
•
•
•
•
•
•
Safety warnings
Do not expose the unit to dripping or splashing.
Do not place any object filled with liquid, such as a vase, on the unit.
Do not place naked flame sources, such as lighted candles, on
the unit.
To avoid overheating leave at least 10cm around the equipment to
ensure sufficient ventilation.
Do not position the unit in direct sunlight, near heat sources such as
a radiator, or directly on top of heat producing equipment, such as a
power amplifier.
To avoid interference do not position the unit near strong electrical or
magnetic radiation, such as near a power amplifier.
Radio interference
FCC Warning: This equipment generates and can radiate radio
frequency energy and if not installed and used correctly in accordance
with our instructions may cause interference to radio communications
or radio and television reception. It has been type-tested and complies
with the limits set out in Subpart J, Part 15 of FCC rules for a Class
B computing device. These limits are intended to provide reasonable
protection against such interference in home installations.
EEC: This product has been designed and type-tested to comply
with the limits set out in EN55013 and EN55020.
Copyright
Meridian Audio Ltd
Latham Road
Huntingdon
Cambridgeshire
PE29 6YE
England
Copyright © 2014-2015 Meridian Audio Ltd.
Visit us on the Web:
www.meridian-audio.com
Part no: P88437
This guide was produced by: Human-Computer Interface Ltd,
www.interface.co.uk
•
•
•
•
•
•
Page 3
DSP320 User Guide
3
EN
These instructions assume that a Meridian rough-in box type
RF300 has already been mounted in the ceiling or wall ready
to accept the loudspeaker. If necessary, refer to the
RF300
Rough-in Box Installation Instructions
as appropriate.
Contents
Each DSP320 loudspeaker is supplied with the following
components:
DSP320 trim frame.
DSP320 grille with scrim.
3mm Allen key.
3mm hex driver.
4 x M5 button-head screws for speaker.
2 x grille extractor keys.
The loudspeaker can be installed either with or without the
trim frame, according to user preference, as explained on the
following pages.
•
•
•
•
•
•
Installation
Page 4
DSP320 User Guide
4 EN
EN

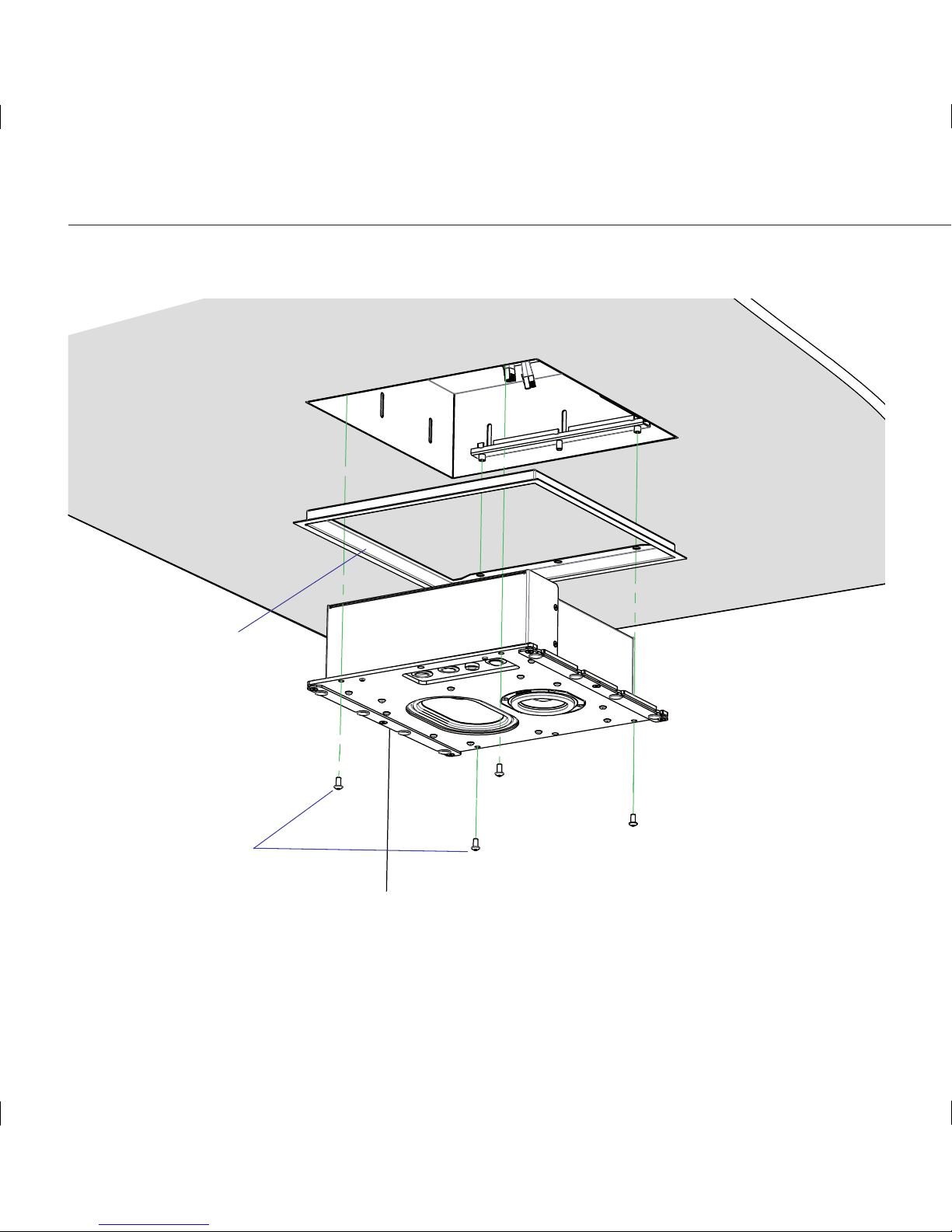

To fit the loudspeaker with the trim frame
Trim Frame
(Frame is clamped in place
by loudspeaker cabinet)
Clamping screws
(M5 x 10)
Holding the loudspeaker carefully:
Drop the trim frame onto the back of the loudspeaker.
Plug in the RJ45 cable(s) and AC supply.
Slide the loudspeaker into position.
Fix with M5 x 10 button-head screws (4 pieces).
•
•
•
•
Page 5
DSP320 User Guide
5
EN

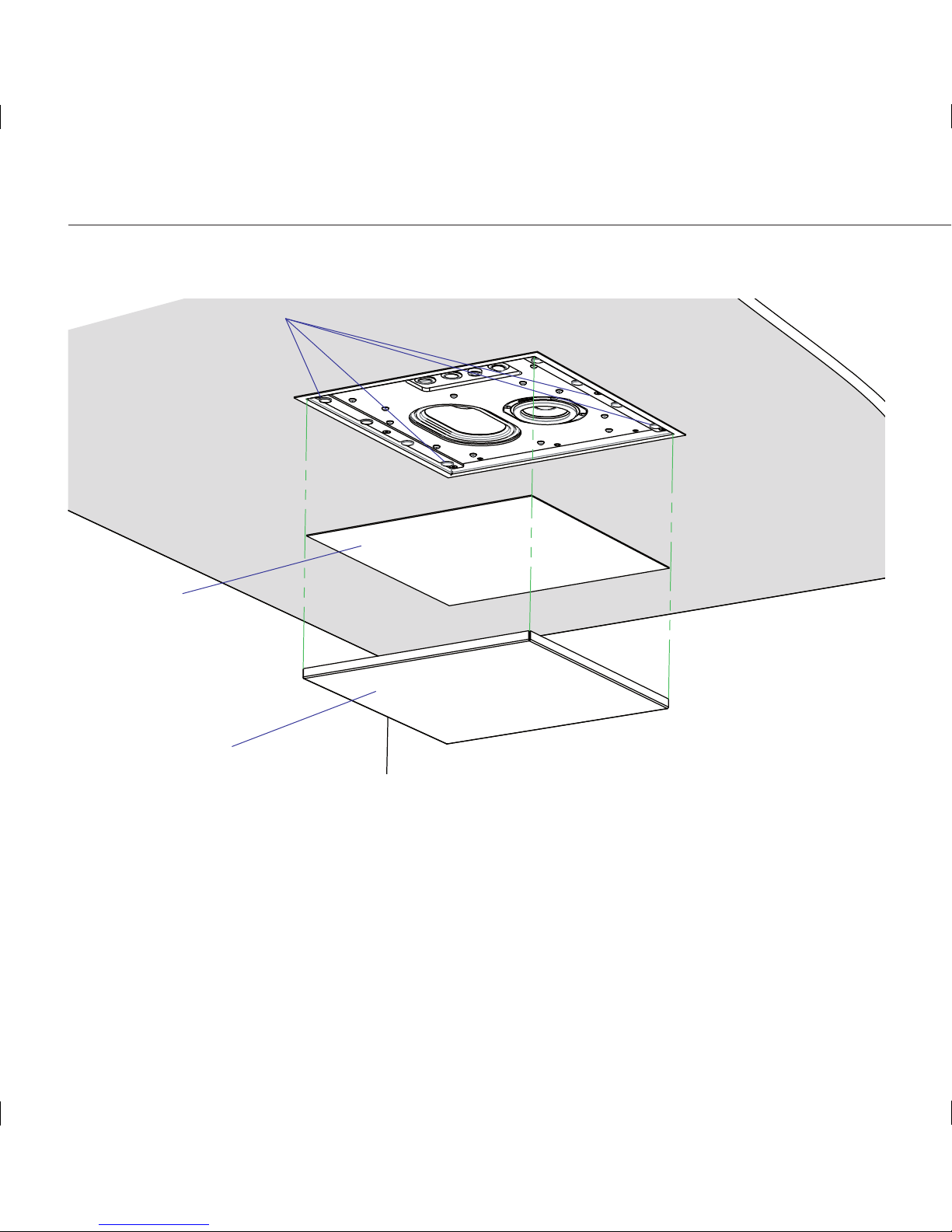

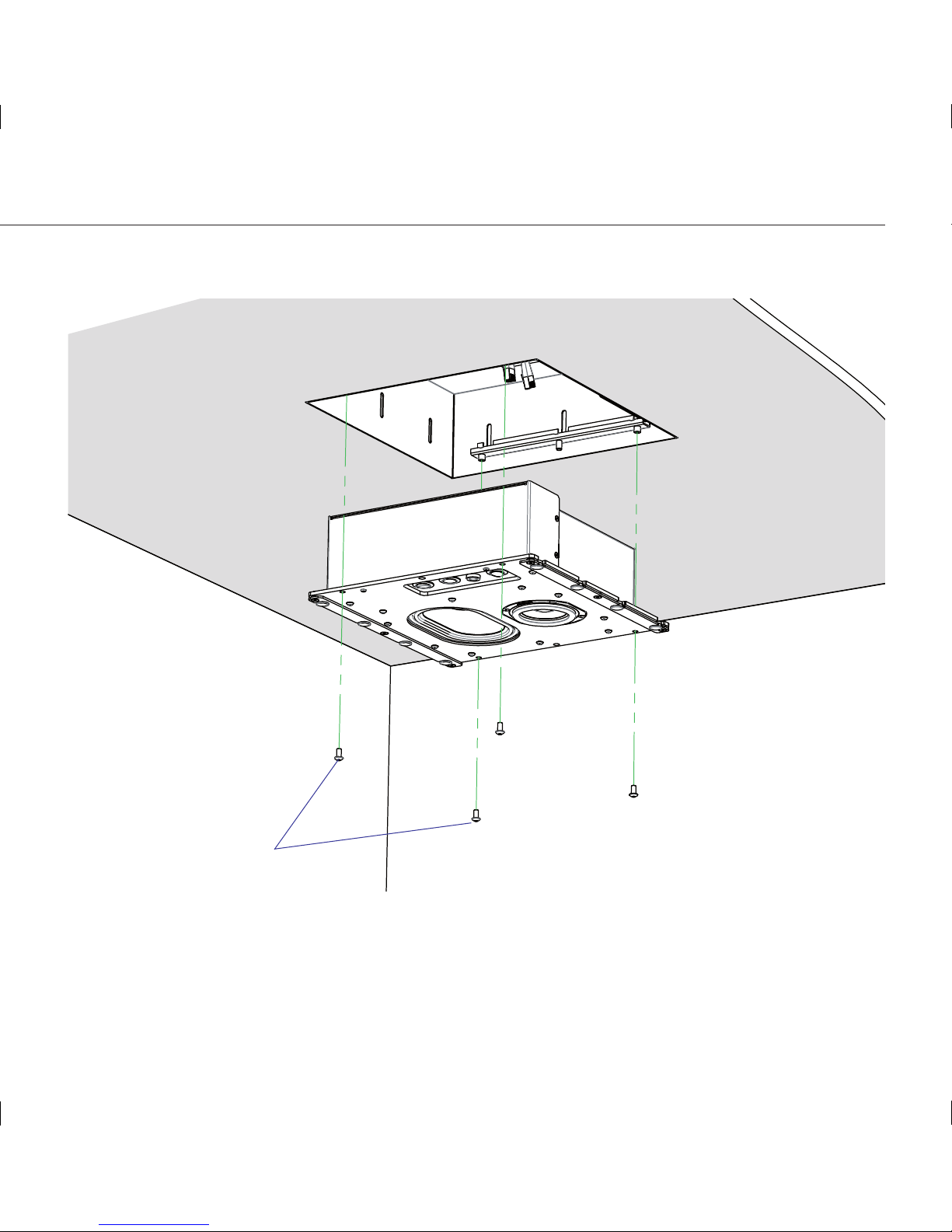

To fit the loudspeaker without the trim frame
Clamping screws
(M5 x 10)
Holding the loudspeaker carefully:
Plug in the RJ45 cable(s) and AC supply.
Slide the loudspeaker into position.
Fix with M5 x 10 button-head screws (4 pieces).
•
•
•
Page 6
DSP320 User Guide
6 EN
EN
To fit the scrim and grille
Grille
Scrim
Magnet
positions
Lay the scrim into the back of the grille.
Carefully locate one edge of the grille.
Lift the grille into position.
Magnets will grab the grille and hold it in position.
•
•
•
Page 7
DSP320 User Guide
7
EN

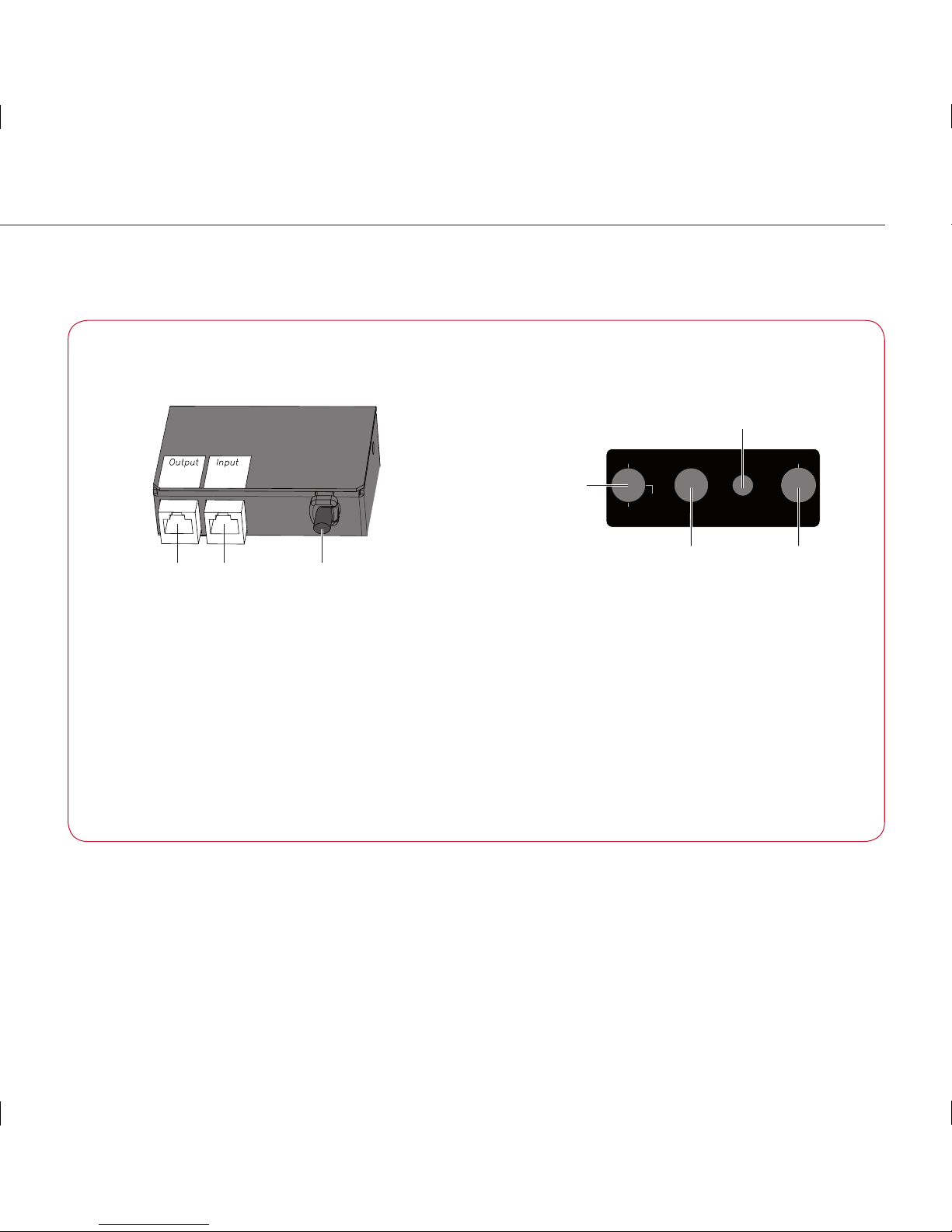

Front and back panel
Connections
The following diagram gives details of the connections on
the back of the loudspeaker:
SpeakerLink
output input
Power
Use this connection To connect to this
SpeakerLink input The SpeakerLink output of a Meridian
Audio Core or Digital Surround
Controller.
SpeakerLink output The SpeakerLink input of a second
DSP320 digital loudspeaker, when
connecting in a daisy-chain.
Power A captive power cord to connect to the
RF300 rough-in box power outlet.
Front panel
The following diagram gives details of the front of the
loudspeaker:
Right
Mono
Left
Fuse
~50-60Hz T5.0AH
250V for 100-230V~
CAUTION:
Disconnect supply before changing fuse.
Replace with same type fuse.
ATTENTION:
Débrancher avant de remplacer le fusible.
Utiliser un fusible de rechange
du même type.
On
Off
I
O
II
Channel
selector
Status indicator
and IR receiver
Fuse
Power
switch
Switch Description
Channel selector Set to Left or Right to specify the
position of each loudspeaker, or Mono
for a mono mix.
Standby indicator
Status Description
Blue Loudspeaker in standby.
White Loudspeaker operating.
At power-up flashes once if IR is off and
twice if IR is on.
The loudspeakers are switched on or into standby as appropriate
via the SpeakerLink connections by the Meridian system they
are connected to.
To configure the IR receiver
Hold down one of the following keys on an MSR remote (not
supplied) while powering up the speaker:
Next: Turns on IR; white LED flashes twice.
Previous: Turns off IR; white LED flashes once.
Stop: Resets all to factory settings; white LED flashes 3 times.
Page 8
DSP320 User Guide
8 EN
EN
Applications

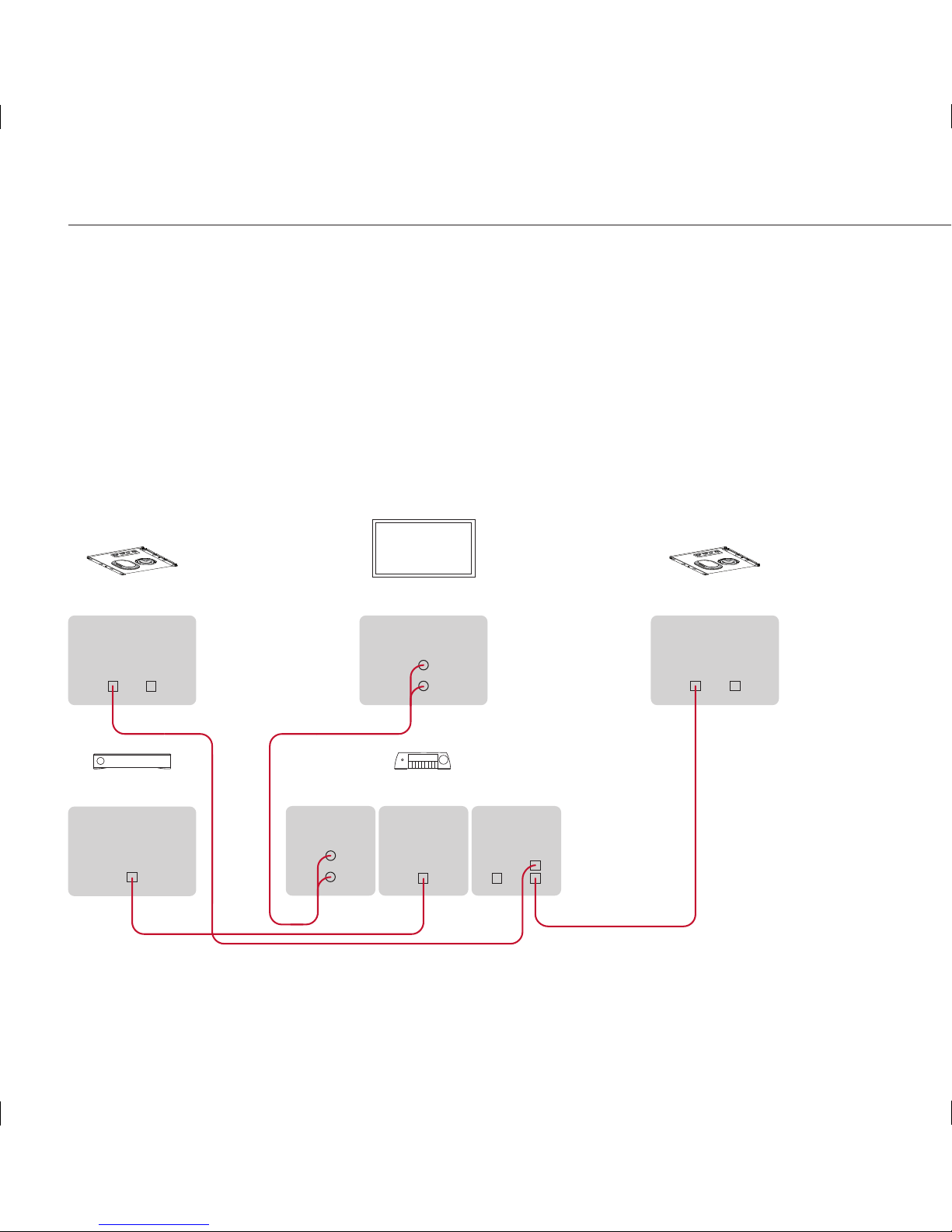

To connect a pair of DSP320 loudspeakers to
a Meridian Audio Core 200
The DSP320 loudspeakers are ideal for a compact Audio Core
200 based home entertainment system.
Connect analogue and digital sources, such as a TV and
satellite receiver, to the appropriate inputs on the AC200.
Connect the lower SpeakerLink output on the AC200 to the
Master DSP320, using an RJ45 cable.
•
•
Connect the upper SpeakerLink output on the AC200 to the
Slave DSP320, using an RJ45 cable.
Make sure the Channel selector is set to the Left position on
the front of the left loudspeaker and to the Right position on
the front of the right loudspeaker.
•
•
Meridian Audio Core 200
TV
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
Satellite Receiver
DIGITAL
OUT
ANALOGUE
IN
DIGITAL
IN
ANALOGUE
OUT
RJ45 cable
RJ45 cable
SPEAKERLINK
IN OUT
DSP320 – Slave DSP320 – Master
Page 9
DSP320 User Guide
9
EN

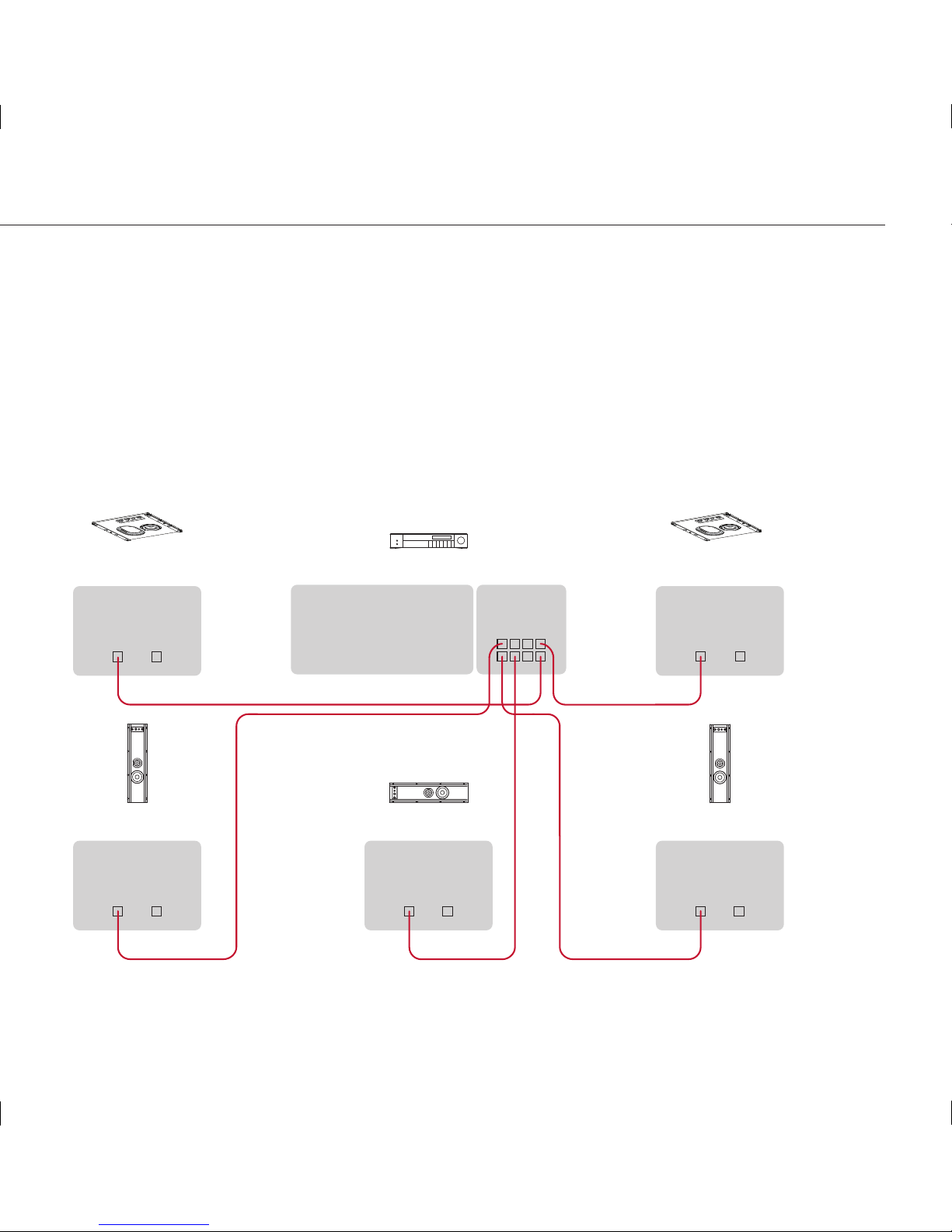

To use DSP320 loudspeakers in a Meridian
Digital Theatre
DSP320 loudspeakers are ideal as the rear loudspeakers in
a Meridian Digital Theatre, in conjunction with DSP520 (or
DSP640) loudspeakers as the front main and centre speakers.
An ideal source is the Meridian G65 Digital Surround Controller.
The following diagram shows how to connect the loudspeakers
using “home run” wiring.
Connect the L+R SpeakerLink output on the lower row of
the G65 to the Master digital loudspeaker (here the front left
loudspeaker), using an RJ45 cable.
•
Connect the appropriate SpeakerLink outputs on the G65 to
each of the remaining loudspeakers, using RJ45 cables.
Make sure the Channel selector on each loudspeaker is set
to the Left, Right, or Centre position as appropriate.
Alternatively you can connect the loudspeakers using “daisy
chain” wiring: connect the front and rear L loudspeakers to
the G65, and then link each pair of loudspeakers together by
connecting the output from the L loudspeaker to the input of
the R loudspeaker.
•
•
DSP520 Centre – Slave
DSP520 Front L – Master
DSP520 Front R – Slave
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
RJ45 cableRJ45 cableRJ45 cable
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
DSP320 – Rear L
DSP320 – Rear R
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
G65 Digital Surround Controller
RJ45 cable
RJ45 cable
MERIDIAN
SPEAKERLINK
Page 10
DSP320 User Guide
10 EN
EN

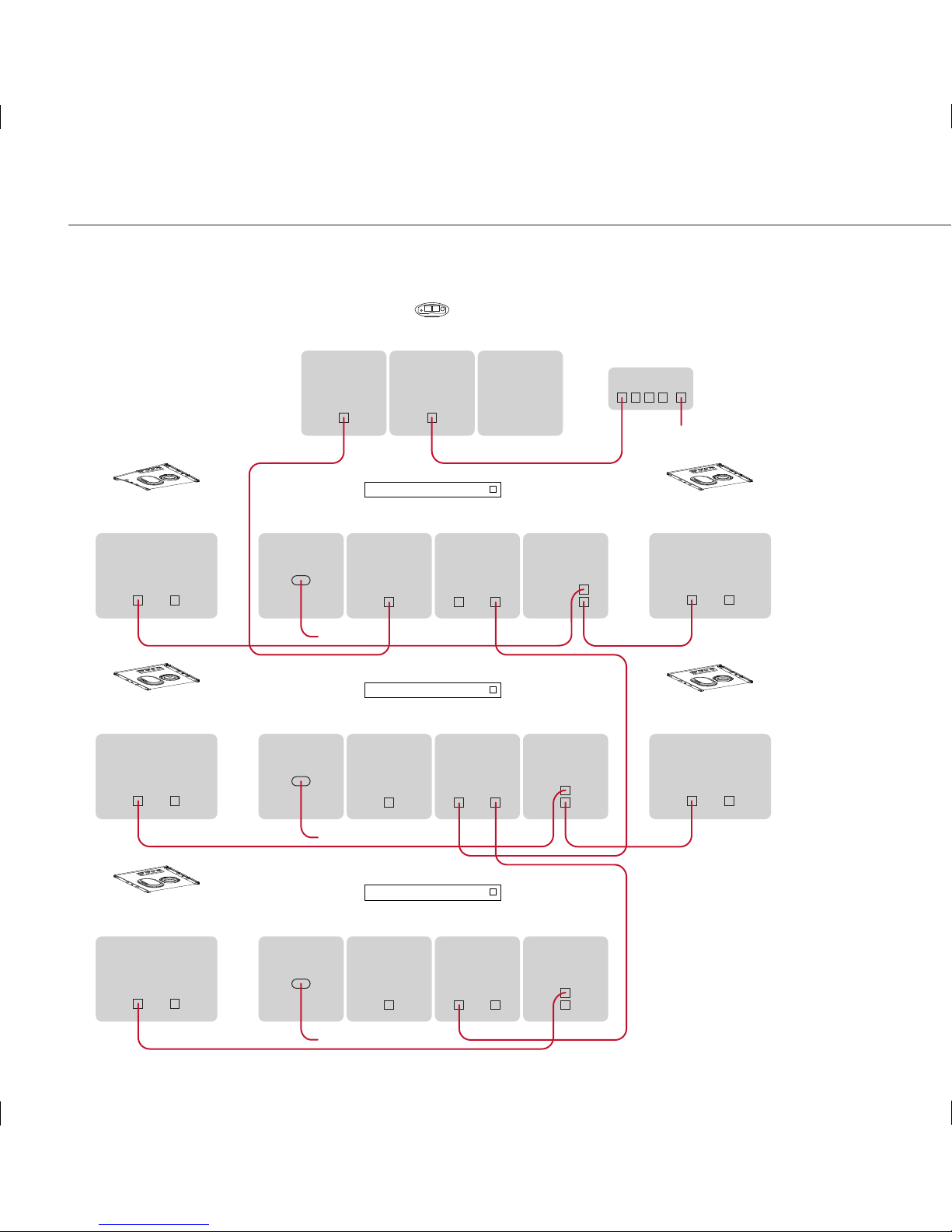

To create a multi-room installation
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
RS232
CONTROL IN
DIGITAL
IN OUT
DIGITAL
IN OUT
Distributor 3 - 2/3
Distributor 3 - 1/3
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
RS232
CONTROL IN
DIGITAL
IN OUT
Distributor 3 - 3/3
MERIDIAN
SPEAKERLINK
INPUT OUTPUT
RS232
CONTROL IN
Control input
Control input
Control input
RJ45 cable
RJ45 cable
SPEAKERLINK
OUT
RJ45 cable
SPEAKERLINK
IN
SPEAKERLINK
IN
RJ45 cable
RJ45 cable
SPEAKERLINK
OUT
DSP320 – Wall or ceiling DSP320 – Wall or ceiling
DSP320 – Hallway (mono)
DSP320 – Hallway (mono)
SPEAKERLINK
IN
RJ45 cable
SPEAKERLINK
OUT
DSP320 – Dressing room (mono)
SPEAKERLINK
OUT
NETWORK
Meridian Media Source 200
SpeakerLink lead
Router
Internet
Page 11
DSP320 User Guide
11
EN
The DSP320 is an ideal loudspeaker for use in a multiroom system. The signal to each room can be provided by a
Distributor 3, with independent control over the volume of each
pair of speakers via the control system.
Where only monophonic sound is required, such as in a hallway
or dressing room, one Distributor 3 can be used to control two
DSP320 loudspeakers switched to Mono mode.
An ideal source for the system is a Meridian Media Source 200.
Connect the SpeakerLink output from the Media Source 200
to the SpeakerLink input of the first Distributor 3 module.
Connect the digital output from the first Distributor 3 module
to the digital coax input of the second Distributor 3 module.
Connect the Meridian DSP loudspeakers to the SpeakerLink
outputs of each module.
Connect the RS232 control connector from each module to
the control system.
Information and set-up software for installing Meridian systems
can be found on the Meridian website:
www.meridian-audio.com
•
•
•
•
Page 12
DSP320 User Guide
12 EN
Loading...
