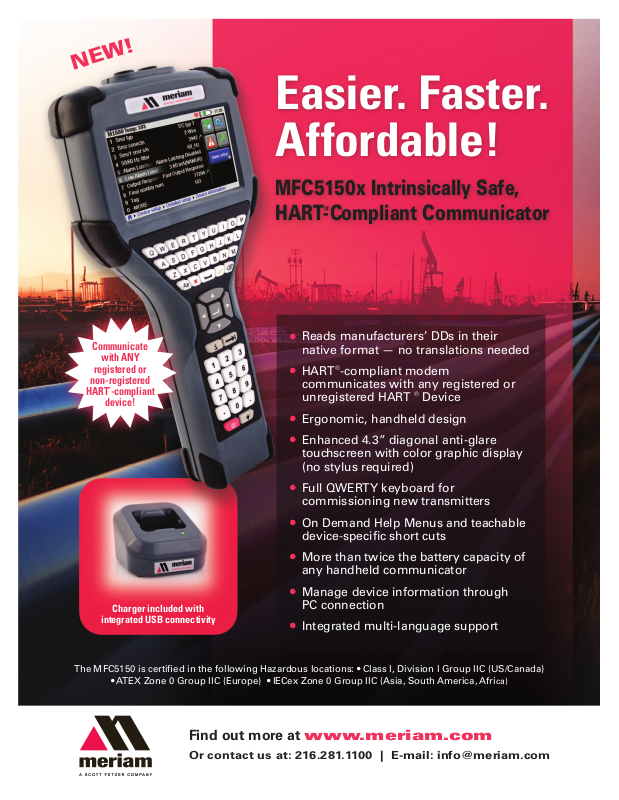

Meriam MFC5150x Data Sheet

NEW!

Communicate

with ANY

registered or

non-registered

HART®-compliant

device!

Charger included with

integrated USB connectivity

Easier. Faster.
Affordable!

MFC5150x Intrinsically Safe,
HART - Compliant Communicator

•

native format — no translations needed

•

communicates with any registered or
unregistered HART ® Device

•

•

touchscreen with color graphic display
(no stylus required)

•

commissioning new transmitters

•

device-specific short cuts

•

any handheld communicator

•

PC connection

•

®

Reads manufacturers’ DDs in their

HART ®-compliant modem

Ergonomic, handheld design

Enhanced 4.3” diagonal anti-glare

Full QWERTY keyboard for

On Demand Help Menus and teachable

More than twice the battery capacity of

Manage device information through

Integrated multi-language support

The MFC5150 is certified in the following Hazardous locations: • Class I, Division I Group IIC (US/Canada)

• ATEX Zone 0 Group IIC (Europe) • IECex Zone 0 Group IIC (Asia, South America, Africa)

Find out more at www.meriam.com

Or contact us at: 216.281.1100 | E-mail: [e-mail]

The MFC5150x utilizes a Windows™ based system for faster processing and greater
storage capacity. Plus, no subscriptions, and with all options standard at no extra
cost, it’s more affordable than ever. It’s the Power of a PC in the palm of your hand!

Display Type Transflective Display with anti-glare

touch screen (Resistance film)
Size 4.3-inch WQVGA

Color 24bit (16,777,216) TFT color
Pixel 480 X 272 pixels
Backlight White LED

Body Size 303×142×48 mm [11.9×5.6×1.9 inch]
Weight Approximately 0.95 Kg [2.1 lbs] with battery

Keyboard Material Molded Keyboard design with tactile feedback
Key 52 keys including qwerty keys

Included Handy carry Ballistic Nylon; inside material black 420 Nylon
Accessories case material

HART® leads Molded banana plug test leads
1 meter long

Strap Wrist strap

USB cable 2 meter Type A to USB Type B

CD-ROM Manual/Drivers

Power Rechargeable Li-Ion
Battery

Standby/ Continuance 10 hours
Hibernate Standard 20 hours

Standby/Hibernate 200 hours

Rechargeable Voltage output 3.7VDC
battery Current capacity 2000mA

Energy capacity 9480mAh
Charging time 6 hours

Battery Charger
(AC adapter) Input voltage 100-240VAC 50/60Hz

Output voltage 15VDC
Output current 1600mA

Overcharge Yes
protection

LED indication N/A

Battery Charger
(Cradle) LED indication Yes, Tri color LED

Normal Ambient temp. +14°F (-10°C) to +122°F (+50°C)
operating
Condition Ambient humidity 0% to 95% RH (non-condensing)

(for +32°F (0°C) to +122°F (+50°C))

Storage Ambient temp. -4°F (-20°C) to +131°F (+55°C)
condition with battery

Ambient temp. -4°F (-20°C) to +150°F (+60°C)
without battery

Ambient humidity 0% to 95% RH (non-condensing)
with battery (for +32°F (0°C) to +122°F (+50°C))

Ambient humidity 0% to 95% RH (non-condensing) (for +32°F
without battery (0°C) to +122°F (+50°C))

Charging Ambient temp. +50°F (+10°C) to +104°F (+40°C)
condition Ambient humidity 0% to 95% RH (non-condensing)

Other Only safety area when charging

Enclosure Rating Body IP51

Shock condition Tested to survive a 1 meter drop onto concrete

HART® connections Form Two 4mm banana plugs

Storage Media type microSD card

Capacity 4GB Minimum

USB Data rate Supporting up to 115 kbps
Form USB B type (receptacle)

Power supply AC adapter Wall Adapter
Form Four international inserts (US-U,UK-B,EU-E,AU-A)

Intrinsic Safety ANSI/ISA (US) UL913 Ed7 CL I, DIV 1, GP A,B,C,D; T4
UL60079-0 Ed5 CL I, ZONE 0, AEx ia IIC T4
UL60079-11 Ed5 CL I, DIV 1, GP A,B,C,D; T4
ANSI/ISA (Canada) CSA-C22.2 CL I, ZONE 0, Ex ia IIC T4
NO. 157-92(R2012)
NO. 60079-0:11
NO. 60079-11:11
ATEX (Europe) EN60070-0:2012 II 1 G Ex ia IIC T4 Ga
EN60079-11:2012
EN60079-26:2007

IECEx IEC60079-0:2011 Ed6 Ex ia IIC T4 Ga
(International) IEC60079-11:2011 Ed6
IEC60079-26:2006 Ed2

FCC (US), CE (Europe) FCC (US) EN61326-1
CE (Europe) EN61326-2-3
C-tick (Australia)
ANSI-ISA

Electrical Equipment UL (US) UL61010-1 Ed3
Safety ANSI (US) UL60950-1 AC Adapter

CSA (Canada) CSA-C22.2
NO. 61010-1-12
CE (Europe) EN60950-1 AC Adapter

Environmental RoHS Directive 2011/65/EU
Protection WEEE Directive 2002/96/EC

REACH Regulation (EC) No 1907/2006

Transportation IATA UN/DOT 38.3 Li-ion Battery

Field Communication Host

Windows™ CE 6.0 Manufacture Microsoft

Revision Windows™ CE Rev3

External device FlashROM NAND 512MByte
RAM DDR 256mb

Languages supported English, French, Japanese, Italian, Spanish, Chinese, Russian, German

Applicable Equipment Registered/unregistered devices in HART FOUNDATION

HART® protocol HART5, 6, 7
revision
