Merging Sphynx 2 Installation Manual

Installation guide

IMPORTANT SAFETY AND INSTALLATION INSTRUCTION

SAVE THESE INSTRUCTIONS

INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

WARNING – when using electric products, basic precautions should be followed, including the following:

1. Read all of the safety and installations instructions and explanation of graphic symbols before using the product.

2. The product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock. This product is equipped with a power supply cord having an equipment­grounding
conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded
in accordance
with all local codes and ordinances.

DANGER – Improper connection of the equipment-grounding can result in a risk of electric shock. Do not modify the plug
provided with the product – if it will not t the outlet have a proper outlet installed by a qualied electrician. Do not use an
adapter which defeats the function of the equipment-grounding conductor. If you are in doubt as to whether the product is
properly grounded, check with a qualied serviceman or electrician.

3. Do not use this product near water – for example, near a bathtub, washbowl, kitchen sink, in a wet basement, or near a swim­ming pool, or the like.

4. This product should only be used with a stand or cart that is recommended by the manufacture.

5. This product, either alone or in combination with an amplier and speakers or headphones, may be capable of producing
sound levels that could cause permanent hearing loss. Do not operate at a high volume level or at a level that is uncomfortable.
If you experience any hearing loss or ringing in the ears, you should consult an audiologist.

6. The product should be located so that its location or position does not interfere with its proper ventilation.

7. The product should be located away from heat sources such as radiators, heat registers, or other products that produce heat.

8. The product should be connected to a power supply only of the type described in the operating instructions or as marked on
the product.

9. The power-supply cord of the product should be unplugged from the outlet when left unused for a long period of time. When
unplugging the power supply, do not pull on the cord, but grasp it by the plug.

10. Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

11. The product should be serviced by qualied service personnel when:
A. The power supply cord or plug has been damaged, or
B. Objects have fallen, or liquid has spilled into the product, or
C. The product has been exposed to rain, or
D. The product does not appear to be operating normally or exhibits a marked change in preformance, or
E. The product has been dropped, or the enclosure damaged.

12. Do not attempt to service the product beyond that described in the user maintenance instructions. All other servicing should
be referred to qualied service personnel.

13. WARNING - Do not place objects on the power supply cord, or place the product in a position where anyone could trip over,
walk on, or roll anything over cords of any type. Do not allow the product to rest on or be installed over cords of any type. Im-

ATTENTION

: RISQUE DE CHOCK ELECTRIQUE NE PAS OUVRIR

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SER

VICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the product.

3

4

© 2005 All rights reserved. Merging Technologies and Sphynx 2 are registered
Trademarks of Merging Technologies S.A.

Product features and specications are subject to change without notice.

Merging Technologies S.A shall not be liable for technical or editorial errors contained herein, nor for
incidental or consequential damages resulting from the furnishing, performance or use of this manual.

Company Address: Merging Technologies S.A. Le Verny, CH-1070 Puidoux, Swizerland.
Fax. [phone]. Web: www.merging.com.

DAD No. 973004010 rev. 1

5

Contents

1. INTRODUCTION 7

BEFORE YOU START 7
GENERAL INTRODUCTION 7
WELCOME 7

2. CONTROL SOFTWARE INSTALLATION 7

2.1 PC RECOMMENDATION 7

2.2 PROGRAM INSTALLATION 8

3. HARDWARE INSTALLATION 9

3.1 REAR PANEL 9

Installing I/O cards 9
Connecting the analog audio cables 10
Connecting the digital audio cables 10
Connecting the digital sync input/output 10
Connecting the Power Cable 10
Connecting the RS422 cable for remote control 10

3.2 THE FRONT PANEL 11

The Power button 11
LED’s and Unit ID at the front panel 11

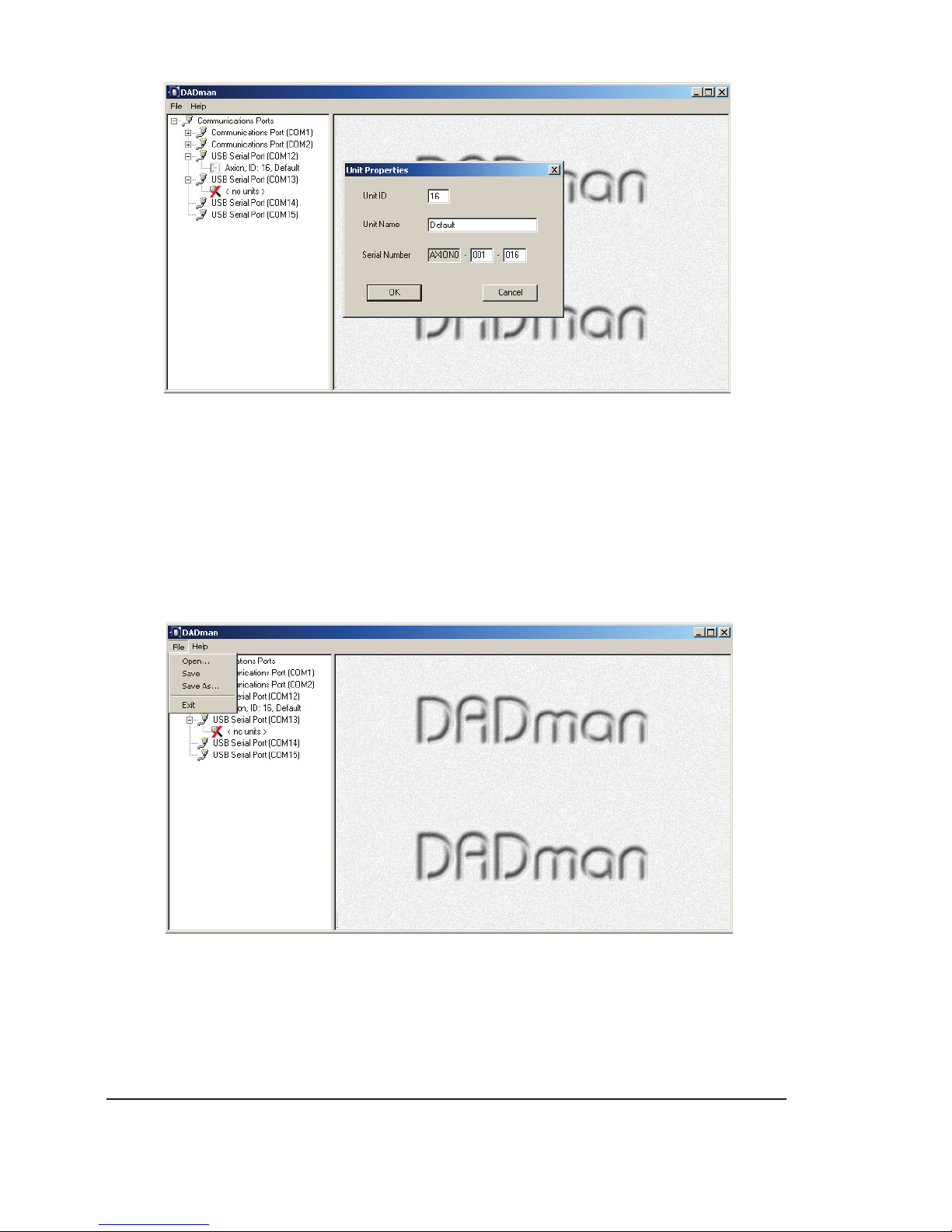

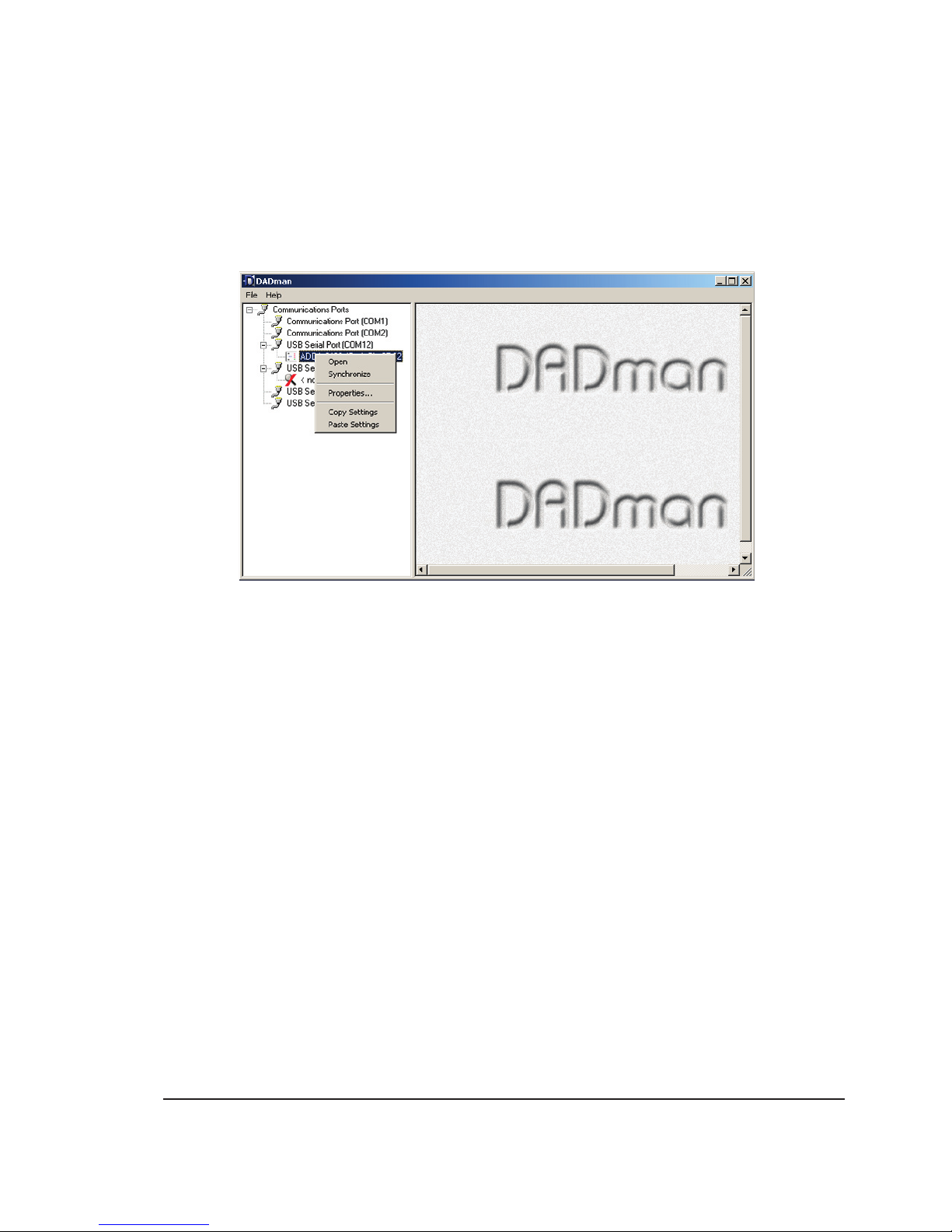

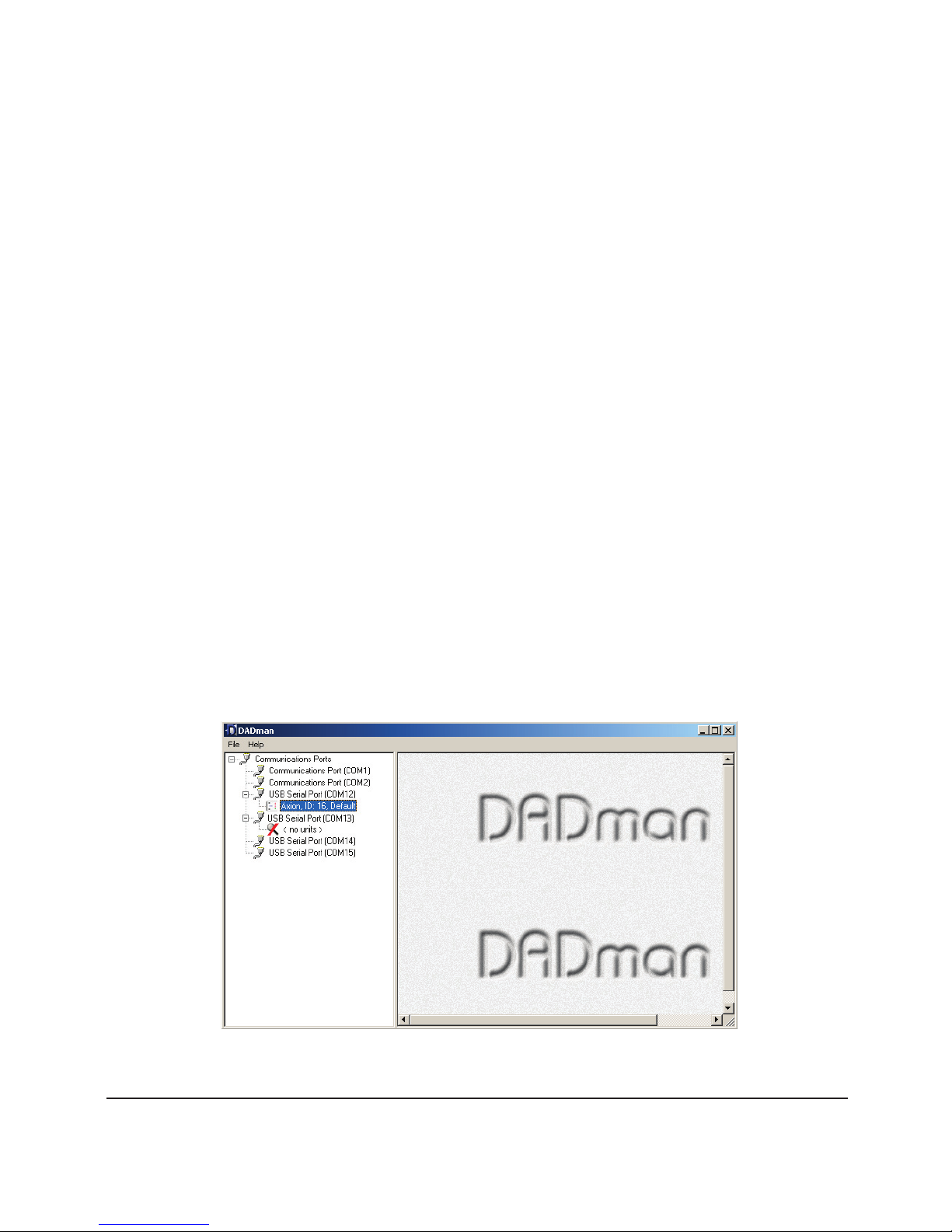

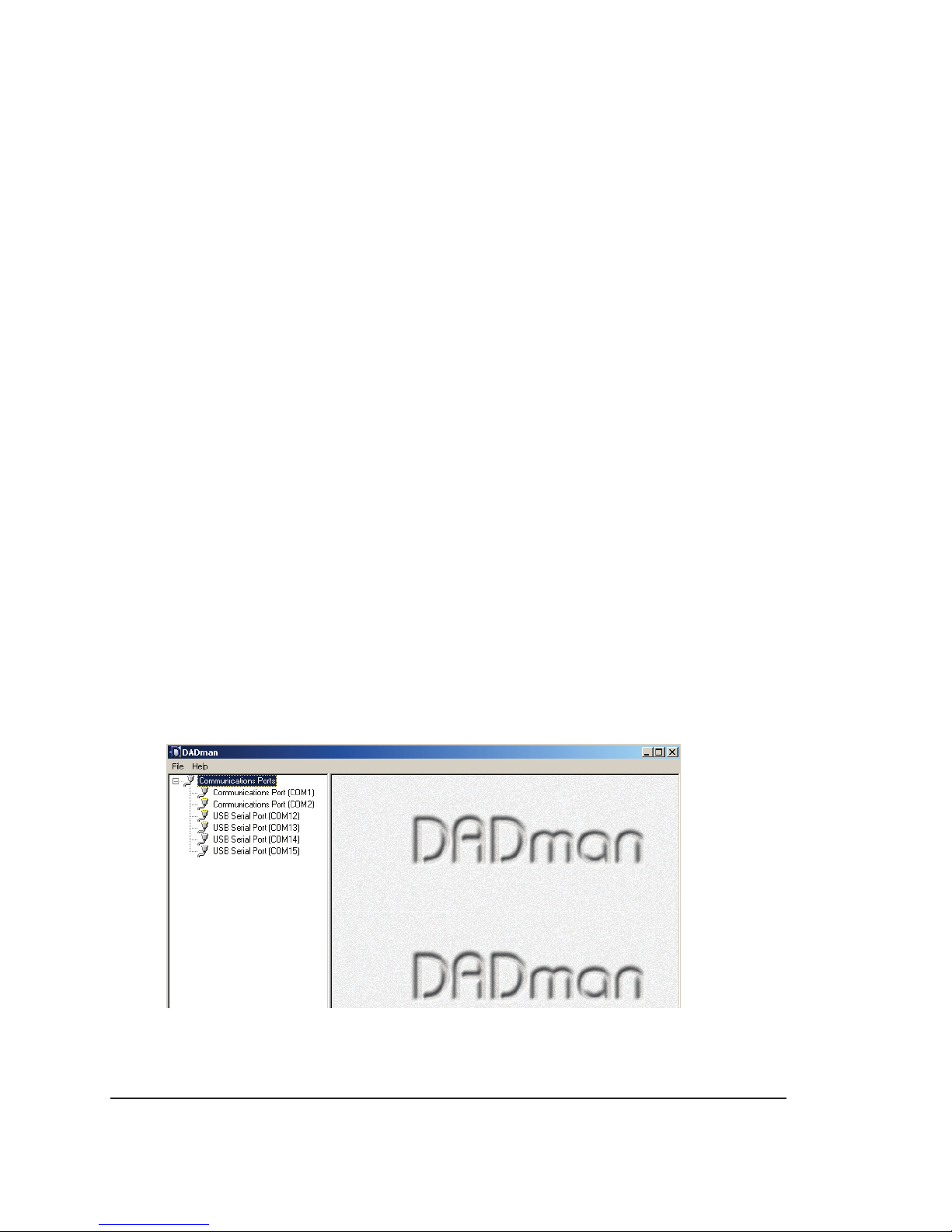

4. DADMAN CONTROL PROGRAM 12

5. ANALOG INTERFACES 15

5.1 ANALOG INPUTS 15

Adjusting the Line Input 15

5.2 ANALOG OUTPUT MODULE 15

Adjusting the Line Output 15

6. INTERFACE SPECIFICATIONS 16

6.1 RS422 CONTROL INTERFACE 16

6.2 8 CH TDIF DIGITAL I/O MODULE 16

6.3 MADI DIGITAL I/O MODULE 17

6.4 8 CH SDIF3 DIGITAL I/O MODULE 17

7.1 8 CH ADAT DIGITAL I/O MODULE 18

7.1 8 CH AES3 DIGITAL I/O MODULE 18

6. SPECIFICATIONS: 19
