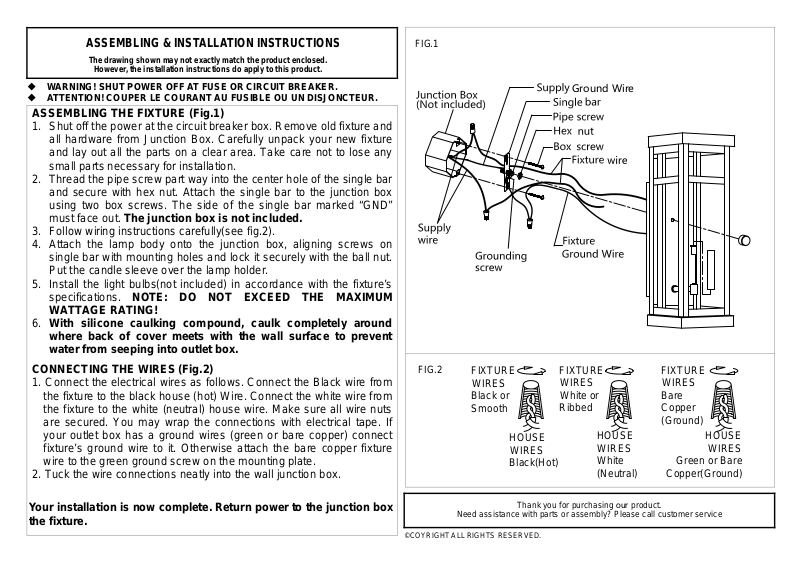

ASSEMBLING & INSTALLATION INSTRUCTIONS
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJONCTEUR.
ASSEMBLING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker box. Remove old fixture and
2. Thread the pipe screw part way into the center hole of the single bar
3. Follow wiring instructions carefully(see fig.2).
4. Attach the lamp body onto the junction box, aligning screws on
5. Install the light bulbs(not included) in accordance with the fixture’s
6. With silicone caulking compound, caulk completely around
CONNECTING THE WIRES (Fig.2)
1. Connect the electrical wires as follows. Connect the Black wire from
the fixture to the black house (hot) Wire. Connect the white wire from
the fixture to the white (neutral) house wire. Make sure all wire nuts
are secured. You may wrap the connections with electrical tape. If
your outlet box has a ground wires (green or bare copper) connect
fixture’s ground wire to it. Otherwise attach the bare copper fixture
wire to the green ground screw on the mounting plate.
2. Tuck the wire connections neatly into the wall junction box.
Your installation is now complete. Return power to the junction box
the fixture.
all hardware from Junction Box. Carefully unpack your new fixture
and lay out all the parts on a clear area. Take care not to lose any
small parts necessary for installation.
and secure with hex nut. Attach the single bar to the junction box
using two box screws. The side of the single bar marked “GND”
must face out. The junction box is not included.
single bar with mounting holes and lock it securely with the ball nut.
Put the candle sleeve over the lamp holder.
specifications. NOTE: DO NOT EXCEED THE MAXIMUM
WATTAGE RATING!
where back of cover meets with the wall surface to prevent
water from seeping into outlet box.
FIG.1
FIG.2
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black(Hot)
Thank you for purchasing our product.
Need assistance with parts or assembly? Please call customer service
©COYRIGHT ALL RIGHTS RESERVED.
GroundWire
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
White
(Neutral)
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green or Bare
Copper(Ground)
