Page 1
QTY
8 PCS
Read this instruction carefully. See hardware and furniture part list
for guidance. Be sure all part is complete, before you assemble.
Place all wooden furniture part on a clean and flat soft surface to
prevent from being scratched. Follow the figure to start
assembling.
1. Do not FULLY-TIGHTEN the nut or nut bolt until all nut
or bolt is ready assembled.
3. Keep all hardware part out of reach of children.
2. Do not OVER-TIGHTEN the nut or nut bolt to avoid
causing damages to the thread.
STEP 1 :
CAUTIONS :

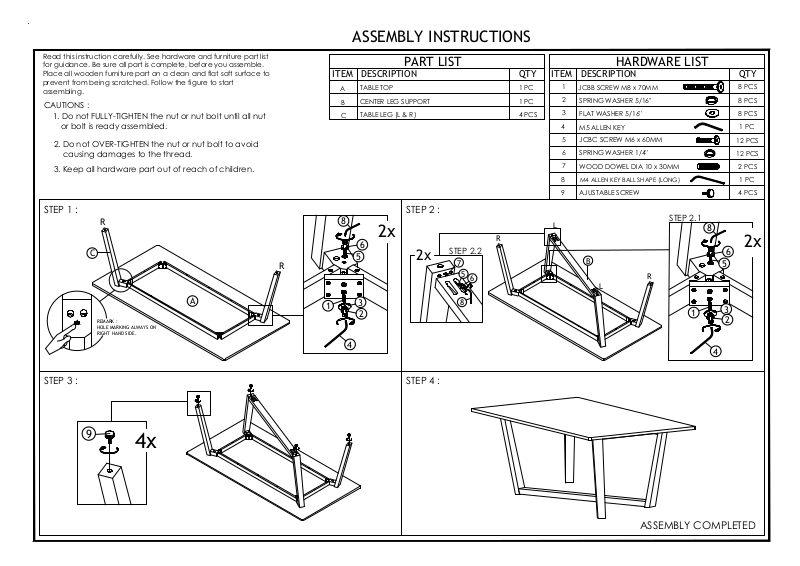

ASSEMBLY INSTRUCTIONS
B
CENTER LEG SUPPORT
DESCRIPTION
TABLE TOP
ITEM
A
PART LIST
DESCRIPTION
JCBB SCREW M8 x 70MM
4
QTY ITEM
1
HARDWARE LIST
1 PC
ASSEMBLY COMPLETED
1 PC
8 PCS
SPRING WASHER 5/16''
2
8 PCS
FLAT WASHER 5/16''
3
STEP 2 :
STEP 4 :STEP 3 :
8
5
6
7
6
C
TABLE LEG (L & R)
4 PCS
5
8
4
9
B
5
6
8
2x
2
3
1
2x
6
5
8
4
2x
2
3
1
1 PC
M5 ALLEN KEY
JCBC SCREW M6 x 60MM
SPRING WASHER 1/4''
WOOD DOWEL DIA 10 x 30MM
M4 ALLEN KEY BALL SHAPE (LONG)
AJUSTABLE SCREW
12 PCS
12 PCS
2 PCS
1 PC
4 PCS
4x
9
A
R
R
REMARK :
HOLE MARKING ALWAYS ON
RIGHT HAND SIDE.
R
R
L
L
STEP 2.1
STEP 2.2
7
C
