Mercury Row W003165269 Installation & Assembly

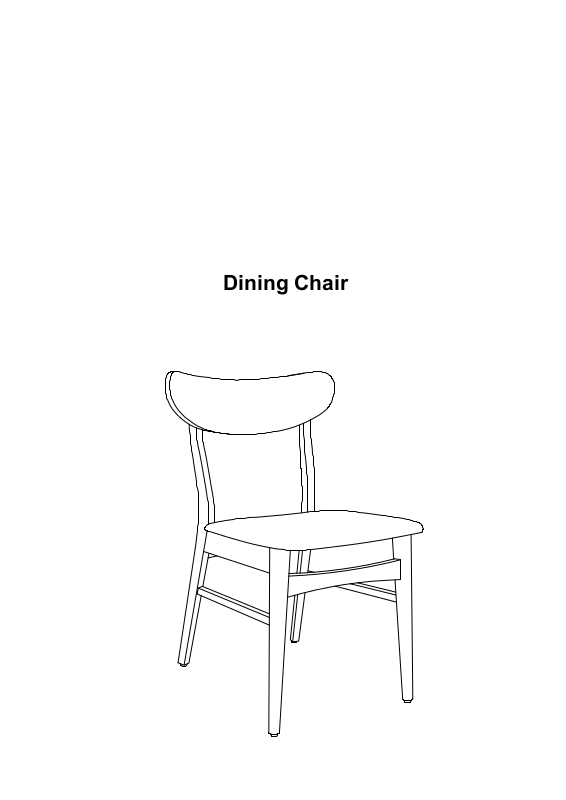

Dining Chair

A B

C

PART LIST

Back

2 PCS

Side Rail

4 PCS

Front Leg

2 PCS

#1

HARDWARE LIST

#2 #3 #4

2

M6 x 50mm

Bolt

16 PCS (Extra 2)

Spring Washer

16 PCS (Extra 2)

Allen Wrench

1 PC

M4

D

Seat

2 PCS

1/4"

Screw

16 PCS (Extra 2)

M4 x 32mm

E

Strecher

4 PCS

ADDITIONAL TOOLS (Not Provided)

Note: It is not recommended to use power tools during assembly.

Phillips Head Screwdriver

3

#1

x4

#4

x1

#2

x4

Step 1 . Attach side rails (part D) to back (part A) using bolts (part #1), spring
washers (part #2) and allen wrench (part #4). See Figure 1. Attach strechers
(part E) to back (part A) using screws (part #3) and phillips head screwdriver.
See Figure 2.

Step 2 . Attach front leg (part C) to side rails (part D) and strechers (part E) using
bolts (part #1), spring washers (part #2), screws (part #3), allen wrench (part #4)
and phillips head screwdriver.

NOTE: Please do not fully tighten bolts until unit is fully assembled.

NOTE: Please fully tighten all bolts at this time.

A

D

D

E

E

#1

#2

#1

#2

#4

#1

#2

#1

#2

#1

#2

#1

#2

#3

#3

#3

#3

C

E

E

D

D

#3

x2

#1

#2

#4

#1

#2

#1

#2

#1

#2

#1

#2

#1

#2

#3

#3

#1

x4

#4

x1

#2

x4

#3

x2

Figure 1

Figure 2

4

Step 4. Carefully turn unit upright. Repeat steps 1-3 to assemble remaining chair.

#3

Step 3 . Attach seat (part B) to assembled unit (parts A, C, D & E) using screws
(part #3) and

phillips head screwdriver.

#3

x4

#3

#3

#3

#3

B

A

E

E

D

D

C
