Mercury Row W002871308 Installation & Assembly

PAGE 1

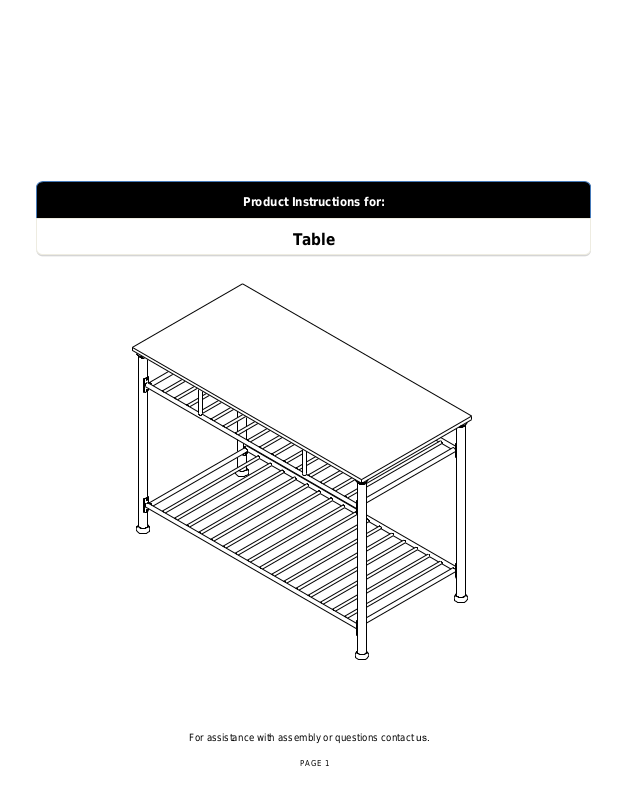

Product Instructions for:

Table

For assistance with assembly or questions contact us.

PAGE 2

Table

A: Top Panel (1)

B: Top Metal Frame (1)

C: Bottom Shelf (1)

D: Leg (4)

E: Support Tube (4)

F: Shelf (1)

1. Short Bolt 1/4” x3/4” (26)

2. Long Bolt 1/4” x1-1/8” (4)

3. Double Threaded Bolt 1/4” x1” (4)

4. Adjustable Foot 1” x1” (4)

5. Allen Wrench 1/4” (1)

Parts List

Before beginning assembly, separate all parts and carefully study the parts

diagrams below. Review all parts and hardware before disposing of any

packaging. You may receive extra hardware with your unit. Call Customer

Service for missing hardware.

For assistance with assembly or questions contact us.

PAGE 3

Table

Figure 1

Unpack and lay parts on a
clean, padded surface like a
carpet or blanket. Check that
you have all parts indicated on
the front page.

Step 1

Attach Adjustable Feet (4) to
Leg (D) by rotating clockwise
by hand.

Figure 2

Step 2

Attach Top Panel (A) to Top
Metal Frame (B) using Short
Bolts (1) as shown in Figure 2.

Tighten Short Bolts (1) with
Allen Wrench (5).

Insert Double Threaded Bolts
(3) into predrilled holes on Top
Metal Frame (B). Attach
Support Tubes (E) to Double
Threaded Bolts (3) by rotating
clockwise by hand.

Assembly Instructions

For assistance with assembly or questions contact us.

PAGE 4

Figure 3

Step 3

Attach Shelf (F) to unit from
Figure 2 using Long Bolts (2)
as shown in Figure 3.

Tighten Long Bolts (2) with
Allen Wrench (5).

Figure 4

Step 4

Insert Legs (D) into
corresponding holes on Top
Metal Frame (B).

For assistance with assembly or questions contact us.

PAGE 5

Figure 5

Step 5

Secure Legs (D) to Shelf (F)
using Short Bolts (1).

NOTE: Please wait to tighten
Short Bolts (1) until after
Bottom Shelf (C) is secure.

Attach Bottom Shelf (F) to
Legs (D) using Short Bolts (1).

Tighten all Short Bolts (1) with
Allen Wrench (5).

Figure 6

Step 6

Turn assembled unit from
Figure 5 right-side up.

Now your Kitchen Cart is ready
to use!
