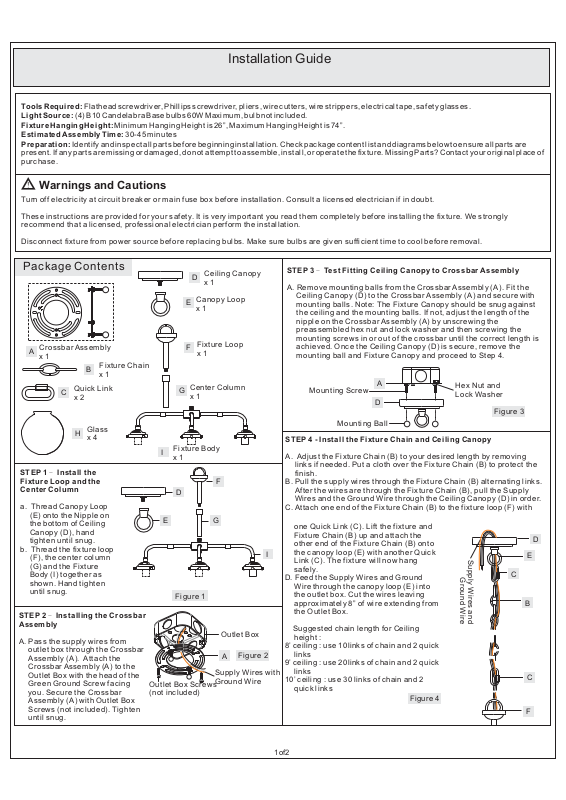

Installation Guide
ToolsRequired: Flatheadscrewdriver, Phillipsscrewdriver,pliers,wire cutters,wire strippers,electricaltape, safetyglasses.
LightSource:
FixtureHangingHeight:
EstimatedAssembly Time:
Preparation:
present.Ifany partsare missingordamaged, donot attempttoassemble, install,or operatethefixture. MissingParts? Contactyouroriginal placeof
purchase.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
(4)B10Candelabra Basebulbs 60WMaximum,bulb notincluded.
MinimumHangingHeight is26”, MaximumHangingHeight is74”.
30-45minutes
Identifyandinspect allparts beforebeginninginstallation. Checkpackage contentlistand diagramsbelow toensureall partsare
Package Contents
Crossbar Assembly
A
x1
C
STEP 1 - Install the
Fixture Loop and the
Center Column
a. Thread
(E) onto the Nipple on
the bottom of
Canopy
tighten until snug.
b.
(F)
(G) Fixture
Body
shown. Hand tighten
until snug.
STEP 2 - Installing the Crossbar
Assembly
A. Pass the supply wires from
outlet box through the Crossbar
Assembly (A). Attach the
Crossbar Assembly (A) to the
Outlet Box with the head of the
Green Ground Screw facing
you. Secure the Crossbar
Assembly (A) with Outlet Box
Screws (not included). Tighten
until snug.
Canopy
(D), hand
Thread the fixture loop
, the center column
and the
(I) together as
Fixture Chain
B
x1
Quick Link
x2
Glass
H
x4
Loop
Ceiling
Ceiling Canopy
D
x1
Canopy
E
x1
Fixture Loop
F
x1
Center Column
G
x1
Fixture Body
I
x1
D
E
Figure 1
Outlet Box Screws
(not included)
Loop
F
G
I
Outlet Box
Figure 2
A
Supply Wires with
Ground Wire
STEP 3 Test Fitting Ceiling Canopy to Crossbar Assembly-
A.
Remove mounting balls from the Crossbar Assembly (A). Fit the
Ceiling Canopy (D)
mounting balls. Note: The should be snug against
the and the mounting balls. If
ceiling
nipple on the Crossbar Assembly (A) by unscrewing the
preassembled hex nut and lock washer and then screwing the
mounting screws in or out of the crossbar until the correct length is
achieved. Once the Ceiling Canopy (D) is secure, remove the
mounting ball and Fixture Canopy and proceed to Step 4.
Mounting Screw
Mounting Ball
STEP 4 - Install the Fixture Chain and Ceiling Canopy
A. Adjust the Fixture Chain (B) to your desired length by removing
links if needed. Put a cloth over the Fixture Chain (B) to protect the
finish.
B. Pull the supply wires through the Fixture Chain (B) alternating links.
After the wires are through the Fixture Chain (B), pull the Supply
Wires and the Ground Wire through the Ceiling Canopy (D) in order.
C. Attach one end of the Fixture Chain (B) to the fixture loop (F) with
one Quick Link (C). Lift the fixture and
Fixture Chain (B) up and attach the
other end of the Fixture Chain (B) onto
the canopy loop (E) with another Quick
Link (C). The fixture will now hang
safely.
D. Feed the Supply Wires and Ground
Wire through the canopy loop (E) into
the outlet box. Cut the wires leaving
approximately 8” of wire extending from
the Outlet Box.
Suggested chain length for Ceiling
height :
8’ ceiling : use 10links of chain and 2 quick
links
9’ ceiling : use 20links of chain and 2 quick
links
10’ ceiling : use 30 links of chain and 2
quick links
to the
Crossbar Assembly (A) and secure with
Fixture Canopy
A
D
not, adjust the length of the
Hex Nut and
Lock Washer
Supply Wires and
Ground Wire
Figure 4
Figure 3
D
E
C
B
C
F
1of2
Page 2
STEP 5 - Making the Wire Connections
A. Wrap bare or green ground wire around green ground screw on the
crossbar, no less than 2 inches from the end of the wire. Tighten the
green ground screw.
B. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into outlet box.
Note: If the electrical wire is going to be cut shorter than provided
you will need to identify the "L" line wire and the "N" neutral wire
before you cut the excess wire off. One is labeled N and the other
labeled L. To do this separate the "L" line wire and the "N" neutral
wire as far as you need to. Re-label the wire near where you want to
make the cut. Be sure to mark the wire on the side of the fixture and
not on the excess wire being cut and removed.
FINISH: SATIN BRASS
5” Dia.
74”
White wire
from outlet box
Black wire from
outlet box (or Red)
Bare, or Green
Ground wire
from outlet box
Green Ground Screw
on the Crossbar
supply wire from fixture
identified with the Label “N”
supply wire from fixture
identified with the label “L”
Ground wire
from Fixture
Figure 5
STEP 6 Install the Fixture-
A. Carefully tuck all wires into the outlet box and position the Ceiling
Canopy (D) over the outlet box. Align the holes in the ceiling canopy
(D) with the mounting screws, then attach the Ceiling Canopy (D)
using the previously removed mounting balls. Hand tighten until
snug.
Mounting Screw
A
D
Figure 6
Mounting Ball
STEP 7 - Install the Glass and the Bulb
20.25"
22” Dia.
a. Place the Glass (H) into the hood on the fixture body (I) and
secure with lock screws. Hand-tighten until snug.
b. Insert the bulb onto the socket and screw snugly into place.
Your fixture is now assembled and ready to use. Enjoy!
Lock Screw
Socket
Bulb(not
included)
H
Figure 7
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/4"
2of2
