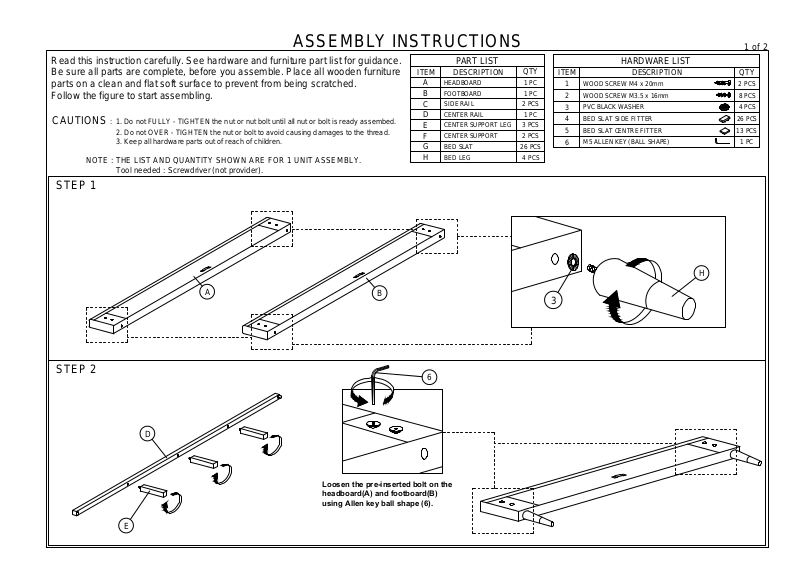

Page 1
Read this instruction carefully. See hardware and furniture part list for guidance.
Be sure all parts are complete, before you assemble. Place all wooden furniture
parts on a clean and flat soft surface to prevent from being scratched.
Follow the figure to start assembling.
CAUTIONS : 1. Do not FULLY - TIGHTEN the nut or nut bolt until all nut or bolt is ready assembed.
2. Do not OVER - TIGHTEN the nut or bolt to avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
PART LIST
ITEM DESCRIPTION
QTY
A
HEADBOARD 1 PC
B
FOOTBOARD 1 PC
C
SIDE RAIL 2 PCS
D
CENTER RAIL 1 PC
E
CENTER SUPPORT LEG 3 PCS
F
CENTER SUPPORT 2 PCS
G
BED SLAT 26 PCS
H
BED LEG 4 PCS
STEP 1
HARDWARE LIST
ITEM DESCRIPTION
QTY
1
WOOD SCREW M4 x 20mm 2 PCS
2
WOOD SCREW M3.5 x 16mm 8 PCS
3
PVC BLACK WASHER 4 PCS
4
BED SLAT SIDE FITTER 26 PCS
5
BED SLAT CENTRE FITTER 13 PCS
6
M5 ALLEN KEY (BALL SHAPE)
1 PC
ASSEMBLY INSTRUCTIONS
E
D
3
Tool needed : Screwdriver (not provider).
B
A
1 of 2
Loosen the pre-inserted bolt on the
headboard(A) and footboard(B)
using Allen key ball shape (6).
STEP 2
6
H
Page 2
* When moving the bed position, the center support legs
must be adjust to be straight to avoid any broken problem.
Palm
Palm
G
4
G
G
5
STEP 6.1
STEP 6.2
STEP 7STEP 6
2 of 2
ASSEMBLY INSTRUCTIONS
5
4
G
D
A
F
C
2
A
6
C
STEP 3 STEP 4
x 2
D
A
x 2
1
STEP 5
4
G
