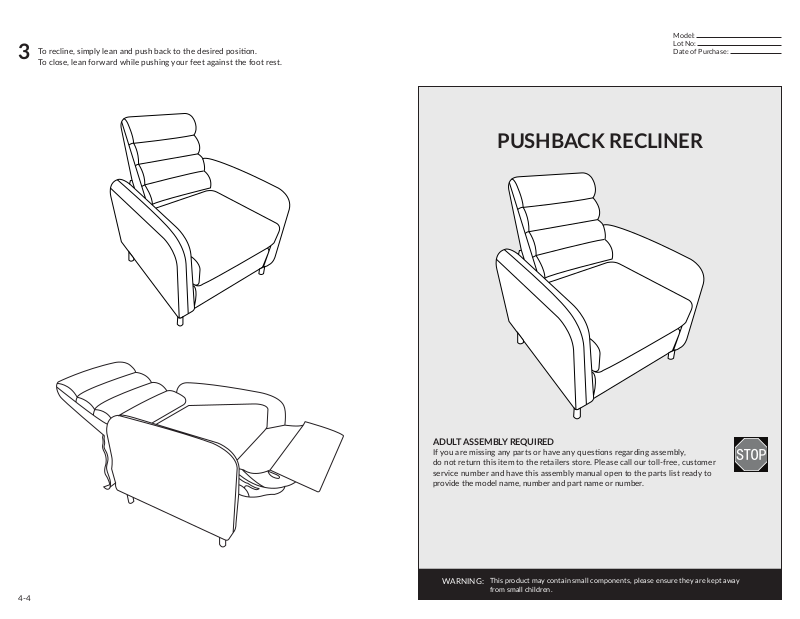

Page 1
To recline, simply lean and push back to the desired posion.
3
To close, lean for ward while pushing your feet against the foot rest.
Model:
Lot No:
Date of Purchase:
PUSHBACK RECLINER
4-4
ADULT ASSEMBLY REQUIRED
If you are missing any par ts or have any quesons regarding assembly,
do not return this item to the retailers store. Please call our toll-free, customer
service number and have this assembly manual open to the parts list ready to
provide the model name, number and part name or number.
WARNING:
This product may contain small components, please ensure they are kept away
from small children.
Page 2
Avoid using sharp object s such as a knife to cut open packing as you may
accidentally damage the upholstery.
ASSEMBLY INSTRUCTIONS PARTS AND HARDWARE
Do not fully ghten bolts unl assembly is complete.
Aach Legs (C) to Seat Deck (B) using Bolt (D). Tighten using provided Allen Key (E).
C
A. Backrest
1x
C. Leg
4x
B. Seat Deck
1x
D. Bolt
16x
B
D
Aach Backrest (A) to Seat Deck (B) by sliding the brackets on the Backrest (A)
2
into the glides on the Seat Deck (B).
E
A
E. Allen Key
1x
2-4 3-4
B
