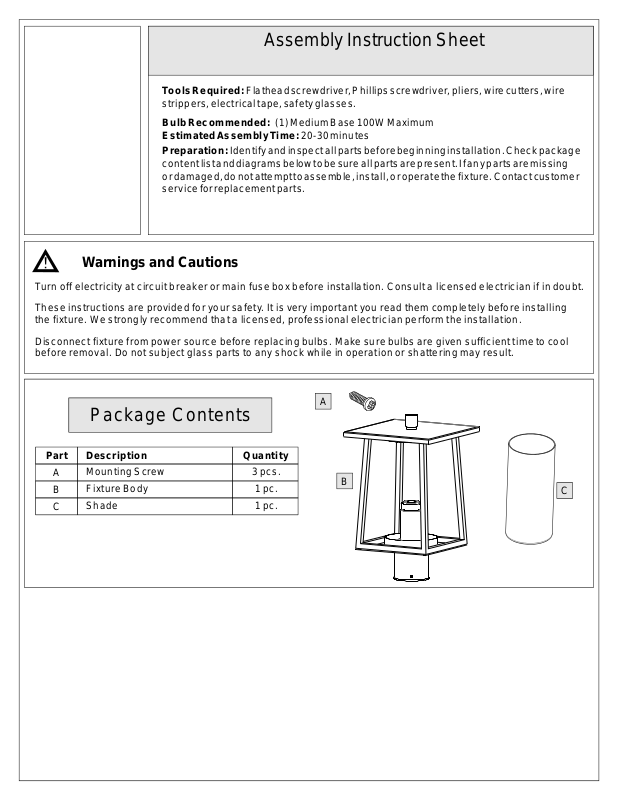

AssemblyInstructionSheet
ToolsRequired: Flatheadscrewdriver,Phillipsscrewdriver,pliers,wirecutters,wire
strippers,electricaltape,safetyglasses.
BulbRecommended: (1)MediumBase100WMaximum
EstimatedAssemblyTime: 20-30minutes
Preparation: Identifyandinspectallpartsbeforebeginninginstallation.Checkpackage
contentlistanddiagramsbelowtobesureallpartsarepresent.Ifanypartsaremissing
ordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomer
serviceforreplacementparts.
WarningsandCautions
Turnoffelectricityatcircuitbreakerormainfuseboxbeforeinstallation.Consultalicensedelectricianifindoubt.
Theseinstructionsareprovidedforyoursafety.Itisveryimportantyoureadthemcompletelybeforeinstalling
thefixture.Westronglyrecommendthatalicensed,professionalelectricianperformtheinstallation.
Disconnectfixturefrompowersourcebeforereplacingbulbs.Makesurebulbsaregivensufficienttimetocool
beforeremoval.Donotsubjectglasspartstoanyshockwhileinoperationorshatteringmayresult.
A
PackageContents
Part Description
A
B
C
MountingScrew
FixtureBody
Shade
Quantity
3pcs.
1pc.
1pc.
B
C
Page 2
FINISH:MYSTICBLACK
9.5” Sq.
4.5” Dia.
16”
1
10.5”
(1)100WMedium
BaseBulb
(NotSupplied)
PARTNUMBER
1
NOTE:ALLDIMENSIONSAREROUNDEDUPTOTHENEAREST1/2"
REPLACEMENTPARTDESCRIPTION
GLASSCLEARHAMMERED
REQ.NO.
1
2of5
Page 3
AssemblyInstructionSheet#IS-LDG9009K
STEP1RemovetheCage-
A.RemovetheCagefromtheFixtureBody(B)by
unscrewingtheLockScrewsonthebottomofthe
fixture.
ForStylesLDG9009K
Cage
Socket
Assembly
Figure1
Lock
Screw
STEP2Install- Shade
A.RemovetheSocketSpacerandtheSocketCollarfrom
theSocket.
B.PlaceShade(C)overtheSocketandsecurewiththe
SocketSpacer.Handtightenuntilsnug.
C.ThreadtheSocketCollarontotheSocketandhand
tightenuntilsnug.
STEP3- InstallBulb
A.Thisfixtureusesstandardbulbwithamediumscrewbase.
Maximum100watts.
B.Insertbulbandscrewsnuglyintoplace.
Bulb
Socket
SocketCollar
SocketSpacer
Figure2
Shade
Socket
ShadeHolder
SocketAssembly
Figure3
3of5
Page 4
AssemblyInstructionSheet
STEP4InstallCage-
A.PlacetheCagebackontotheSocketAssemblyand
securewiththeLockScrews.Handtightenuntilsnug.
STEP5DrillPilotHolesonPost-
A.CarefullyfitthePostFitterovertheendofthePost(not
supplied),makingsurethePostFitterisfullyseated.
B.Markthedrillpointforthe(3)MountingScrews,using
(3)MountingHolesasreference.Aftermarkinghole
locations,removefixturefrompostanddrill1/16” pilot
holesforscrews.
LockScrew
PostFitter
Figure4
Cage
MountingHole
SocketAssembly
Hole
Post
Figure5
4of5
Page 5
AssemblyInstructionSheet
STEP6MakeWireConnections-
A.Usestandardwireconnectorstomakeallwire
connections.(Connectorsarenotincludedwithfixture.)
Stripandpreparewireendsaccordingtoinstructions
suppliedwithconnectors.
B.ConnectWhiteSupplyWirefromthePosttoWhiteWire
fromfixture.
C.ConnectBlack(orRed)SupplyWirefromthePostto
BlackWirefromfixture.
D.ConnectGroundWirefromthePosttoGroundWirefrom
fixture.
E.Twistconnectorsuntilwiresaretightlyjoinedtogether.
F.Wrapeachconnectionwithapprovedelectricaltapeand
carefullystuffalltheconnectedwiresintothePost.
Whitewirefromsupply Whitewirefromfixture
Figure6
Post
Blackwirefromsupply
(orRed)
Groundwirefromsupply Groundwirefromfixture
Figure7
Blackwirefromfixture
STEP7- AttachFixtureBodytoPost
A.Coatthetop1”ofthePostwithClearSiliconeCaulk
(notsupplied)andpositionthePostFitterontothePost.
Besuretoseatitcompletely,aligningtheholesinthe
Fitterwiththe1/16” PilotHolesdrilledintothePost.
B.SecuretheFixturetoPostwith(3)MountingScrews.
Yourfixtureisnowassembledandreadytouse.
Enjoy!
MountingScrew
PostFitter
Mounting
Hole
Post
5of5
Figure8
